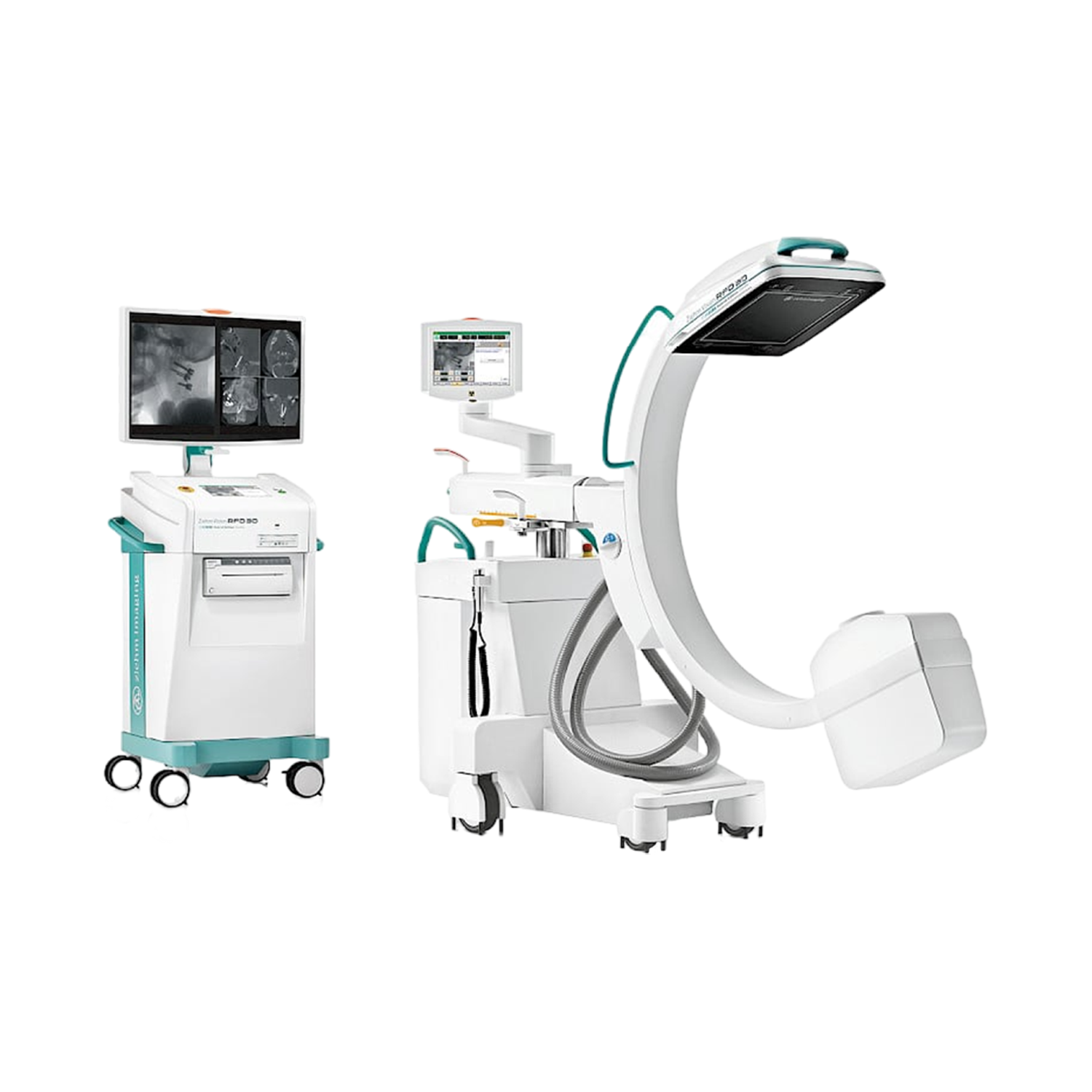

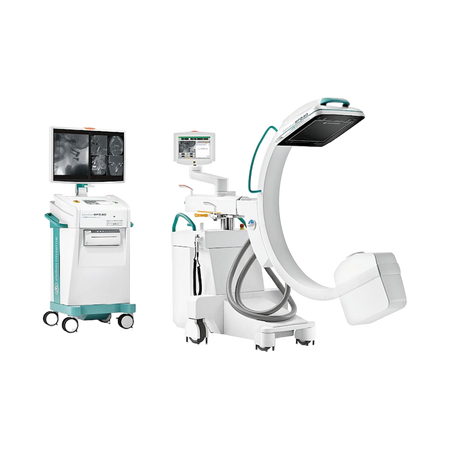

Ziehm Vision RFD 3D Imaging C-Arm System

Out of stock
LEAD TIME: Estimated Ship Time: 10-14 Days

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Healthcare providers face the challenge of reducing costs while addressing the needs of an aging population, enhancing clinical outcome accuracy, and minimizing X-ray exposure during surgeries. The Ziehm Vision RFD 3D C-arm emerges as a solution, striking a balance between cost efficiency and improved patient care, leading to shorter hospital stays and the adoption of less invasive procedures. This innovative mobile 3D C-arm enhances surgical outcomes and patient satisfaction, while also optimizing costs. Leveraging over a decade of experience in 3D imaging, the Ziehm Vision RFD 3D incorporates advanced CMOS technology, combining 2D and 3D functionalities for superior intraoperative control. This reduces the necessity for postoperative CT scans and subsequent corrective surgeries, thereby cutting costs.

Ideal for high-end orthopedic, trauma, spinal, maxillofacial, and cochlear interventions, the Ziehm Vision RFD 3D is equipped with the Ziehm NaviPort interface, facilitating seamless integration with navigation and robotic-guidance systems from leading providers.

Now available in the CMOSline premium edition, all CMOSline systems feature a Ziehm Imaging CMOS detector and innovative Beam Filtration technology for dose reduction. This combination ensures exceptional image quality at lower doses.


  • Move to the forefront of mobile 3D imaging with CT-like image quality.
  • Extend your intraoperative imaging capabilities for 2D, 3D and multidisciplinary use.
  • Master your quality outcome with image-guided surgery and workflow wizards.
  • Reduce exposure significantly with benchmark dose settings and hardware improvements.
  • Latest flat-panel technology for CT-like image quality.
  • More distinguishable anatomy in 3D reconstructions with ZIR (Ziehm Iterative Reconstruction).
  • Different volume sizes for the ideal resolution with 320³ voxel or 512³ voxel (CMOS).
  • Patented SmartScan technology for complete 3D information.
  • Manufacturer: ZIEHM
  • Part Number (OEM): VISION RFD 3D
  • Category: Imaging
  • Accessories: None
  • Functional Condition: New/Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

  • Imaging Technology:
    • CMOS, flat-panel, 31 cm x 31 cm
    • a-Si, flat-panel, 30 cm x 30 cm

  • 3D Volume Size / Voxel (CMOS):
    • 16 cm x 16 cm x 16 cm; (320)³ / (512)³ voxel
    • optional: 10 cm x 10 cm x 10 cm; (320)³ / (512)³ voxel
    • optional: 19.8 cm x 19.6 cm x 18.0 cm; (320)³ / (512)³ voxel

  • 3D Volume Size / Voxel (a-Si):
    • 16 cm x 16 cm x 16 cm; (320)³ voxel
    • optional: 10 cm x 10 cm x 10 cm; (320)³ voxel
    • optional: 19.8 cm x 19.6 cm x 18.0 cm; (320)³ voxel

  • Detector Resolution:
    • CMOS: 3 k x 3 k
    • a-Si: 1.5 k x 1.5 k

  • Power Generator:
    • 25 kW, pulsed monoblock generator

  • Ziehm Usability Concept:
    • Available
    • The Usability Concept includes a variety of hard- and software features. Due to regulatory reasons, the availability of each feature may vary. Please contact your local Ziehm Imaging sales representative for detailed information.

  • SmartDose:
    • Available
    • In clinical practice, the use of SmartDose may reduce patient dose depending on the clinical task, patient size, anatomical location, and clinical practice. A consultation with a radiologist and a physicist should be made to determine the appropriate dose to obtain diagnostic image quality for the particular clinical task.

  • Advanced Active Cooling (AAC):
    • Available

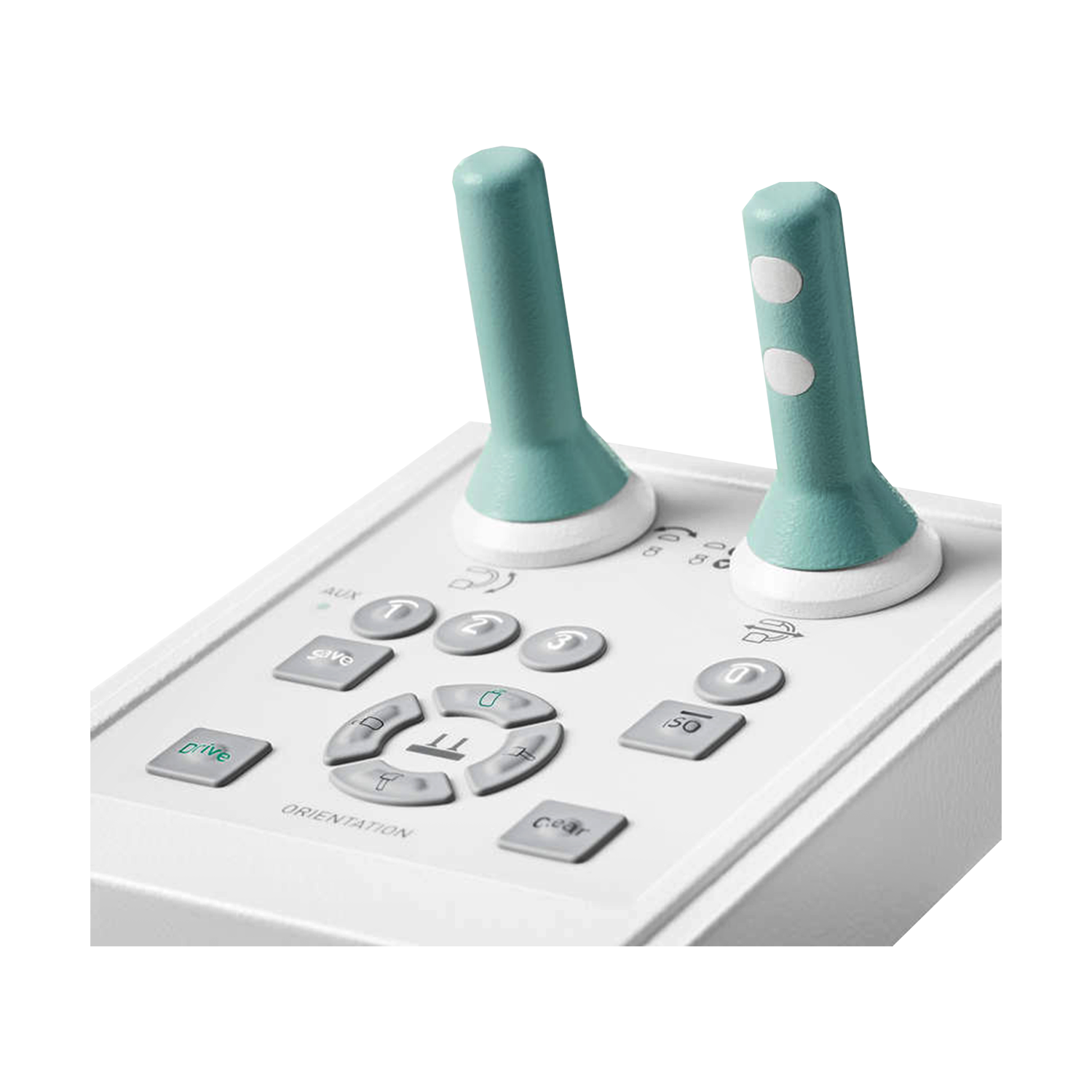

  • Motorization:

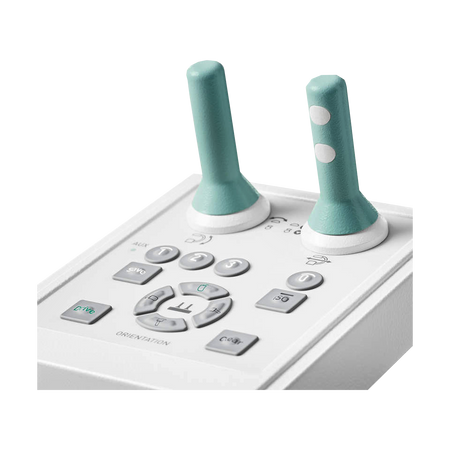

    • Full control of the 4 motorized axes

  • 3D Scanned Information:
    • 2D: 165 degrees
