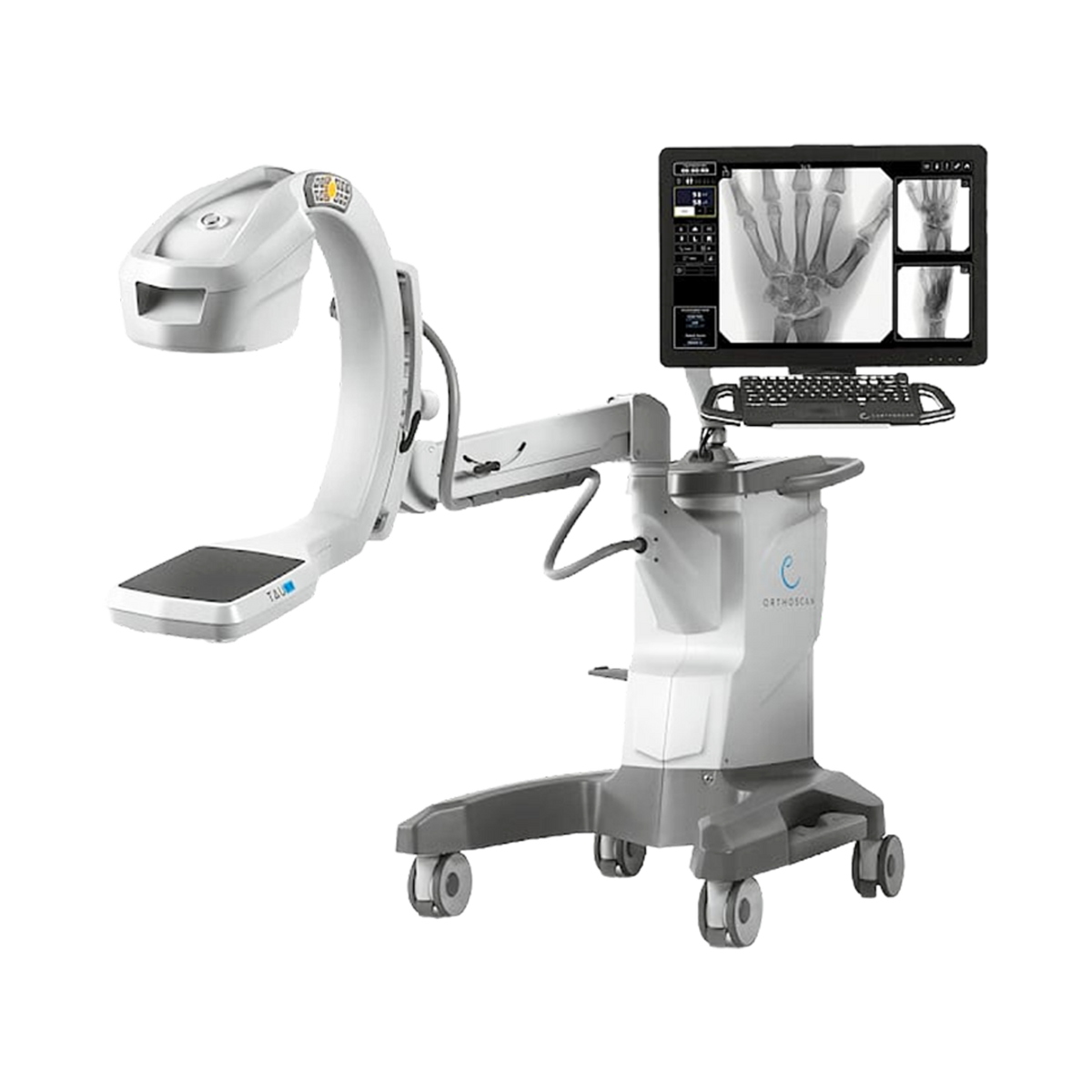

Ziehm Orthoscan TAU 1515 Mini C-Arm System

SKU: EN-ZIEHM-TAU-1515
(0)
Condition
Category
LEAD TIME: Estimated Ship Time: 10-14 Days
PACKAGING: 1
WARRANTY: 90 Days
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

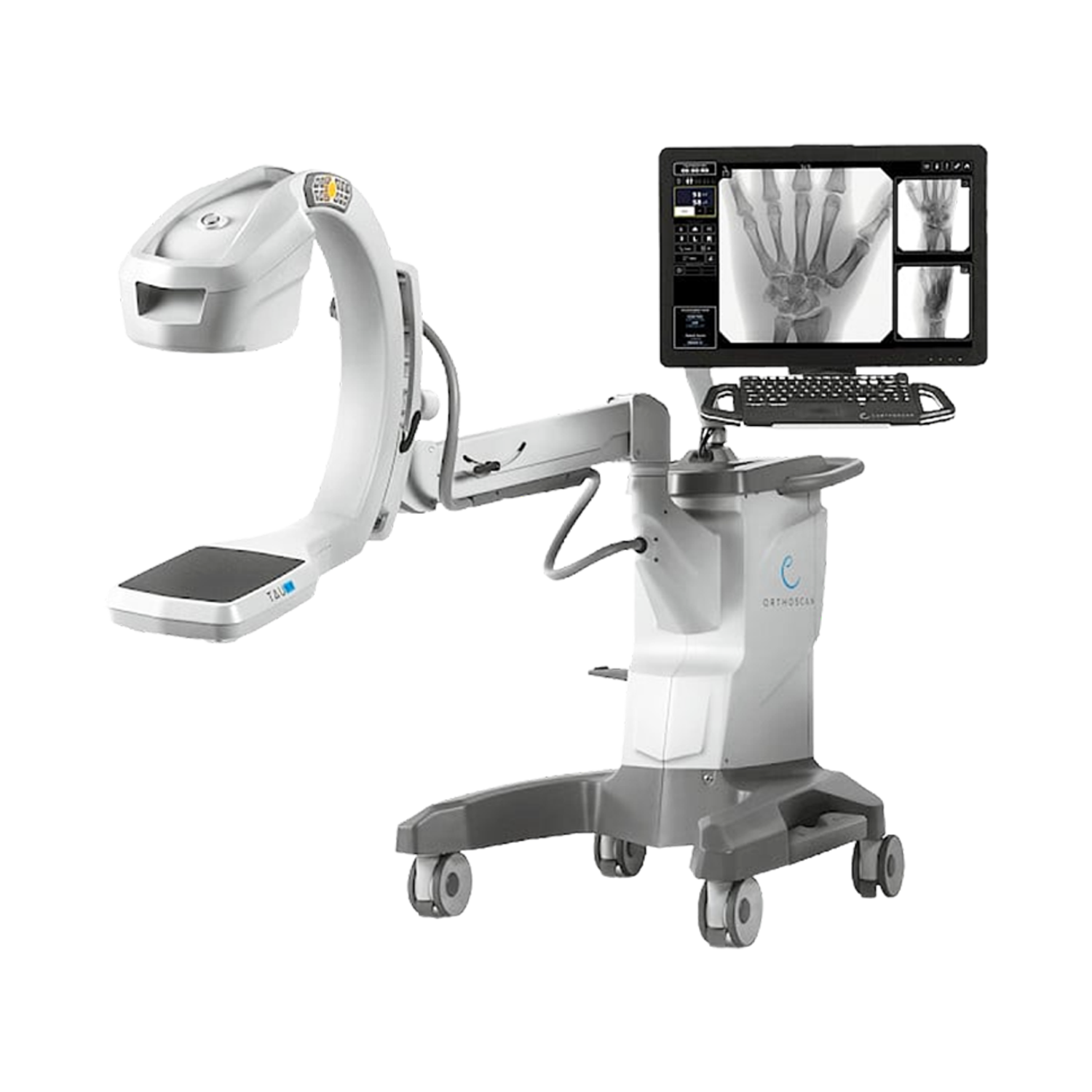

For those seeking advanced capabilities, the TAU 1515 offers the innovative features synonymous with Orthoscan's mini C-arm solutions. With a larger detector and live imaging, it provides the flexibility to visualize anatomy as required. Pulsed fluoroscopy and other dose-saving features minimize radiation exposure without compromising image quality. Additionally, its pediatric indication, a first in the industry, expands the patient base.

The Orthoscan TAU 1515 introduces new possibilities for your facility and patients, empowering you to deliver enhanced care and imaging precision.

FEATURES:

  • The Orthoscan TAU 1515 mini C-arm system is equipped with the following features:
    • Imaging Technology:
      • It utilizes a flat-panel, 15 cm x 15 cm imaging technology.
    • Image Resolution:
      • The system provides an image resolution of 1.4 k x 1.4 k.
    • Viewing Option:

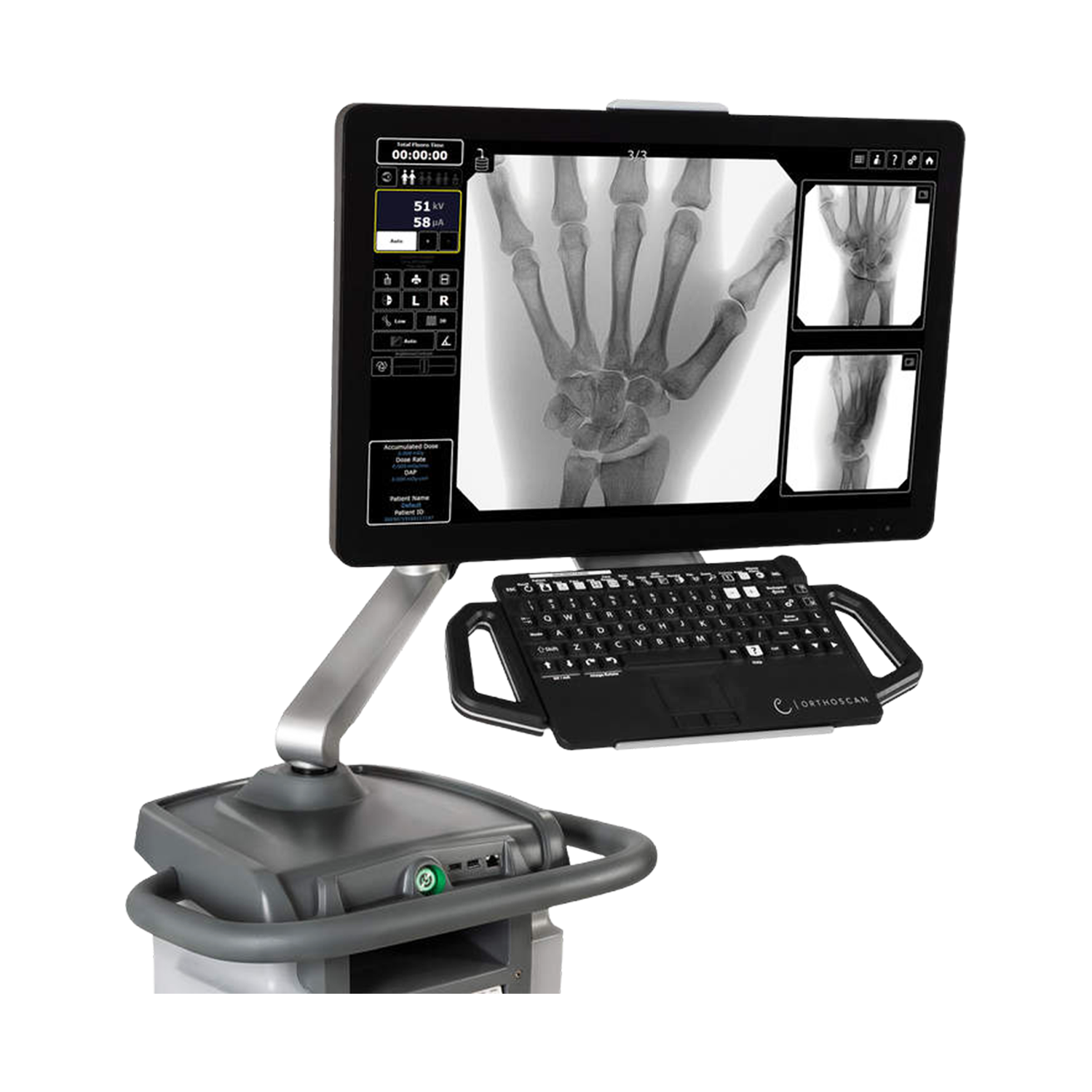

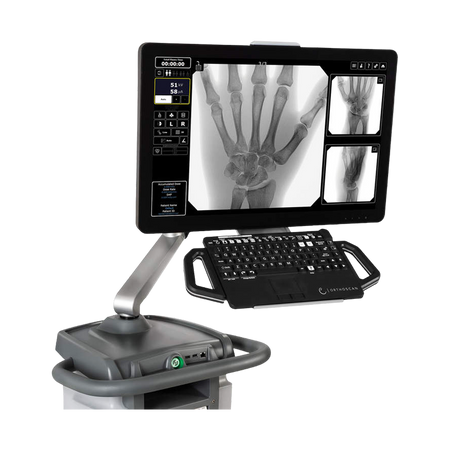

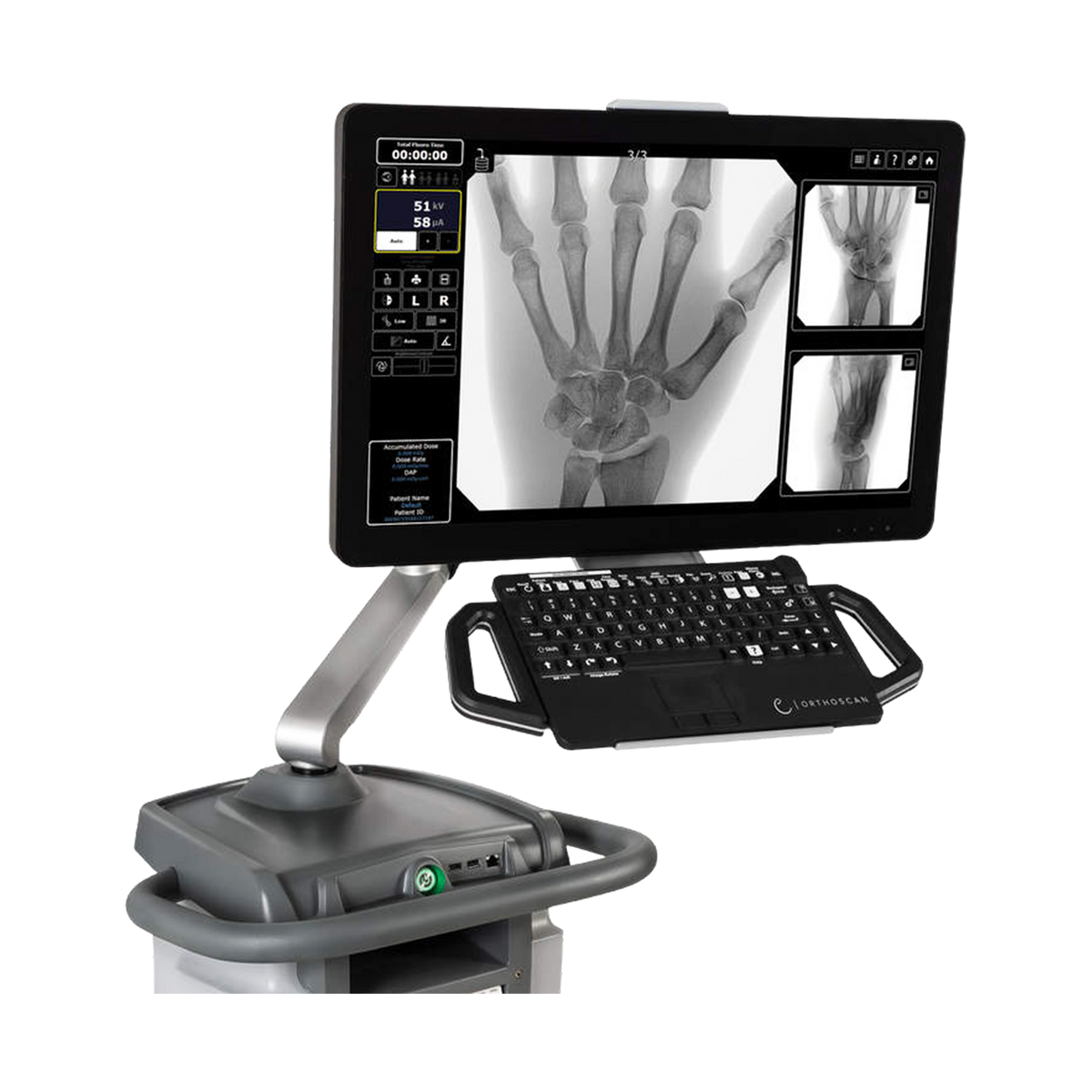

      • It includes a high-resolution 27" touchscreen monitor for clear image display.
    • Portability:
      • The TAU 1515 is designed to be small and lightweight, with a footprint of 73.7 cm x 83.8 cm and a weight of 215.5 kg.
    • Orbital Movement:
      • The C-arm offers an orbital movement of 160 degrees.
    • Dose-Saving Features:
      • The system incorporates pulsed fluoroscopy and other dose-saving features to reduce radiation exposure without sacrificing image quality.
    • Pediatric Indication:
      • The TAU 1515 is the first in the industry to have a pediatric indication, broadening the patient base for its use.

  • These features collectively make the Orthoscan TAU 1515 an advanced and user-friendly mini C-arm solution, suitable for various medical imaging applications.

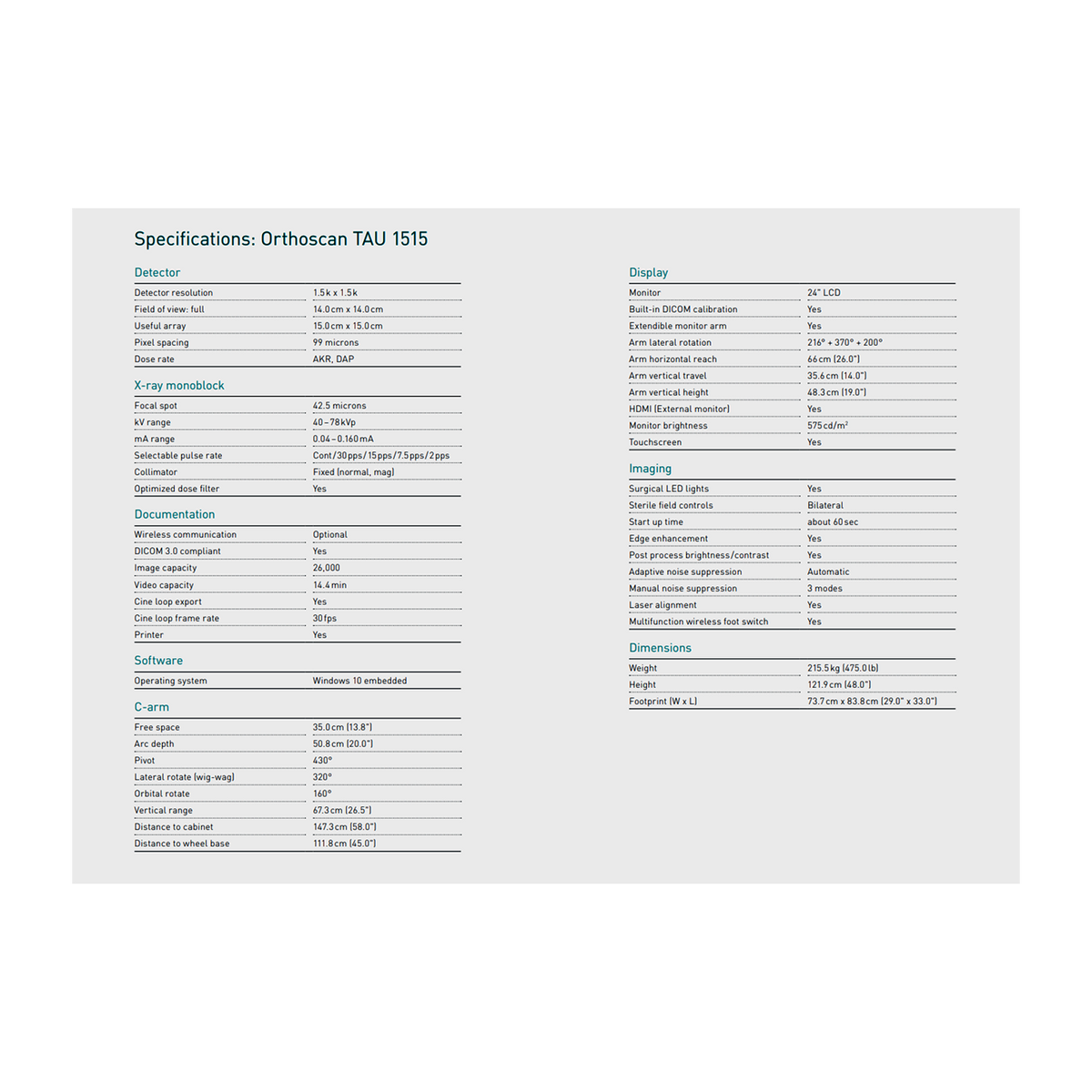

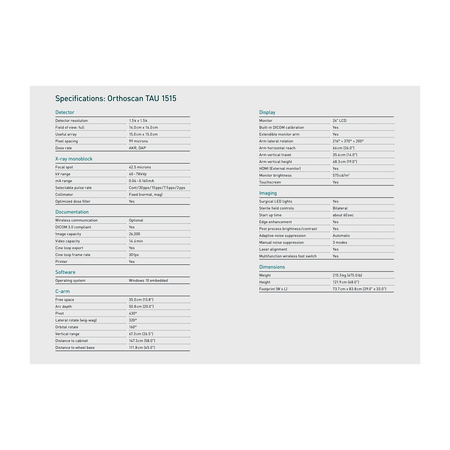

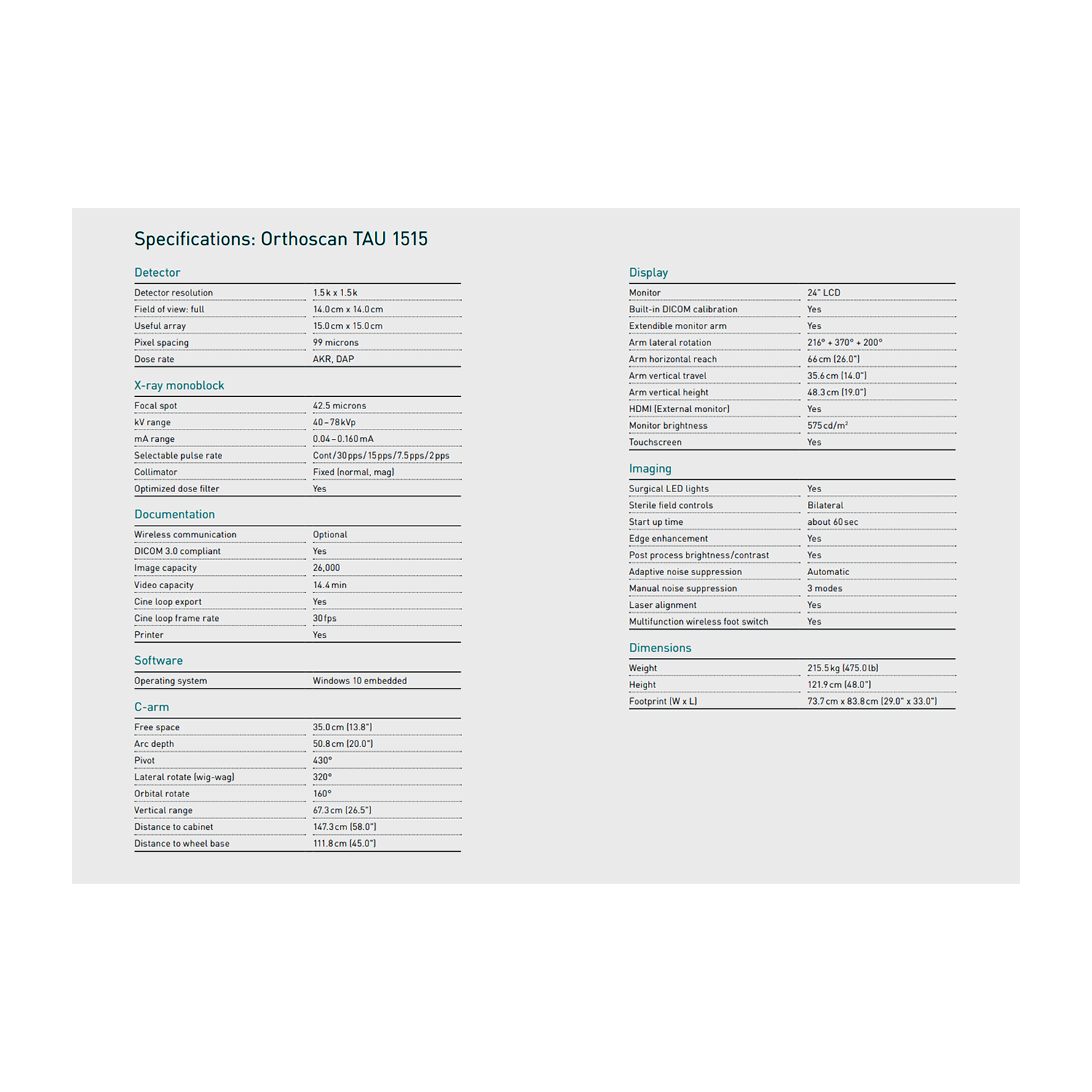

SPECIFICATIONS:
  • Manufacturer: ZIEHM
  • Part Number (OEM): ORTHOSCAN TAU 1515
  • Category: Imaging
  • Accessories: None
  • Functional Condition: New/Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

  • Detector:
    • Detector Resolution:
      • 1.5 k x 1.5 k
    • Field of View Full:
      • 14.0 cm x 14.0 cm
    • Useful Array:
      • 15.0 cm x 15.0 cm
    • Pixel Spacing:
      • 99 microns
    • Dose Rate:
      • AKR, DAP

  • X-Ray Monoblock:
    • Focal Spot:
      • 42.5 microns
    • kV Range:
      • 40 – 78 kVp
    • mA Range:
      • 0.04 – 0.160mA
    • Selectable Pulse Rate:
      • Cont/30pps /15pps /7.5pps /2pps
    • Collimator:
      • Fixed (normal, mag)
    • Optimized Dose Filter:
      • Yes

  • Documentation:
    • Wireless Communication:
      • Optional
    • DICOM 3.0 Compliant:
      • Yes
    • Image Capacity:
      • 26,000
    • Video Capacity:
      • 14.4min
    • Cine Loop Export:
      • Yes
    • Cine Loop Frame Rate:
      • 30 fps
    • Printer:
      • Yes

  • Software:
    • Operating System Windows 10 Embedded

  • C-Arm:
    • Free Space:
      • 35.0 cm (13.8")
    • Arc Depth:
      • 50.8 cm (20.0")
    • Pivot:
      • 430°
    • Lateral Rotate (wig-wag):
      • 320°
    • Orbital Rotate:
      • 160°
    • Vertical Range:
      • 67.3 cm (26.5")
    • Distance to Cabinet:
      • 147.3 cm (58.0")
    • Distance to Wheel Base:
      • 111.8 cm (45.0")

  • Display:
    • Monitor:
      • 24" LCD
    • Built-in DICOM Calibration:
      • Yes
    • Extendible Monitor Arm:
      • Yes
    • Arm Lateral Rotation:
      • 216° + 370° + 200°
    • Arm Horizontal Reach:
      • 66 cm (26.0")
    • Arm Vertical Travel:
      • 35.6 cm (14.0")
    • Arm Vertical Height:
      • 48.3 cm (19.0")
    • HDMI (External Monitor):
      • Yes
    • Monitor Brightness:
      • 575 cd/m2
    • Touchscreen:
      • Yes

  • Imaging:
    • Surgical LED Lights:
      • Yes
    • Sterile Field Controls:
      • Bilateral
    • Start Up Time:
      • about 60 sec
    • Edge Enhancement:
      • Yes
    • Post Process Brightness/Contrast:
      • Yes
    • Adaptive Noise Suppression:
      • Automatic
    • Manual Noise Suppression:
      • 3 modes
    • Laser Alignment:
      • Yes
    • Multifunction Wireless Foot Switch:
      • Yes

  • Dimensions:
    • Weight:
      • 215.5 kg (475.0lb)
    • Height:
      • 121.9 cm (48.0")
    • Footprint:
      • (W x L) 73.7 cm x 83.8 cm (29.0" x 33.0")
