Ziehm Orthoscan TAU 1512 Mini C-Arm System

SKU: EN-ZIEHM-TAU-1512
(0)
Condition
Category
LEAD TIME: Estimated Ship Time: 10-14 Days
PACKAGING: 1
WARRANTY: 90 Days
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

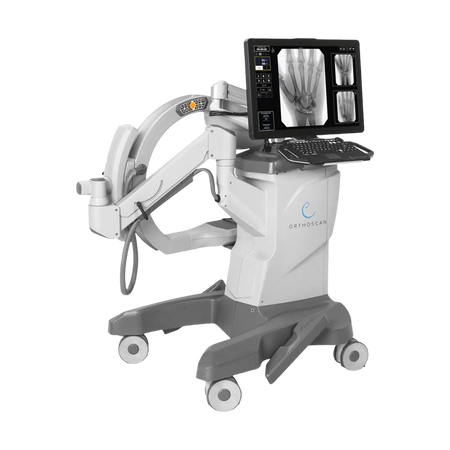

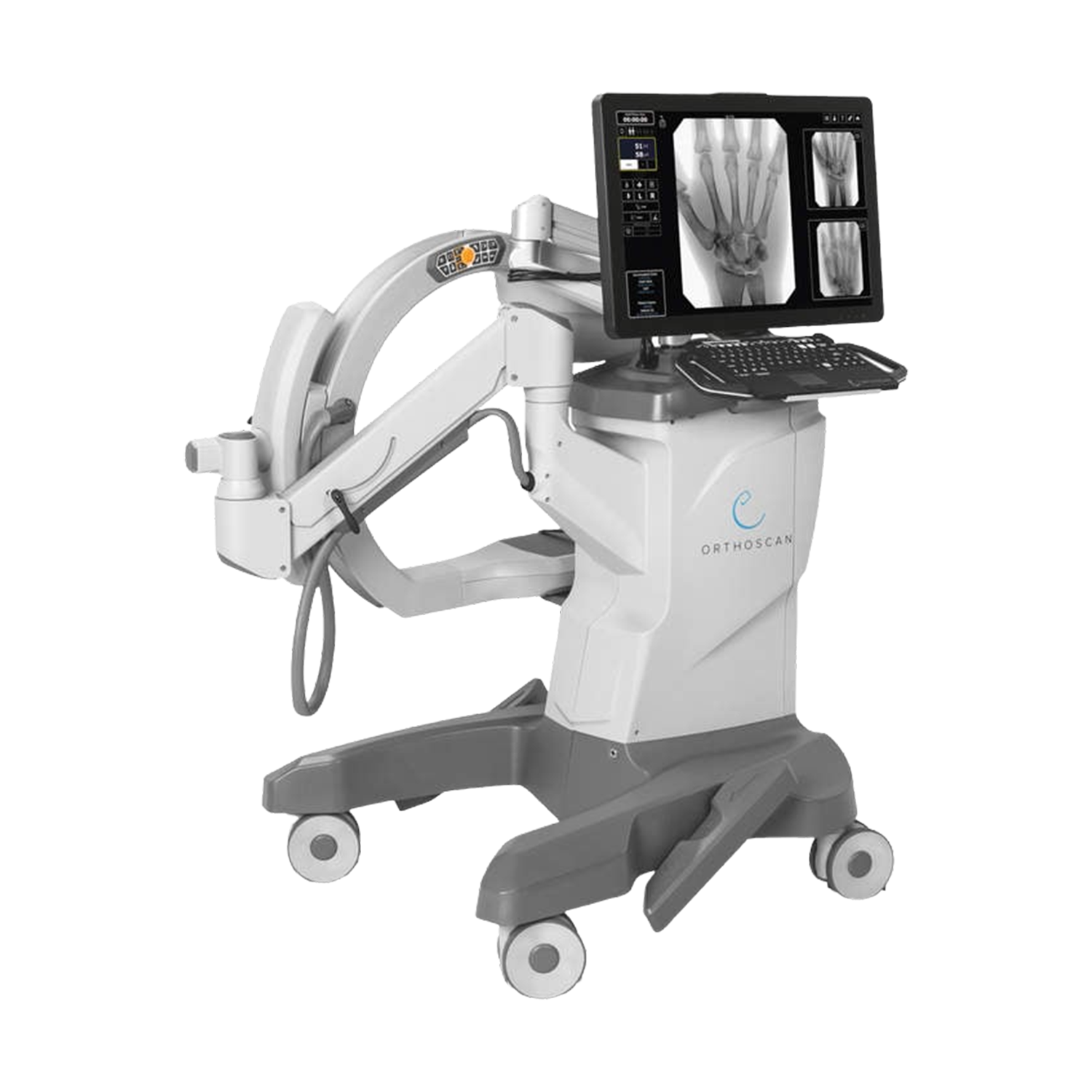

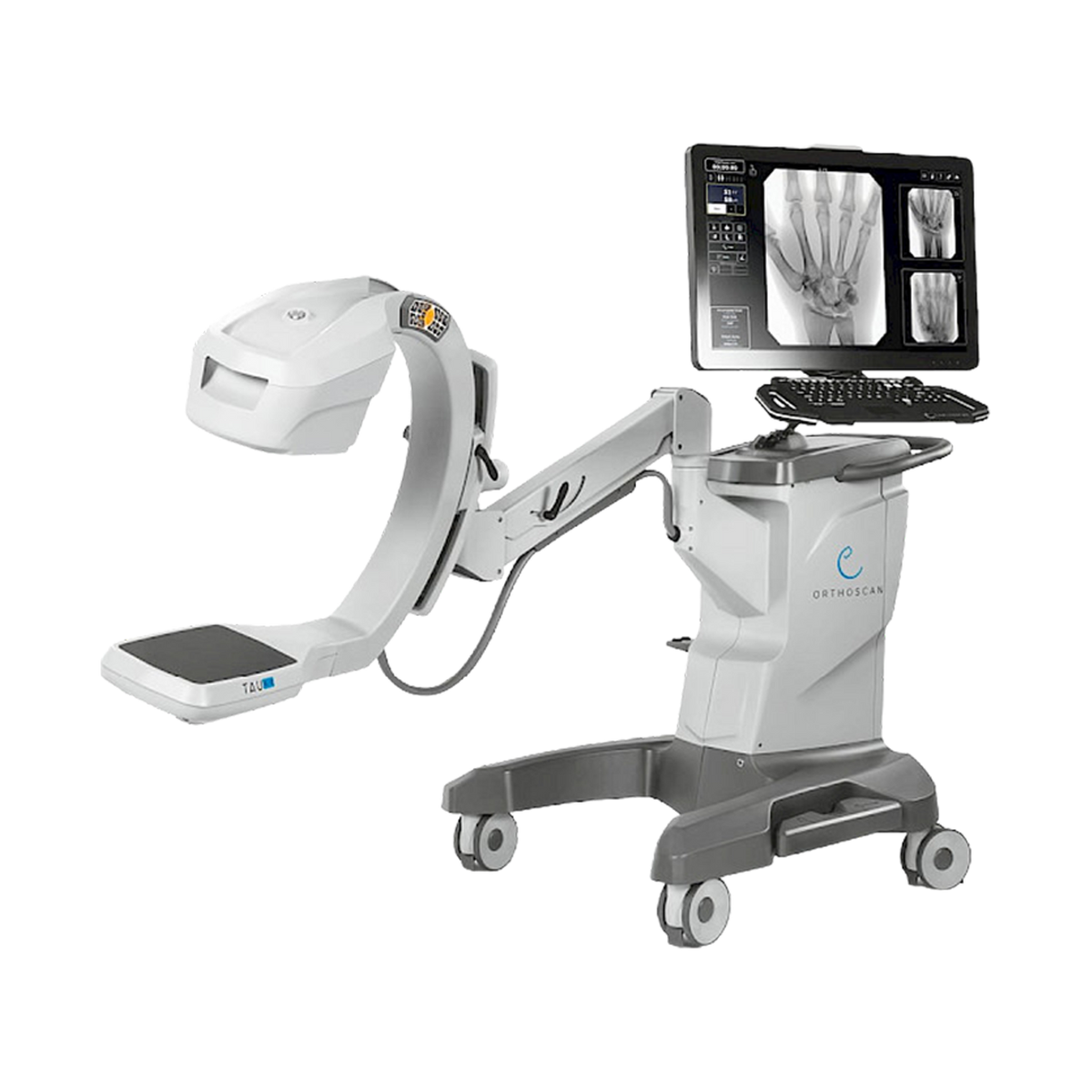

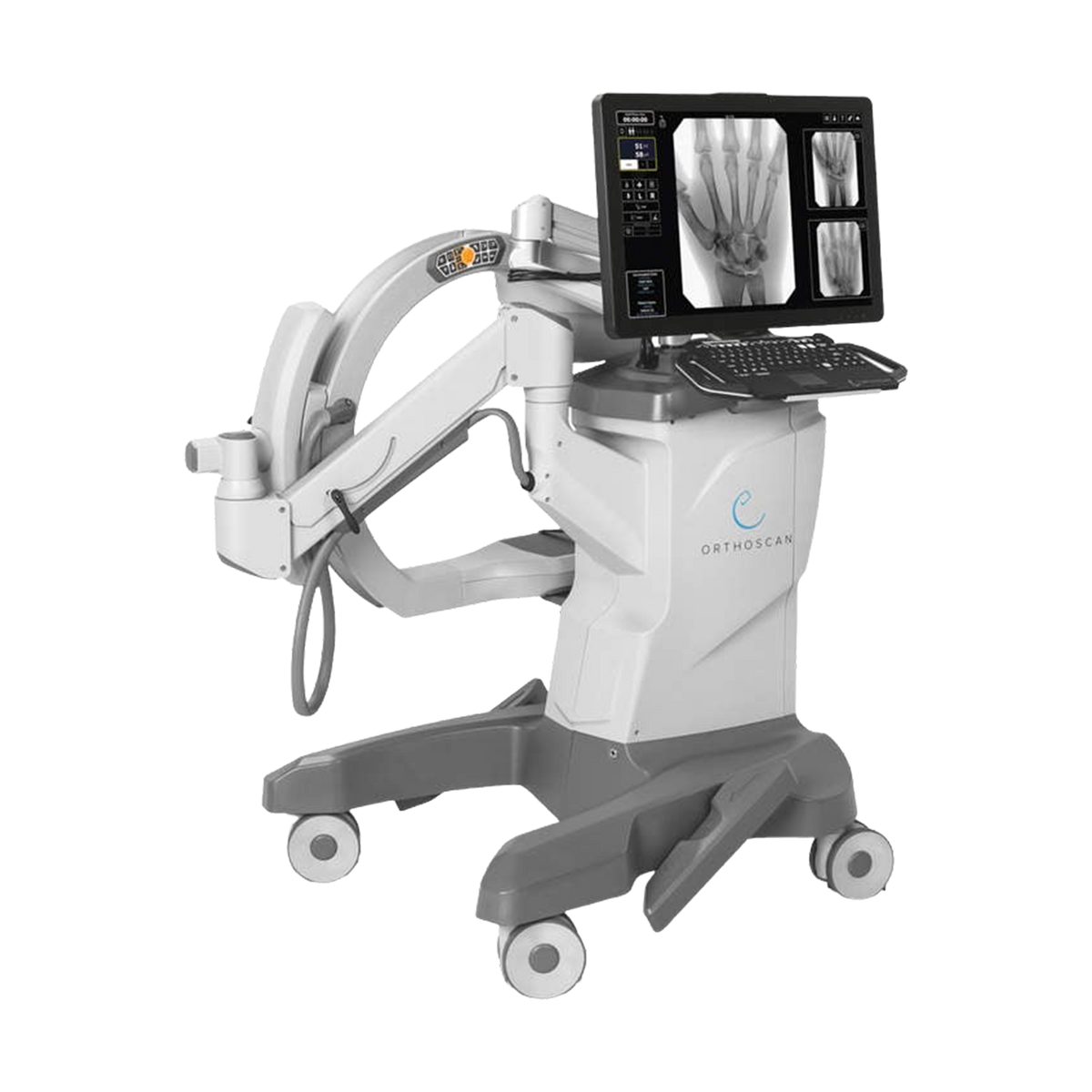

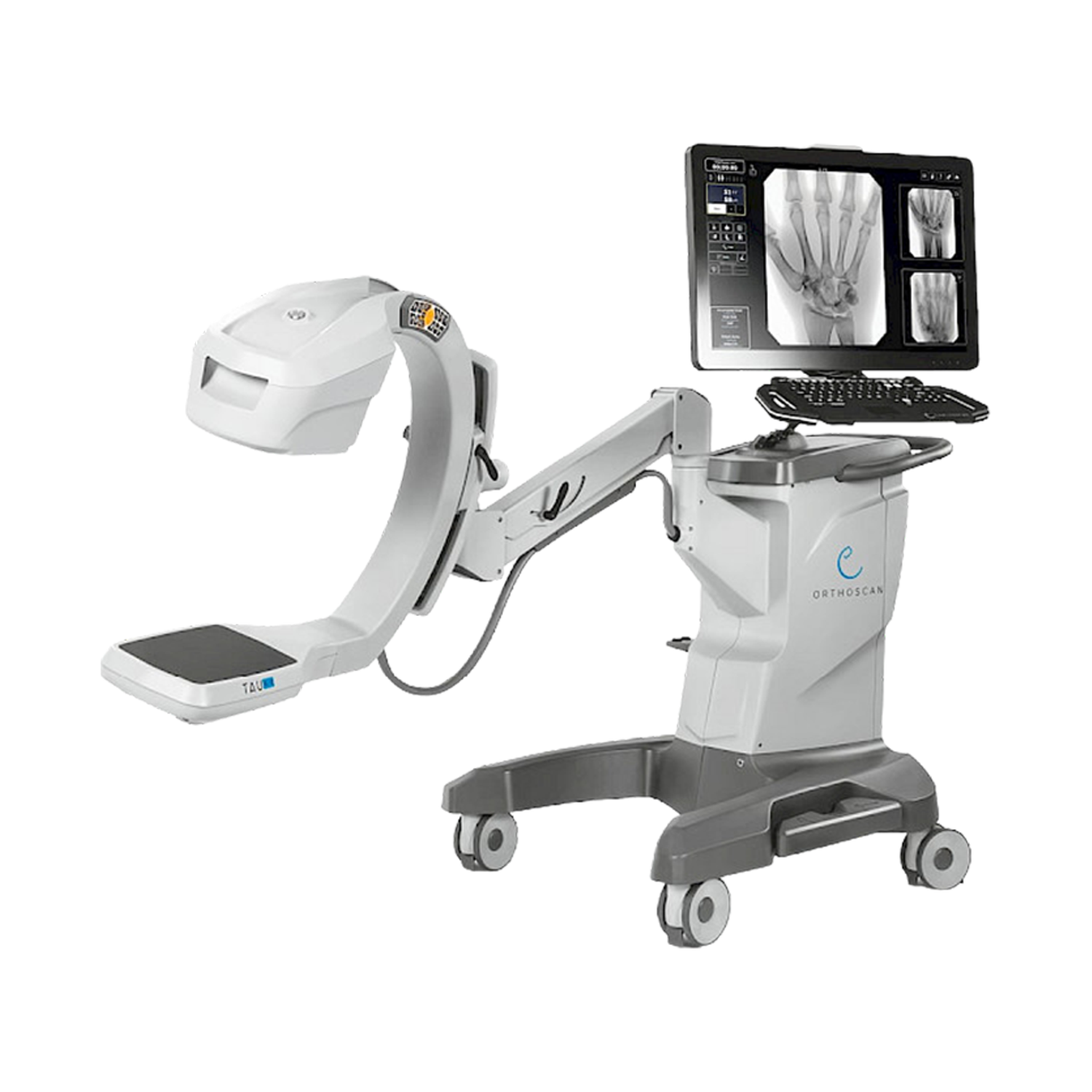

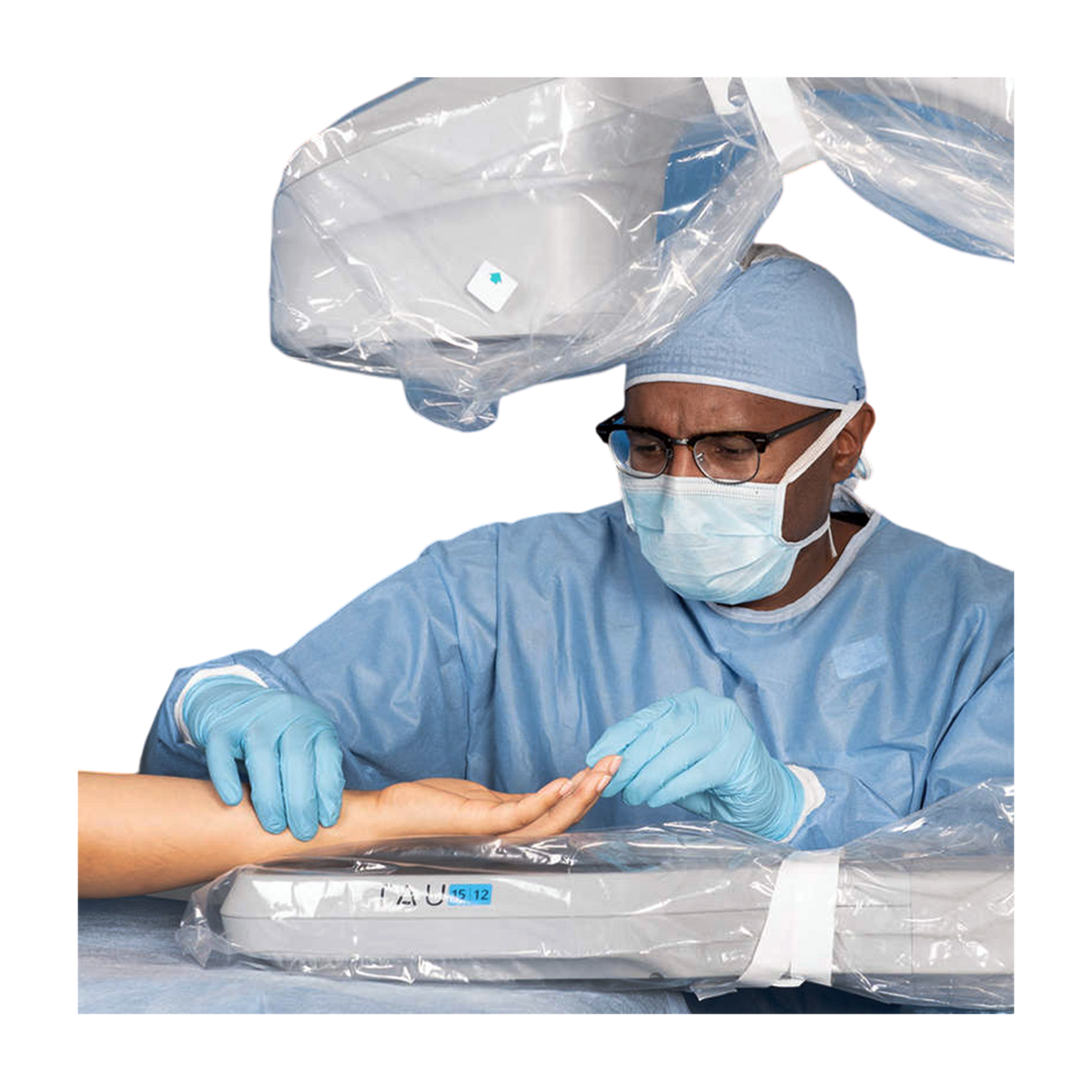

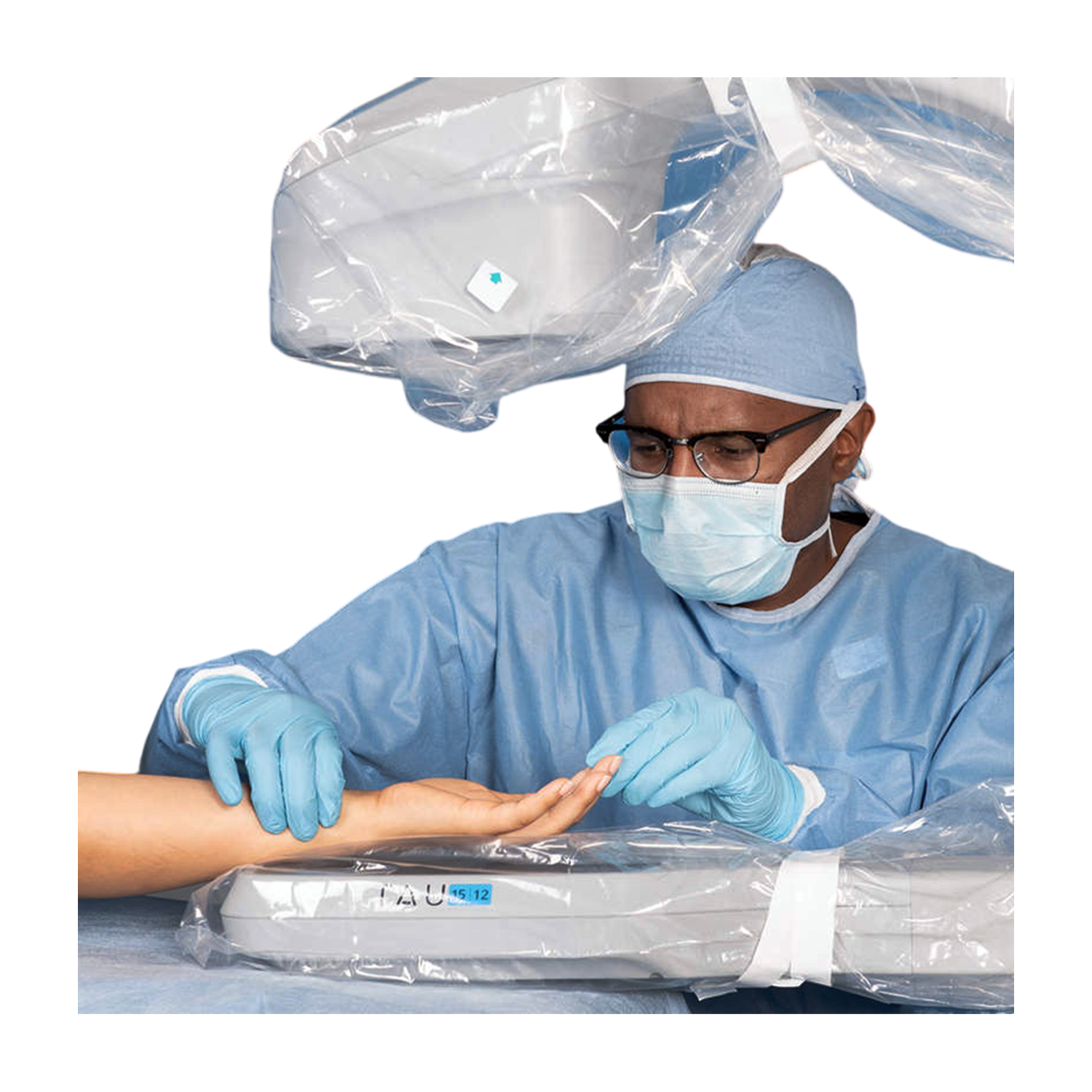

Tailored to meet your requirements, the Orthoscan TAU 1512 ushers in the next era of mini C-arms. This innovative system integrates exclusive dose-saving capabilities, an advanced Orthotouch interface, and enhanced articulation and arm design, all within a compact and lightweight form factor characteristic of Orthoscan's mini C-arm solutions. With the Orthoscan TAU 1512, you can attain the quality and performance you seek, all within a package designed to accommodate various budgetary considerations.

FEATURES:

  • The Orthoscan TAU 1512 mini C-arm system is equipped with the following features:
    • Imaging Technology:
      • It utilizes a flat-panel, 15 cm x 12 cm imaging technology.
    • Image Resolution:
      • The system provides an image resolution of 1.4 k x 1.1 k.
    • Viewing Option:
      • It includes a 24" LCD monitor for clear image display.
    • Portability:
      • The TAU 1512 is designed to be small and lightweight, with a footprint of 73.7 cm x 83.8 cm and a weight of 215.5 kg.
    • Orbital Movement:
      • The C-arm offers an orbital movement of 160 degrees.
    • Dose-Saving Features:
      • The system incorporates intelligent dose reduction technology, providing optimal diagnostic image quality while reducing exposure.

  • These features collectively make the Orthoscan TAU 1512 an advanced and user-friendly mini C-arm solution, suitable for various medical imaging applications.

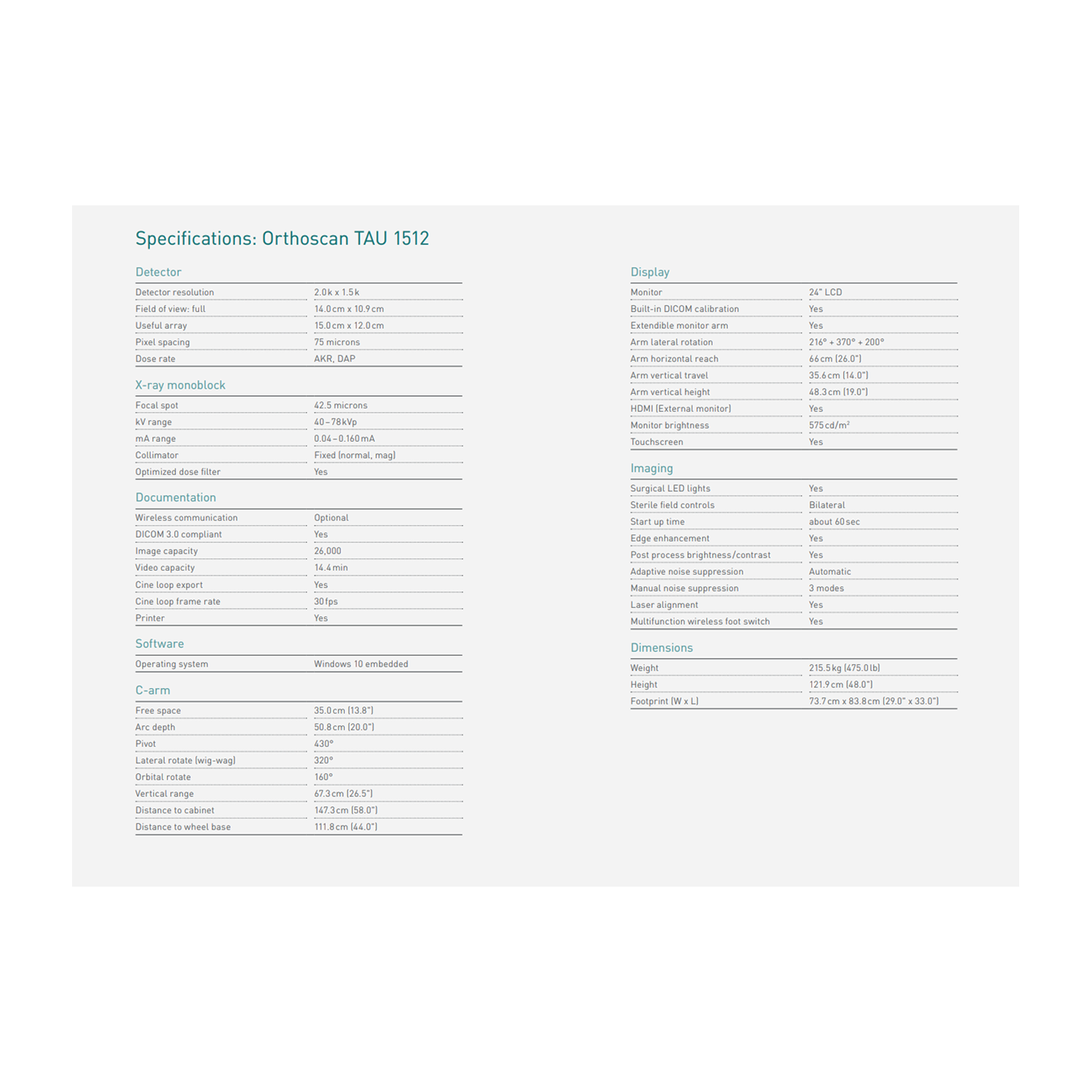

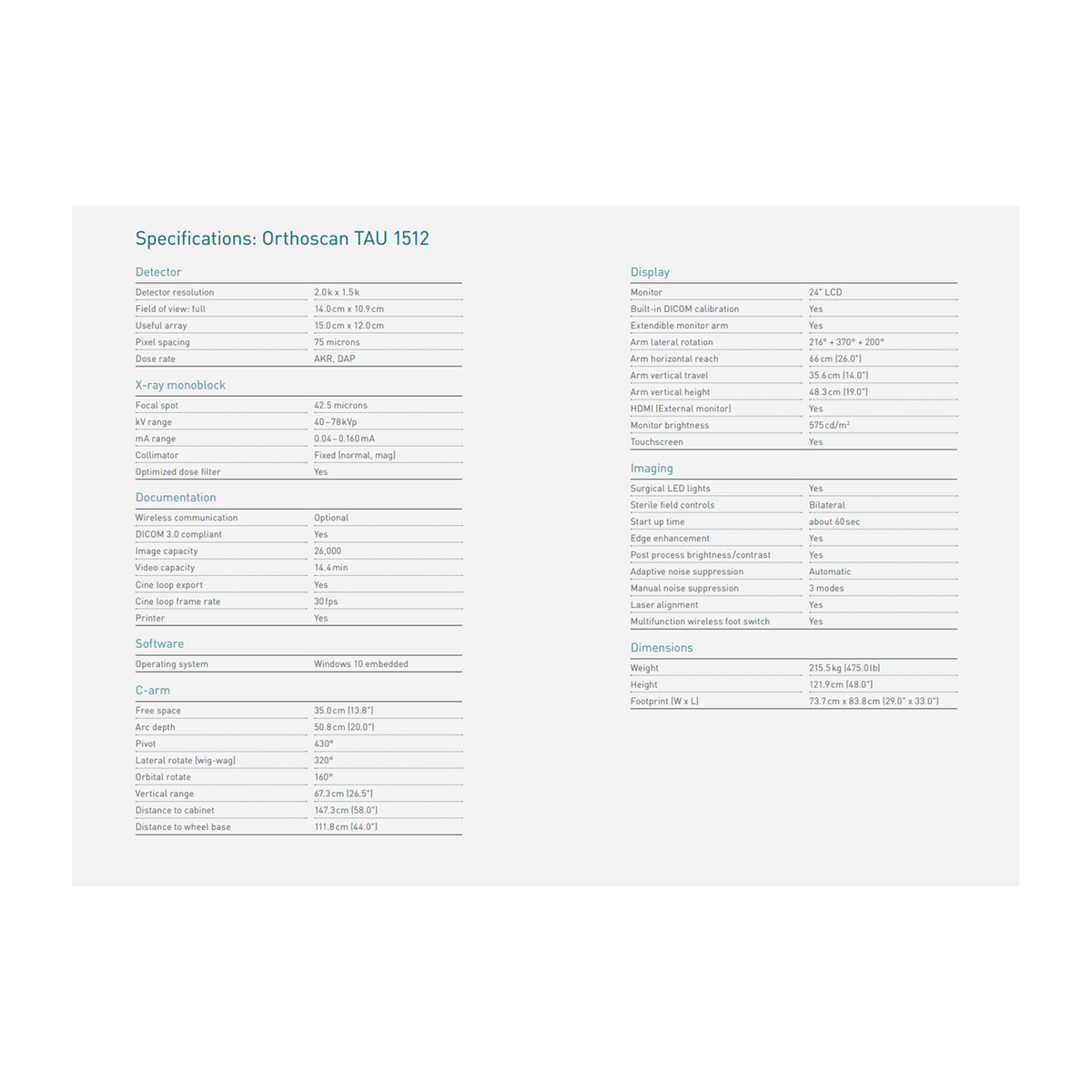

SPECIFICATIONS:
  • Manufacturer: ZIEHM
  • Part Number (OEM): ORTHOSCAN TAU 1512
  • Category: Imaging
  • Accessories: None
  • Functional Condition: New/Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

  • Detector:
    • Detector Resolution:
      • 2.0 k x 1.5 k
    • Field of View Full:
      • 14.0 cm x 10.9 cm
    • Useful Array:
      • 15.0 cm x 12.0 cm
    • Pixel Spacing:
      • 75 microns
    • Dose Rate:
      • AKR, DAP

  • X-Ray Monoblock:
    • Focal Spot:
      • 42.5 microns
    • kV Range:
      • 40 – 78 kVp
    • mA Range:
      • 0.04 – 0.160mA
    • Collimator:
      • Fixed (normal, mag)
    • Optimized Dose Filter:
      • Yes

  • Documentation:
    • Wireless Communication:
      • Optional
    • DICOM 3.0 Compliant:
      • Yes
    • Image Capacity:
      • 26,000
    • Video Capacity:
      • 14.4min
    • Cine Loop Export:
      • Yes
    • Cine Loop Frame Rate:
      • 30 fps
    • Printer:
      • Yes

  • Software:
    • Operating System Windows 10 Embedded

  • C-Arm:
    • Free Space:
      • 35.0 cm (13.8")
    • Arc Depth:
      • 50.8 cm (20.0")
    • Pivot:
      • 430°
    • Lateral Rotate (wig-wag)
      • 320°
    • Orbital Rotate:
      • 160°
    • Vertical Range:
      • 67.3 cm (26.5")
    • Distance to Cabinet:
      • 147.3 cm (58.0")
    • Distance to Wheel Base:
      • 111.8 cm (44.0")

  • Display:
    • Monitor:
      • 24" LCD
    • Built-in DICOM Calibration:
      • Yes
    • Extendible Monitor Arm:
      • Yes
    • Arm Lateral Rotation:
      • 216° + 370° + 200°
    • Arm Horizontal Reach:
      • 66 cm (26.0")
    • Arm Vertical Travel:
      • 35.6 cm (14.0")
    • Arm Vertical Height:
      • 48.3 cm (19.0")
    • HDMI (External Monitor):
      • Yes
    • Monitor Brightness:
      • 575 cd/m2
    • Touchscreen:
      • Yes

  • Imaging:
    • Surgical LED Lights:
      • Yes
    • Sterile Field Controls;
      • Bilateral
    • Start Up Time
      • about 60 sec
    • Edge Enhancement:
      • Yes
    • Post Process Brightness/Contrast:
      • Yes
    • Adaptive Noise Suppression:
      • Automatic
    • Manual Noise Suppression:
      • 3 modes
    • Laser Alignment:
      • Yes
    • Multifunction Wireless Foot Switch:
      • Yes

  • Dimensions:
    • Weight:
      • 215.5 kg (475.0lb)
    • Height:
      • 121.9 cm (48.0")
    • Footprint:
      • (W x L) 73.7 cm x 83.8 cm (29.0" x 33.0")
