VEEVO 800 & 1500 SERIES CONTINUOUS-INTERMITTENT SUCTION REGULATOR
(FITTINGS NOT INCLUDED)

DESCRIPTION:

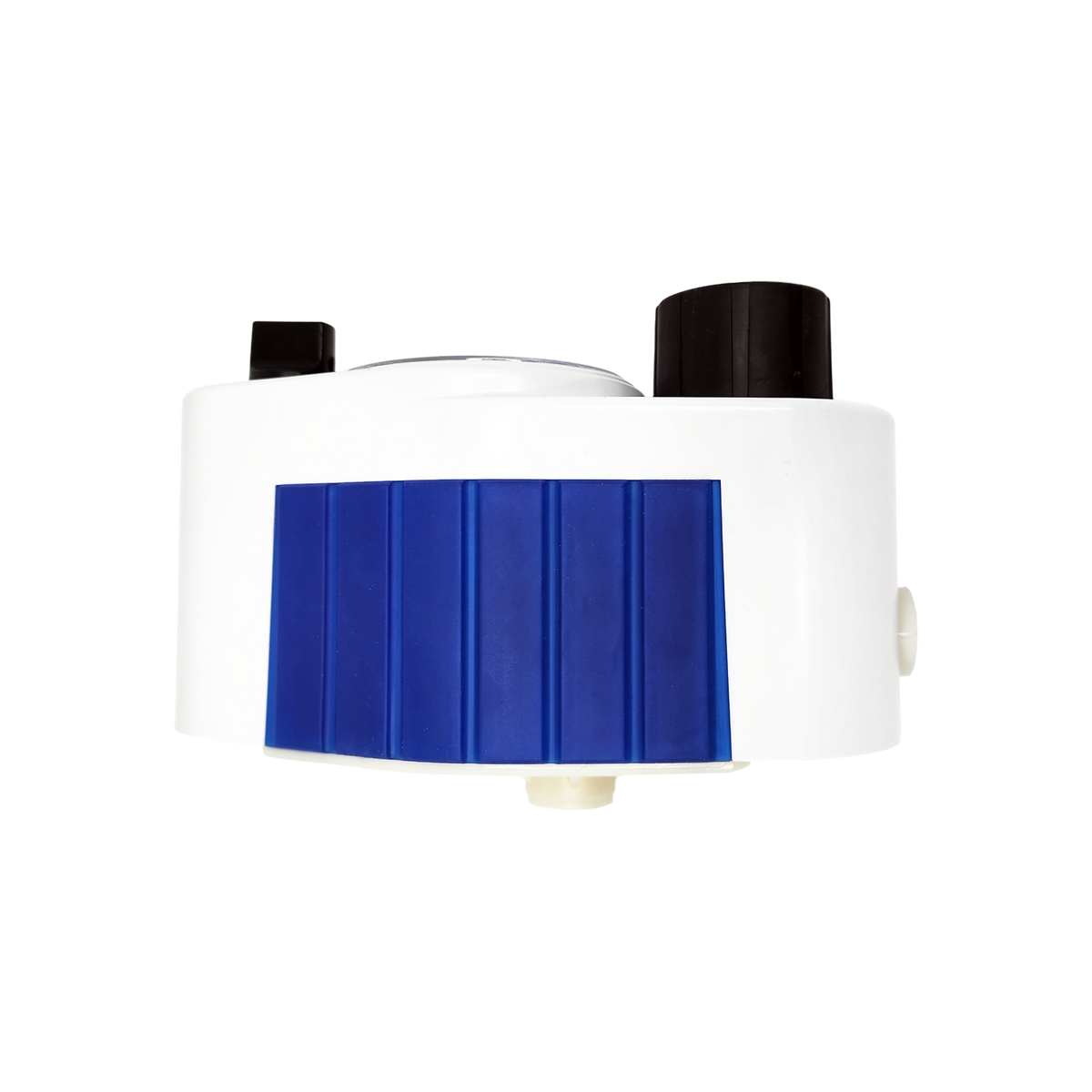

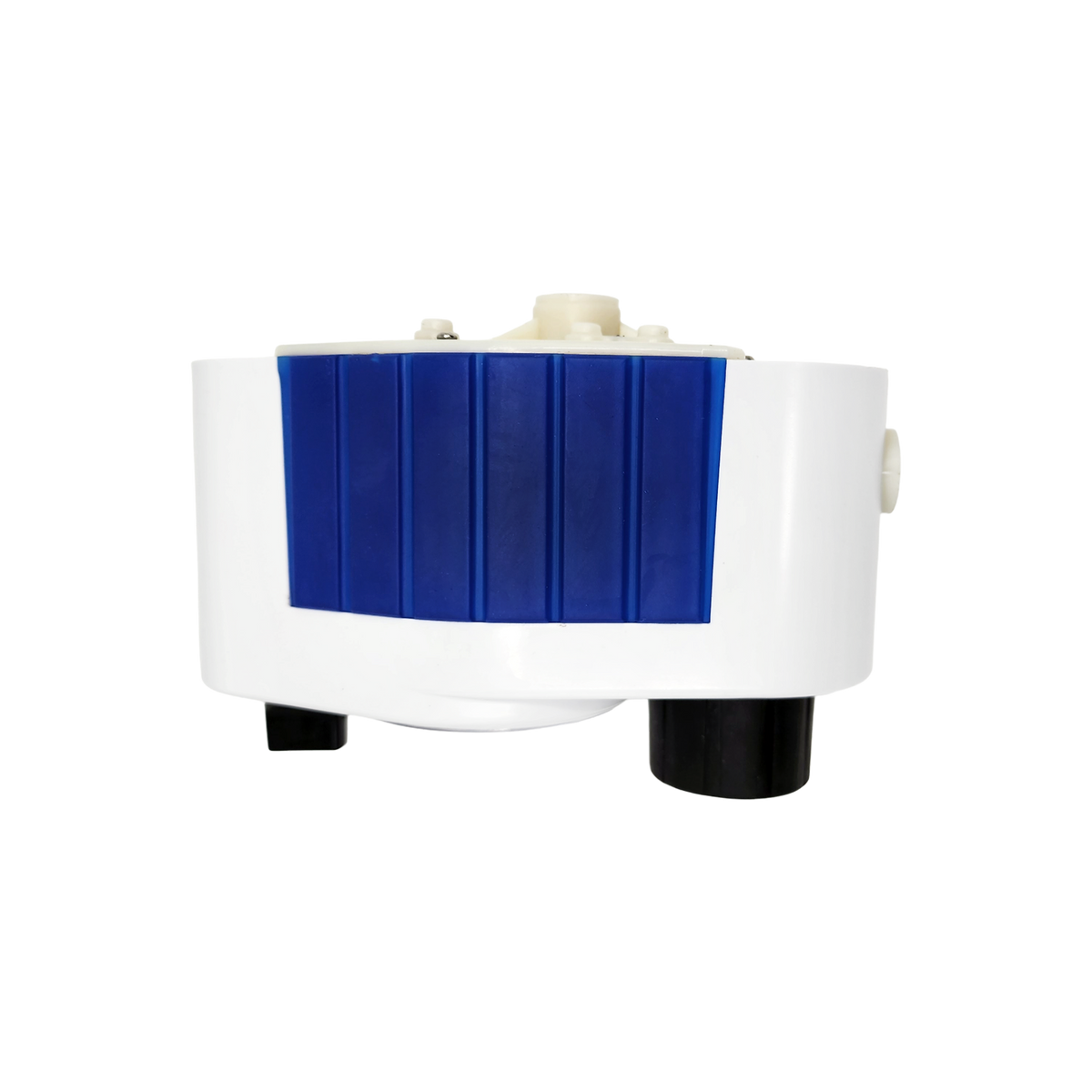

VeeVo® suction regulators are compact, easy-to-use and include many unique features. Each unit includes soft Side Grips™ that provide users with a secure grip on the unit to prevent dropping. The Side Grips are offered in a range of colors to aid in identifying departmental ownership.

The VeeVo Continuous-Intermittent regulator is factory set at 15 seconds on, 8 seconds
off and offers adjustable timing. Available in Adult and Pediatric models, VeeVo is the
future of clinical suction.

Available in Adult and Pediatric models.

FEATURES:

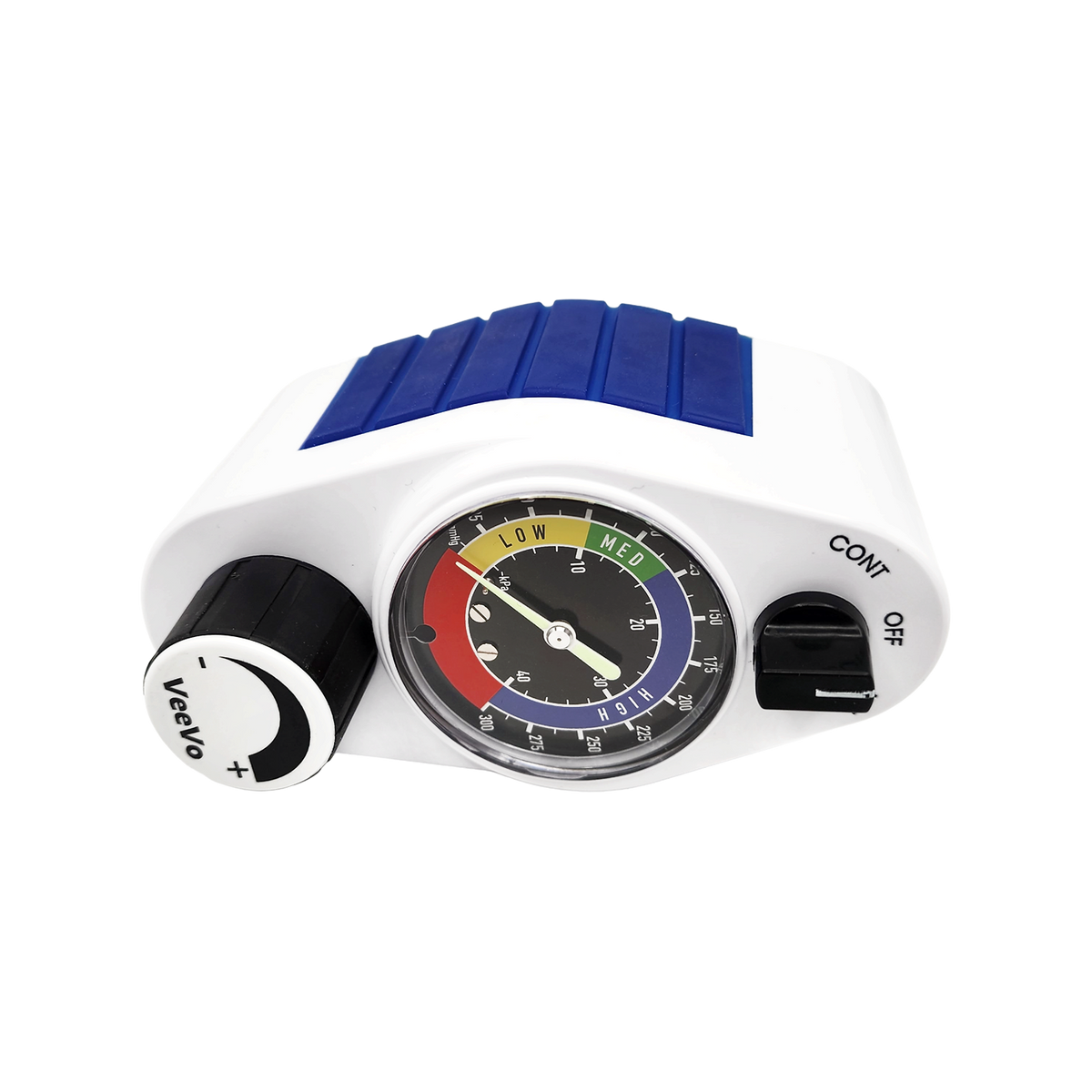

• The mode selector knob is used to select the OFF (no flow), CONT
  (continuous, regulated suction), or INT (regulated intermittent suction mode).

• The pressure adjustment knob controls the vacuum pressure that is delivered
  to the patient. Turning the knob clockwise (to the right) increases the vacuum
  level; turning the knob counter-clockwise (to the left) decreases the vacuum
  level. The mode selector knob should be used to turn the unit OFF, not the
  pressure adjustment knob.

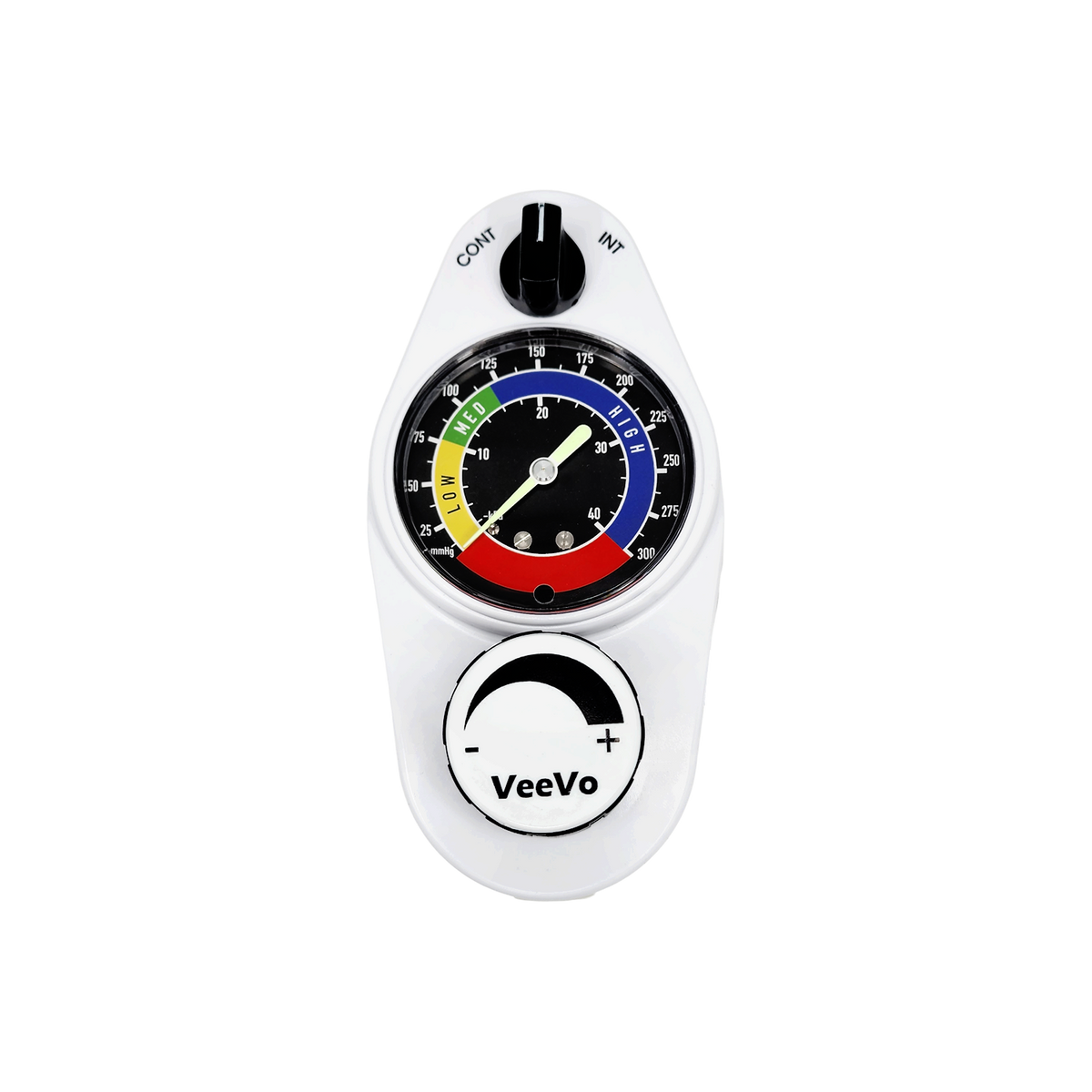

• The color-coded, dual-scale analog gauge includes a luminescent dial and
  needle, and is accurate to ±5% of full scale.


SPECIFICATIONS:

• Adult Model: 1500 Series
• Gauge: Accuracy: ± 5% full scale deflection
• Modes: Continuous, Off, Intermittent
• Vacuum Range: Continuous regulated vacuum maximum: 300 mmHg (40 kPa) Intermittent maximum vacuum: 150 mmHg (20 kPa)
• Relief valve actuates at 120 mmHg (±10%) in INT mode.
• Flow Rate: Continuous Suction: 80 LPM - Intermittent Suction: 8 LPM
• Timing Cycles: ON Cycle: 15 seconds ± 3 seconds, OFF Cycle: 8 seconds ± 3 seconds
• Safety Relief Valve Calibration: 150 mmHg (20 kPa) ±10%
• Weight (Less Fittings): Approximately 20.5oz (574 grams)
• Dimensions: Height 6.3in, Width 3.3in, Depth 4.2in
  (160.02mm x 83.82mm x 106.68mm)


• Pediatric Model: 800 Series
• Gauge: Accuracy: ± 5% full scale deflection
• Modes: Continuous, Off, Intermittent
• Vacuum Range: Continuous regulated vacuum maximum: 160 mmHg (21 kPa) Intermittent maximum vacuum: 120 mmHg (16 kPa)
• Flow Rate: Continuous Suction: 75 LPM - Intermittent Suction: 8 LPM
• Timing Cycles: ON Cycle: 15 seconds ± 3 seconds, OFF Cycle: 8 seconds ± 3 seconds
• Safety Relief Valve Calibration: 120 mmHg (16 kPa) ±10%
• Weight (Less Fittings): Approximately 20.5oz (574 grams)
• Dimensions: Height 6.3in, Width 3.3in, Depth 4.2in
  (160.02mm x 83.82mm x 106.68mm)


• Manufacturer: VeeVo
• Part Number: (OEM): TWSA1500

• Category: Suction Regulators
• Accessories: Fittings NOT Included
• Condition: New
• Weight: 16.5 lb.
• Warranty: 12 Months
• Environmental Specifications:
• Operating Temperature Range: 40°F (4°C) to 120°F (49°C)
• Storage Temperature Range: 0°F (-18°C) to 150°F (71°C)
• Operating and Storage Relative Humidity: 5 to 95%
