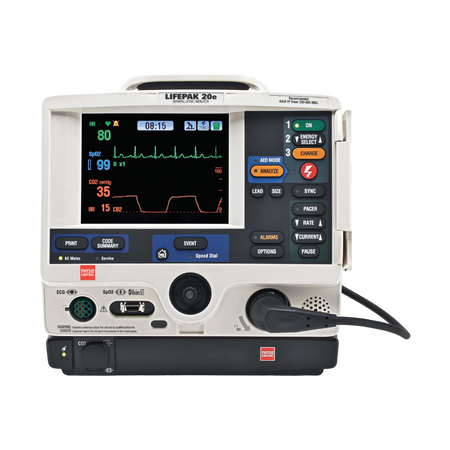

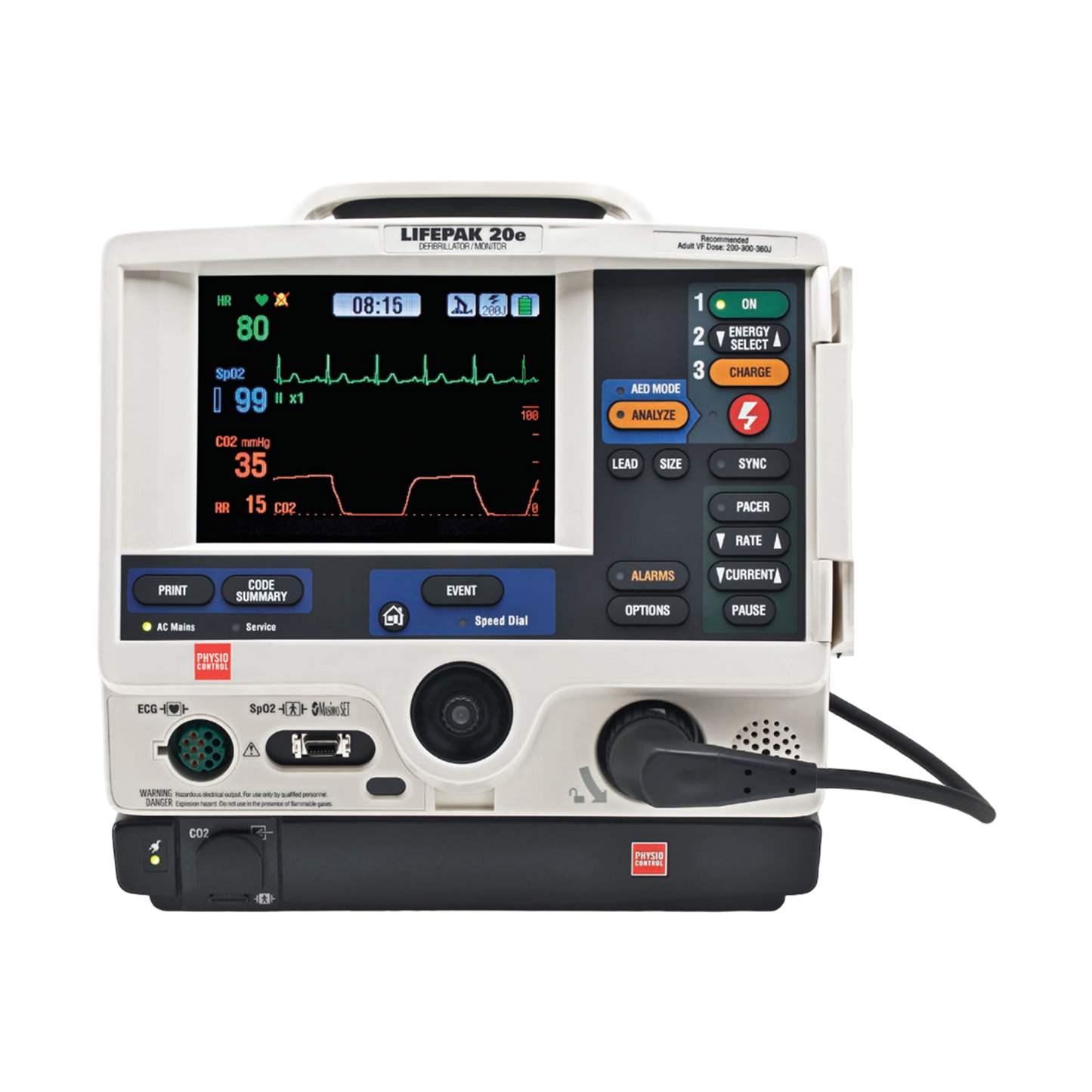

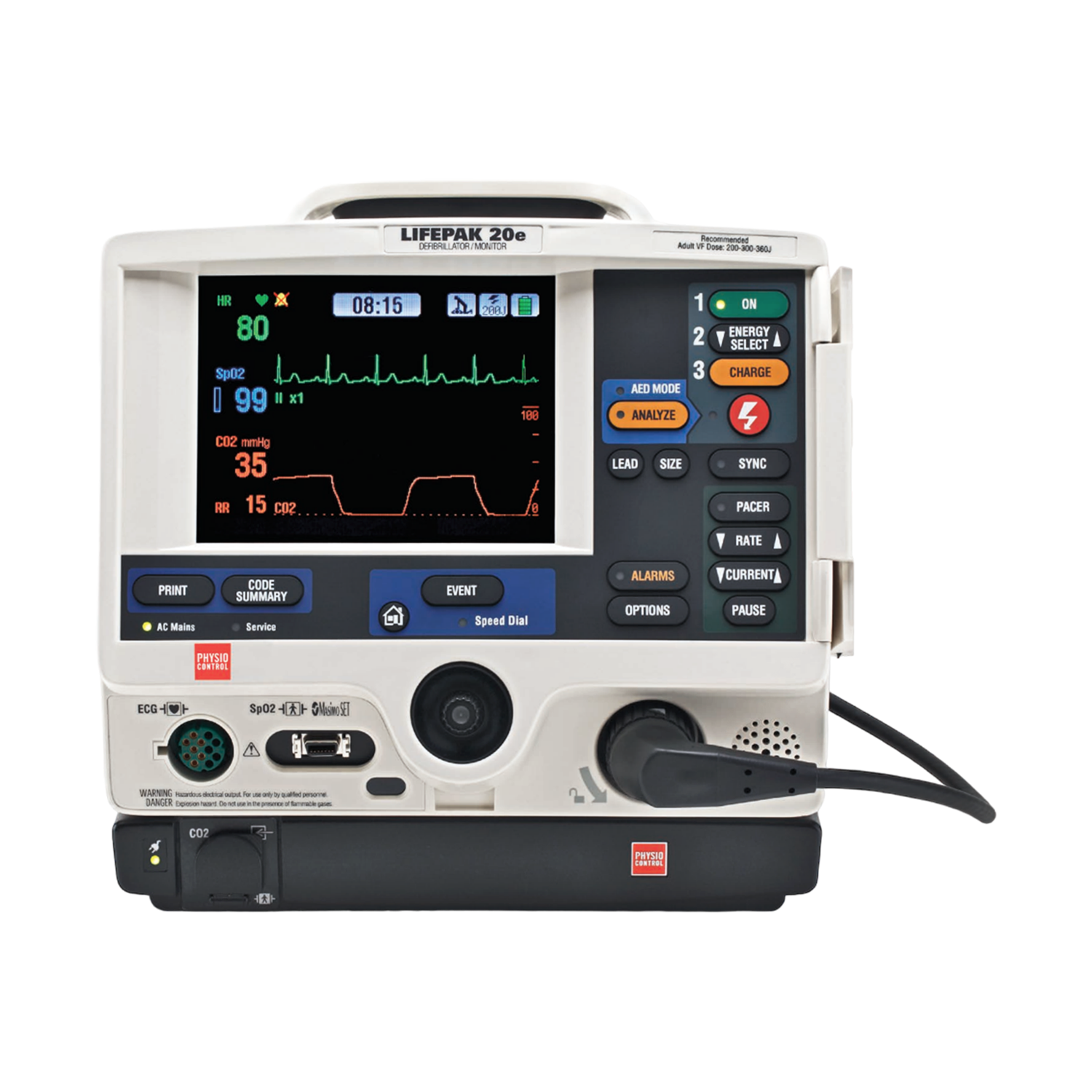

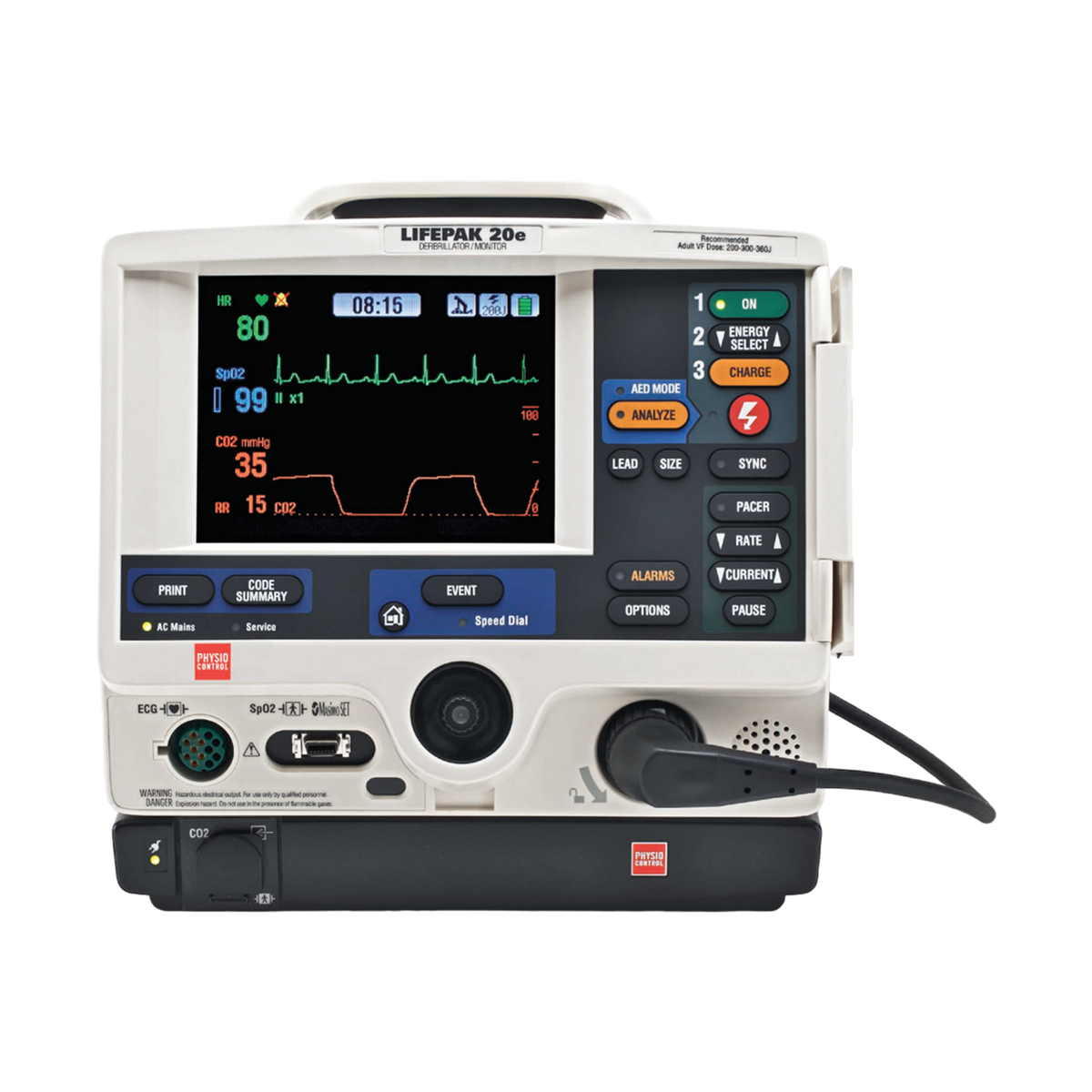

Stryker/Physio-Control Lifepak 20e Defribrillator

The Stryker Physio-Control Lifepak 20e is an all-in-one device that serves as a Defibrillator, AED, and monitor. By integrating the features of manual defibrillation, automatic defibrillation, and monitoring, it enables a faster and more efficient delivery of essential care during emergency situations. The Lifepak 20e includes a Code Management module, which facilitates the display of waveform capnography and enables wireless connectivity to the hospital network. This seamless integration allows for effortless generation of reports and real-time monitoring of crucial cardio-respiratory events.

The Lifepak 20e device bears significant resemblance to the Lifepak 20, the primary distinction being the utilization of a lithium-ion battery. With the inclusion of an LCD color screen, the Lifepak 20e offers healthcare professionals a simplified means to oversee the Waveforms and CPR statistics. Its compact and robust design enables convenient placement on a crash cart, stretcher, or bedside.

FEATURES:

• Manual and automatic defibrillation functionality
• Built-in AC Power
• 3/5 ECG monitoring capability on the Lifepak defibrillator
• Rechargeable internal lithium-ion battery
• BLS/ACLS front door

SPECIFICATIONS:

• Manufacturer: Stryker/Physio-Control
• Part Number (OEM):
• Category: Defibrillators/Pacemakers
• Accessories: None
• Functional Condition: Refurbished
• Cosmetic Condition: Good
• Warranty: 90 Days


• Dimensions:
  • Height: 8.4” (21.3 cm)
  • Width: 10.3” (26.2 cm)
  • Depth: 10.3” (26.2 cm)
  • Weight: 12.3lbs (5.58 kg)


• Display:
• Size (active viewing area): 115.18 mm (4.53 in) wide x 86.38 mm (3.4 in) high
• Resolution: 320 x 240 dot color active LCD. Displays a minimum of 3.7 seconds of ECG and alphanumeric for values, instructions, or prompts. Option to display one additional waveform.
• Waveform display sweep speed: 25 mm/sec for ECG and SpO2


• Power:
• The Lifepak 20e is an AC line-operated defibrillator with an internal battery as backup.
• AC Powered: 100–120 VAC 50/60Hz, 220–240 VAC 50/60 Hz, total power draw less than 120 Volt-Amperes (VA).


• Battery:
• Battery Charge Time on the AED: <4 hours when it's powered off and AC power is applied.
• Run Time on the AED: A new fully-charged internal backup battery will provide between 110-210 minutes of run time, depending on how it’s being used.


• Printer:
• The 20e Series prints continuous strips of the displayed patient care information and defibrillator information.
• Lifepak Paper Size: 50 mm (2.0 in)
• Print Speed of the 20e: Continuous ECG 25 mm/sec +/- 5% (measured in accordance with AAMI EC-11, 4.2.5.2)
• Delay: 8 seconds
• Autoprint: Waveform events print automatically (user configurable)
• Print Speed for CODE SUMMARY Reports: 25 mm/sec


• Frequency Response:
• Diagnostic: 0.05 to 150 Hz or 0.05 to 40 Hz (user configurable)
• Monitor: 0.67 to 40 Hz or 1 to 30 Hz (user configurable)
• Paddles: 2.5 to 30 Hz
• Analog ECG Output: 0.67 to 32 Hz (except 2.5 to 30 Hz for paddles)


• Alarms:
• Quick Set: Activates alarms for all parameters
• VF/VT Alarm: Activates continuous CPSS monitoring in Manual Mode


• Defib / AED / Monitor:
• Waveform: Biphasic Truncated Exponential. The following specifications apply from 25 to 200 ohms unless otherwise specified.
• Energy Accuracy: ±1 joule or 10% of setting, whichever is greater, into 50 ohms ±2 joule or 15% of setting, whichever is greater, into any impedance from 25–100 ohms.
• Voltage Compensation: Active when disposable therapy electrodes are attached. Energy output within ± 5% or ± 1 joule, whichever is greater, of 50-ohm value, limited to the available energy, which results in the delivery of 360 joules into 50 ohms.


• ECG:
• Physio Control Lifepak ECG can be monitored through 3-wire or 5-wire ECG cables.
• Standard paddles or therapy electrodes (QUIK-COMBO pacing/defibrillation ECG electrodes or FAST-PATCH disposable defibrillation/ECG electrodes) are used for paddles lead monitoring.
• Compatible with LIFEPAK 12 ECG and therapy cables.
• Lead Selection
• Leads I, II, and III (3-wire ECG cable)
• Leads I, II, III, AVR, AVL, and AVF, V (c) acquired simultaneously, (5-wire ECG cable)
• ECG size: 4, 3, 2.5, 2, 1.5, 1, 0.5, 0.25 cm/mV
• Heart Rate Display: 20–300 bpm digital display
• Out of Range Indication: Display symbol “---” Heart symbol flash for each QRS detection
• Continuous Surveillance System (CPSS): In AED mode, while Shock Advisory System is not active, CPSS monitors the individual via QUIK-COMBO paddles or Lead II ECG for potentially shockable rhythms.
• Lifepak Voice Prompts: Used for selected warnings and alarms (Configurable On/Off)
• Analog ECG Output: 1V/mV x 1.0 gain < 35ms delay
• Common Mode Rejection: 90db at 50/60 Hz


• SpO2

• Masimo SET
• Additional configuration available for compatibility with select Nellcor sensors
• Saturation Range: 1 to 100%
• Saturation Accuracy: 70–100% (0–69% unspecified)
• Adults/Pediatrics:
• +/- 2 digits (during no motion conditions)
• +/- 3 digits (during motion conditions)
• Neonates:
• +/- 3 digits (during no motion conditions)
• +/- 3 digits (during motion conditions)
• Dynamic signal strength bar graph
• Pulse tone at the onset of the pleth waveform
• SpO2 Update Averaging Rate: User selectable 4, 8, 12, or 16 seconds
• SpO2 Measurement: Functional Sp02 values are displayed and stored
• Pulse Rate Range: 25 to 240 pulses per minute
• Pulse Rate Accuracy: (Adults/Pediatrics/Neonates)
• +/- 3 digits (during no motion conditions)
• +/- 5 digits (during motion conditions)
• SpO2 waveform with autogain control


• Communications:
• The AEDs are capable of transferring data records by IrDA.


• Data Management:
• The Lifepak Products capture and store individual care data, events (including waveforms and annotations), and continuous ECG waveform records in internal memory.
• The user can select and print reports and transfer the stored information.
• Report Types
• Two format types of CODE SUMMARY critical event record: (short and medium)
• Initial ECG (except short format)
• Auto vital sign measurements every 5 minutes
• Continuous ECG waveform records (transfer only)
• Memory Capacity
• Two full-capacity individual records that include:
• Code Summary critical event record - up to 100 single waveform events
• Continuous Waveform - 45 minute continuous ECG record
