Siemens Cios Alpha C-Arm System

Out of stock
LEAD TIME: Estimated Ship Time: 10-14 Days

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

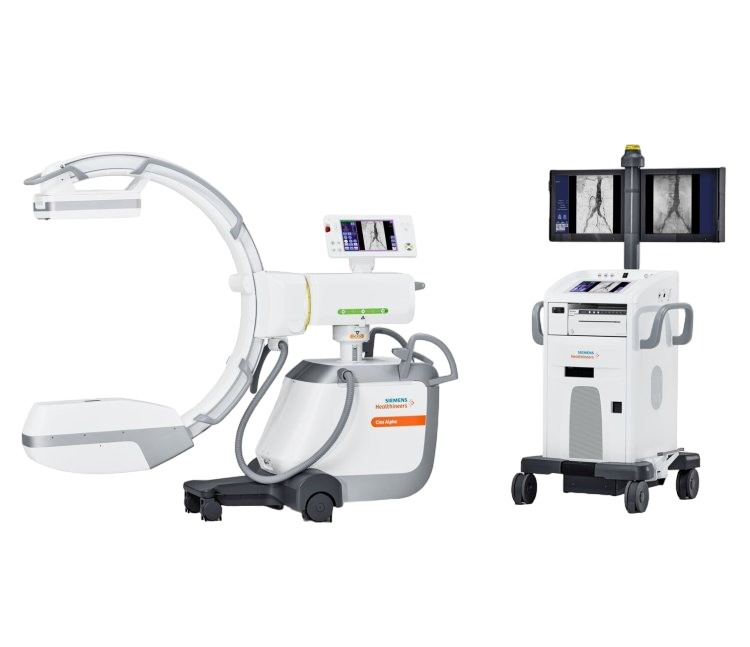

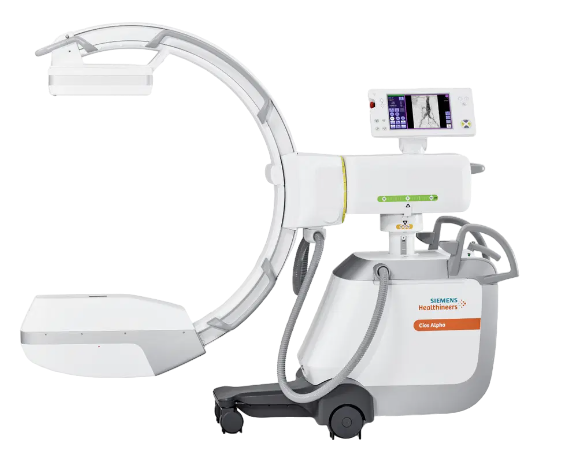

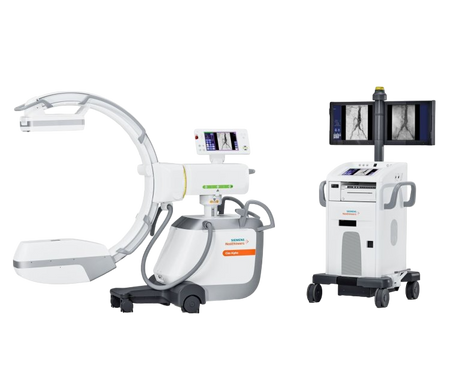

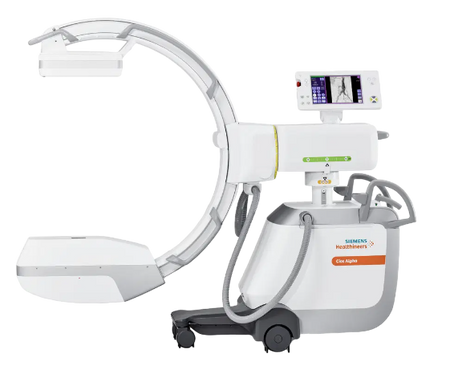

The Siemens Cios Alpha is a high-definition 2D mobile C-arm designed to provide surgeons with certainty in image-guided surgery, ensuring image quality and optimal dose control. It features a large field of view with a 30 cm x 30 cm flat detector, offering exceptional image quality regardless of the clinical application or patient size. The system incorporates Retina technology for optimal images and CARE technologies to deliver the right dose for each case, striking a perfect balance between image quality and dose. With features like Retina technology, CARE technologies, and intelligent power management, the Cios Alpha ensures excellent images at the right dose for all patients.

It also focuses on ease of use, streamlined workflows, extended capabilities, and smart growth opportunities. The system's technical details include a flat detector (FD) with CMOS technology, a field of view of 30 cm x 30 cm, power output options, orbital movement capabilities, immersion depth, free space, monitor specifications, image storage capacity, WLAN compatibility, and various clinical applications and workflows such as vascular software and live graphical overlay.

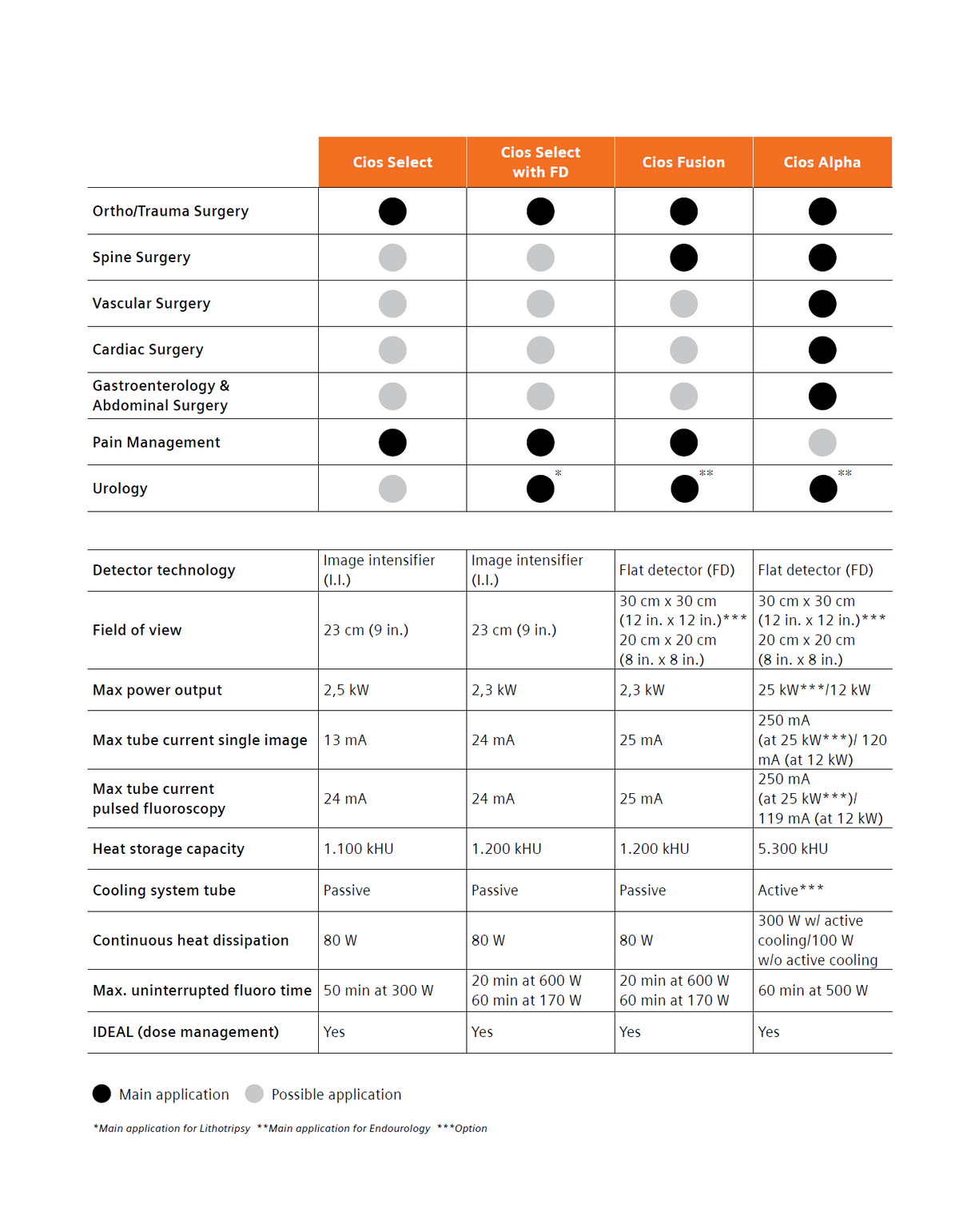

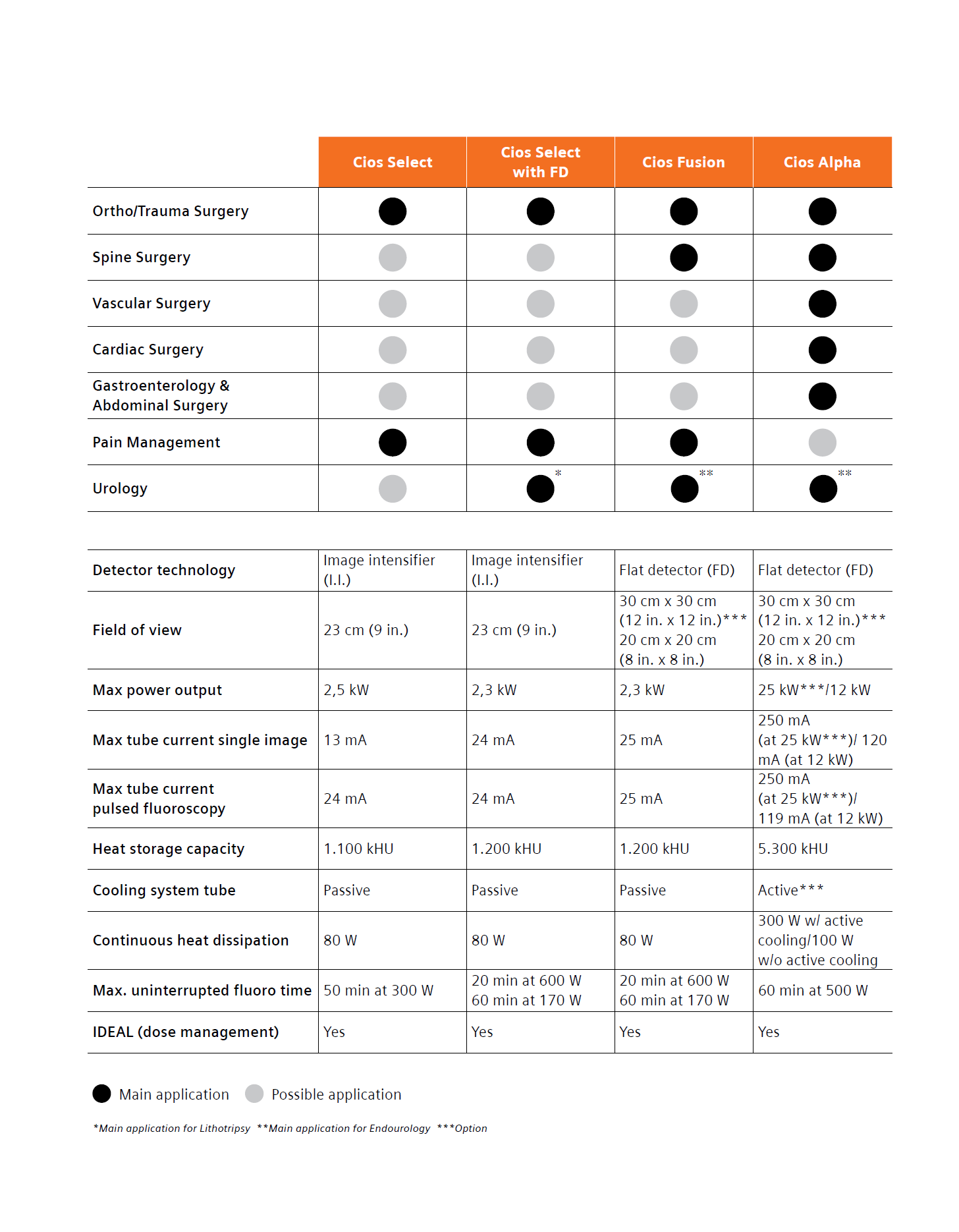

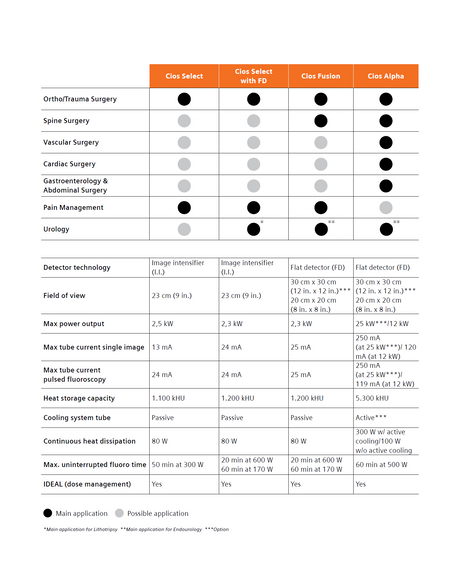

The Siemens Cios Alpha C-Arm specifications include:

  • Field of view: 30 cm x 30 cm (12” x 12”); 20 cm x 20 cm (8” x 8”)
  • Immersion depth: 73 cm (28.7”)
  • Free space: 85 cm (33.5”)
  • Monitors: 2 x 19” premium high bright; 2 x 19” high bright
  • Detector technology: Flat detector (FD)
  • Image resolution: 1.5 K² / 1 K²
  • Power Output: 25 kW / 12 kW
  • Orbital movement: 148° (–51.5° to +96.5°)
  • Image storage: 100,000 / 150,000 images
  • WLAN compatibility

Clinical applications and workflows including Vascular Software, Live Graphical Overlay, Stenosis quantification, and more.


  • Manufacturer: SIEMENS
  • Part Number (OEM): CIOS ALPHA
  • Category: Imaging
  • Accessories: None
  • Functional Condition: New/Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

The Siemens Cios Alpha C-Arm specifications include:

  • Dimensions:
    • Field of view: 30 cm x 30 cm (12” x 12”); 20 cm x 20 cm (8” x 8”)
    • Immersion depth: 73 cm (28.7”)
    • Free space: 85 cm (33.5”)
    • Monitors: 2 x 19” premium high bright; 2 x 19” high bright
  • Detector technology Flat detector (FD)
  • Image resolution 1.5 K² 1 / 1 K²
  • Power Output 25 kW1 / 12 kW
  • Orbital movement 148° (– 51.5° to + 96.5°)
    mage storage 100.000 / 150.000 images
  • WLAN Yes
  • Clinical applications and workflows
  • Vascular Software Standard and Premium
  • Live Graphical Overlay: Yes
  • Stenosis quantification: Yes
  • 2D Measurement: Yes
  • Injector trigger interface: Yes
  • Navigation interface NaviLink 2D
  • Cooling system tube: Active
  • SmartView – HD Video Manager: Yes
  • CARE program: Yes
  • Clinical applications and workflows including:
    • Vascular Software
    • Live Graphical Overlay
    • Stenosis quantification, and more.
