Philips Zenition 70 C-Arm System

Out of stock
SKU: EN-ZENITION-70
Condition
Category
LEAD TIME: Estimated Ship Time: 10-14 Days
PACKAGING: 1
WARRANTY: 90 Days

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

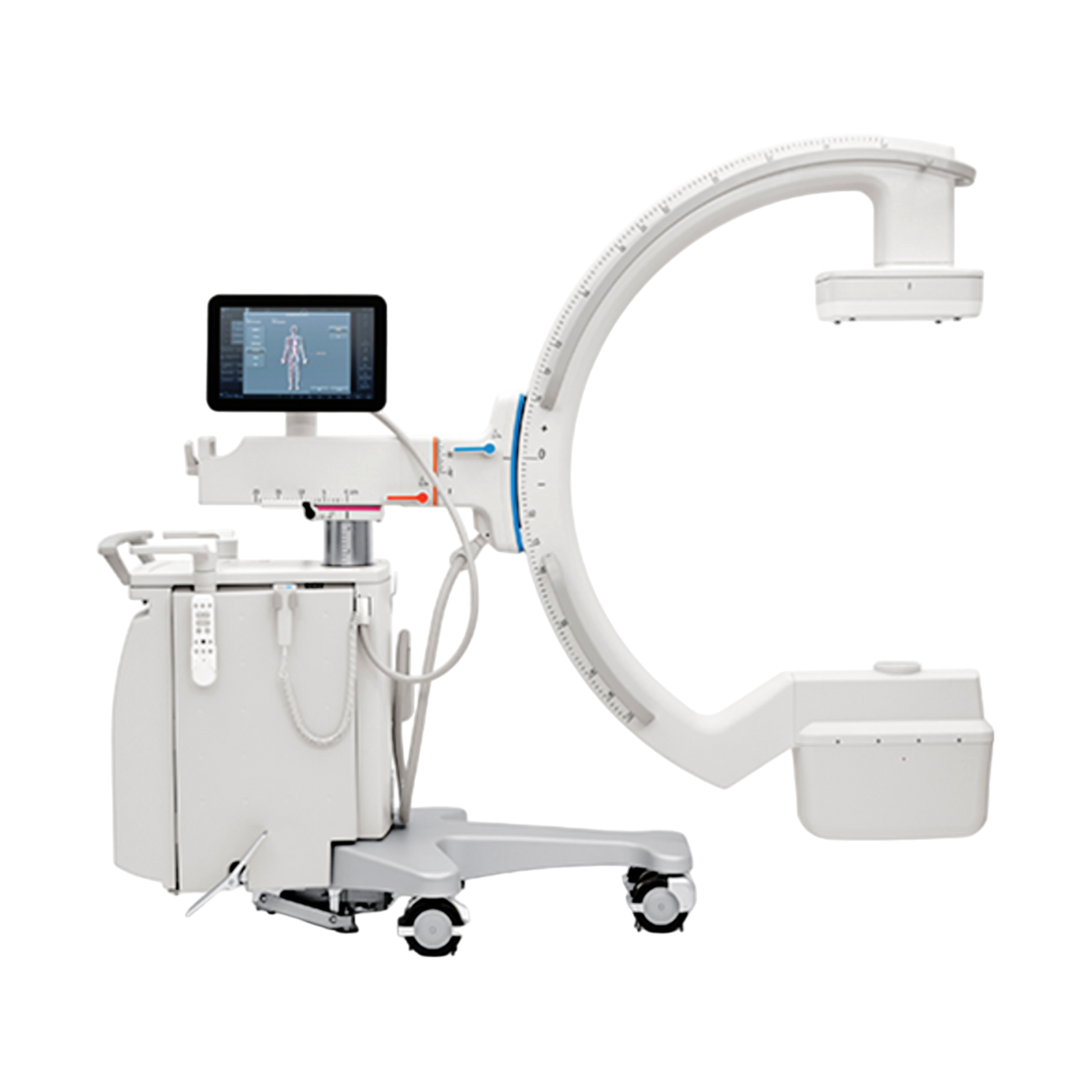

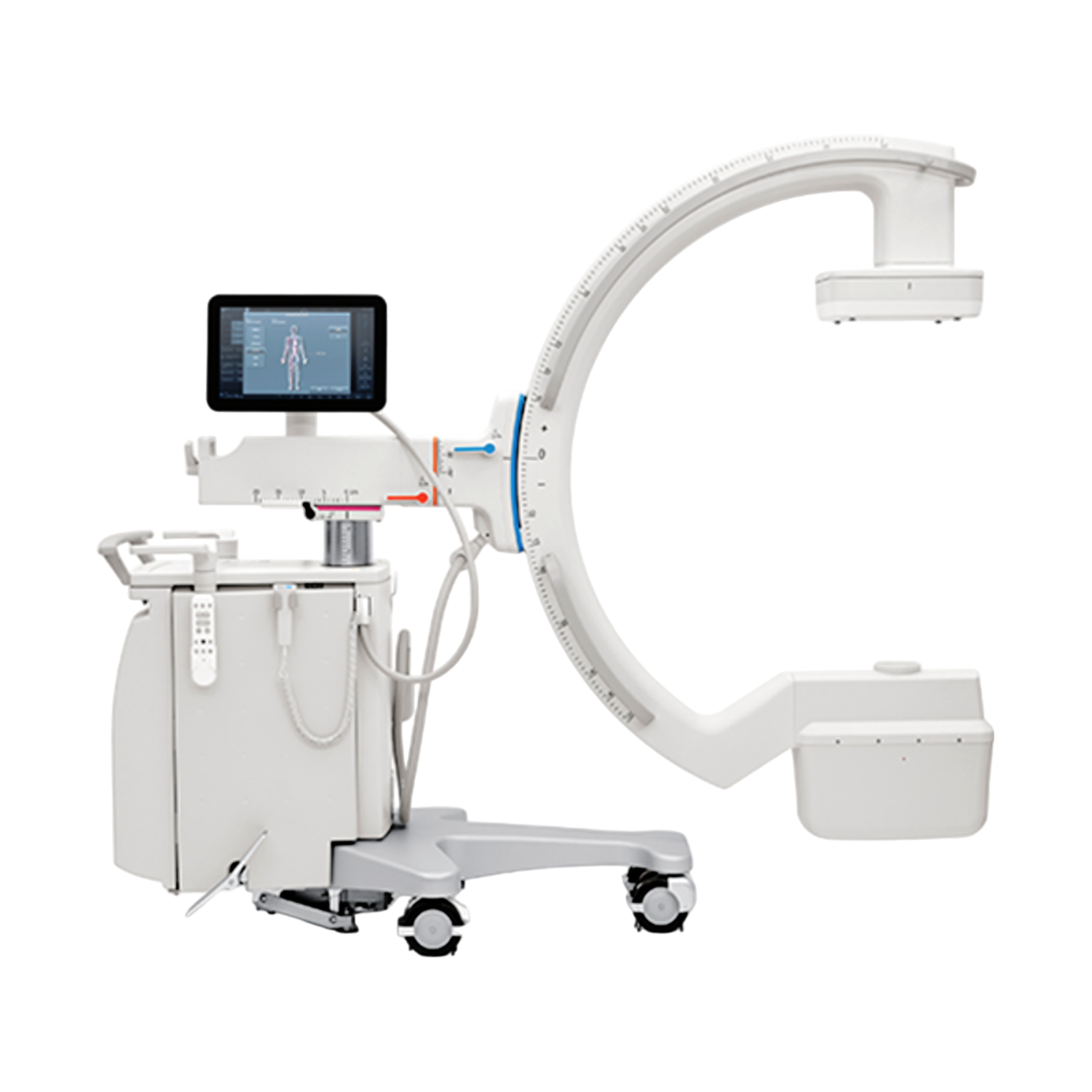

The Philips Zenition 70 is a mobile C-arm system designed for intensive use in interventions and surgeries. This cutting-edge platform brings together innovations in image capture, image processing, and ease of use to the operating room.

The Philips Zenition 70 mobile C-arm system combines advanced imaging capabilities, user-friendly design, and efficient workflow features to support clinicians in delivering exceptional patient care across a wide range of medical specialties.

FEATURES:

The Philips Zenition 70 C-Arm System features include:

  • ClearGuide technology with color coding on the C-arm for efficient positioning.
  • Excellent radiation dose management for minimally invasive procedures.

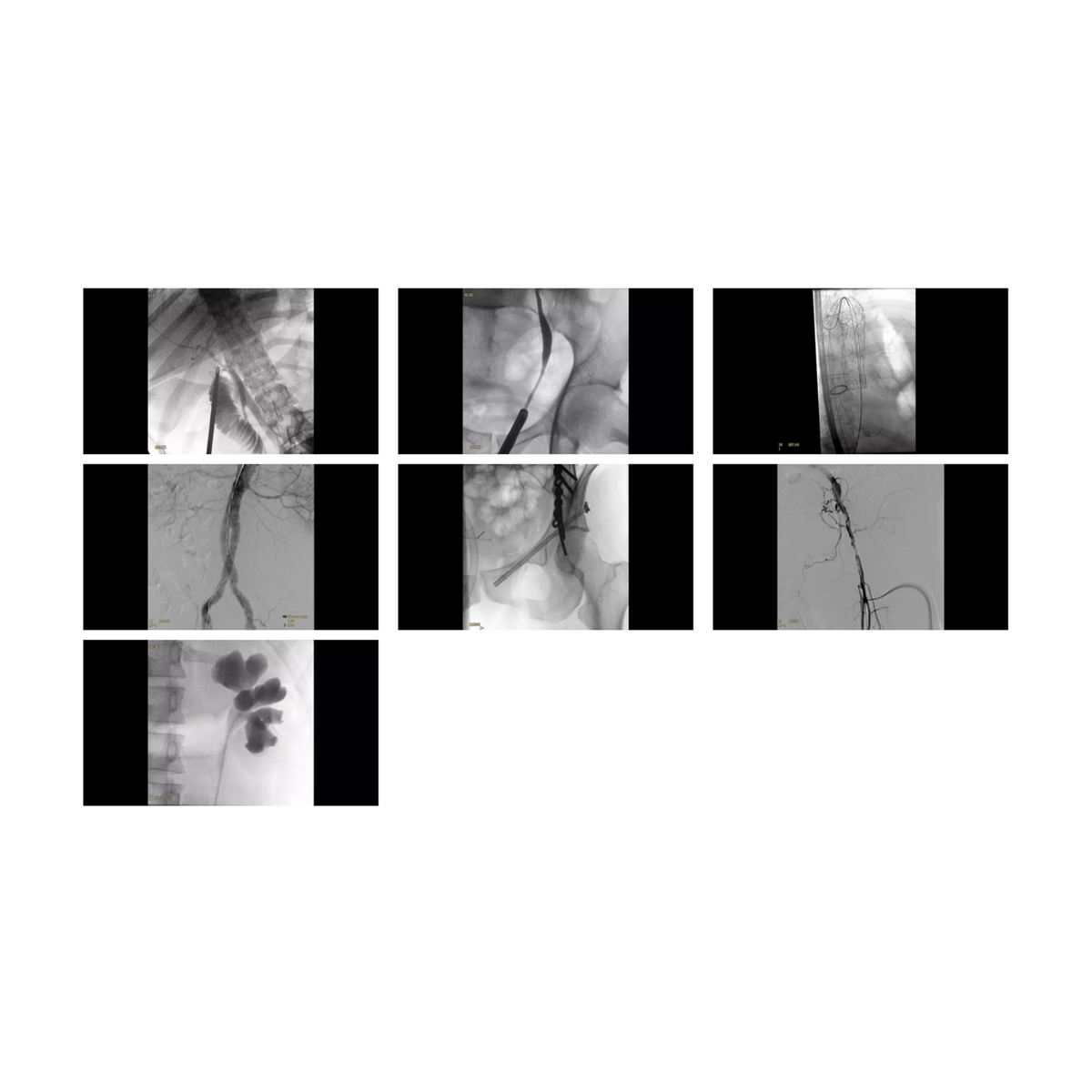

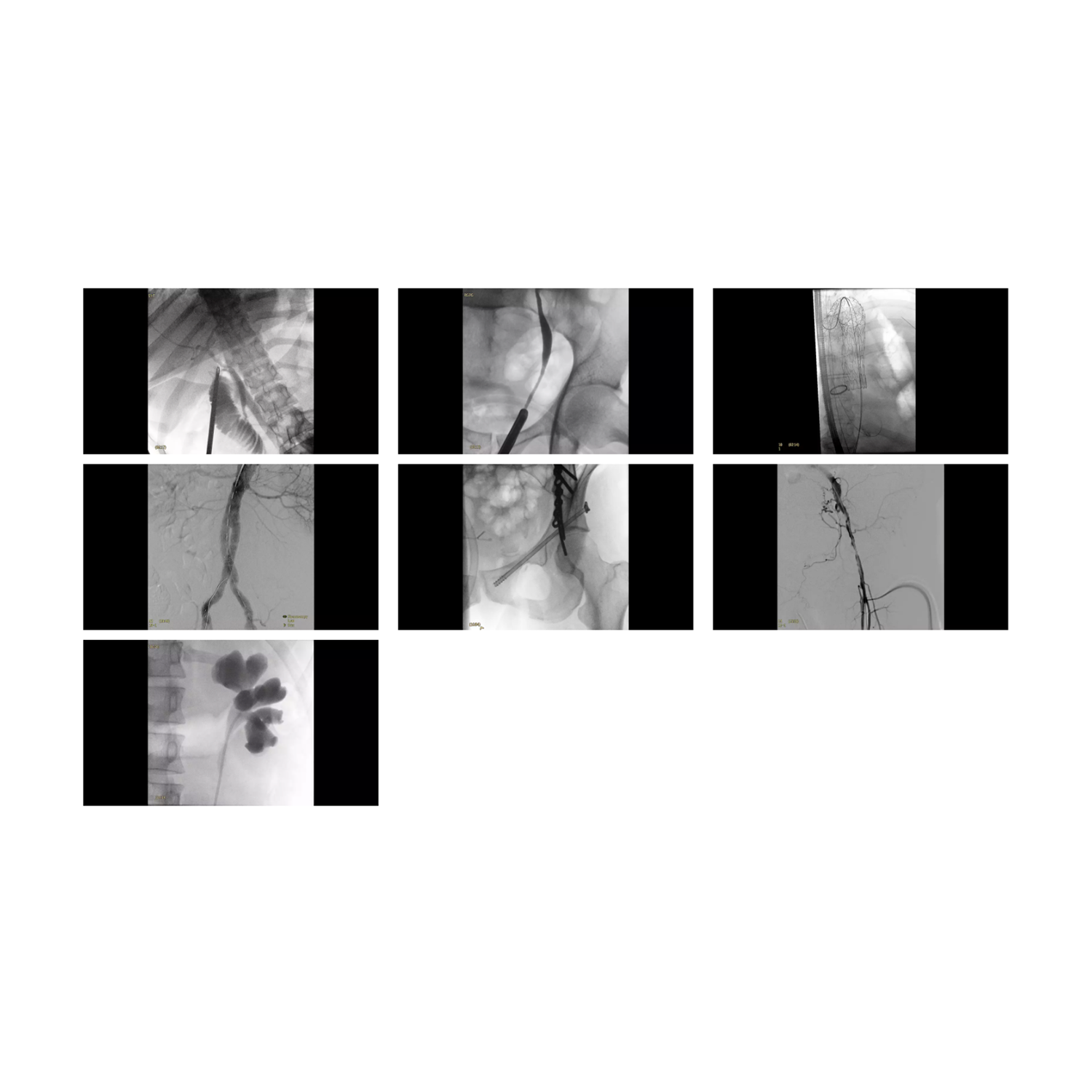

  • Distortion-free, high-contrast imaging from the Flat Detector system to support various interventions.
  • Wireless foot switch for convenient operation.
  • Position memory for accurate repositioning.
  • DoseAware real-time dose feedback for dose management.
  • Dual 19" color LCD monitors for optimal visualization.

These features highlight the Zenition 70's advanced imaging capabilities, user-friendly design, and efficiency in supporting complex surgical procedures across different medical specialties.

SPECIFICATIONS:

  • Manufacturer: PHILIPS
  • Part Number (OEM): ZENITION 70
  • Category: Imaging
  • Accessories: None
  • Functional Condition: New/Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

  • Geometry:
    • Longitudinal movement
      • 20 cm
    • Panning movement (swivel)
      • ± 10°
    • Vertical movement
      • Motorized 49 cm
    • Rotation
      • ± 200°
    • Angulation
      • Total 140° (+90°, -50°)
    • Brakes for all movements
      • Yes
    • Steering
      • Rear wheel
    • Parallel movement
      • Dedicated parallel movement via rear wheel control
    • Color Coding key
      • Specific color on the movement key related with themovement itself
    • ClearGuide
      • Provides a uniform reference for the operator and physicianto use during positioning. A set of numbers (3, 6, 9, 12) onthe Detector corresponds to the same numbers displayed onthe clinical image

  • Flat Detector:
    • Detector
      • Flat Panel Detector
    • Grid Material
      • Focused Grid, Carbon fiber cover

  • Mobile View Station:
    • Mobile view station height
      • 185 cm
    • Monitor rotation
      • 180°
    • Foldable Monitor
      • Yes
    • Monitors
      • Two 19″ color LCD monitors for diagnostic image qualitydisplay.
    • Resolution
      • 1280 x 1024 pixels
    • Viewing angle
      • 170° in horizontal and vertical direction
    • Touchscreen on left monitor
      • Offers easy access to postprocessing of acquired images,patient demographics etc.

  • Touch Screen Monitor on C-Arm Stand:
    • Touch Screen Monitor on C-Arm Stand Monitor size
      • 15″
    • Application
      • System set up (shutter and collimator setting with finger),image rotation, and post processing acquired images.

  • X-Ray Generation:
    • Maximum generator output:
      • 15 kW
    • Maximum X-Ray tube voltage
      • 120 kV
    • Maximum X-Ray tube current
      • 125 mA

  • X-Ray Tube:
    • Tube Type
      • Rotating Anode
    • Nominal focal spot values
      • 0.3 and 0.6 mm
    • Nominal X-Ray tube voltage
      • 120 kV
    • Maximum anode heat content
      • 315 kHU
    • Anode cooling capacity
      • 75.6 kHU/minimum
    • Maximum housing heat content
      • 1890 kHU

    • X-Ray Collimation:
      • Shutters
        • Two independent lead shutters with steel wedge: shutterscan be coupled for rotation and translation, or movedindividually for asymmetric collimation
      • Automatic Shutter Positioning
        • Automatic shutter placement based on image content
      • Wedge material
        • 0.2 to 2.5 mm stainless steel
      • Adjustment
        • Stepless
      • Rotation
        • 360°
      • Position indication
        • On screen and also on LIH without radiation

  • Connectivity:
    • Wireless Data transfer Allows users to connect to the RIS/HIS to send and retrieveimages or other relevant data wirelessly and reduce theamount of cable clutter in the OR
    • USB Connection USB storage provides a convenient way to store images foruse in reports or presentations

  • Software Features:
    • Unique BodySmart software
      • Allows free positioning of the anatomy, even at the edge ofthe image detector.
    • Automatic Shutter Positioning (ASP)
      • Sets shutters to the anatomy of interest for excellent imagequality at the touch of a button
    • Dose reporting
      • Dose display and an alert when exceeding a pre-definedprocedure dose-level contribute to an increased dose awareness
    • Remote Control Run loop, overview run/exam, retrieve previous/next image,II format selection, etc.
    • Laser Equipped with Laser Alignment Device.
    • Cassette Holder
      • Yes
    • Outlining
      • The outlining tool allows users to draw an outline digitally onan image on the touchscreen monitor, for example, to marka bifurcation or side branches on live fluoroscopy images
    • Tablet-like user interface
      • Users can just touch the screen with a finger to drag theshutters and iris into position on Last Image Hold. At eachstep you only see the features you need, making it easy tofind the right selections.

    • Accessories:
      • Lead Apron
        • Yes, 3 quantity
      • Thyroid Shield
        • Yes, 3 quantity
      • Lead Goggle
        • Yes, 3 quantity
