Philips Zenition 50 C-Arm System

Out of stock
SKU: EN-ZENITION-50
Condition
Category
LEAD TIME: Estimated Ship Time: 10-14 Days
PACKAGING: 1
WARRANTY: 90 Days

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

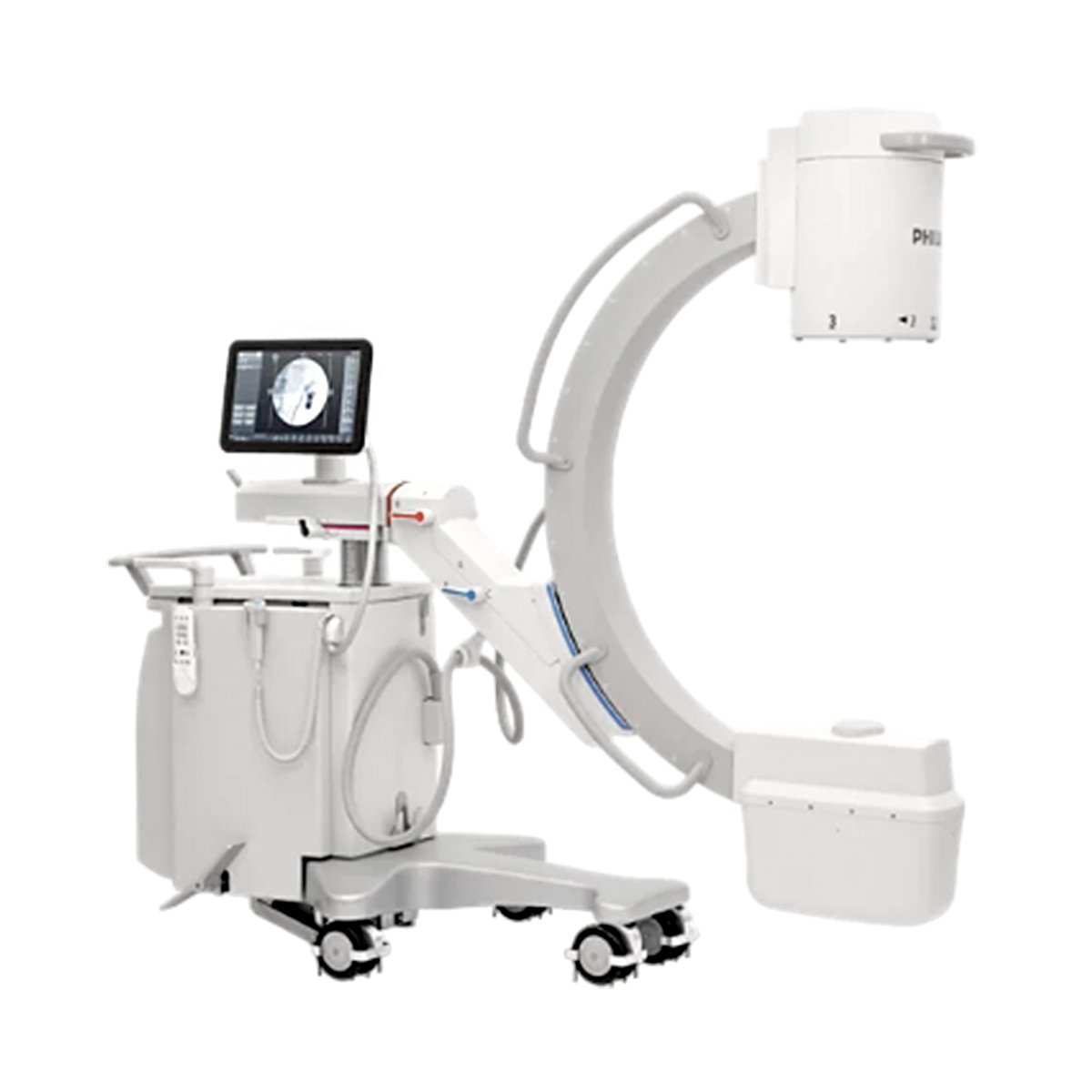

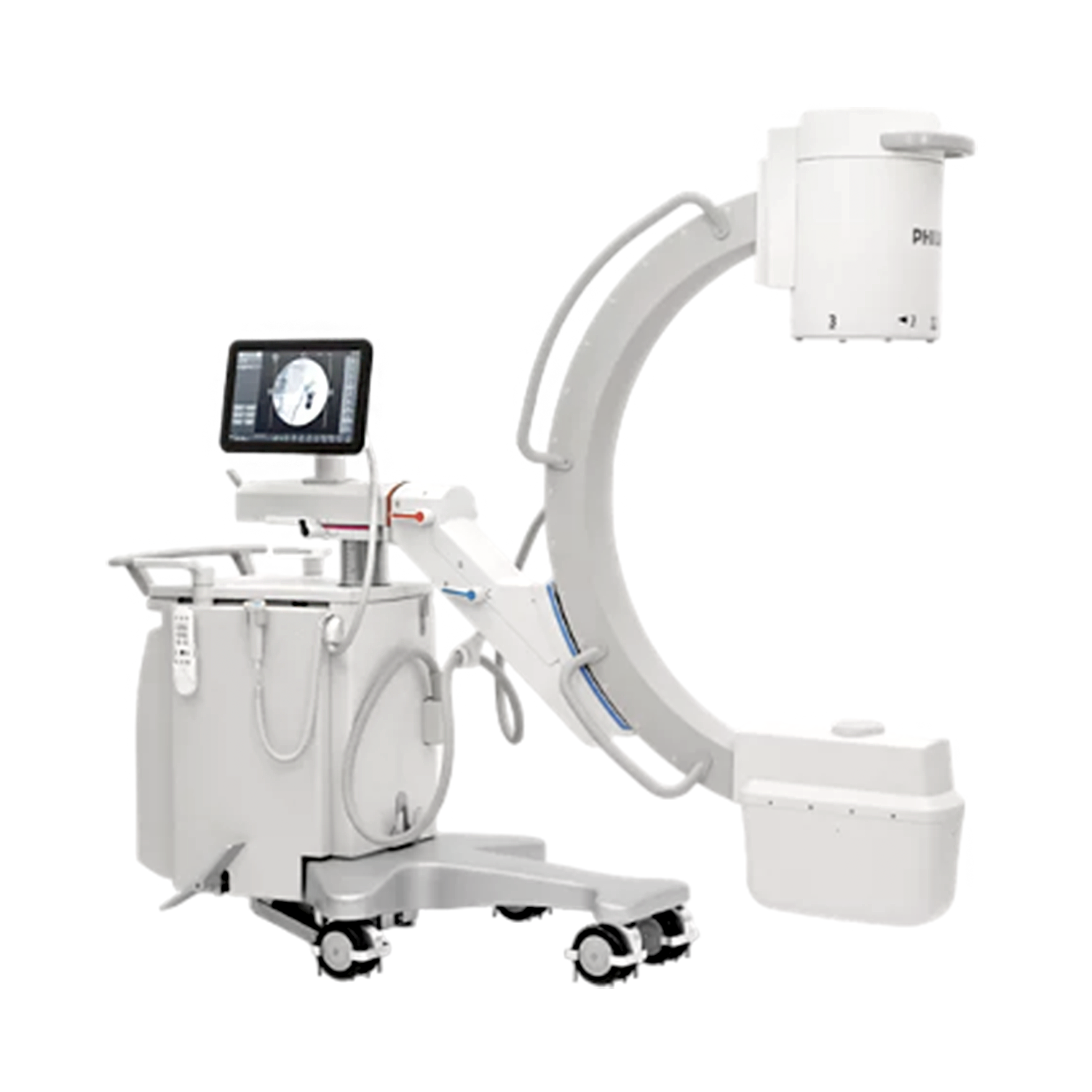

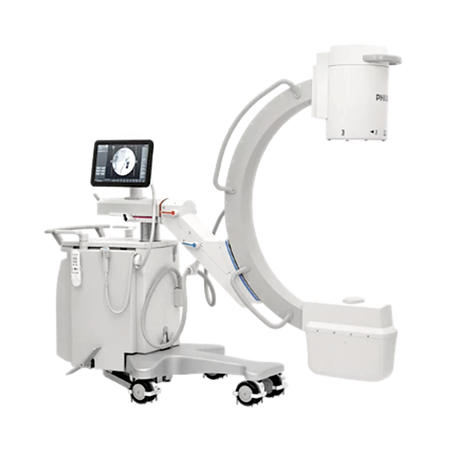

The Philips Zenition 50 is a mobile C-arm system designed to provide exceptional imaging clarity and flexibility for a wide variety of medical procedures. This system offers advanced features like ClearGuide technology with color coding on the C-arm for efficient positioning, excellent radiation dose management, and high-quality imaging capabilities suitable for minimally invasive procedures.

The Zenition 50 is equipped with a Flat Detector system that ensures distortion-free, high-contrast imaging to support various interventions. It also includes a wireless foot switch for convenient operation, position memory for accurate repositioning, DoseAware real-time dose feedback, and dual 19" color LCD monitors for optimal visualization. The system's user-friendly design, advanced imaging technology, and efficient workflow features make it an ideal tool for performing complex procedures with ease and confidence across different medical specialties.

FEATURES:

The features of the Philips Zenition 50 mobile C-Arm system include:

  • ClearGuide technology with color coding on the C-arm for efficient positioning.
  • Excellent radiation dose management for minimally invasive procedures.
  • Distortion-free, high-contrast imaging to support various interventions.
  • Wireless foot switch for convenient operation.
  • Position memory for accurate repositioning.
  • DoseAware real-time dose feedback for dose management.
  • Dual 19" color LCD monitors for optimal visualization.

These features highlight the Zenition 50's advanced imaging capabilities, user-friendly design, and efficiency in supporting complex surgical procedures across different medical specialties

SPECIFICATIONS:

  • Manufacturer: PHILIPS
  • Part Number (OEM): ZENITION 50
  • Category: Imaging
  • Accessories: None
  • Functional Condition: New/Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

  • X-Ray Generation:
    • X-Ray Generator: Rotating anode tube with active heat management
    • X-Ray Tube: Monoblock 78,125 kHz high-frequency, micro-processor-controlled generator
    • Nominal Power: 15 kW: 120 kV, 125 mA

  • Geometry:
    • Free Space Within C-arm: 77 cm (30.3”)
    • C-arm Depth: 61 cm (24.0”)
    • Rotation: ± 360°, with safety stop at ± 135°
    • Source Image Distance: 98 cm (38.7”)
    • Angulation: +90° to -25 °
    • Extended angulation (optional): +90° to -45° for increased projection flexibility
    • Lower Lateral Working Position: 103.4 cm (40.7”)

  • Imaging Chain:
    • Image Intensifier: Triple-mode 9″ HRC / Triple-mode 12″ GG
    • TV Camera Type: CCD, high resolution 1K
    • Constant Beam Filtration: Integrated beam filter: 1.0 mm Al. + 0.1 mm Cu
    • Nominal II Formats: 23, 17, and 13 cm (9″, 7″, and 5″) / 31, 23, and 17 cm (12″, 9″, and 7″)
    • Stand Monitor: 15″ LCD monitor on the C-arm gives a whole new level of simplicity

  • Connectivity:
    • Analog Video Output:
      • Yes
    • Digital Video Output (Option):
      • 2 DVI connectors left and right monitor
    • Advanced DICOM/IHE Package (Optional):
      • Modality Worklist Management, Modality Performed Procedure Step Storage Commit, Full compliance to the IHE Scheduled Workflow Integration profile
    • Video In:
      • S-Video, DVI (digital and analog), SDI
    • USB Storage:
      • PNG, MP4, BMP

  • Options:
    • Stand Monitor:
      • Yes
    • Touchscreen:
      • Available for Mobile View Station
    • Image Viewer:
      • Multi Modality Viewer
    • Handheld remote control:
      • Controls the main image-handling functions
    • ViewForum:
      • Yes
    • Vascular Extension:
      • Subtracted Fluoroscopy Mode
      • Trace
      • View Trace
      • Roadmap
      • Remask
      • Smart Mask
      • CO2 modes

In addition, please acknowledge the following disclaimer:

* IMPORTANT - PLEASE READ BEFORE PURCHASING! * All pictures of items being sold are used for reference purposes and are described as accurately as possible. If there is an error in a listing, we will try and resolve any issues to the best of our abilities that may arise before or after a sale. Complete units all come with a power cord and DO NOT come with any cables, sensors, manuals, accessories etc. unless otherwise noted in the description.

Purchaser agrees that seller is not liable for any injuries or damages of any kind associated in any way with this equipment. Purchaser agrees to indemnify and hold harmless seller and seller's officers, directors, employees, agents, and shareholders against any and all claims, liabilities, obligations, demands, cost and expenses of every kind and nature, including but not limited to attorney's fees and litigation expenses, from or related to the equipment and any use thereof.

* NOTE - FDA Regulation and Certification: "The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

This unit or item will ship anywhere in the continental United States via Palletized Freight - Calculated. Please read our Shipping and Return policies for more details.
