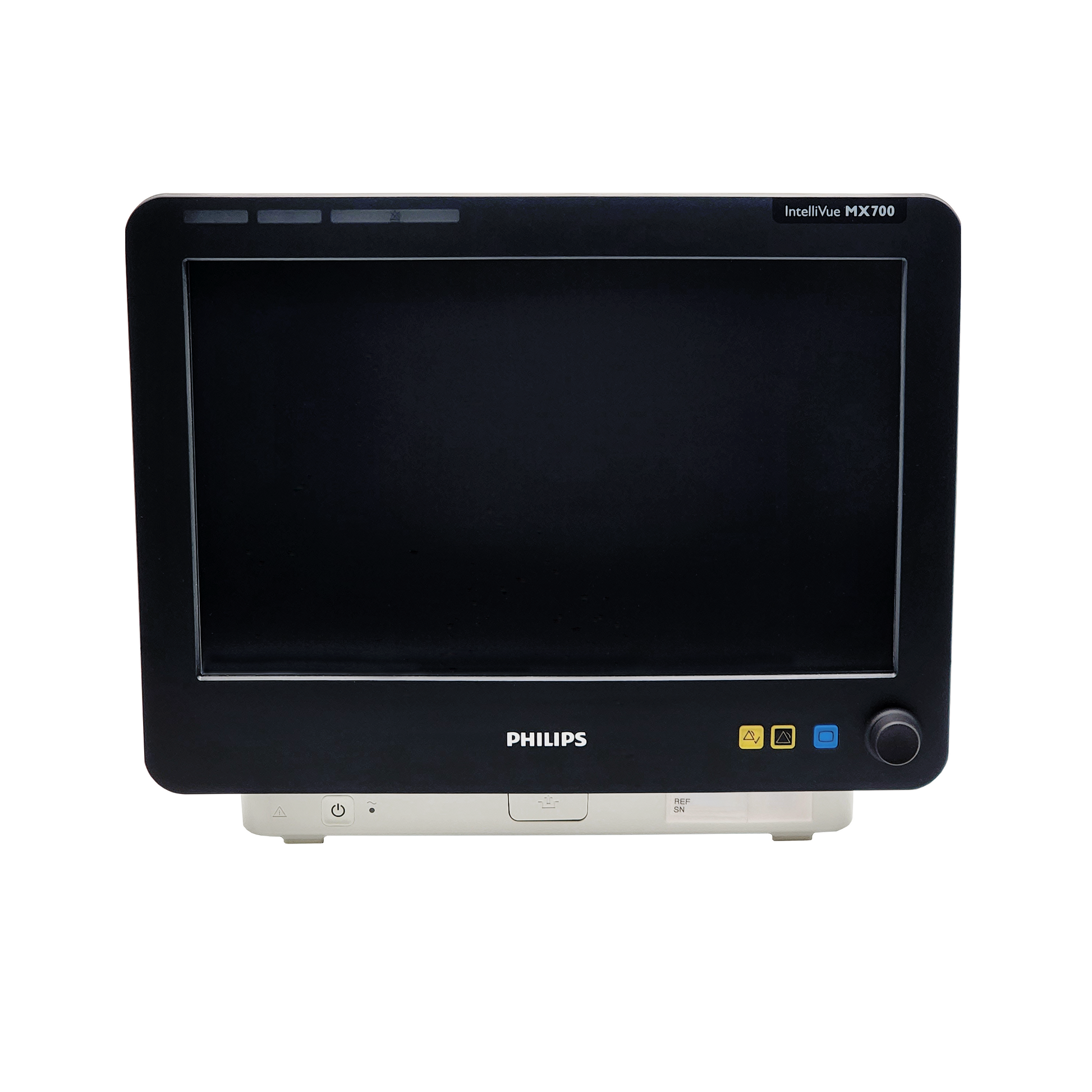

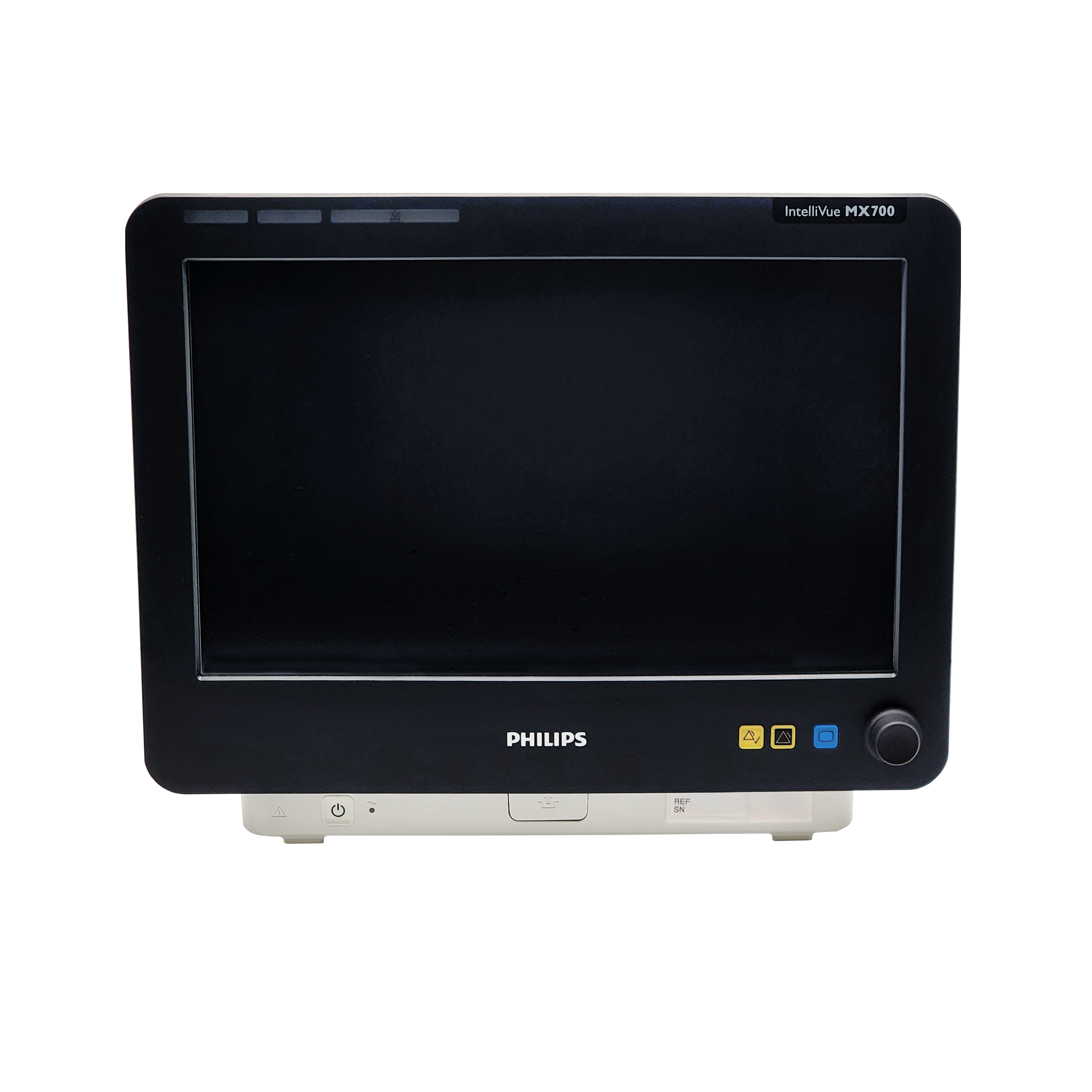

Philips IntelliVue MX700 Patient Monitor
Couldn't Load Pickup Availability
Listing Terms & Conditions
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
The Philips IntelliVue MX700 is an advanced patient monitoring system designed to provide an enhanced and immediate display of vital signs for your patients. This bedside monitor includes a built-in PC option, known as iPC, which seamlessly integrates with your hospital's intranet and applications, offering a wealth of clinically relevant information. Additionally, the MX700 monitor can easily connect to the Philips Multi-Measurement Module (MMS) and IntelliVue gas analyzers, expanding its functionality with convenient plug-and-play capability. Moreover, tailored configurations are also available for anesthesia, Critical and cardiac, as well as neonatal care settings.
FEATURES:
- Offers a wide 15" touchscreen, and can also be operated by Navigation Point control and remote control
- Optional integrated PC provides immediate and seamless access to comprehensive patient information
- Highly configurable, widely scalable, and fully compatible with existing IntelliVue solutions
- Smooth surfaces and minimal seams help to support efforts in reducing the risk of cross-contamination
SPECIFICATIONS:
- Manufacturer: Philips
-
Part Number: (OEM): MX700
- Category: Patient Monitor
- Condition: Refurbished
- Weight: 10.0 lb.
- Warranty: 12-Months
- Dimensions:
- Width: 15.43 in (392 mm)
- Height: 12.63 in (321mm)
- Depth: 6.41 in (163 mm)
- Weight: <20.9lbs (<9.5 kg)
- Operating & Storage Temperatures:
- Temperature Range Operating: 0 to 40° C (32 to 100° F) with iPC installed: 0 to 35°C (32 to 95°F)
- Temperature Range Storage: -20 to 60° C (-4 to 140° F)
- Humidity Range Operating: 15 % to 95 % Relative Humidity (RH) (non condensing)
- Humidity Range Storage: 5 % to 95 % Relative Humidity (RH)
- Altitude Range Operating: -500 m to 3000 m (10000 ft)
- Altitude Range Storage: -500 m to 4600 m (15000 ft)
- Display:
- Size: 15 in
- Type: 389 mm active matrix color LCD (TFT)
- Resolution 1280 x 768
- Refresh rate 59.9 Hz
- Useful screen 334 x 200.45 mm
- Pixel size 0.261 x 0.261
- Resolution 1280 x 768
- Refresh rate 59.9 Hz
- Useful screen 334 x 200.45 mm
- Pixel size 0.261 x 0.261
- Performance:
- Power Consumption <200 W average
- Line Voltage 100 to 240 V
- Current 1.9 to 0.9 A
- Frequency 50/60 Hz
- Sound:
- Audible feedback for user input
- Prompt tone
- QRS tone, or SpO2 modulation tone
- 4 different alarm sounds Remote tone for alarms on other beds in network
- Tone for Timer expired
- Network:
- Standard 100-Base-TX (IEEE 802.3 Clause 25)
- Connector RJ45 (8 pin) Isolation basic
- insulation (reference voltage: 250 V; test voltage: 1500 V)
- RS232 (Standard):
- Connector RJ45 (8-pin)
- Power none
- Isolation basic insulation (reference voltage: 250 V; test voltage: 1500 V)
- USB Interface (4 Ports):
- Standard USB 2.0 full-speed (embedded host)
- Connector USB series “Standard A” receptacle
- Power Low power port 4.4 V min; max. load for all ports together 500 mA
