Philips IntelliVue MX550 Patient Monitor

Out of stock
SKU: EN-MX550
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 12 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

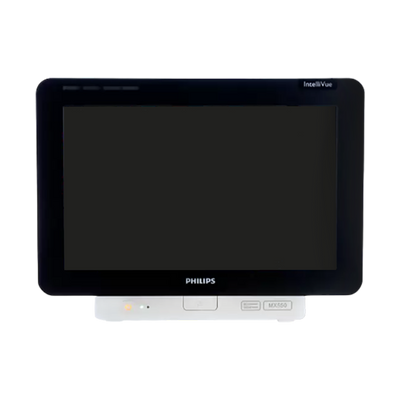

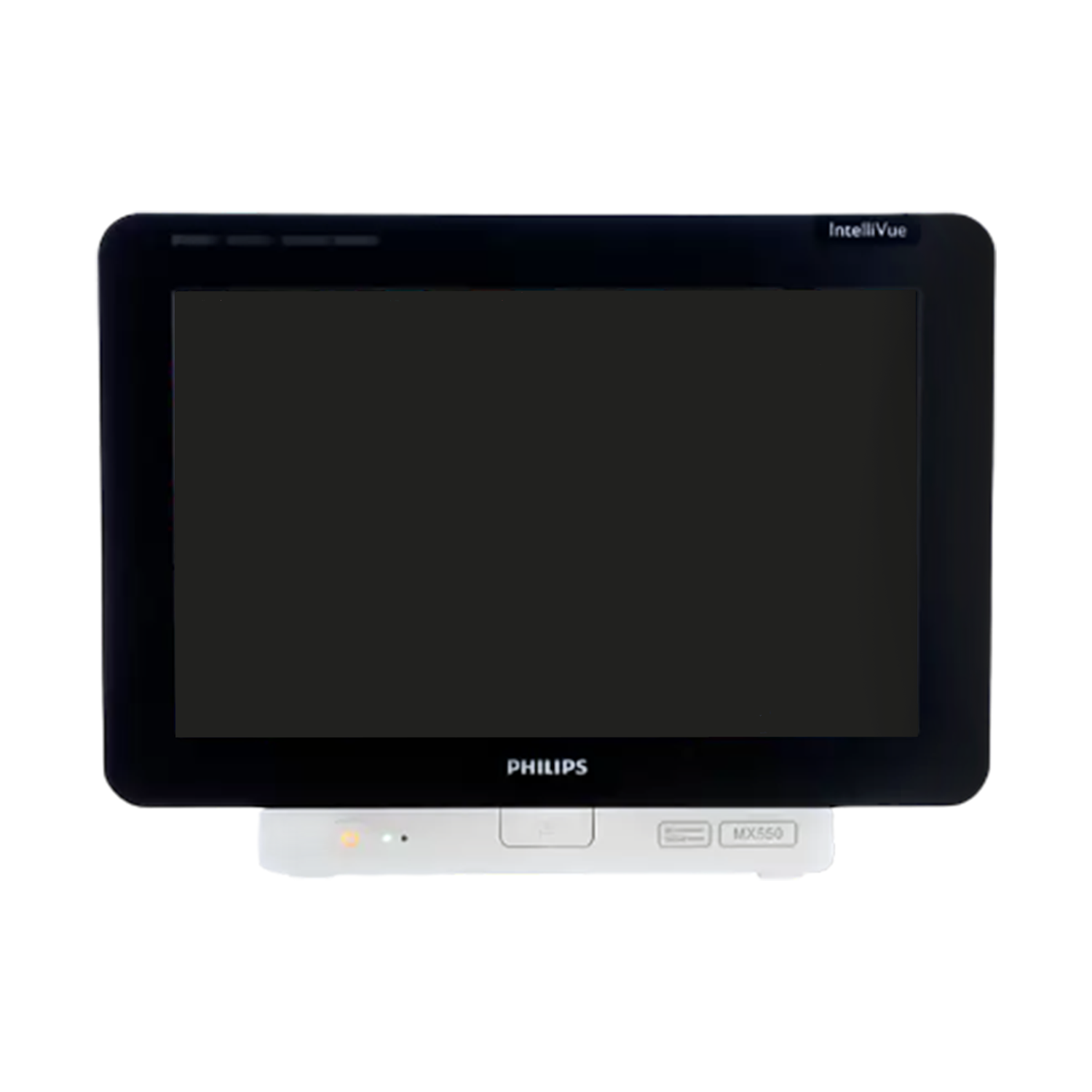

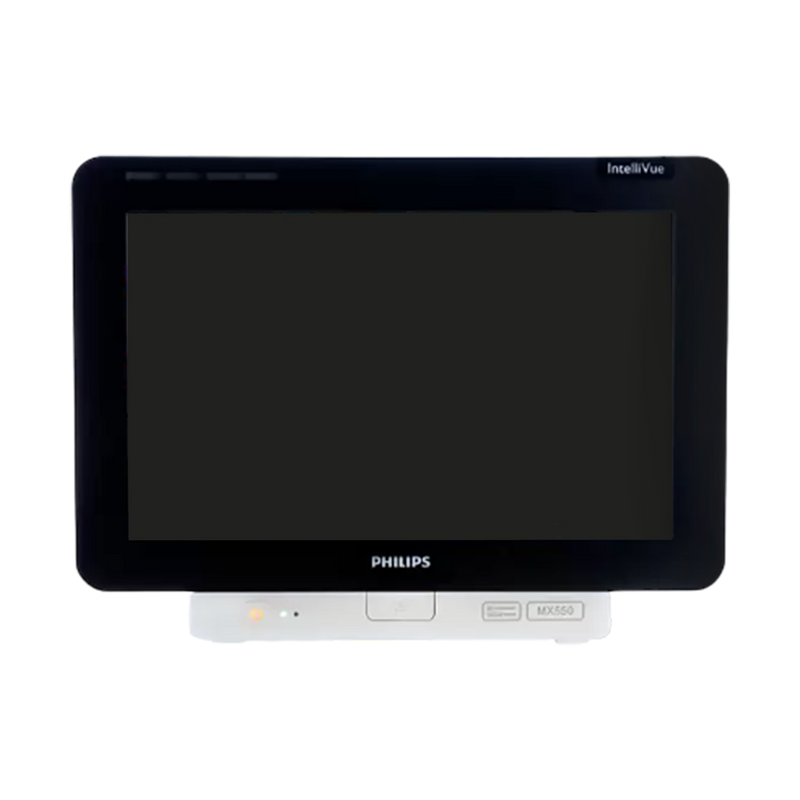

The Philips IntelliVue MX550 is a comprehensive patient monitoring device that also has the capability to track vital signs. It is equipped with a user-friendly 15-inch touchscreen interface, providing easy access to view and modify parameters for each individual patient. The display screen is highly adjustable, enabling the flexible presentation of various measurement information. This patient monitor is an integral component of the Philips Multi-Measurement Module (MMS) system, which offers a range of plug-in modules for measuring different parameters. These modules encompass anesthesia, intensive care, cardiac care, neonatal care, and general care. Philips offers a diverse selection of patient monitors, including the Philips IntelliVue MX700, which is part of the MX series.

FEATURES:

  • Information at a glance
  • Flexible, portable workflow
  • Easy data sharing
  • 12”-15” wide touchscreen helps you see it clearly and quickly
  • Advanced Clinical Solutions to summarize and visualize data
  • Ambient light adjustment for readability in virtually any environment
  • Advanced options help fit monitoring around workflows
  • Portable design to monitor on the move
  • Connectivity options help you make the most of your EMR

SPECIFICATIONS:

  • Manufacturer: Philips
  • Part Number: (OEM): MX550
  • Category: Patient Monitor
  • Condition: Refurbished
  • Weight: 10.0 lb.
  • Warranty: 12-Months

  • Dimensions:
    • Cardiac Output Module:
      • Width: 1.4 in ( 36mm)
      • Height: 4.1 in (103.5 mm)
      • Depth: 4.3 in (110 mm)
      • Weight: 225 g ( 7.9 oz)

  • Spirometry Module:
    • Width: 1.4 in ( 36mm)
    • Height: 4.1 in (103.5 mm)
    • Depth: 4.3 in (110 mm)
    • Weight: 250 g ( 8.8 oz)

  • SpO2 Module:
    • Width: 1.4 in ( 36mm)
    • Height: 4.1 in (103.5 mm)
    • Depth: 4.3 in (110 mm)
    • Weight: 200 g ( <8.8 oz)

  • Temperature Range:
    • Operating: 0 – 40° C (32 – 100° F). When charging the battery, or M3002A is mounted on the back, or with Smart Hopping Interface 0 – 35°C (32 – 95°F)
    • Storage: -20 – 60° C (-4 – 140° F)

  • Humidity Range:
    • Operating: 15% to 95% Relative Humidity (RH) (noncondensing)
    • Storage: 5% – 95% Relative Humidity (RH)

  • Altitude Range:
    • Operating: -500 – 3000 m (10000 ft)
    • Storage: -500 – 4600 m (15000 ft)

  • Power Specifications:
    • Power Consumption: <70 W average
    • Line Voltage: 100 – 240 V
    • Current: 1.2 – 0.5 A
    • Frequency: 50/60 Hz

  • Display Screen:
    • Size: 15 inch
    • Type: 390 mm active matrix color LCD (TFT)
    • Resolution: 1280 x 768
    • Refresh rate: 59.9 Hz
    • Useful screen: 334.1 x200.5 mm
    • Pixel Pitch: 0.261 x 0.261

  • Network:
    • Standard: 10BASE-T and 100Base-TX (IEEE 802.3), auto-negotiation, full and half-duplex
    • Connector: RJ45 (8 pin)
    • Isolation: basic insulation (reference voltage: 250 V; test voltage: 1500 V)

  • USB Interface:
    • Standard: USB 2.0 high-speed
    • Connector: USB series “Standard A” receptacle
    • Power: Low power port 4.4 V min., max. load for all ports together 500 mA
    • Isolation: none

  • Video Interface:
    • Connector: DVI-I (digital and analog, single link).
    • Digital Video Connector: single link TMDS
    • Analog video signals: 0.7 Vpp@75Ω
    • HSYNC/VSYNC signals: TTL

  • Battery Operating Time:
    • New and fully loaded battery
    • With basic monitoring configuration: 2.5 hours (brightness set to optimum, MMS connected, NBP measurement every 15 minutes)
    • With extended monitoring configuration: 2 hours (brightness set to optimum, MMS and MMS extension connected, NBP every 15 minutes, Recorder, Pressure, Temperature modules connected)

  • Battery Charge Time:
    • When monitor is switched off: 3 hours
    • When the monitor is in use: up to 5 hours, depending on monitor configuration

In addition please acknowledge the following disclaimer:

* IMPORTANT - PLEASE READ BEFORE PURCHASING! * All pictures of items being sold are used for reference purposes and are described as accurately as possible. If there is an error in a listing, we will try and resolve any issues to the best of our abilities that may arise before or after a sale. Complete units all come with a power cord and DO NOT come with any cables, sensors, manuals, accessories etc. unless otherwise noted in the description.

Purchaser agrees that seller is not liable for any injuries or damages of any kind associated in any way with this equipment. Purchaser agrees to indemnify and hold harmless seller and seller's officers, directors, employees, agents, and shareholders against any and all claims, liabilities, obligations, demands, cost and expenses of every kind and nature, including but not limited to attorney's fees and litigation expenses, from or related to the equipment and any use thereof.

* NOTE - FDA Regulation and Certification: "The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

This unit or item will ship anywhere in the continental United States via FedEx Ground - Calculated. Please read our Shipping and Return policies for more details.
