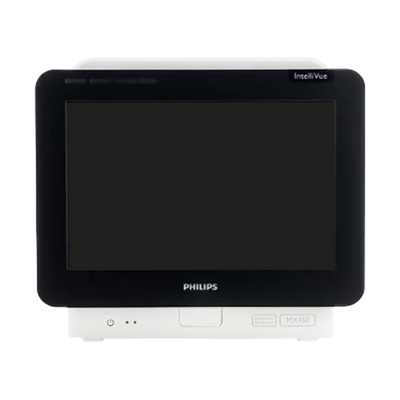

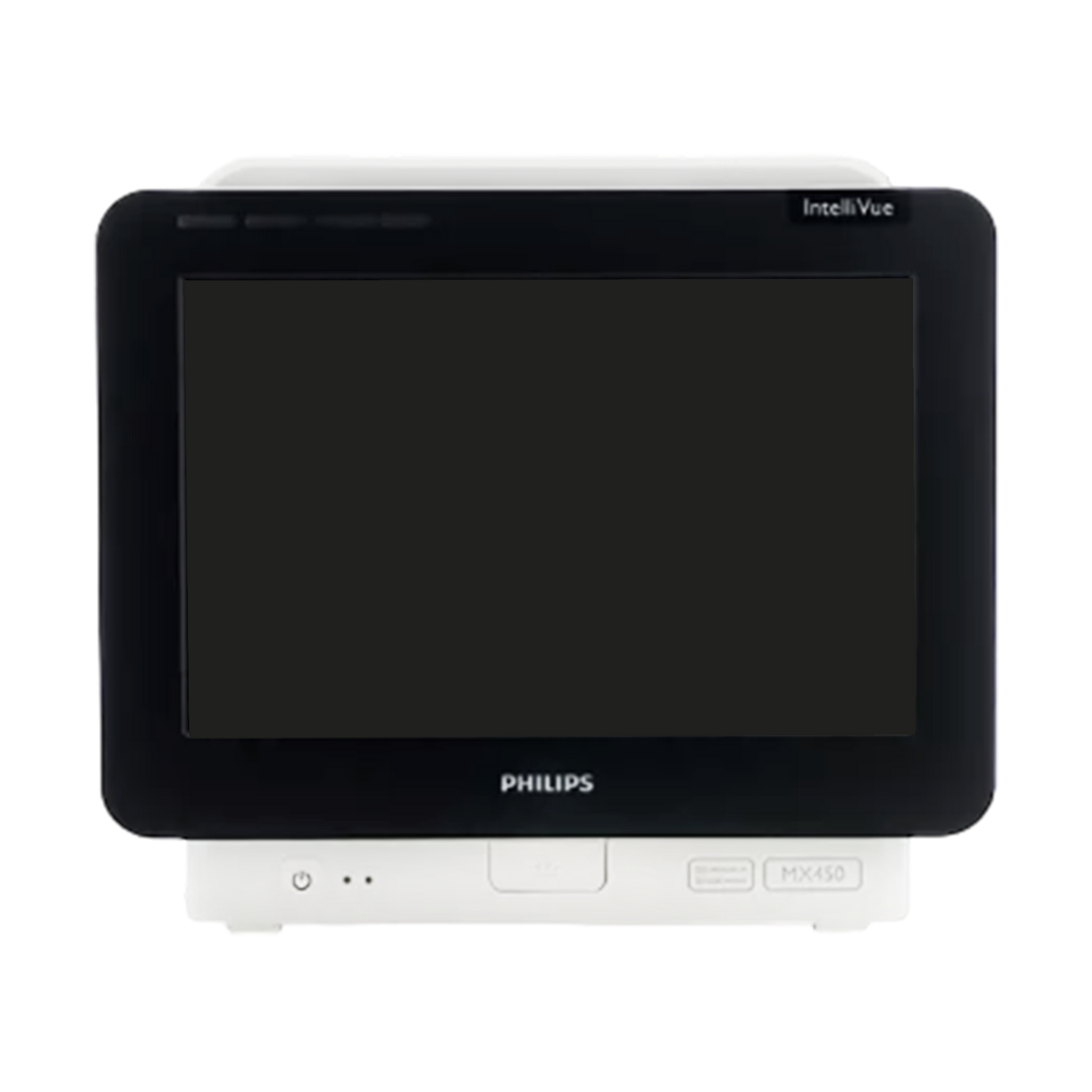

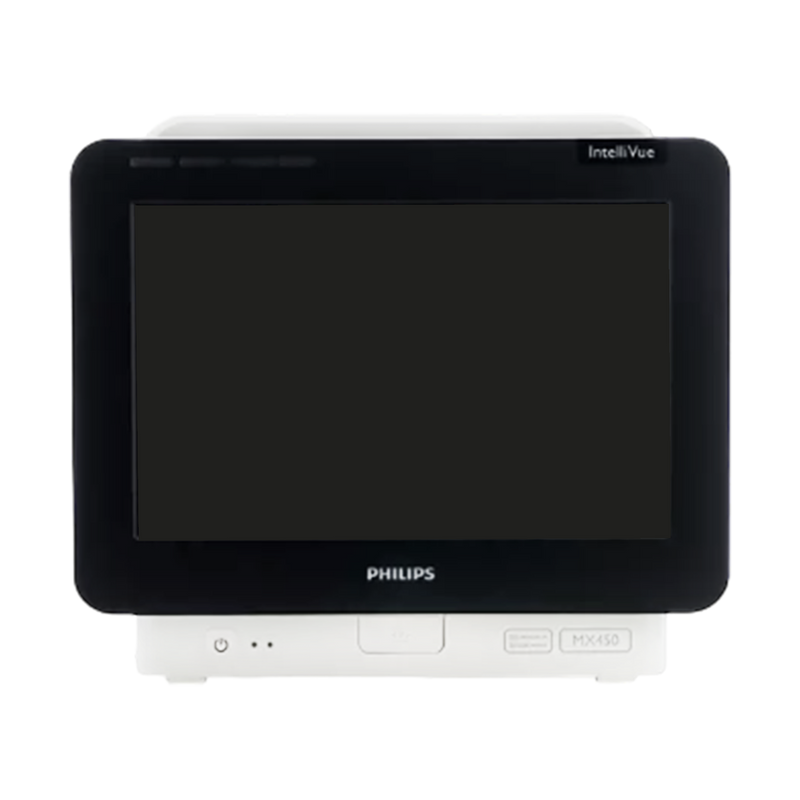

Philips IntelliVue MX450 Patient Monitor

Out of stock
LEAD TIME: Estimated Ship Time: 7-10 Days
WARRANTY: 12 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The Philips IntelliVue MX450 is a patient monitoring device specially designed to cater to various requirements. With its 12-inch color touch screen and user-friendly interface, the MX450 provides an effortless user experience. The display screen incorporates a sensor that automatically adjusts the screen's brightness, ensuring optimal visibility in any lighting condition.

The intelligently crafted design of the Philips IntelliVue monitor enables the MX450 to be a compact and portable device, suitable for both bedside monitoring and intra-hospital transport. It offers a range of modules, including anesthesia, intensive care, cardiac care, neonatal care, and general care units, allowing healthcare providers to customize the monitor according to specific patient needs.

Moreover, the MX450 effortlessly integrates with an Electronic Medical Records (EMR) system, facilitating seamless sharing of patient data across various devices and even a central data station within your medical facility. Philips, known for its diverse range of patient monitors, also offers another model in the MX series, namely the Philips IntelliVue MX 500.


  • Patient data management with tabular and high-resolution trends.
  • Drug, ventilation, hemodynamic, and oxygenation calculations.
  • Easy-to-read, easy-to-use touch screen.
  • Simple menu hierarchy for fast access to all basic monitoring tasks.
  • Capable of functioning in a wireless infrastructure.
  • Adjustable screen layouts.
  • Built-in recorder.


  • Manufacturer: Philips
  • Part Number: (OEM): MX450
  • Category: Patient Monitor
  • Condition: Refurbished
  • Weight: 10.0 lb.
  • Warranty: 12-Months

  • Dimensions:
    • Height: 11.34” (28.8 cm)
    • Width: 12.87” (32.7 cm)
    • Depth: 7.17” (18.2 cm)
    • Weight: 12.9lbs (5.9 kg)

  • Battery:
    • Operating Time: ~ 3-4 hours depending on monitoring configuration
    • Charge Time: 3 hours when the monitor is off. 5 hours when the monitor is in use.

  • Wave Speeds:
    • Available for Standard Waves: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s with ±5% accuracy (guaranteed only for integrated displays)
    • Available for EEG and BIS Waves: 6.25 mm/s, 12.5 mm/s, 15 mm/s, 25 mm/s, 30 mm/s, 50 mm/s with ±5% accuracy (guaranteed only for integrated displays)

  • High Res Trend Waves:
    • Measurements Available: HR, SpO2, Resp, tcpO2, Pulse, Perf, tcpCO2, CO2, ABP, PAP, CVP, ICP, CPP, BIS, CCO, AWP, Anesthetic Agents, Delta SpO2, inO2
    • Resolution: Measurement samples are taken at a resolution of four samples per second
    • Update Speed: Waves are drawn at a speed of 3 cm/minute
  • Display (12" WXGA):
    • Type: 310 mm active matrix color LCD (TFT)
    • Resolution: 1280 x 800 (WXGA 16:10)
    • Refresh Frequency: 59.9 Hz
    • Useful Screen: 261.1 mm x 163.2 mm
    • Pixel Size: 0.204 mm x 0.204 mm

  • Power:
    • Power Consumption: <70 W average
    • Line Voltage: 100 to 240 V
    • Current: 1.2 to 0.5 A
    • Frequency: 50/60 Hz

  • Trends:
    • Resolution: 4h@12s, 24h@1min, 48h@5min for 50 numerics

  • Events:
    • Capacity: 25 or 50 events for either 8 or 24 hours
    • Episode Data: Configurable, either: 4 minutes of high-resolution trend or 20 minutes of numerics trend @ 12 sec. resolution or 15 seconds of 4 waves @ 125 samples/sec. (Snapshot) including all current numerics, alarms, and inops
