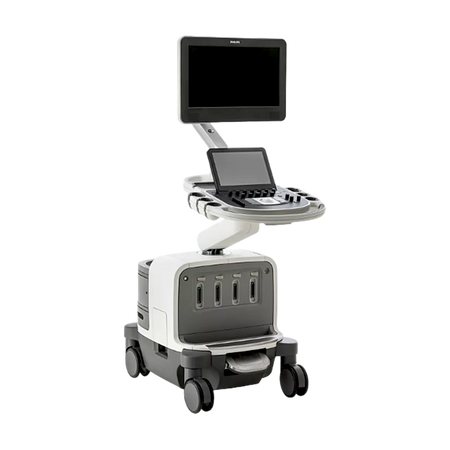

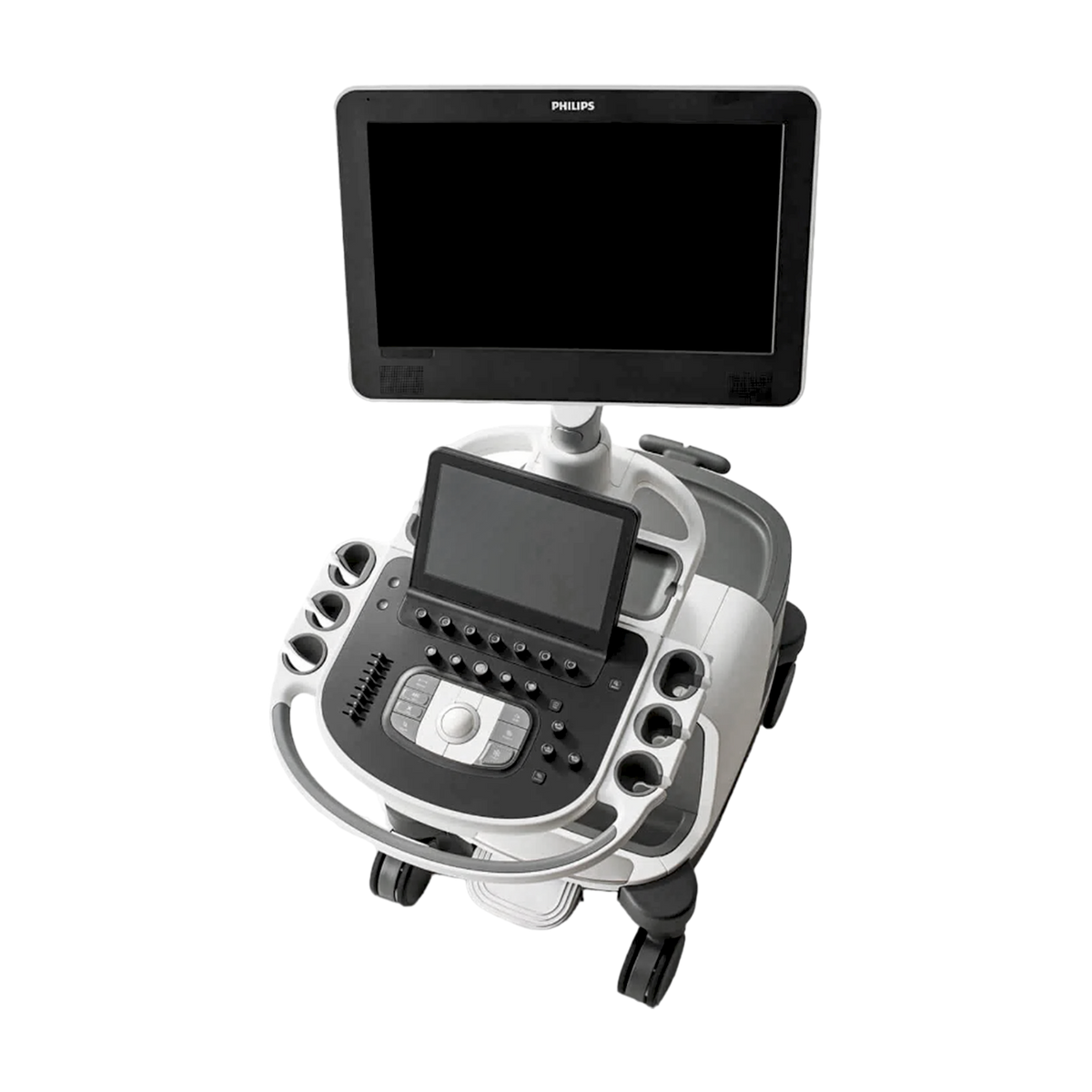

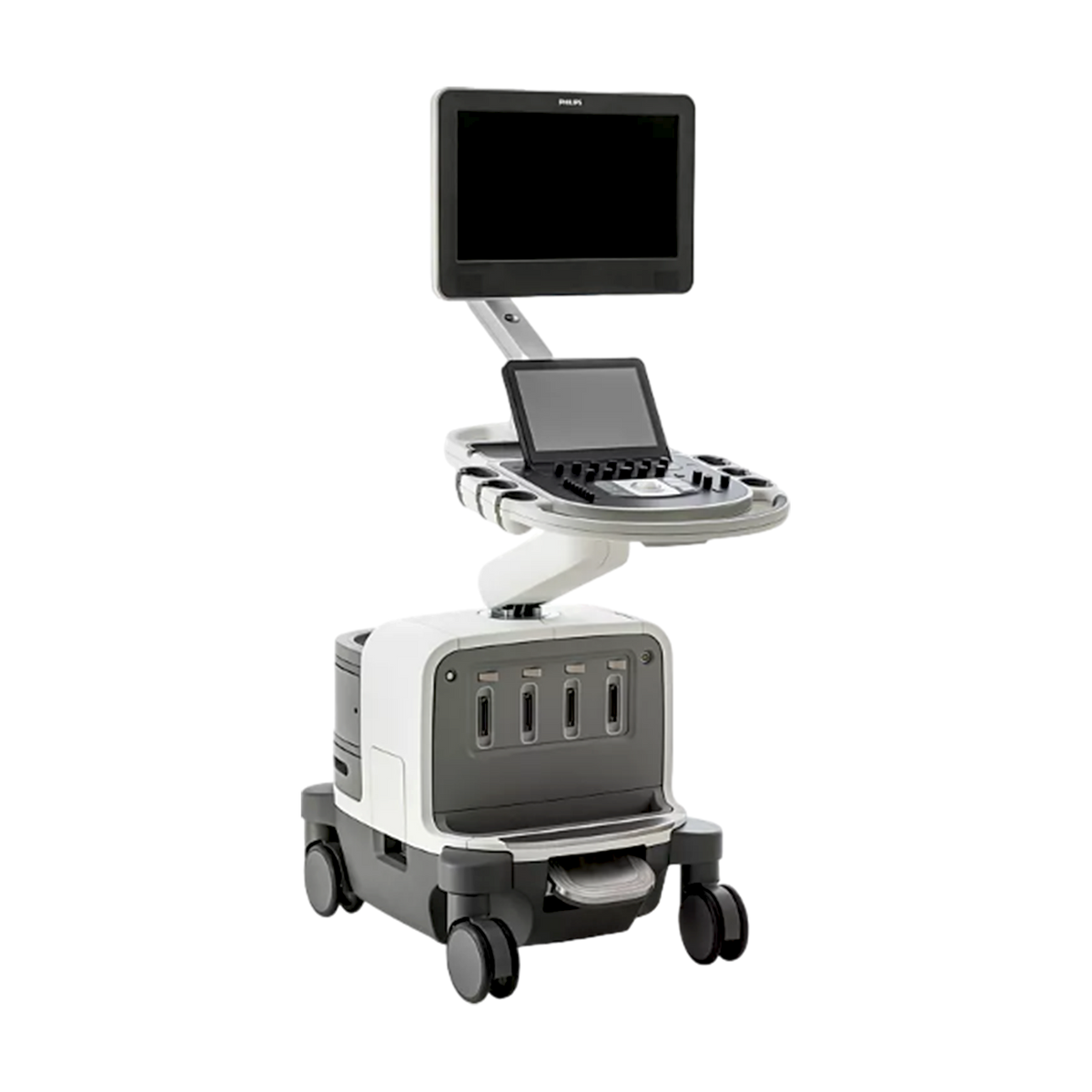

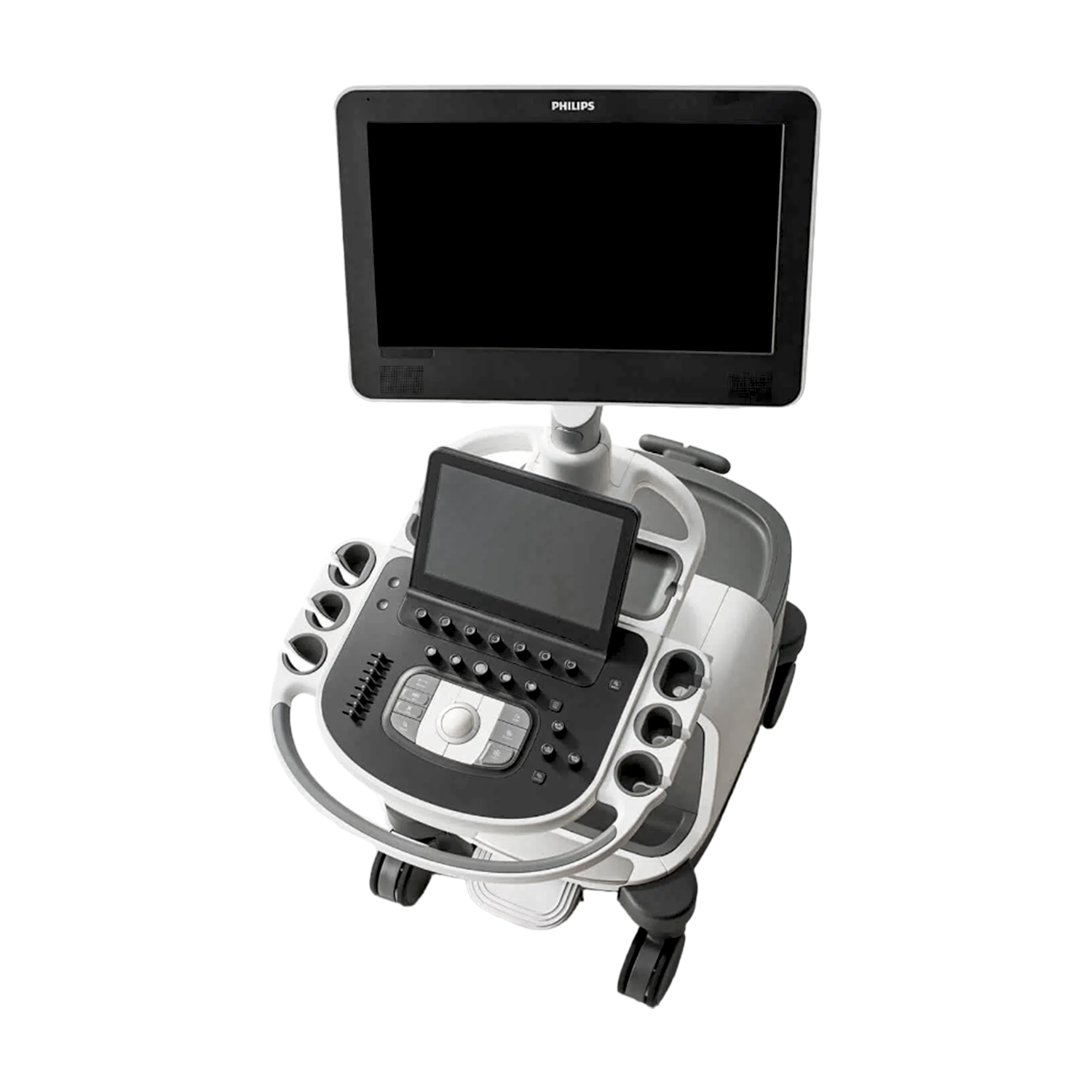

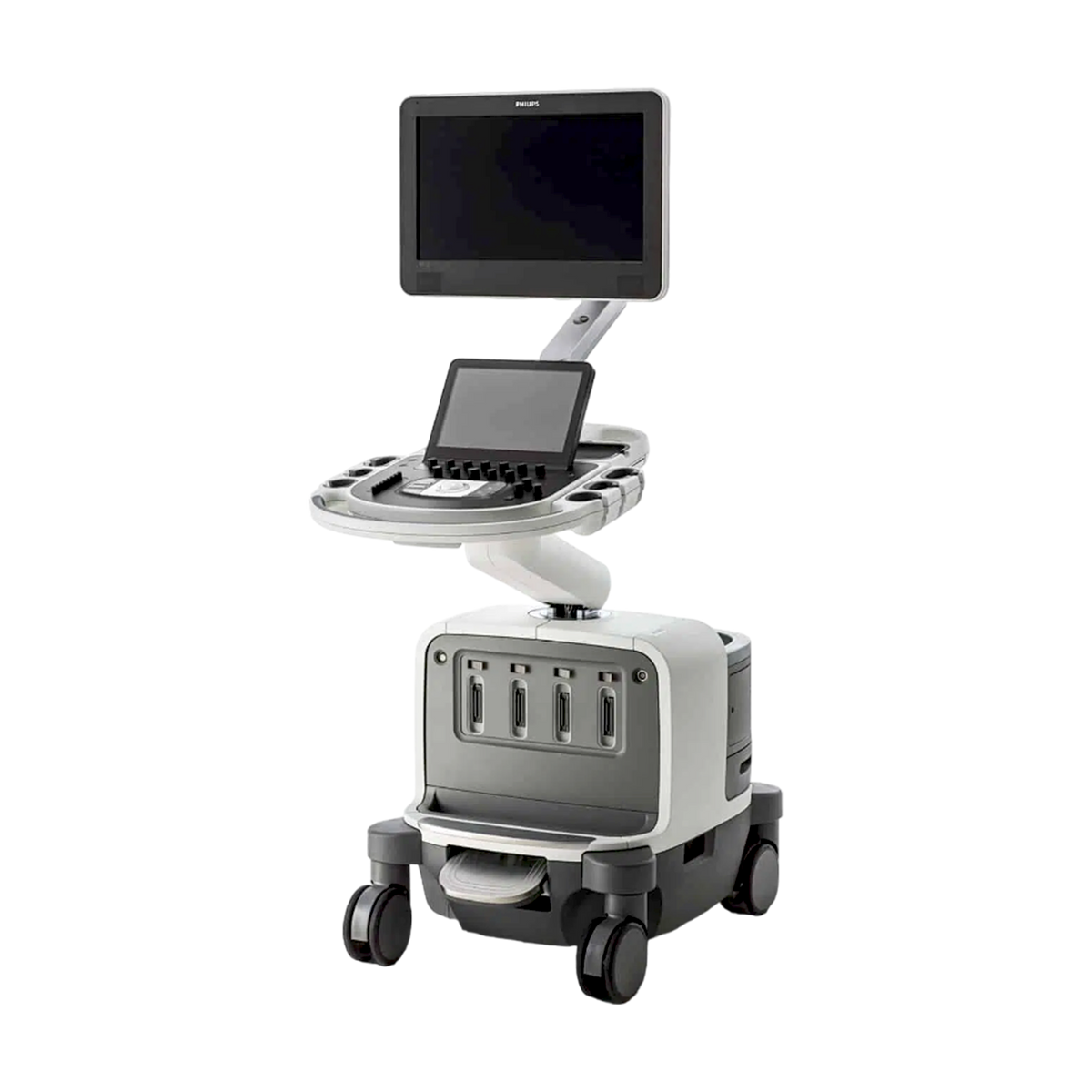

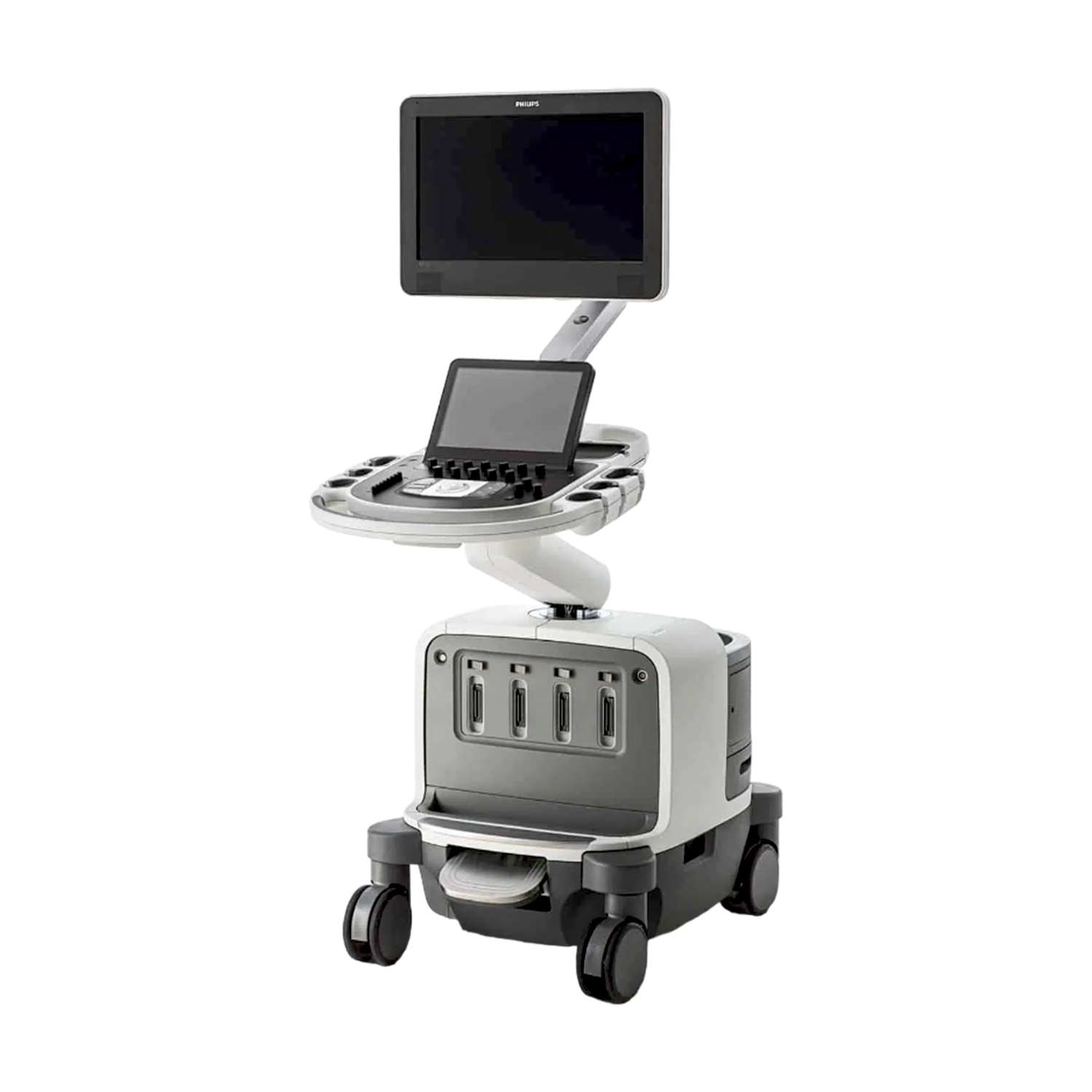

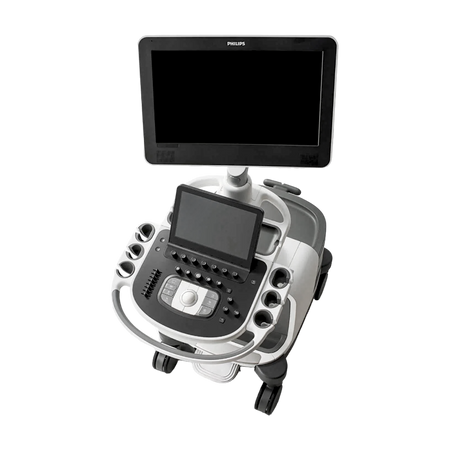

Philips Epiq 7C Ultrasound Machine/System

Out of stock
SKU: EN-PHILIPS-EPQI7C
Condition
Category
LEAD TIME: Estimated Ship: TBD
PACKAGING: 1
WARRANTY: 3 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The Philips Epiq 7c represents the pinnacle of shared service ultrasound machines from Philips, boasting state-of-the-art xMatrix and Purewave single crystal probe technology. Its design is both compact and lightweight, enhancing ergonomics and streamlining workflow. The Epiq and Affiniti ultrasound machines share a similar visual design, utilizing the same large monitor and tablet-like touchscreen for user-friendly navigation.

This system is acclaimed for its shared-service capabilities, featuring Philips' latest imaging architecture, nSIGHT. nSIGHT is a novel beamforming and processing technology that significantly enhances spatial, temporal, and contrast resolution. The Epiq 7c sets itself apart from the Epiq 5 with its ability to support Philips' premium xMATRIX ultrasound transducers, which offer superior imaging in 2D, 3D, and real-time 3D (4D). Alongside nSIGHT and xMATRIX probes, the Epiq 7c incorporates Philips' established high-end imaging technologies such as PureWave transducers, MicroCPA for enhanced low-flow angiography, ShearWave elastography, SonoCT compound imaging, and XRES speckle reduction imaging.

As a shared service ultrasound system, the Epiq 7c is adept at producing ultrasound images for a diverse range of applications, including abdominal, small parts, cardiac, vascular, OB-GYN, musculoskeletal, stress echo, transcranial, and urological imaging. It is compatible with over 15 different ultrasound transducer types, highlighting the system's adaptability for various medical scenarios.

FEATURES: *(Not ALL May Be INCLUDED)

  • XMATRIX transducer technology
  • Stress Echo with automatic modes
  • AutoDoppler
  • High-resolution 21.5" LCD wide screen monitor
  • PureWave-Crystal-Technology
  • nSIGHT: clear, precise imaging throughout the image while keeping higher framerates
  • SmartExam & Real Time iSCAN (Autoscan)
  • PureWave transducers
  • 4D TEE
  • Shear Wave and strain-based elastography
  • 2D LV quantification

SPECIFICATIONS:

  • Manufacturer: Philips
  • Part Number (OEM): EPIQ 7C
  • Category: Imaging
  • Accessories: None
  • Functional Condition: New/Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

  • Dimensions:
    • Height: Minimum 57.5 in (146 cm)
    • Height: Maximum 67.5 in (171.5 cm)
    • Width: 24 in (60.6 cm)
    • Depth: 43 in (109.2 cm)
    • Weight: 230lbs (104.3 kg)

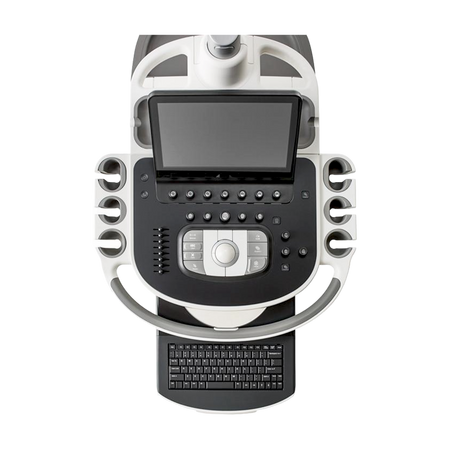

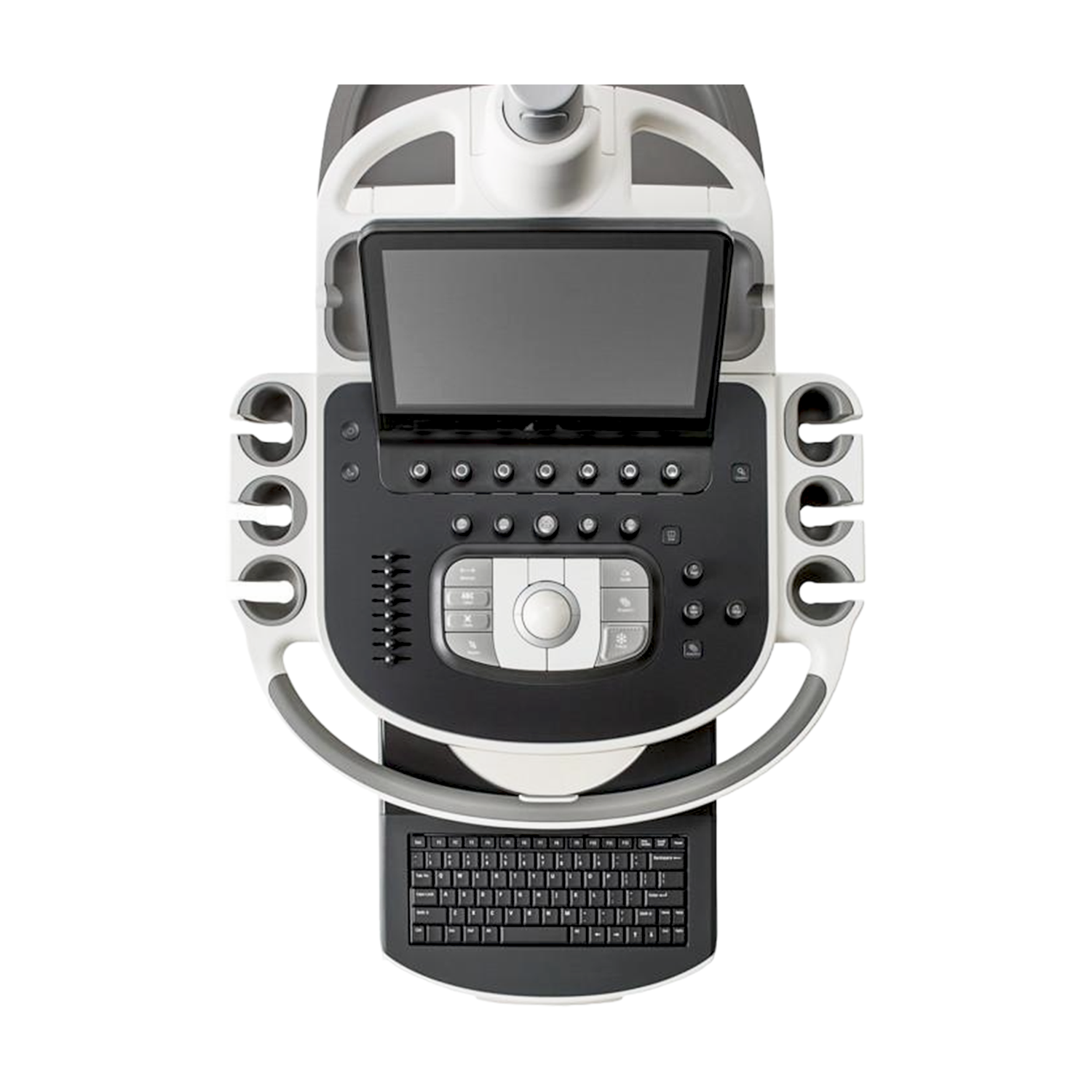

  • Control Panel:
    • Monitor size: 21.5 in (54.6 cm)
    • Touch Screen: 12 in (30.5 cm)
    • Height Adjustment: 10 in (25.4 cm)
    • Degrees of Monition: 180 degrees

  • Output Signal:
    • External printer
    • USB serial data
    • Video: S-Video, and digital display port
    • Physio analog signal

  • Electrical:
    • AC Voltage 100-240V~
    • 50 – 60 Hz
    • 600 VA

  • General:
    • CP Back-Lighting: Yes (3 steps)
    • Probe ports: 4
    • Battery: 45 minutes
    • Boot-up Time: 110 Sec
    • Sleep Mode (Quick Start): Yes
    • Maximum Depth of Field: 30 cm
    • Minimum Depth of Field: 2 cm
    • Cart (HCU): No
    • Independent Steer & lockable Wheels: Yes

  • General Imaging Q-Apps:
    • Intima Media Thickness (IMT)
    • General Imaging 3D Quantification (GI 3DQ)
    • Region of Interest (ROI)
    • MicroVascular Imaging (MVI)
    • Vascular Plaque Quantification (VPQ)

  • Cardiology Q-Apps:
    • Strain Quantification (SQ)
    • Cardiac 3D Quantification (3DQ)
    • Cardiac 3D Advanced Quantification (3DQ Advanced)
    • CMQ Stress
    • Mitral Valve NavigationA.I. (MVNA.I.)
    • Automated 2D Cardiac QuantificationA.I. (a2DQA.I.)
    • Automated Cardiac Motion QuantificationA.I. (aCMQA.I.)

    COMPATIBLE PROBES/TRANSDUCERS:

    • Endocavitary Probes:
      • Philips C10-4ec

    • Convex/Curved Array Probes:
      • Philips C5-1
      • Philips C8-5
      • Philips C9-2

    • Linear Array Probes:
      • Philips L12-3
      • Philips L12-5
      • Philips L18-5

    • Cardiac Sector Array Probes:
      • Philips S12-4
      • Philips S5-1
      • Philips S8-3

    • Vector Array Probes:
      • Philips V6-2e
      • Philips VL13-5

    • Matrix TEE Probe:
      • Philips  X7-2t

    • Matrix Array Probes:
      • Philips X5-1
      • Philips X6-1
      • Philips X7-2

    • Hockey Stick Probes:
      • Philips L15-7io

    • CW Probes:
      • Philips D2cwc CW
