Philips BV Libra C-Arm System

Out of stock
LEAD TIME: Estimated Ship Time: 10-14 Days

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

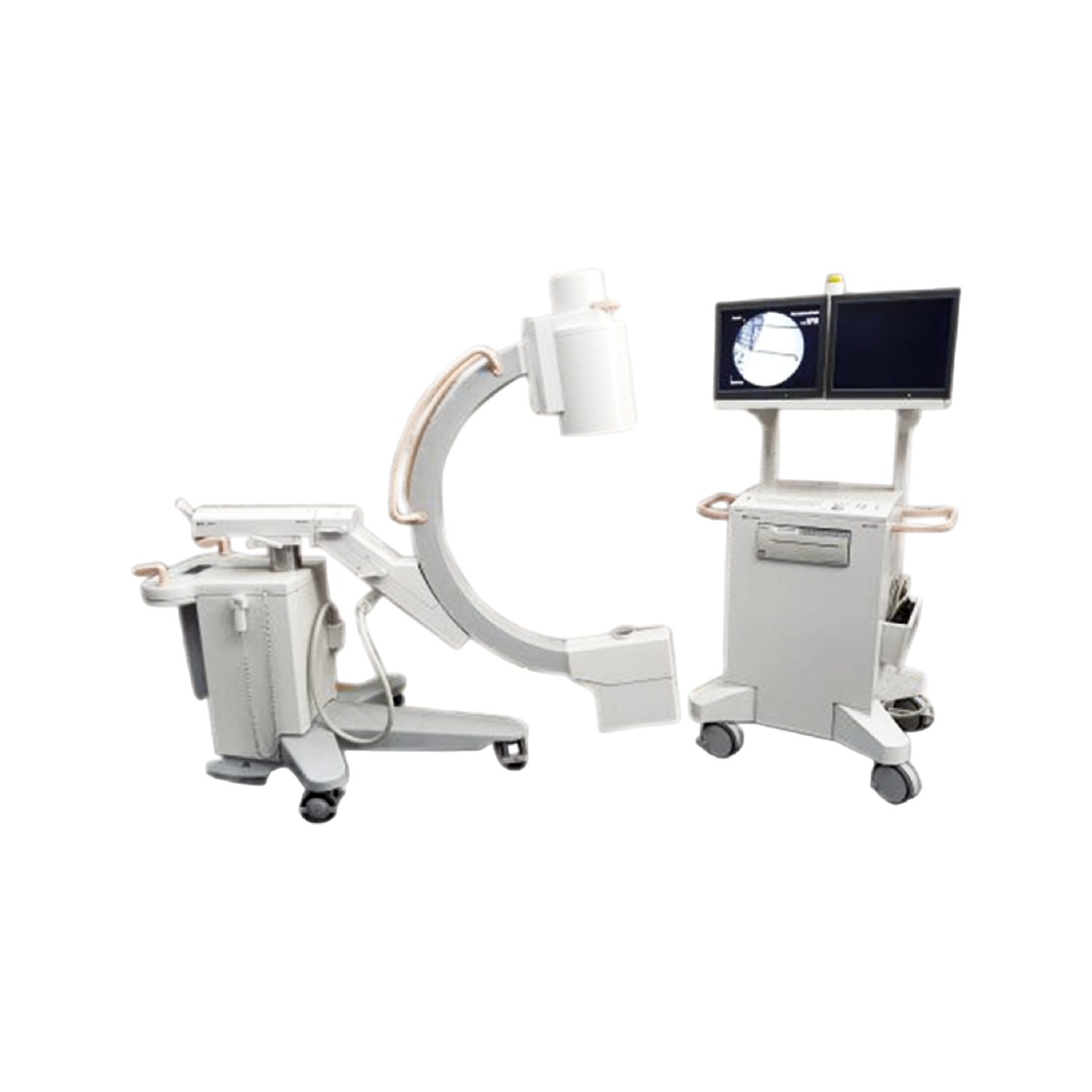

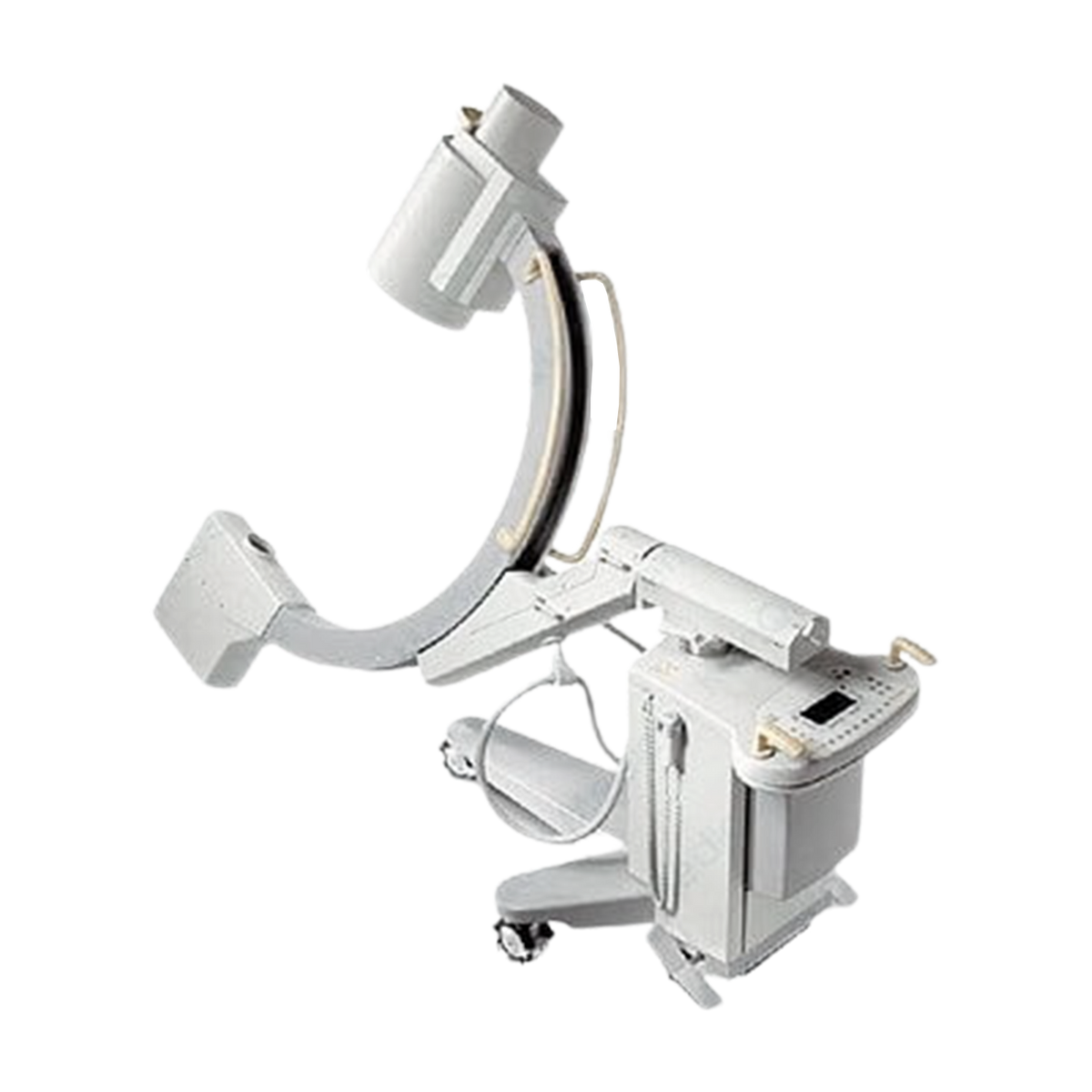

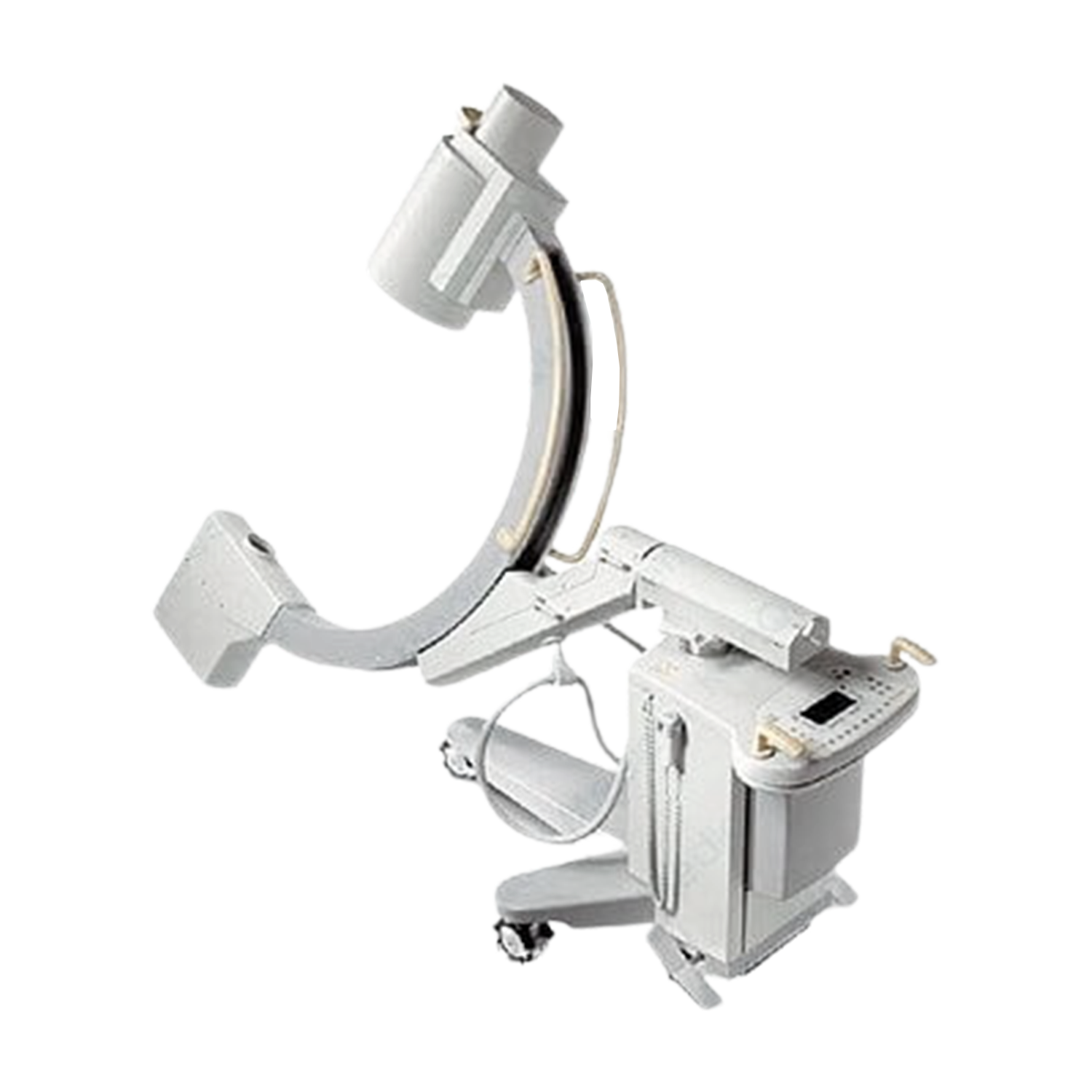

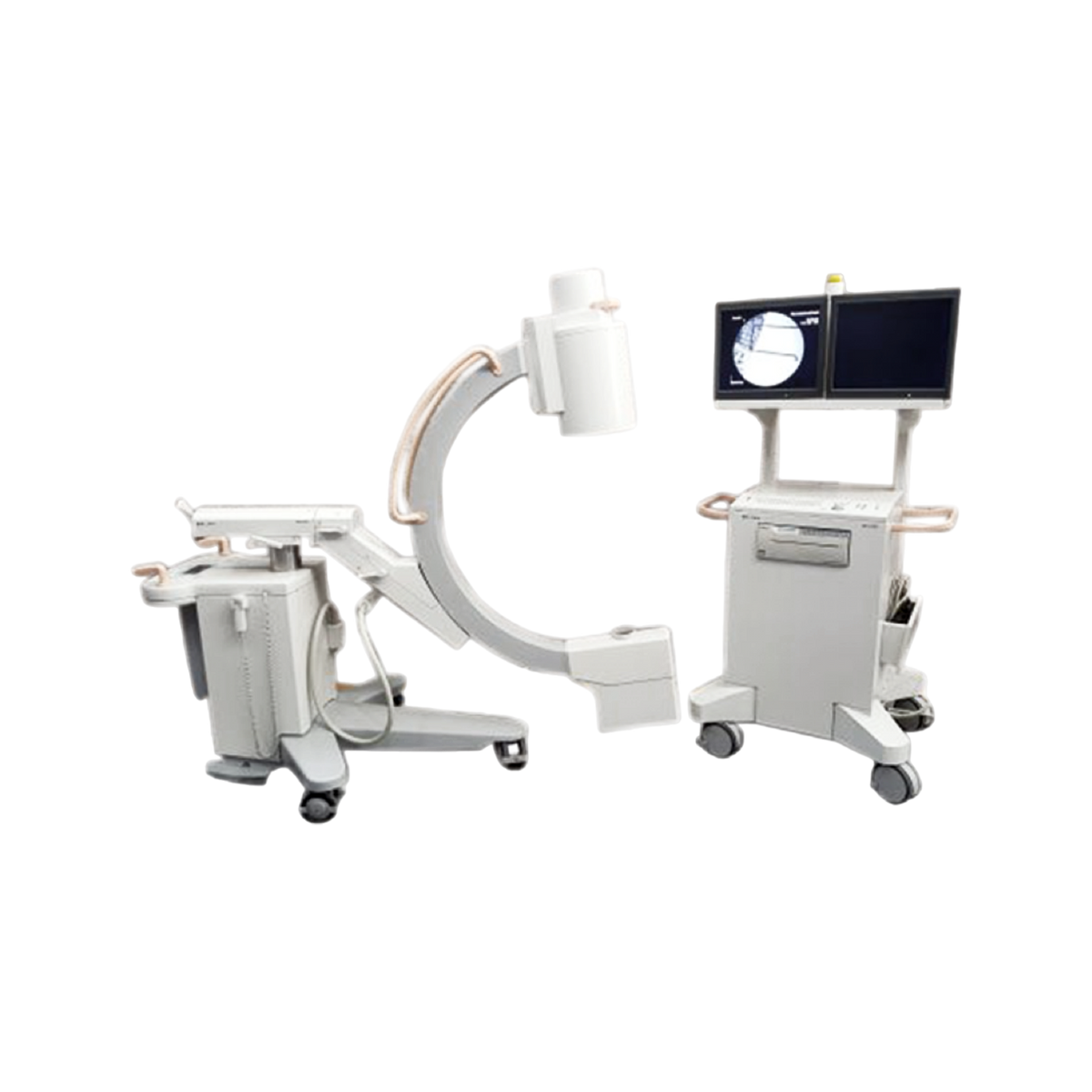

The Philips BV Libra C-Arm is a versatile diagnostic and surgical imaging system known for its compact and ergonomic design, providing high-quality fluoroscopy performance while minimizing radiation exposure. This system features a 9-inch image intensifier suitable for various procedures such as surgery, outpatient care, emergency care, and vascular procedures.

The BV Libra offers a simple workflow with single-button control and minimal menu functions, along with convenient image processing features like edge enhancement, automatic movement detection, BodySmart software, real-time contrast, auto-brightness adjustment, and beam filters to reduce skin radiation exposure by up to 40%. Its lightweight and easy-to-steer design allows for effortless transportation into different areas. The system is FDA certified, ensuring quality and reliability in diagnostic imaging applications.


The features of the Philips BV Libra C-Arm system include:

  • BodySmart technology
  • Laser aiming
  • DoseWise
  • Pulsed fluoroscopy mode
  • DICOM compatibility
  • Single-button control
  • Dual monitors

These features highlight the advanced capabilities and user-friendly design of the Philips BV Libra C-arm system, making it suitable for various diagnostic and surgical imaging applications.


  • Manufacturer: PHILIPS
  • Part Number (OEM): BV LIBRA
  • Category: Imaging
  • Accessories: None
  • Functional Condition: New/Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

  • Geometry:
    • Free space within C-arm: 77 cm (30.3”)
    • Angulation: +90° to -25°
    • C-arm depth: 61 cm (24.0”)
    • Rotation: ± 180°, with safety stop at ± 135°

  • X-Ray Tube:
    • Stationary anode tube with active heat management

  • X-Ray Generator:
    • DC converter, Constant Potential (CP) generator, micro-processor controlled
    • Nominal power: 3.15 kW: 110 kV, 20 mA

  • Source Image Distance: 98 cm (38.7”)

  • Extended Angulation (Optional):
    • +90° to -45° for increased projection flexibility

  • Lowest Lateral Working Position:
    • 102 cm (40.0”)

  • Image Intensifier:
    • Single mode 6” HC, Triple mode 9” HRC

  • TV Camera Type:
    • Interline transfer CCD; high resolution

  • Nominal II Formats:
    • 6”: 15 cm
    • 9”: 23, 17, and 14 cm (9”, 7” and 5”)

  • Video Standard: CCIR: 625 lines; 2:1 interlaced
    • Laser Aiming Device: Yes
    • ViewForum: Multi-modality workstation
    • DVD Recorder: Yes
    • DICOM: Yes
