Philips BV Endura C-Arm System

Out of stock
SKU: EN-BV-ENDURA
Condition
Category
LEAD TIME: Estimated Ship Time: 10-14 Days
PACKAGING: 1
WARRANTY: 90 Days

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

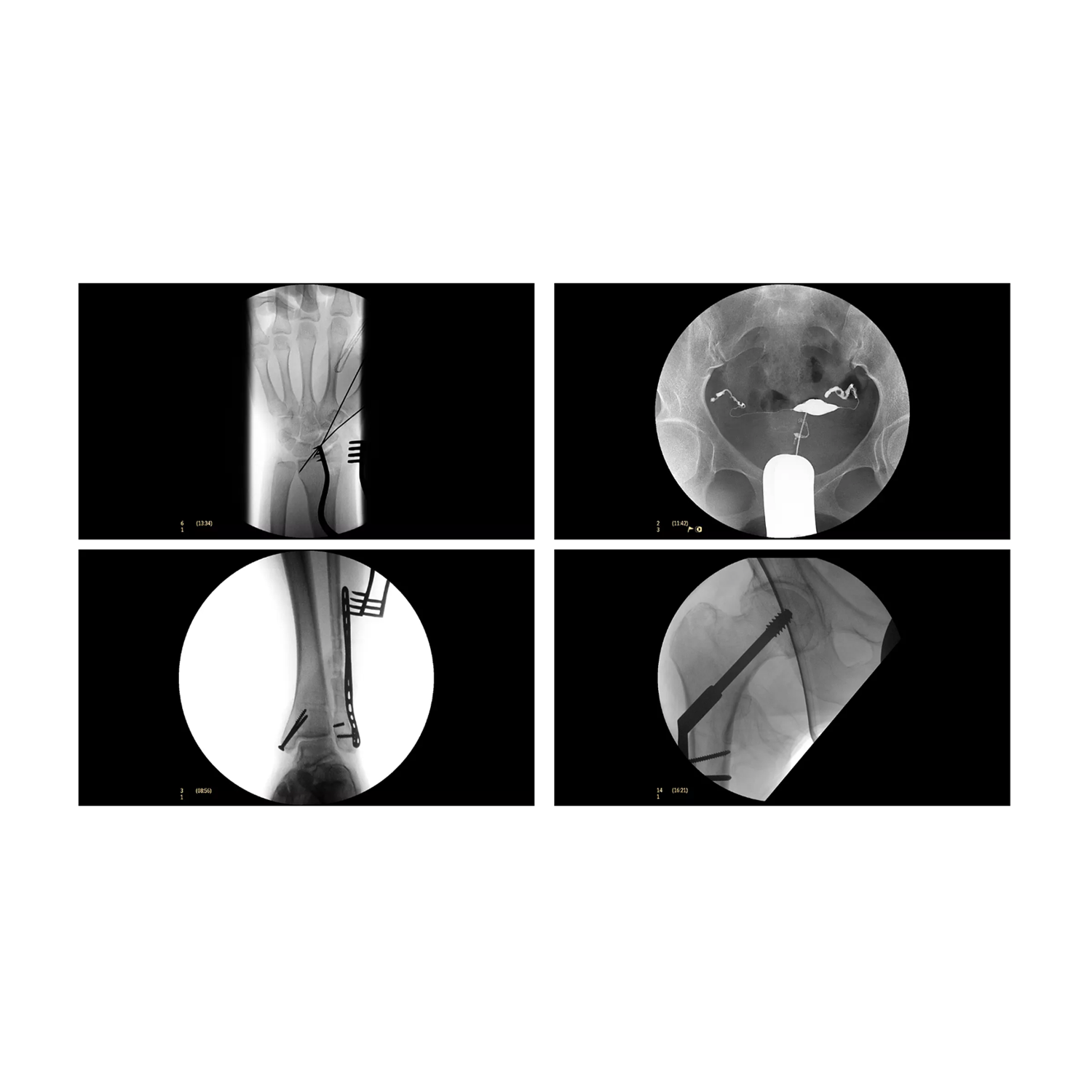

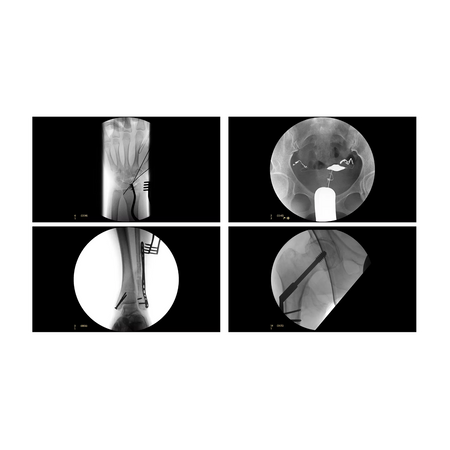

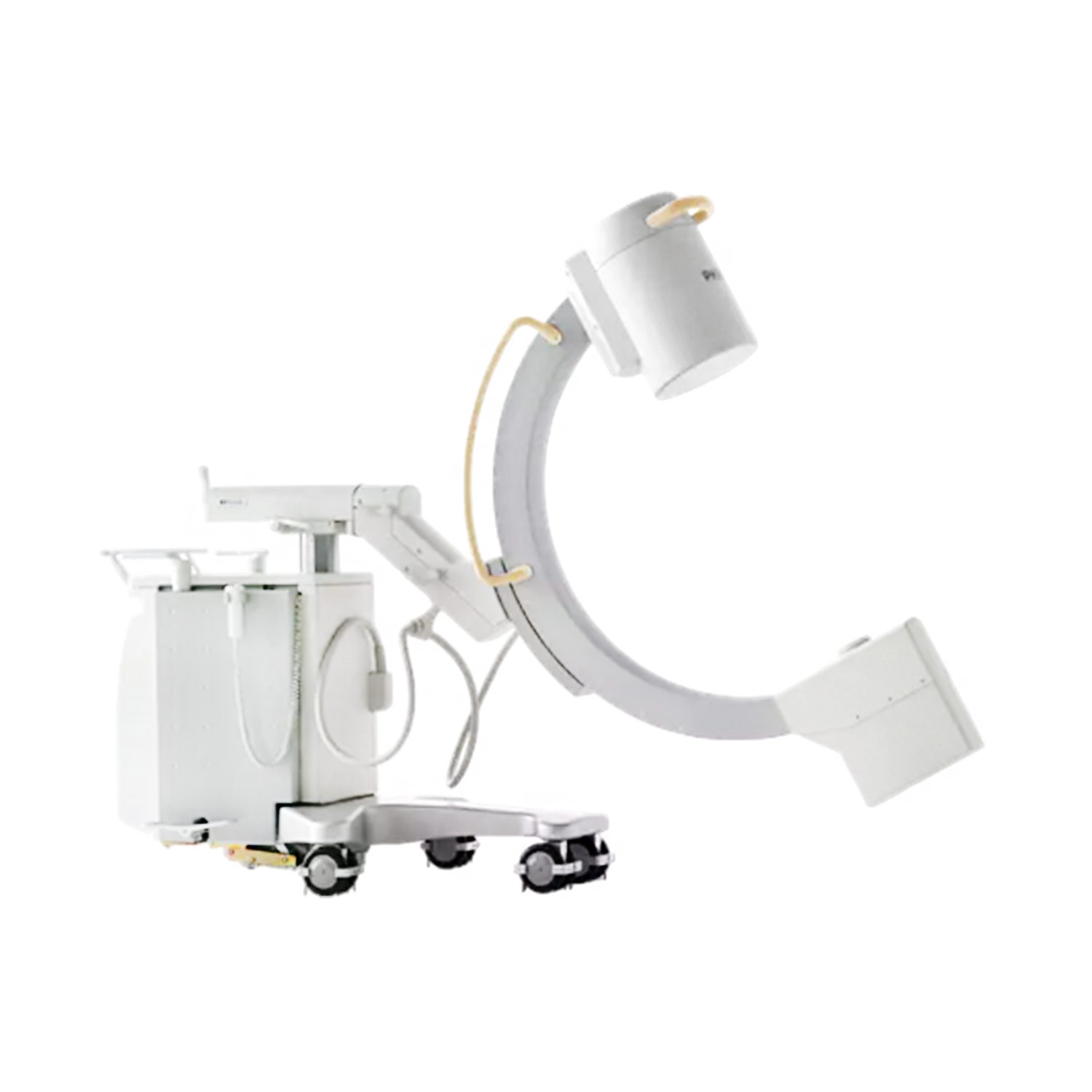

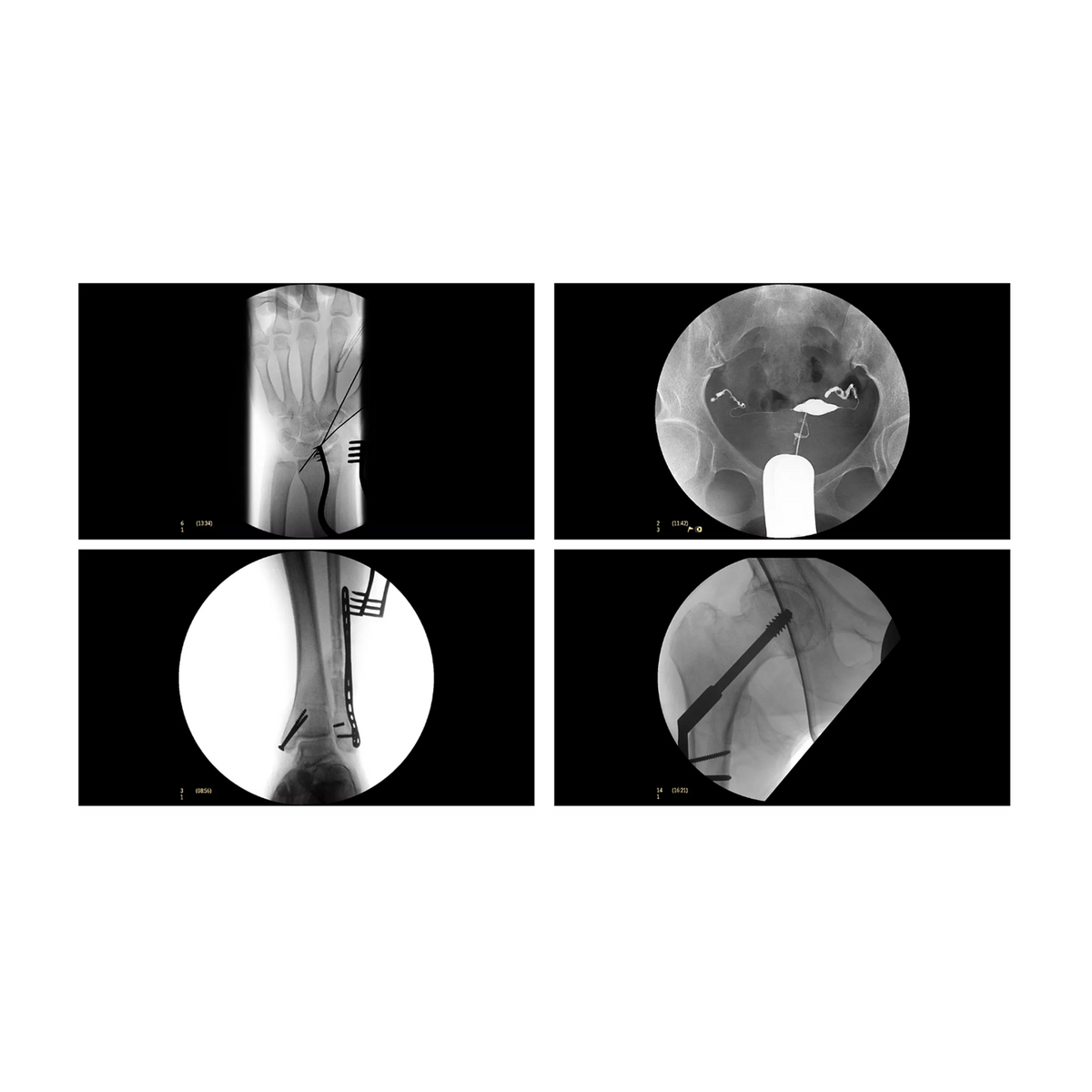

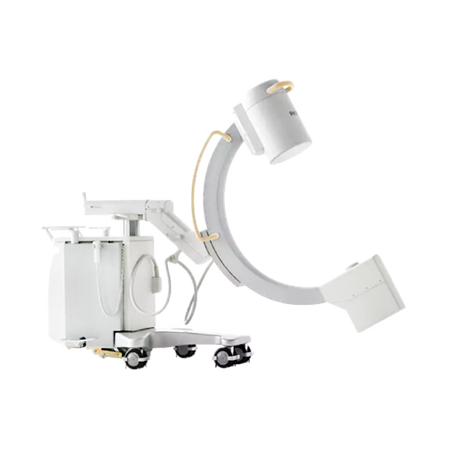

The Philips BV Endura C-arm system is a versatile imaging system designed for surgical and vascular procedures, offering ergonomic patient access, quick positioning, and industry-leading image quality. This system features a fully digital 1K x 1K imaging chain with advanced noise reduction and 2D edge enhancement for precise insights into complex structures and vasculature.

The BV Endura is equipped with Philips BodySmart software for dose efficiency, automatically adapting to the patient's area of interest to minimize retakes and reduce X-ray doses. Its ultra-compact size allows for easy maneuverability between departments and close positioning to the operating table. The system optimizes workflow with Automatic Programmed Fluoroscopy settings for procedure-specific parameter optimization. Additionally, it offers a wide range of vascular options, including CO2 visualization, and supports various imaging functions like Subtraction, Trace, Roadmap, or Masking controlled via footswitch and remote control.

The MobileView Station provides high-quality image viewing with adjustable monitor height and quick access to patient demographics. Overall, the BV Endura combines advanced imaging technology with user-friendly design to enhance surgical procedures across multiple clinical specialties.

FEATURES:

The features of the Philips BV Endura C-Arm system include:

  • Versatility for handling a wide range of surgical procedures, including vascular interventions.
  • Choice between 9" or 12" image intensifier options for various applications.
  • Extended angulation up to 135° for increased projection flexibility.
  • SmartVision technology combined with DoseWise for excellent image quality using an efficient X-ray dose.
  • Compliance with DICOM and IHE standards.
  • Compact and flexible design for cost-effective and reliable imaging in diverse settings.

These features highlight the BV Endura's adaptability, imaging quality, and efficiency in supporting surgical procedures across different clinical applications

SPECIFICATIONS:

  • Manufacturer: PHILIPS
  • Part Number (OEM): BV ENDURA
  • Category: Imaging
  • Accessories: None
  • Functional Condition: New/Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

  • Dimensions:
    • Weight: 649 lbs (C-arm), 463 lbs (monitor)
    • Height: 73.6 in
    • Length: 68.9 in
    • Width: 32.1 in

  • X-Ray Generation:
    • X-ray generator
      • DC converter, micro-processor controlled generator
    • X-ray tube
      • Fixed anode tube with active heat management
    • Nominal power
      • 3.15 kW: 110 kV, 30 mA

  • Imaging Chain:
    • Image intensifier
      • Triple mode 9" HRC / Triple mode 12"
    • TV camera type
      • CCD, high resolution 1K²
    • Constant beam filtration
      • 0.1 mm Cu + 3 mm AI
    • Nominal II formats
      • 31, 23, and 17 cm (12”, 9”, and 7”) 23, 17, and 13 cm (9”, 7”, and 5”)
    • Image processing
      • 16 bit with motion detection

  • Options:
    • Handheld remote control
      • Controls the main image handling functions
    • Touchscreen
      • Available for Mobile View Station
    • ViewForum
      • Multi-modality workstation
    • Vascular Extension
      • Subtracted fluoroscopy mode, Trace, View Trace, Roadmap, Remask, Smart Mask, Landmarking, real-time Pixel Shift, and CO² modes

  • Connectivity:
    • Analog video out
      • 1 BNC connector left monitor
    • Video in
      • S-video
    • Digital video out (Optional)
      • 2 DVI connectors left and right monitor
    • USB storage
      • bmp format
    • Advanced DICOM/IHE package (Optional)
      • Modality Worklist Management, Modality Performed Procedure Step Storage Commit, Full compliance to the IHE Scheduled Workflow Integration profile as an Acquisition Modality Actor, Supports DICOM Structured Dose Reporting, Query/Retrieve (with the ViewForum option)

  • Geometry:
    • Angulation
      • +90° to -25°
    • C-arm depth
      • 61 cm (24.0”)
    • Free space within C-arm
      • 77 cm (30.3”)
    • Source Image Distance
      • 98 cm (38.7”)
    • Rotation
      • ± 180°, with safety stop at ± 135°
    • Extended angulation (optional)
      • +90° to -45° for increased projection flexibility
    • Lowest lateral working position
      • 102 cm (40.0”)

In addition, please acknowledge the following disclaimer:

* IMPORTANT - PLEASE READ BEFORE PURCHASING! * All pictures of items being sold are used for reference purposes and are described as accurately as possible. If there is an error in a listing, we will try and resolve any issues to the best of our abilities that may arise before or after a sale. Complete units all come with a power cord and DO NOT come with any cables, sensors, manuals, accessories etc. unless otherwise noted in the description.

Purchaser agrees that seller is not liable for any injuries or damages of any kind associated in any way with this equipment. Purchaser agrees to indemnify and hold harmless seller and seller's officers, directors, employees, agents, and shareholders against any and all claims, liabilities, obligations, demands, cost and expenses of every kind and nature, including but not limited to attorney's fees and litigation expenses, from or related to the equipment and any use thereof.

* NOTE - FDA Regulation and Certification: "The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

This unit or item will ship anywhere in the continental United States via Palletized Freight - Calculated. Please read our Shipping and Return policies for more details.
