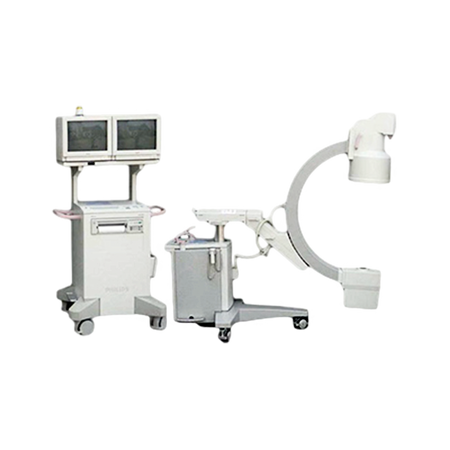

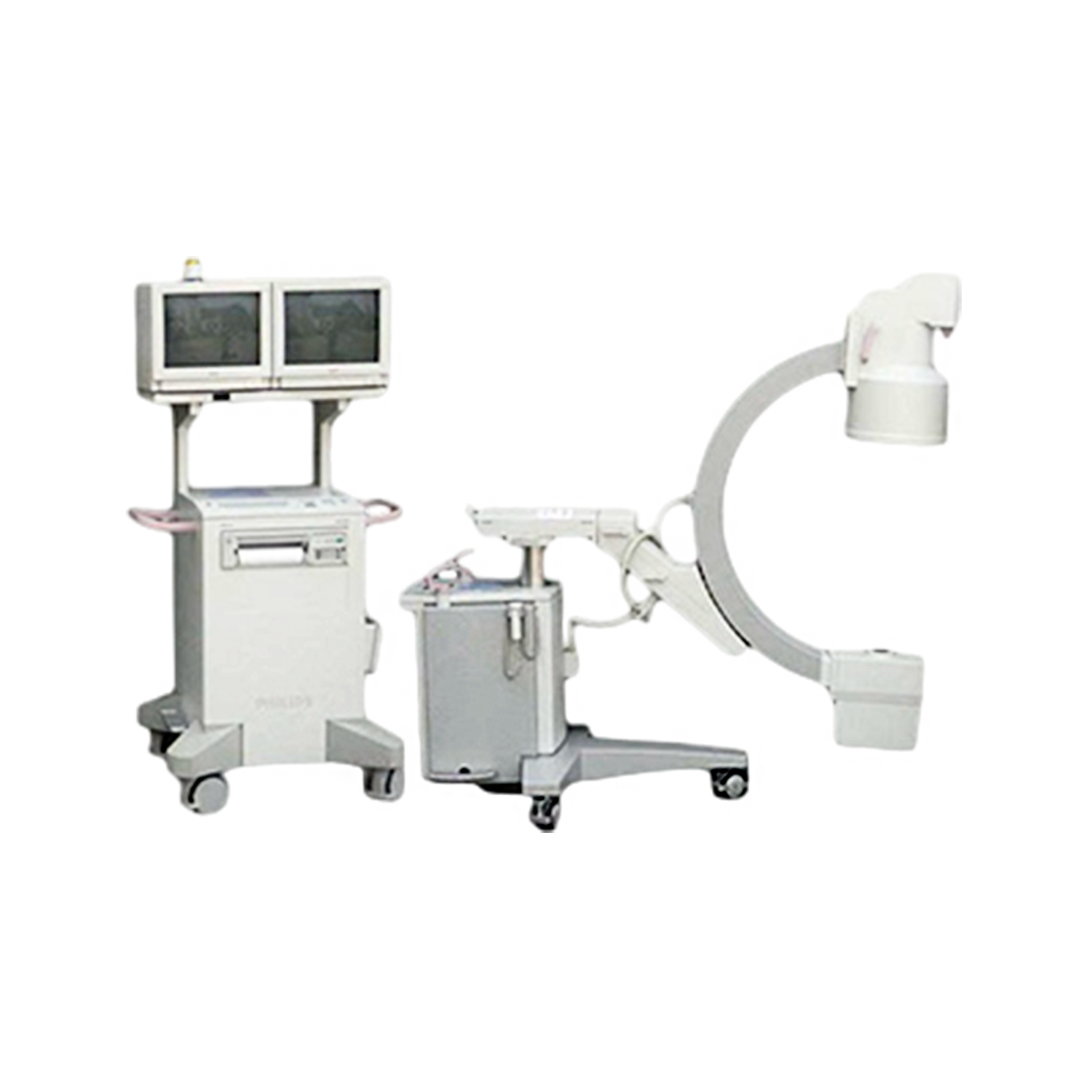

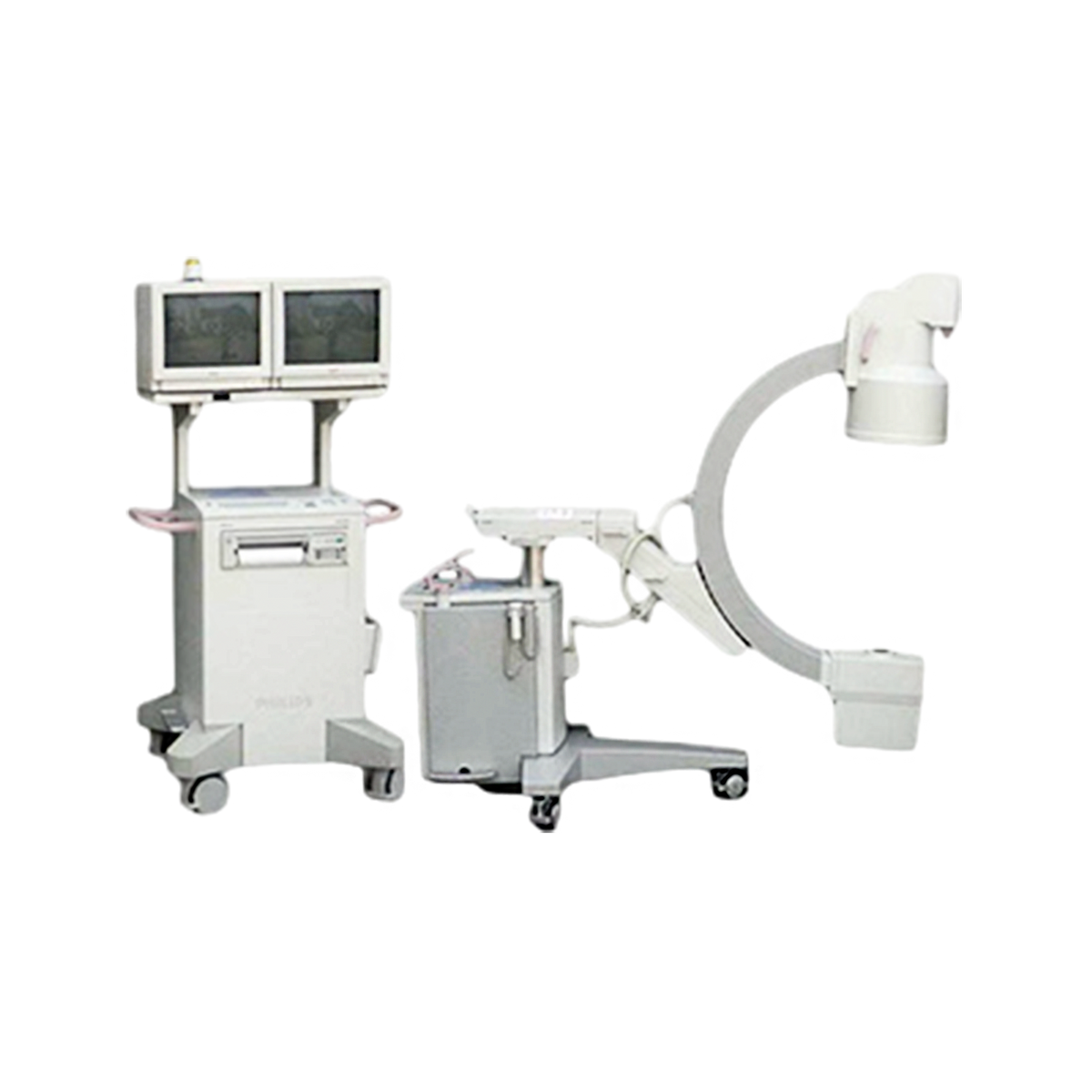

The Philips BV 300 Plus C-arm is a versatile mobile X-ray imaging system known for its high-resolution CCD camera, exceptional image quality with low X-ray dosage, clear images, and superior penetration power. This system offers multi-application capabilities and features a Tri-Mode Image Intensifier with options like Vascular Application and Rotating Anode.

The specifications of the Philips BV 300 Plus include a 2.1 kW full-wave generator, up to 110 kVp, and up to 20 mA for radiographic film exposures. It also provides continuous fluoro boost mode up to 7.3 mA and various X-ray tube features like fixed anode, focal spots of 0.6 mm and 1.4 mm, and anode heat capacity of 50,100 HU. Additionally, the C-arm includes advanced collimation features, fluoroscopy modes with low dose and high definition fluoro boost modes, as well as pulsed fluoroscopy and fluorography modes with specific technical parameters for optimal imaging performance.

SPECIALTY PACKAGES AVAILABLE:

  • Extended processing
  • Vascular functions
  • Extended vascular functions

FEATURES:

The Philips BV 300 Plus C-Arm features include:

  • Tri-mode Image Intensifier
  • Dual High Resolution Monitors
  • Vascular Application
  • Tri-Mode 12"/9/6 II
  • Rotating Anode
  • X-Ray System Specialty Packages Available for extended processing and vascular functions
  • Generator with 2.1 kW full-wave power output, up to 110 kVp, and up to 20 mA for radiographic film exposures
  • Continuous fluoro boost mode up to 7.3 mA
  • Fixed anode X-ray tube with focal spots of 0.6 mm and 1.4 mm
  • Advanced collimation with iris collimation and dual opposing lead shutters for various beam sizes
  • Fluoroscopy modes including low dose, high definition fluoro boost, and pulsed operation with user-specific settings
  • Pulsed fluoroscopy and fluorography modes with computer-controlled parameters
  • Video imaging system with high-resolution CCD camera, motorized rotation, and image reversal options
  • Dual 17" standard resolution monitors with ambient room light sensor and X-ray "ON" indicator
  • Optional hardcopy features like thermal printer, DICOM, and image capture device

These features highlight the advanced imaging capabilities, versatility, and technical specifications of the Philips BV 300 Plus C-Arm system as a powerful tool for various interventional procedures.

SPECIFICATIONS:

  • Manufacturer: PHILIPS
  • Part Number (OEM): BV 300 PLUS
  • Category: Imaging
  • Accessories: None
  • Functional Condition: New/Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

  • Dimensions:
    • C-Arm Dimensions:
      • Height: 69 / 89 in (1750 / 2250 mm)
      • Width: 35 in (880 mm)
      • Length: 72 in (1840 mm)
      • Weight: 695 lbs 300 kg

  • Workstation Dimensions:
    • Height: 69 in (1760 mm)
    • Width: 37 in (930 mm)
    • Depth: 37 in (760 mm)
    • Weight: 463 lbs (210 kg)

  • Generator:
    • 2.1 kW full-wave.
    • Up to 110 kVp.
    • Up to 20 mA for radiographic film exposures.
    • Continuous fluoro boost mode up to 7.3 mA
    • Full power from outlet:
    • 50 Hz or 60 Hz.
    • 100V-15A to 240V-10A.

  • X-Ray Tube:
    • Fixed anode X-ray tube.
    • Focal spots: 0.6 mm and 1.4 mm.
    • Anode heat capacity: 50,100 HU.
    • Anode cooling rate: 20,200 HU/min.
    • Housing heat capacity: 1,200,000 HU.
    • Anode angle: 12°.

  • Collimator:
    • Iris collimation with dual opposing lead shutters allowing elliptical, round and rectangular collimation.
    • Minimum beam size < 5 X 5 cm2.
    • Iris and shutters are continuously variable.
    • All functions remotely controlled from the C-Arm control panel.

  • Fluoroscopy Mode:
    • Focal spot: 0.6 mm.
    • kVp range: 40 – 110 kVp.
    • mA range: 0.1 – 3.1 mA Low Dose fluoro mode.
    • mA range: 0.2 – 7.3 mA continuous High Definition fluoro boost mode.
    • Auto and manual modes.
    • Continuous or Pulsed operation.
    • APF varies mA, kVp and camera gain.
    • User specific APF tables.

  • Pulsed Fluoroscopy Mode: (Optional)
    • Focal spot: 0.6 mm.
    • kVp range: 40 – 120 kVp.
    • mA range: 0.4 – 12 mA.
    • Pulse rate: 6.25 or 12.5 pulses per second.
    • Pulse width: 11 to 37 milliseconds.
    • Computer controlled APF, mA, kVp and camera gain.

  • Radiographic Mode:
    • Focal spot: 1.4 mm.
    • kVp range: 40 – 105 kVp.
    • Fixed 20 mA.
    • Video Imaging System

  • Image Intensifier:
    • 9 in Image Intensifier
      • Tri-mode 9 in / 7 in / 5 in image intensifier
        • 9 in.: 1.6 lp/mm
        • 7 in.: 2.2 lp/mm
        • 5 in.: 2.9 lp/mm
      • DQE: 65% (typical)
    • 12 in Image Intensifier (Optional)
      • Tri-mode 12 in / 9 in / 7 in image intensifier
        • 12 in.: 1.2 lp/mm
        • 9 in.: 1.6 lp/mm
        • 7 in.: 2.2 lp/mm
    • DQE: 65% (typical)

  • Video Camera:
    • High resolution CCD camera.
    • 525 line/frame.
    • 360° motorized rotation.
    • Left-right image reversal.
    • Top-bottom image reversal.
    • Negative mode.
    • Computer controlled features: (Optional)
      • Gain
      • Blanking
      • Camera iris
    • Video Monitors:
    • Dual 17 in standard resolution, anti-glare, anti-static.
    • Ambient room light sensor.
    • Multi-LED X-ray “ON” indicator.

  • Hardcopy Options:
    • Thermal printer. (Optional)
    • DICOM. (Optional)
    • Image Capture Device. (Optional)
