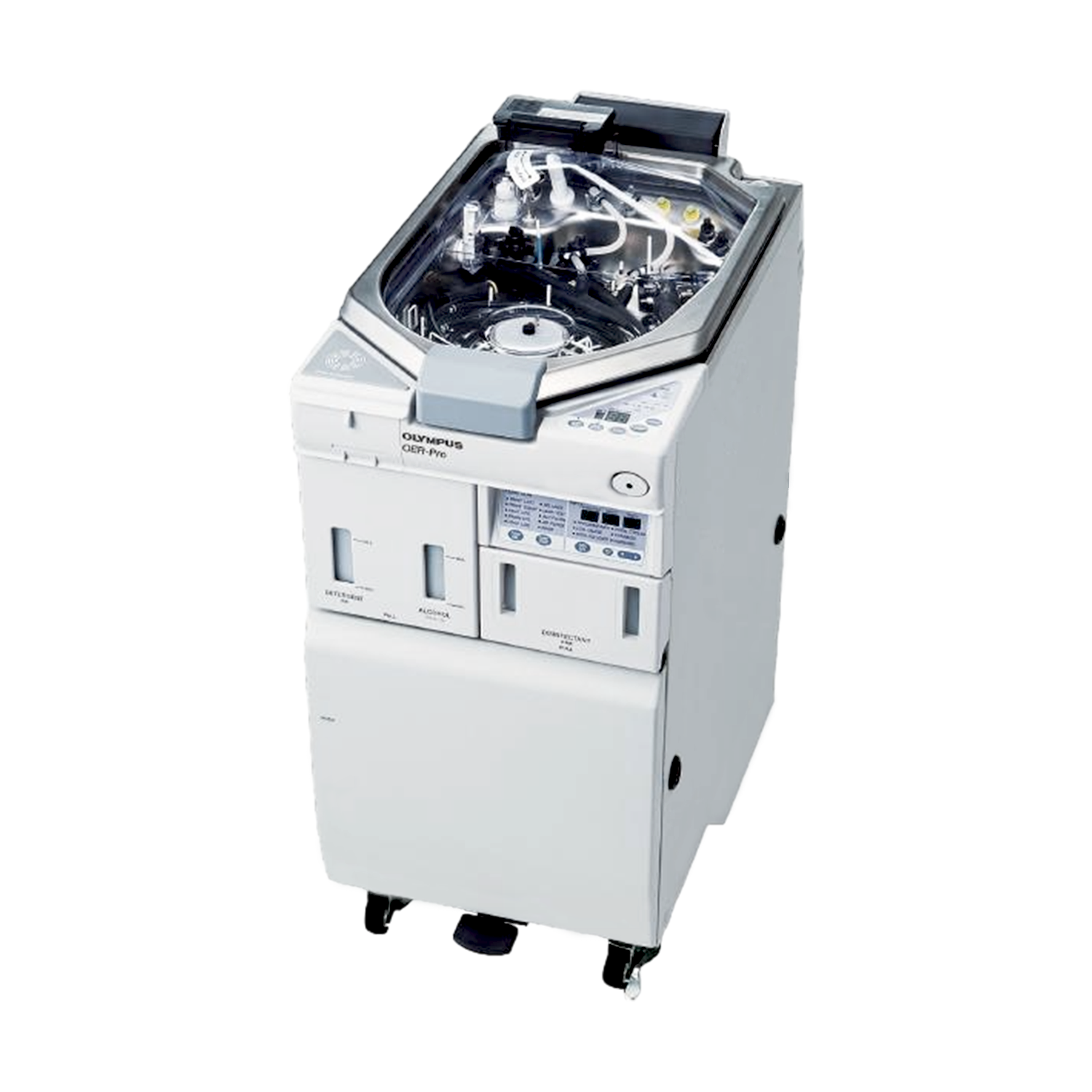

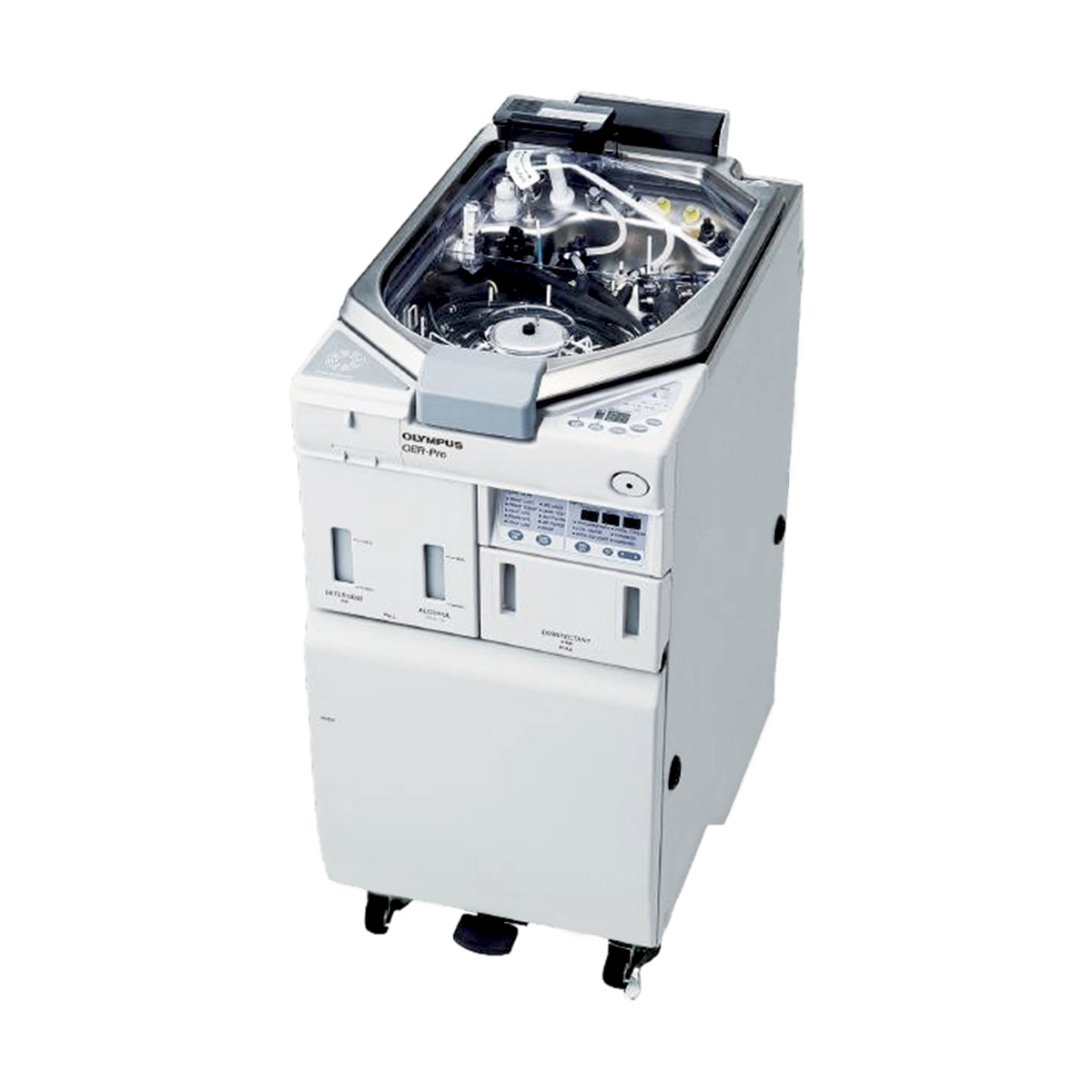

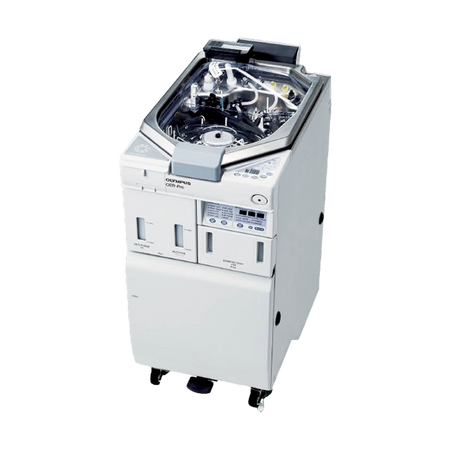

The Olympus OER-Pro is an automated endoscope reprocessor designed by Olympus to provide high-level disinfection for flexible endoscopes and accessories.

Overall, the Olympus OER-Pro is a reliable and efficient automated endoscope reprocessor that ensures high-level disinfection for flexible endoscopes, reflecting Olympus's expertise in the field of endoscopy equipment.

FEATURES:

• Design:
  • The OER-Pro is specifically designed by an endoscope manufacturer, Olympus, with 35 years of experience in flexible endoscope reprocessor manufacturing.
• Functionality:
  • It offers high-level disinfection for Olympus flexible endoscopes and accessories, ensuring optimal reprocessing outcomes.
• Efficiency:
  • The OER-Pro has a quick reprocessing time, capable of simultaneously reprocessing two flexible endoscopes in 26-29 minutes.
• Compact Design:
  • With a smart and compact design, the OER-Pro requires less space than conventional endoscope reprocessors, making installation and maintenance easier.
• Disinfectants:
  • It can be used with two dedicated high-level disinfectants: Acecide-C and ALDAHOL 1.8, both tested and approved by Olympus for compatibility with their endoscopes.
• Data Management:
  • The OER-Pro offers electronic data management solutions to simplify data input, streamline record keeping, and reduce the need for paper receipt searches.

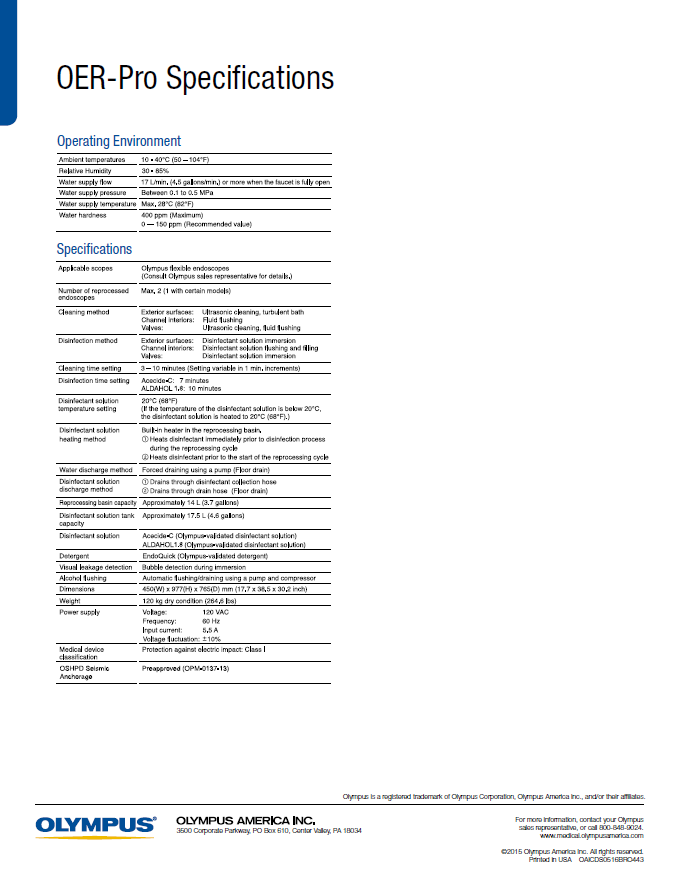

SPECIFICATIONS:

• Manufacturer: Olympus
• Part Number: (OEM): OER-Pro
• Category: Endoscope - Systems
• Condition: Refurbished
• Weight: 265lbs.
• Warranty: 3 Months


• Dimensions:
  • 450(W)x977(H)x765(D)mm


• Weight:
  • 120 kg (dry condition)


• Power Supply:
  • Voltage 120 V AC
  • Frequency 60 Hz
  • Input current 5.5 A
  • Voltage fluctuation ±10%


• Ultrasonic Wave:
  • Frequency 36 ±2 kHz
  • Power 100 W ±20%


• EMC:
  • Applied Standard:
    • IEC 61326: 2012
    • This equipment complies with the standards listed in the left column.
    • CISPR 11 of emission:
    • Group1,Class B


• Electrical Safety:
  • Applicable Standard:
    • UL 61010-1: 2012
    • CSA C22.2
    • No. 61010-1: 2012
    • CSA C22.2
    • No. 61010-2-040: 2007
    • IEC 61010-1: 2010
    • IEC 61010-2-040: 2005
      • This equipment complies with the standard listed in the left column.
      • Installation category: II
      • Pollution degree: 2


• Radio Transmitter:
  • Compliance
    • ISO/IEC 18000-3 (Mode1)
  • Center Frequency
    • 13.56 MHz
  • Modulation
    • ASK
  • Effective Radiated Power
    • 300 mW±20


• Shipping Environment:
  • Ambient temperatures –47 to +60°C (–52 to +140°F)
  • Relative humidity 10 – 90%
  • Atmospheric pressure 700 – 1060 hPa


• Operating Environment:
  • Ambient temperatures 10 – 40°C (50 – 104°F)
  • Relative humidity 30 – 85%
    Elevation 3000 meters (Maximum)
  • Designed for use Indoors
  • Water supply flow 17 l/min. or more when the water faucet is fully open
  • Water supply pressure 0.1 – 0.5 MPa (include water hammer)
  • Water supply temperature: Max. 28°C
  • Water type Potable water or Softened water (Purified water cannot be used)
  • Water hardness 400 ppm (maximum)0 – 150 ppm (Recommended value)


• Compatible Scopes:
  • Olympus Flexible Endoscopes:
    • (Refer to the “List of Compatible Endoscopes/Connecting Tubes <OER-Pro>” for details)
    • The OER-Pro does not sterilize endoscopes.
      Therefore, after cleaning/disinfecting an endoscope
      that requires sterilization, always sterilize the
      endoscope as instructed in its instruction manual.


• Number of Reprocessed Scopes:
  • Maximum 2 (1 w/ certain models)


• Cleaning Method:
  • Exterior surfaces Ultrasonic cleaning, turbulent bath
  • Channel interiors Fluid flushing
  • Valves Ultrasonic cleaning, fluid flushing


• Disinfection Method:
  • Exterior surfaces Disinfectant solution immersion
  • Channel interiors Disinfectant solution flushing and filling
  • Valves Disinfectant solution immersion


• Cleaning Time Setting:
  • 3 – 10 minutes (Setting variable in
  • 1 min. increments)


• Disinfection Time Setting:
  • Concentrated disinfectant solution
    • 7 minutes
  • Ready-to-use disinfectant solution
    • 10 minutes


• Disinfectant Solution Heating Setting:
  • 20°C (68°F)
    • (If the temperature of disinfectant solution is below 20°C, it is heated to 20°C (68°F).)


• Disinfectant Solution Heating Method:
  • Built-in heater in the reprocessing basin.
    • Heating immediately before disinfection process in a reprocessing program
    • Heating before the start of a reprocessing program


• Water Discharge Method:
  • Forced draining using a pump (Floor draining)


• Disinfectant Solution Discharge Method:
  • Draining through disinfectant
    collection hose
  • Draining through drain hose


• Reprocessing Basin Capacity:
  • Approximately 14L


• Disinfectant Solution Tank Capacity:
  • Approximately 17.5L
• Disinfectant Solution:
  • Olympus-validated disinfectant solution


• Detergent:
  • Olympus-validated detergent


• Visual Leakage Detection:
  • Bubble detection during immersion


• Alcohol Flushing:
  • Automatic flushing/draining using a pump and compressor
