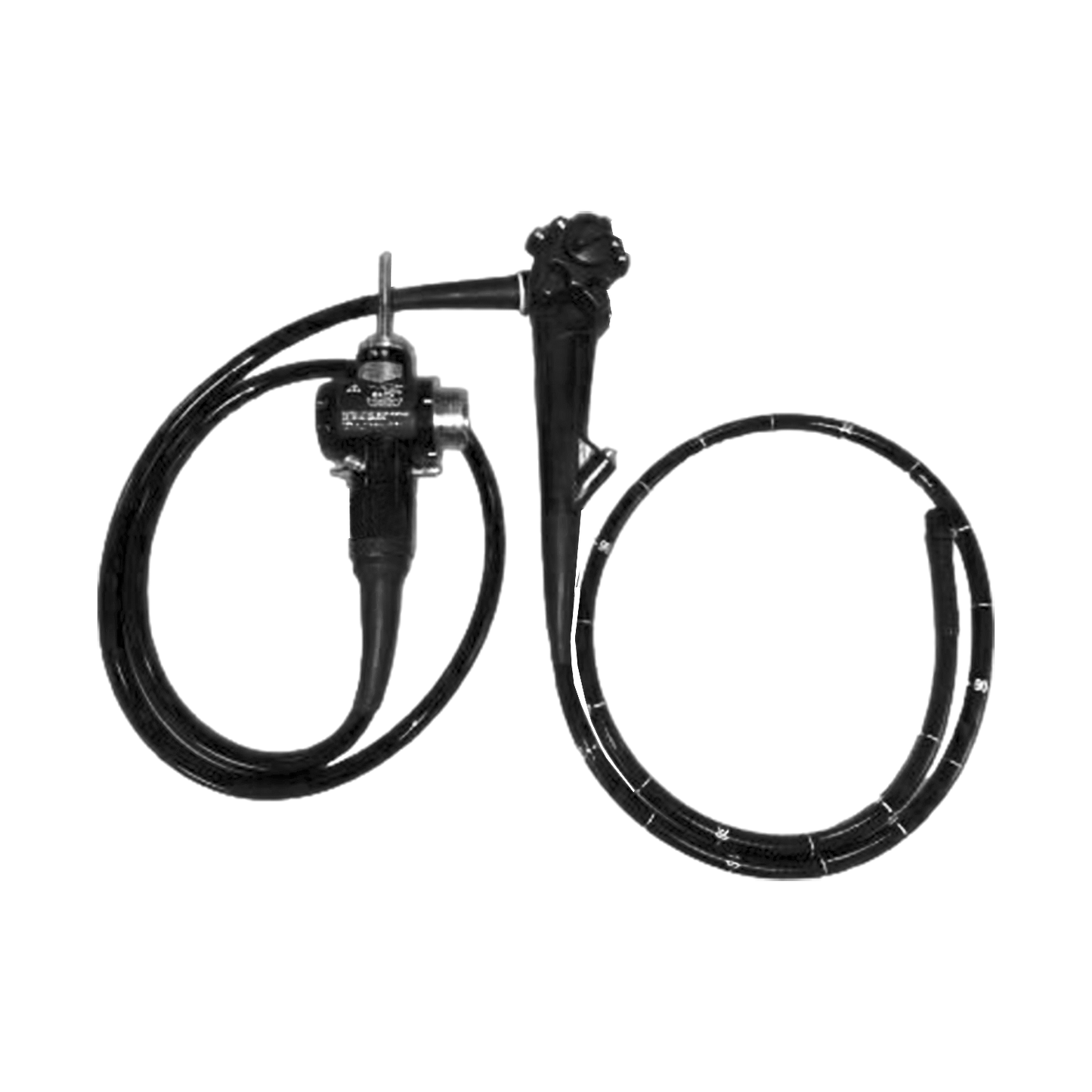

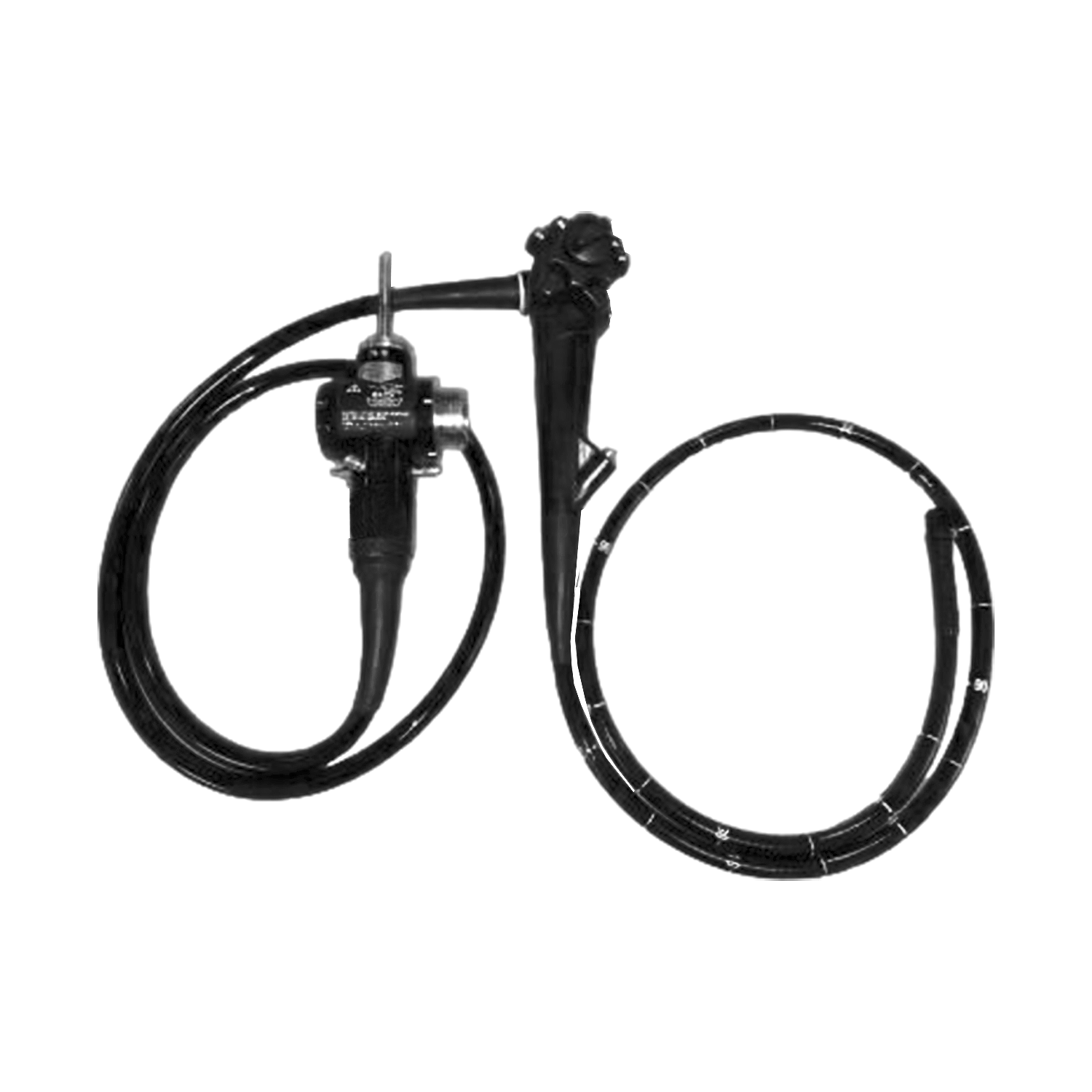

Olympus EVIS EXERA II TJF-Q180V Therapeutic Video Duodenoscope

Out of stock
SKU: EN-TJF-Q180V
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The Olympus TJF-Q180V Video Duodenoscope is designed to provide excellent visualization of the gastrointestinal tract, extending down to the duodenum, all within a minimally invasive procedure. With its slender 11.3-millimeter insertion tube, it easily navigates the delicate human anatomy, making it suitable for non-sedated procedures that typically require minimal recovery time.

This duodenoscope features an enhanced valve design for air, water, and suction, allowing for the efficient removal of any visual obstructions, ensuring a clear view throughout the procedure. Its distal end is highly flexible, with the ability to bend up, down, right, and left, enabling a thorough and detailed inspection.

The Olympus TJF-Q180V is compatible with Olympus CV-190, Olympus CV-180, Olympus CV-160, and Olympus CV-140 video processors, enhancing its versatility and utility for a range of endoscopy procedures.

ALL SCOPES ARE REFURBISHED TO OEM SPECS:

  • Patient Ready
  • Leak Tested
  • Angulation Checked
  • Channels Checked
  • Image Checked
  • 90 Day Warranty

FEATURES:

  • Unique dual locking mechanism for efficient short guidewire exchange in combination with dedicated V-System ERCP devices.
  • High image quality with sharp, crisp details, and large display size.
  • Narrow Band Imaging enhances observation of the mucosa and capillaries.
  • Slim 11.3 mm insertion tube.
  • Wide 4.2 mm diameter channel.
  • Four-way angulation (120° Up, 90° Down, 110° Right, and 90° Left) facilitates approach to the papilla of Vater.
  • FuIly compatible with the CV-160 and 140; use of CV-180 enables the full feature set.
  • Scope ID function stores individual scope information in the built-in memory chip and displays it on the monitor

    SPECIFICATIONS:

    • Manufacturer: Olympus
    • Part Number: (OEM): TJF-Q180V
    • Category: Endoscopes - Flexible
    • Condition: Refurbished
    • Weight: 2.0lbs.
    • Warranty: 3 Months

    • Type of Scope:
      • Duodenoscope, Small Intestine

    • Physical Specifications:
      • Channel Width: 4.2 mm
      • Working Length: 1240 mm
      • Field of View: 100°
      • Direction of View: Backward side viewing 5°
      • Depth of Field: 5-60 mm
      • Outer Diameter: 13.7
      • Outer Diameter Insertion Tube: 11.3

    • Angulation:
      • Max Angulation Up: 120°
      • Max Angulation Down: 90°
      • Max Angulation Right: 110°
      • Max Angulation Left: 90°
