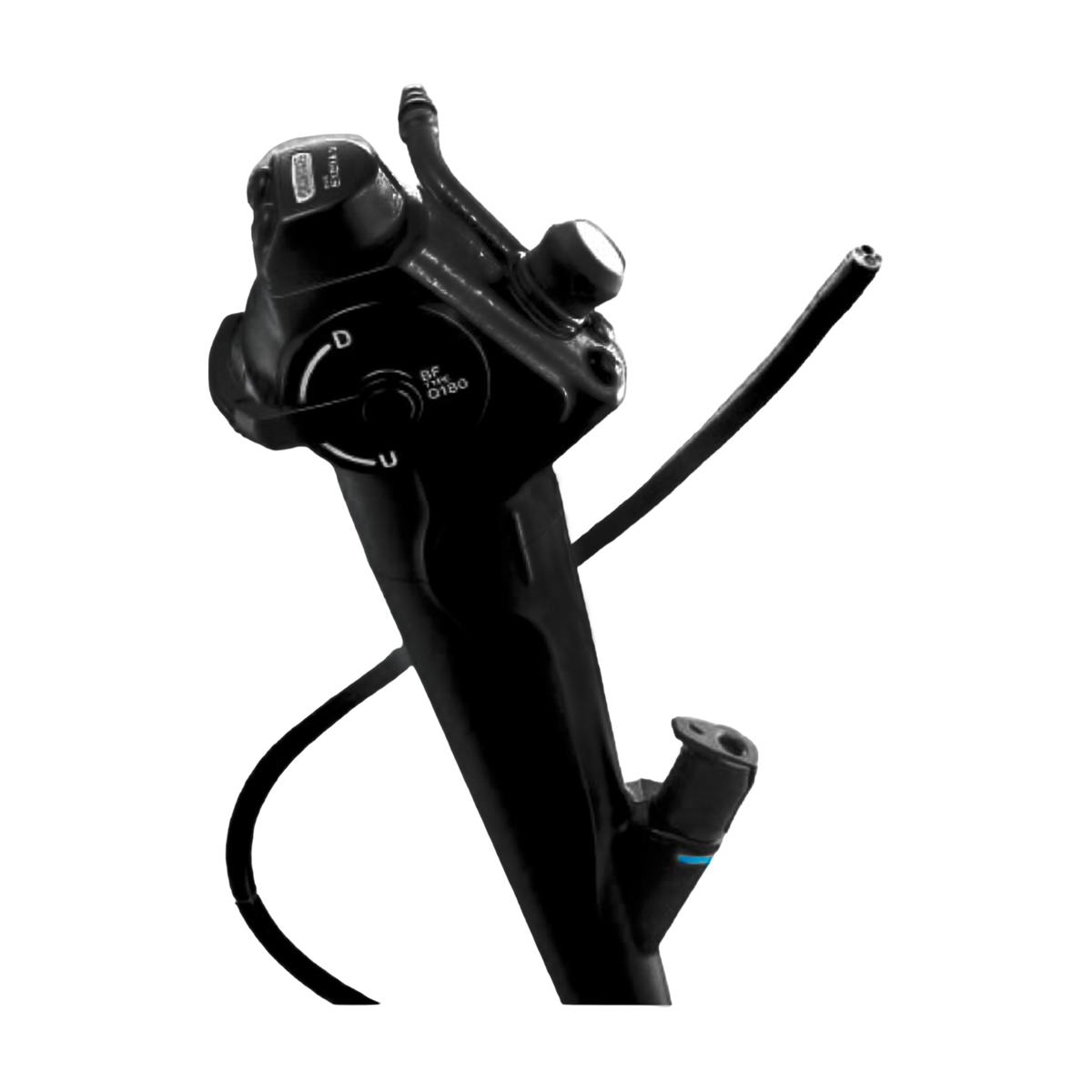

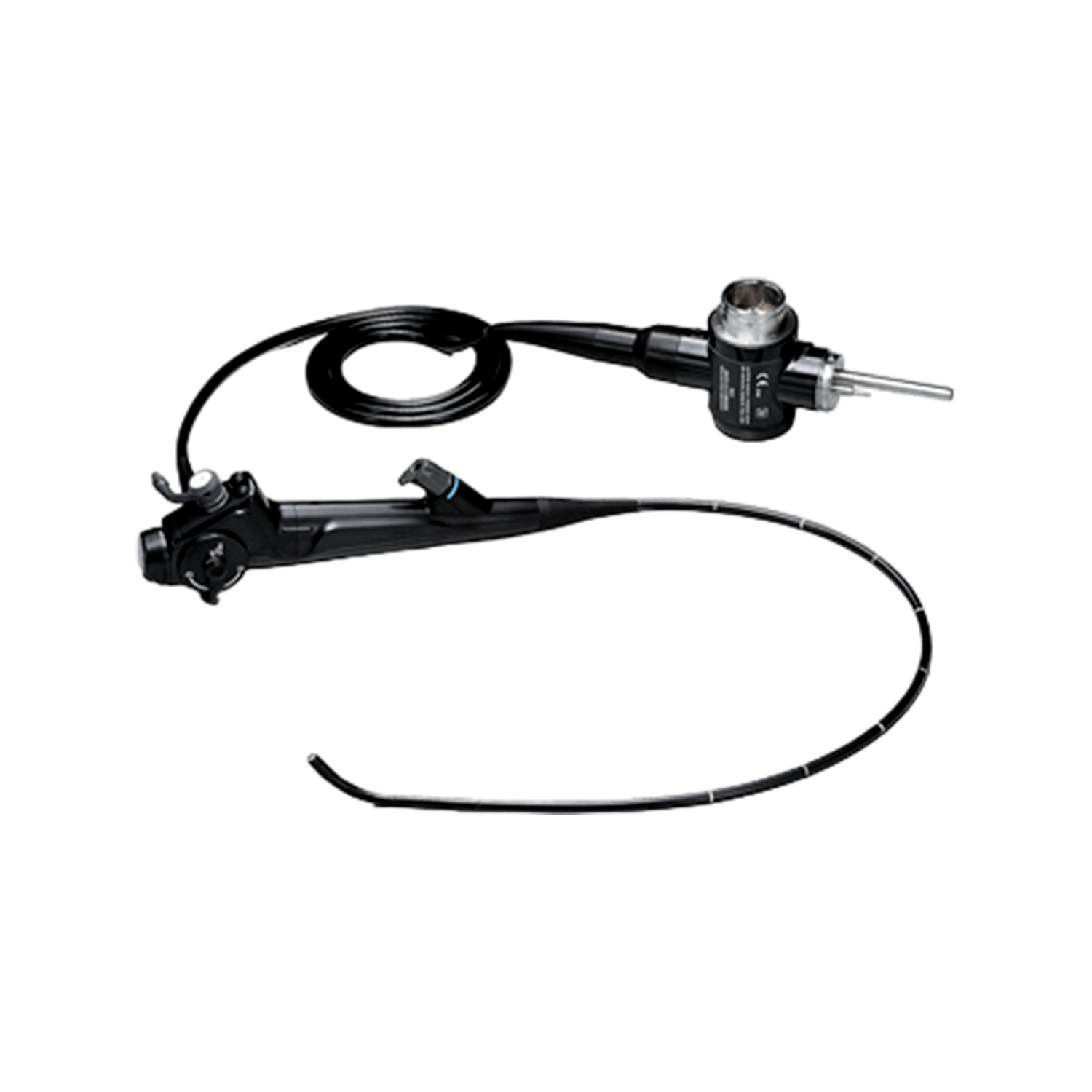

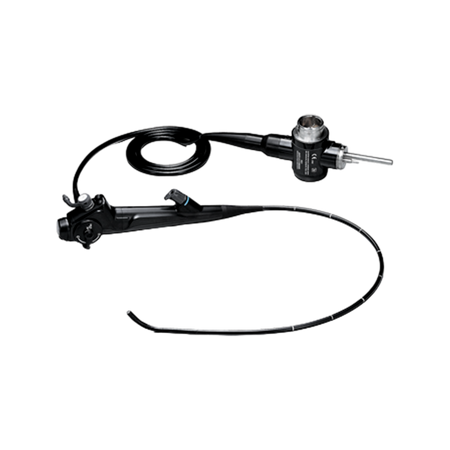

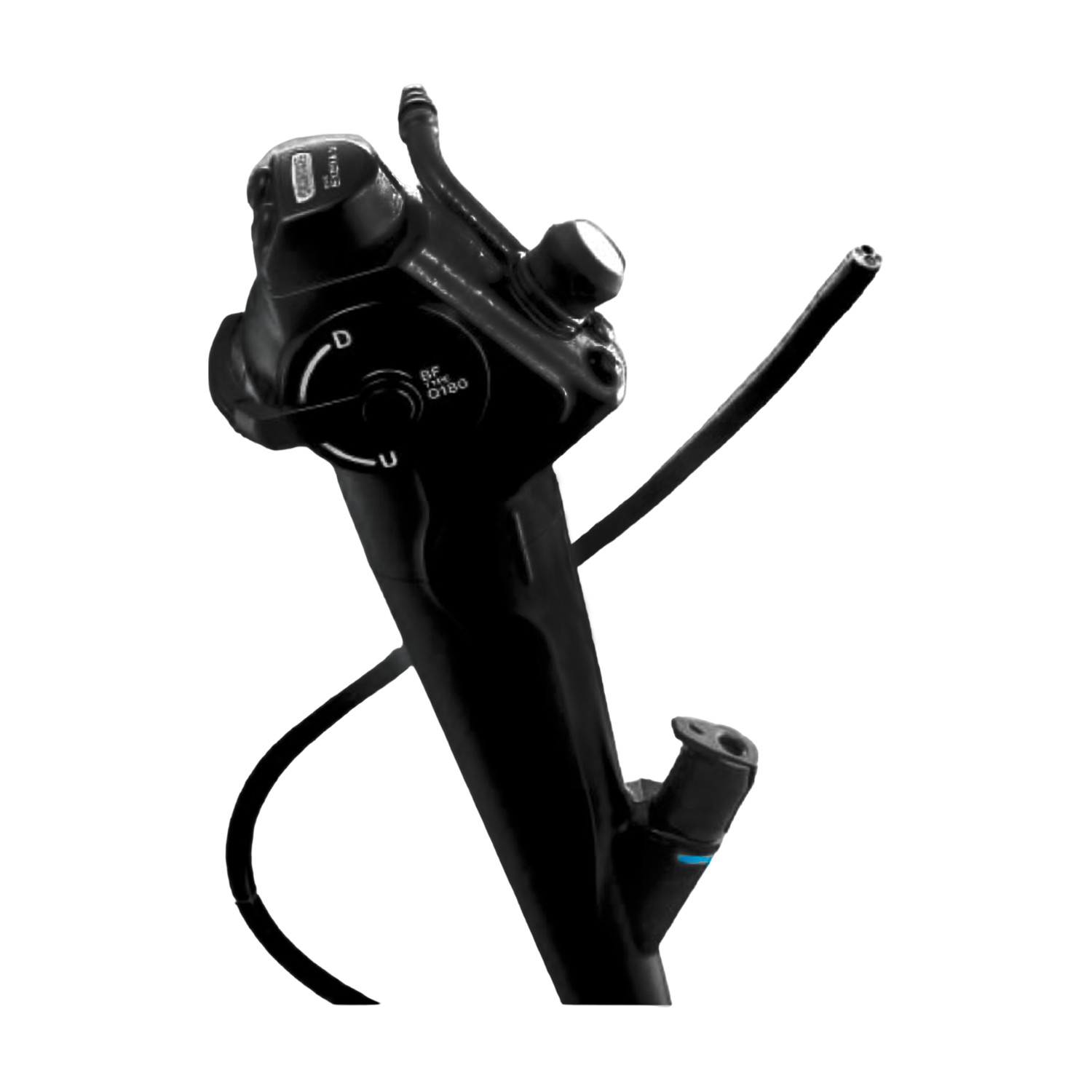

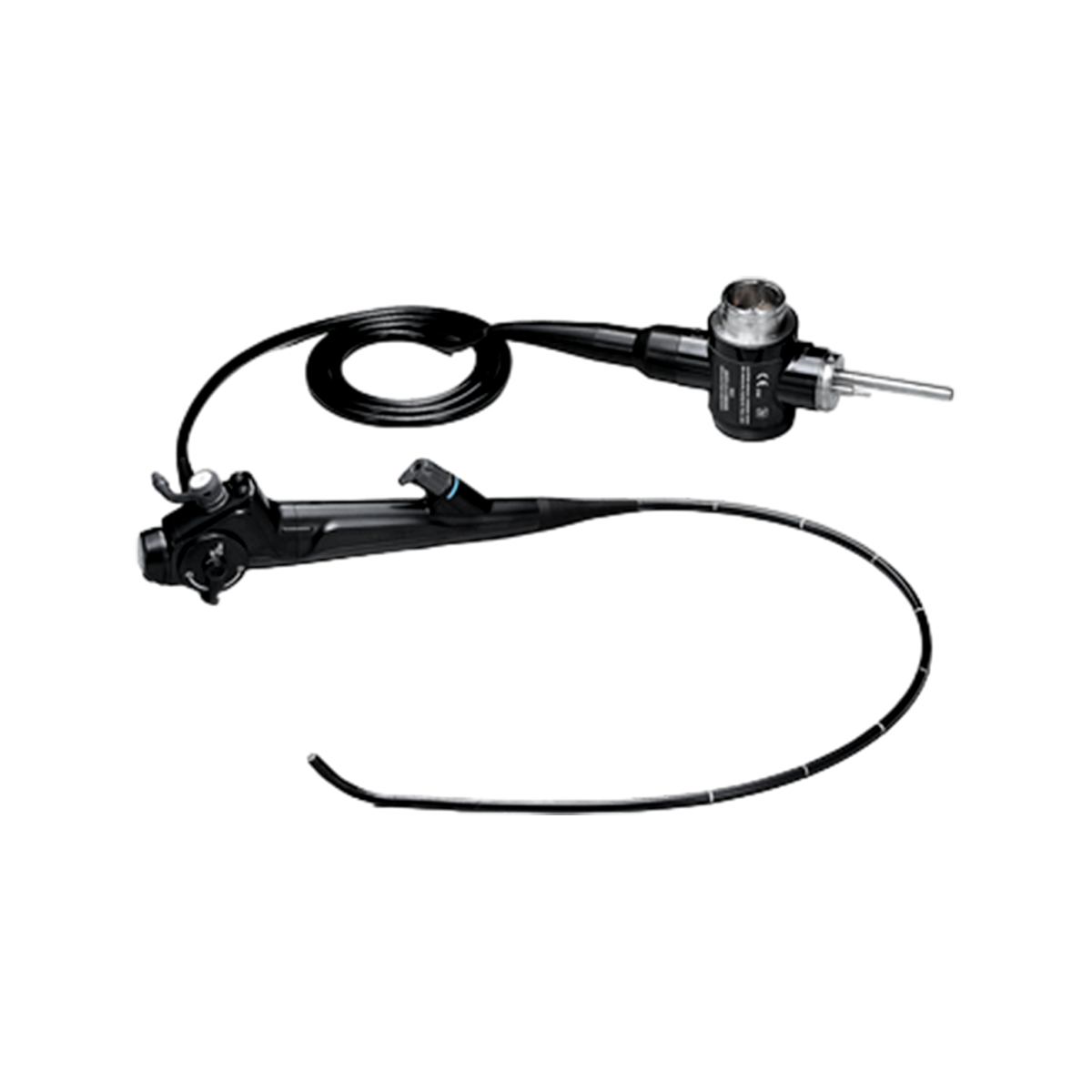

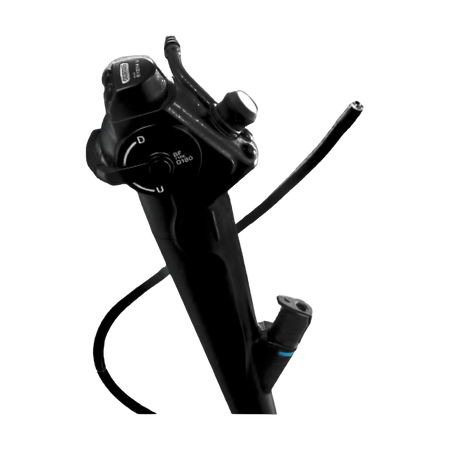

Olympus BF-Q180 EXERA II Video Bronchoscope

The Olympus BF-Q180-AC EVIS EXERA II Video Bronchoscope is a medical device designed for bronchoscopic procedures. It features a working length of 60 cm and an instrument channel diameter of 2.0 mm. The device is part of the EVIS EXERA II series, which is known for its advanced imaging capabilities and ergonomic design.

FEATURES:

• Superior Image Quality:
  • It provides high-resolution images with a larger display size, which improves the examination and treatment of the bronchial tree.
• Narrow Band Imaging (NBI):
  • This technology enhances the visualization of mucosal surfaces and capillary structures, making it easier to identify hidden tissue structures.
• Slim Design:
  • The bronchoscope features a slim insertion tube with a diameter of 5.1 mm and a distal end diameter of 5.5 mm, allowing for easier navigation within the bronchial passages.
• Instrument Channel:
  • It has a standard 2.0 mm diameter channel, which can accommodate a wide range of endo-therapy accessories, making procedures more efficient.
• Scope ID Function:
  • This feature stores individual scope information and displays it on the monitor, aiding in the management of scopes in pulmonary labs and operating rooms.
• Ergonomic Design:
  • The bronchoscope is designed for enhanced maneuverability and handling, which facilitates easier use during procedures.

SPECIFICATIONS:

• Manufacturer: Olympus
• Part Number: (OEM): BF-Q180-AC
• Category: Endoscopes Flexible - Bronchoscope
• Condition: Refurbished
• Weight: 2.0lbs.
• Warranty: 3 Months
•  Diameter:
  • The distal end outer diameter is 5.5 mm, and the insertion tube outer diameter is 5.1 mm.
• Working Length:
  • 600 mm (60 cm).
• Instrument Channel:
  • The channel inner diameter is 2.0 mm, allowing for a variety of endo-therapy accessories.
• Field of View:
  • 120 degrees, providing a wide viewing angle for examinations.
• Direction of View:
  • Forward viewing at 0 degrees.
• Depth of Field:
  • Ranges from 3 to 100 mm, enabling detailed observation of the bronchial tree.
• Angulation Range:
  • 180 degrees upward and 130 degrees downward, facilitating maneuverability within the bronchial passages.
• Laser Compatibility:
  • Compatible with Nd: YAG and 810 nm diode lasers.
• Electro-Cautery Instrument Compatibility:
  • Yes, it is compatible with electrosurgical devices.
• Total Length:
  • 870 mm.

COMPATIBLITY:

• Olympus CV-180
• Olympus CV-160
• Olympus CV-140
• Olympus CLV-180
