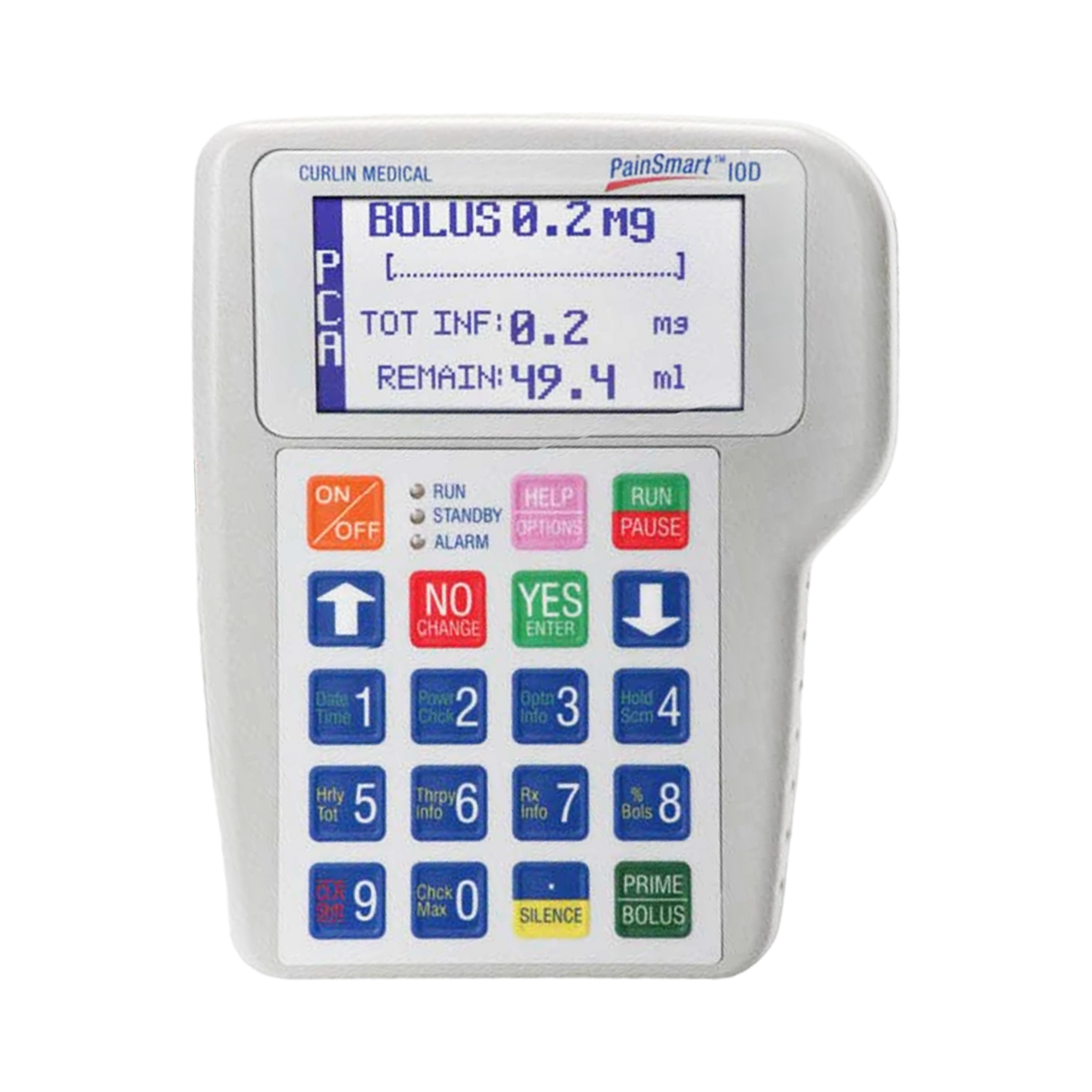

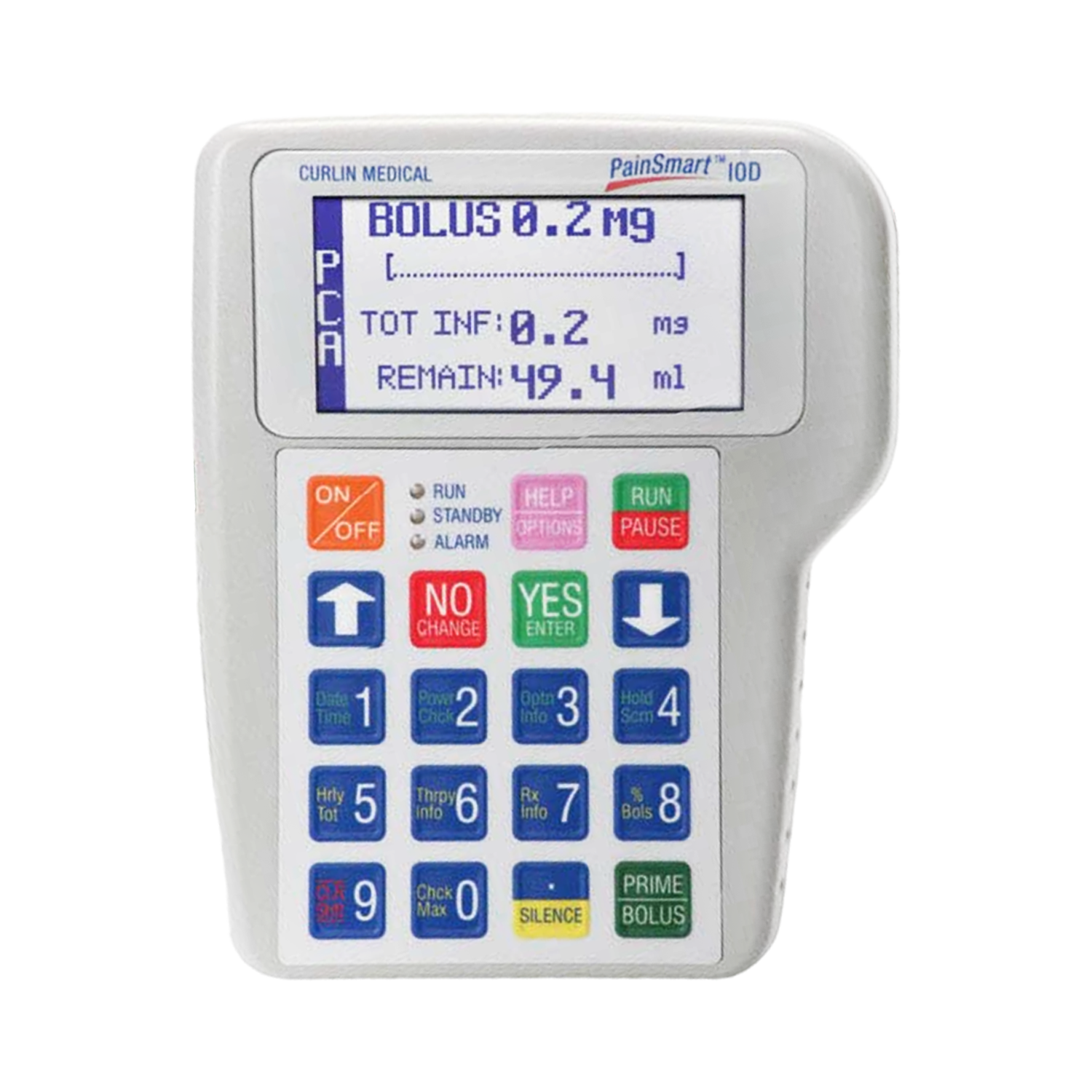

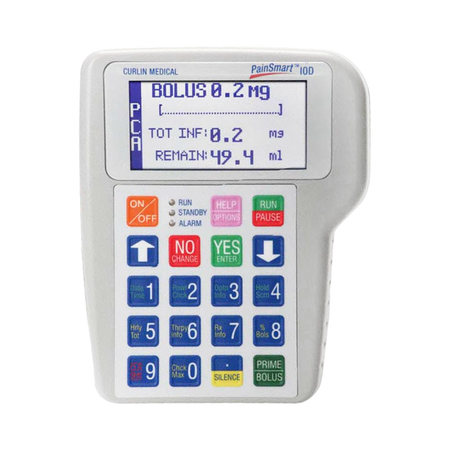

Moog/Curlin 6000 CMS PainSmart IOD EPI Ambulatory Infusion Pump

Out of stock
SKU: EN-360-1300-E5
LEAD TIME: Estimated Ship Time: 7-10 Days
WARRANTY: 3 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The Moog / Curlin 6000 CMS is an advanced portable infusion pump that provides a range of therapeutic options. It offers various infusion modes including Continuous, PCA, PCEA, TPN, Intermittent, and Variable, making it highly adaptable to your specific requirements. Additionally, it generates comprehensive reports and detailed information for each usage. The Moog / Curlin 6000 CMS is renowned for its exceptional reliability and consistent performance. Furthermore, the pump has been enhanced with new software that significantly minimizes the occurrence of errors..


  • Improved display design with larger brighter screen for ease of view and programming
  • Improved titrate performance and programming
  • New packaging design to increase reliability
  • Easier access to information through “Information On Demand” feature


  • Manufacturer: Moog / Curlin
  • Part Number: (OEM): 6000 CMS
  • Category: Infusion Pumps
  • Accessories: None
  • Condition: Refurbished
  • Weight: 1.10lbs.
  • Warranty: 3 Months
  • Dimensions:
    • Size: 5.1” (13 cm) x 4.0” (10.2 cm) x 2.5” (6.4 cm)
    • Weight: 18.1 ounces (513 grams)
    • Display: 2.5” (6.3 cm) x 1.2” (3.1 cm) Continuous backlit with AC

  • Flow and Volume:
    • Flow Rates: 0.1 - 400 mL/hr, increments of 0.1 mL/hr
    • Flow Rates: (PCA) 0.1 - 50 mL/hr IV, 25 mL/hr EPI, 5 mL/hr SQ Max
    • Volume Limits: 1.0 - 9,999 mL, increments of 0.1 mL
    • KVO Rates: 0.0 - 10 mL/hr (not available in PCA mode)
    • Units: mL, mg, mcg
    • Bolus Volume: 0.1 - 9.9 mL
    • Max # of Boluses: 15/hr
    • Patient Bolus: 0.1 - 9.9 mL/dose

  • General:
    • Mechanism Curvilinear peristaltic pump action
    • Therapies Supported Continuous, PCA, TPN, Intermittent, Variable
    • Bolus Lockout 1 - 60 minutes, increments of 1 minute
    • Power Source 2 “C” alkaline batteries, AC,external rechargeable battery pack
    • Operating time (Fully charged batteries): Nominal 10 hrs. at 400 mL/hr, Nominal 30 hrs. at 125 mL/hr, Nominal 85 hrs. at 2 mL/hr
    • Alarms Air-in-line, high upstream pressure, occlusion upstream, occlusion downstream, door open, set not installed, unattended pump, replace set, empty battery
    • Adjustable Alarm Volume High / Med / Low / Silent
    • Data Log 6,000 events, including line pressure, volume infused, time
    • Security Unused therapies can be blocked out, four access levels, different lock box sizes
    • Software Protocol Library: multiple categories and potential for over 100 protocols
    • Administration Sets DEHP-free set configurations, needle less injection sites, 0.22 and 1.2 micron filtered sets, yellow-striped epidural sets, sets with 15 0 mL integral fluid containers
