Mizuho OSI Trios Surgical Table System

Out of stock
SKU: EN-MIZUHO-TRIOS
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Mizuho OSI Trios Surgical Table System is revolutionizing patient positioning for spine, imaging, and orthopedic trauma, this state-of-the-art system showcases a dual-column modular platform renowned for its adaptable patient positioning capabilities. The Trios system boasts an innovative tabletop mounting interface ensuring secure fixation, electronic floor locks activated with a single push, and a seamless 180° patient rotation mechanism. Easy to assemble and user-friendly, Trios streamlines workflows, reducing the risk of errors.

Compatible with the Trios Table Base, each tabletop can be acquired separately or as part of a comprehensive system, offering flexibility and efficiency in patient positioning solutions.

FEATURES:

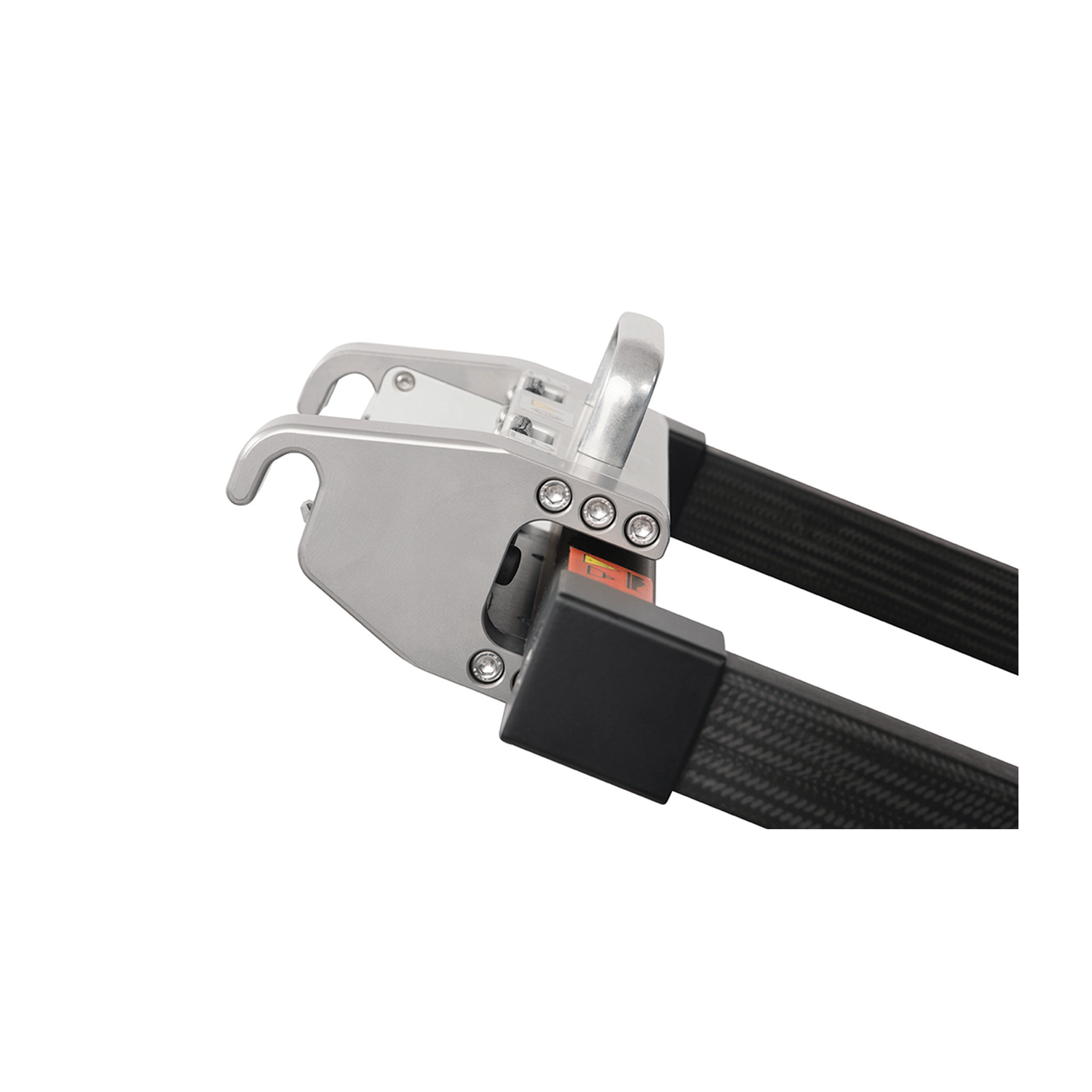

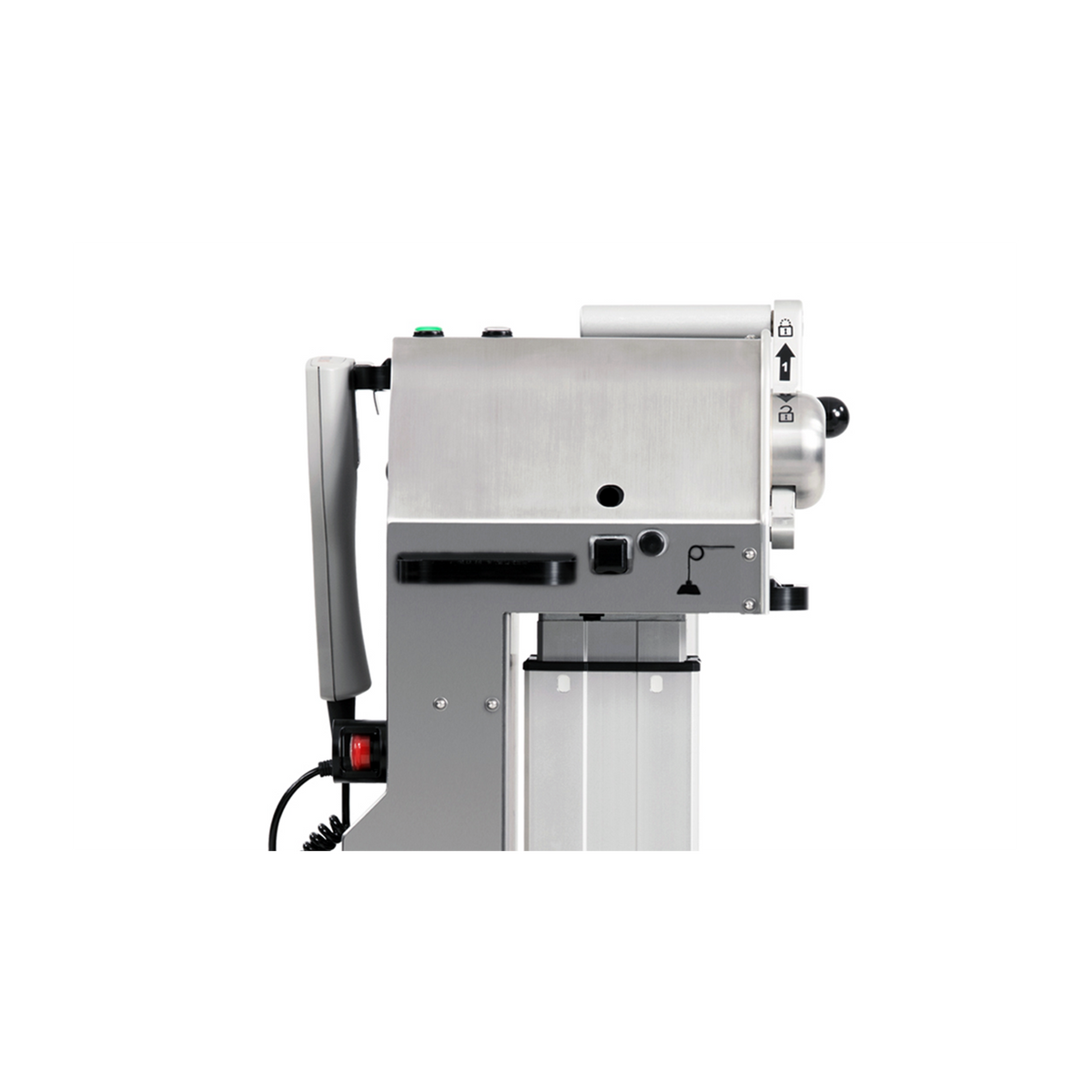

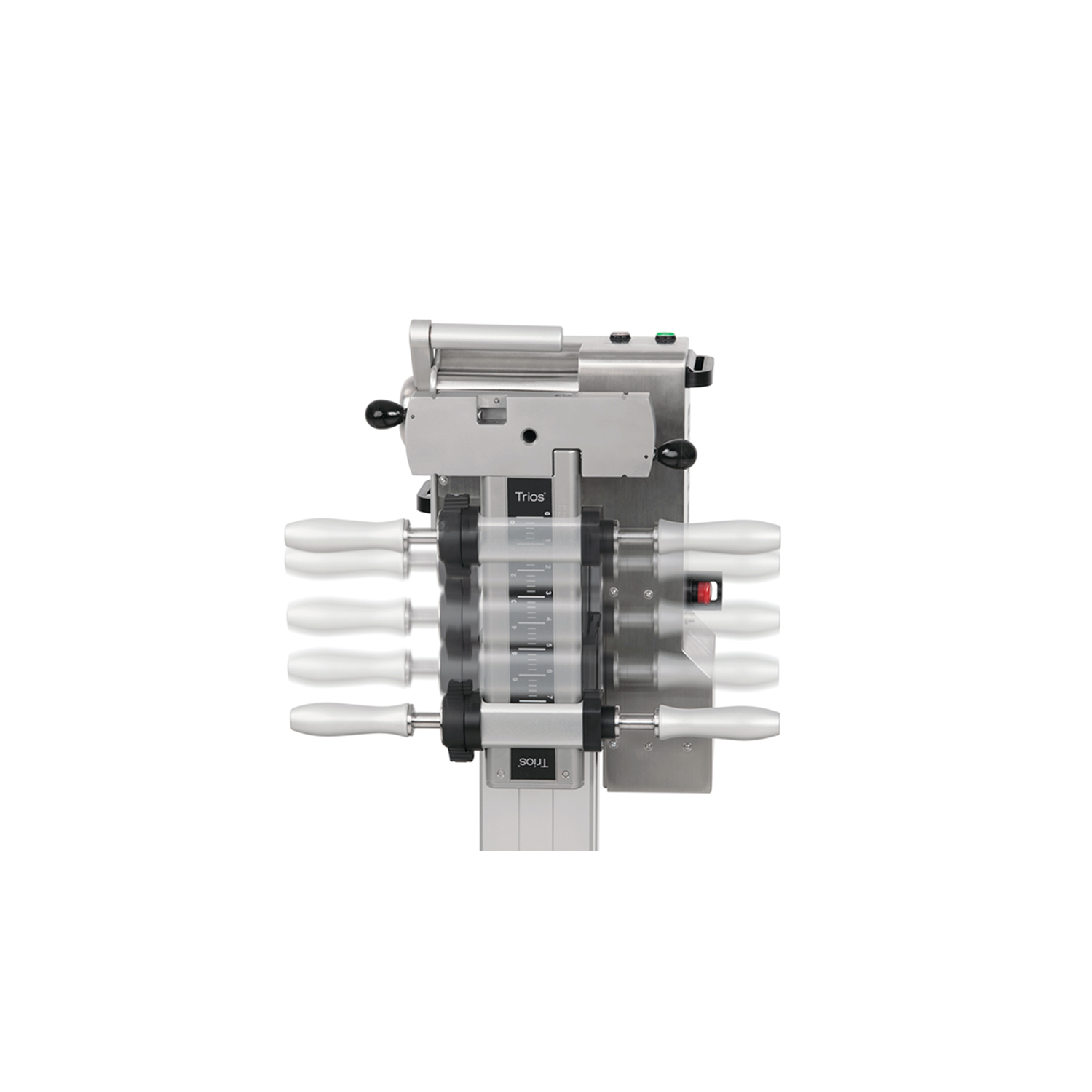

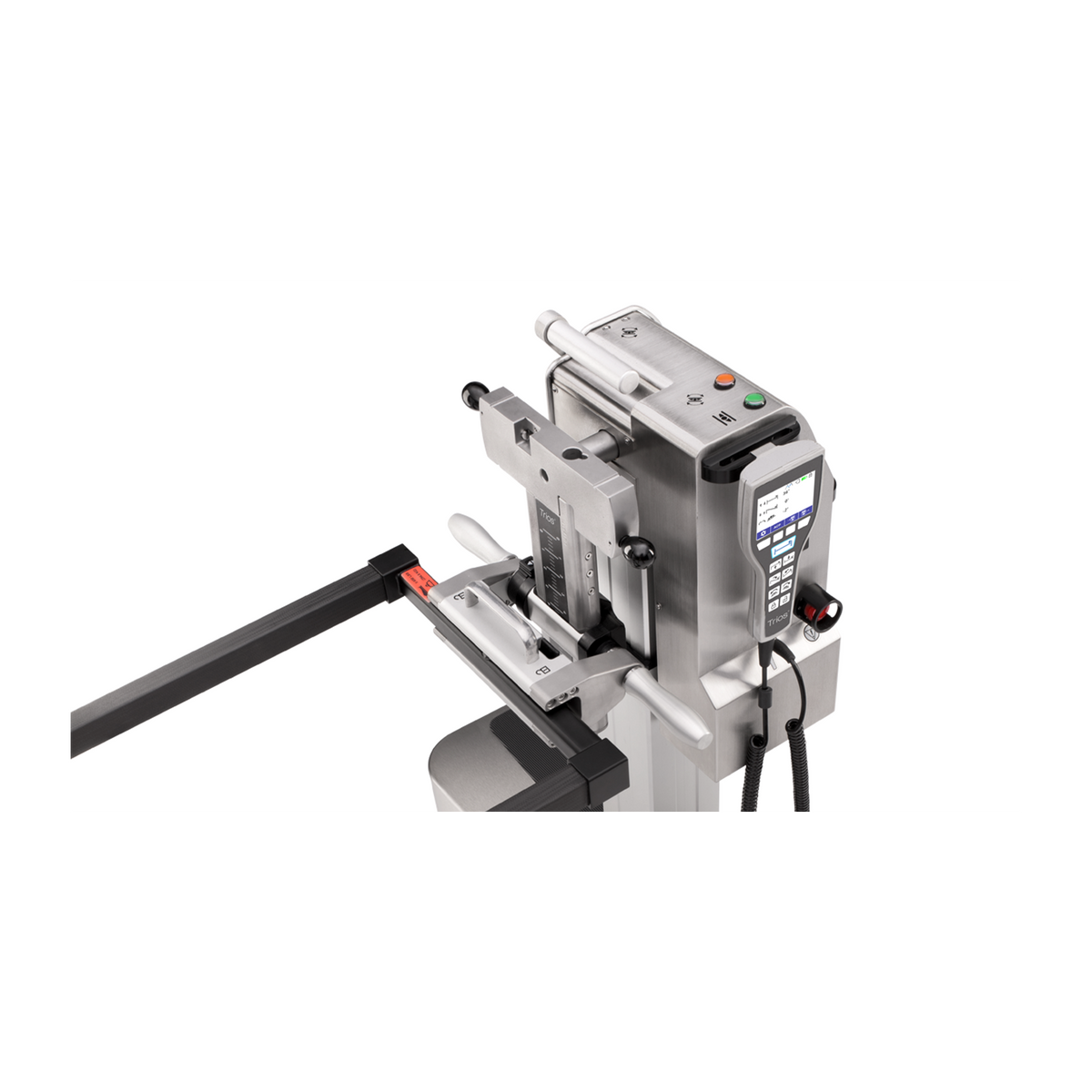

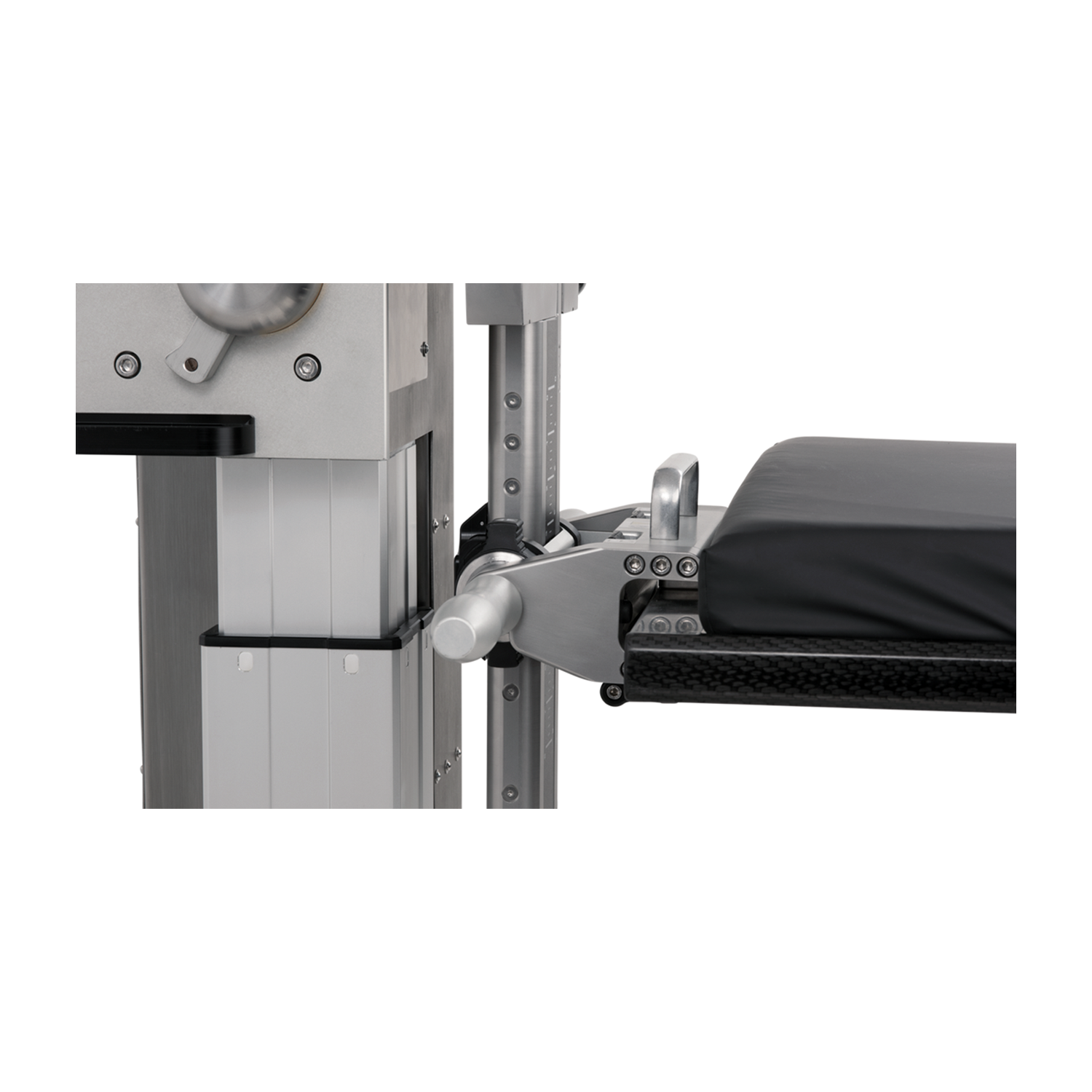

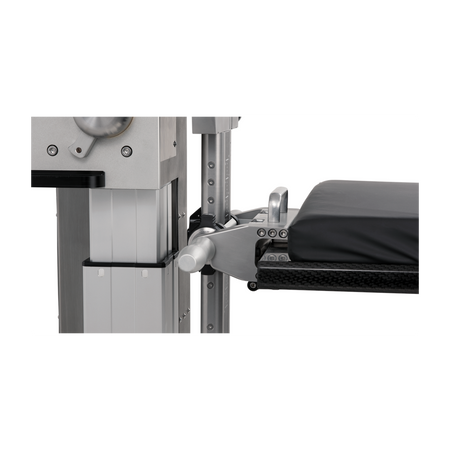

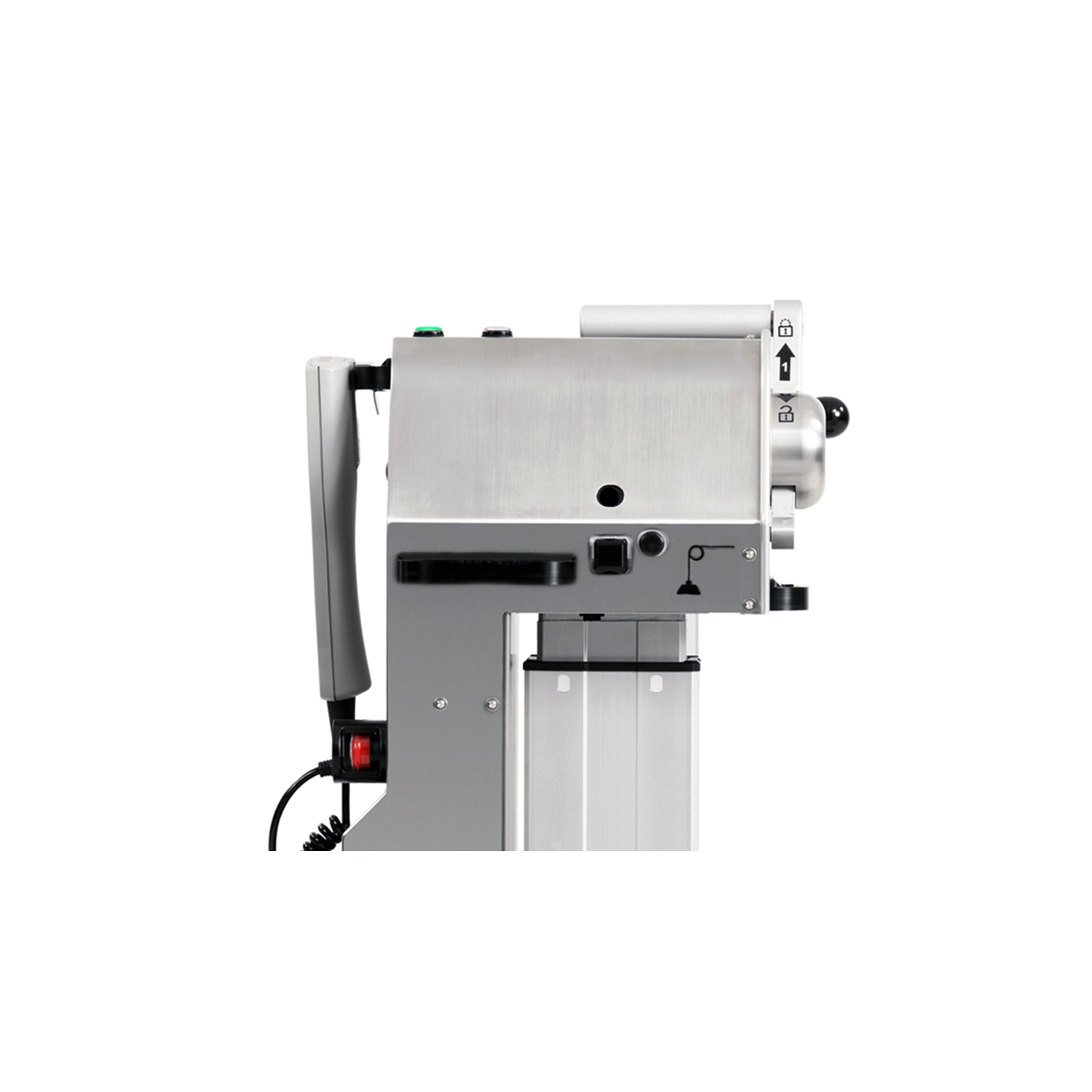

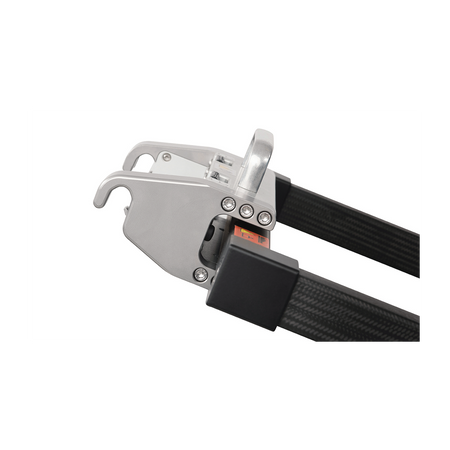

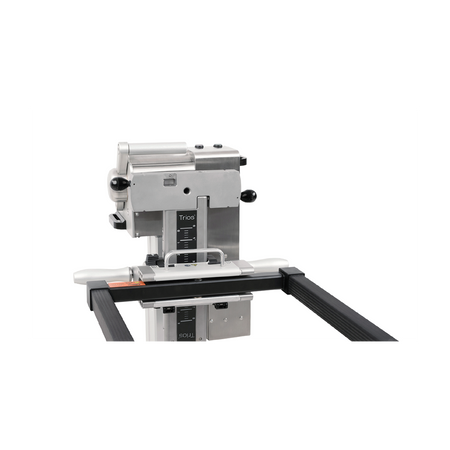

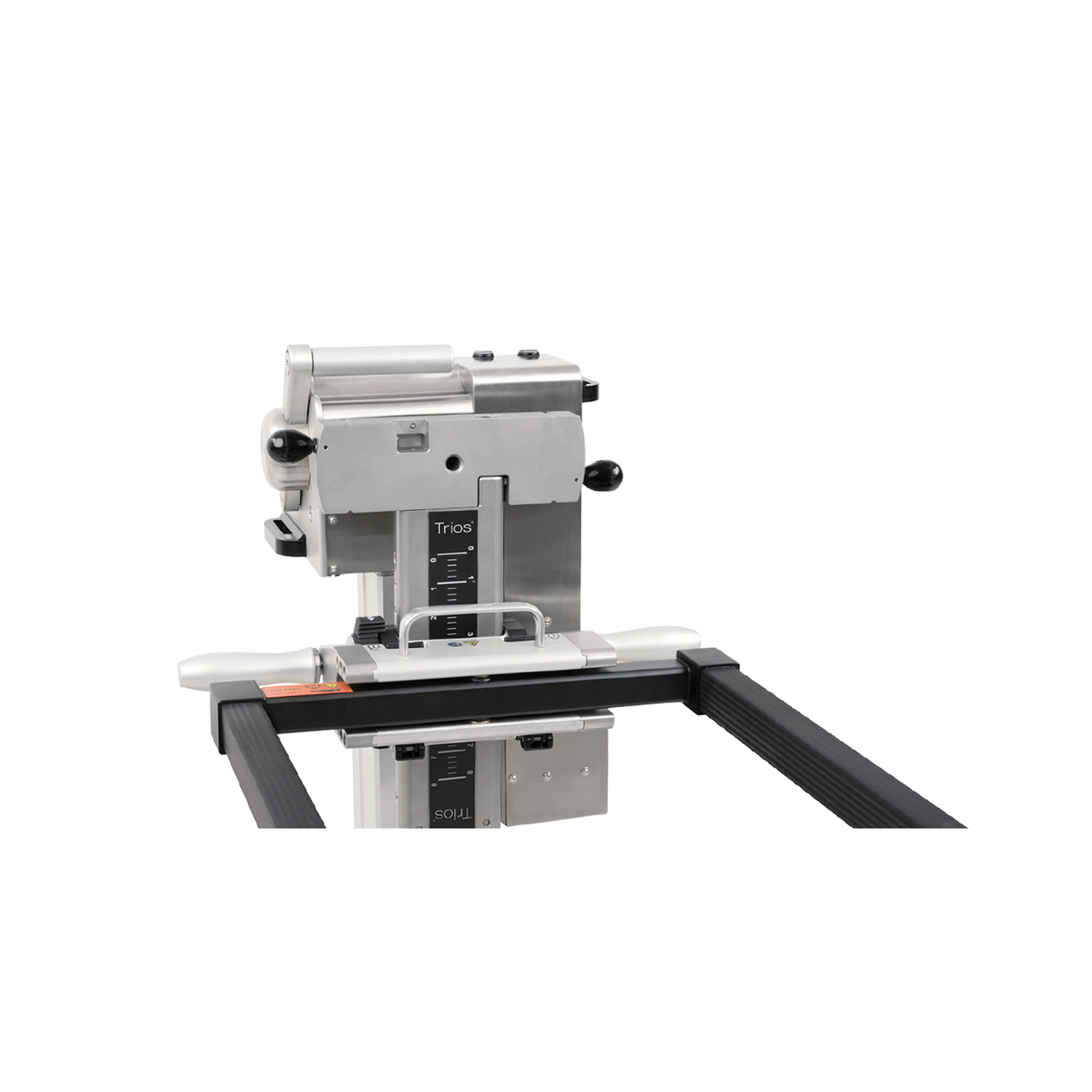

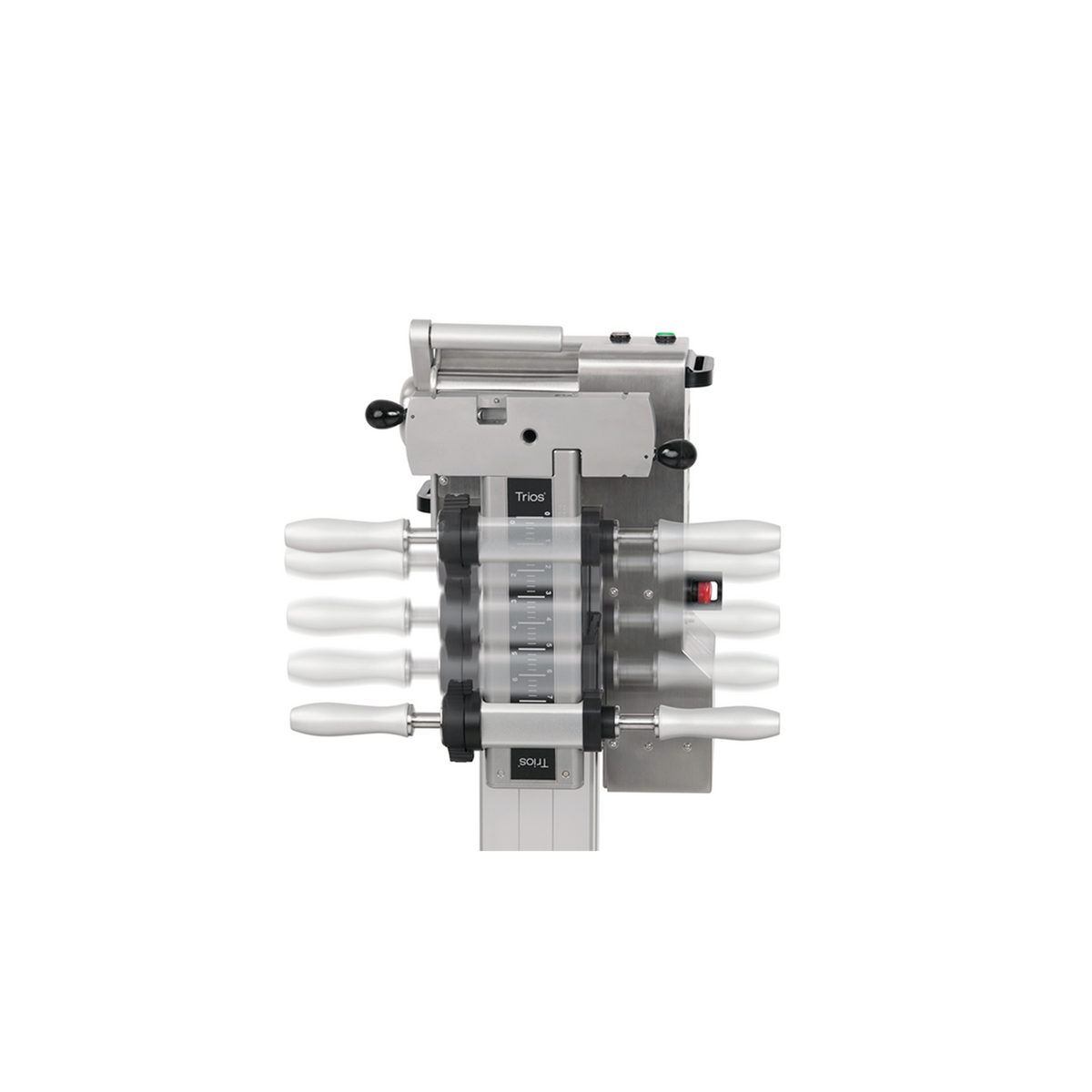

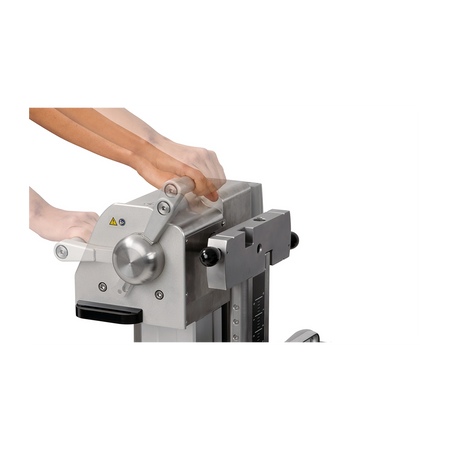

  • Tower and ratchet system that provides a unique tabletop mounting interface resulting in secure connection and adjustable table top height before and after patient transfer
  • Powered floor locks
  • Carbon fiber construction for complete radiolucency, allowing unrestricted C-arm and O-arm® access

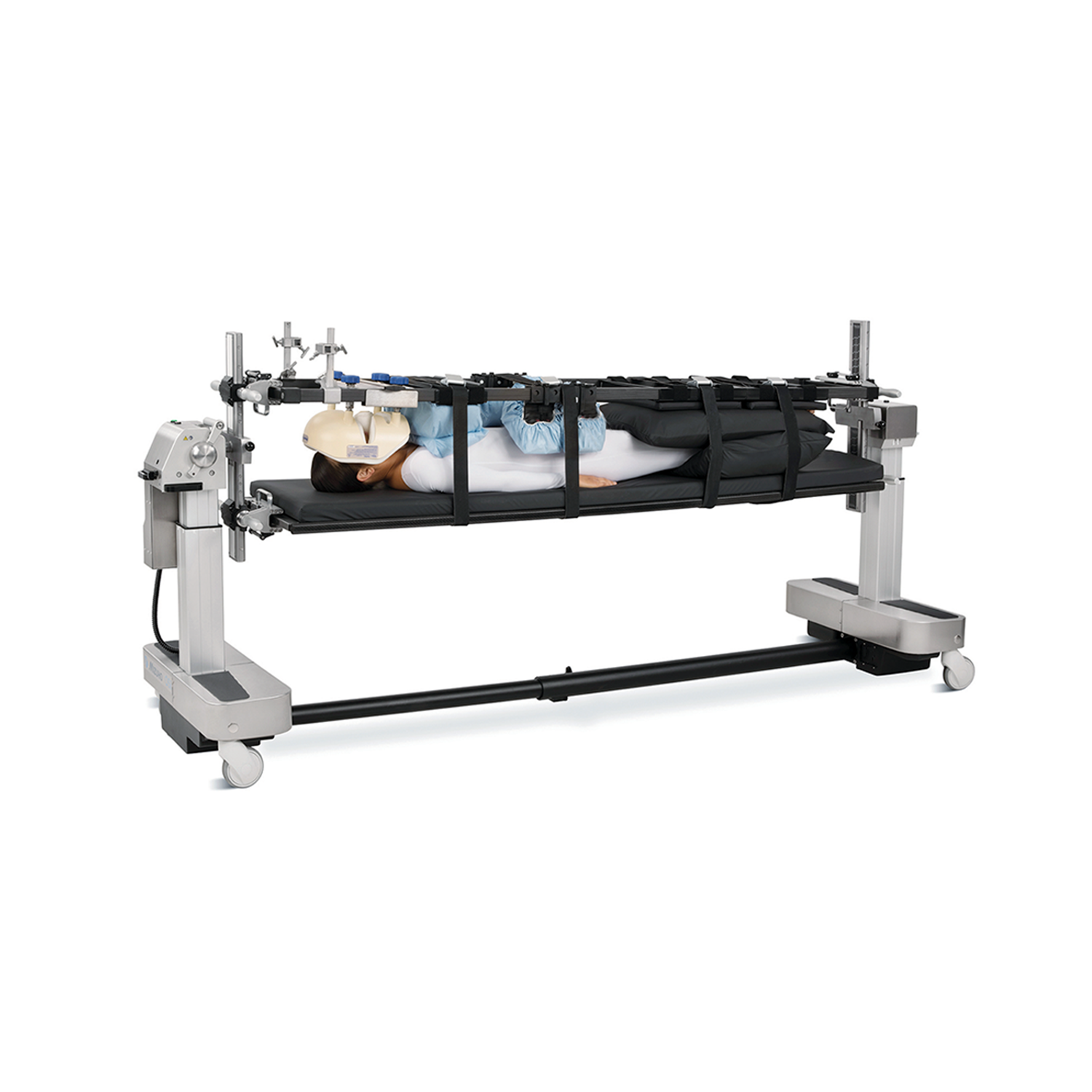

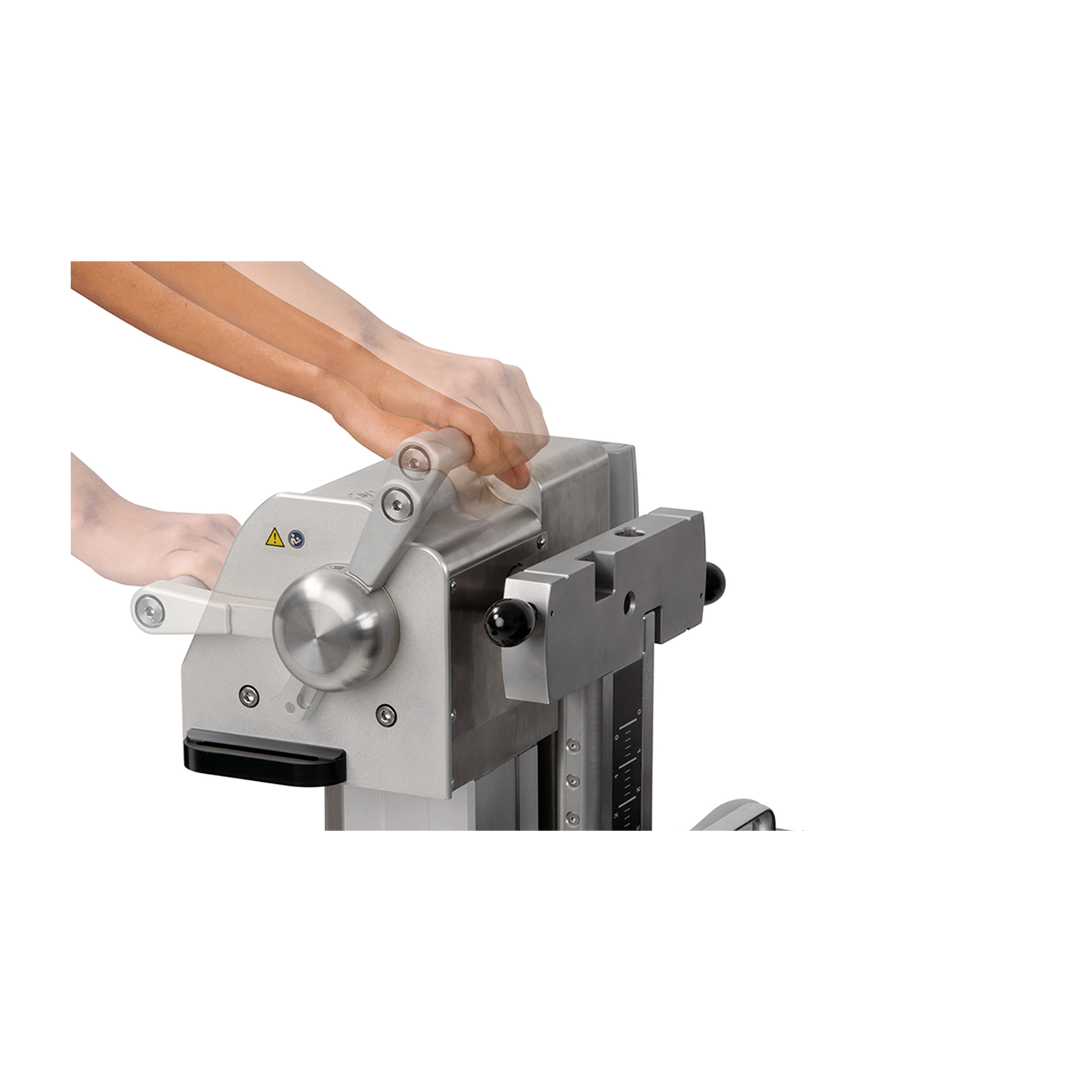

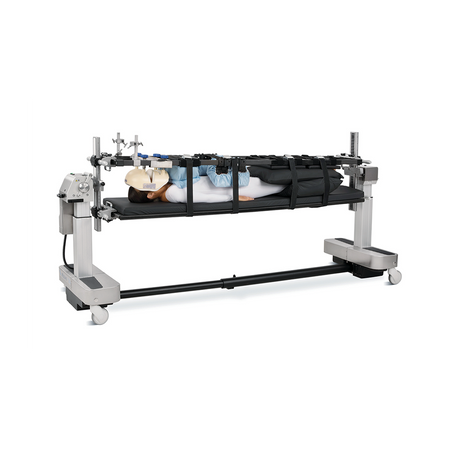

  • Streamlined 180° patient rotation mechanism, with two-stage locking release and clear indicator lights

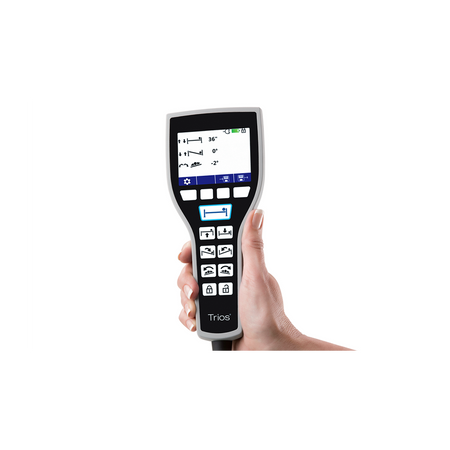

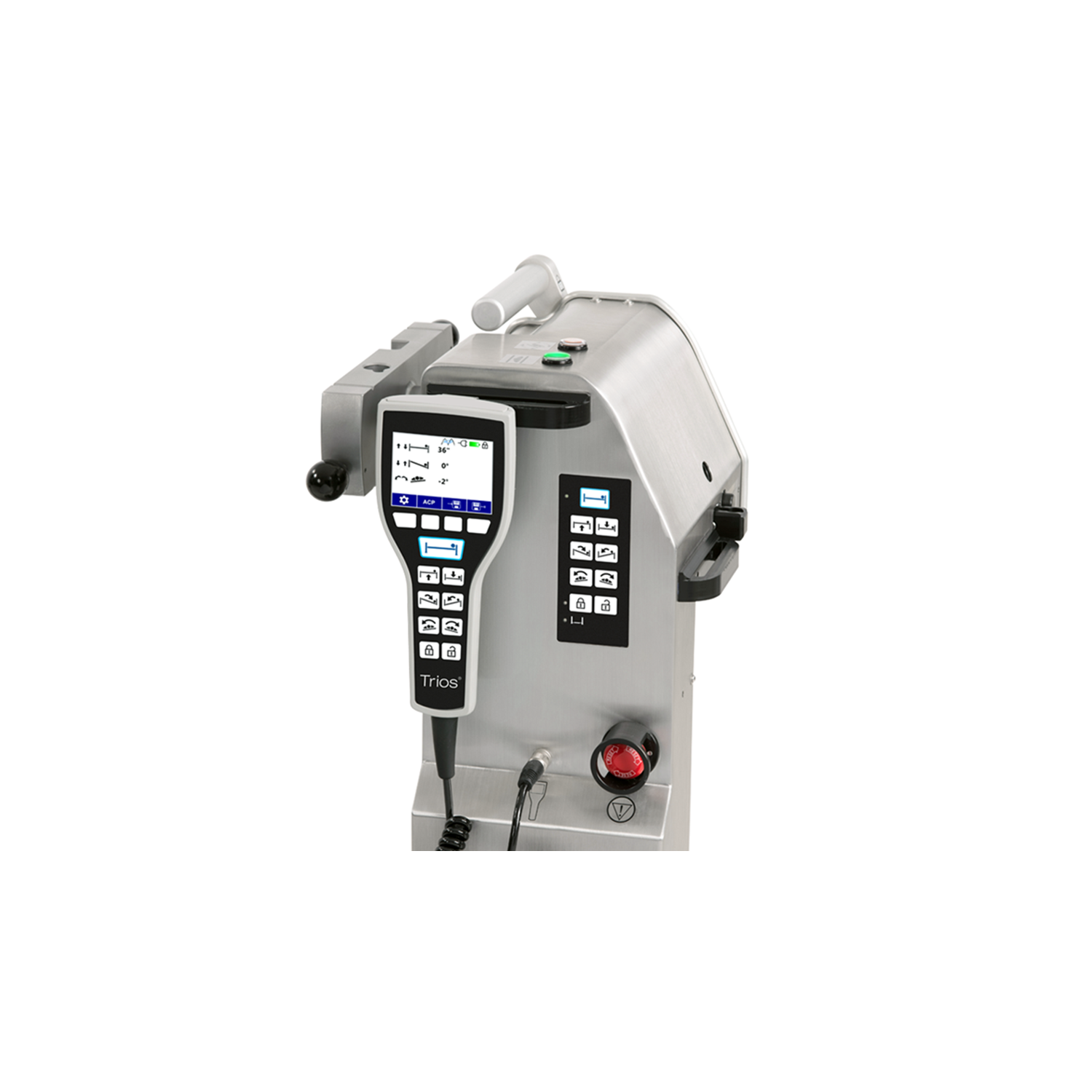

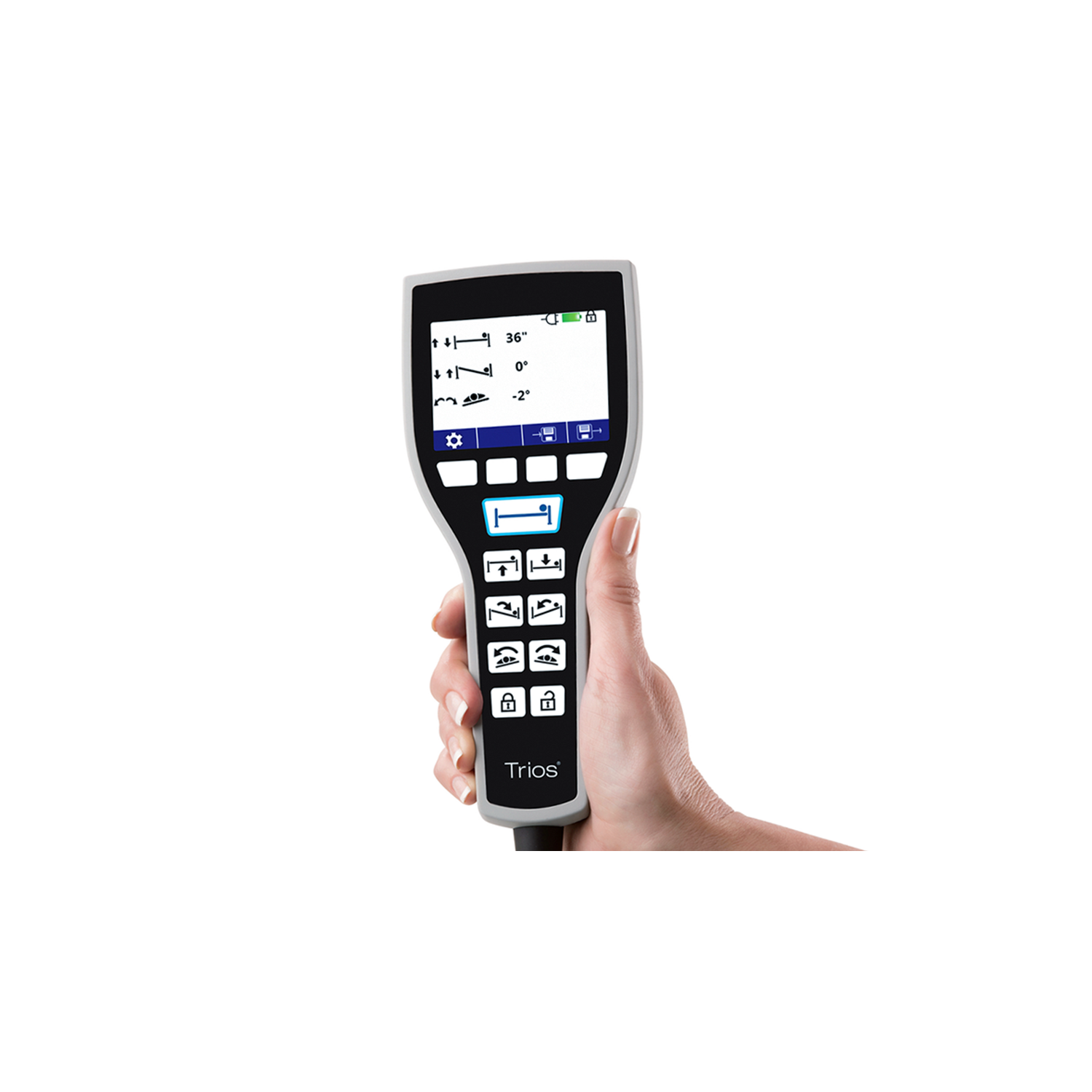

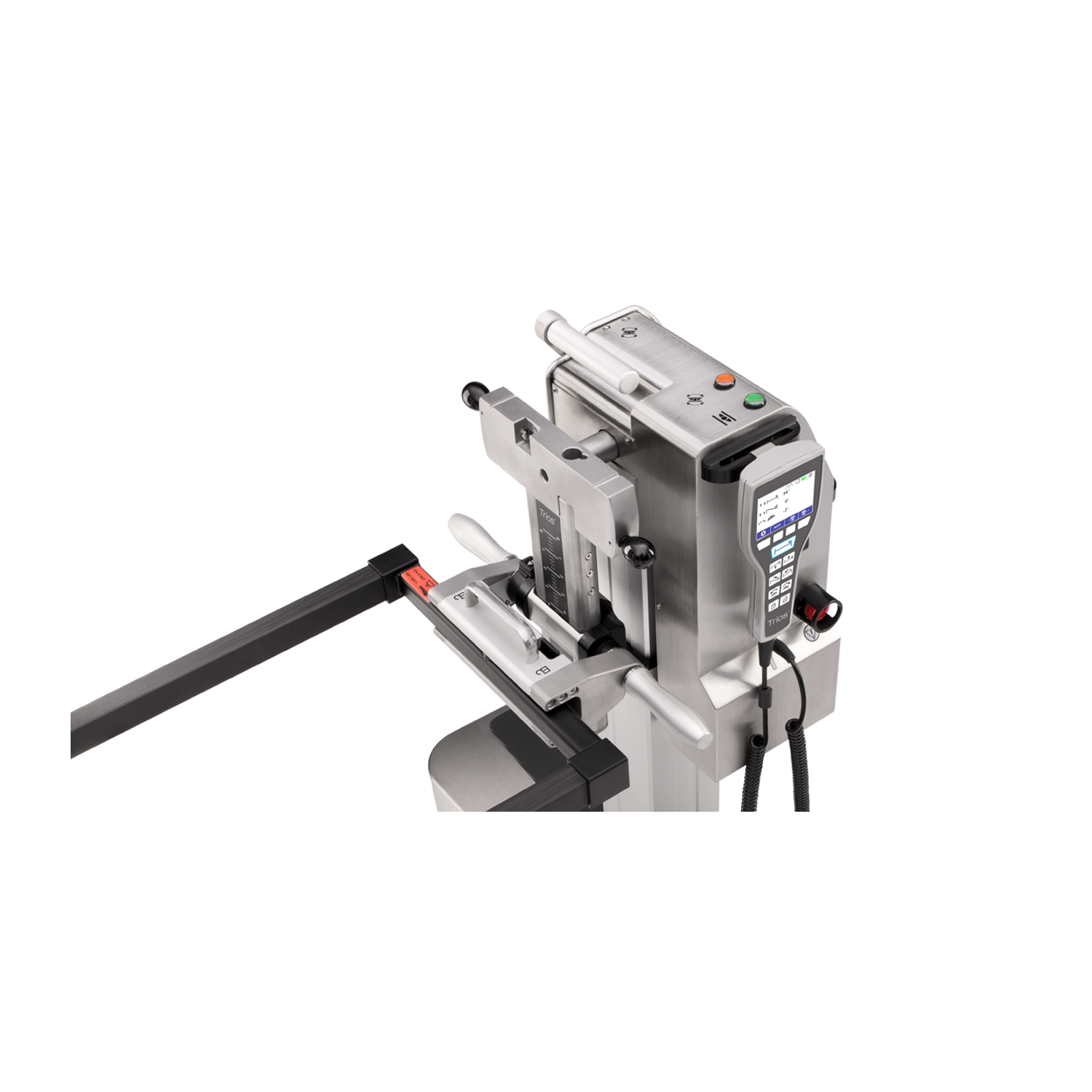

  • Positioning and operating functions controlled by an intelligent hand pendant, the IntelliPendant®, with two memory settings to retain the preferred position, and assist with setup

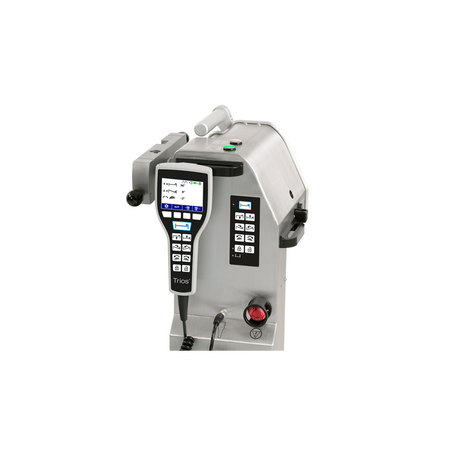

  • Auxiliary panel provides a secondary source for controlling table motion

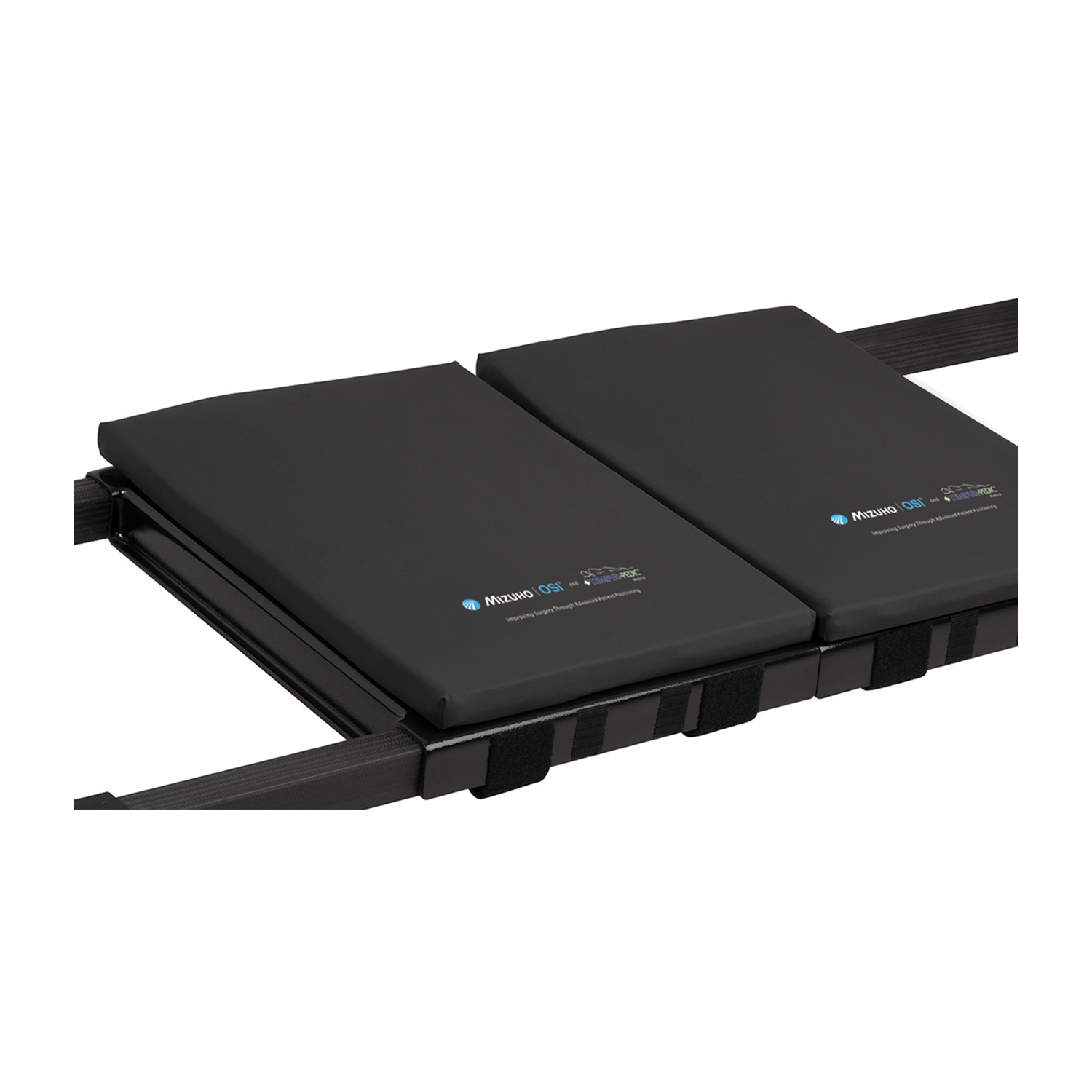

  • Customizable pad and component placement to meet individual patient needs

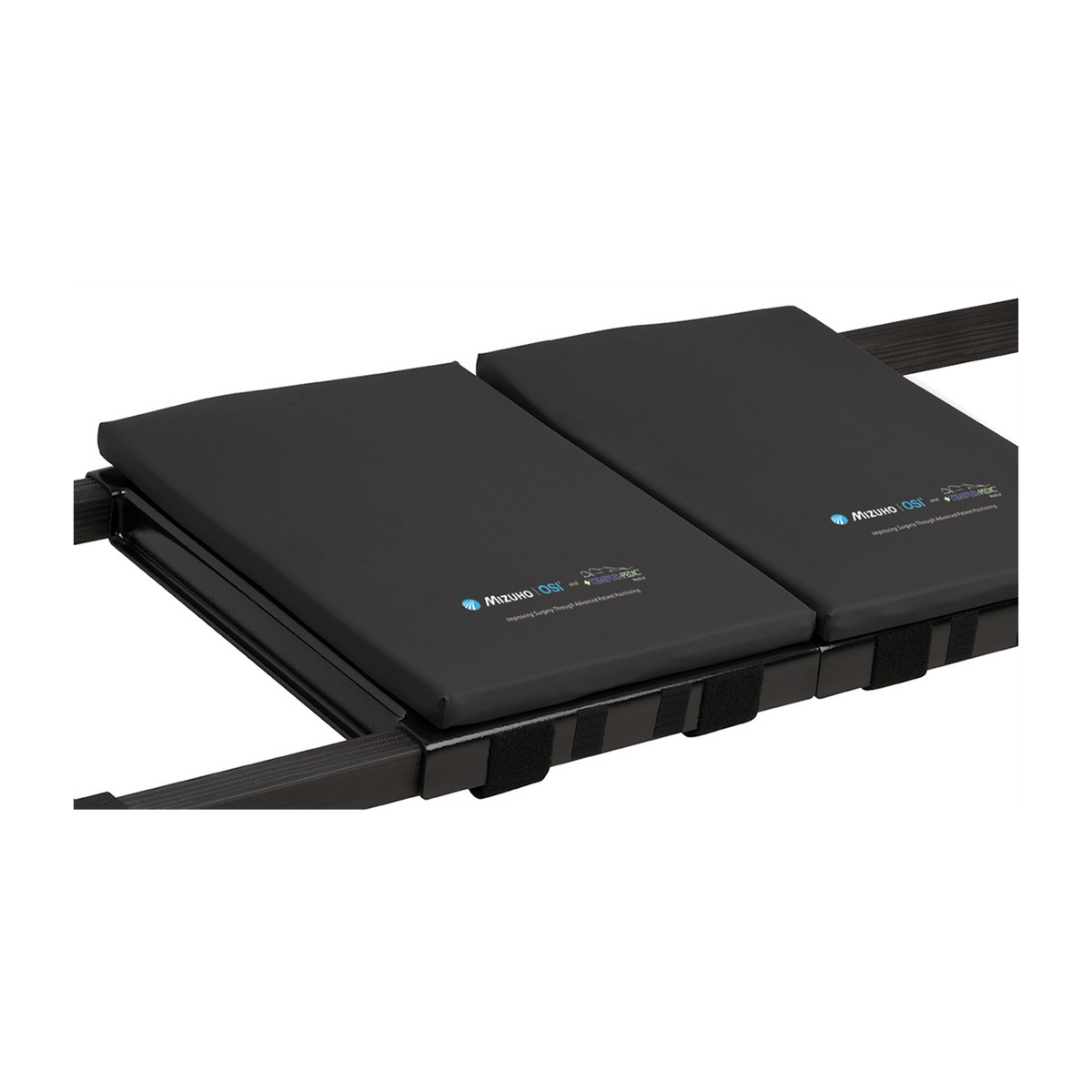

  • Tempur-Pedic®  Pad technology incorporated into all patient surfaces in supine or prone positioning

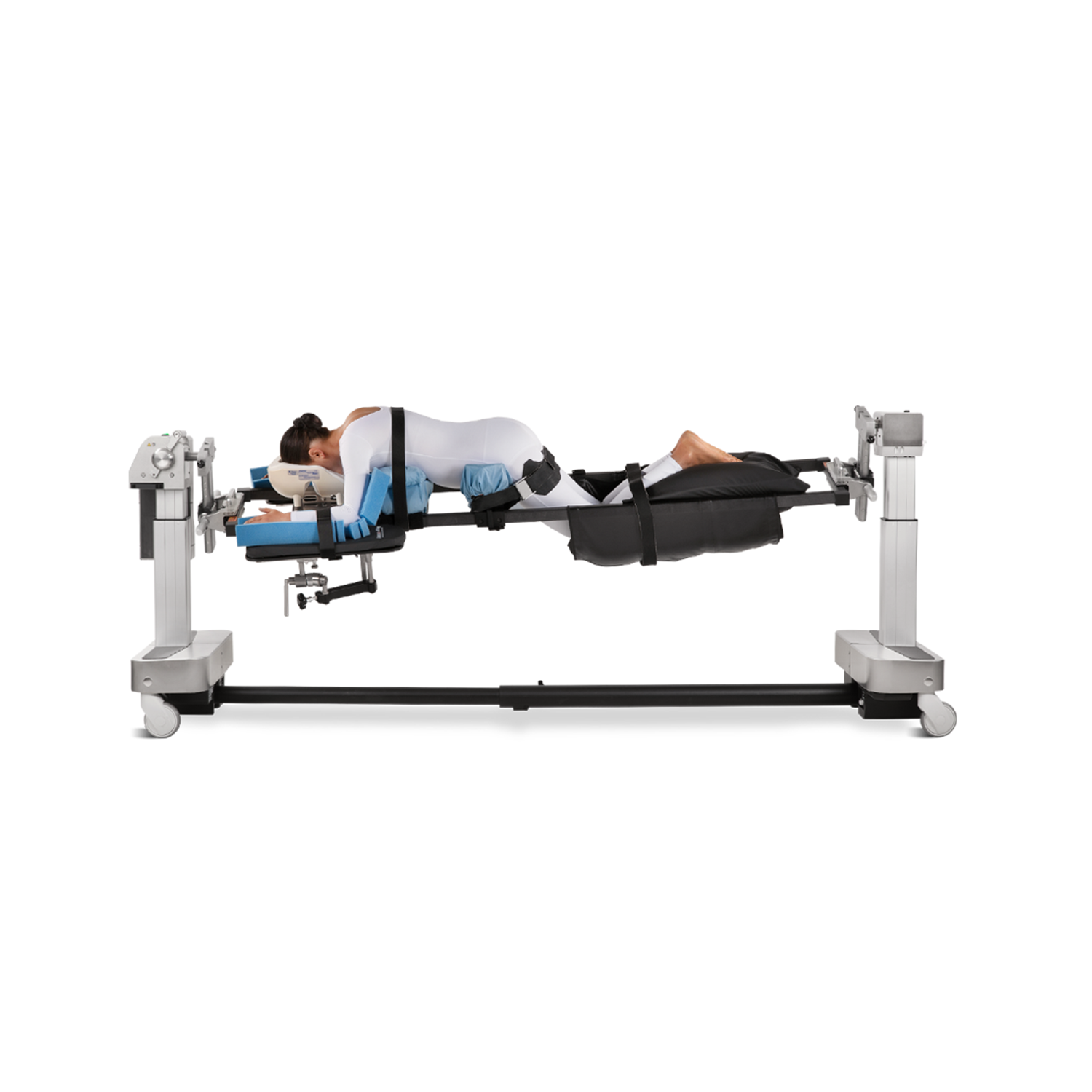

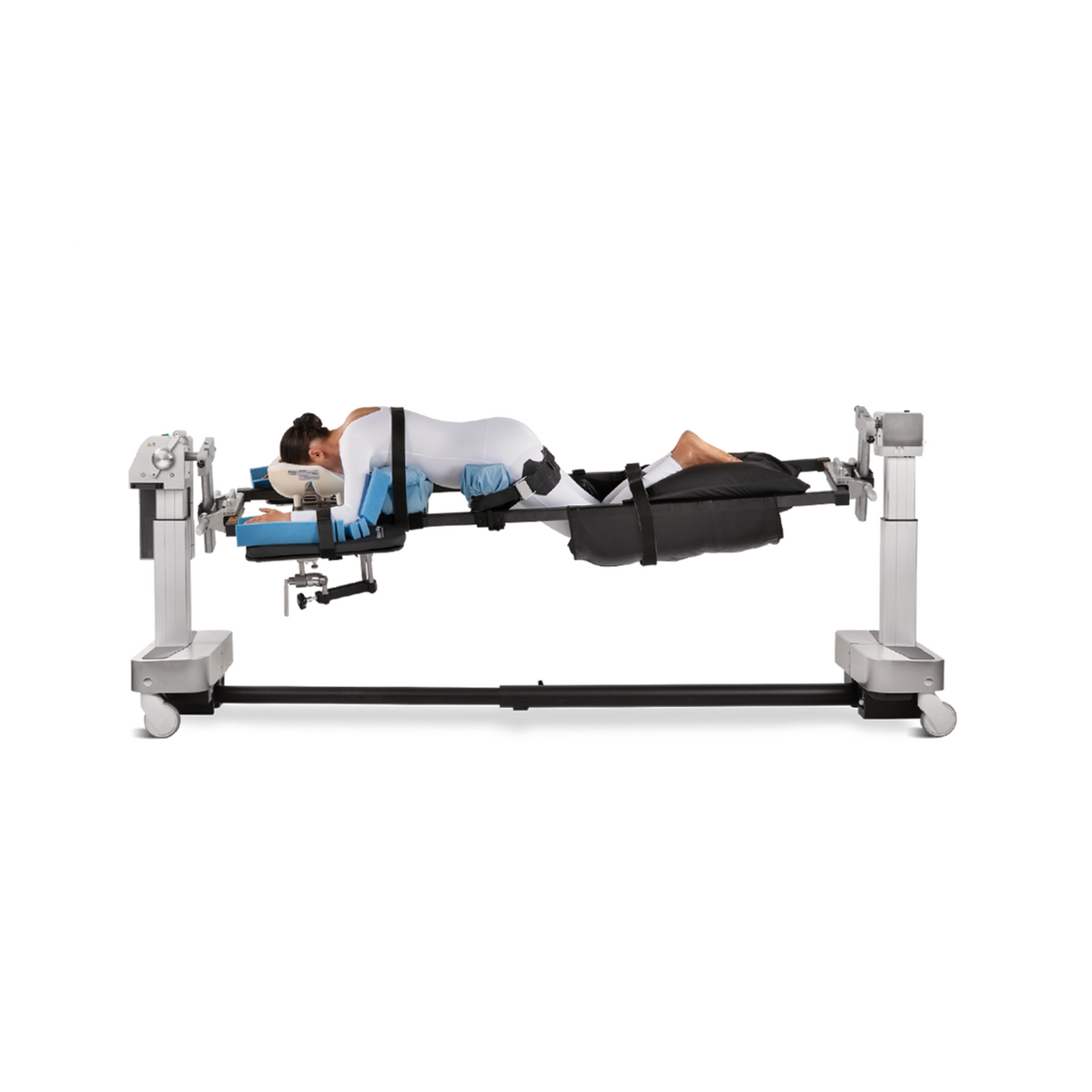

  • Trios Spinal Surgery Top:

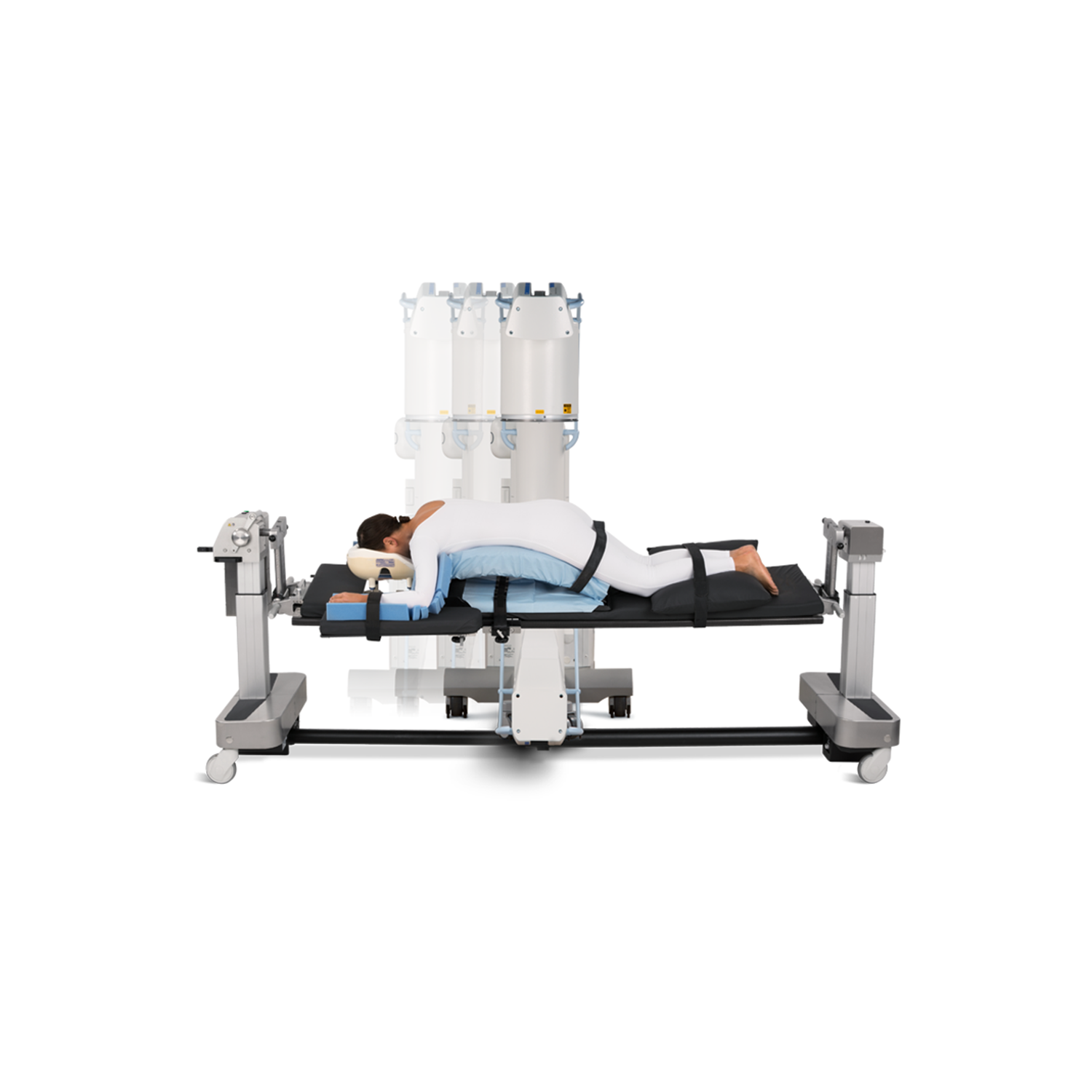

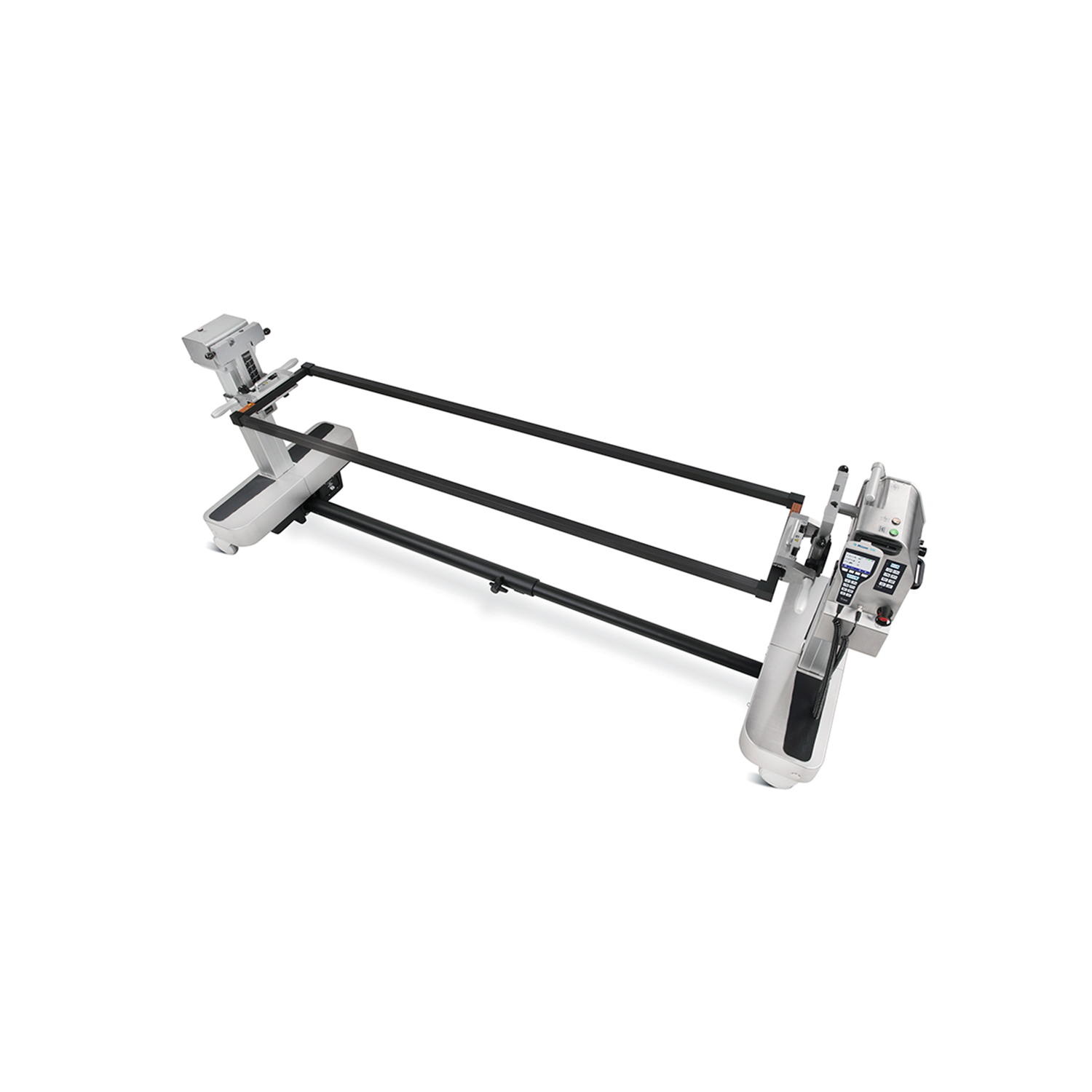

    • Open spine frame reduces vena cava compression, minimizes epidural venous bleeding and improves visualization at the surgical site

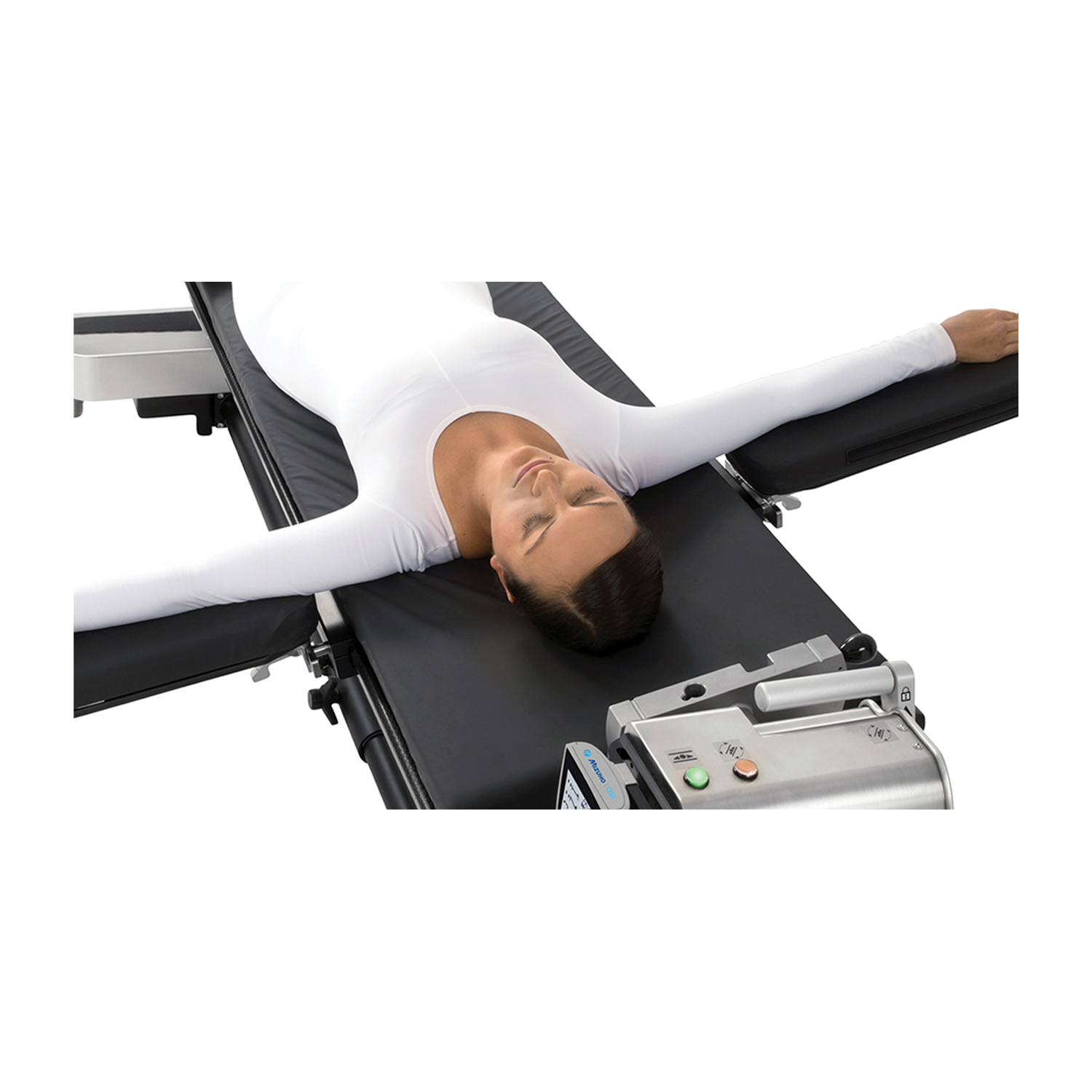

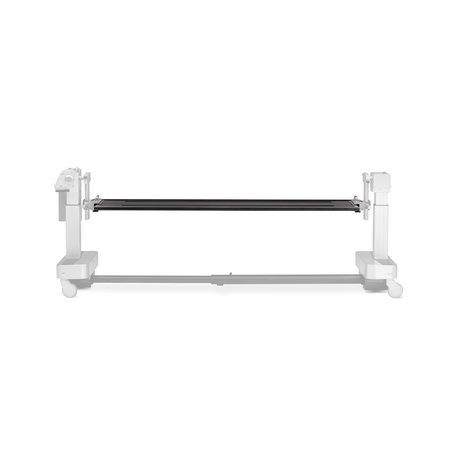

  • Trios Radiolucent Imaging Top:
    • Supports supine or lateral positions
      Fully radiolucent, carbon fiber table top with Tempur-Pedic® pressure equalization pad

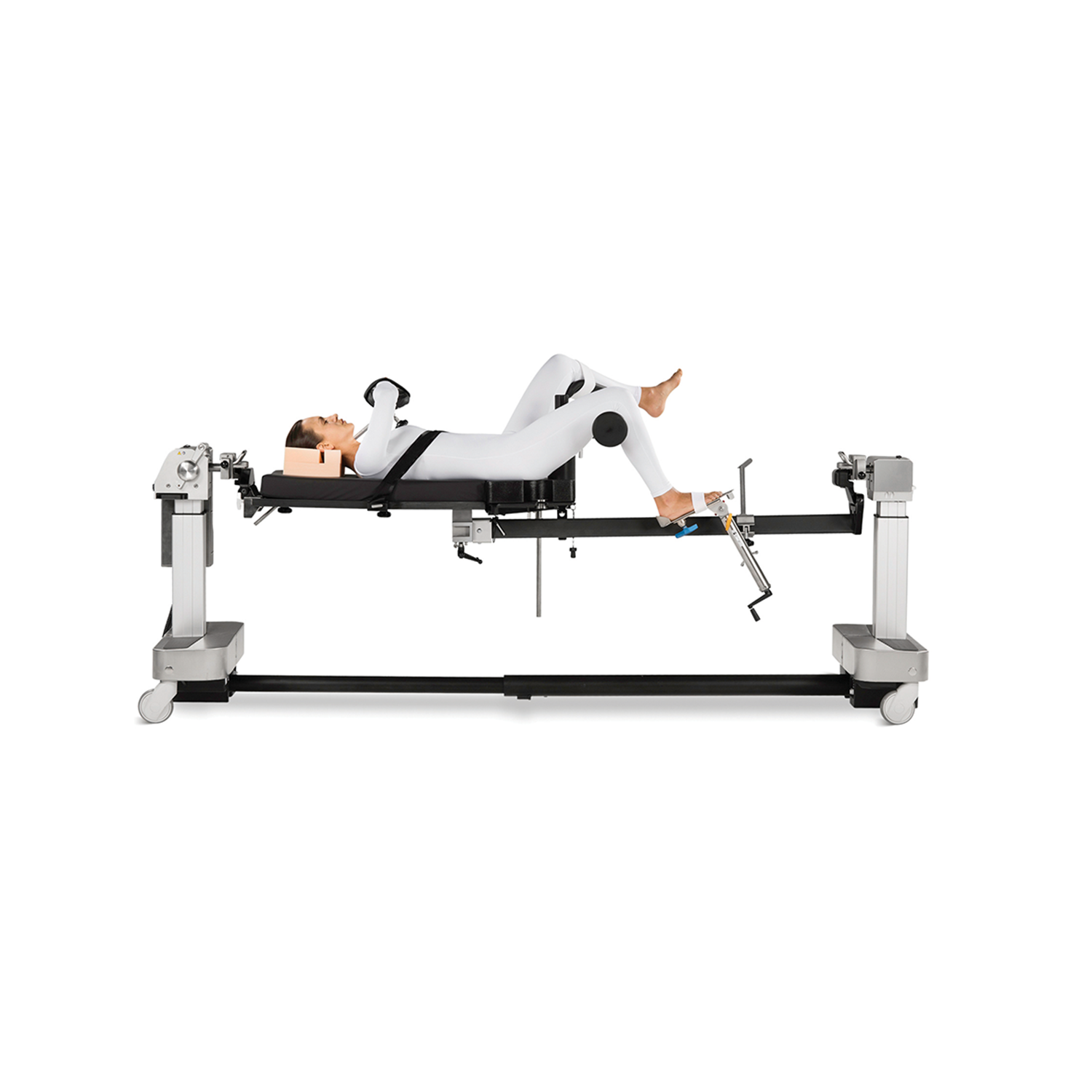

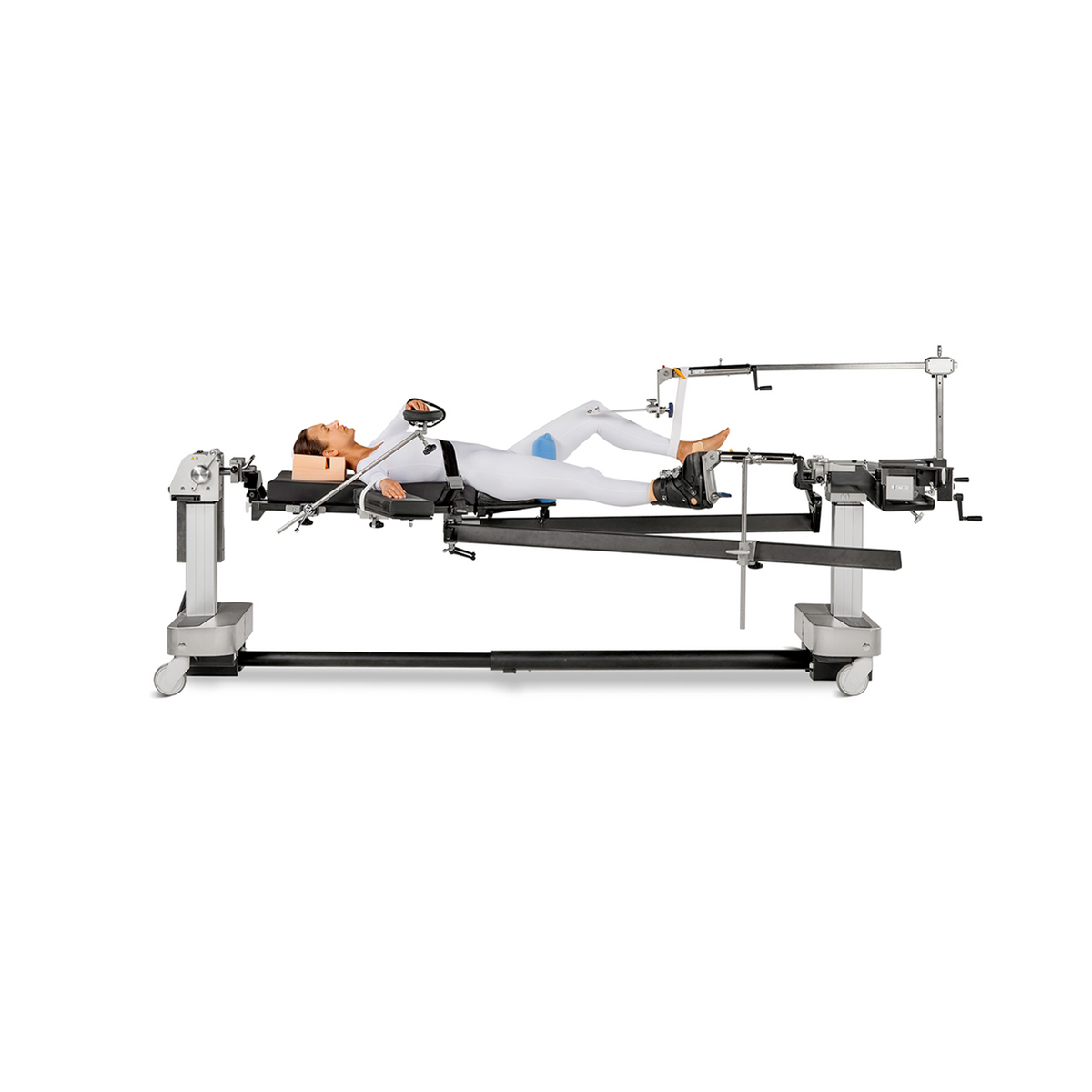

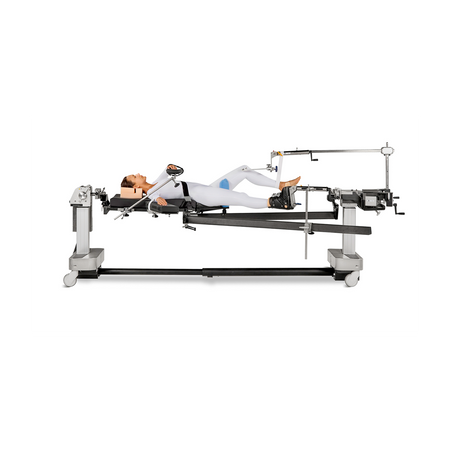

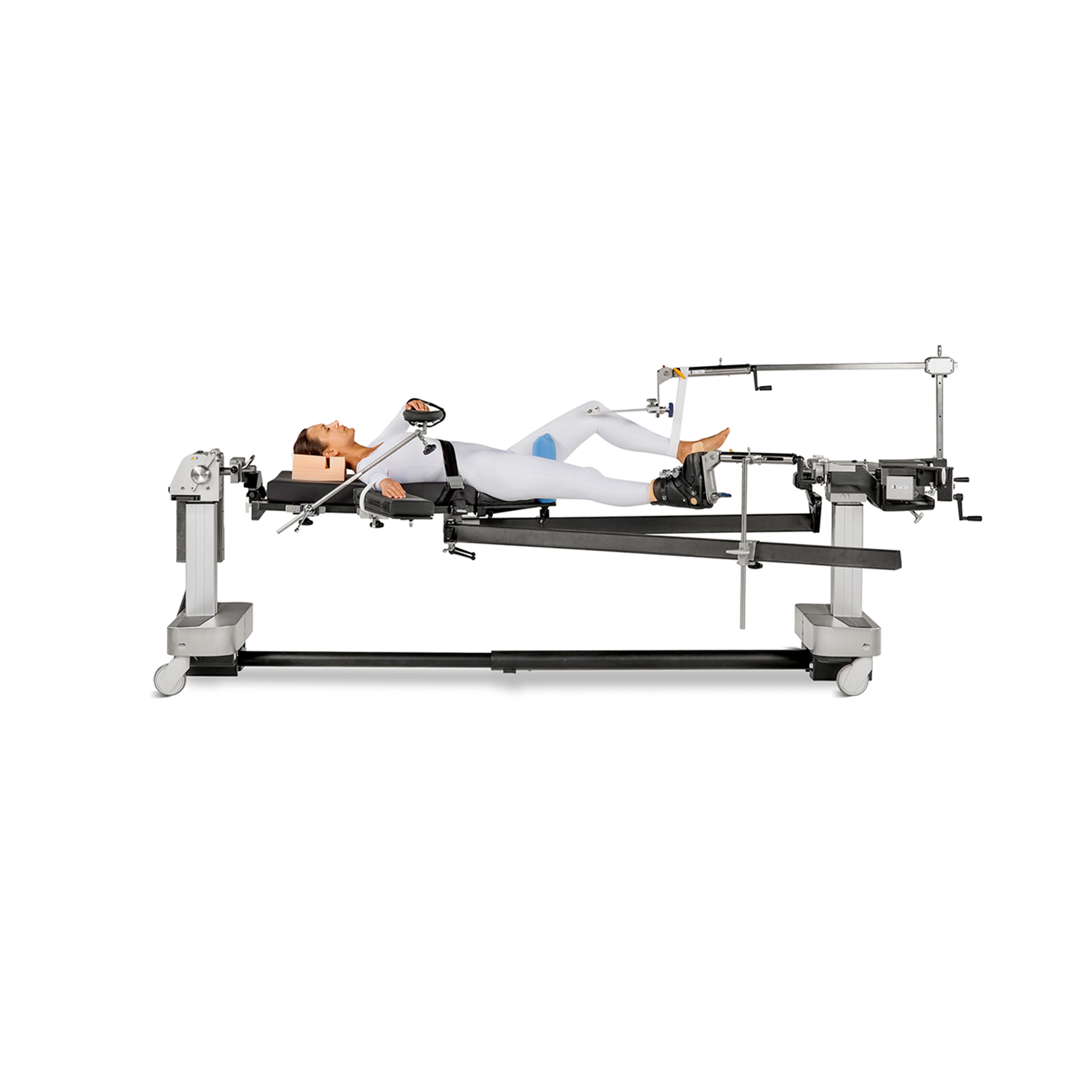

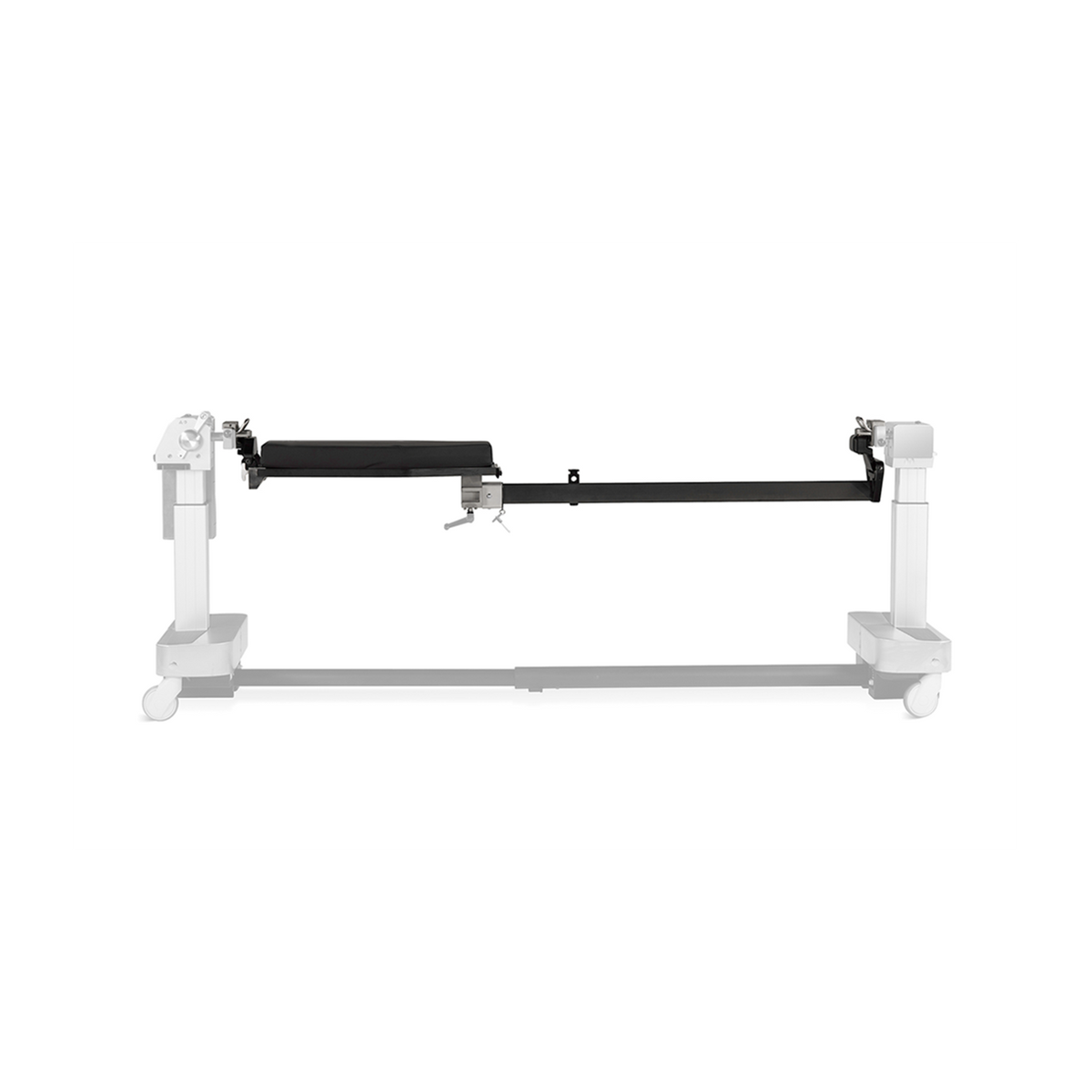

  • Trios Orthopedic Trauma Top:
    • Modern table top with Traction Arc attachment features
    • Traction Arc provides constant and anatomically correct traction for various trauma procedures
    • Secure and flexible with multiple component options for either skin or skeletal traction
    • Enhanced radiolucency by design

POSITIONING CAPABILITIES:

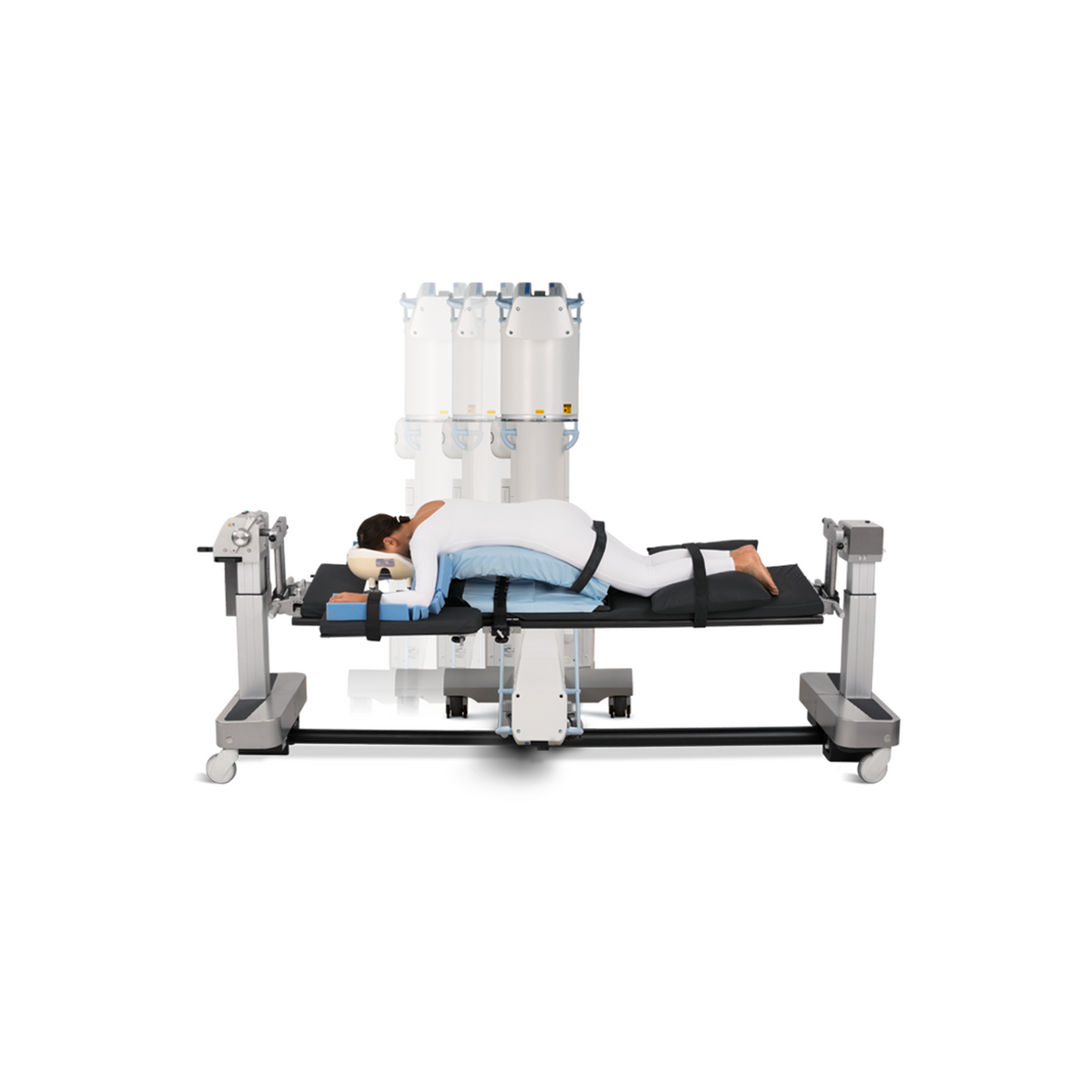

  • Spine Surgery Top
    • Prone

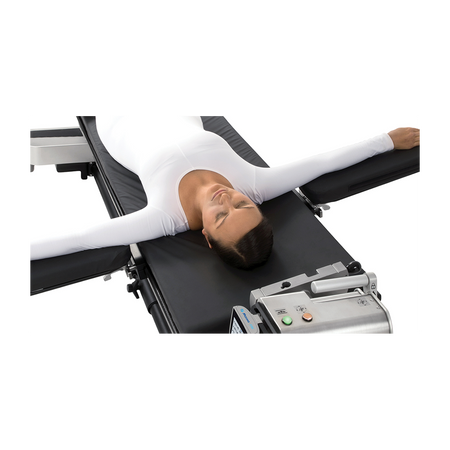

  • Radiolucent Imaging Top
    • Supine
    • Lateral

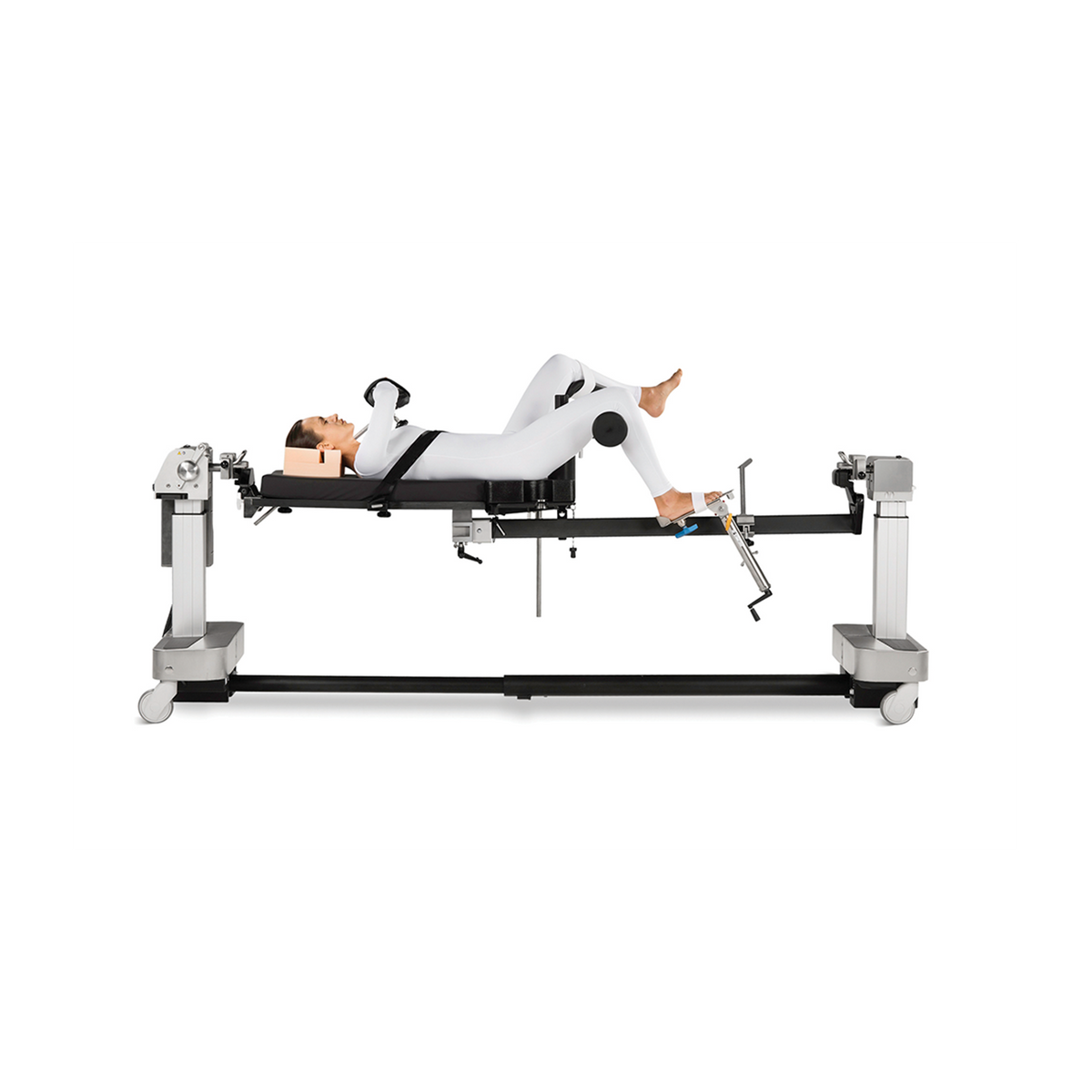

  • Orthopedic Trauma Top
    • Supine
    • Lateral

COMMON PROCEDURES:

  • Spinal:
    • Laminectomies
    • Decompressions
    • Osteotomies
    • Anterior/posterior fusions
    • Surgical correction of deformities
    • Anterior/posterior cervical procedures
    • Kyphoplasties
    • Vertebroplasties
    • IDET surgeries

  • Imaging:
    • Vascular surgery
    • Joint imaging
    • Pain management

  • Orthopedic Trauma:
    • Hip pinning
    • Supine IM femoral nailing
    • Lateral IM femoral nailing
    • IM tibial nailing
    • Ender nailing

SPECIFICATIONS:

  • Manufacturer: Mizuho OSI
  • Part Number: (OEM): Trios
  • Category: Tables Surgical - Modular
  • Accessories: None
  • Condition: New/Refurbished
  • Weight: 500-650lbs.
  • Warranty: 3 Months

MODULAR TABLE SYSTEM COMPONENTS:

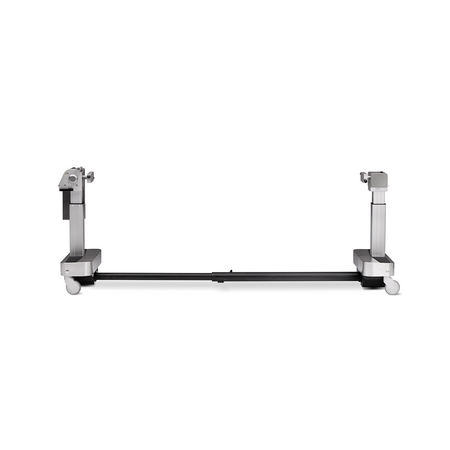

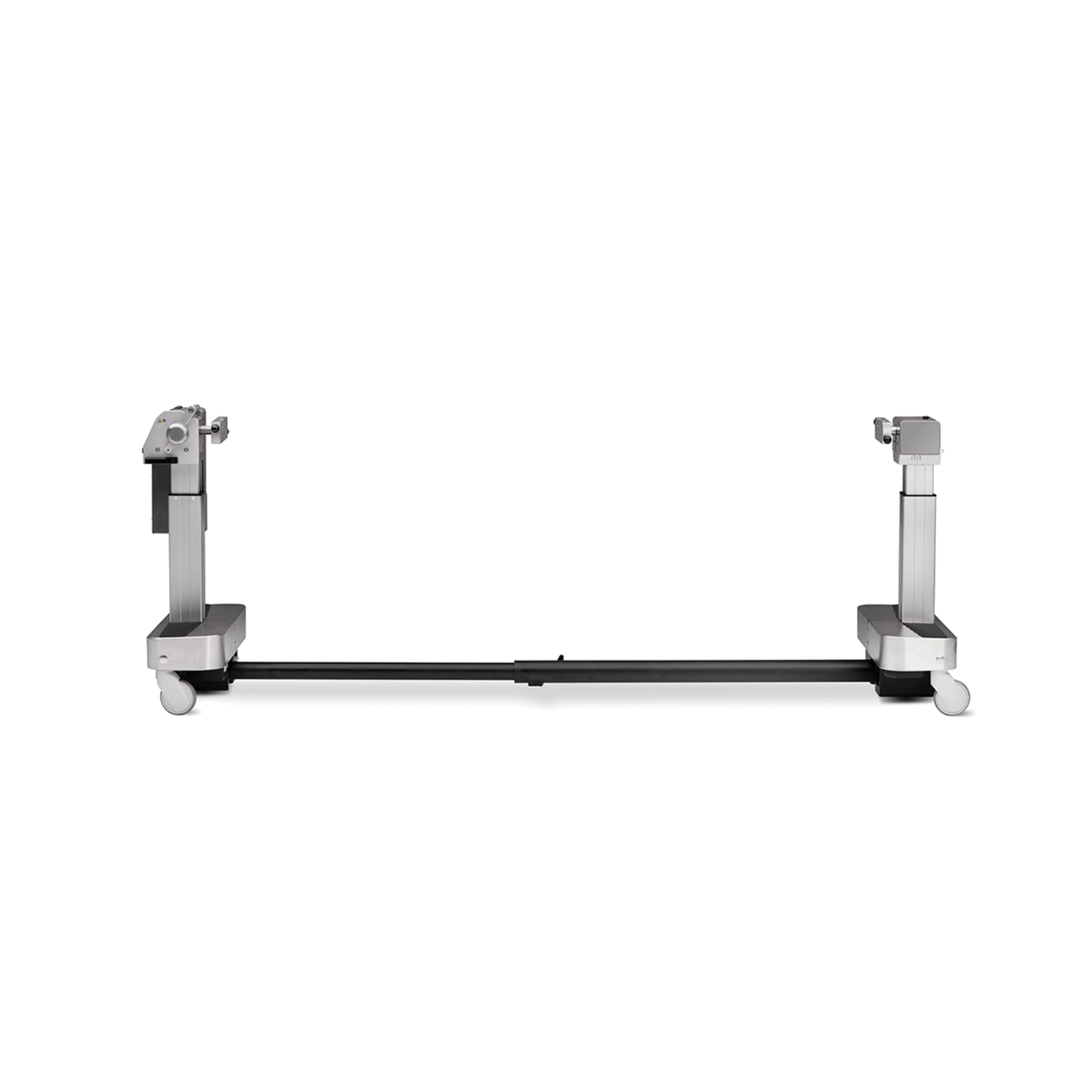

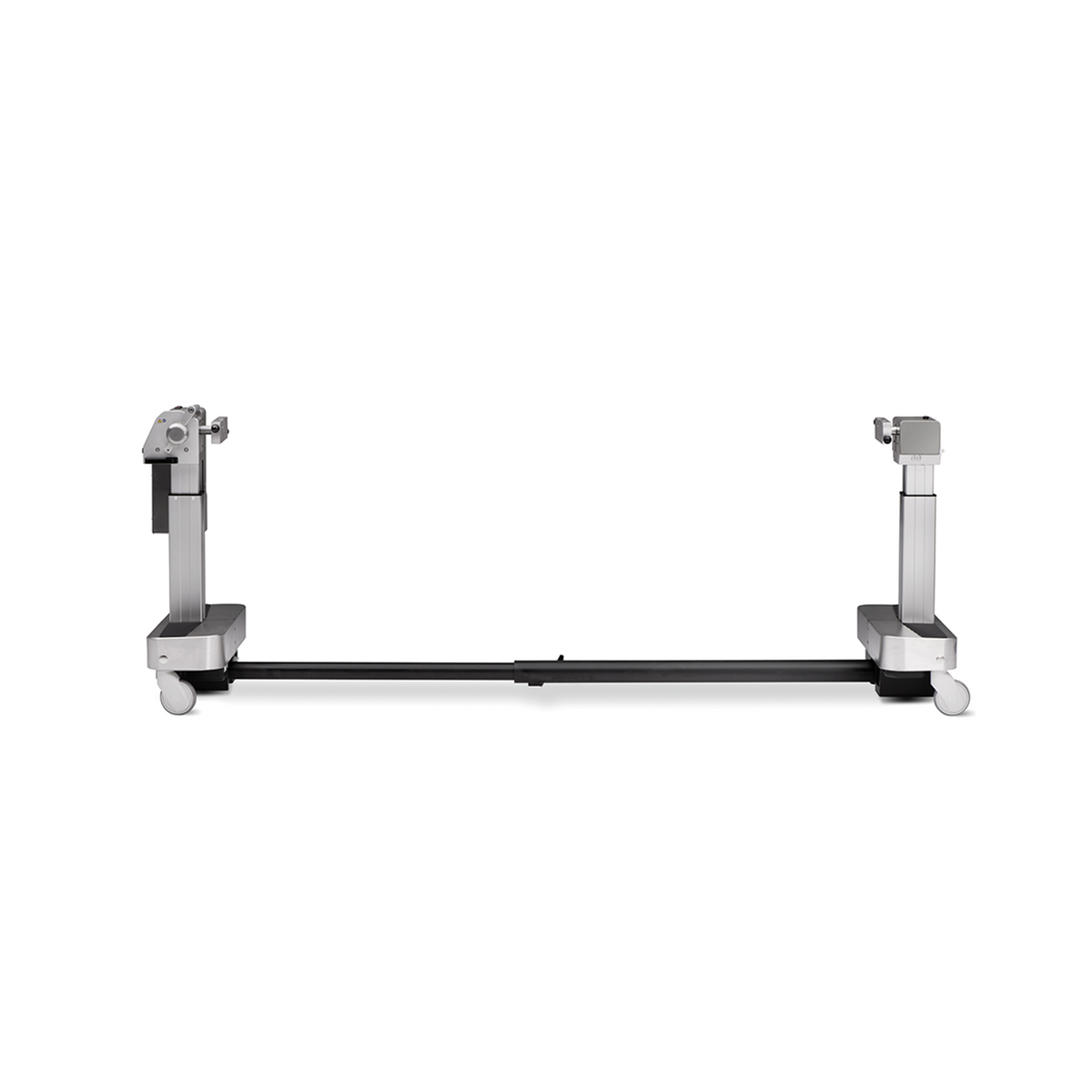

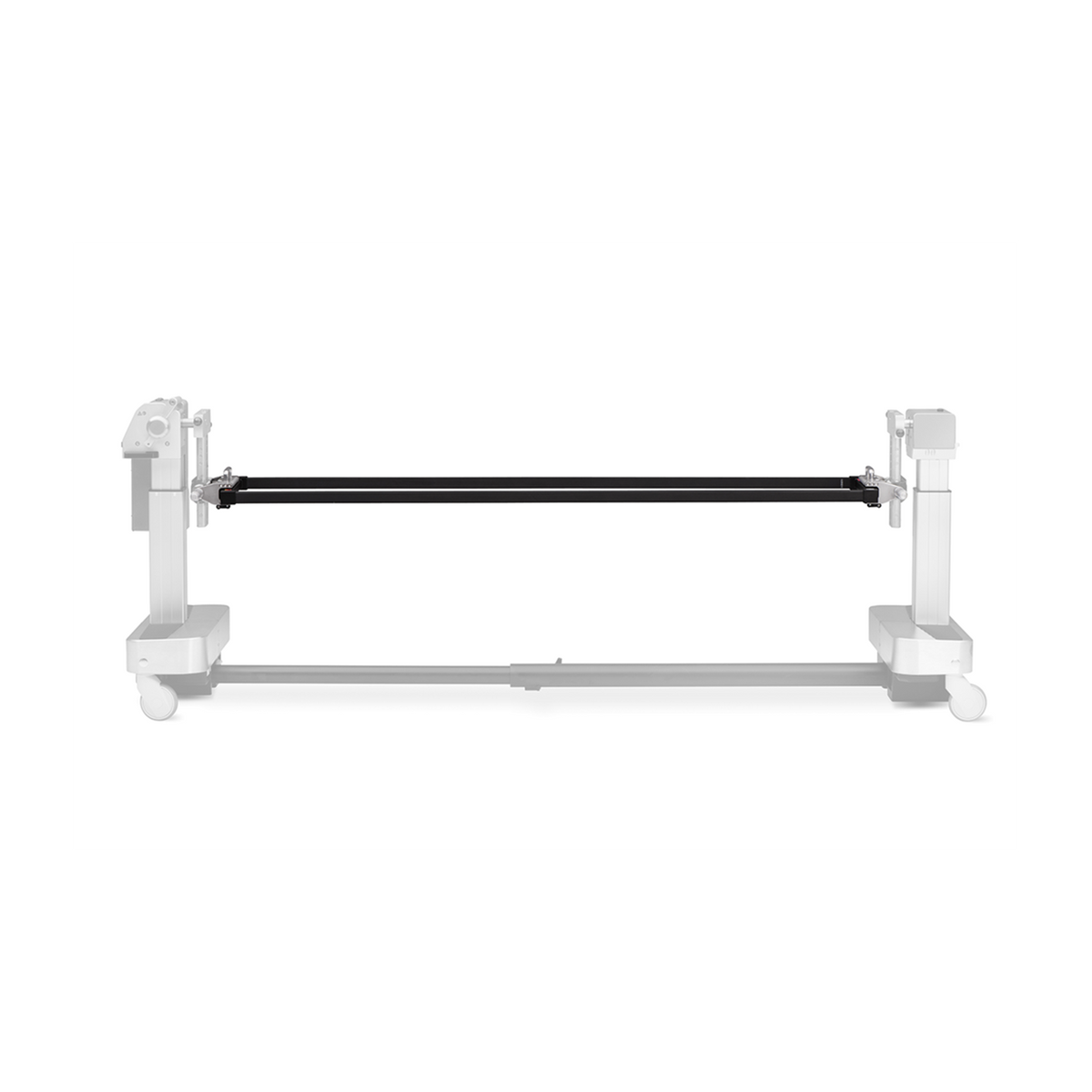

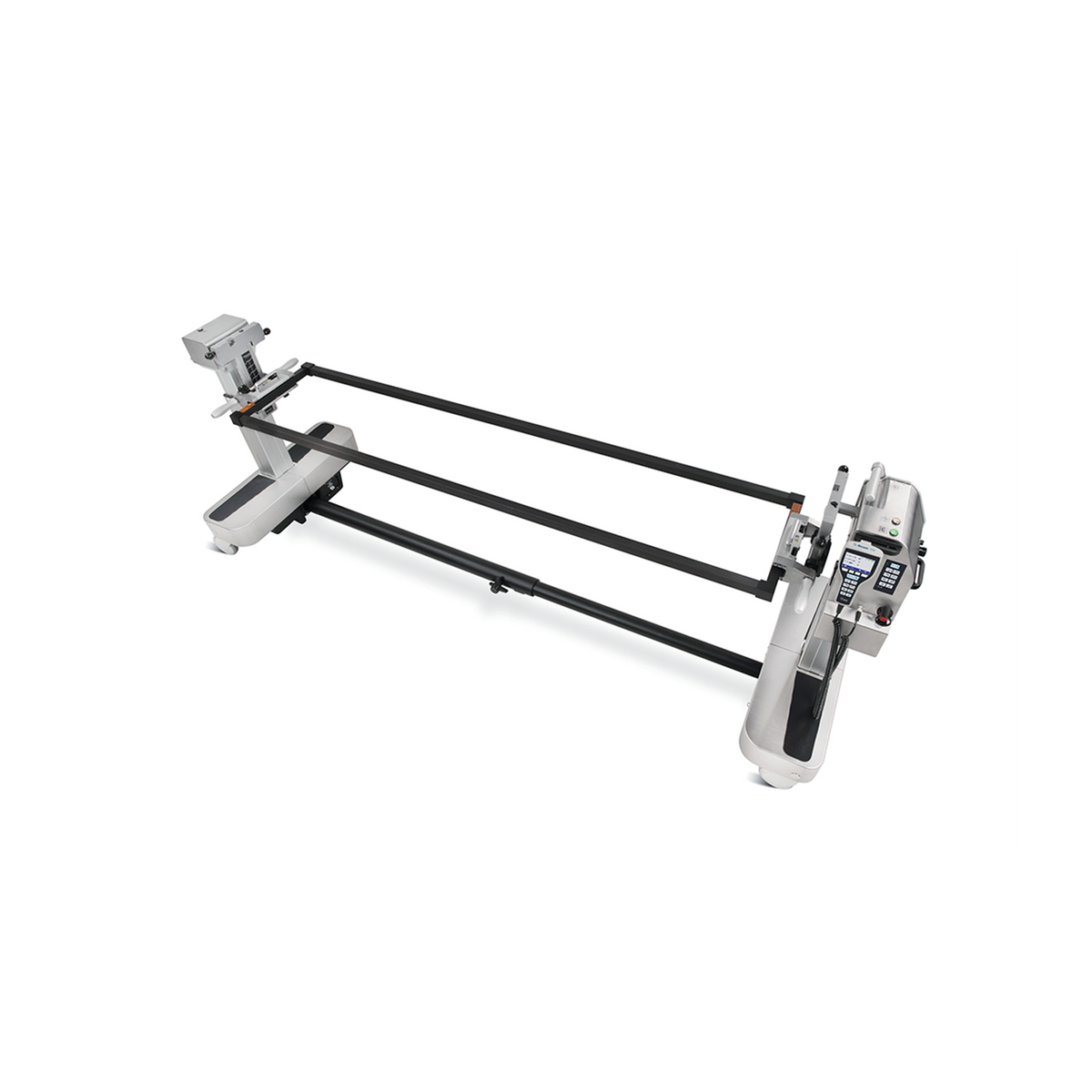

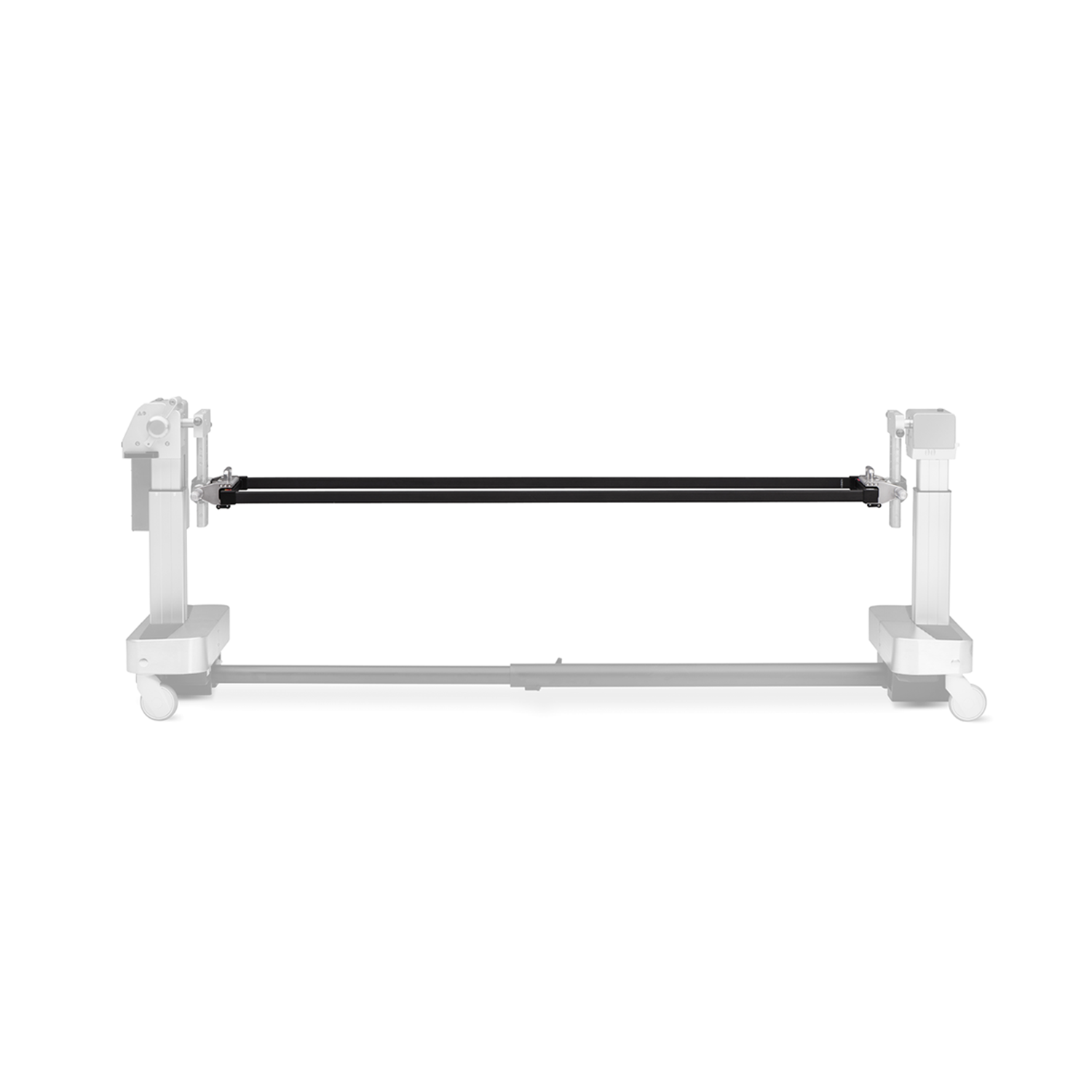

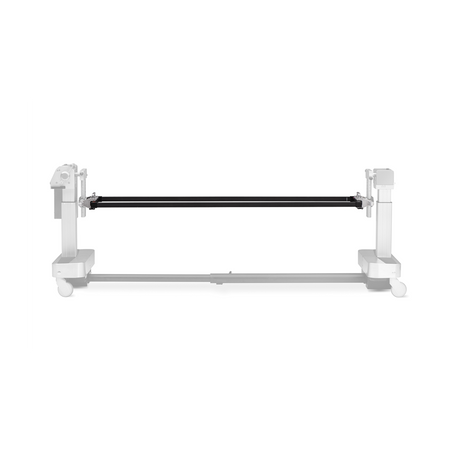

  • Trios Table Base - Part #7803:
    • Crossbar to floor height 33–50.7” (83.8–128.8cm)
    • Trendelenburg/Reverse Trendelenburg 10º
    • Lateral tilt (roll) 25º
    • Base width 32” (81cm)
    • Base length 110” (279cm)
    • Retracted base length 68” (173cm)

  • Trios Spinal Surgery Top - Part #7943:
    • Table top length 84” (213cm)
    • Table top width 17” (43cm)
    • Patient weight capacity 650lbs (295kg)

  • Trios Radiolucent Imaging Top - Part #7927:
    • Table top length 84” (213cm)
    • Table top width 21.5” (55cm)
    • Patient weight capacity 650lbs (295kg)

  • Trios Orthopedic Trauma Top - Part #7855:
    • Table top length 84” (213cm)
    • Table top width 21.5” (55cm)
    • Patient weight capacity 500lbs (227kg)

STANDARD COMPONENTS:

  • Spinal Surgery Top:
    • Towers (2)
    • Spine Frame

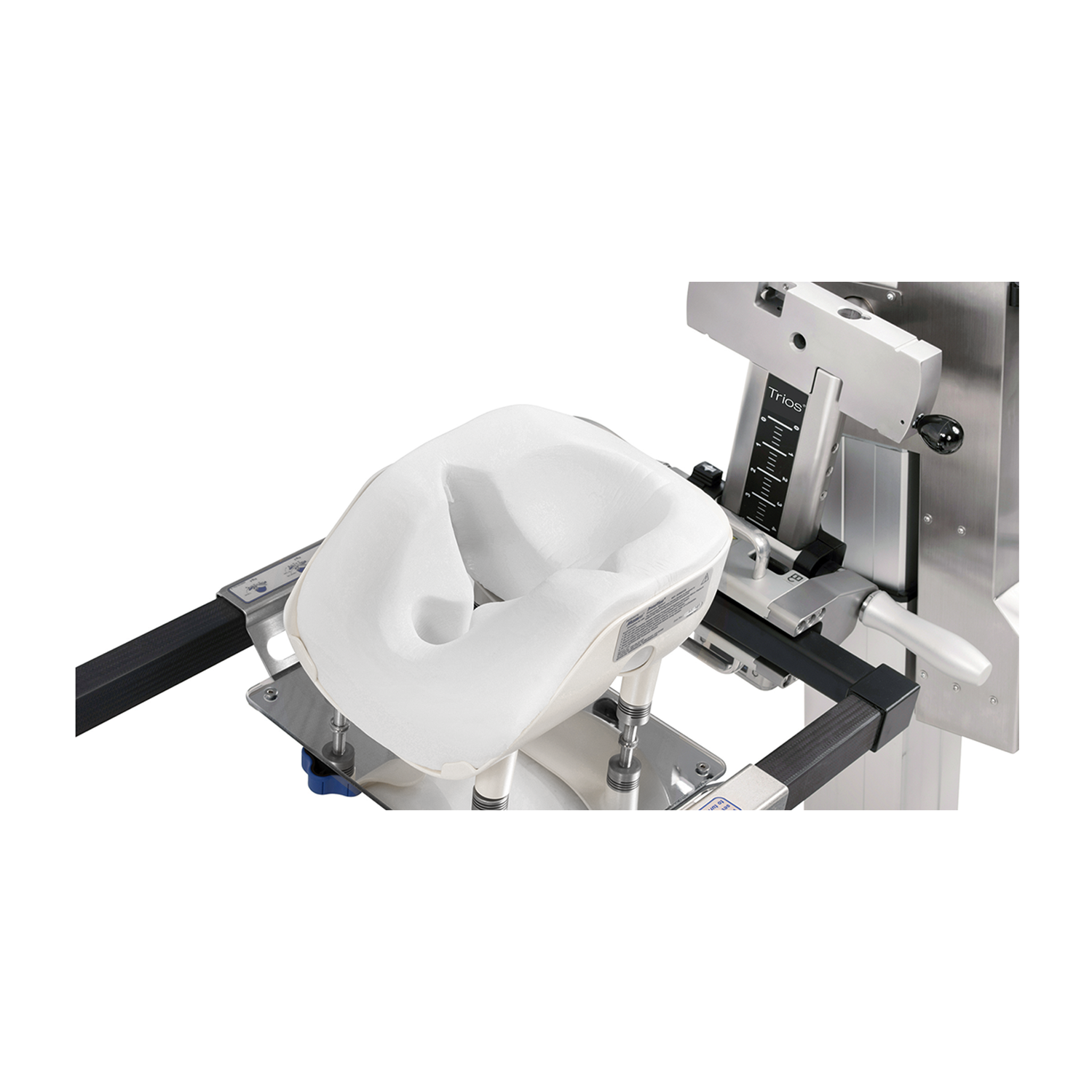

    • ProneView® Helmet and Mirror Platform
    • Face Plate
    • Tempur-Pedic® Chest Pad
    • Chest Plate
    • Leg Board with 1” (2.5cm) Tempur-Pedic Pad (2)
    • Adjustable Leg Sling
    • Buttocks Strap
    • Safety Strap 60” (152cm)
    • Safety Strap 90” (229cm) (4)
    • Cervical Traction Vector
    • Table Top Cover
    • * Arm Boards sold separately. Quantity two (2) required.
    • * Hip/Thigh Pad Sets sold separately. Selection of one (1) set required.

  • Radiolucent Imaging Top:
    • Towers (2)
    • Tempur-Pedic Pad 2” (5cm)
    • Radiolucent Imaging Platform
    • Supine Top Safety Strap
    • Safety Strap 60” (152cm)
    • Trios 6” (15cm) Side Rail Adaptor (2)
    • Table Top Cover

  • Orthopedic Trauma Top:
    • Orthopedic Table Top
    • Traction Arc with Cart
    • Patient Transfer Board
    • Traction Unit Upright (2)
    • Traction Extension (3)
    • Traction Unit (2)
    • Traction Boot (pairs) small and large
    • Traction Foot Plate (2)
    • Soft Traction Boot, (pair) small and large
    • 90° Pin and Wire Holder
    • Kirschner Bow Holder
    • G.M.Board, right and left
    • Center Support Board with Pad
    • Perineal Post, child and adult
    • Lateral Ilium and Perineal Post
    • Tibia Counter-Traction Post and Support Upright
    • Well Leg Support and Swing Arm
    • Tibia Well Leg Support
    • Radiolucent Auxiliary Leg Spar
    • Leg Spar Upright
    • Leg Board
    • Lower Leg Support
    • Tibia Traction Upright
    • Accessory Clamp (2)
    • Safety Strap (2)
    • Patient Isolation Drape Hanger Posts and Rods
    • Universal Side Rail Adaptor, 6” (15cm)
    • Table Top Cover
