Mizuho OSI ProAxis Spinal Surgery Table

Out of stock
SKU: EN-MIZUHO-PROAXIS
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

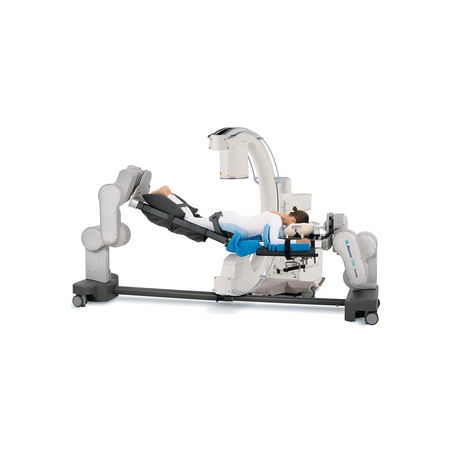

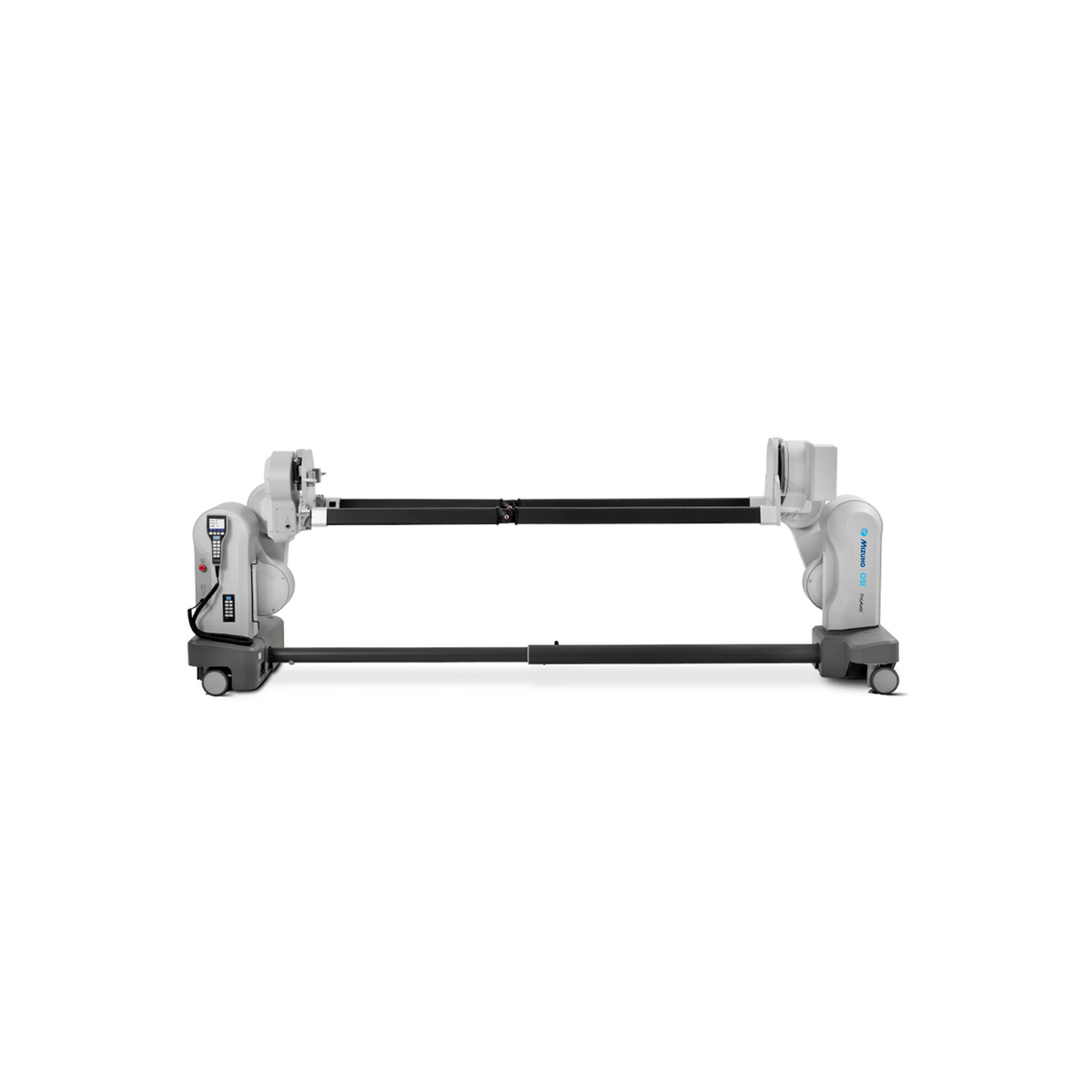

Introducing a groundbreaking approach to spine positioning, the ProAxis was unveiled in 2013 as our pinnacle surgical table for spine procedures, featuring an innovative radiolucent hinge design that facilitates precise intraoperative spinal adjustments.

Tailored for both straightforward and intricate spine cases, the ProAxis stands out as the sole table in the market enabling surgeons to flex and extend the lumbar spine during surgery. This capability not only enhances visibility and accessibility for the surgeon but also contributes to achieving the desired spinal alignment crucial for restoring sagittal balance.

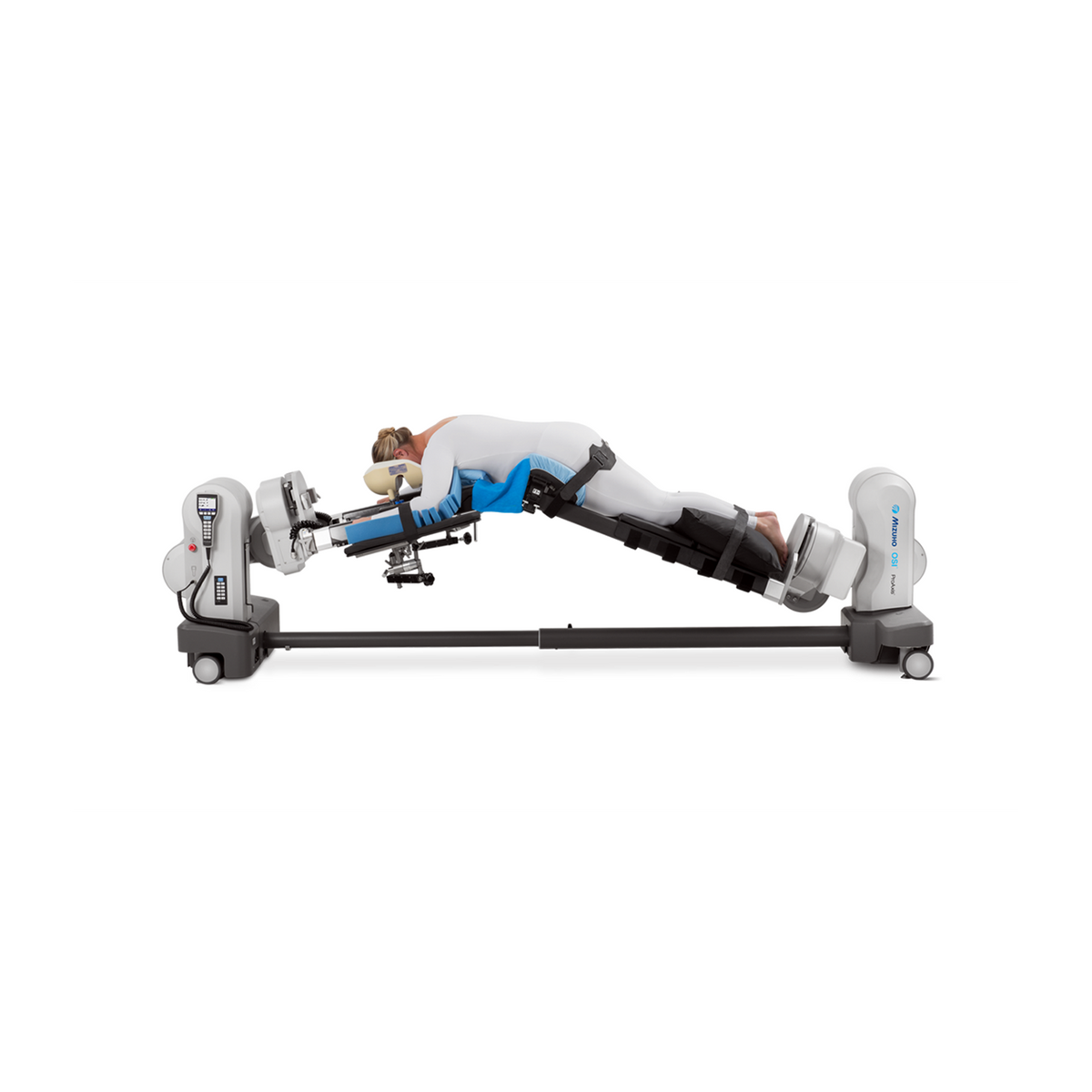

With its dynamic positioning features, the ProAxis allows for pelvic rotation of the patient while ensuring coordinated translation of the torso when flexing and extending the spine. The table's ability to maintain a consistent height at the surgical site during hinge articulation streamlines workflow and ensures continuous visualization. Operating functions and positioning adjustments are effortlessly managed through an intelligent hand pendant, the IntelliPendant®, empowering the surgical team to oversee and regulate the table's precise movements and functions.

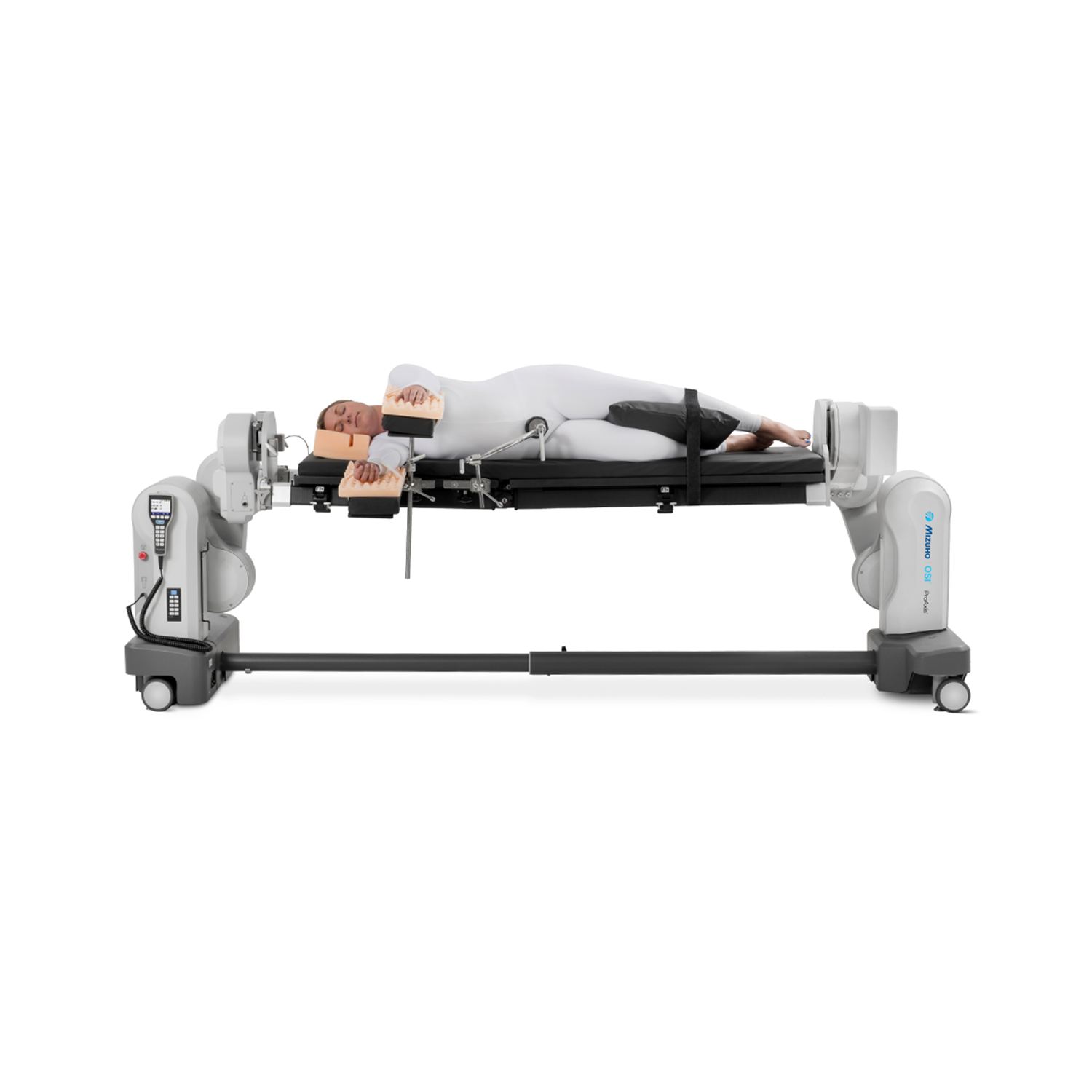

This dynamic and radiolucent table seamlessly transitions from an open frame to a radiolucent imaging top, accommodating a diverse range of spinal surgeries necessitating prone, supine, and lateral positioning with ease.

FEATURES:

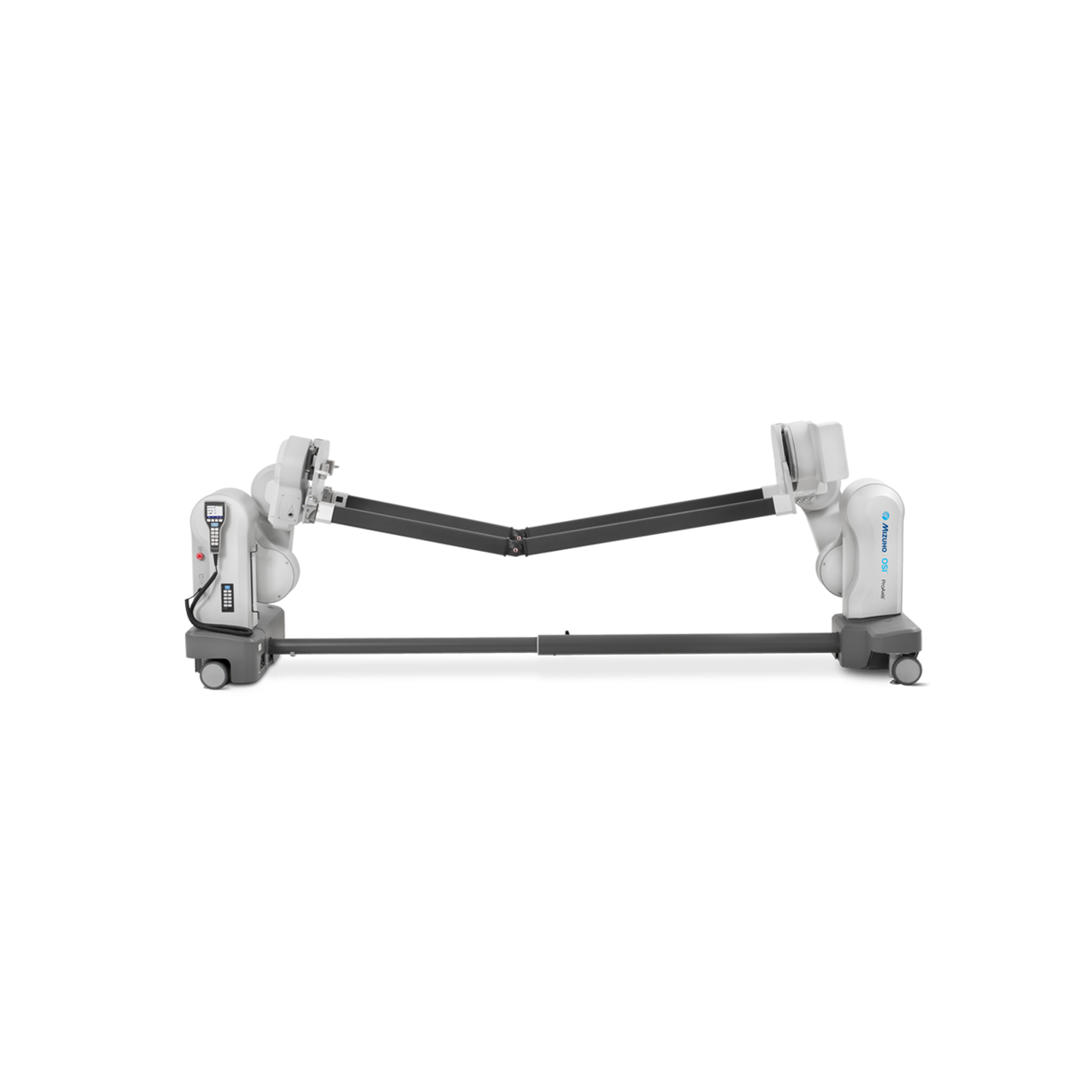

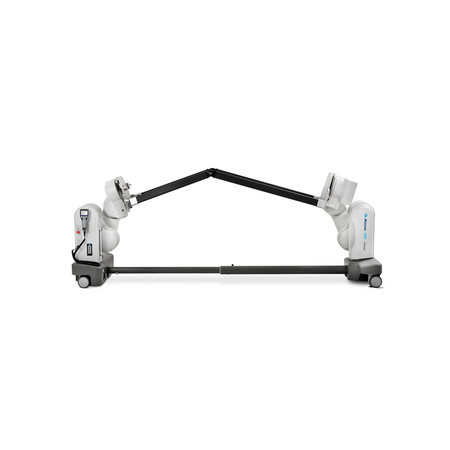

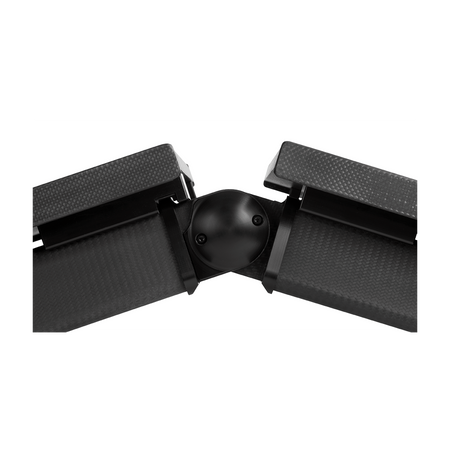

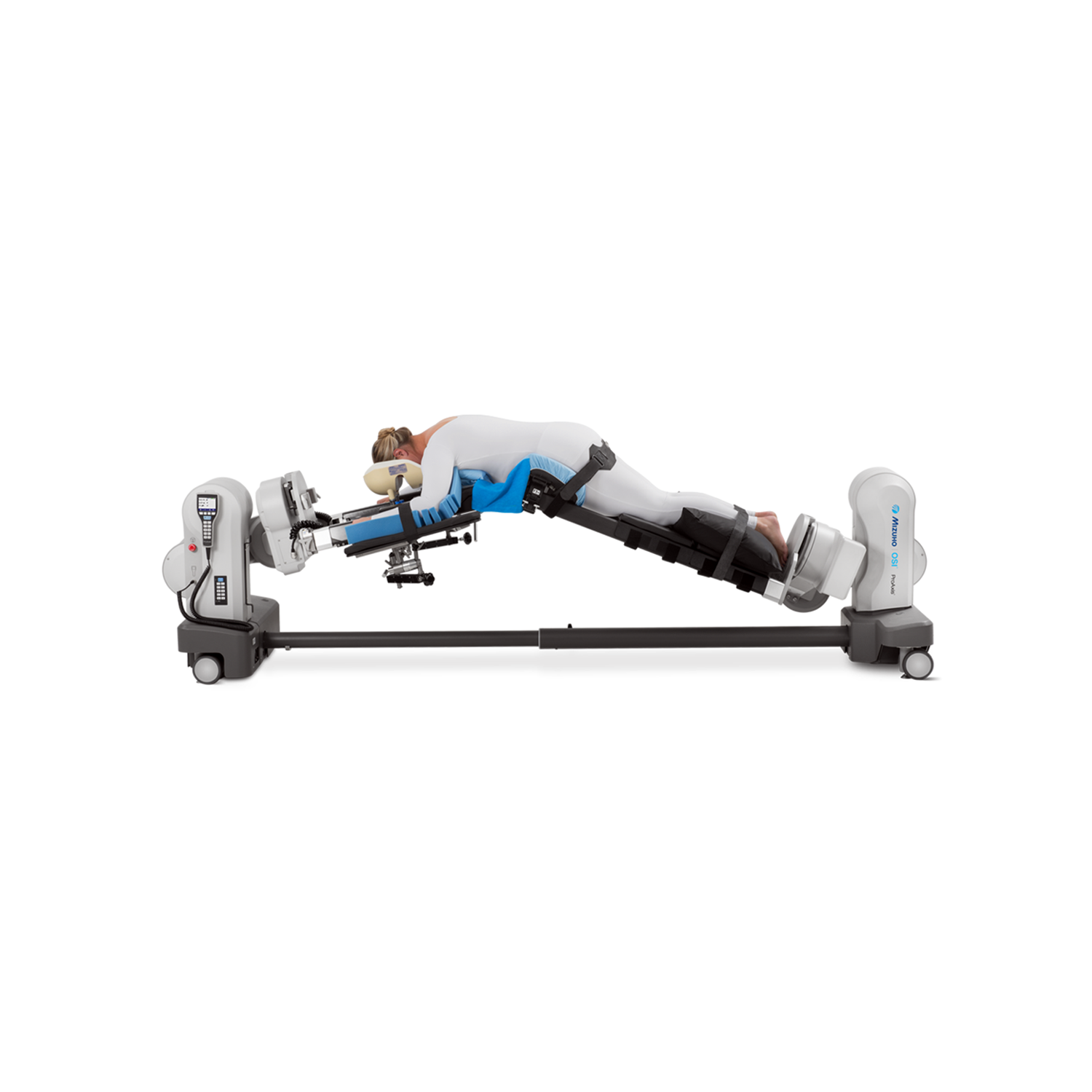

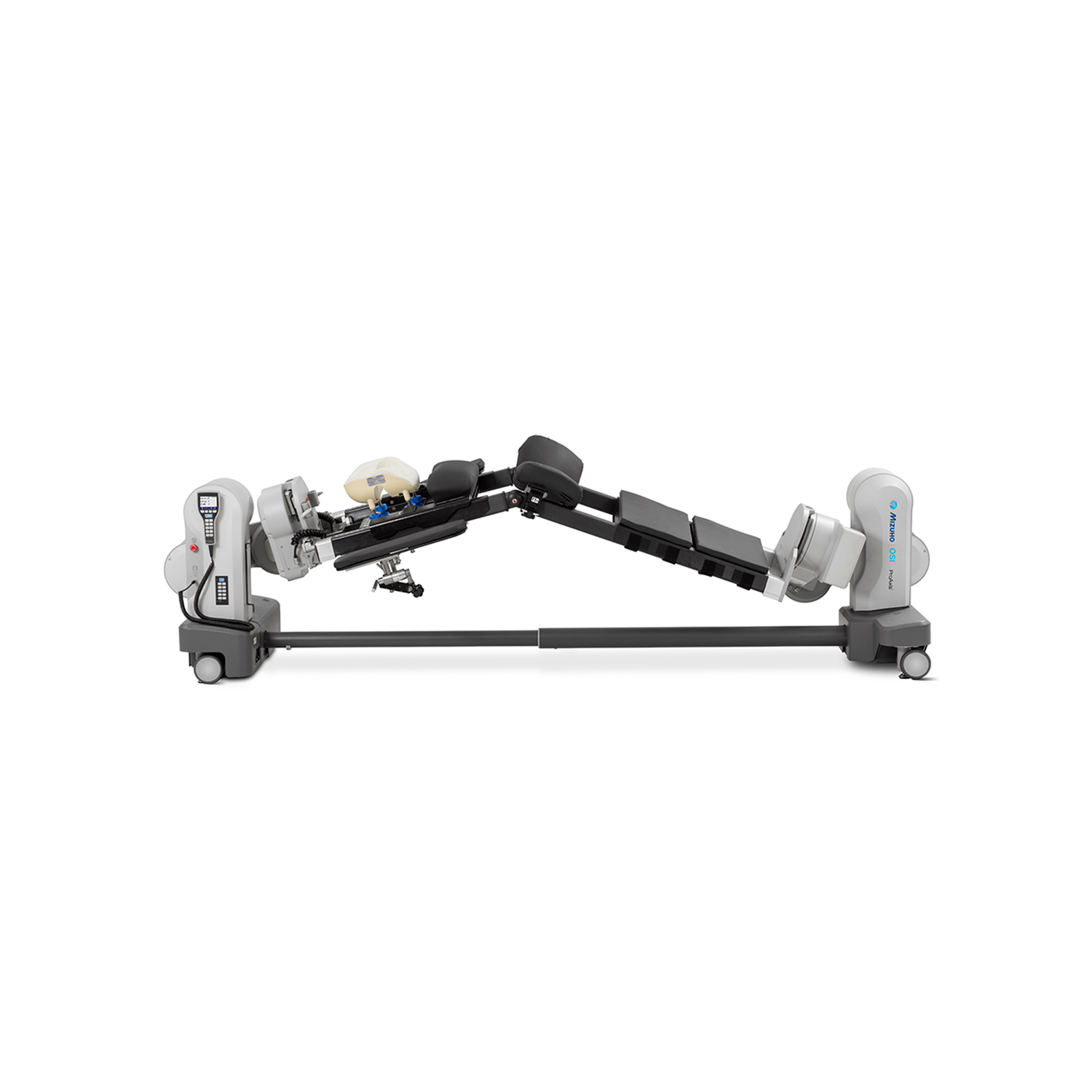

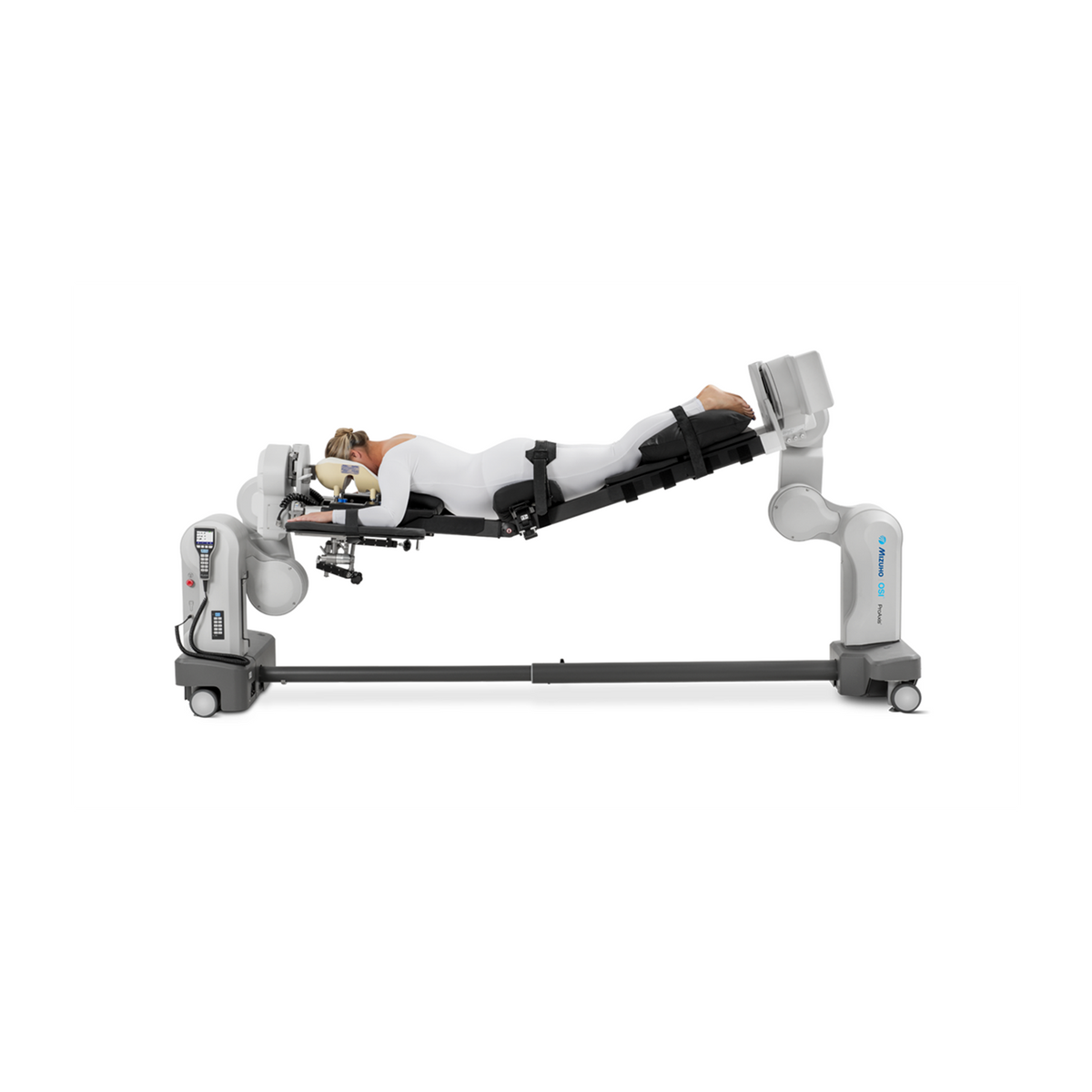

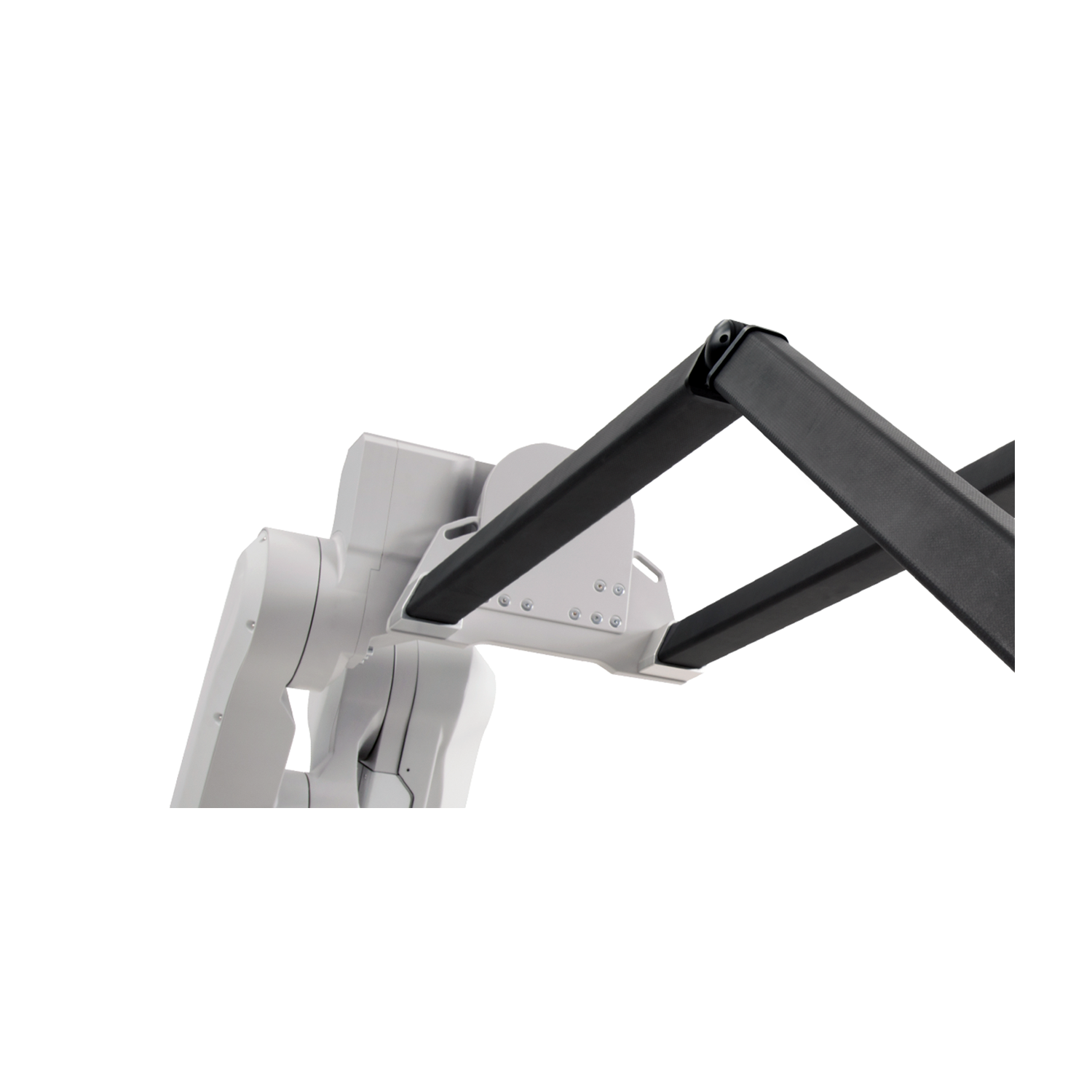

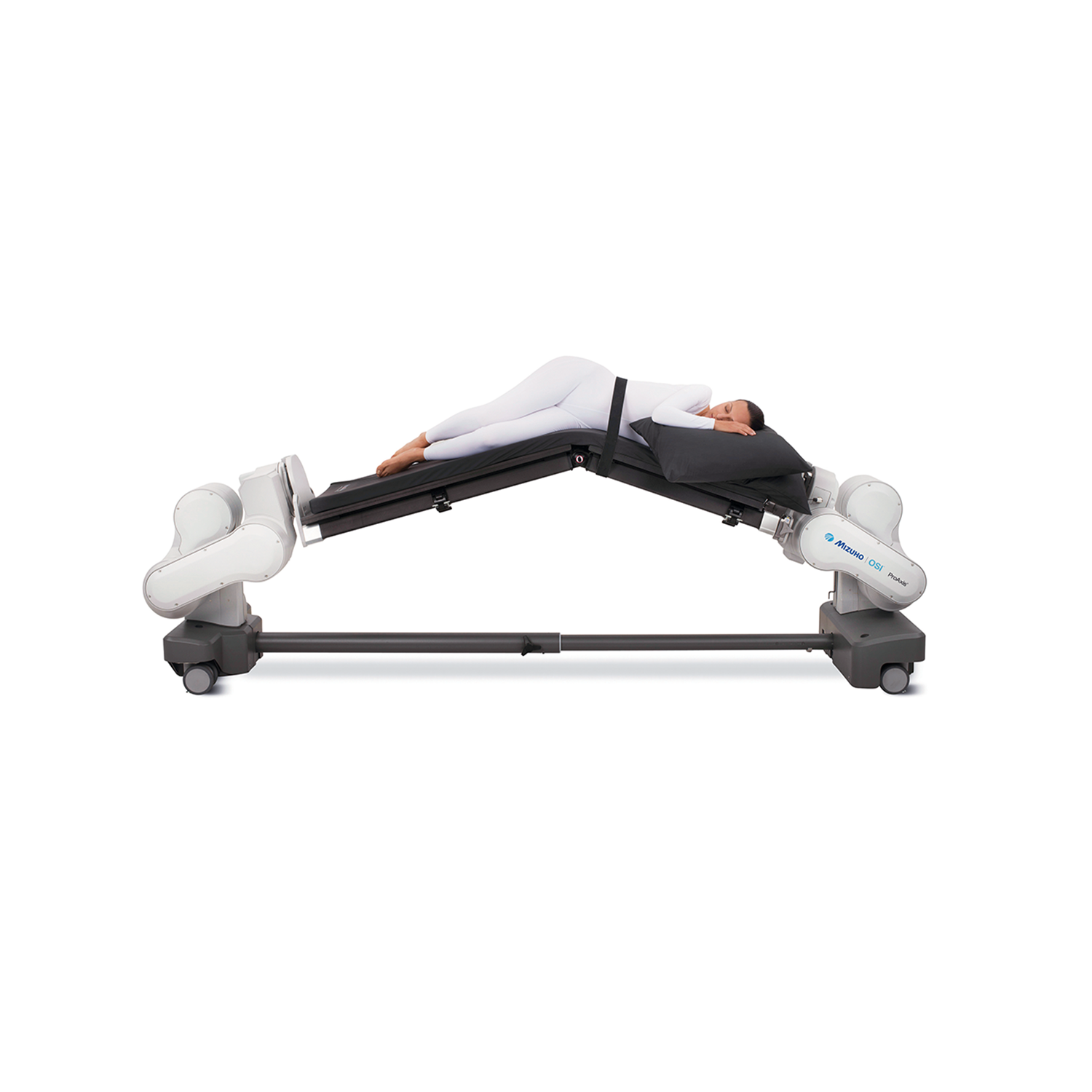

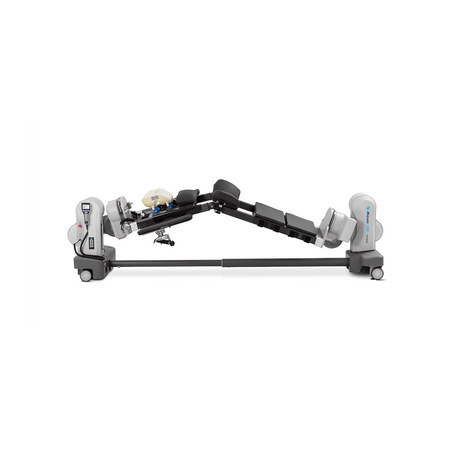

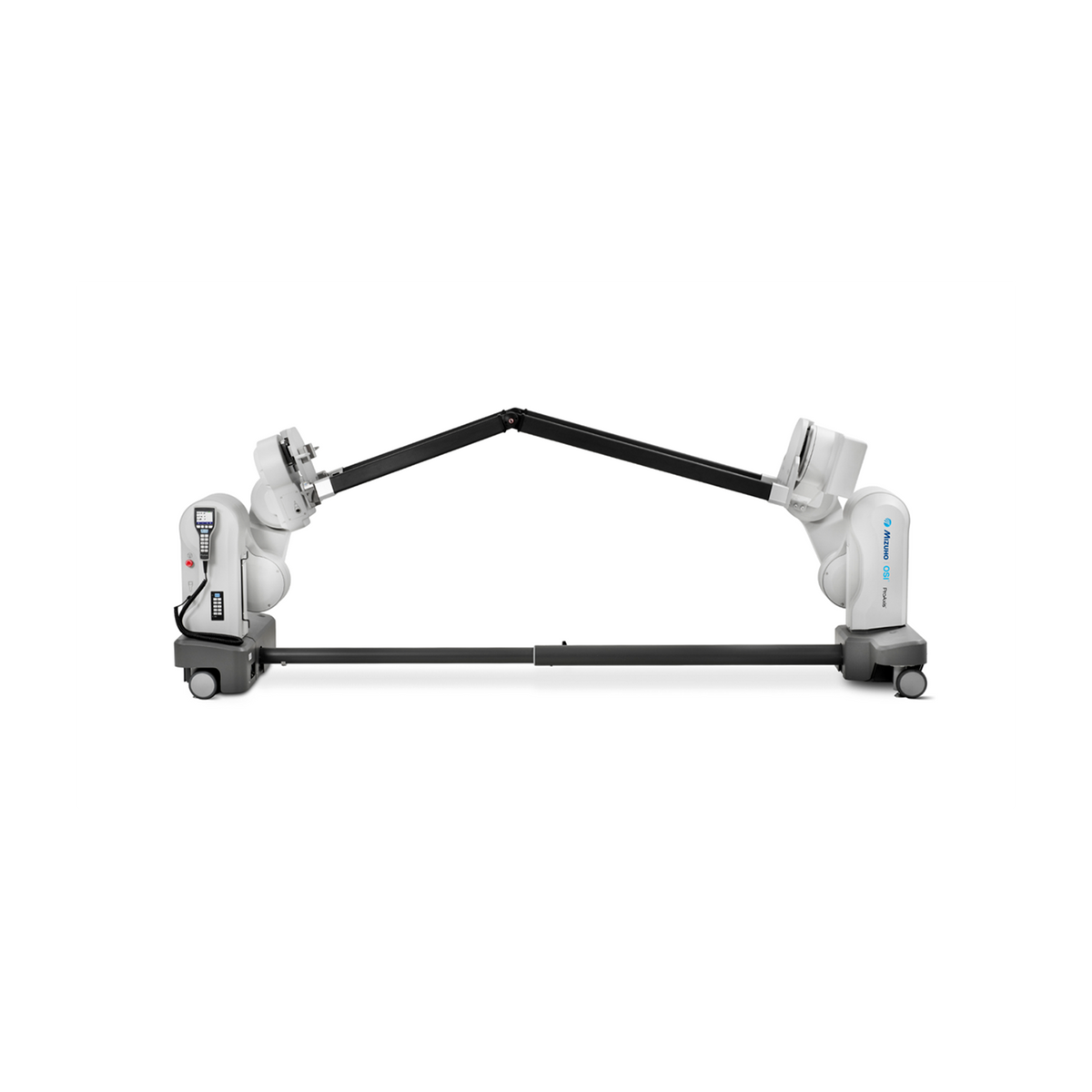

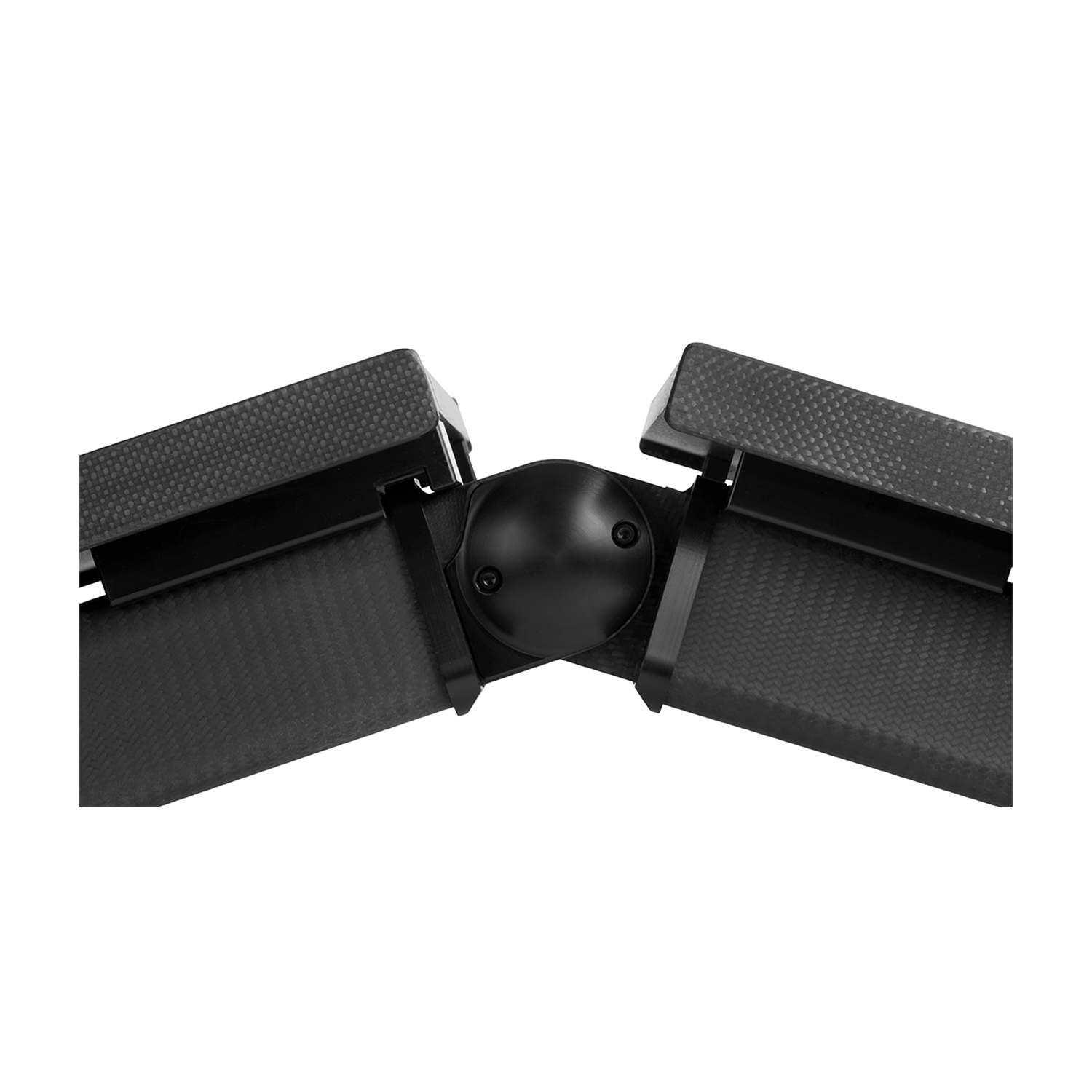

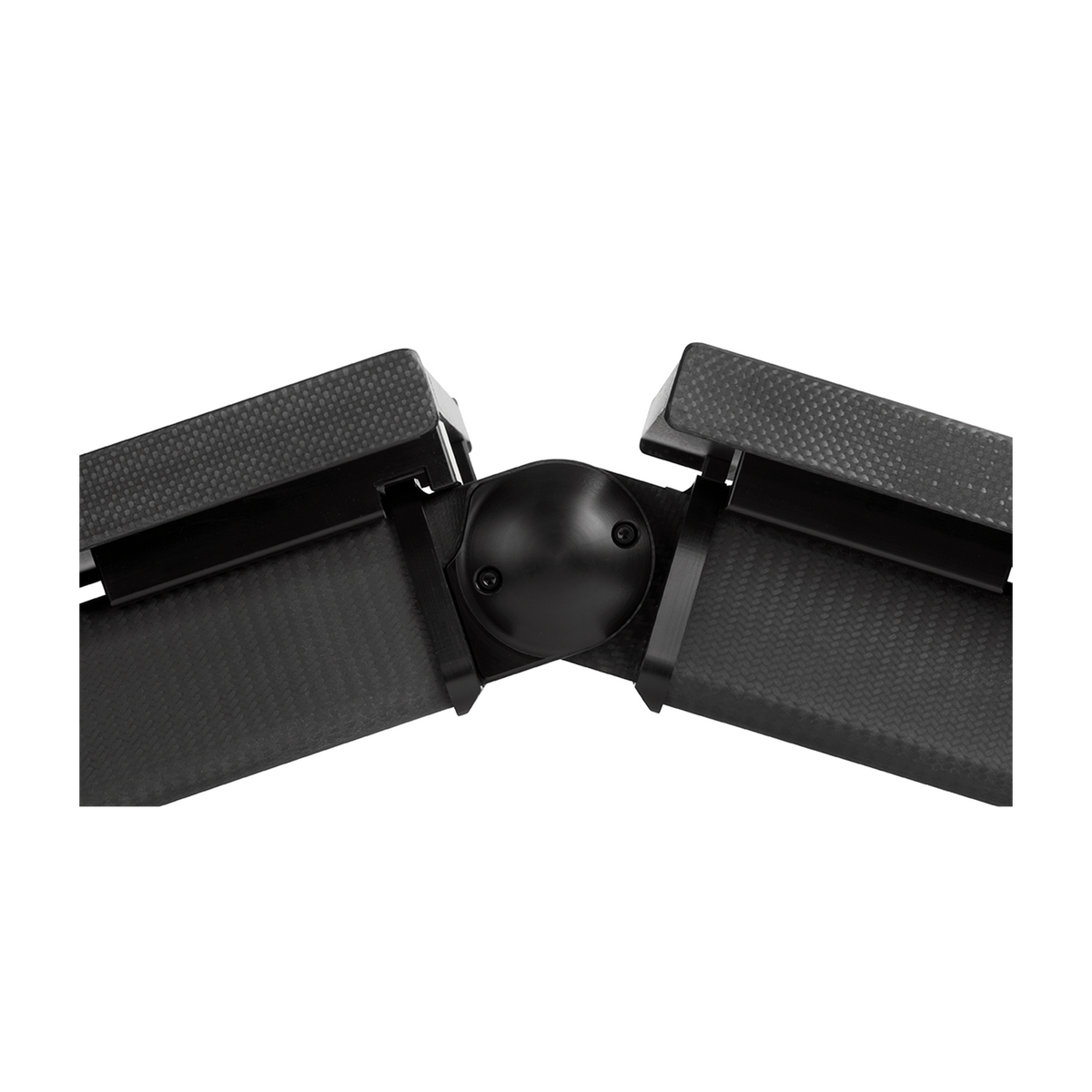

  • Radiolucent hinge technology allows for flexion and extension of the lumbar spine with direct visualization of intraoperative changes in spinal alignment
  • Total spine access: cervical, thoracic and lumbar

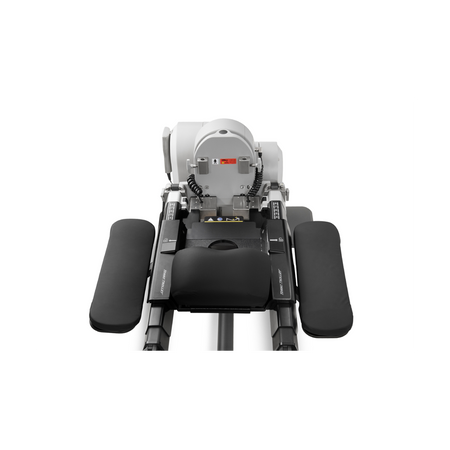

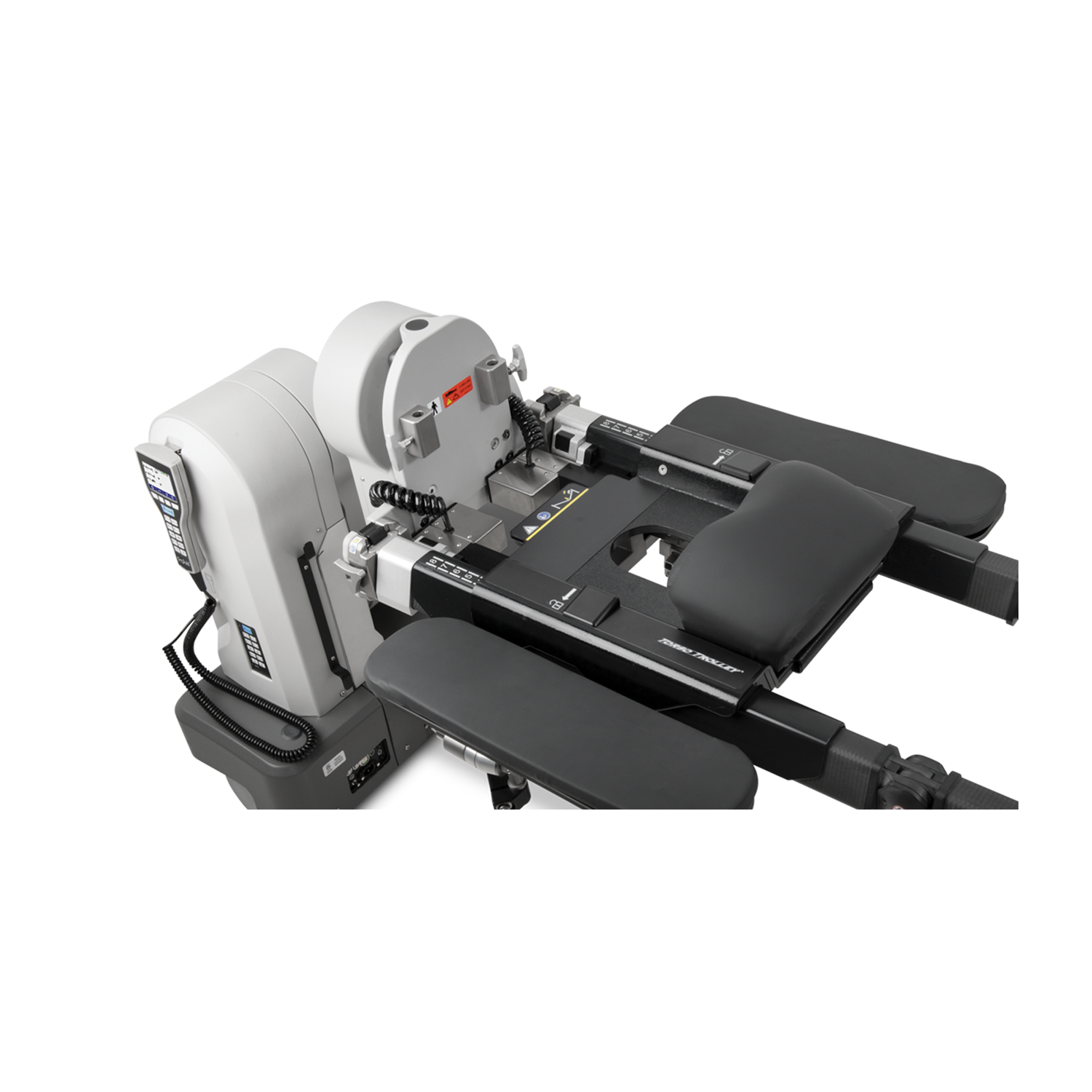

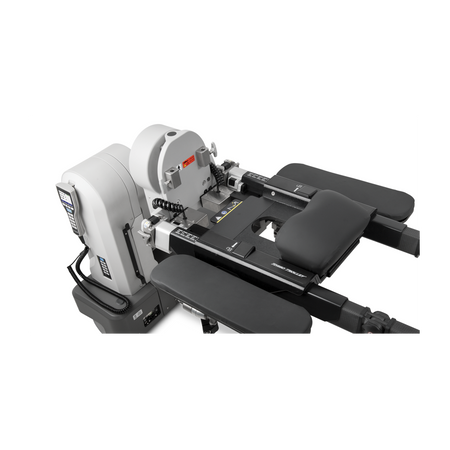

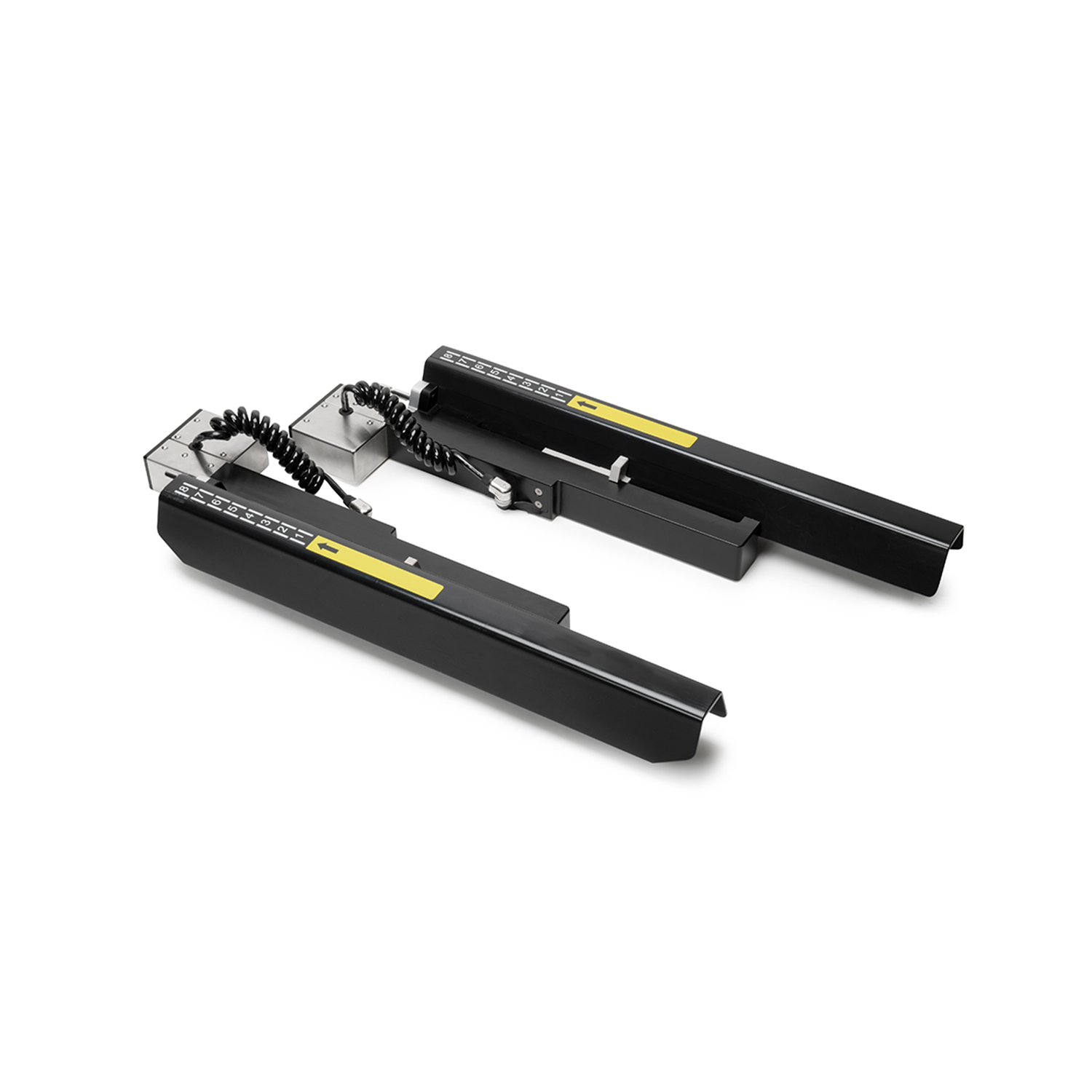

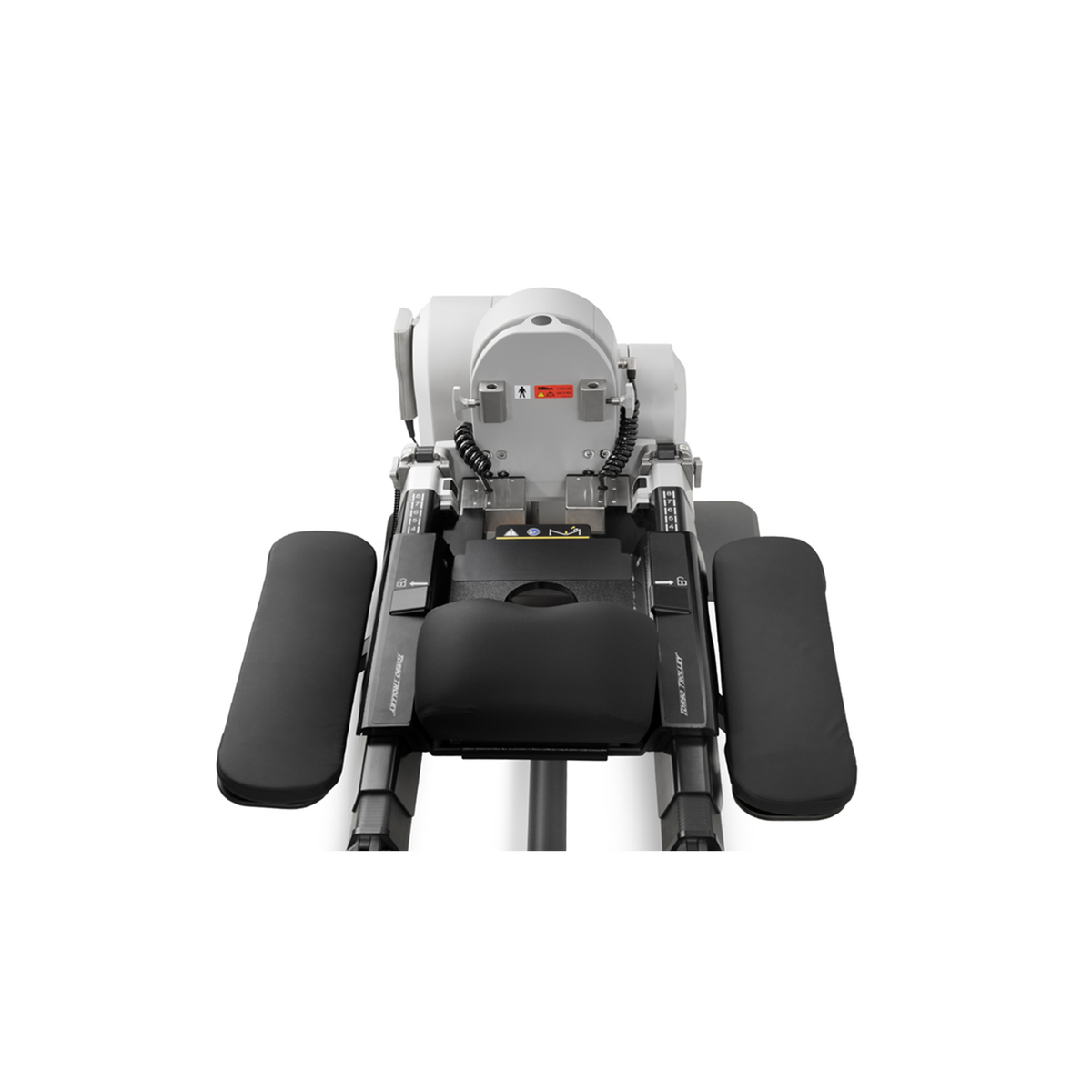

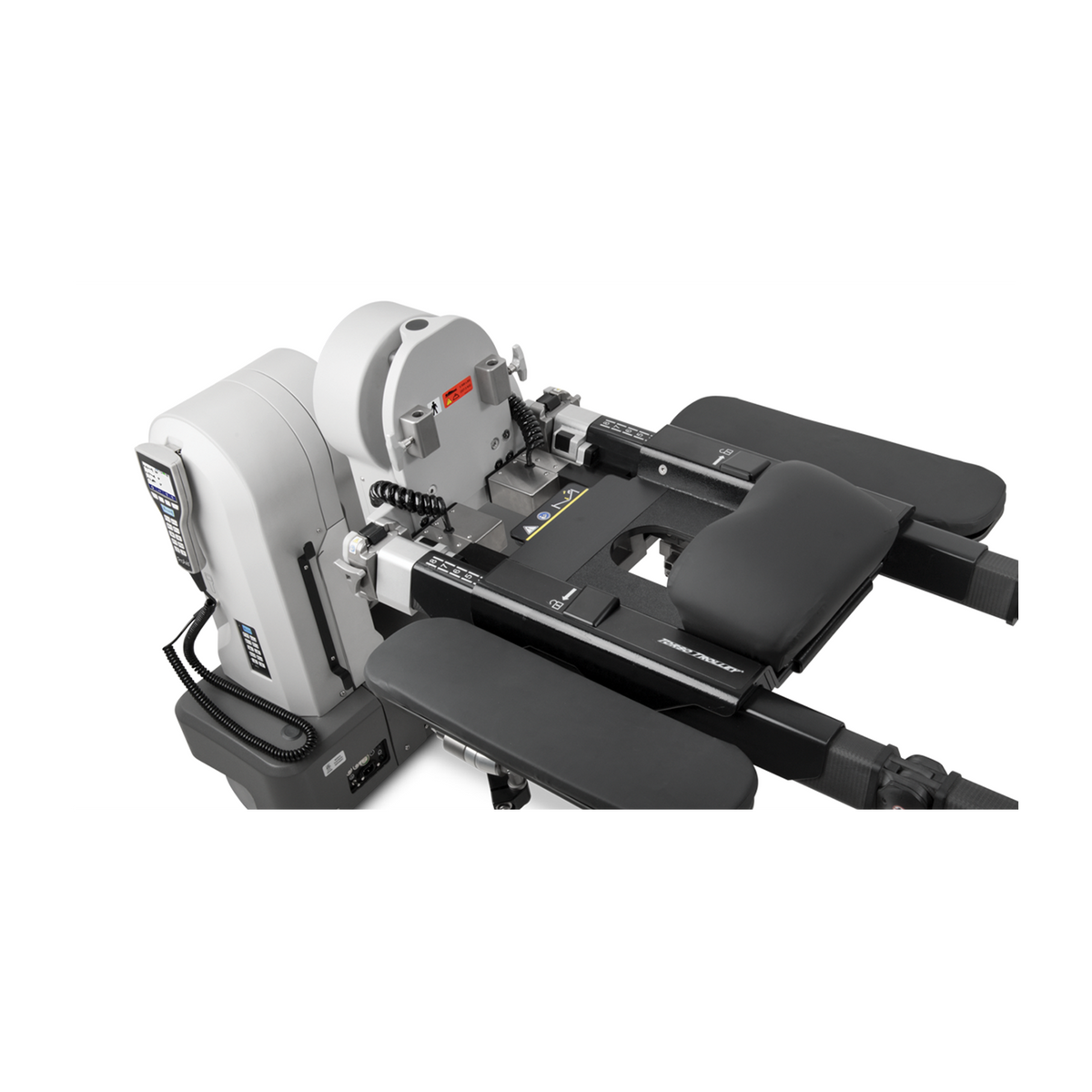

  • Torso Trolley® integrates patient movement with hinge movement maintaining neutral upper body position with coordinated patient translation

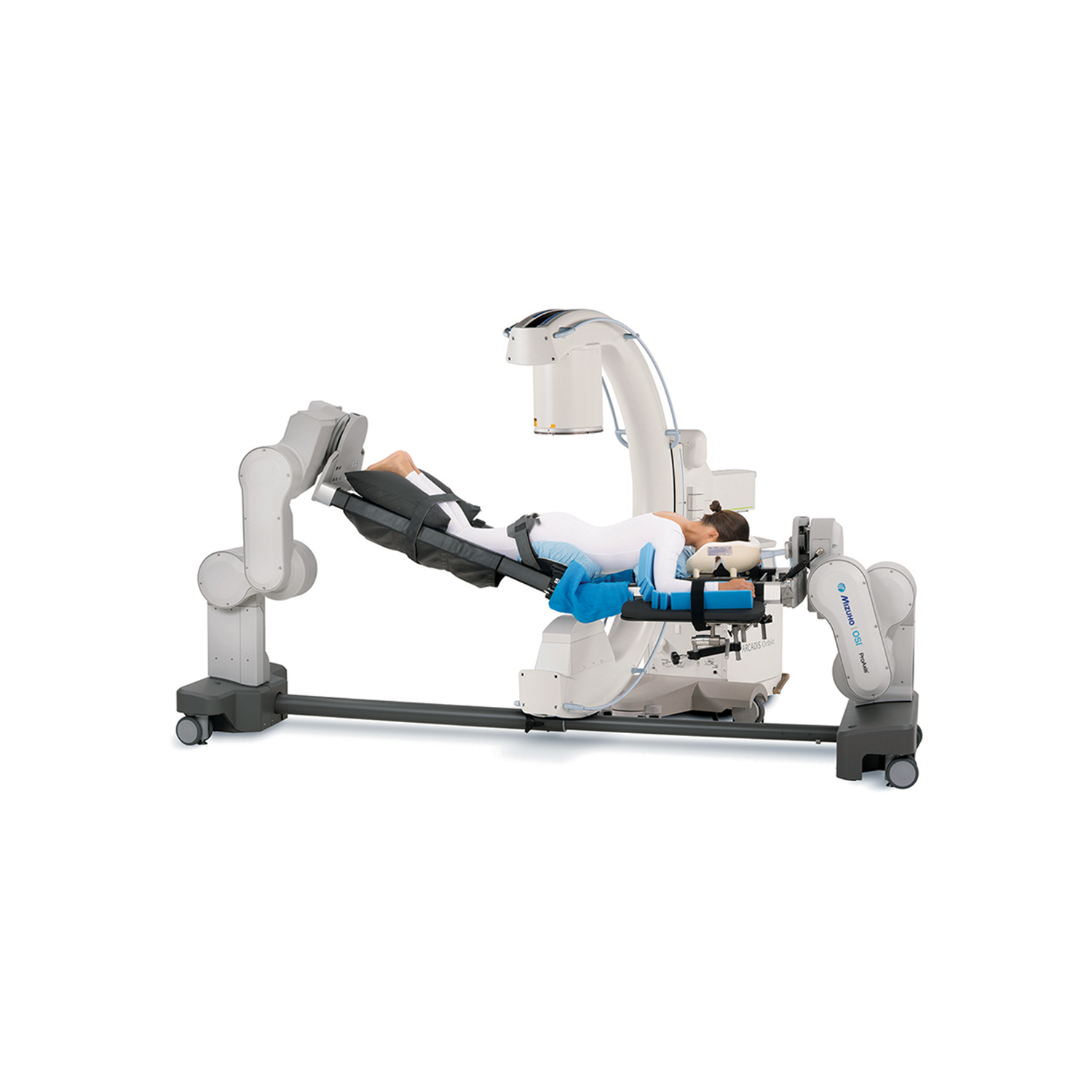

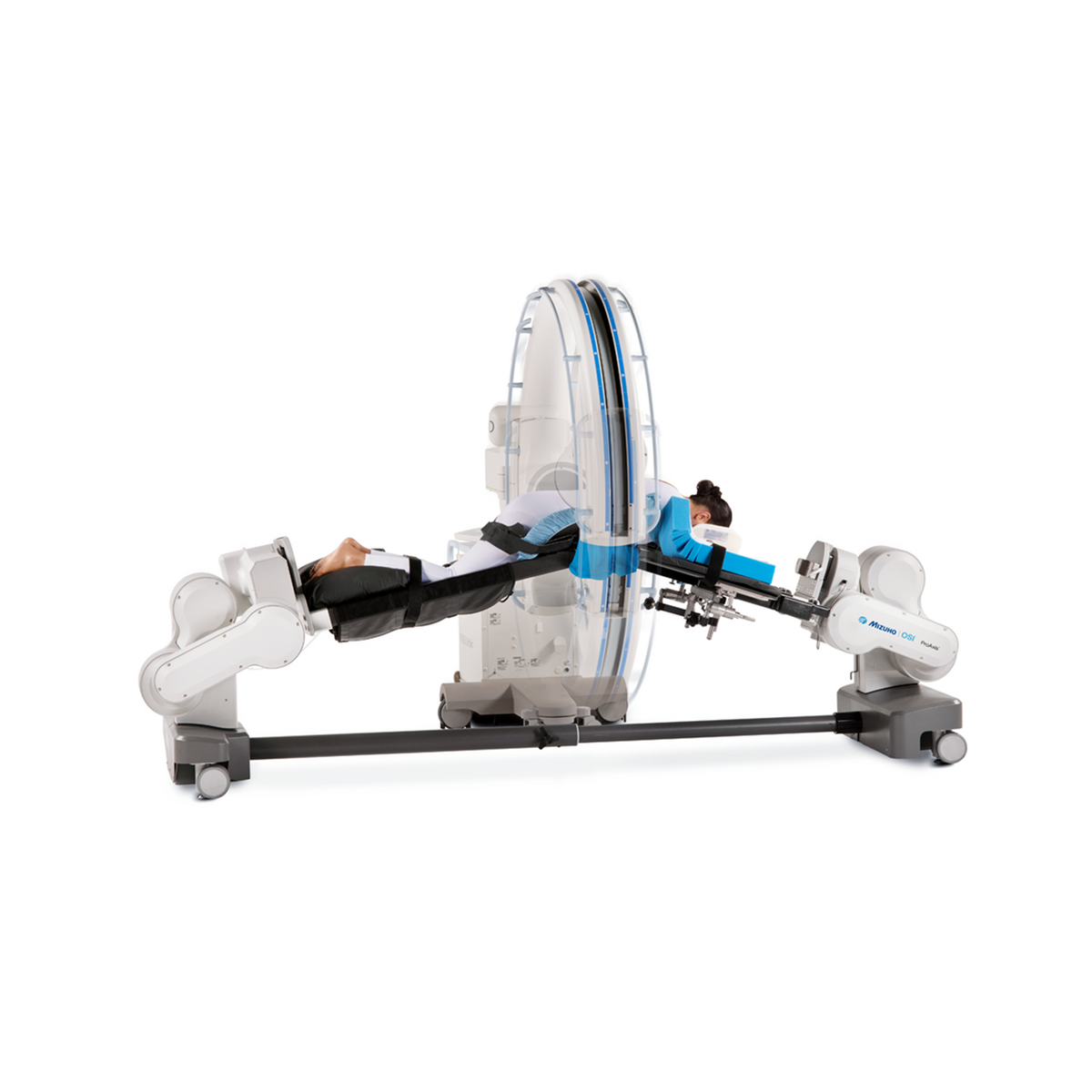

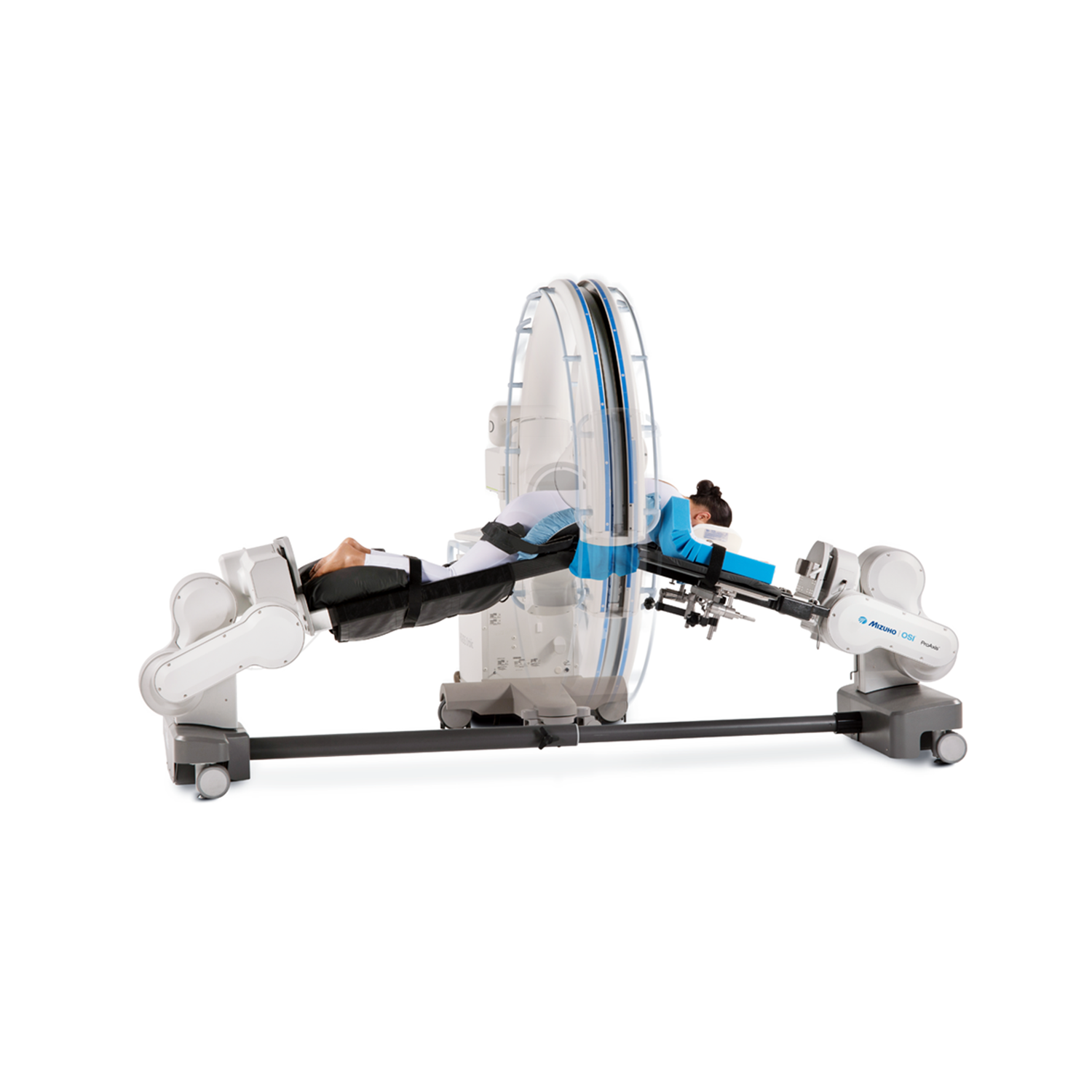

  • Unrestricted O-arm® and C-arm access with open frame or removable two piece supine top setups

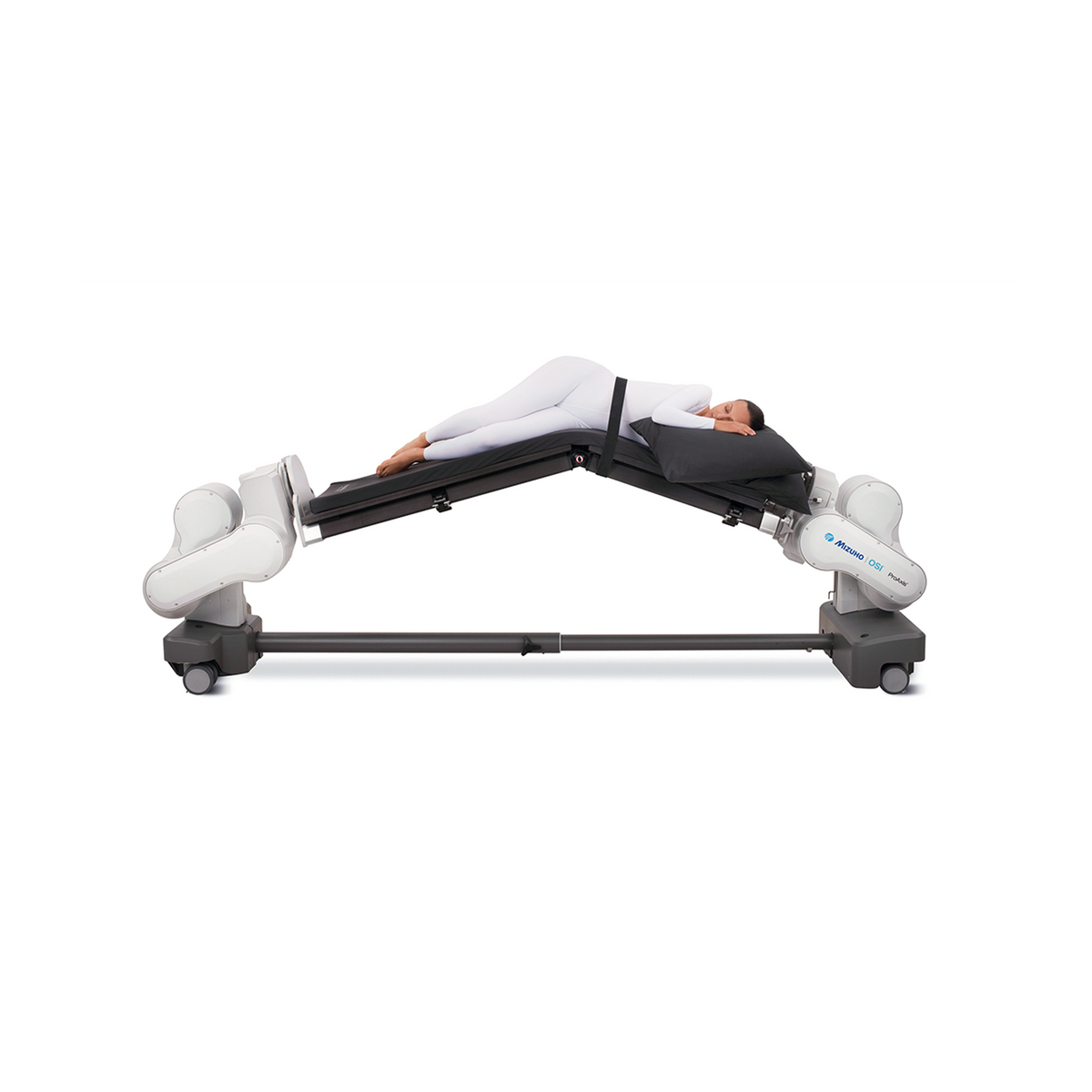

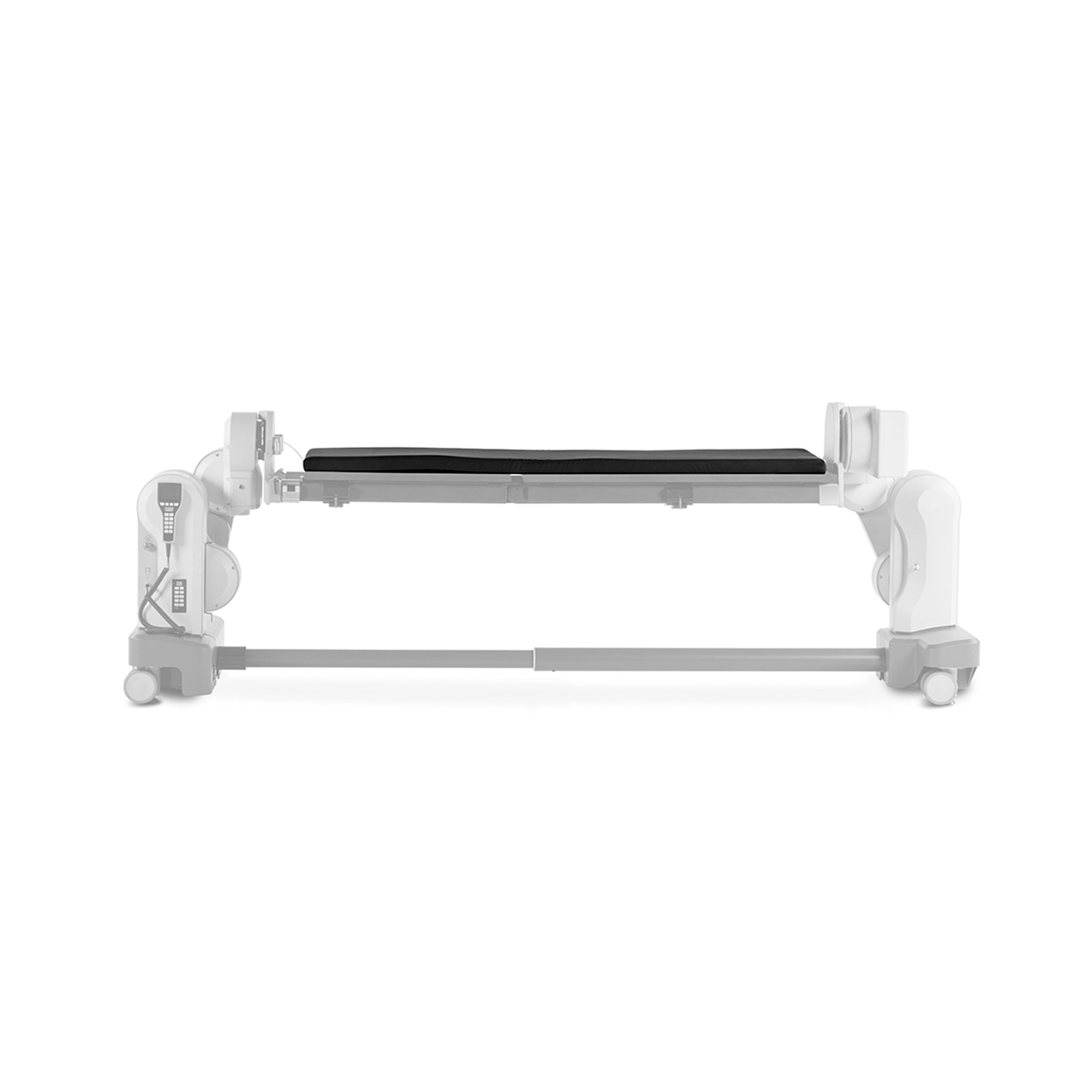

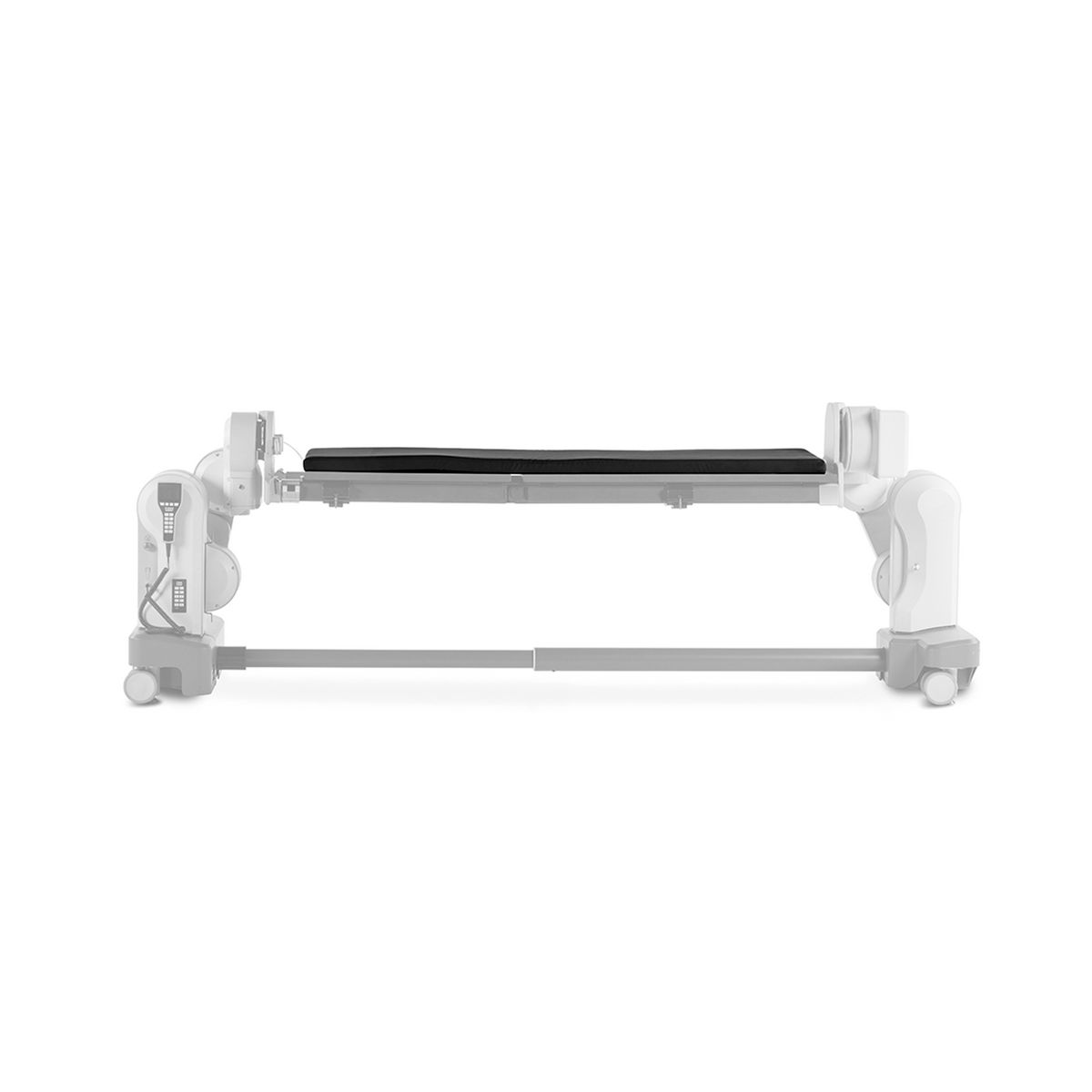

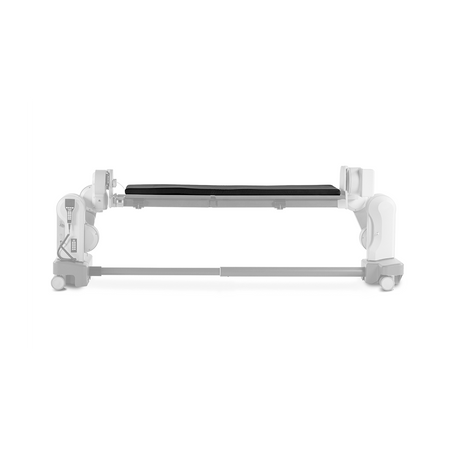

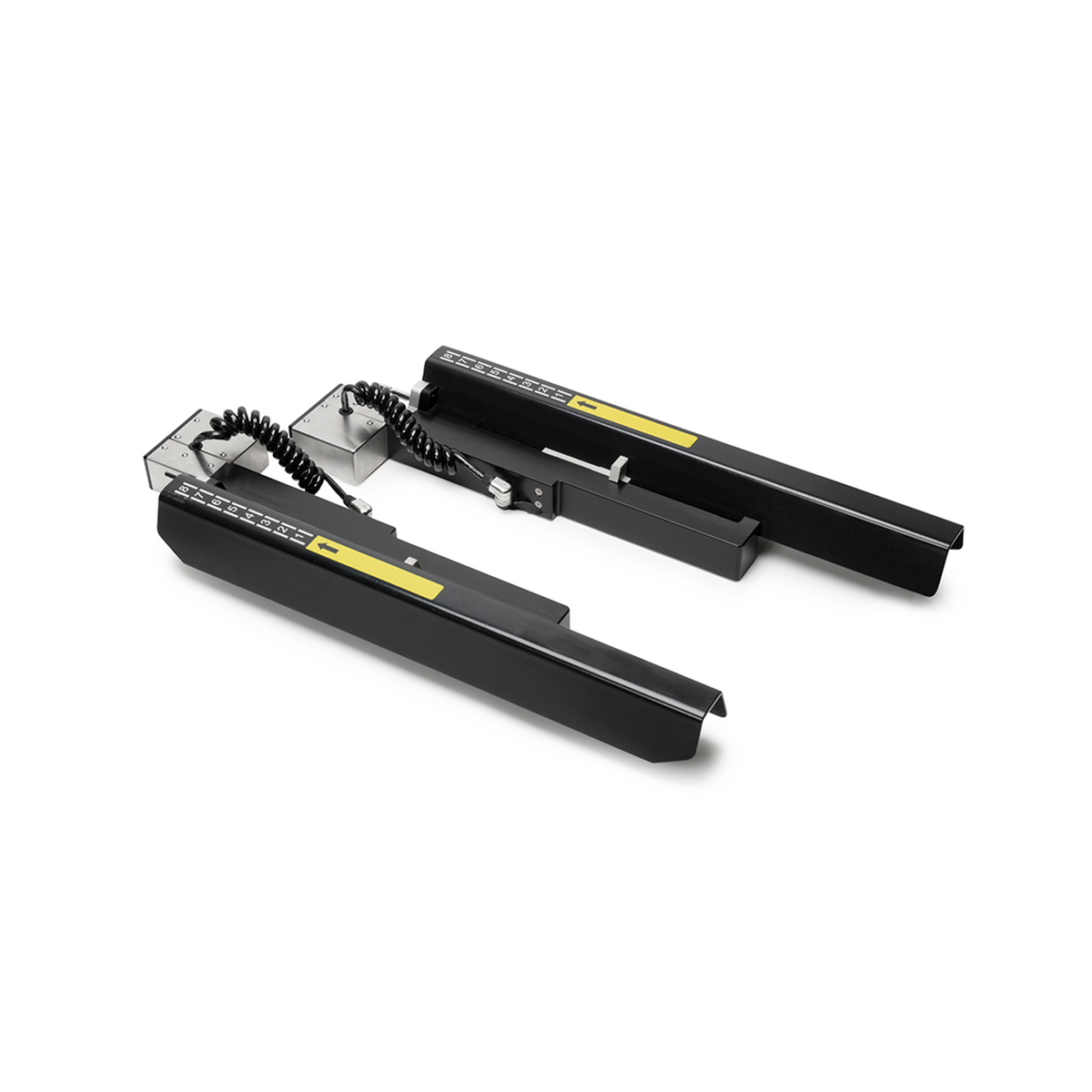

  • Removable two-piece carbon fiber supine tops with pad and built-in translation slide convert open frame to a platform for supine and lateral positioning

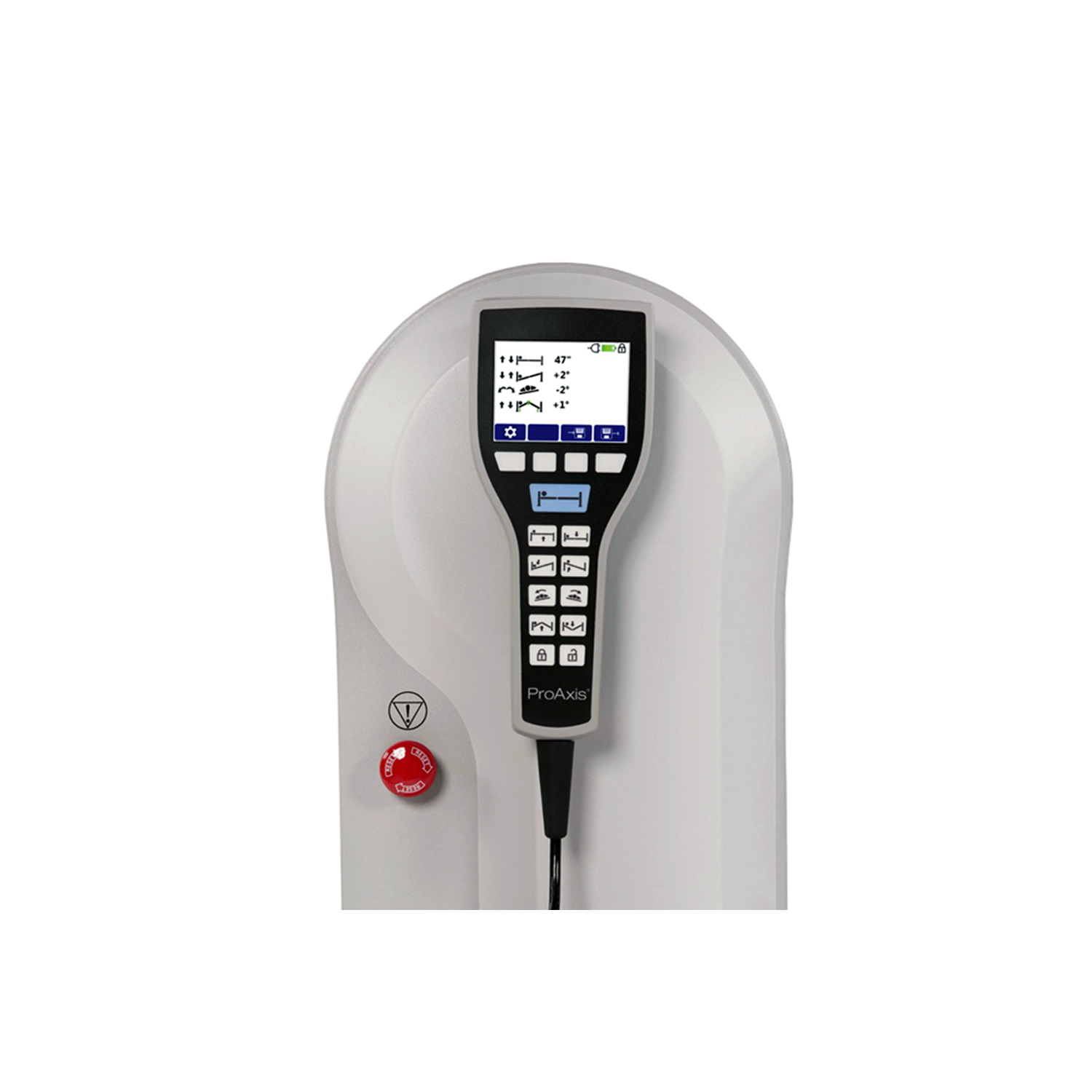

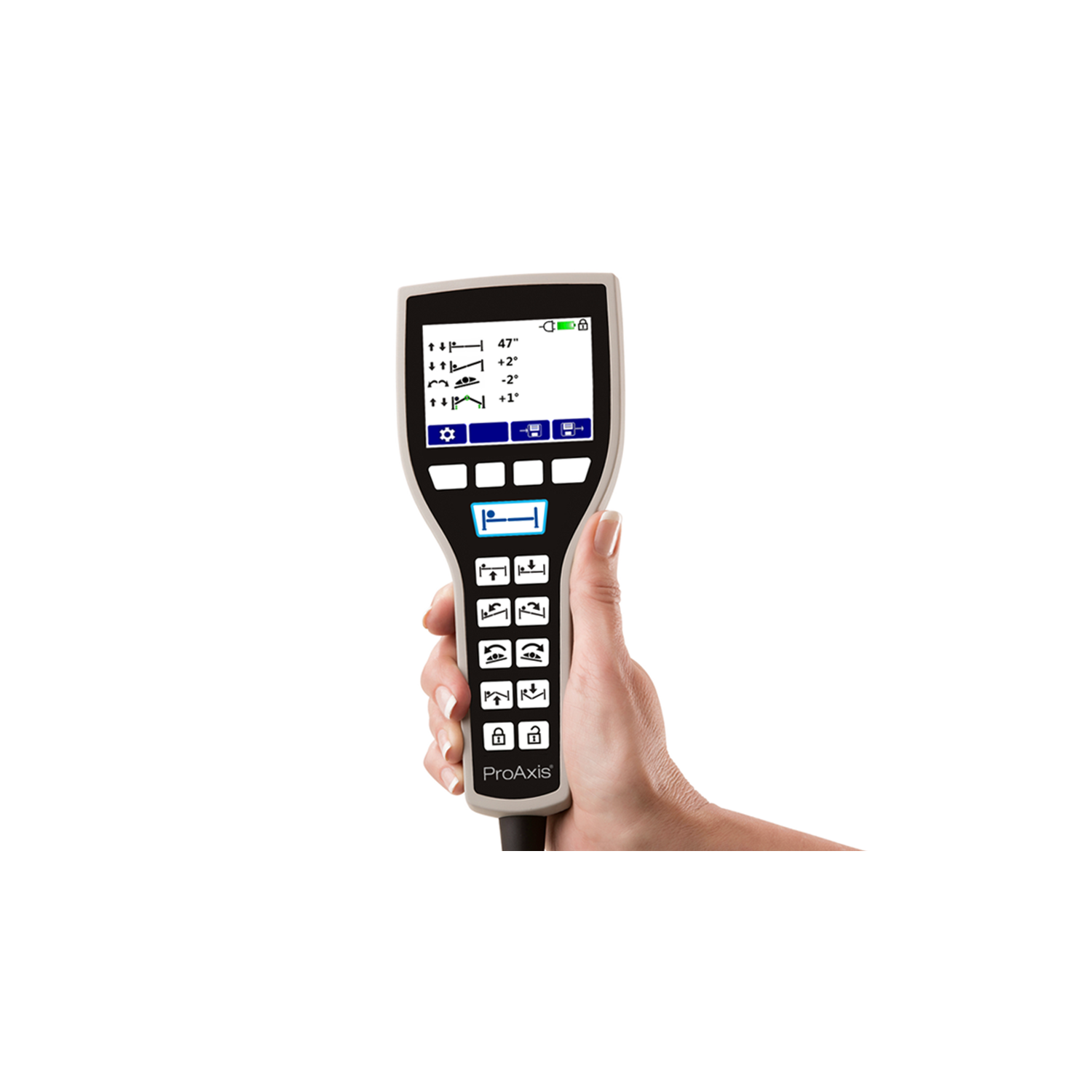

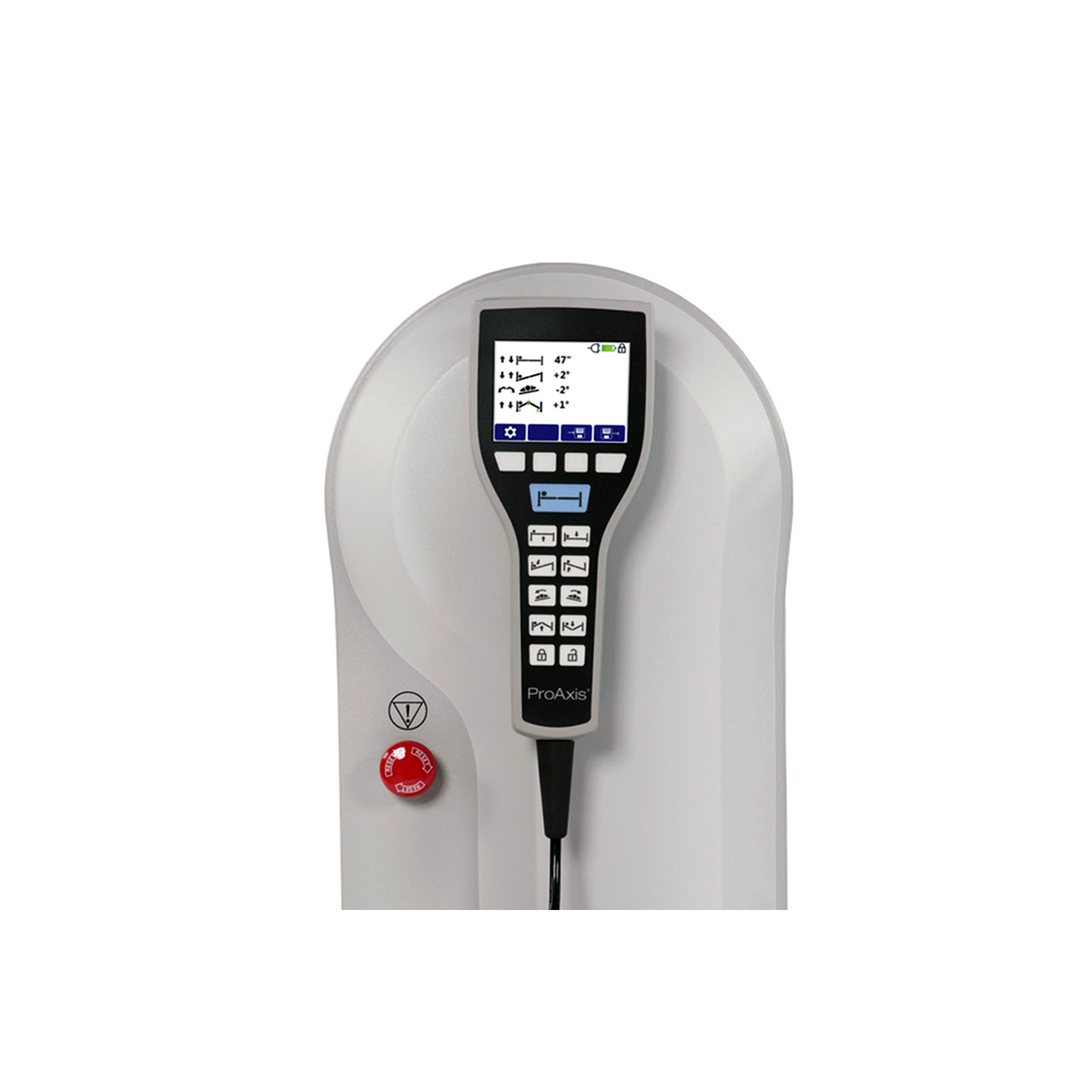

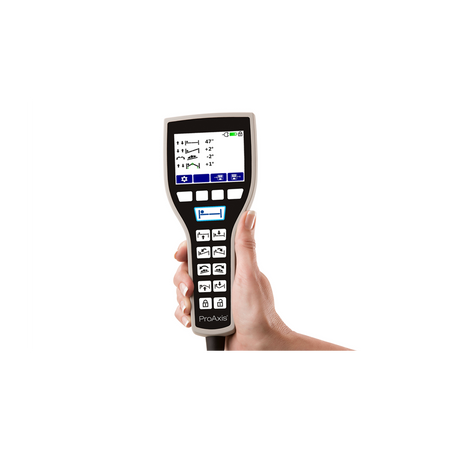

  • The IntelliPendant, a software-driven hand pendant controls all table functions with continual user feedback: floor locks, height, lateral roll, Trendelenburg/reverse Trendelenburg and return to level
  • Auxiliary panel provides a secondary source for controlling table motion
  • Equipped with two memory positions that aid in imaging workflow and improved communication in the OR

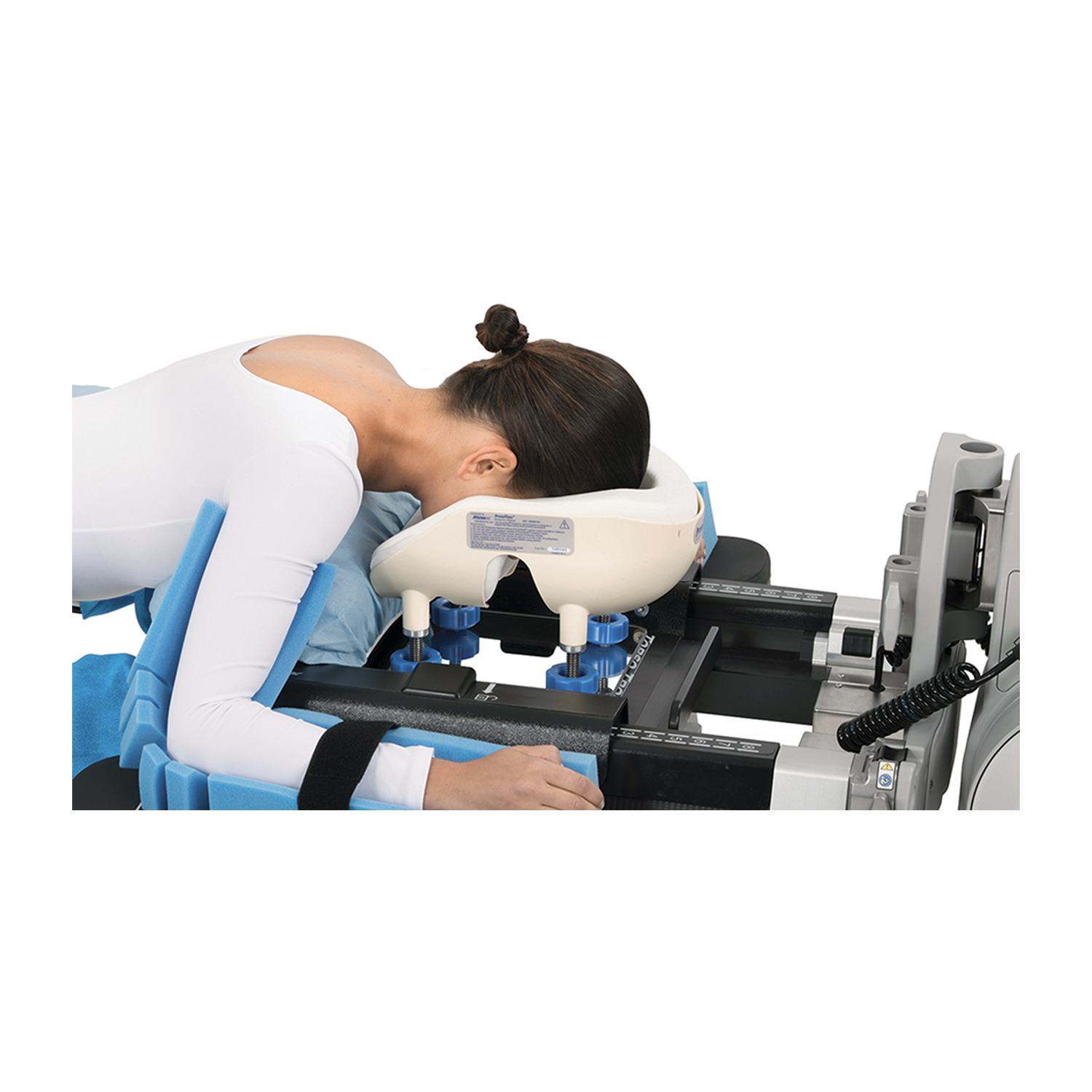

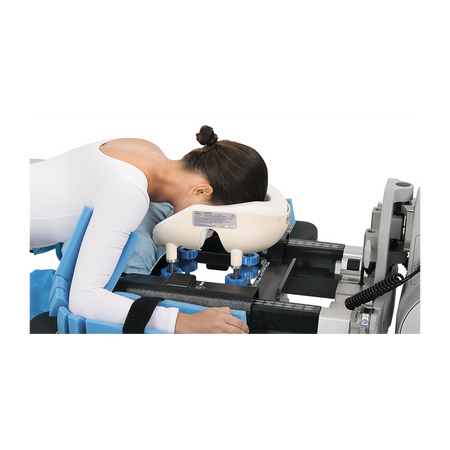

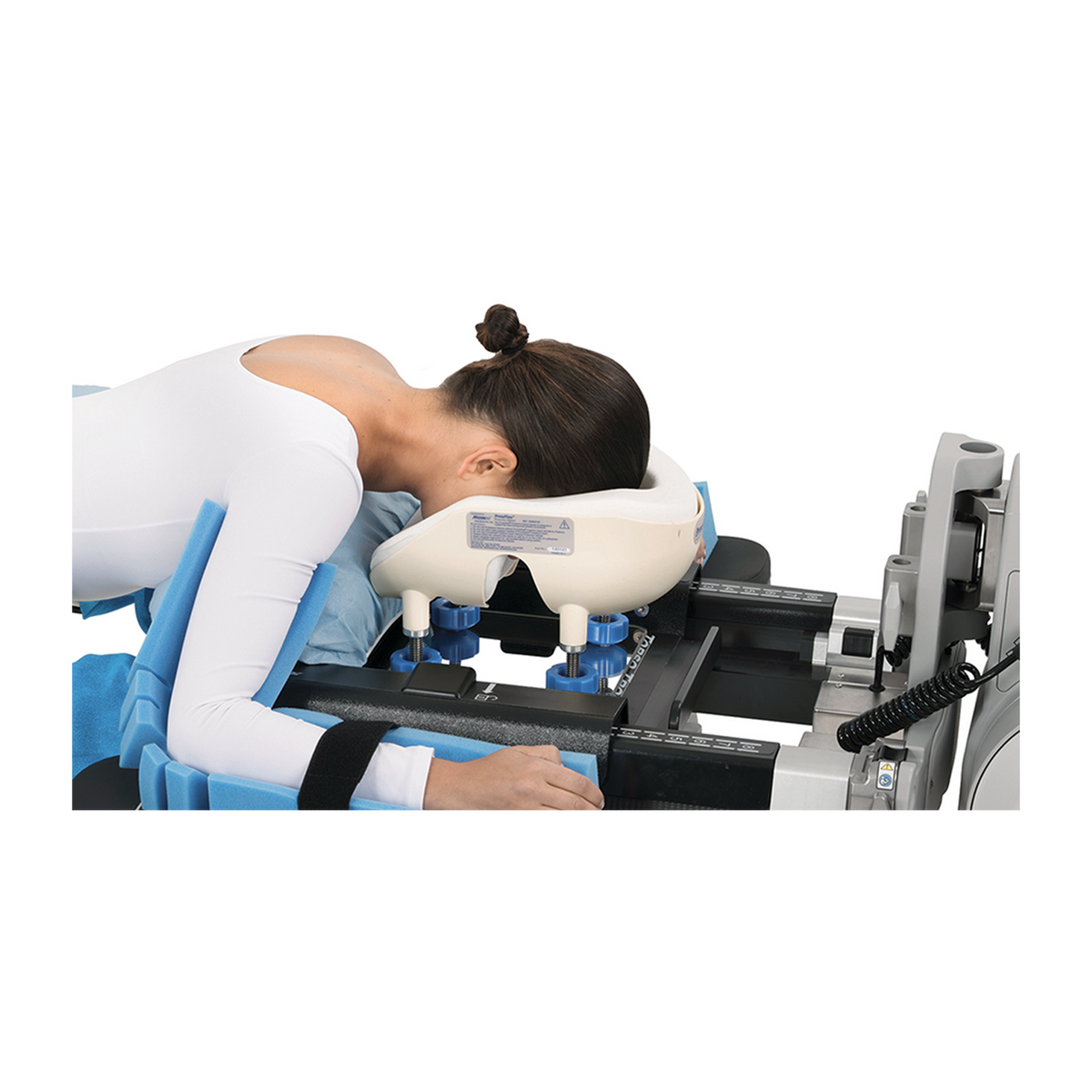

  • ProneView® Protective Helmet System offers head and eye protection for prone positioning
  • Tempur-Pedic® Medical Pad technology incorporated into all patient surfaces
  • Cervical management mounting bracket permits cranial stabilization option

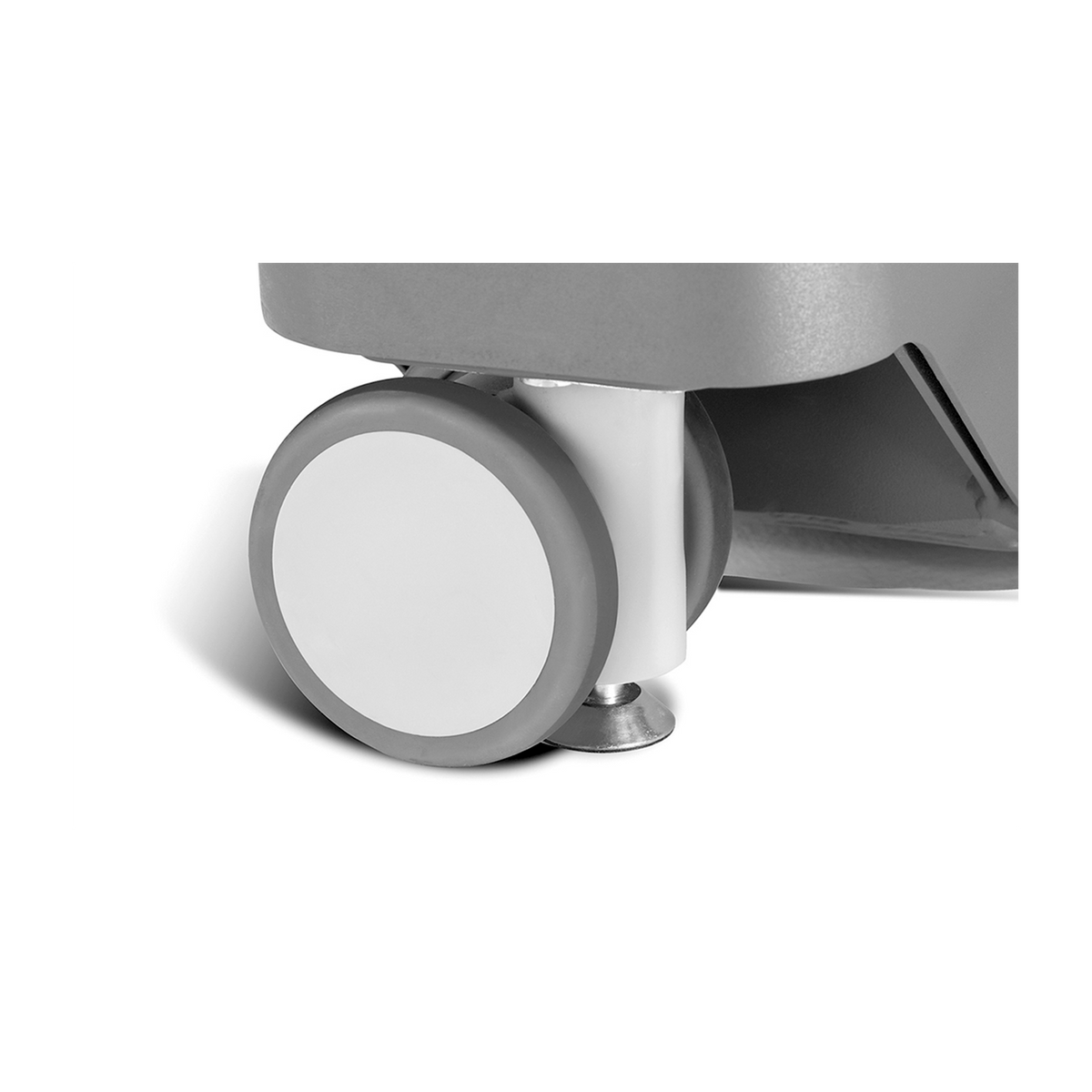

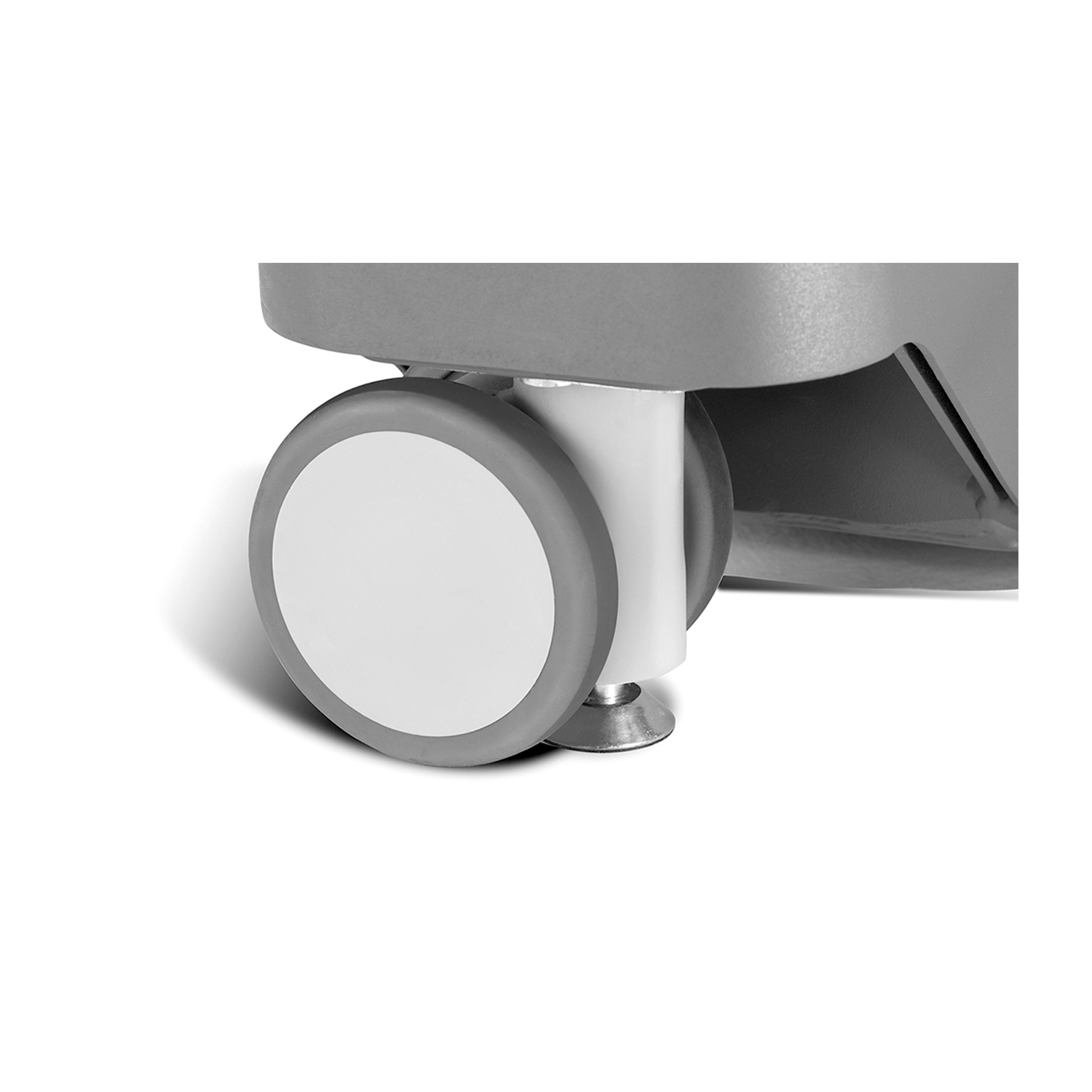

  • Powered floor locks

POSITIONING CAPABILITIES:

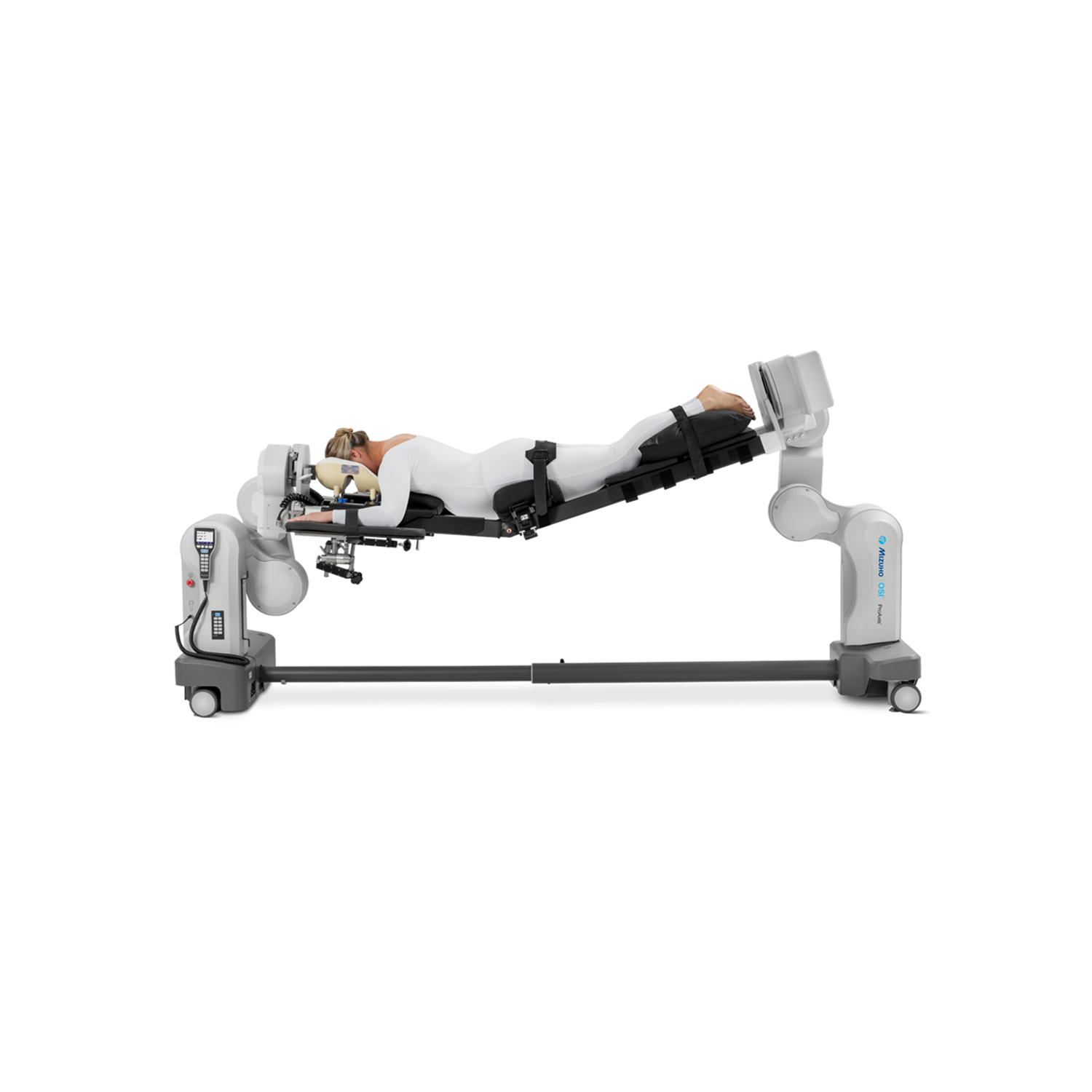

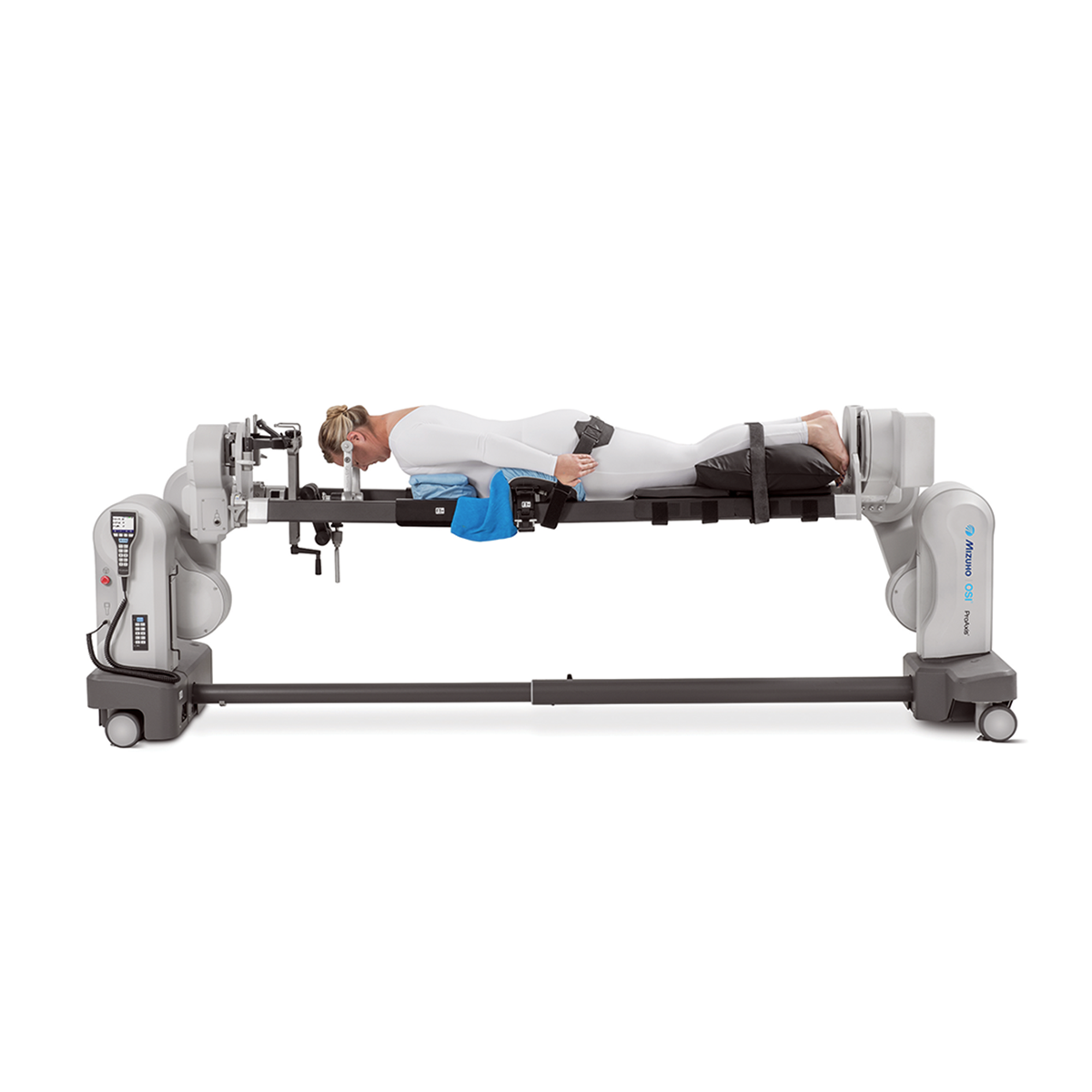

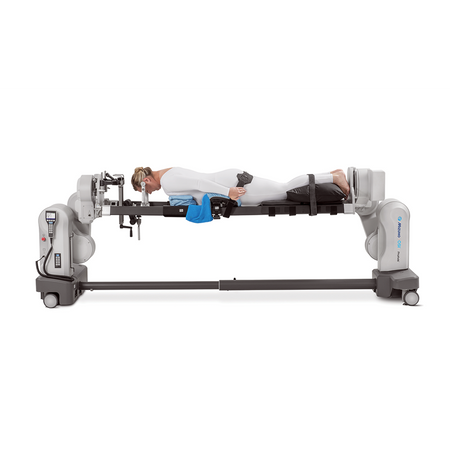

  • Prone
  • Supine

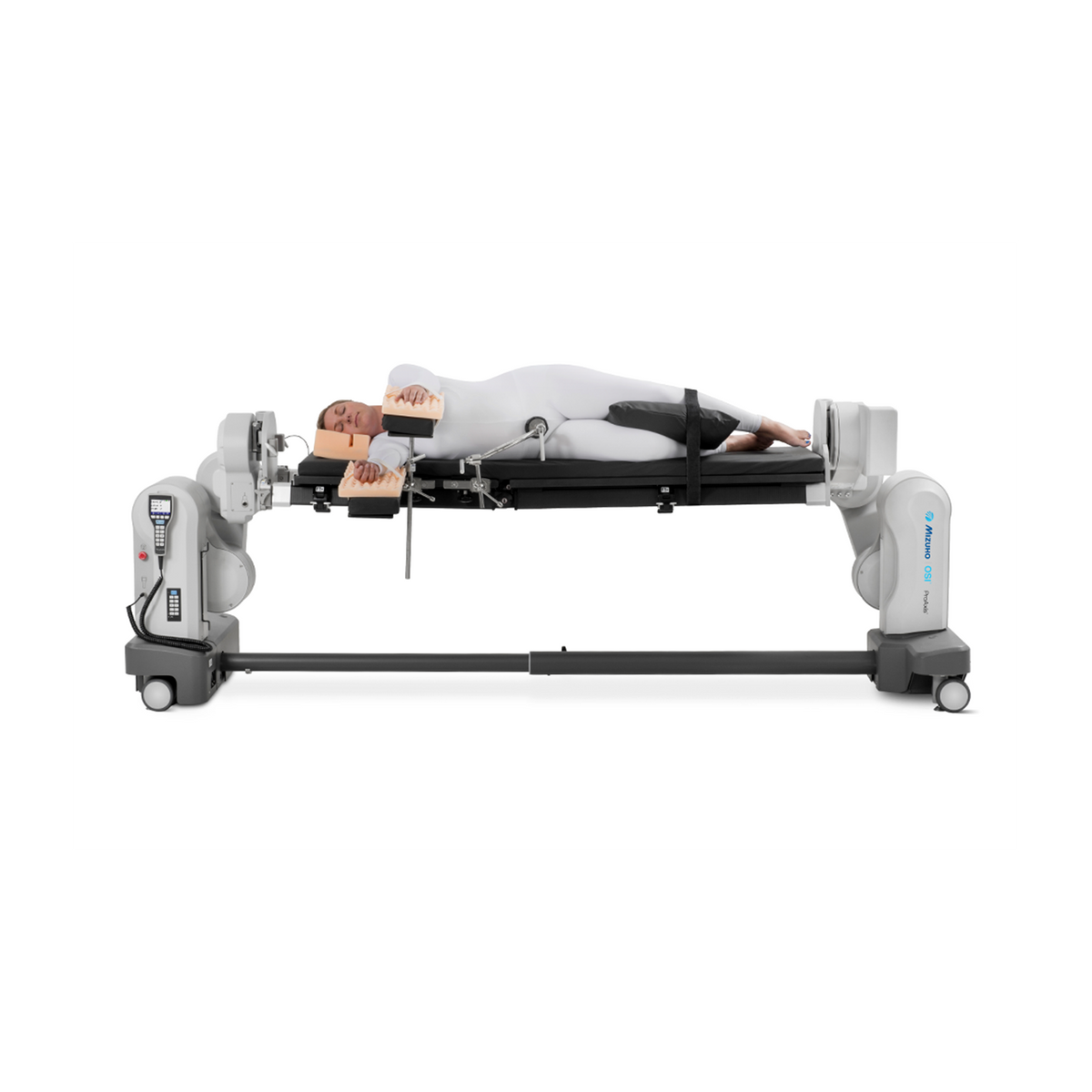

  • Lateral

COMMON PROCEDURES:

  • Pedicle subtraction osteotomies (PSO)
  • Spinal fusions – lateral, anterior, posterior, transforaminal
  • Decompressions
  • Laminectomies
  • Surgical correction of deformities
  • Lumbar total discs
  • Kyphoplasties
  • Vertebroplasties
  • Joint imaging
  • Pain management

SPECIFICATIONS:

  • Manufacturer: Mizuho OSI
  • Part Number: (OEM): PROAXIS
  • Category: Tables Surgical - Spine
  • Accessories: None
  • Condition: New/Refurbished
  • Weight:
  • Warranty: 3 Months
  • Table Top Width – Prone:
    • 19” (48cm)

  • Table Top Width – Supine/Lateral:
    • 21” (53cm)

  • Table Top Length:
    • 81” (206cm)

  • Overall Total Table Length:
    • 122–138” (310–351cm) dependent on where the table is in its range of movements

  • Storage Length:
    • 80” (204cm)

  • Height Range:
    • 20–47” (51–119cm)

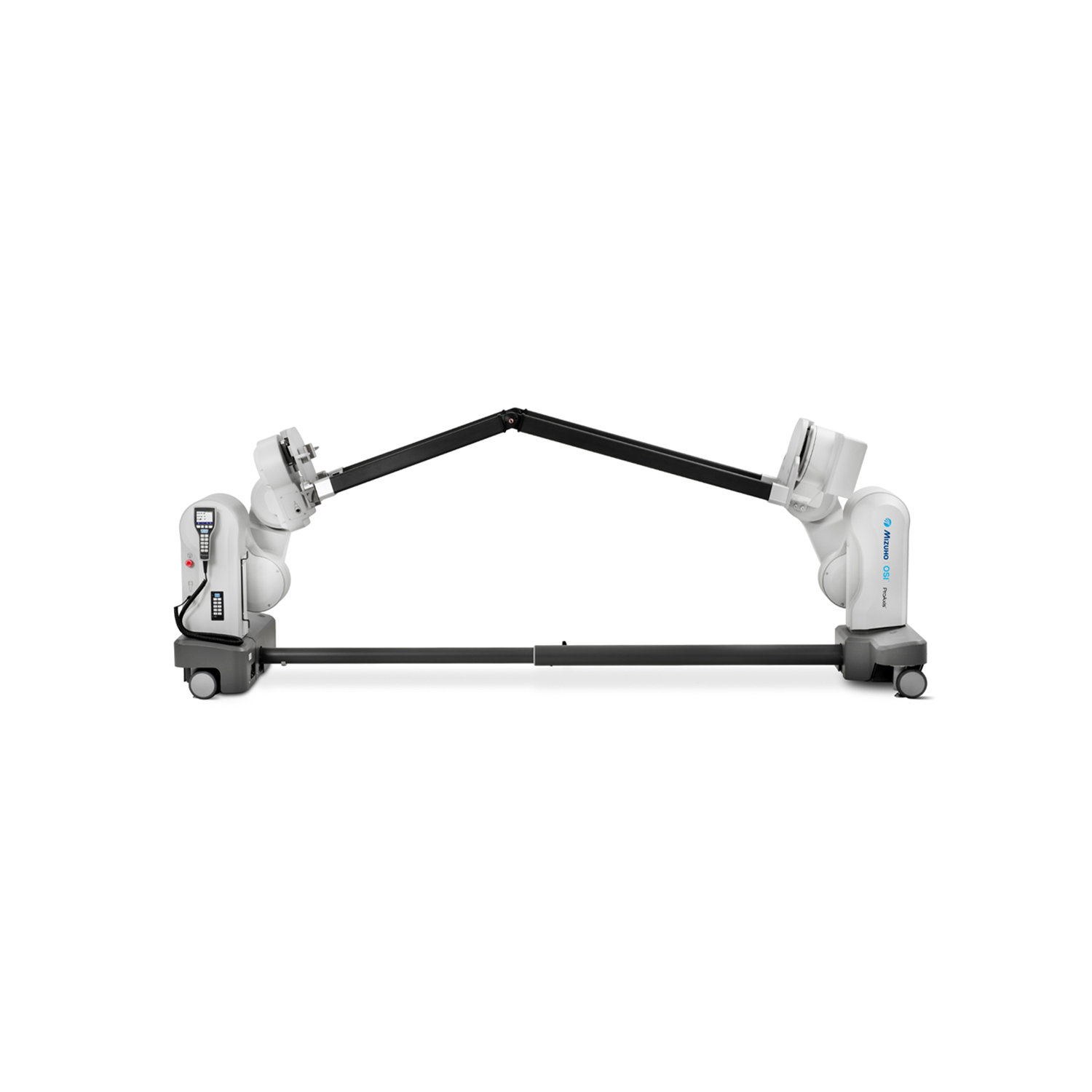

  • Hinge Up:
    • 35°

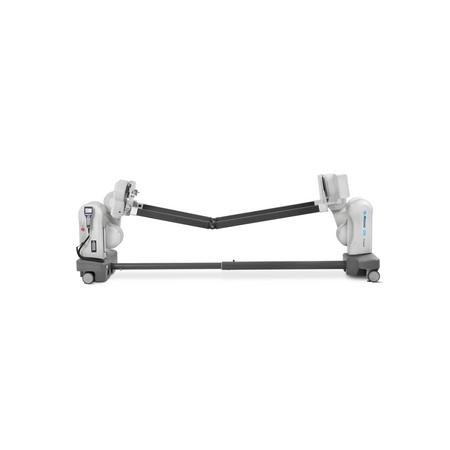

  • Hinge Down:
    • 20°

  • Lateral Tilt (Left/Right):
    • 15°

  • Trendelenburg:
    • 15°

  • Reverse Trendelenburg:
    • 20°

  • Patient Weight Capacity:
    • 500lbs. (227kg)

STANDARD COMPONENTS:

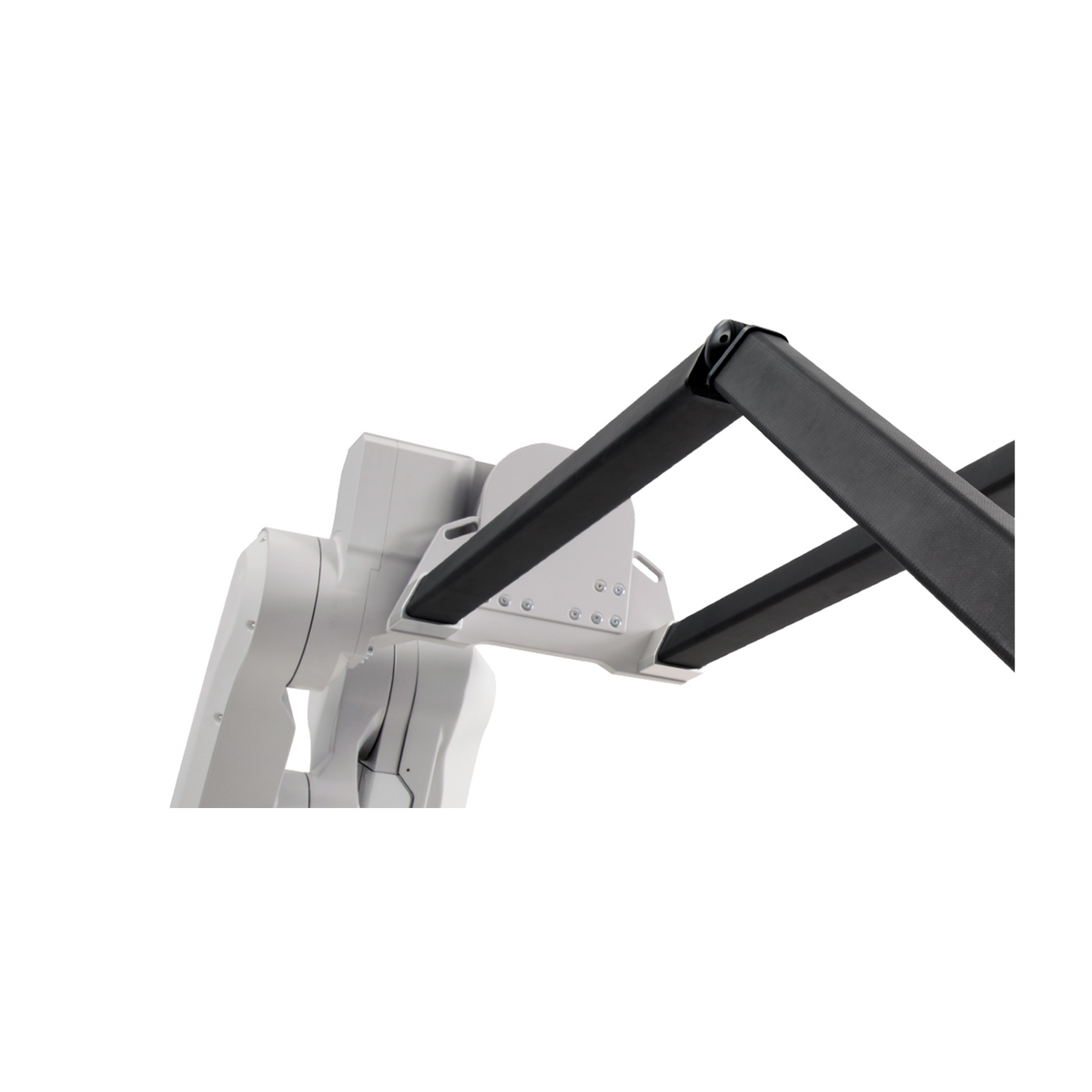

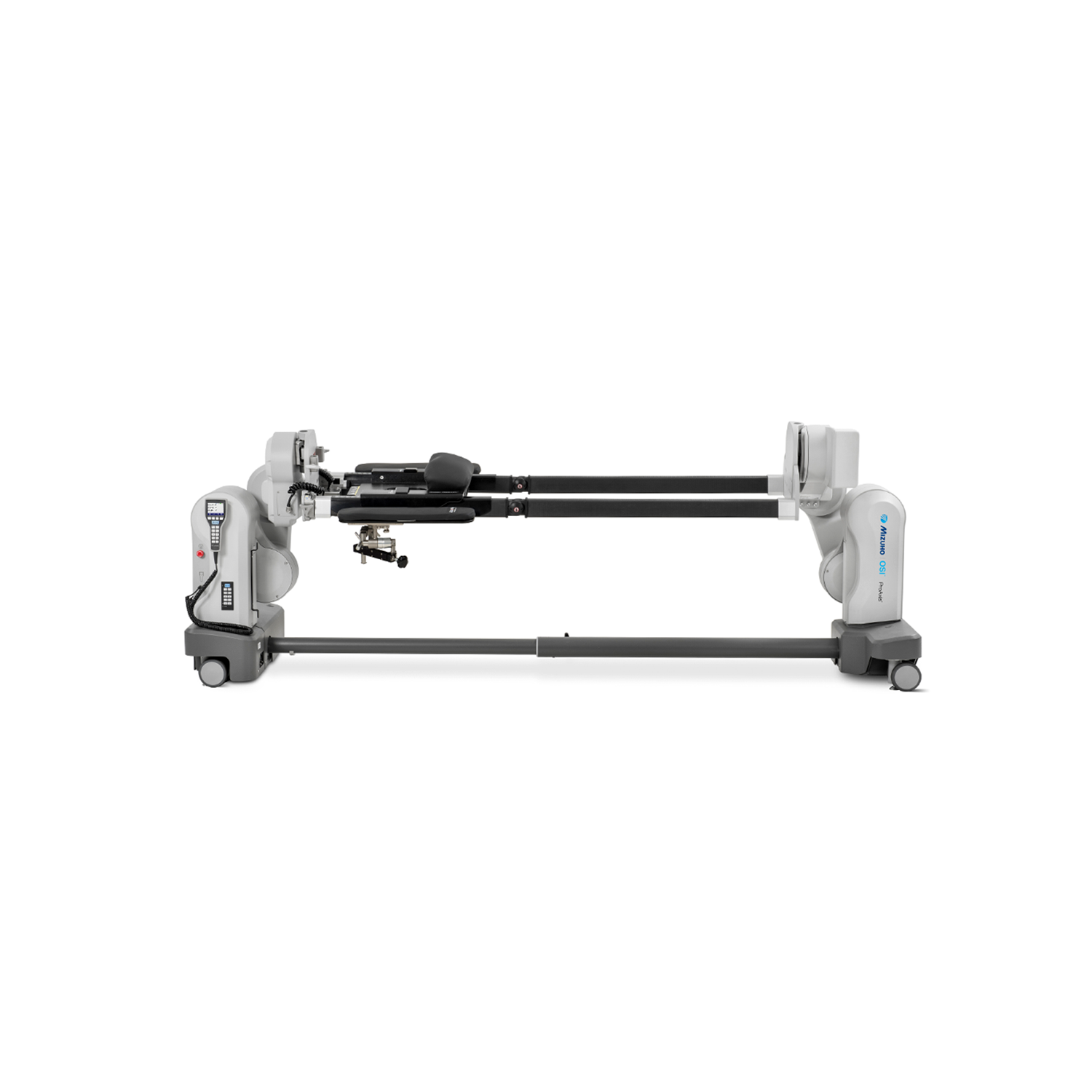

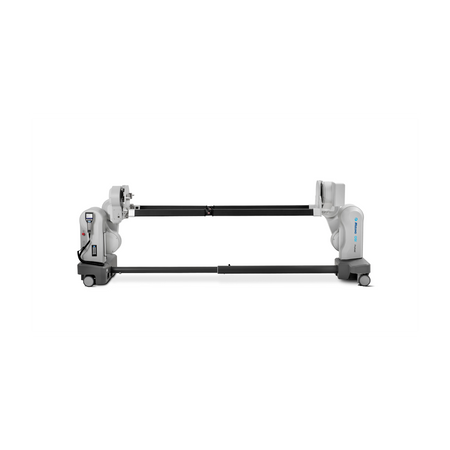

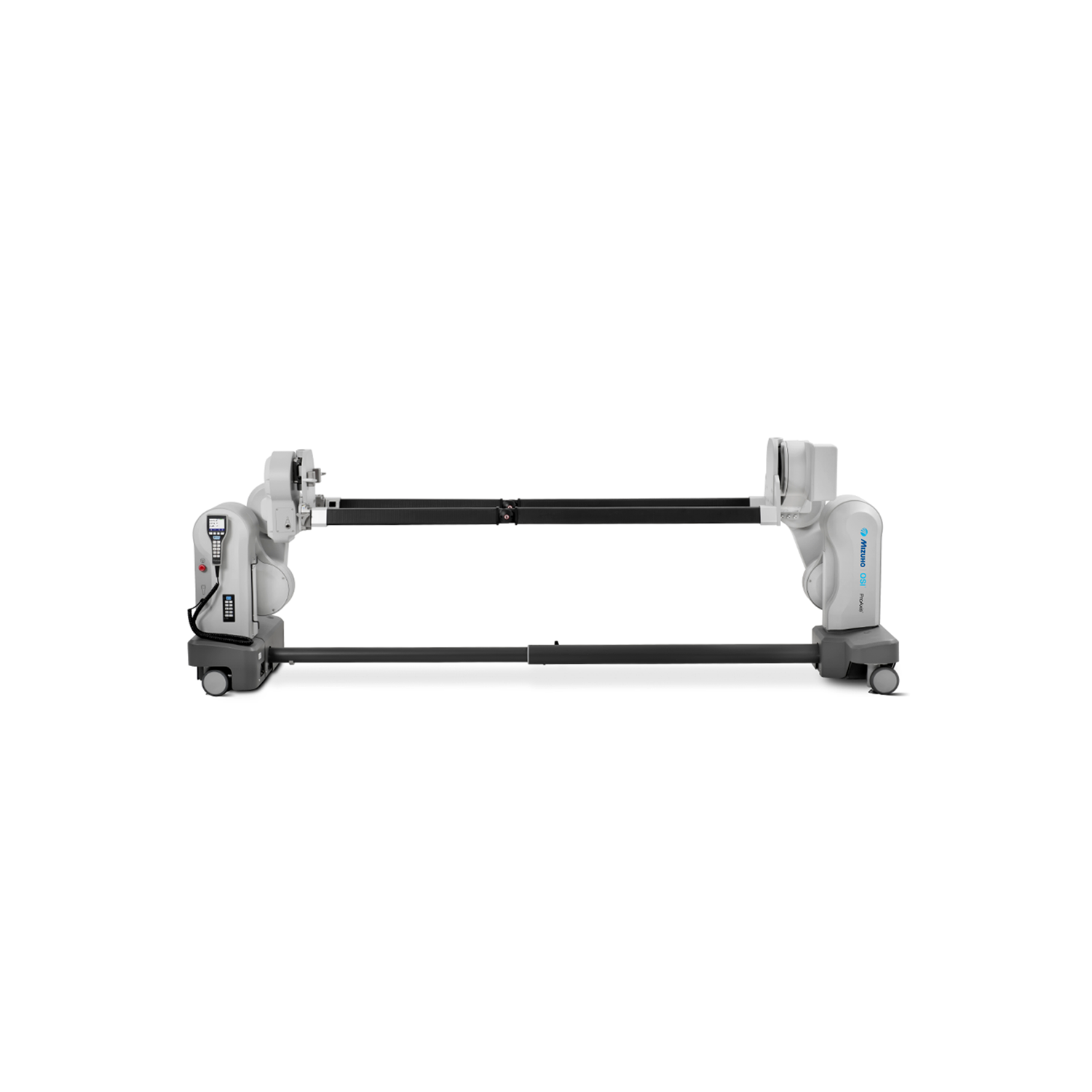

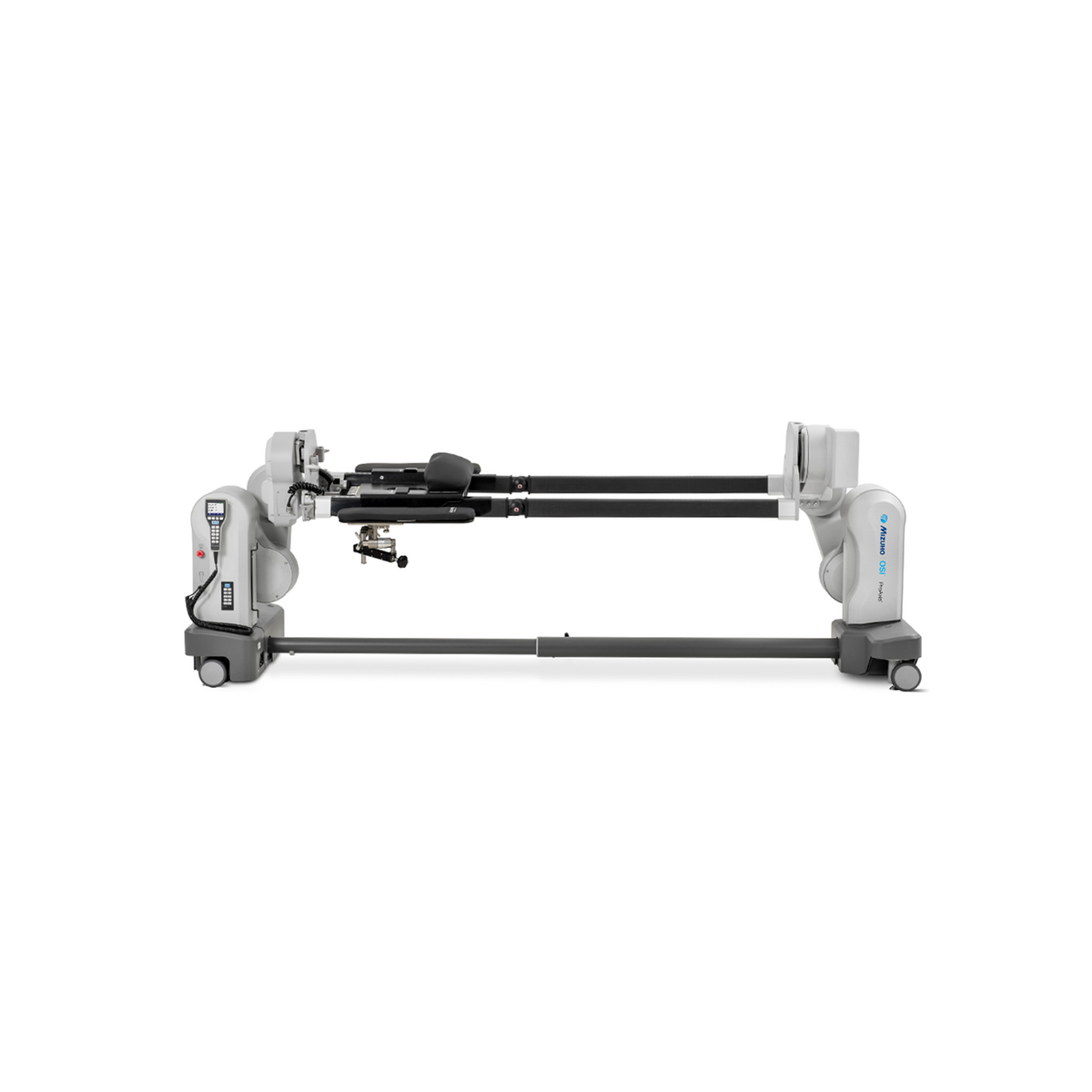

    • Carbon Fiber, Powered Hinged Frame
    • ProAxis® IntelliPendant

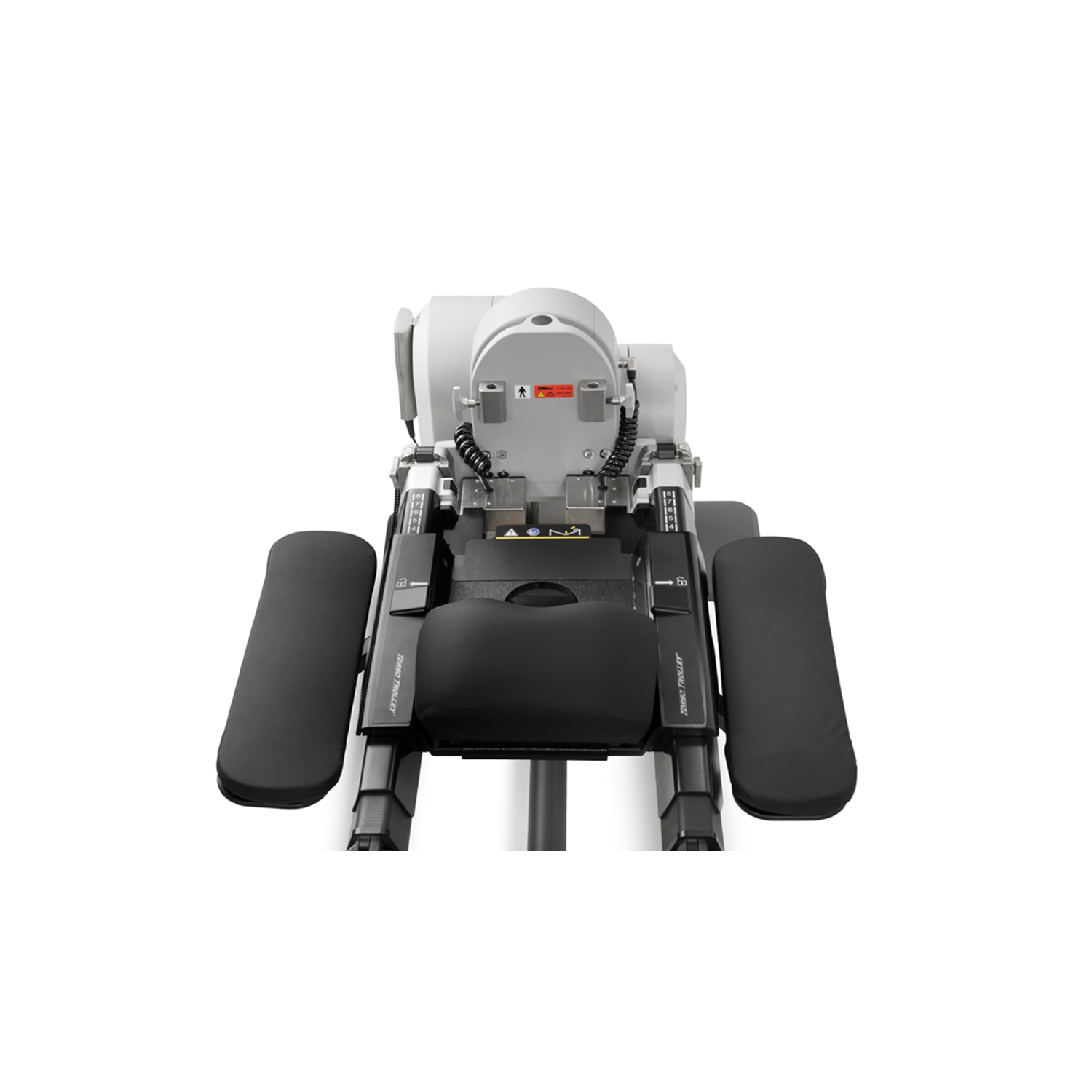

    • Torso Trolley® – Chest Slide
    • 5-way Adjustable Padded Arm Boards
    • ProAxis Chest Pad
    • ProneView® Mirror and Protective Helmet System
    • ProAxis Tempur-Pedic® Hip/Thigh Pads (1 pair)
    • Leg Boards (2)
    • Adjustable Leg Sling
    • Two-piece Supine Top with 2” (5cm) Tempur-Pedic Pad with
    • Translation Slide
    • Cervical Traction Vector Adjustor
    • Cervical Chest Tray
    • Cervical Management Table Adaptor
    • Retractor Adaptor (1) (provides 6” (15cm) of standard side rail)
    • 60″ (152 cm) Safety Strap (2)
    • Buttocks Strap
    • Tempur-Pedic Medical Positioning Pillows, queen (2) and standard (1)
    • Supine Top Patient Safety Strap (2)
    • Universal Side Rail Adaptor (4) (provides 6” (15cm) of standard side rail)
    • ProAxis Accessory Cart with Dust Cover

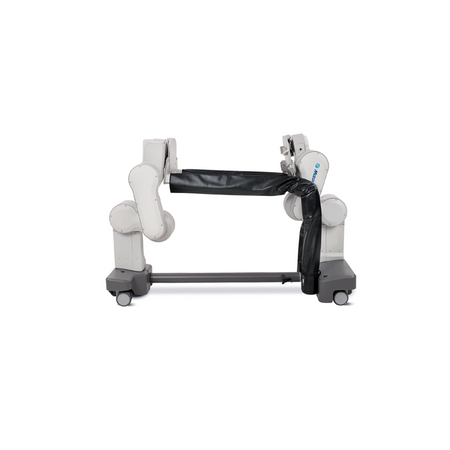

    • ProAxis Table Cover
    • Spar Protective Storage Covers (2)
