Mizuho OSI Surgical "Jackson" Modular Table System

The Modular Table System (MTS) has achieved a remarkable global presence being sold worldwide. This system is renowned for delivering precision and stability in patient positioning. It features interchangeable tops tailored for spine, imaging, and orthopedic trauma procedures.

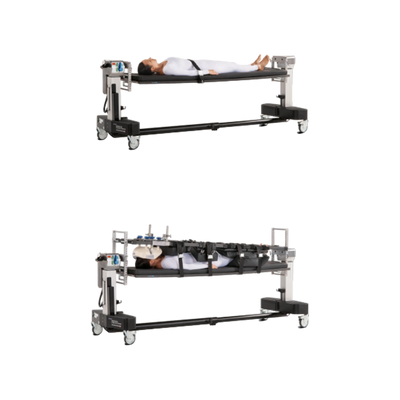

Among the original modular components, the Spinal Surgery Top retains the classic open frame design, ideally suited for posterior spinal surgery. On the other hand, the Radiolucent Imaging Top offers a versatile platform that supports various procedures requiring supine and lateral positioning. When used together, these two tops enable the seamless repositioning of a patient, transitioning from a prone to supine orientation through the System's impressive 180-degree rotation capabilities.

The third modular piece, the Orthopedic Trauma Top, is designed to provide comprehensive surgical positioning for lower trauma extremity procedures. Notably, each of these modular tops is constructed from carbon fiber, ensuring excellent radiolucency, which is essential for unobstructed medical imaging.

Each top is compatible with the Advanced Control Base and is available for purchase individually or as part of a set, providing flexibility and tailored solutions for various medical settings and procedures.

FEATURES:

• Advanced Control Base:
• Works with three interchangeable tops, specifically designed to support patient positioning in a variety of procedures

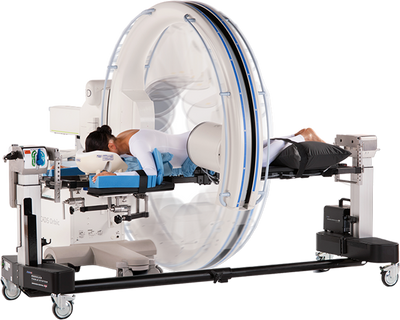

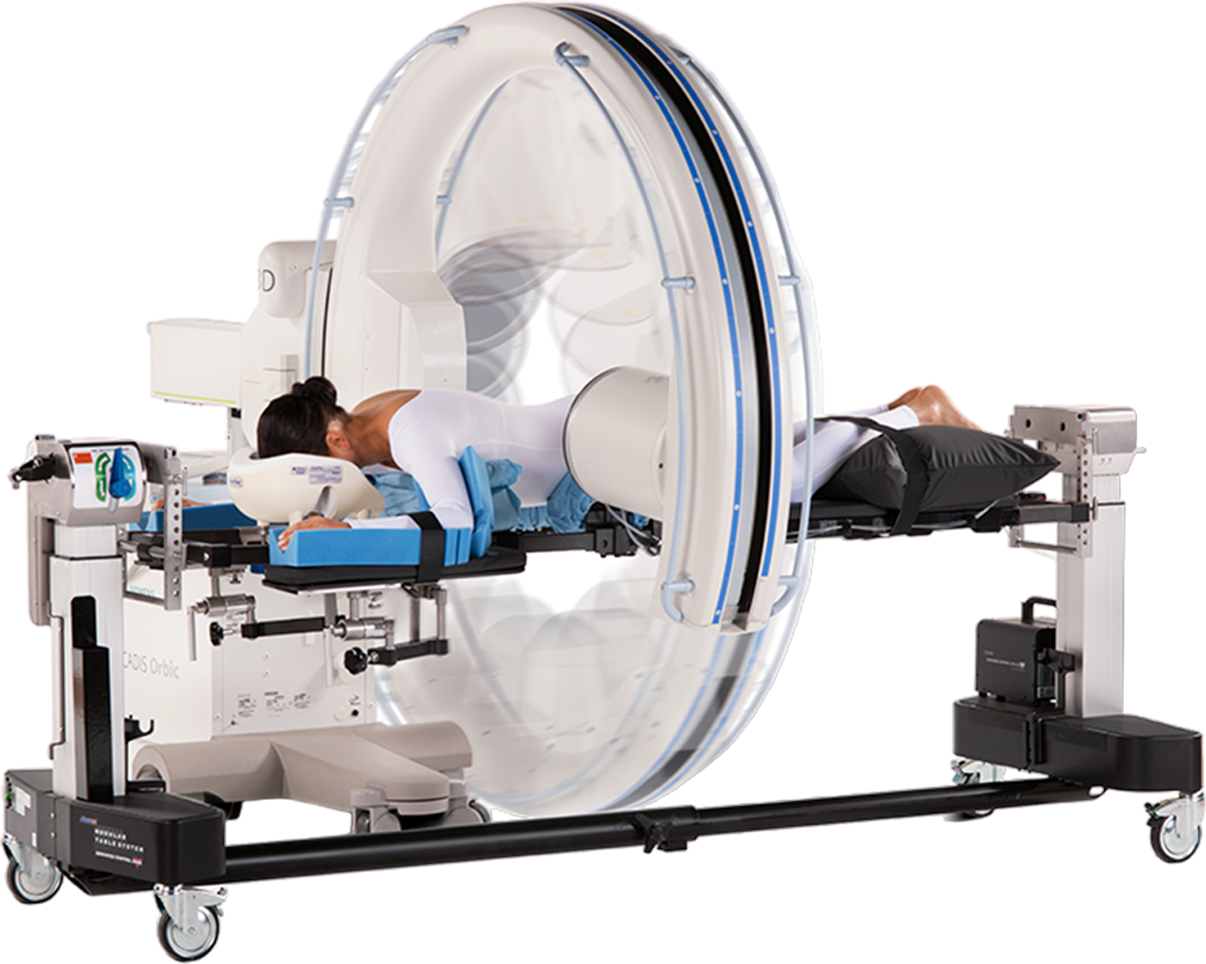

• Dual column design for easy C-arm and O-arm^® access

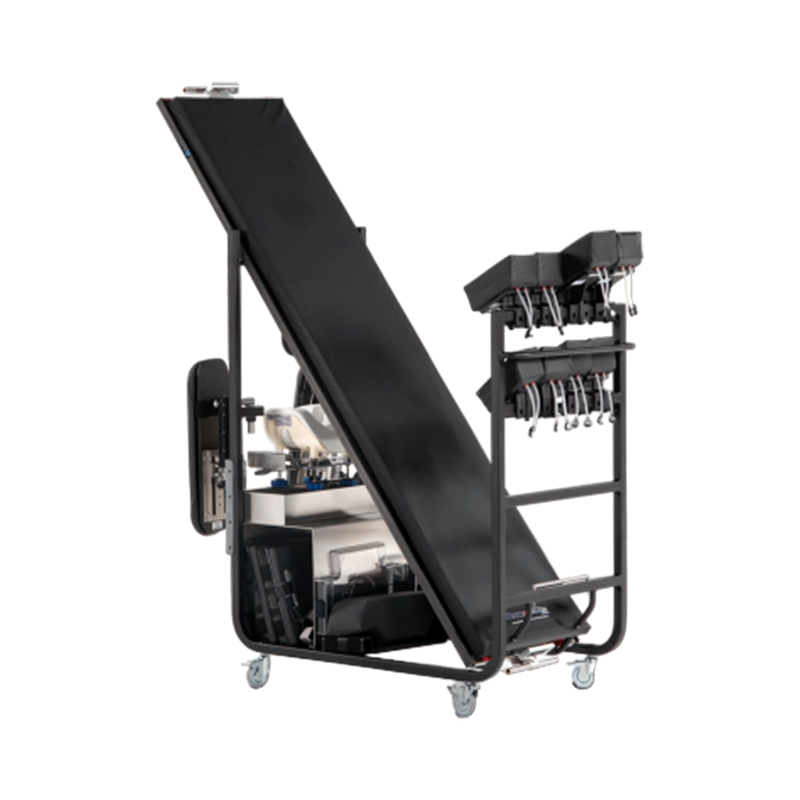

• Retractable I-beam, for easy storage
• AC and battery operation
• Powered lateral tilt
• Hand pendant controls for height, Trendelenburg and lateral adjustments
• O-arm^® is a registered trademark of Medtronic, Inc.

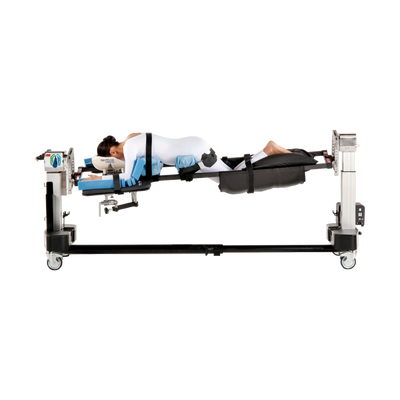

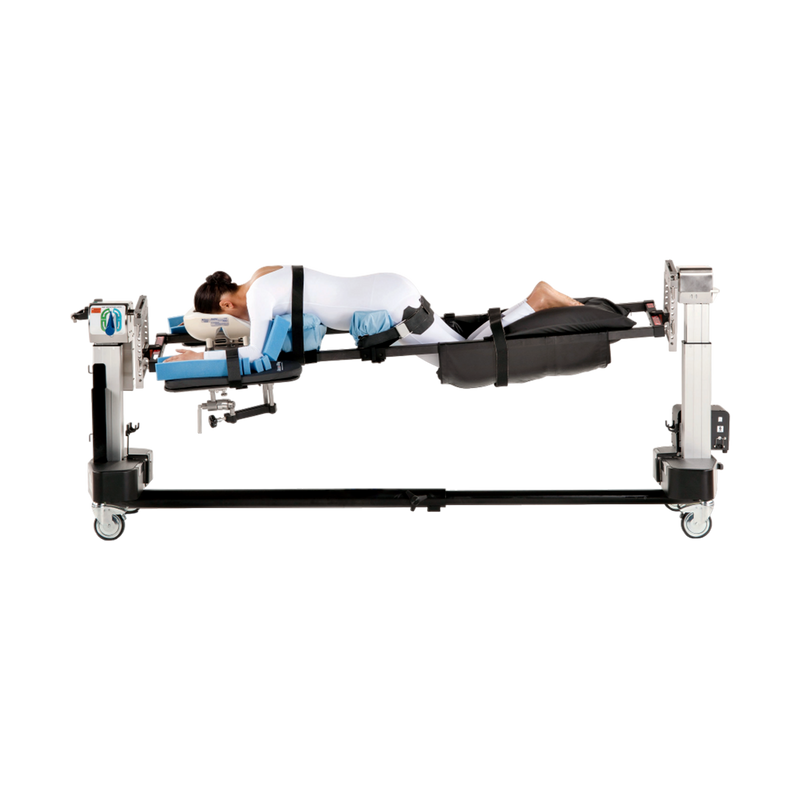

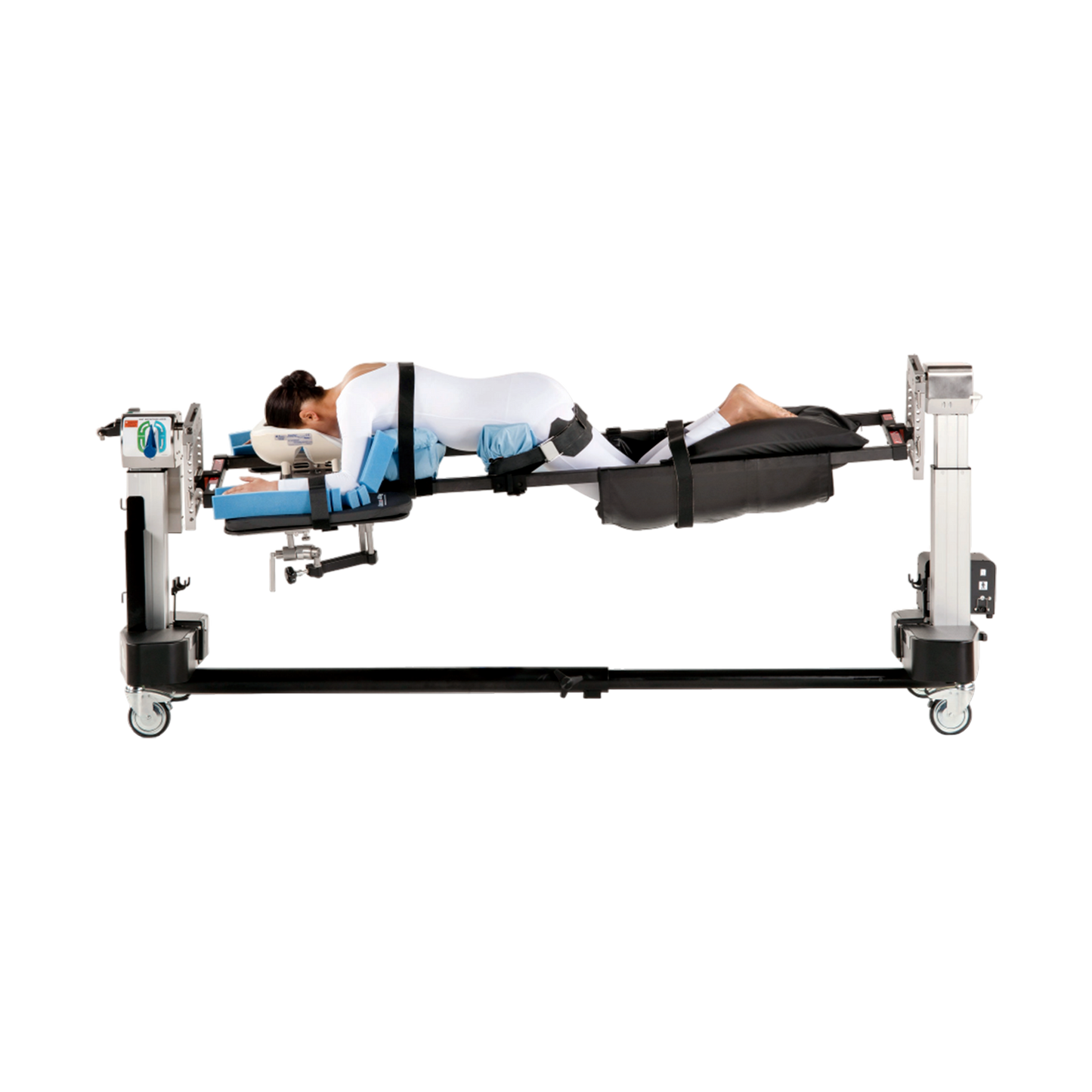

• Spinal Surgery Top:
• Open frame design and individual positioning pads
• Carbon fiber frame for complete radiolucency

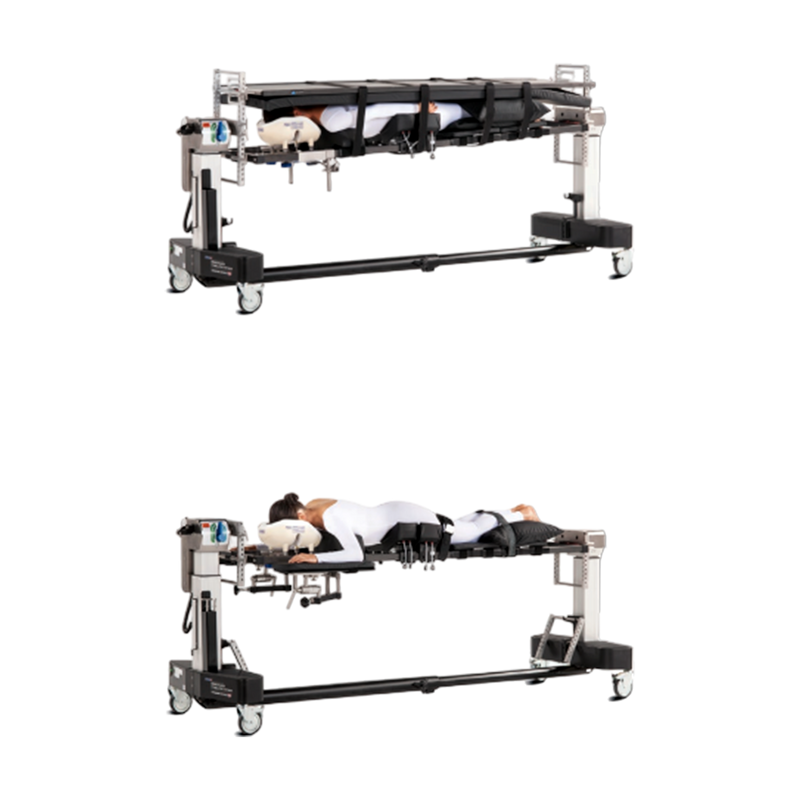

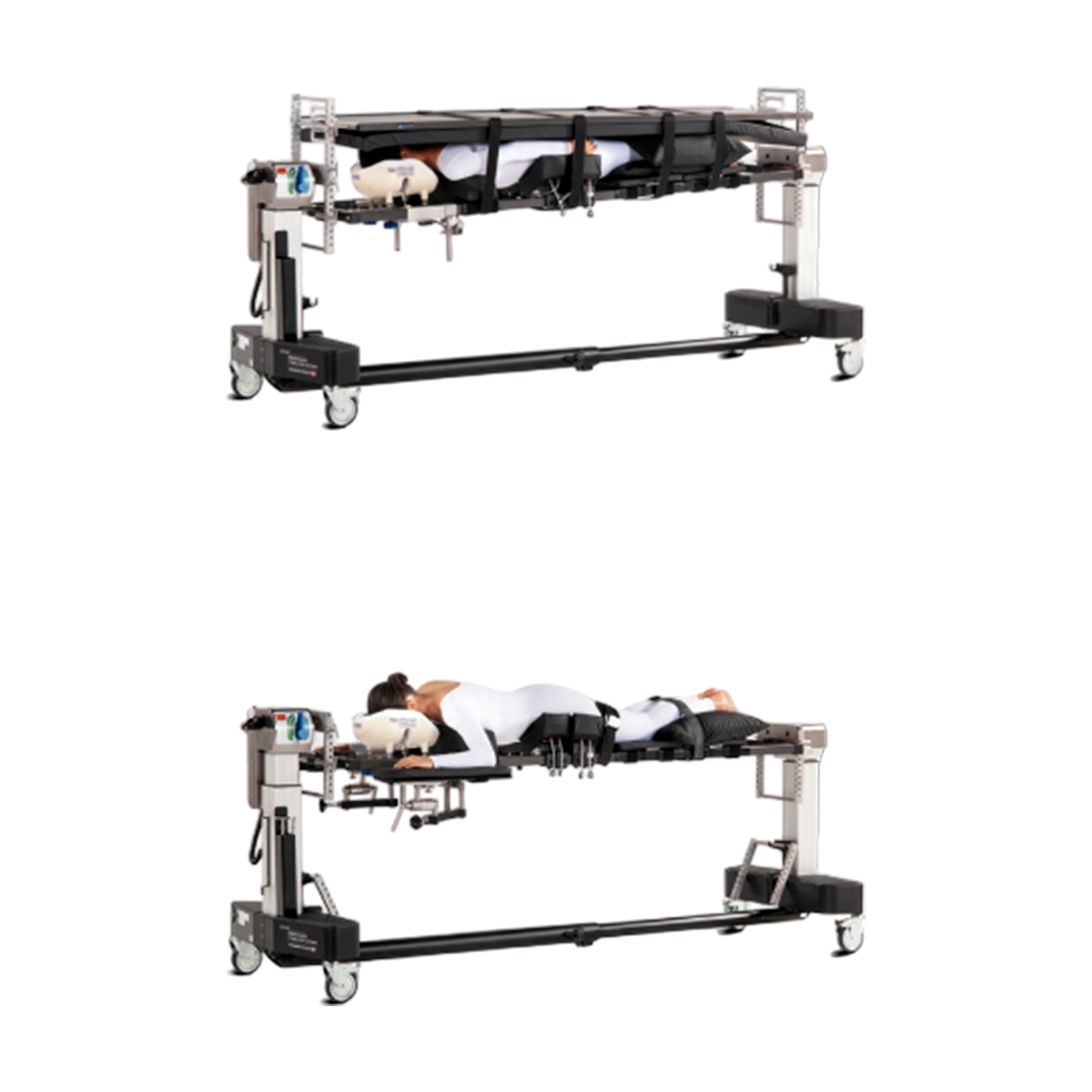

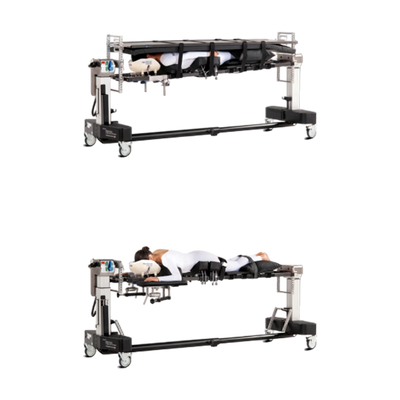

• Works with the Radiolucent Imaging Top for 180° patient rotation


• Radiolucent Imaging Top:
• Easily supports supine and lateral positions
• Carbon fiber table top with Tempur-Pedic^®  Pressure Equalization Pad technology

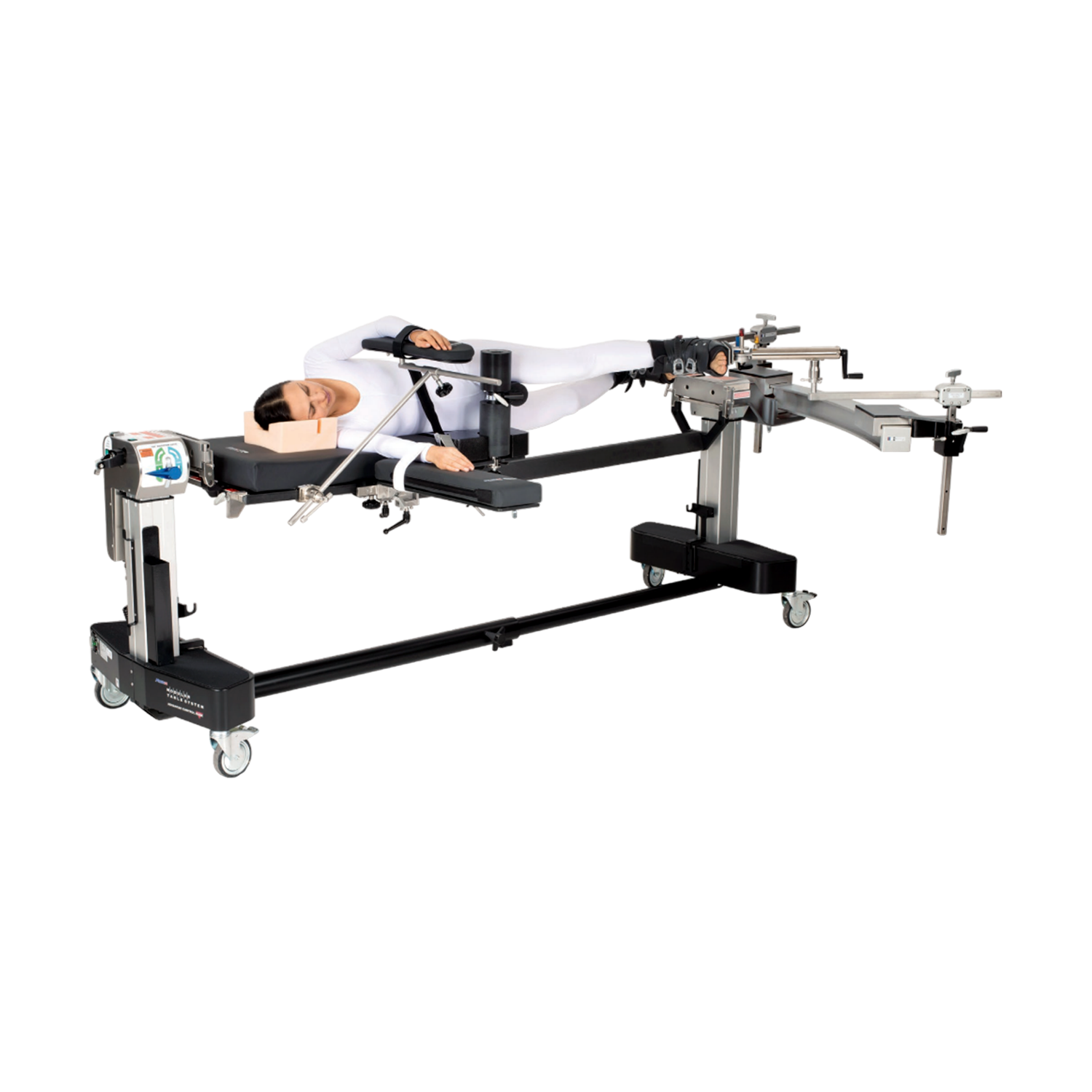

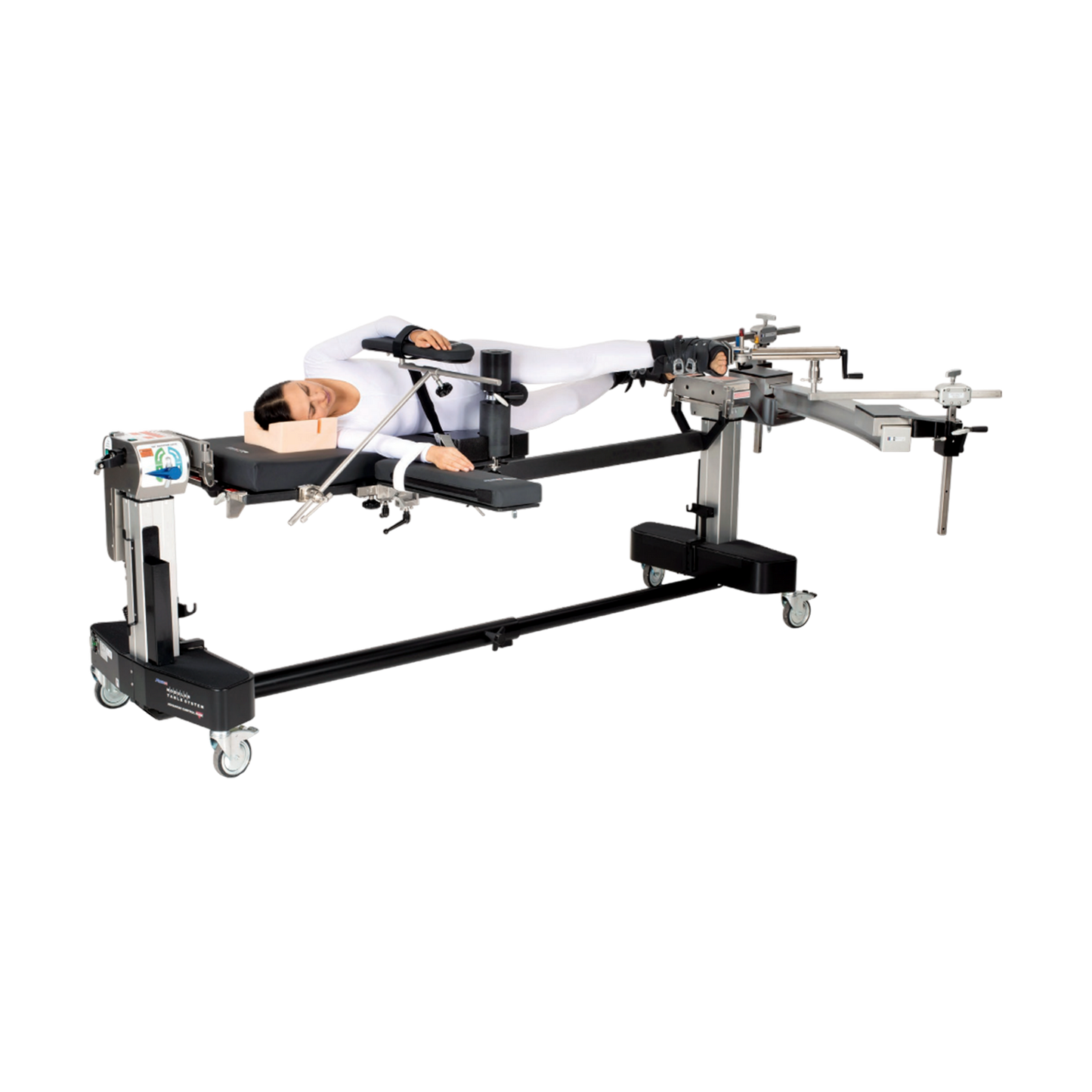

• Orthopedic Trauma Top:
• Lower extremity trauma procedures in prone, supine and lateral positions
• Eliminates need for leg spar on operative leg
• Permits unrestricted access for surgeon and C-arm

• Anatomically correct Traction Arc for procedures requiring traction

MODULAR TABLE SYSTEM COMPONENTS:

• Advanced Control Base Part #5803
• Spinal Surgery Top Part #5943
• Radiolucent Imaging Top Part #5927
• Orthopedic Trauma Top Part #5855
• Pelvic Reconstruction Kit #5848


COMMON PROCEDURES:

• Spinal:
• Laminectomies
• Decompressions
• Osteotomies
• Anterior/posterior fusions
• Surgical correction of deformities
• Anterior/posterior cervical procedures
• Kyphoplasties
• Vertebroplasties
• IDET surgeries


• Imaging:
• Vascular surgery
• Joint imaging
• Pain management


• Orthopedic Trauma:
• Hip pinning
• Supine IM femoral nailing
• Lateral IM femoral nailing
• IM tibial nailing
• Ender nailing
• Pelvic reconstruction

SPECIFICATIONS:

• Manufacturer: Mizuho OSI
• Part Number: (OEM):
• Category: Tables Surgical
• Weight:
• Warranty: 3 Months

• Modular Table System Base:
• Trendelenburg /Reverse
• Trendelenburg 10°
• Lateral tilt (roll) 25°
• Base width 32” (81cm)
• Base length 102” (259cm)
• Retracted base length 64” (163cm)
• Patient weight capacity 500lbs (227kg)


• Spinal Surgery Top:
• Height range 27–48” (69–122cm)
• Table top length 84” (213cm)
• Table top width 17” (43cm)


• Radiolucent Imaging Top:
• *Height range 27–48” (69–122cm)
• Table top length 84” (213cm)
• Table top width 21.5” (55cm)


• Orthopedic Trauma Top:
• *Height range 34-50” (86–127cm)
• Table top length 84” (213cm)
• Table top width 21.5” (55cm)
• * Height range difference is due to the use of H-Frames to mount the spinal and imaging top edge.
