Mizuho OSI Modular Table System (MTS)

Out of stock
SKU: EN-MIZUHO-MTS
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Originally recognized as the Jackson Table, the Modular Table System stands out as a versatile solution tailored for spine, imaging, and orthopedic trauma procedures.

A dependable, effective, and adaptable table system, the Modular Table System (MTS) has garnered global acclaim with over 8,000 units sold worldwide. It excels in delivering precise and stable positioning, featuring interchangeable tops designed for spine, imaging, and orthopedic trauma procedures. Within this original modular system, the Spinal Surgery Top showcases a traditional open frame design ideal for posterior spinal surgery. In contrast, the Radiolucent Imaging Top offers a versatile platform suitable for various procedures requiring supine and lateral positioning. When utilized in conjunction, these two tops enable seamless patient repositioning from prone to supine through the System's 180-degree rotation capabilities. Completing the trio is the Orthopedic Trauma Top, catering to comprehensive surgery positioning needs for lower trauma extremity procedures. Crafted from carbon fiber, each modular top ensures exceptional radiolucency for clear imaging.

Compatible with the Advanced Control Base, each top within this system can be acquired individually or as part of a comprehensive set, providing flexibility and efficiency in surgical positioning solutions.

FEATURES:

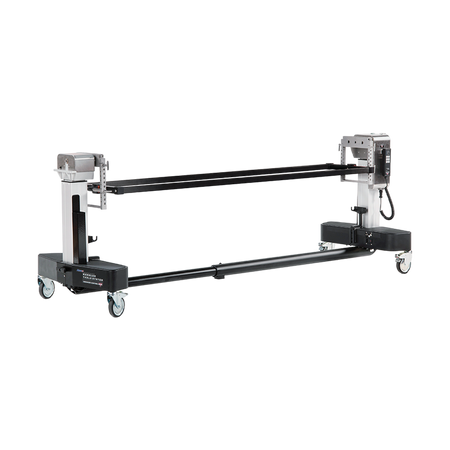

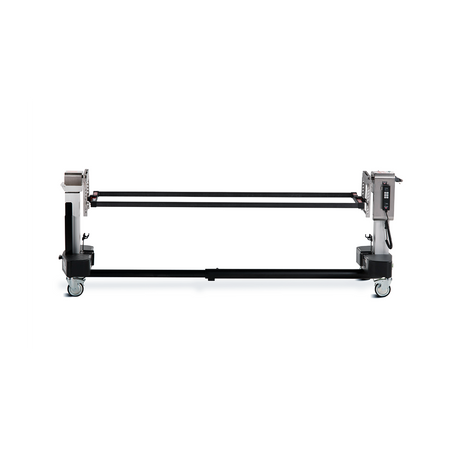

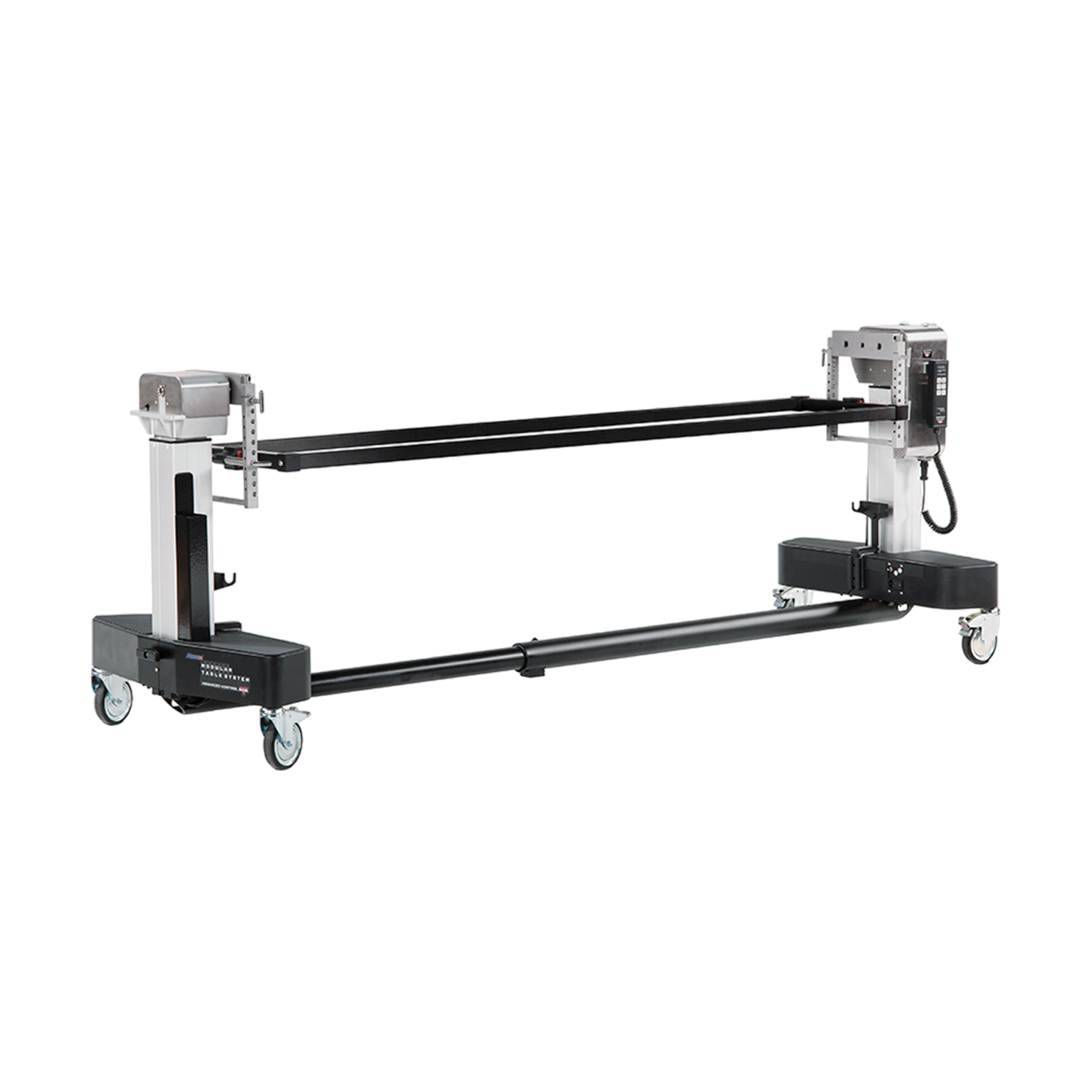

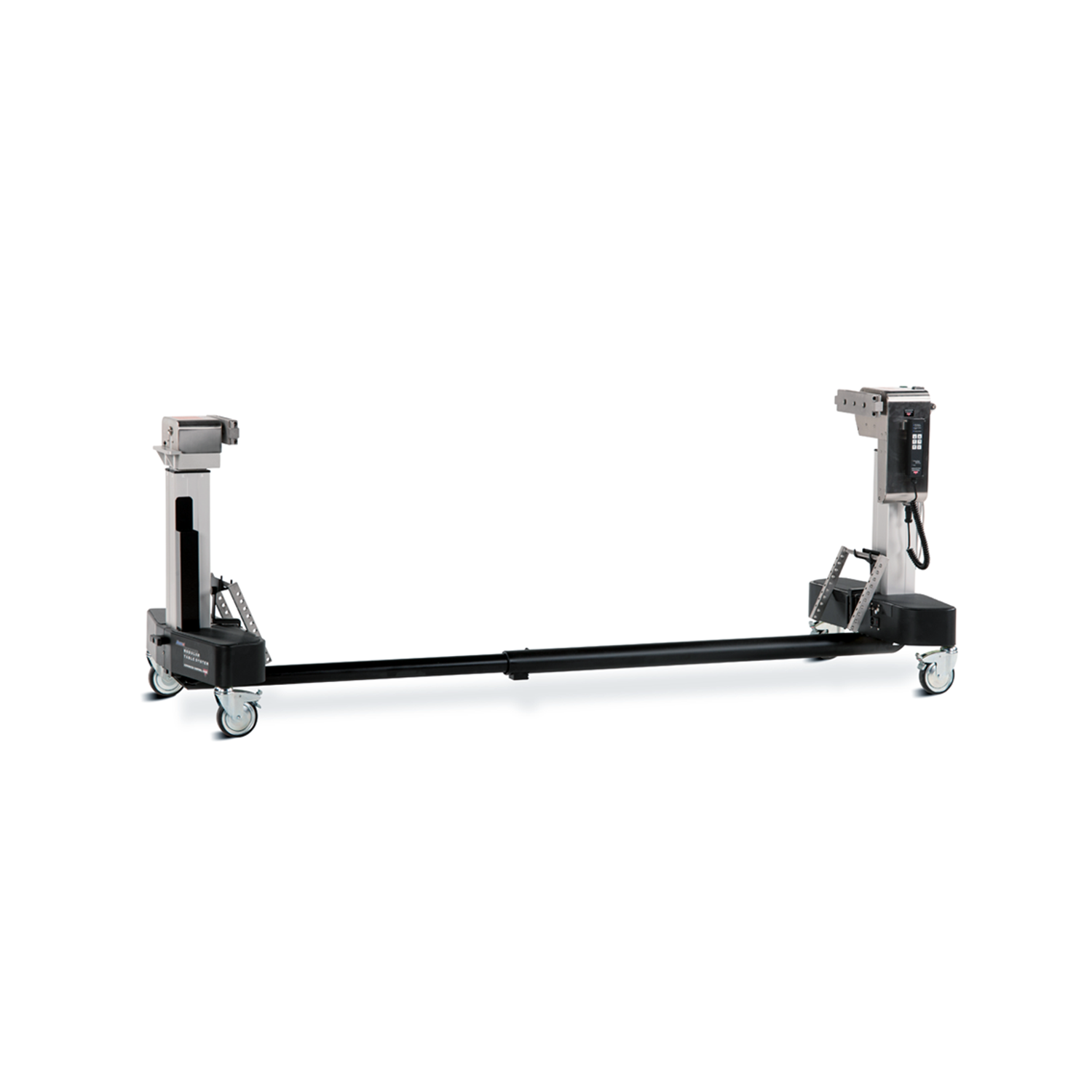

  • Advanced Control Base:
    • Works with three interchangeable tops, specifically designed to support patient positioning in a variety of procedures

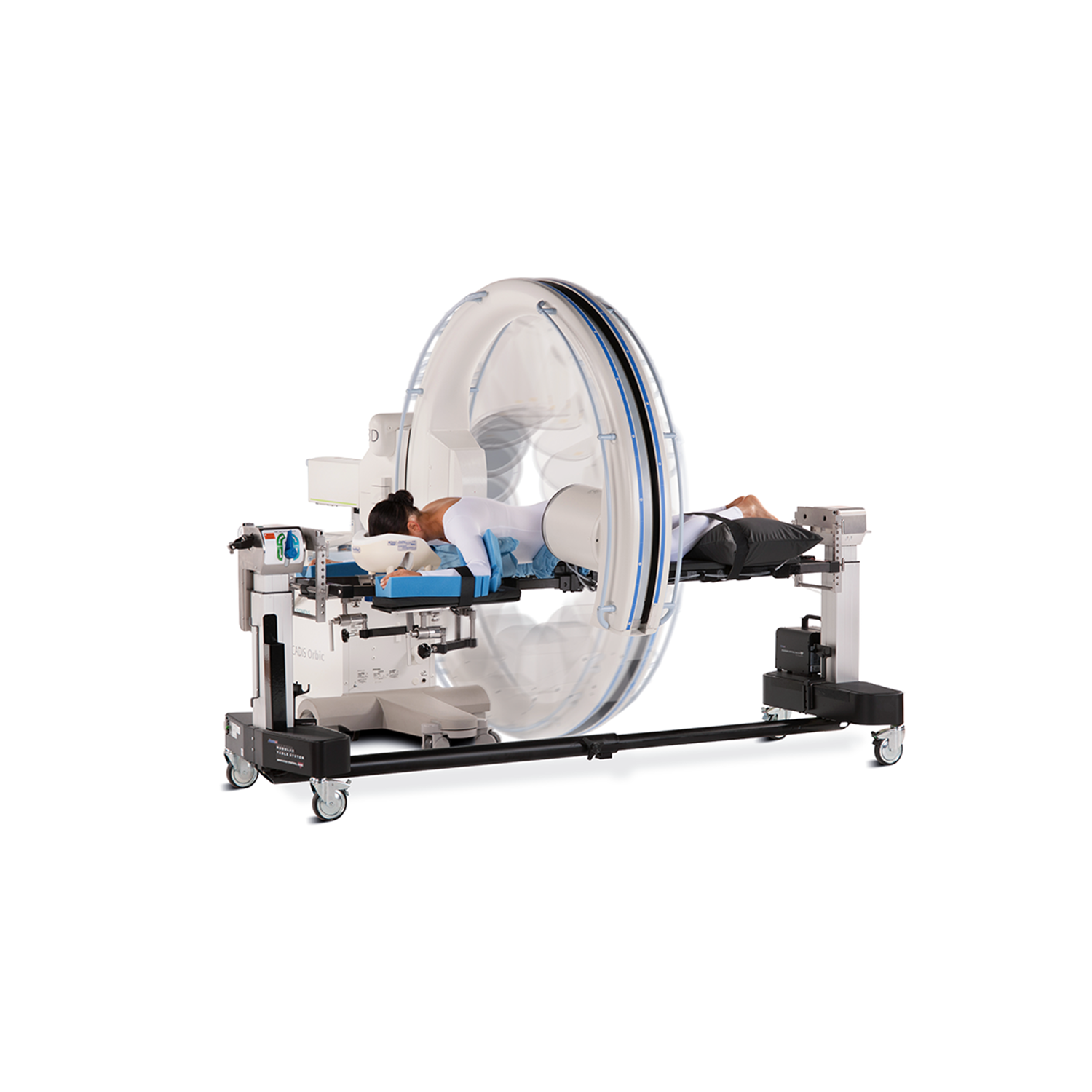

    • Dual column design for easy C-arm and O-arm® access
    • Retractable I-beam, for easy storage
    • AC and battery operation
    • Powered lateral tilt
    • Hand pendant controls for height, Trendelenburg and lateral adjustments
    • O-arm® is a registered trademark of Medtronic, Inc.

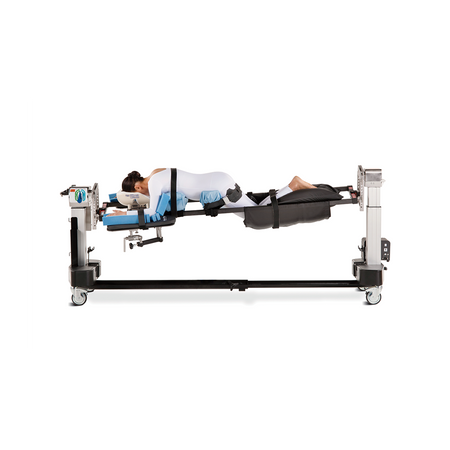

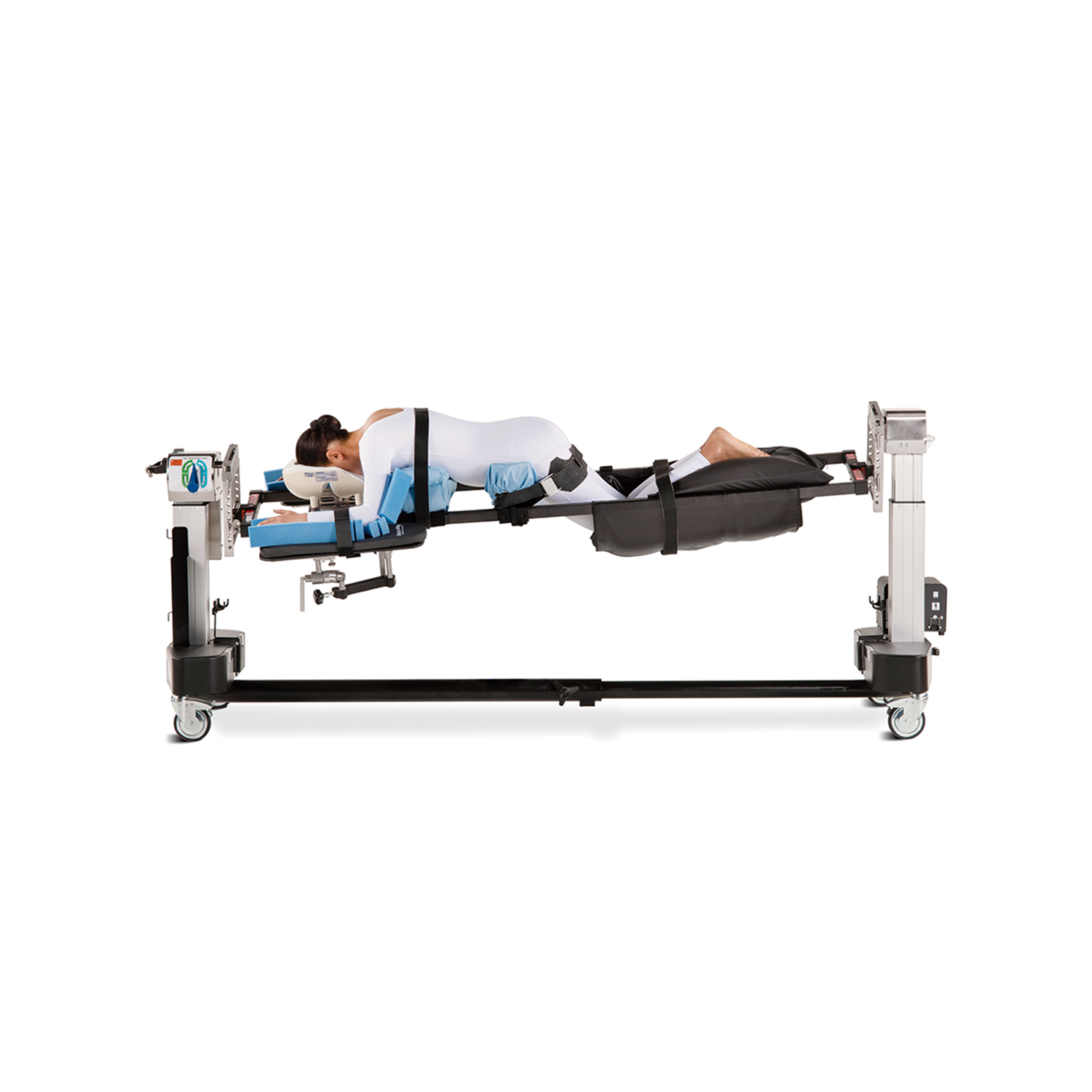

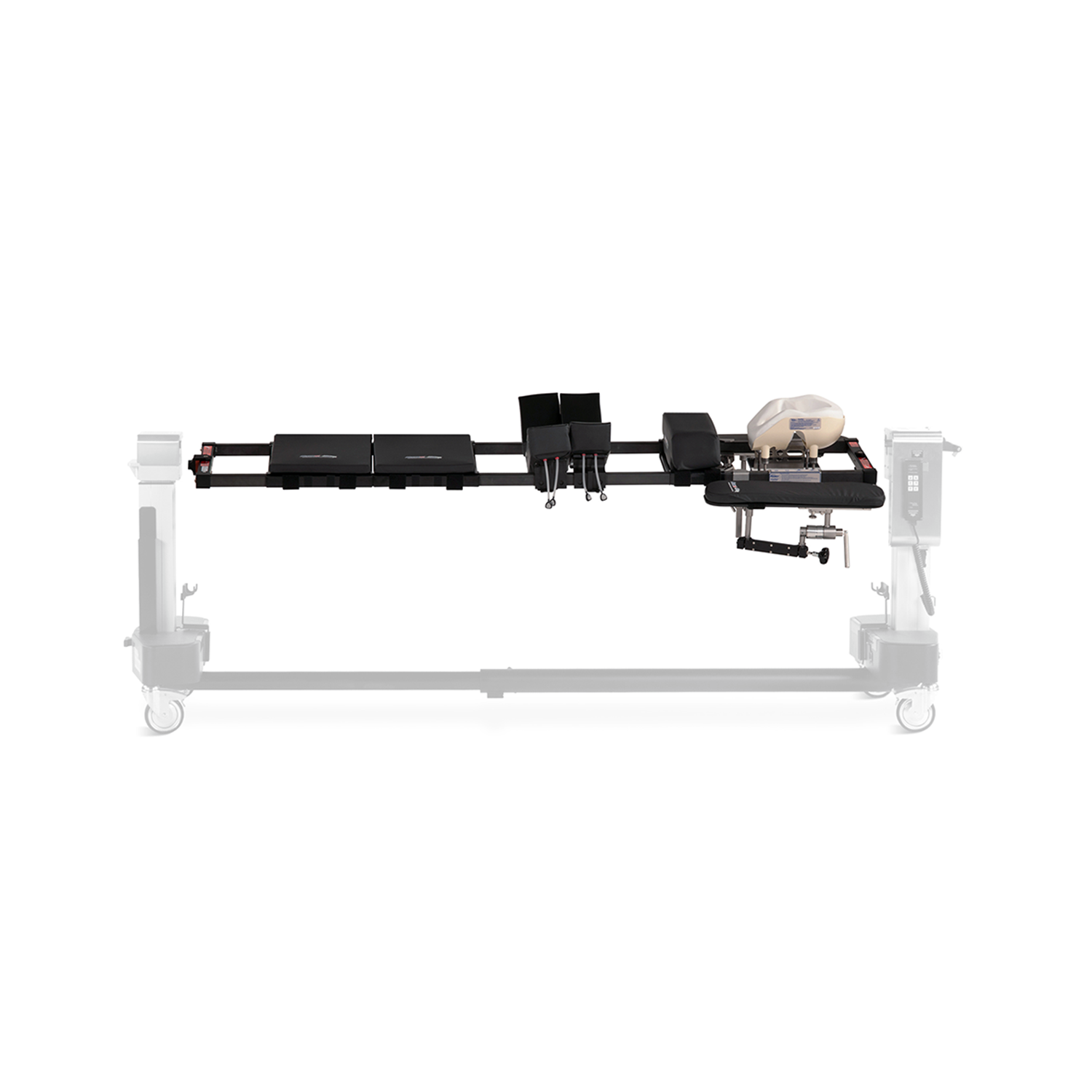

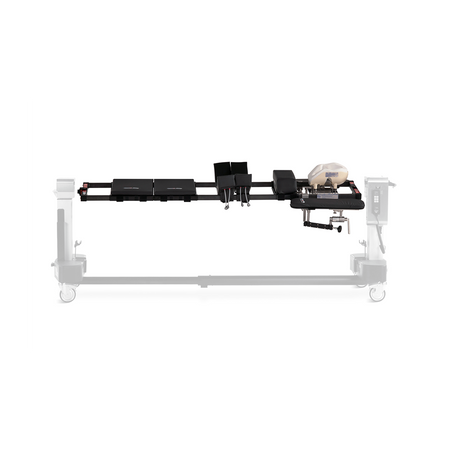

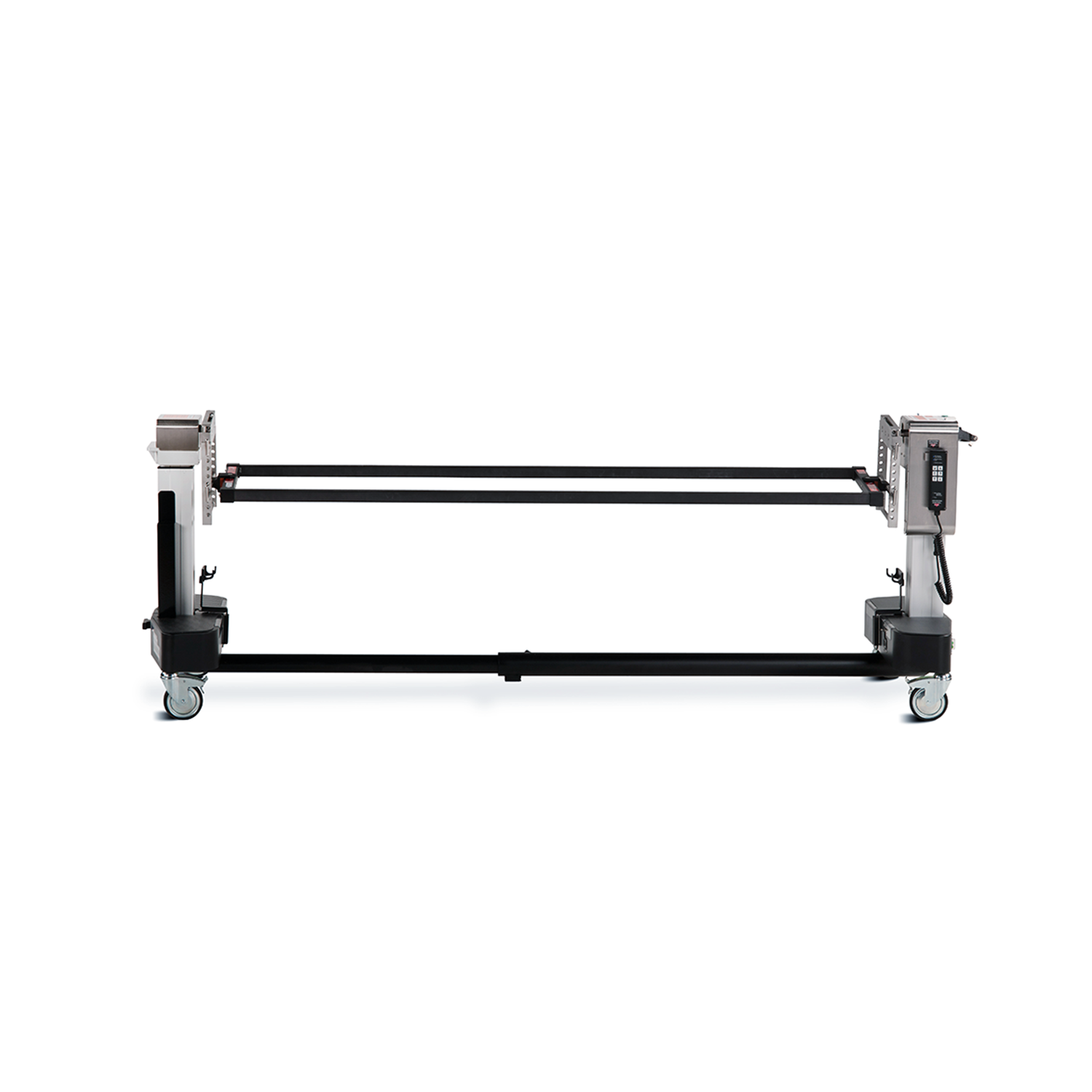

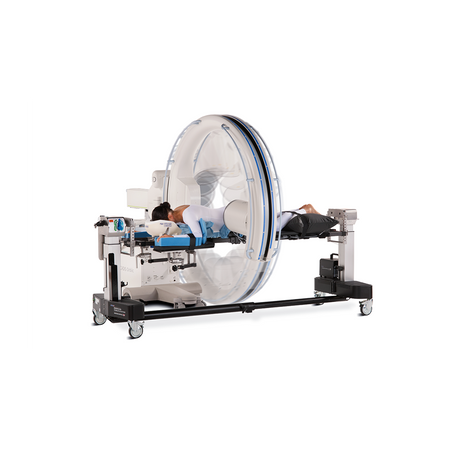

  • Spinal Surgery Top:
    • Open frame design and individual positioning pads
    • Carbon fiber frame for complete radiolucency
    • Works with the Radiolucent Imaging Top for 180° patient rotation

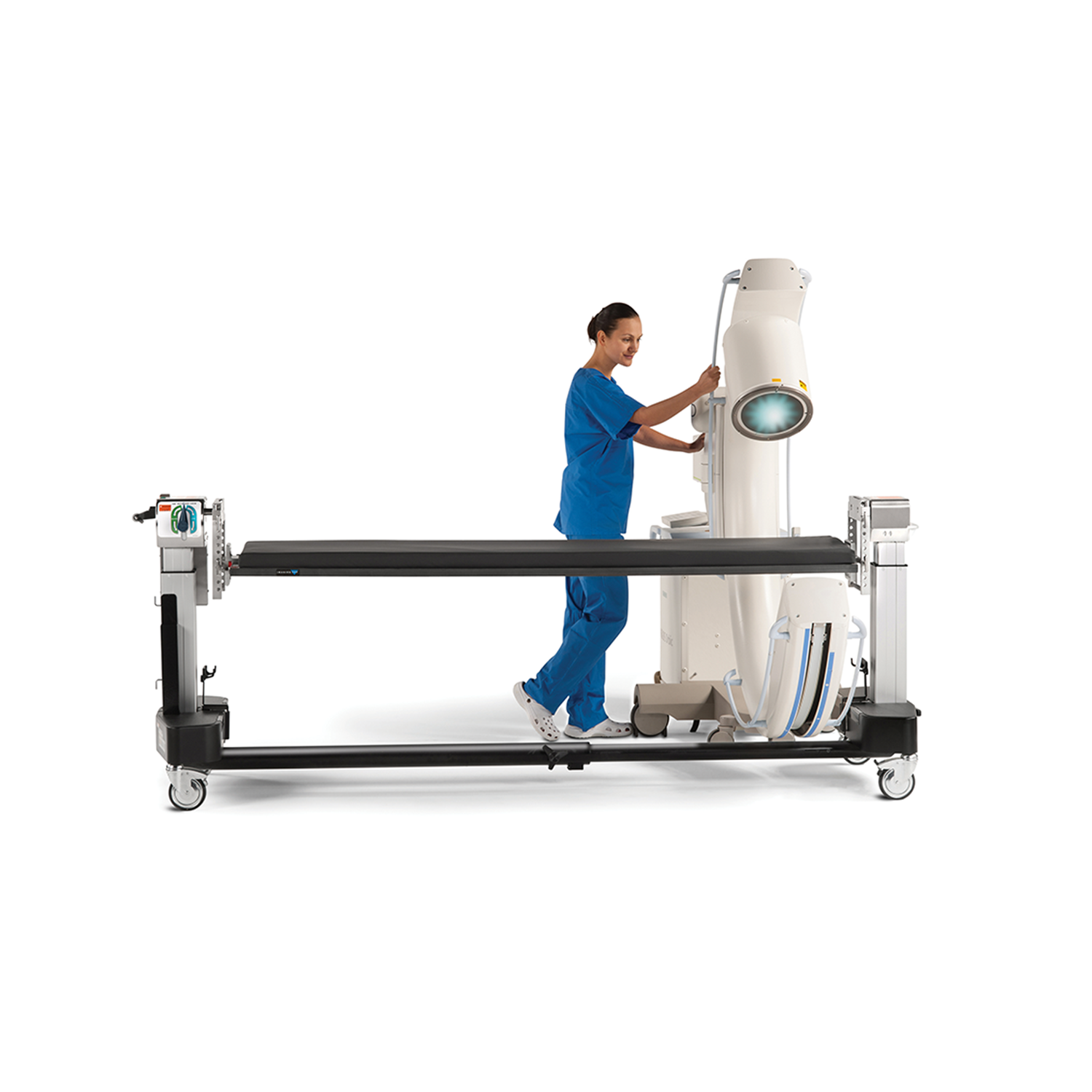

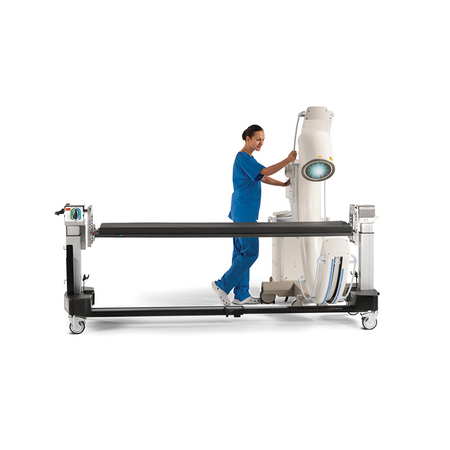

    • Radiolucent Imaging Top

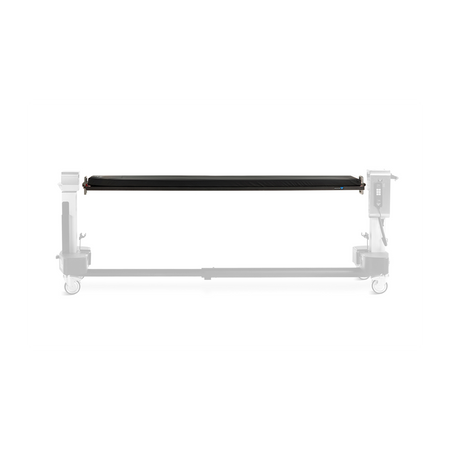

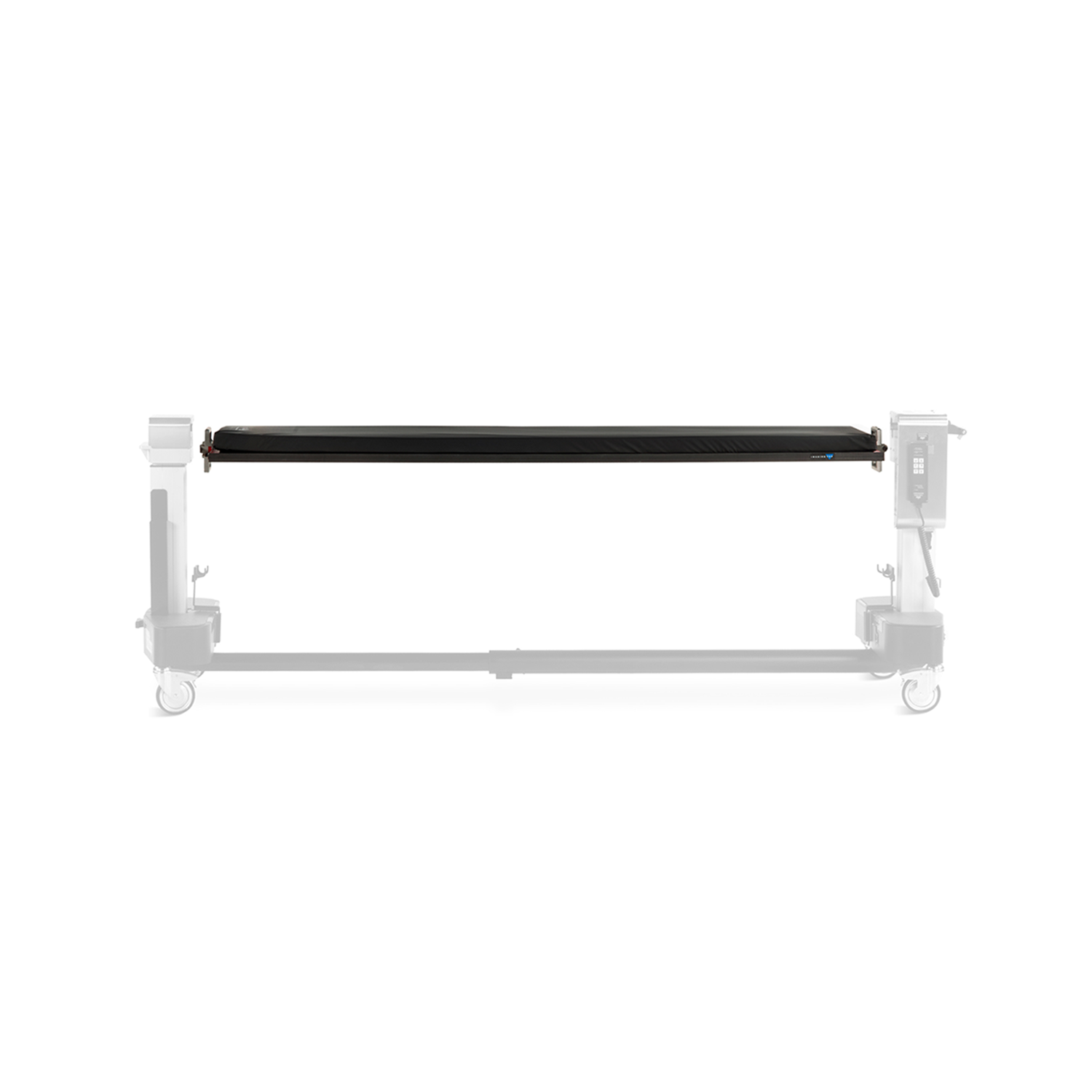

  • Radiolucent Imaging Top:
    • Easily supports supine and lateral positions
    • Carbon fiber table top with Tempur-Pedic® Pressure Equalization Pad technology

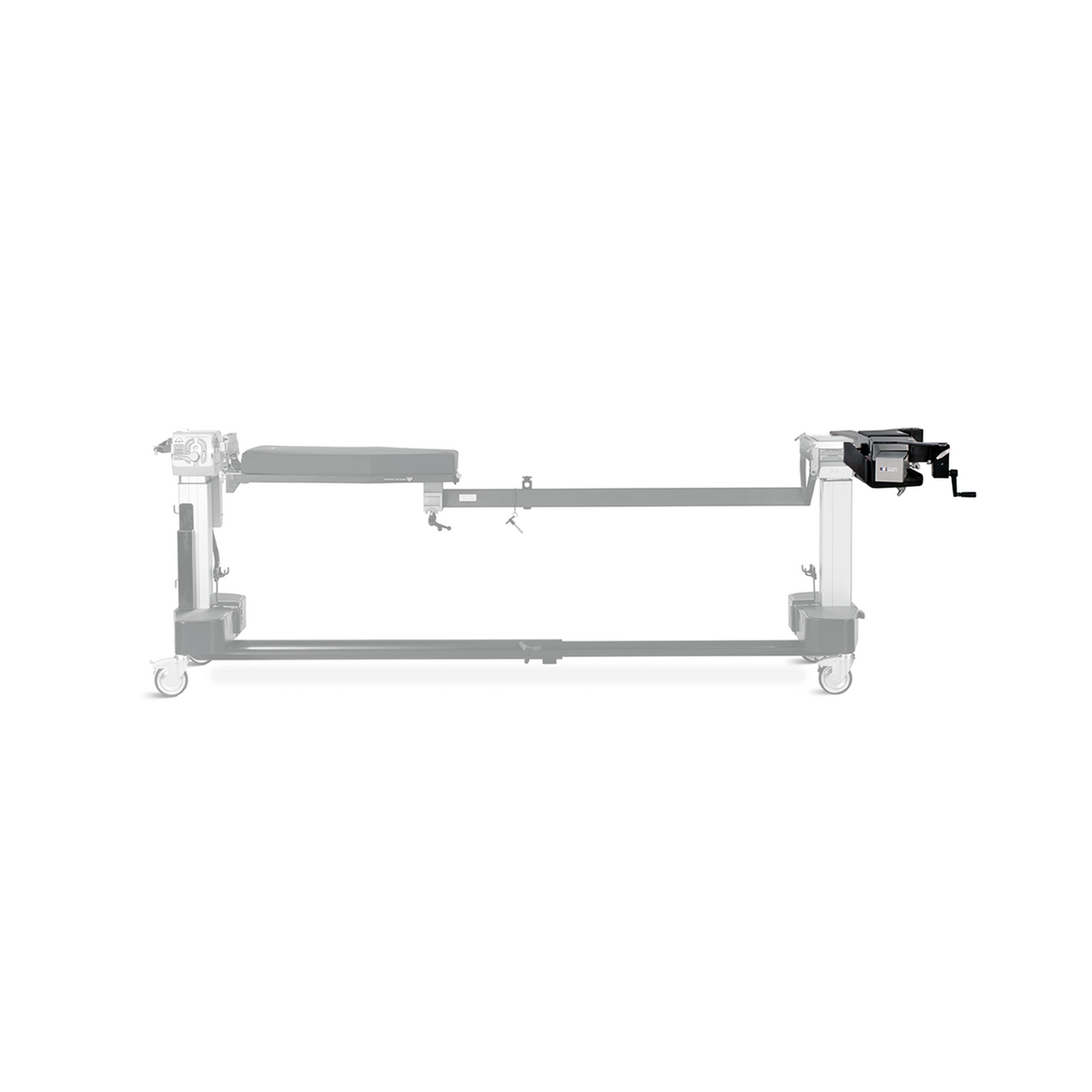

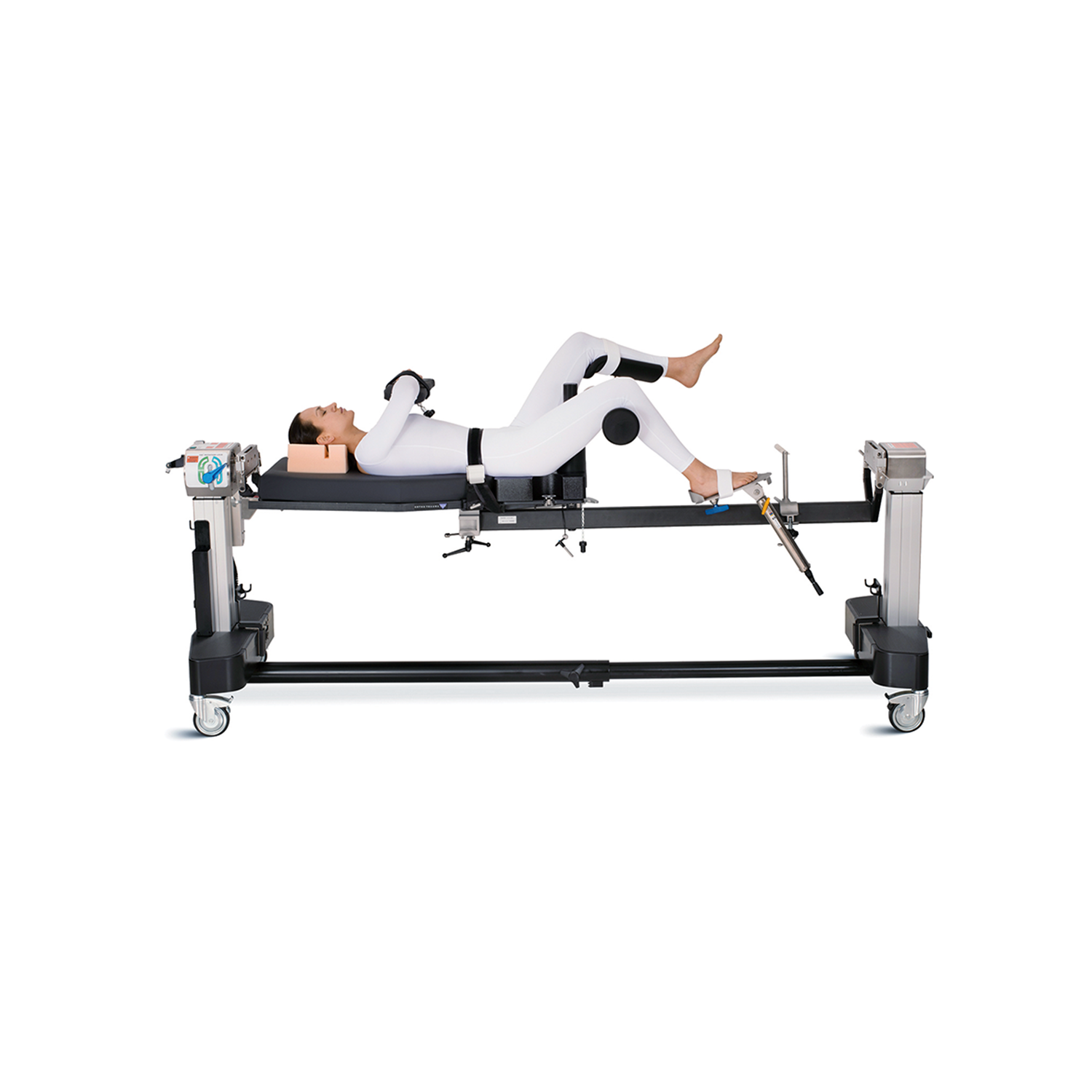

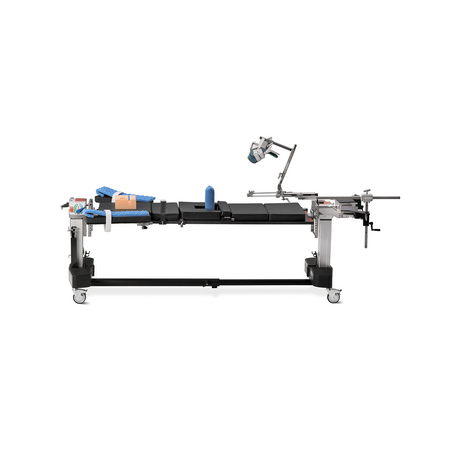

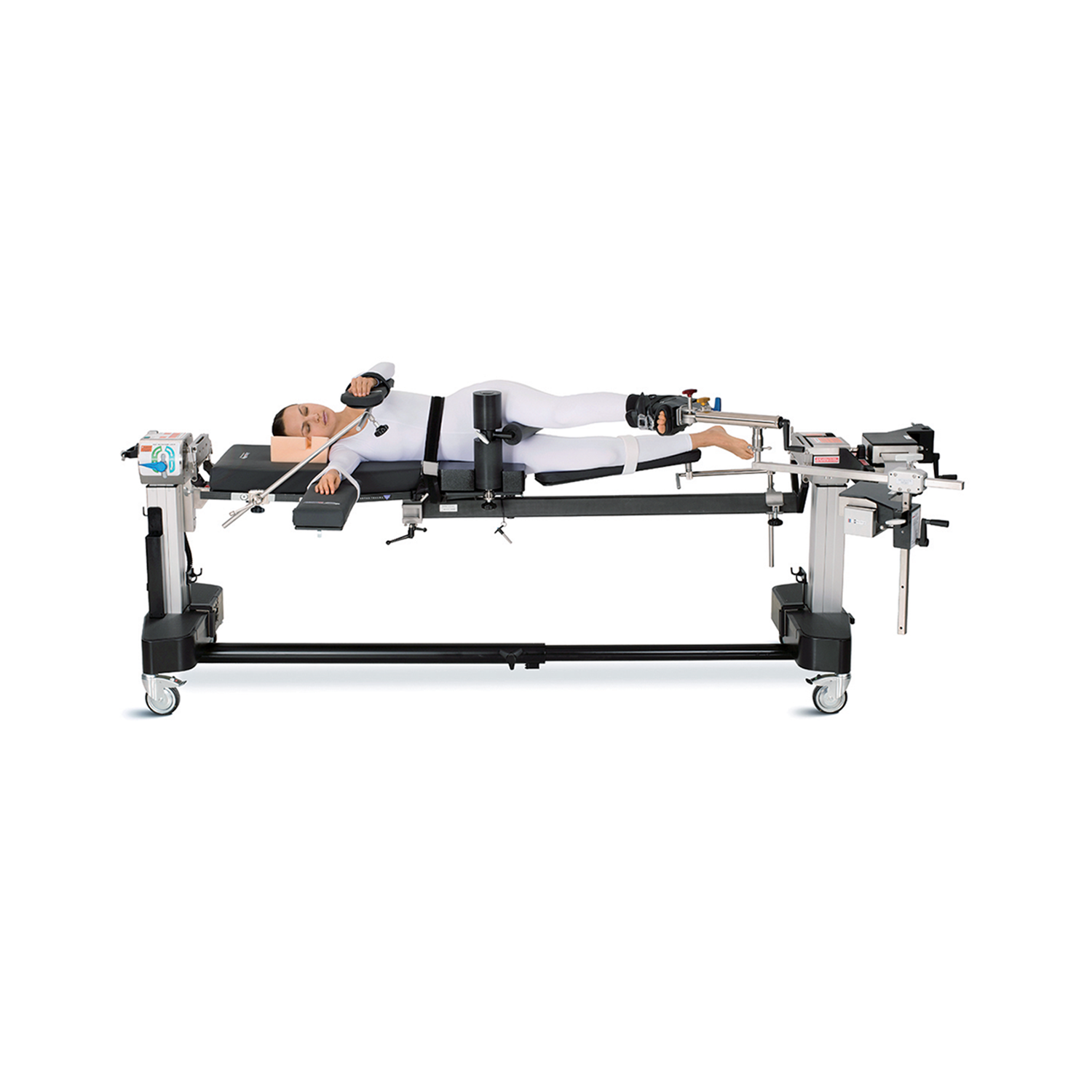

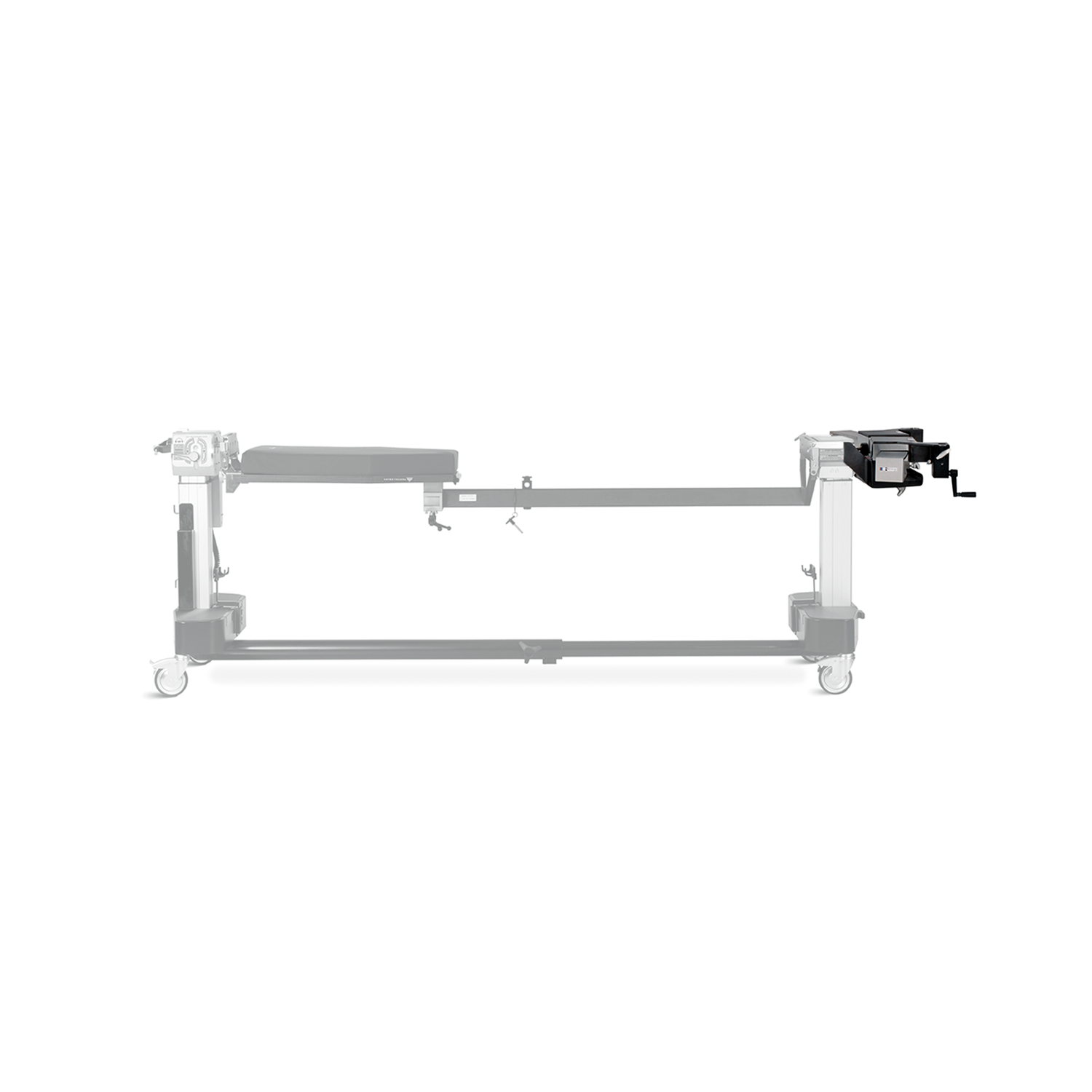

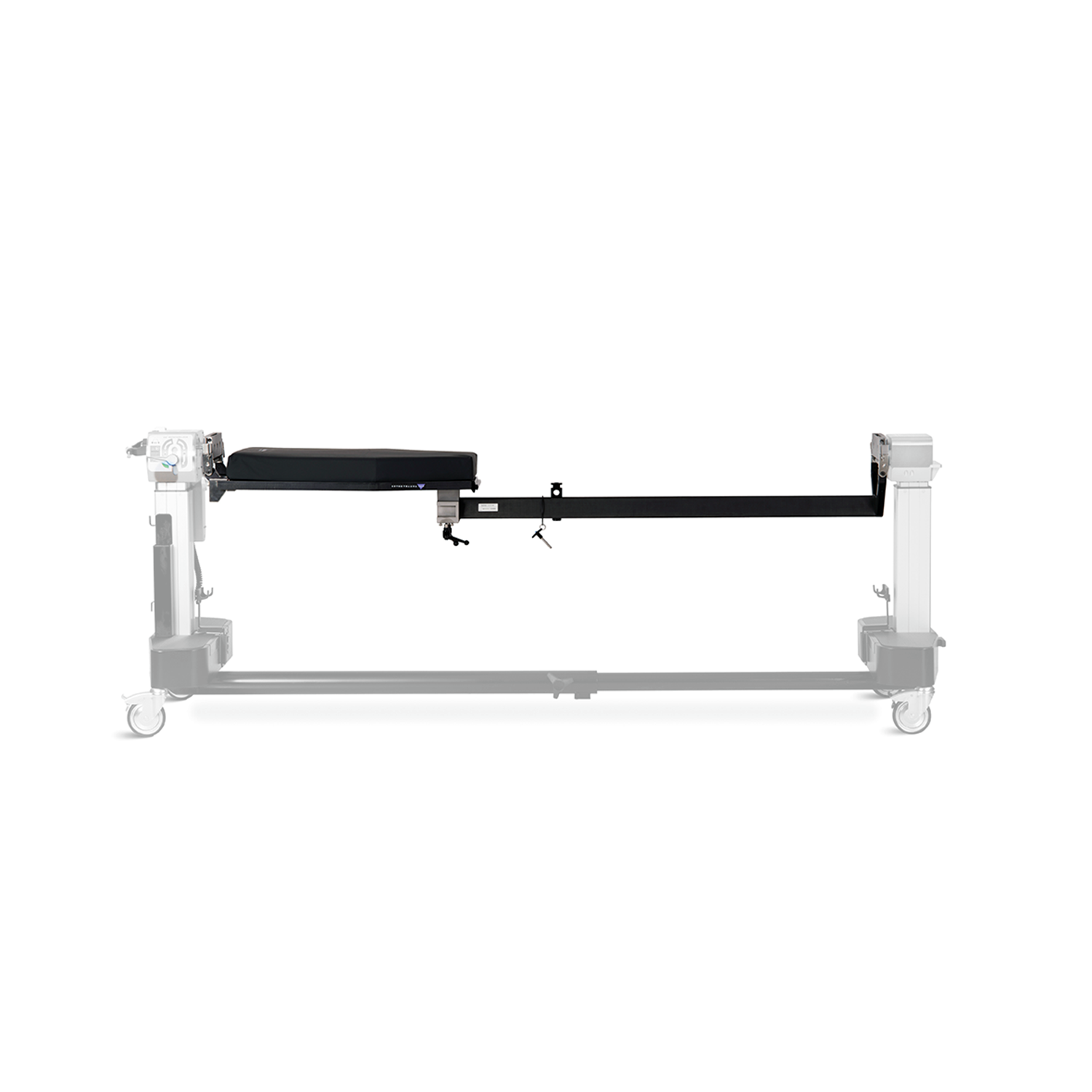

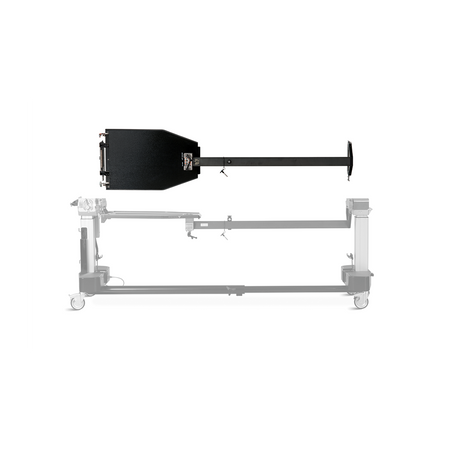

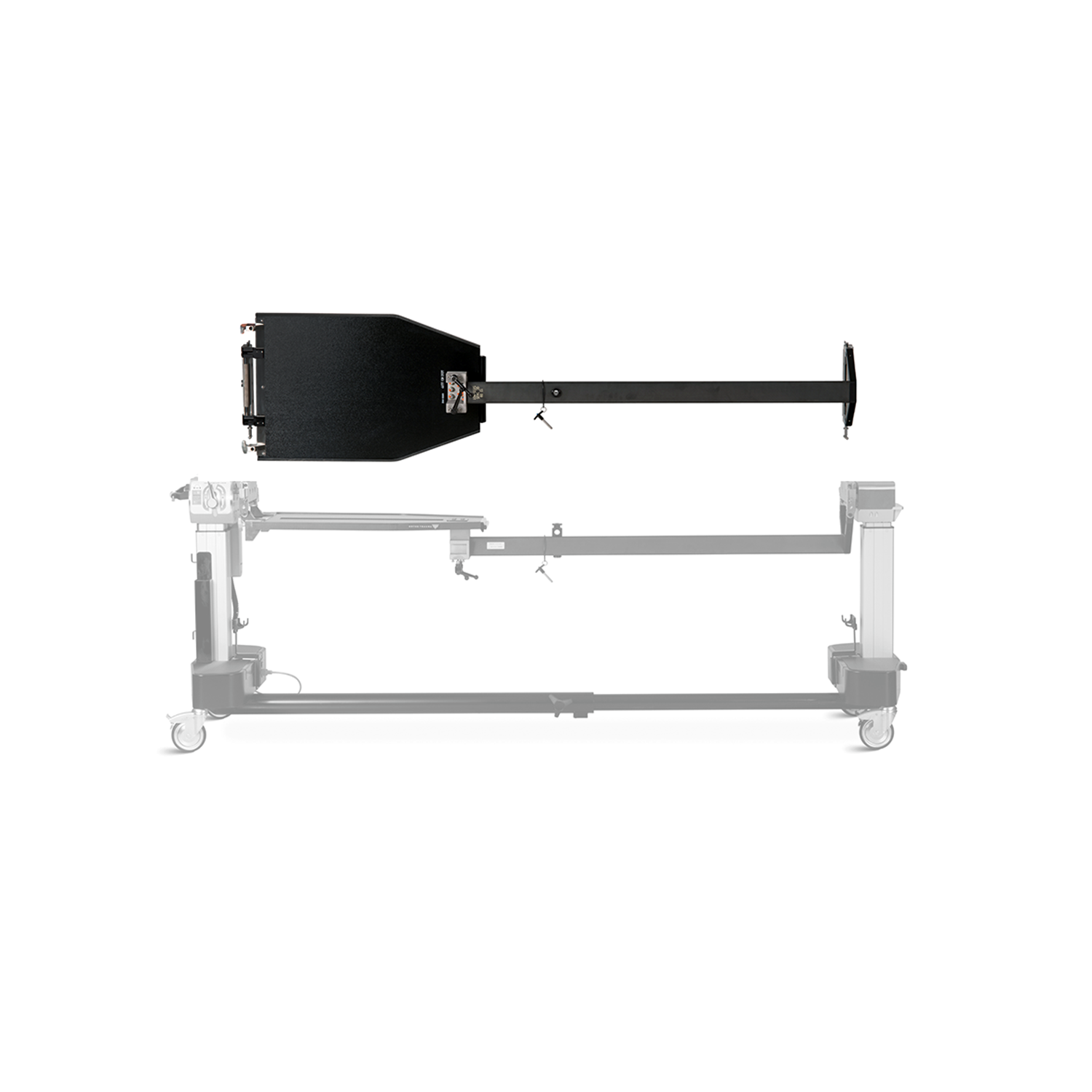

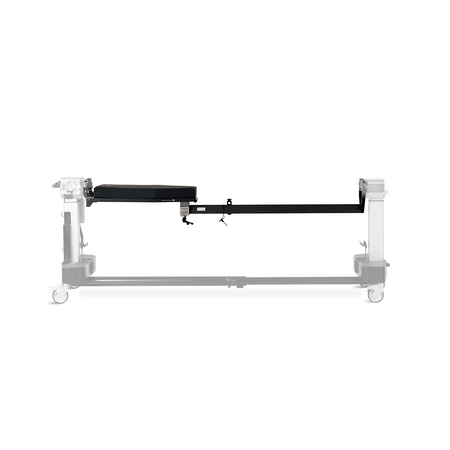

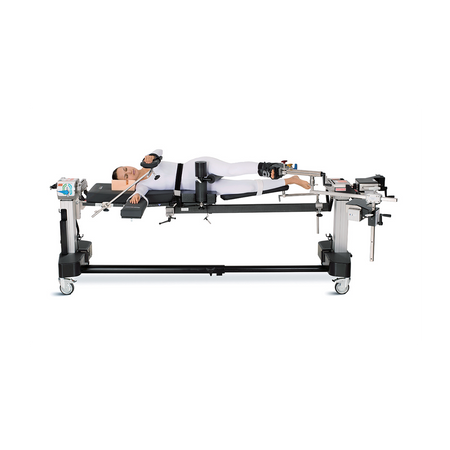

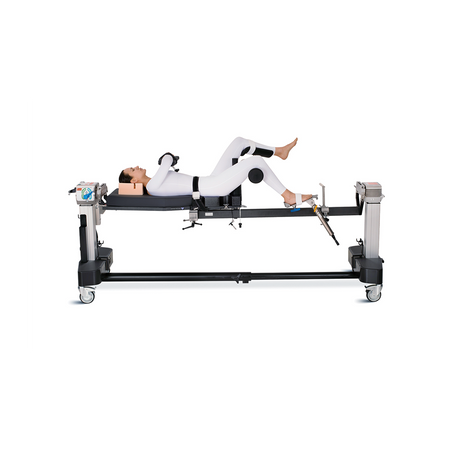

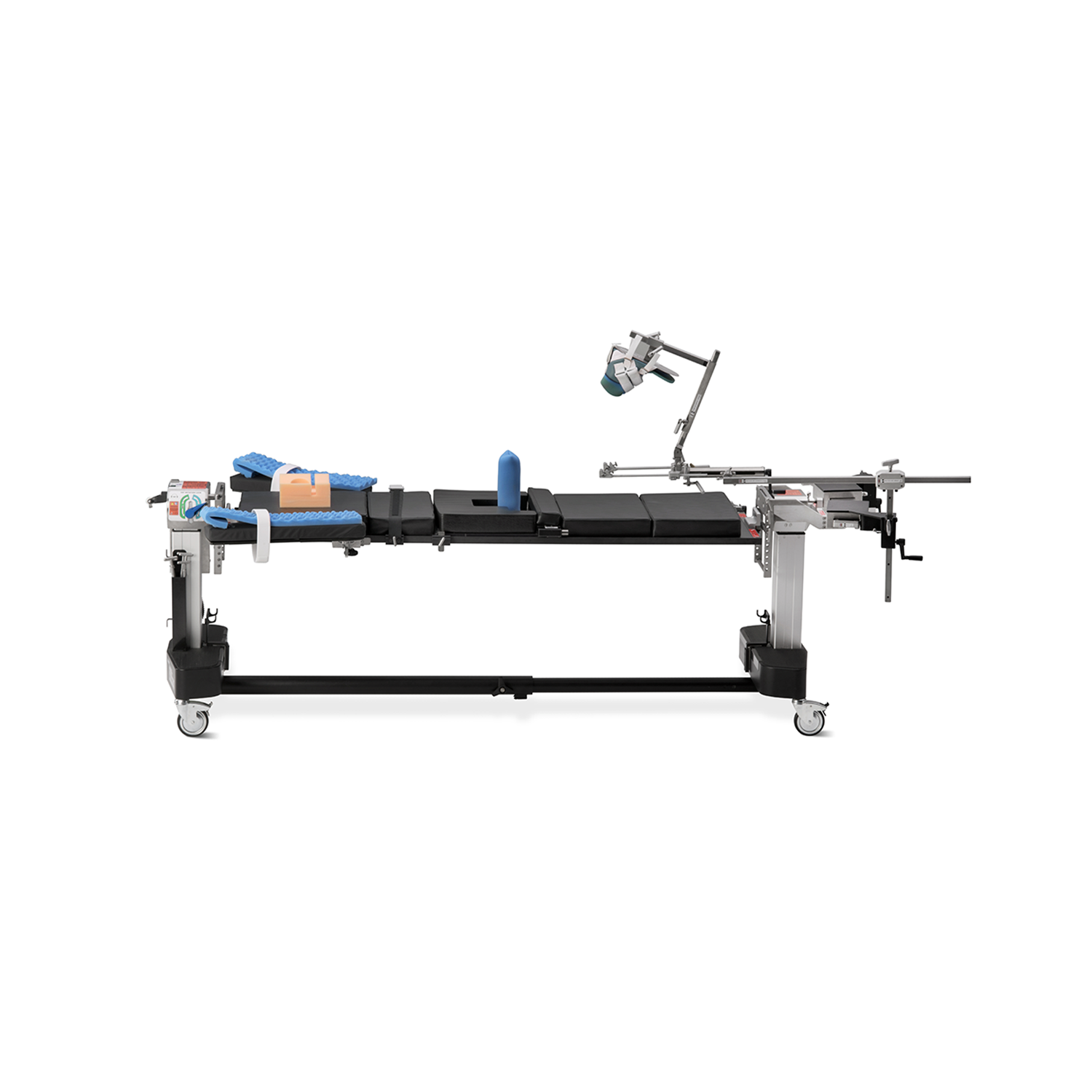

  • Orthopedic Trauma Top:
    • Lower extremity trauma procedures in prone, supine and lateral positions
    • Anatomically correct Traction Arc for procedures requiring traction
    • Eliminates need for leg spar on operative leg
    • Permits unrestricted access for surgeon and C-Arm

POSITIONING CAPABILITIES:

  • Prone
  • Supine
  • Lateral

COMMON PROCEDURES:

  • Spinal:
    • Laminectomies
    • Decompressions
    • Osteotomies
    • Anterior/posterior fusions
    • Surgical correction of deformities
    • Anterior/posterior cervical procedures
    • Kyphoplasties
    • Vertebroplasties
    • IDET surgeries

  • Imaging:
    • Vascular surgery
    • Joint imaging
    • Pain management

  • Orthopedic Trauma:
    • Hip pinning
    • Supine IM femoral nailing
    • Lateral IM femoral nailing
    • IM tibial nailing
    • Ender nailing

SPECIFICATIONS:

  • Manufacturer: Mizuho OSI
  • Part Number: (OEM): MTS
  • Category: Tables Surgical - Modular
  • Accessories: None
  • Condition: New/Refurbished
  • Weight: 500lbs.
  • Warranty: 3 Months

MODULAR TABLE SYSTEM COMPONENTS:

  • Advanced Control Base - Part #5803

  • Pelvic Reconstruction Kit - Part #5848

  • Spinal Surgery Top - Part #5943:
    • Height range 27–48” (69–122cm)
    • Table top length 84” (213cm)
    • Table top width 17” (43cm)

  • Radiolucent Imaging Top - Part #5927:
    • Height range 27–48” (69–122cm)
      • Height range difference is due to the use of H-Frames to mount the spinal and imaging tops
    • Table top length 84” (213cm)
    • Table top width 21.5” (55cm)

  • Orthopedic Trauma Top - Part #5855:
    • Height range 34-50” (86–127cm)
      • Height range difference is due to the use of H-Frames to mount the spinal and imaging tops
    • Table top length 84” (213cm)
    • Table top width 21.5” (55cm)

STANDARD COMPONENTS:

  • Spinal Surgery Top:
    • H-Frame (2)
    • Spine Frame
    • ProneView® Protective Helmet and Mirror Platform
    • Face Plate
    • Tempur-Pedic® Chest Pad
    • Chest Plate
    • Leg Board with 1” (2.5cm) Tempur-Pedic Pad (2)
    • Adjustable Leg Sling
    • Buttocks Strap
    • Safety Strap 60” (152cm)
    • Safety Strap 90″ (229cm) (4)
    • Cervical Traction Vector
    • Table Top Cover
    • T-pin (4)
    • * Arm Boards sold separately. Quantity two (2) required.
    • * Hip/Thigh Pad Sets sold separately. Selection of one (1) set required.

  • Radiolucent Imaging Top:
    • Imaging Table Top Assembly
    • Tempur-Pedic Pad 2” (5cm)
    • Patient Safety Strap (2)
    • H-Frame (2)
    • T-pin (4)
    • Table Cover

  • Orthopedic Trauma Top:
    • Tables Top Assembly

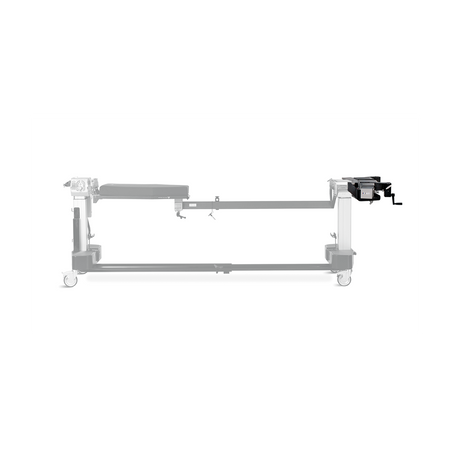

    • Traction Arc with Cart
    • Traction Unit
    • Traction Extension, long or short
    • Traction Boot (pair), large and small
    • Traction Boot with Foot Plate, large and small
    • 90° Pin and Wire Holder
    • G.M. Board, with Locking Knob right and left
    • Center Support Board w/ Pad
    • Perineal Post, child and adult
    • Ilium Post
    • Radiolucent Leg Spar
    • Leg Spar Upright
    • Tibia Counter Traction Post
    • W or V Traction Unit Upright
    • Tibia Traction Upright
    • Accessory Clamp
    • Well Leg Support and Swing Arm
    • Transfer Board Assembly
    • Leg Board Assembly
    • Lower Leg Support Assembly
    • Lateral Perineal Post Assembly
    • Safety Strap
    • Patient Isolation Drape Hangers, short and long
    • Universal Side Rail Adaptor 6” (15cm)
