Mizuho OSI Insite Surgery Table

SKU: EN-MIZUHO-INSITE
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

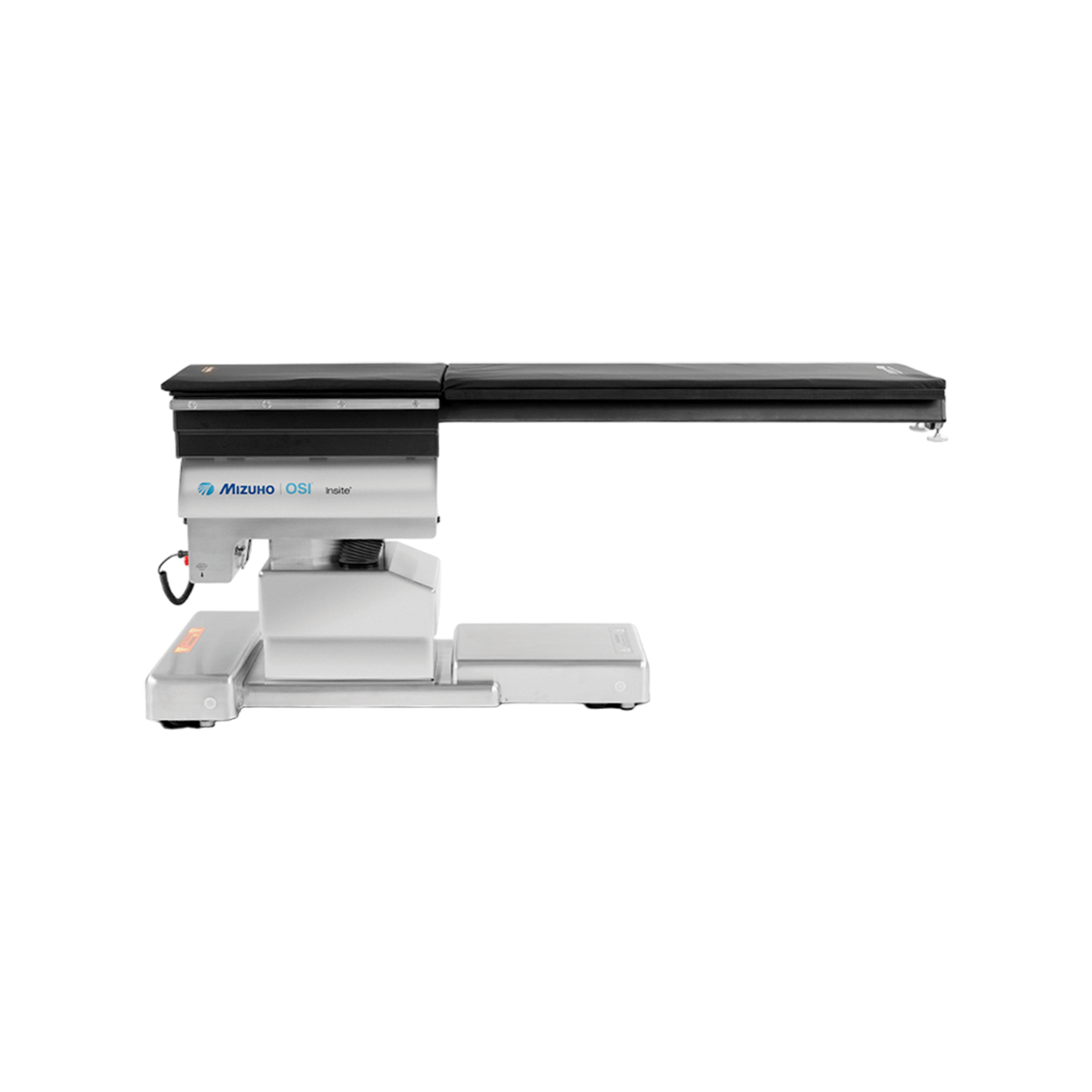

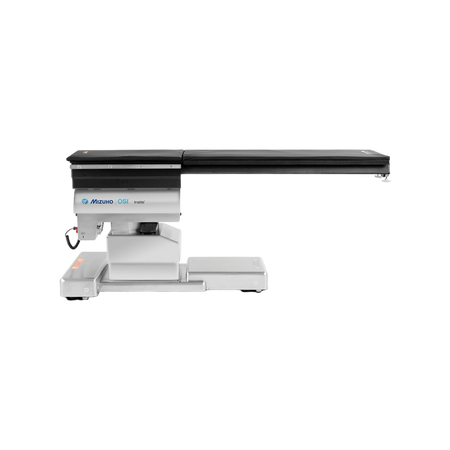

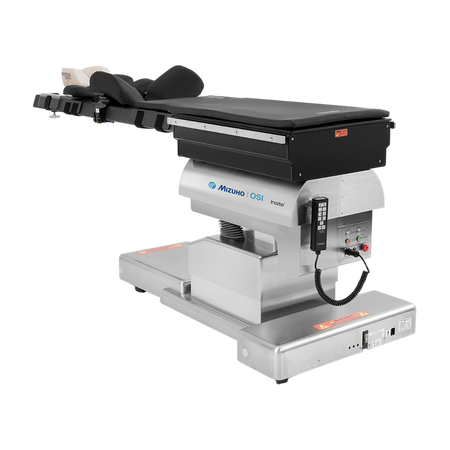

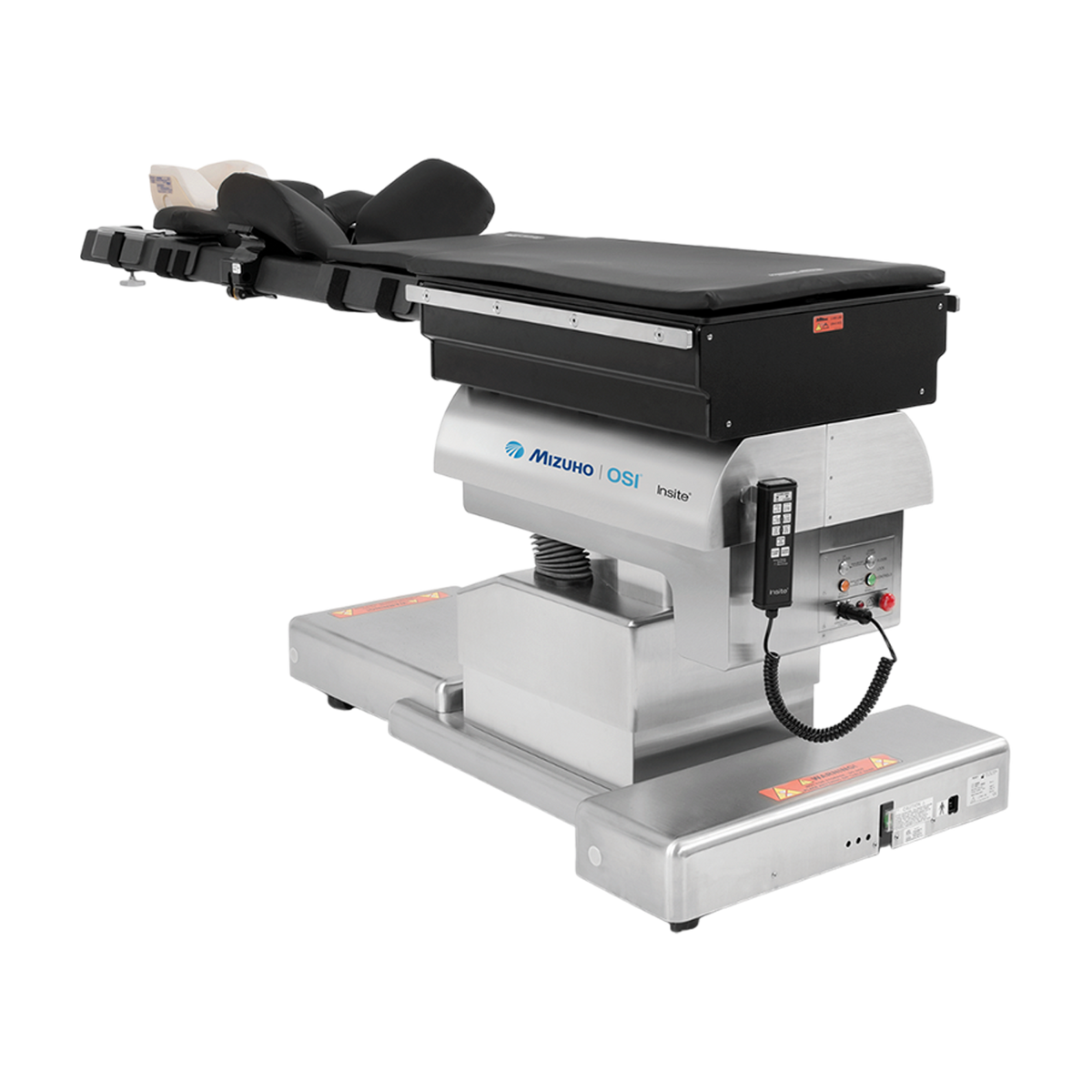

A versatile and radiolucent cantilevered surgical table suitable for a variety of spine and imaging procedures.

Modern imaging solution

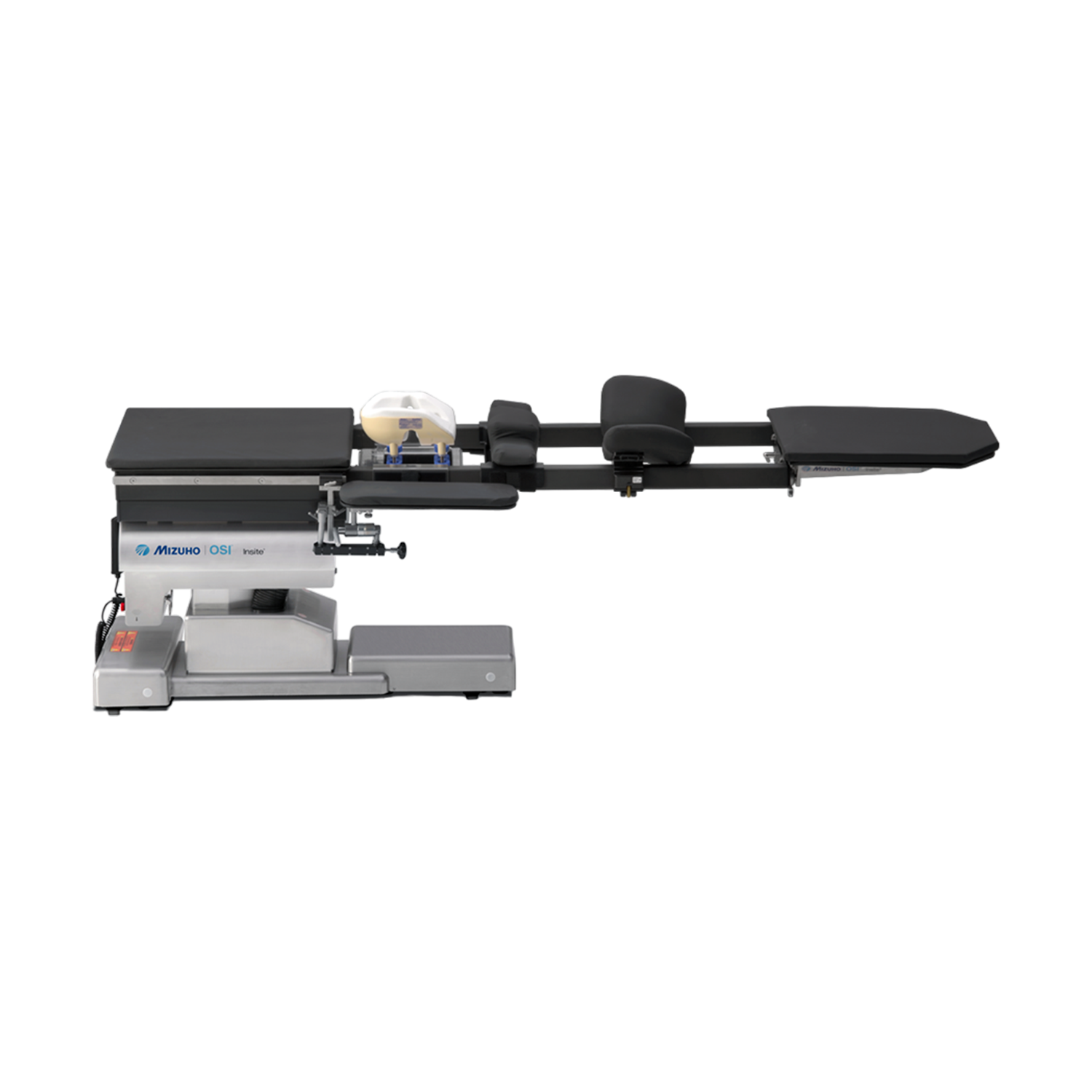

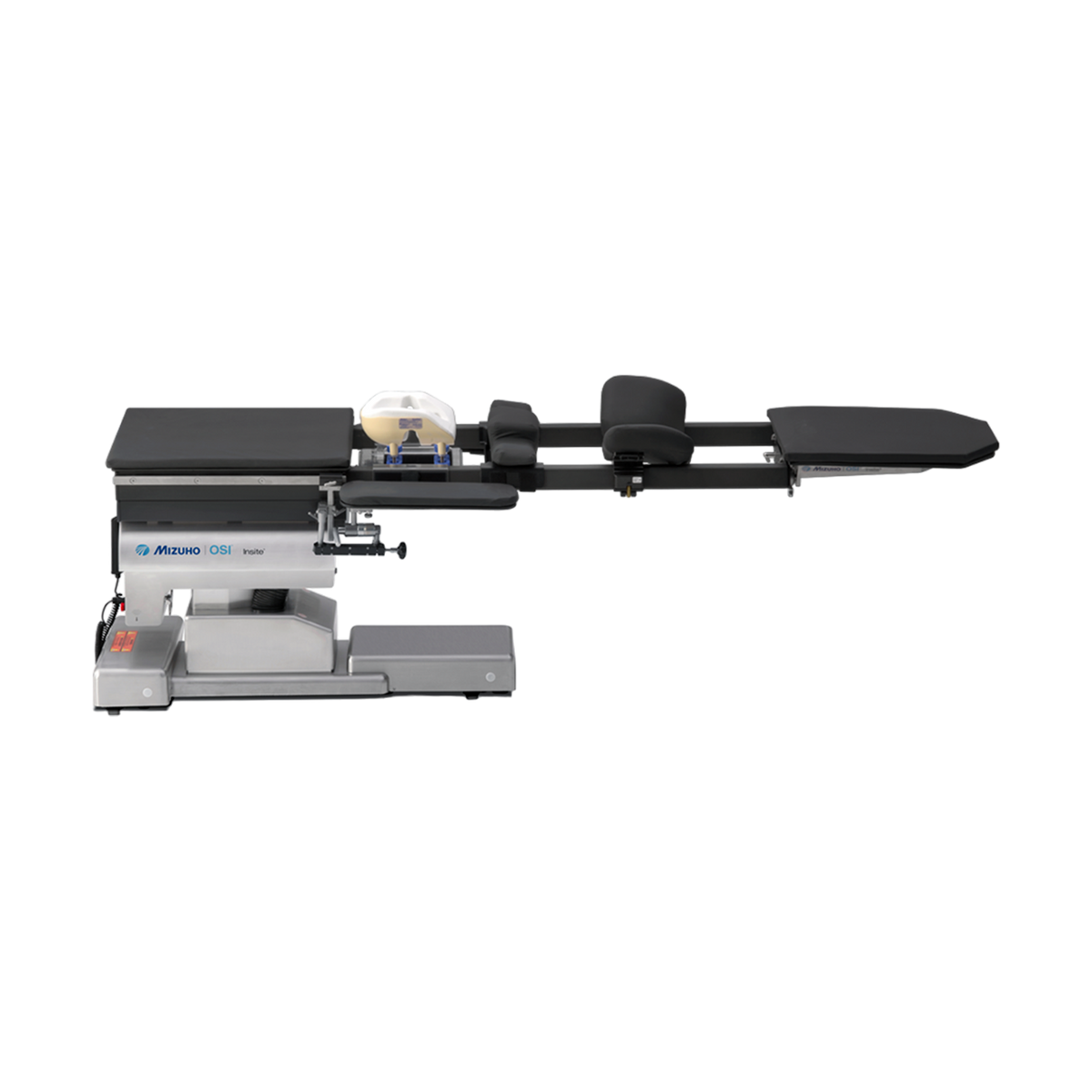

The Insite Multi-Procedural Surgery Table features a radiolucent cantilevered frame that enhances surgeons' imaging access during a wide range of procedures, including those necessitating complete spine access. With straightforward setup and a compact operating room footprint, the Insite seamlessly transitions from an open-frame spine platform to an imaging platform.

FEATURES:

  • Unobstructed imaging up to 55” (140cm) no metal zone

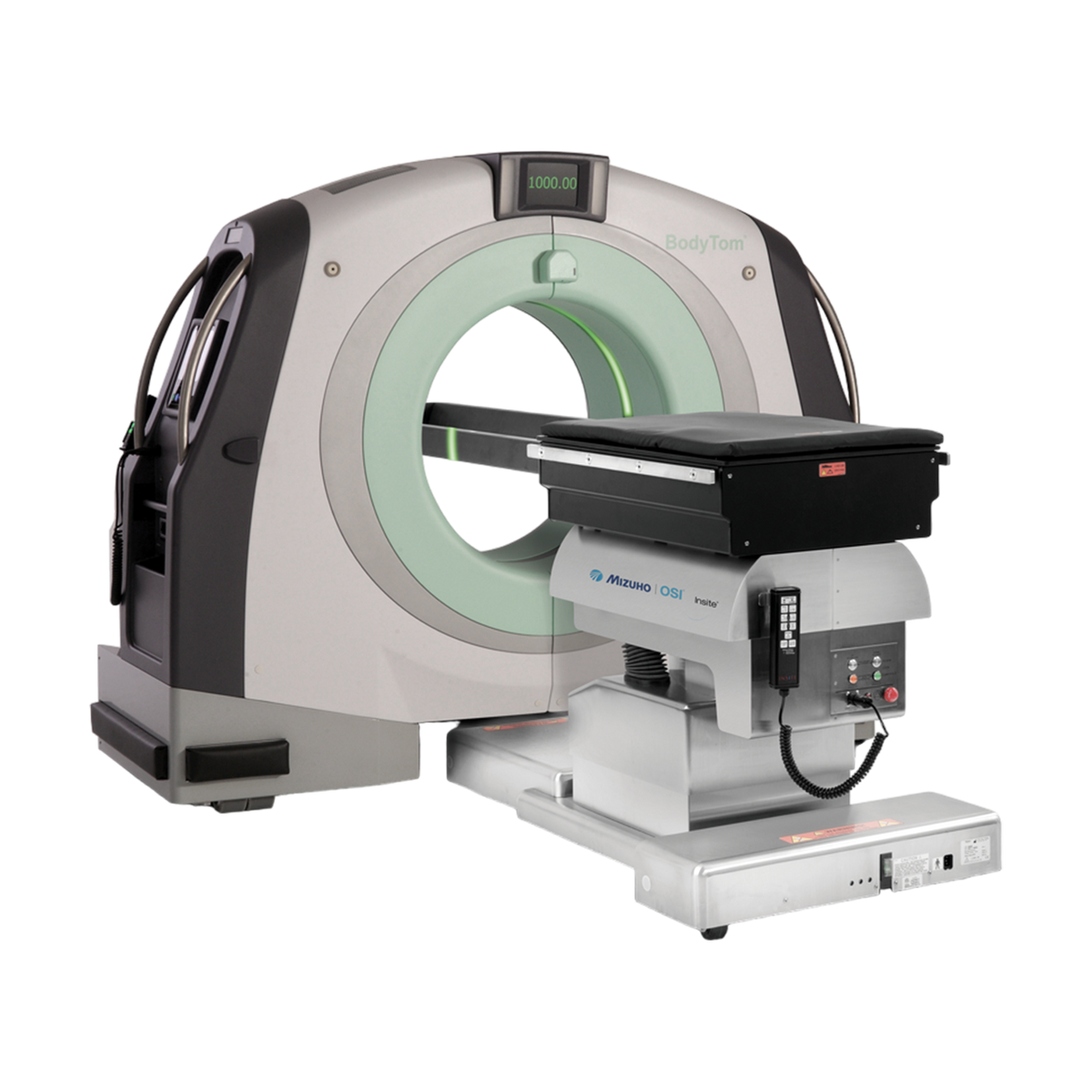

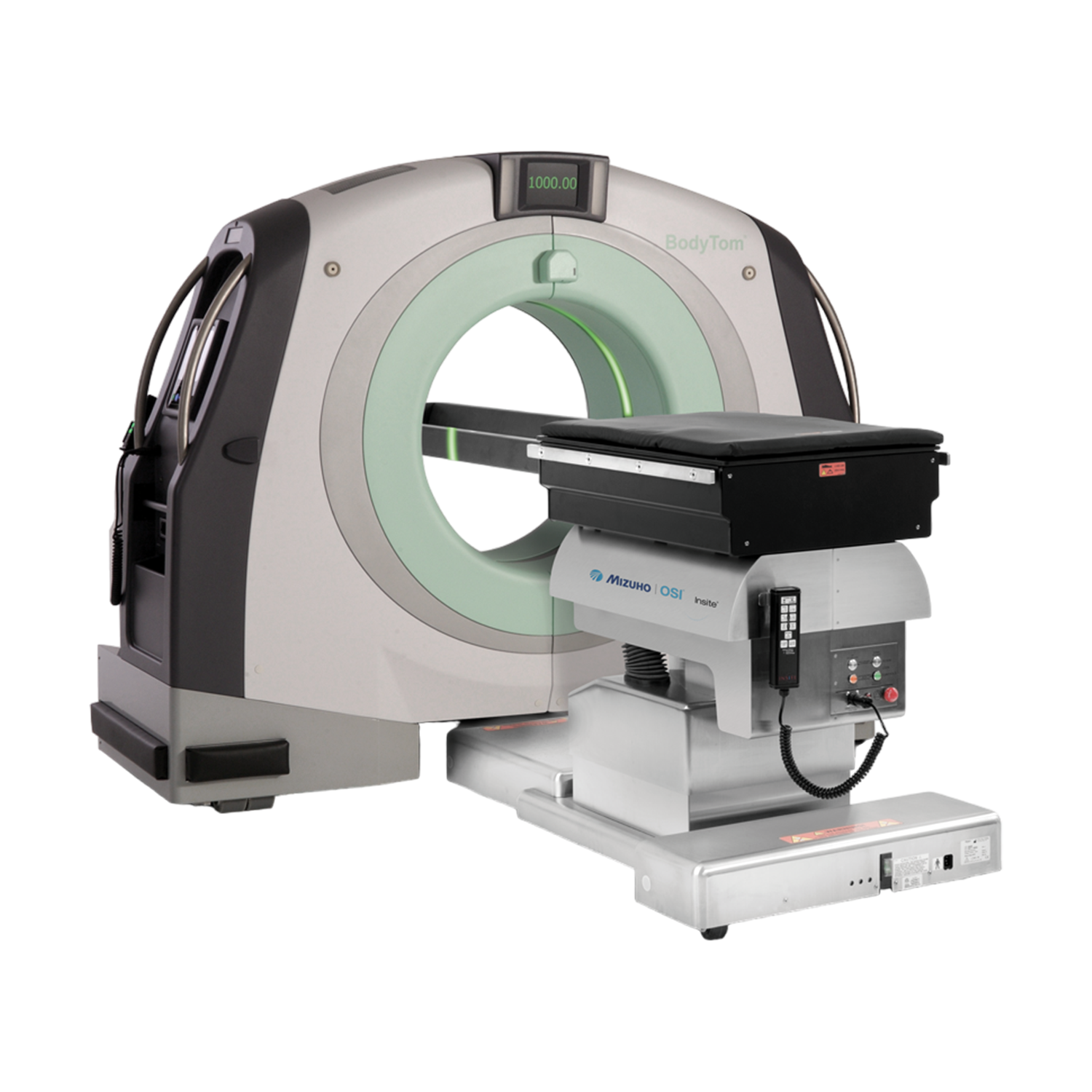

  • Interfaces with the BodyTom®, a portable, full body, multi-slice CT scanner
  • Unrestricted O-arm® and C-arm access
  • Universal Side Rail Adaptor and Retractor Adaptor for mounting ancillary equipment
  • Rail Mounted I.V. Pole keeps the floor clear for easy access of imaging devices

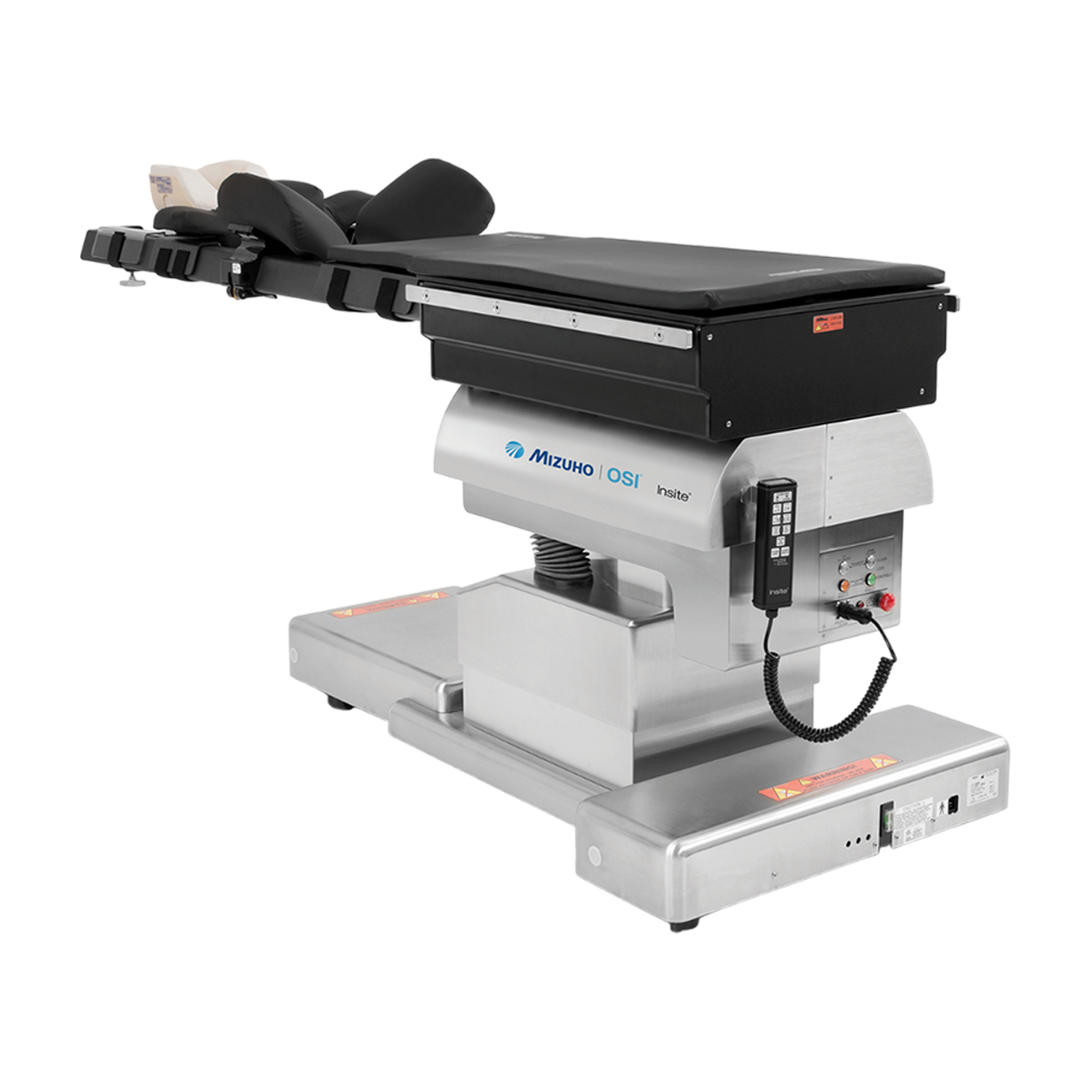

  • Backlit hand pendant controls all table functions, including floor locks, height, lateral roll, Trendelenburg/ reverse Trendelenburg and return to level
  • Tempur-Pedic® pad technology incorporated into all patient surfaces
  • ProneView® Protective Helmet System offers head and eye protection for the prone patient
  • Cervical mounting device for cranial stabilization options
  • Self-compensating power floor locks
  • Low-profile base with stainless steel shroud
  • AC or battery-operated
  • Emergency stop
  • Emergency floor lock override system
  • Standard OR accessory rails on pedestal end

POSITIONING CAPABILITIES:

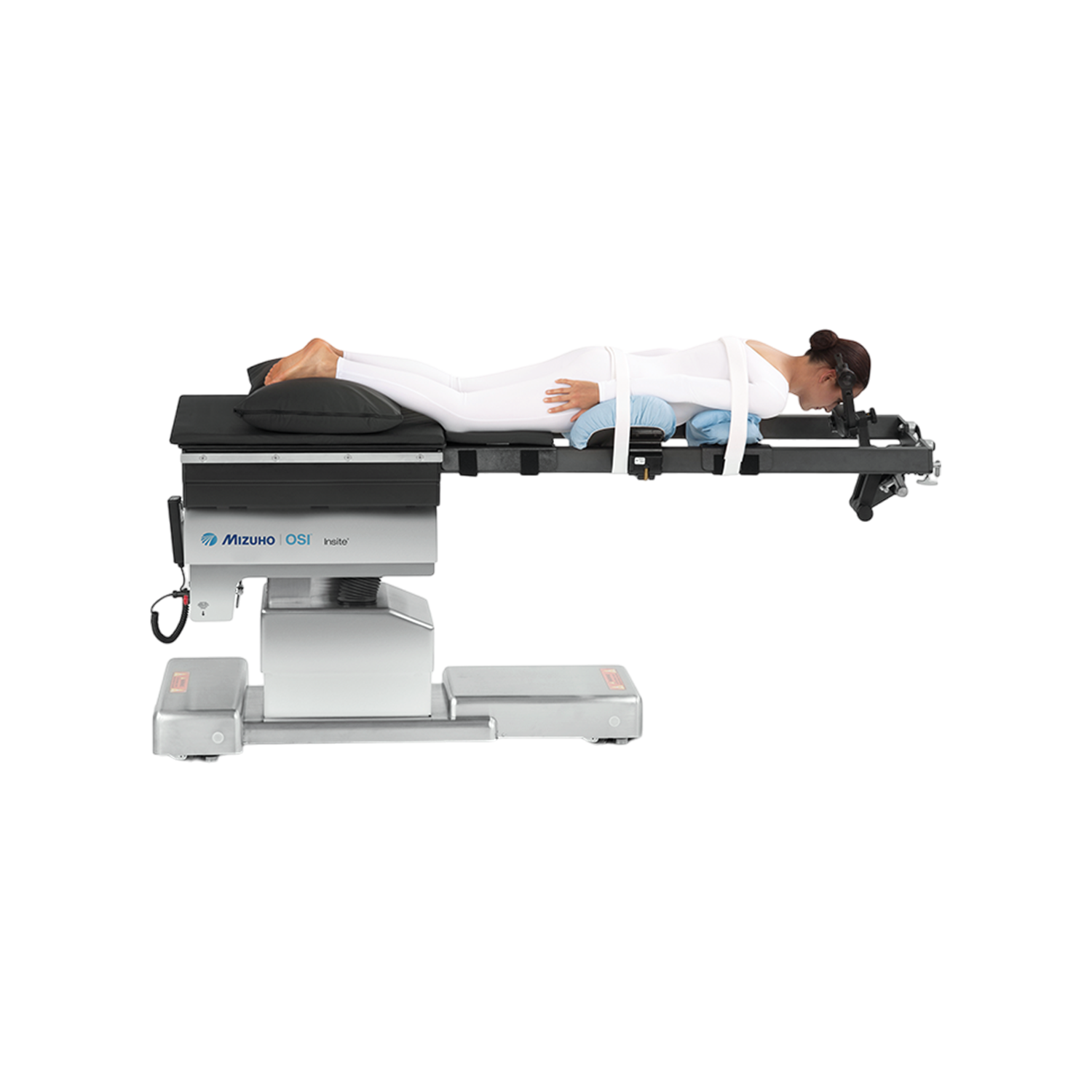

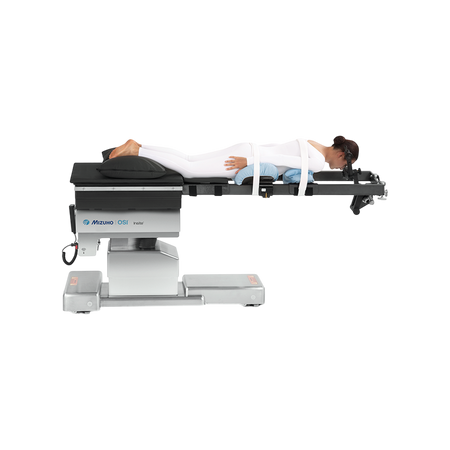

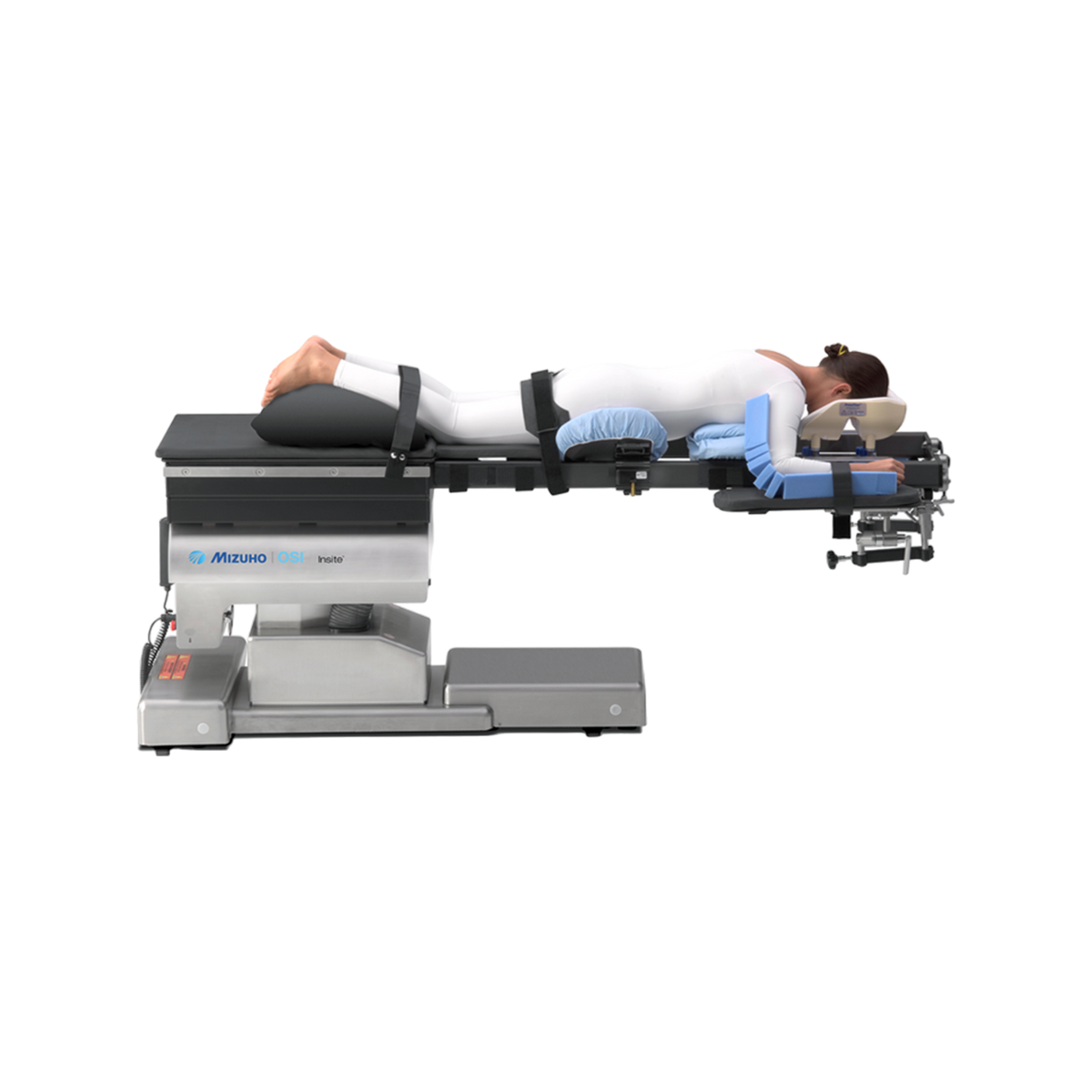

  • Prone
  • Supine

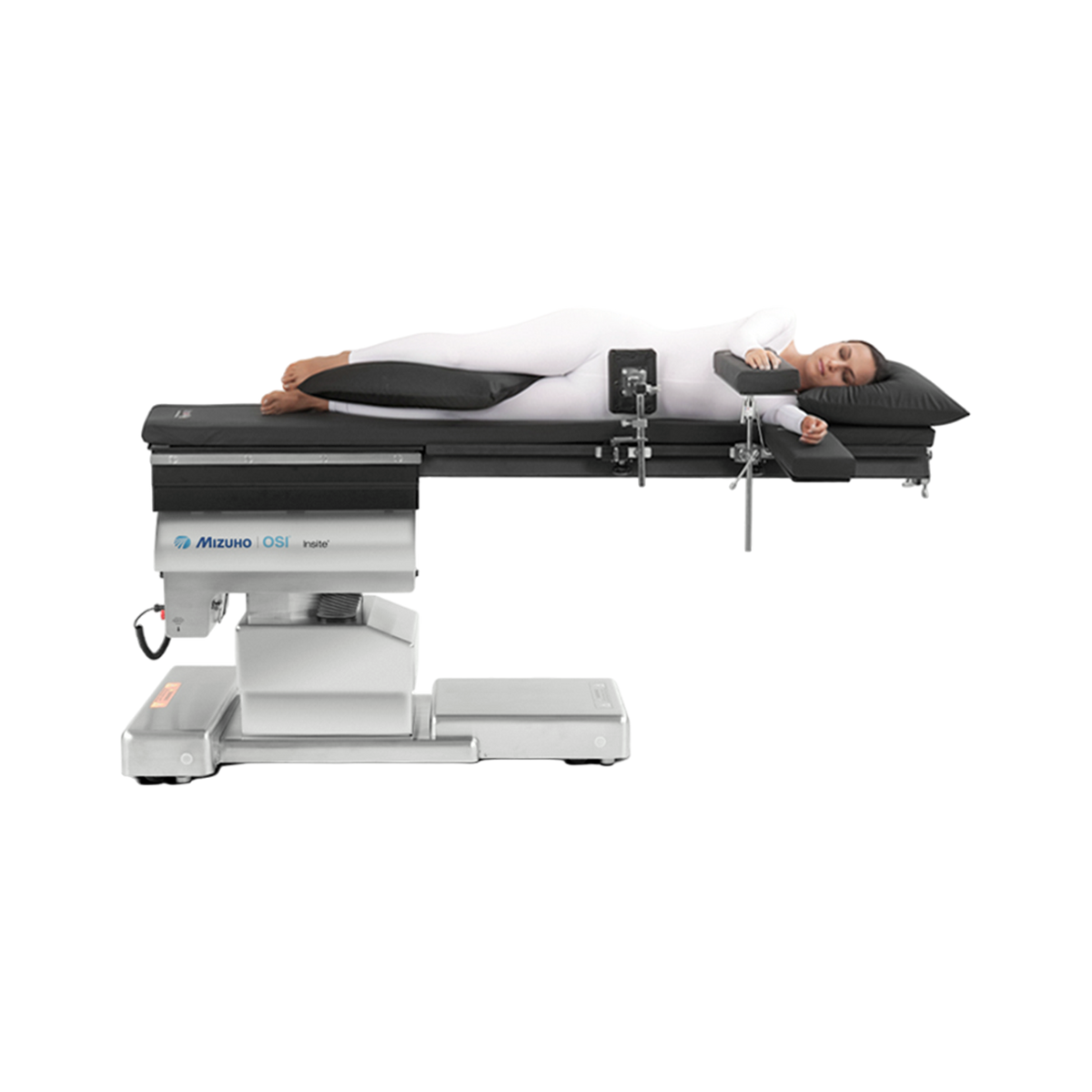

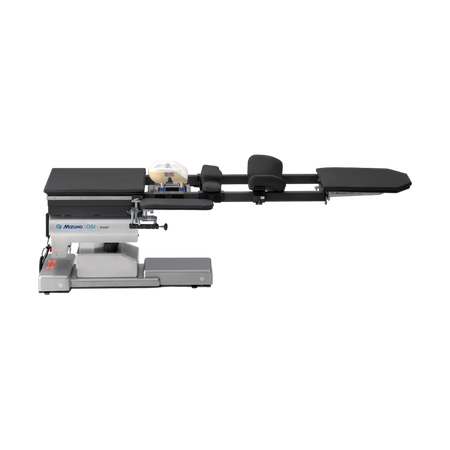

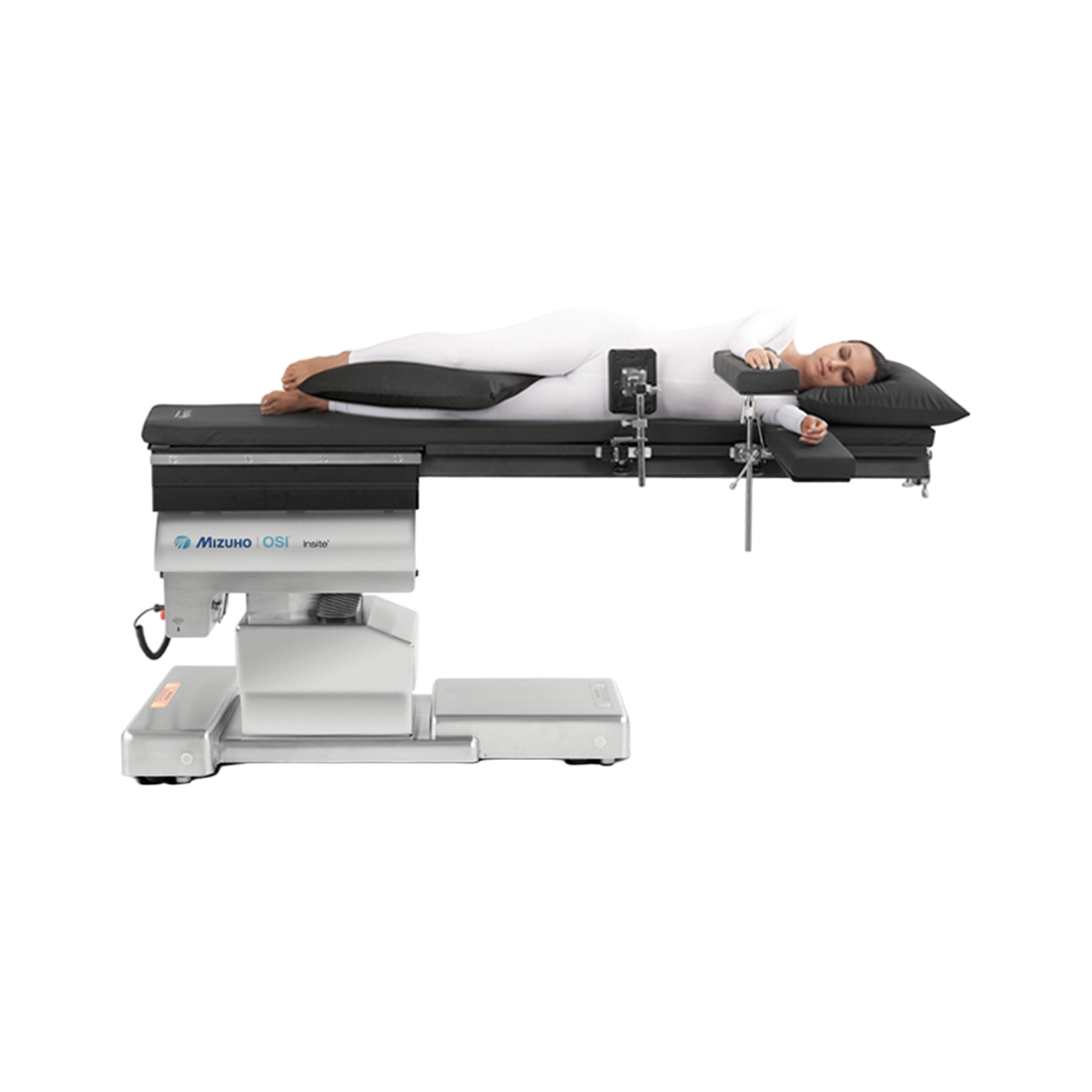

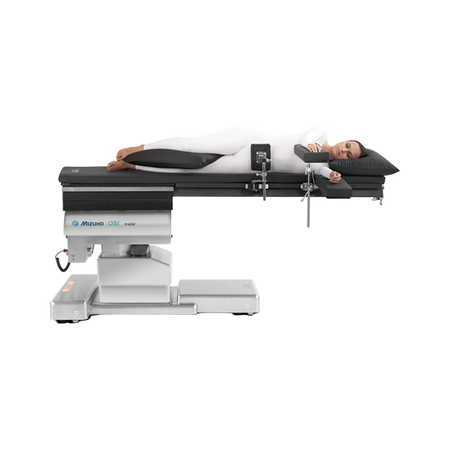

  • Lateral

COMMON PROCEDURES:

  • Laminectomies
  • Decompressions
  • Spinal fusions
  • Osteotomies
  • Posterior cervical
  • Surgical correction of deformities
  • Vascular surgery
  • Joint imaging
  • Pain management

SPECIFICATIONS:

  • Manufacturer: Mizuho OSI
  • Part Number: (OEM): INSITE
  • Category: Tables Surgical - Spine
  • Accessories: None
  • Condition: New/Refurbished
  • Weight:
  • Warranty: 3 Months

  • Total Table Length:
    • 90” (229cm)

  • Table Top Length:
    • 85” (216cm)

  • Pedestal Top Width:
    • 21” (53cm)

  • Pedestal Top Length:
    • 30” (76cm)

  • Imaging Area Length:
    • 55” (140cm)

  • Imaging Area Width:
    • 21” (53cm)

  • Height Range:
    • 32–42” (81–107cm)

  • Trendelenburg/Reverse Trendelenburg:
    • 15°

  • Lateral Roll (Tilt):
    • ± 20°

  • Patient Weight Capacity:
    • 450lbs (205kg)

STANDARD COMPONENTS:

  • Hand Pendant
  • Patient Safety Straps (2)
  • Insite ProneView Patient Care Kit (3/case)
  • Power Cord
  • Table Storage Cover

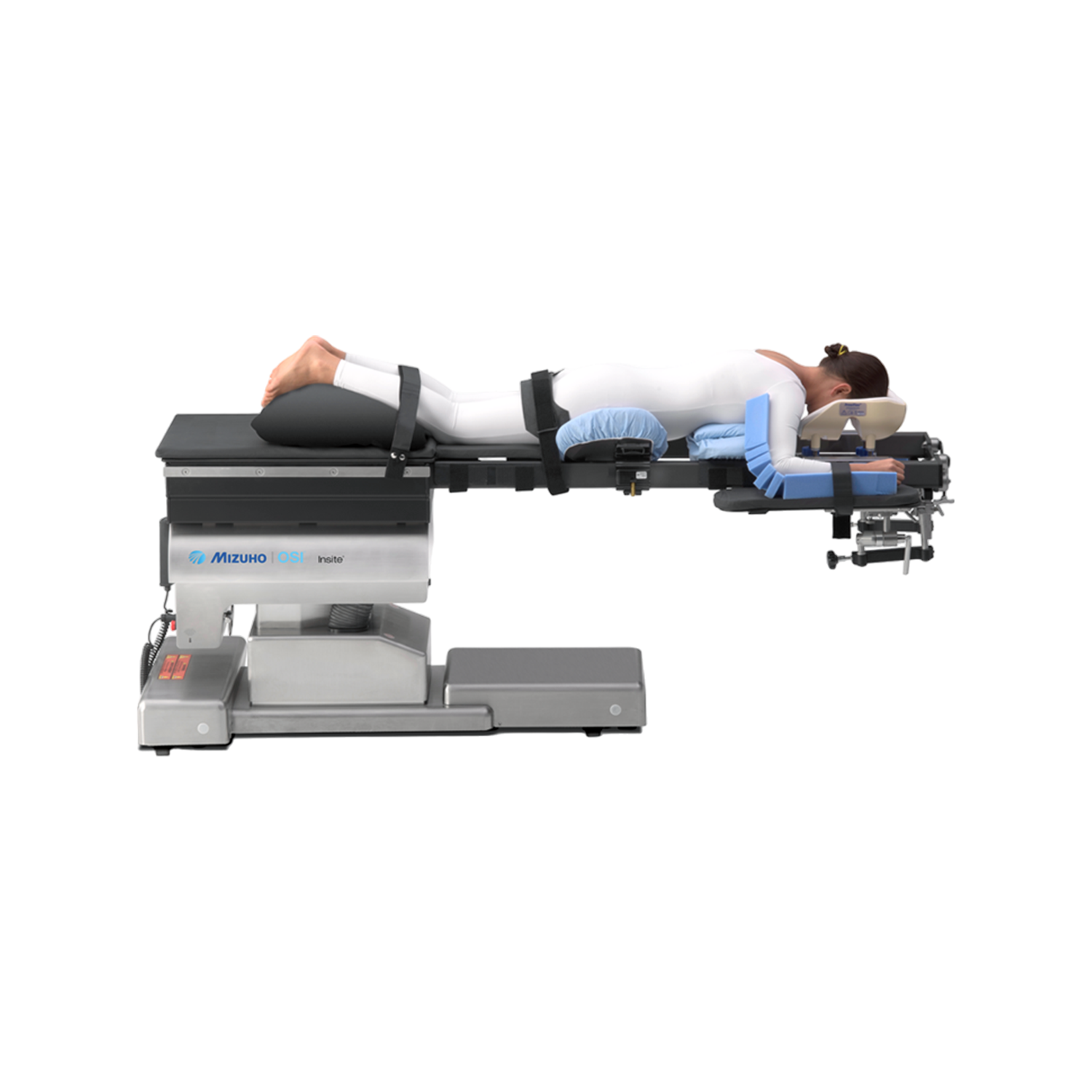

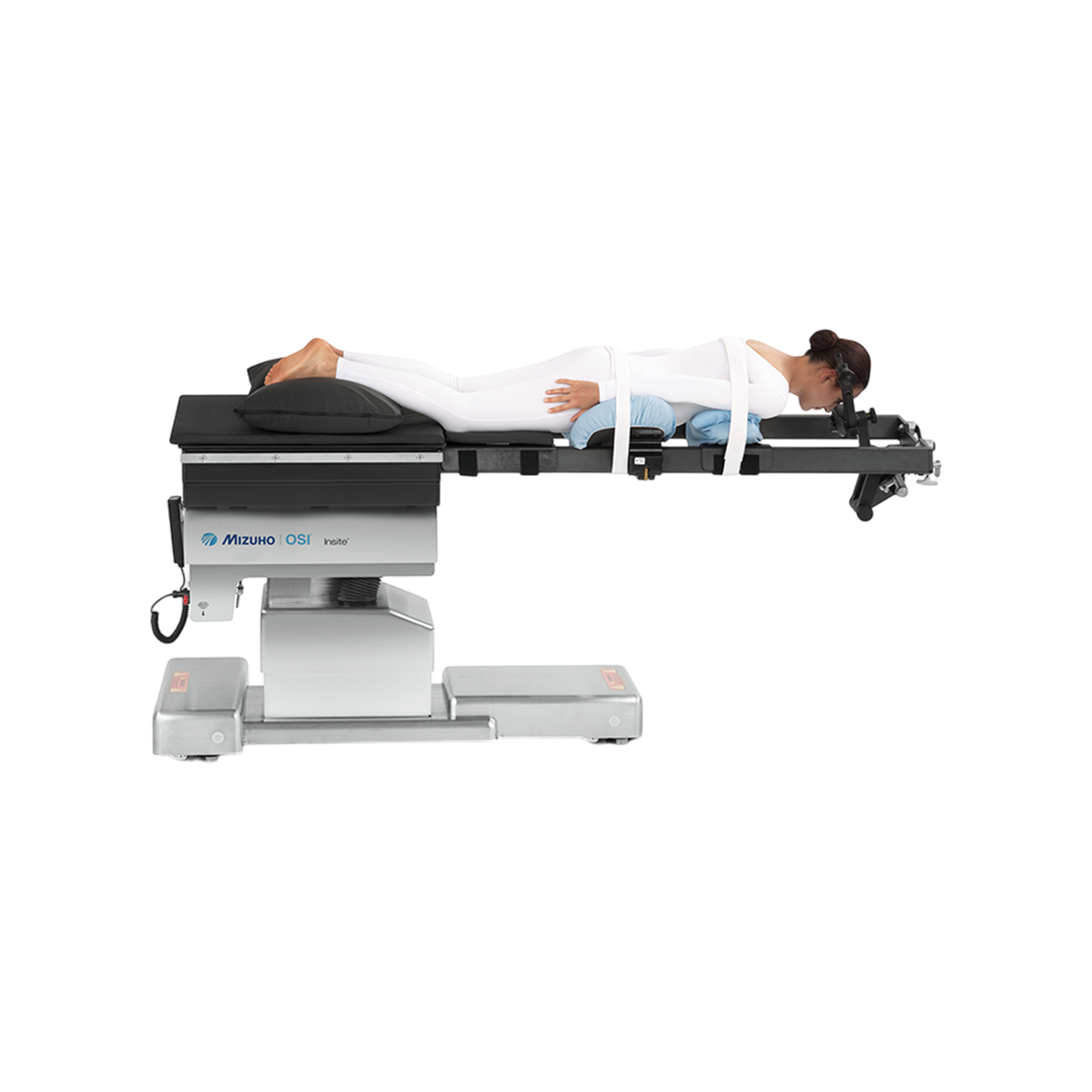

  • Prone Positioning:

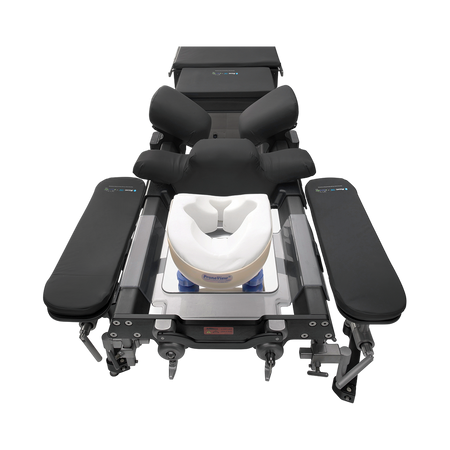

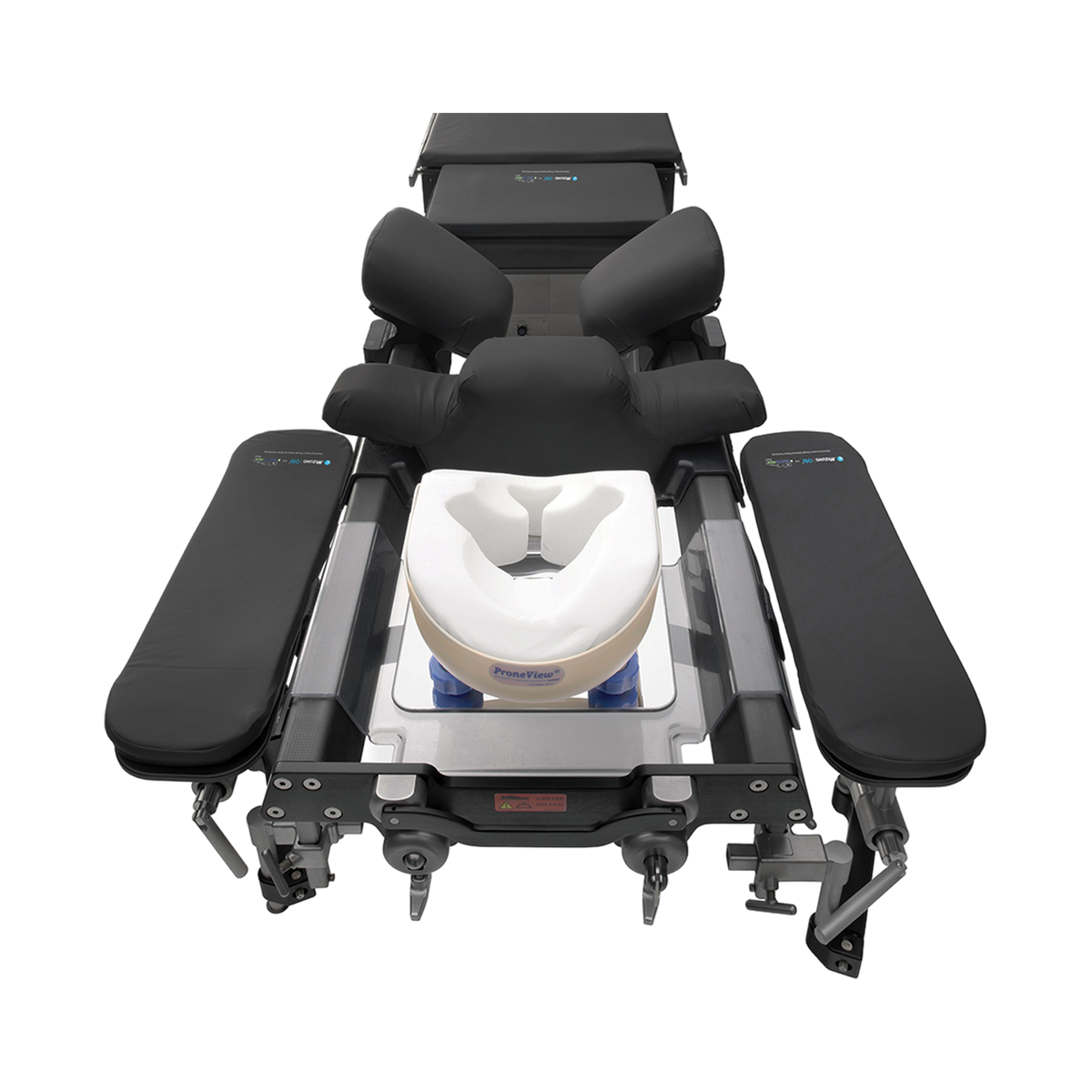

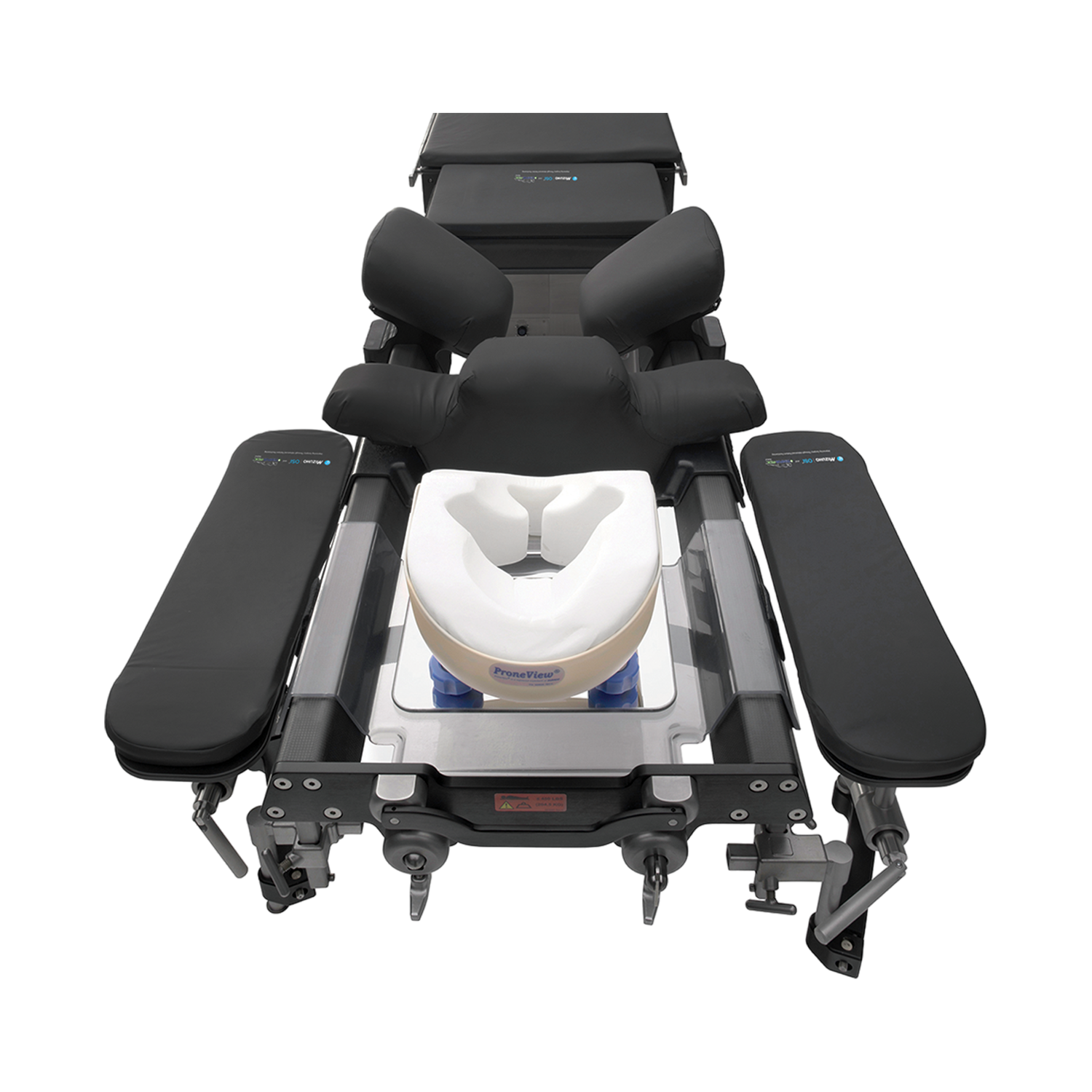

    • ProneView Protective Helmet System
    • Face Plate
    • Tempur-Pedic Medical Chest Pad
    • Contoured Tempur-Pedic Medical Hip Pads (1 pair)
    • Arm Board Mounting Bracket
    • 5-Way Articulating Arm Boards (2)
    • Pedestal End Arm Board Mounting Brackets (2)
    • Leg board with Tempur-Pedic Medical Pad, 1” (2.5cm)

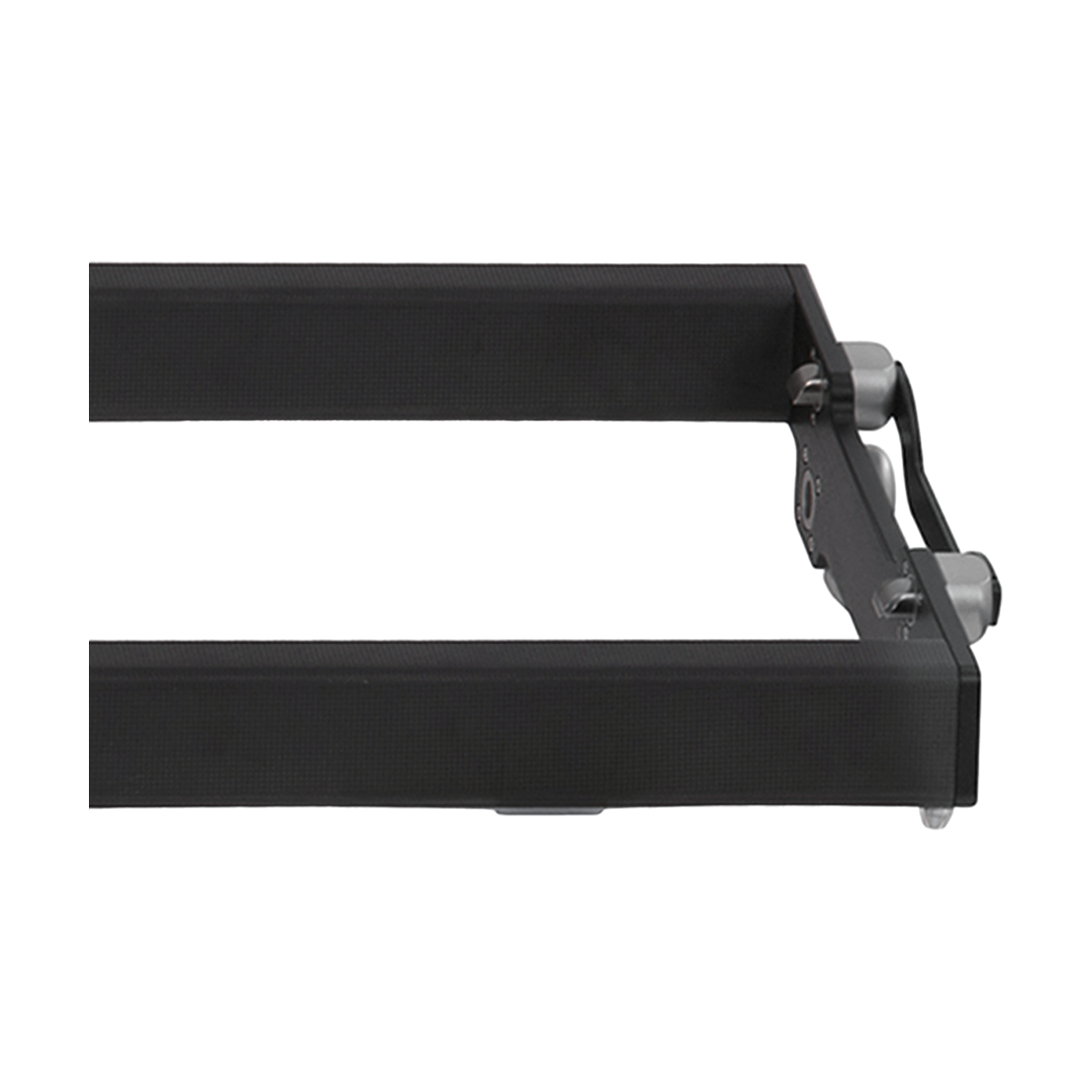

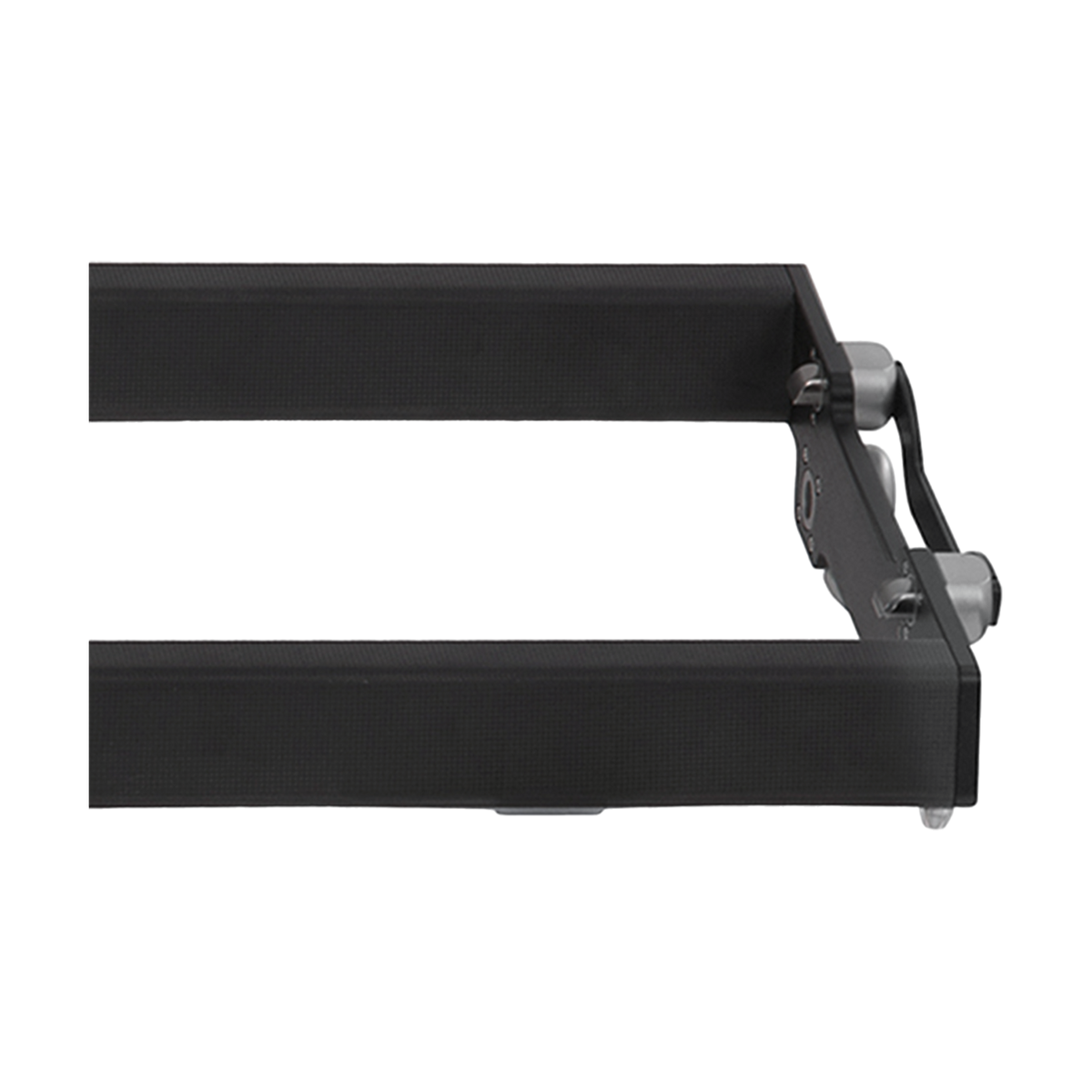

    • Retractor Adaptor, prone frame
    • Buttocks Strap

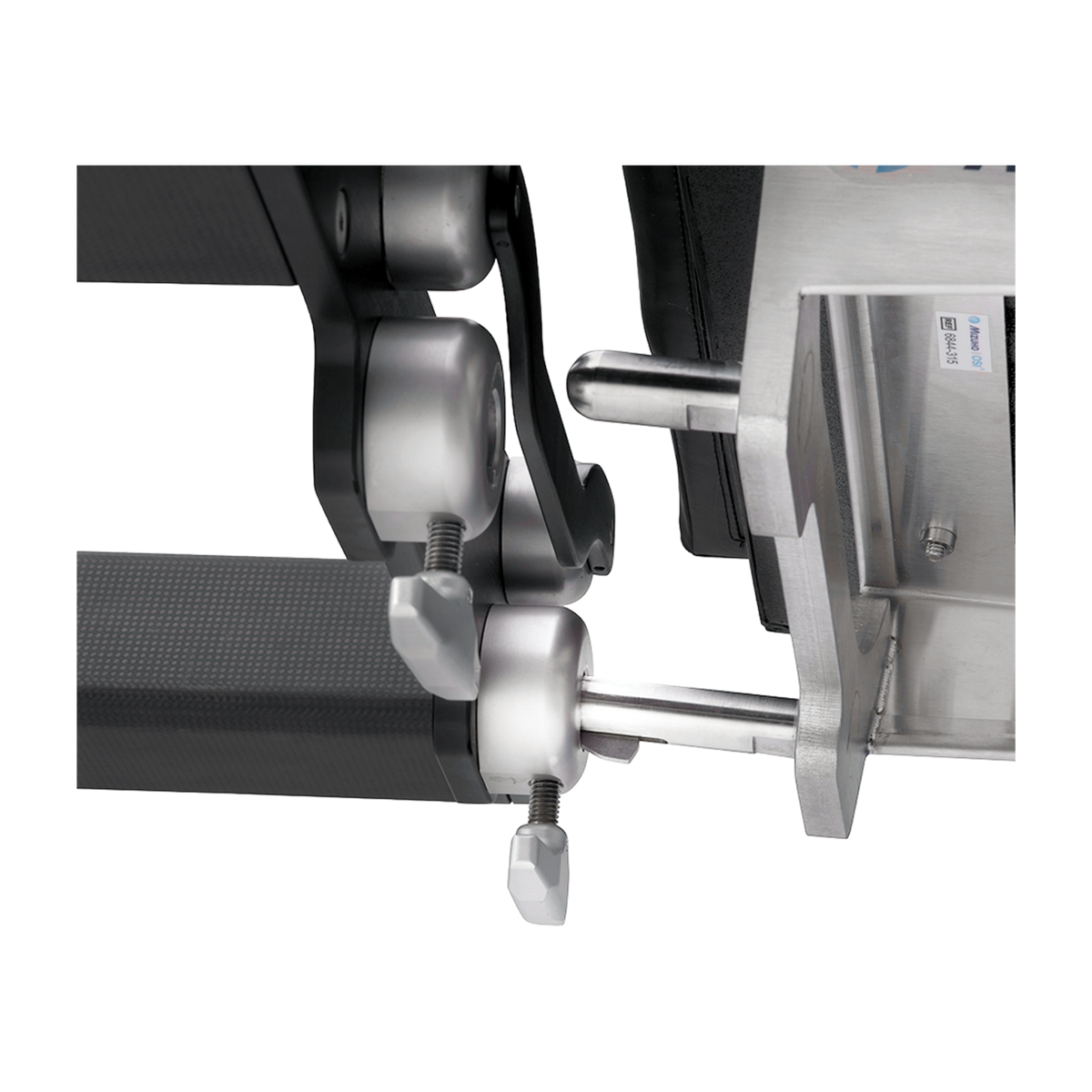

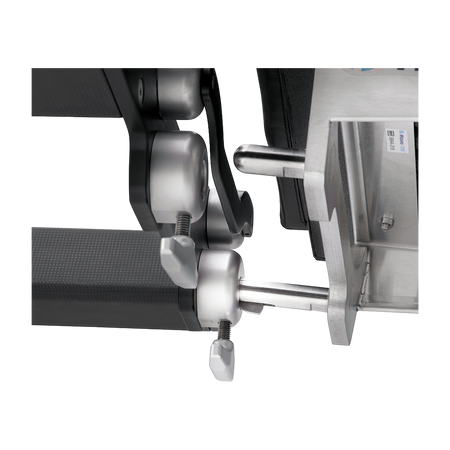

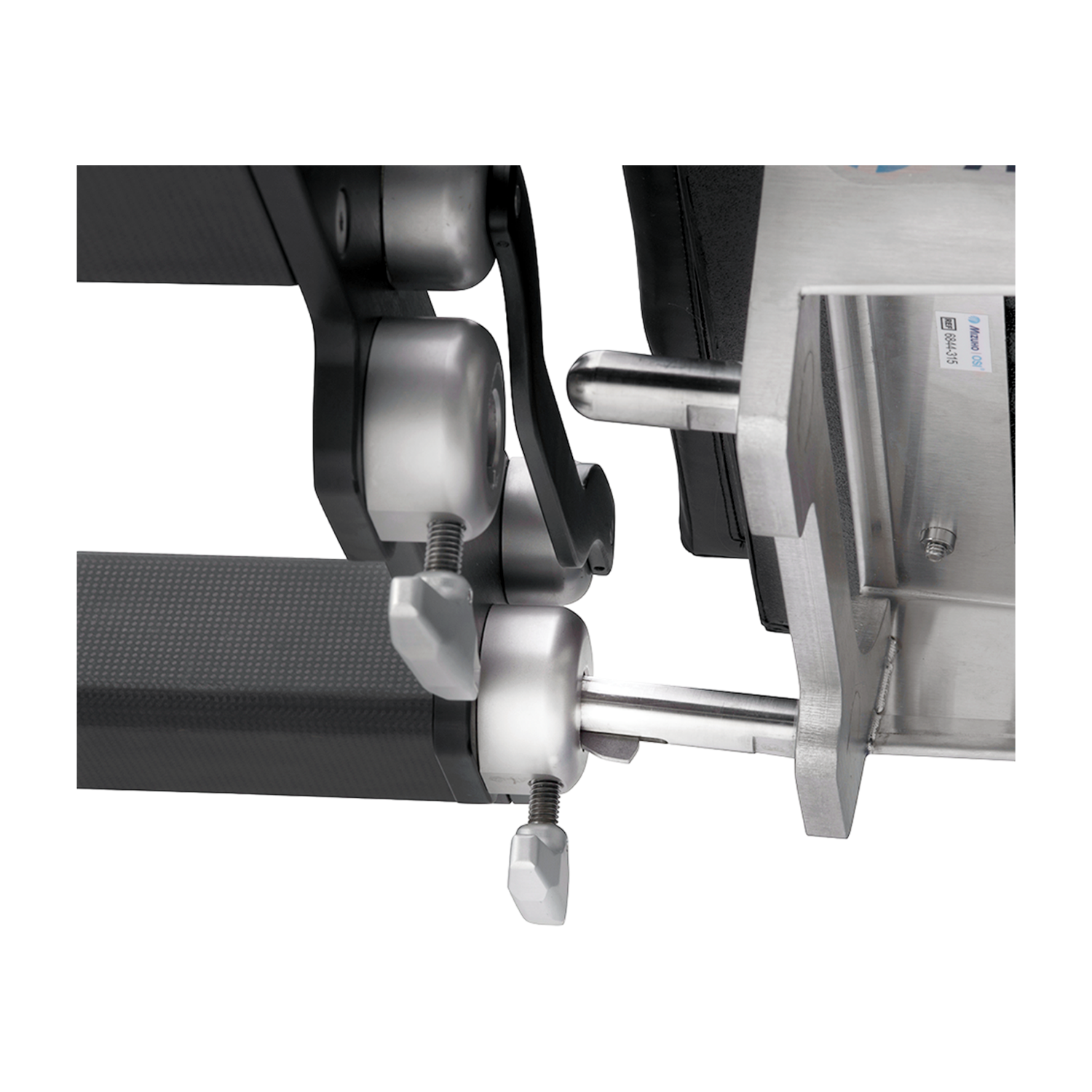

    • Cervical Mount, Coupler II Main Assembly

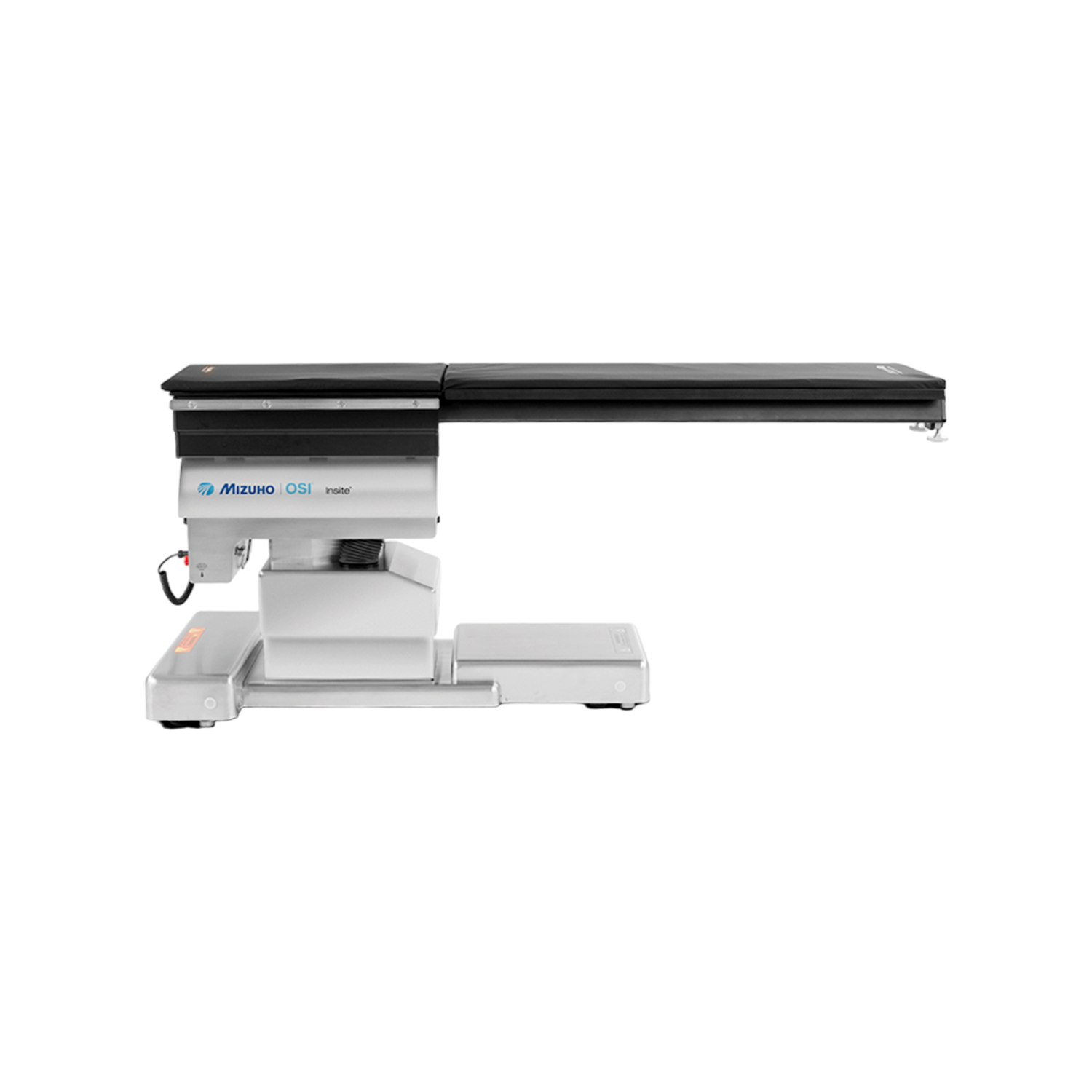

  • Supine Positioning:
    • Supine Top, 1” (2.5cm) Tempur-Pedic Medical Pad
    • Universal Side Rail Adaptor, Supine Top (2)
