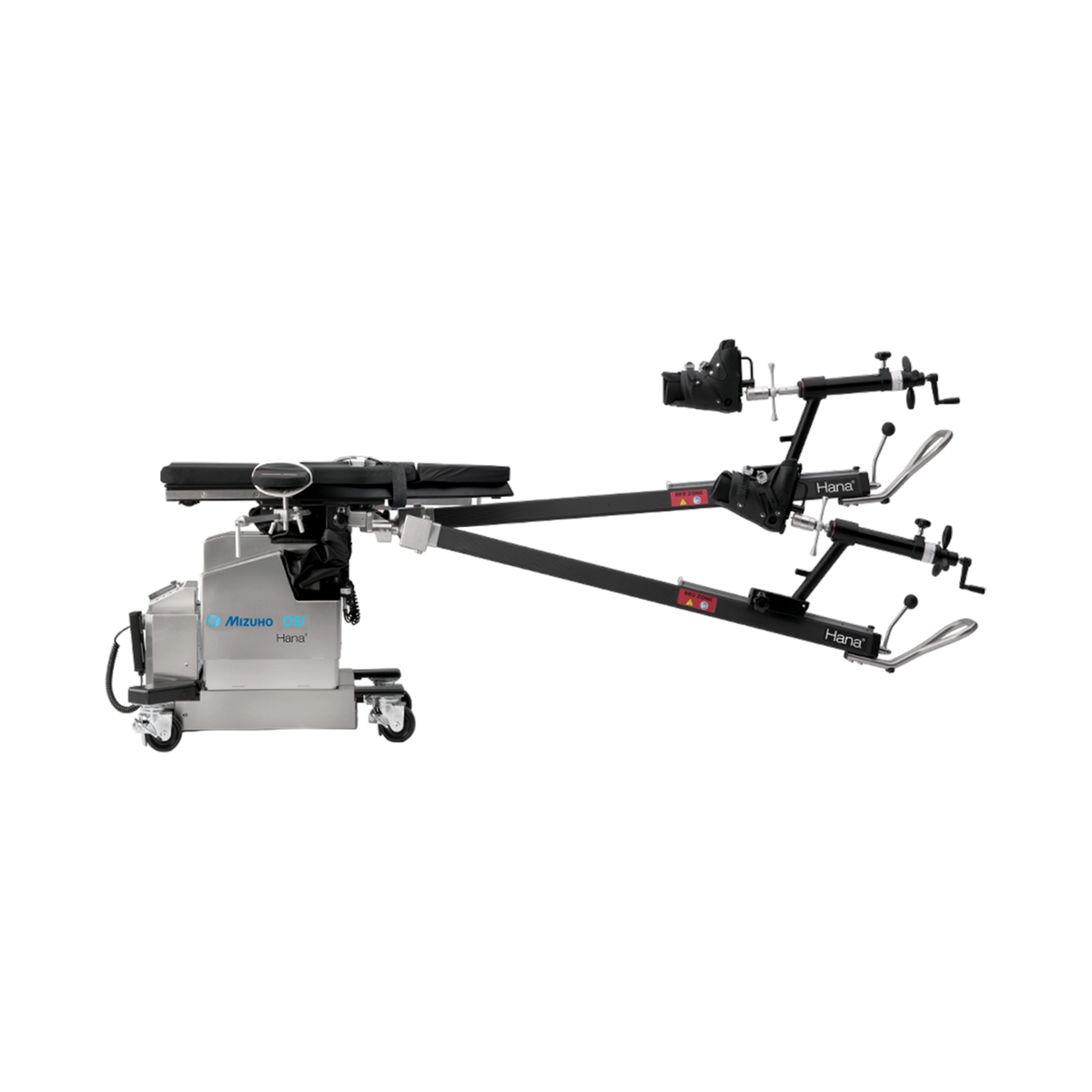

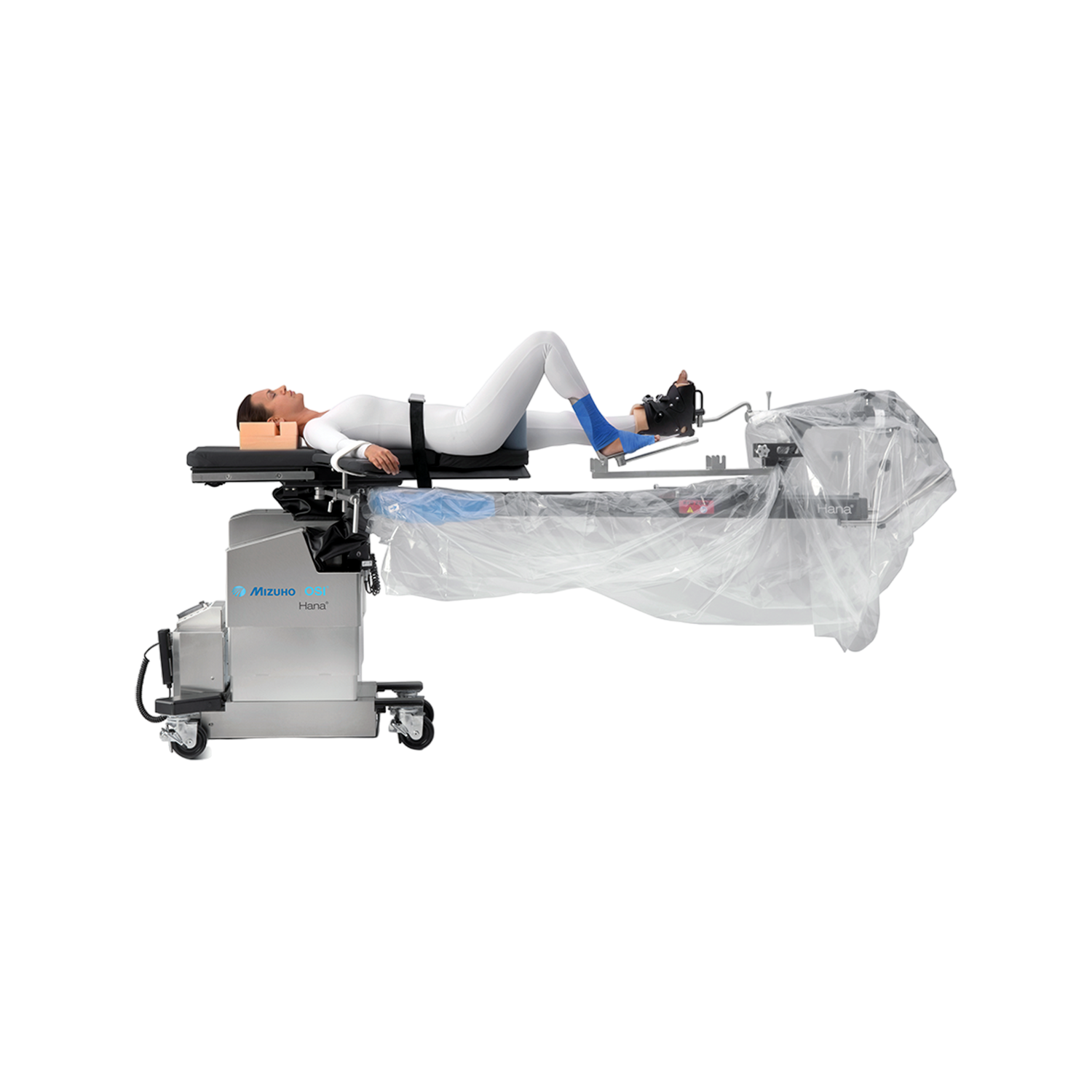

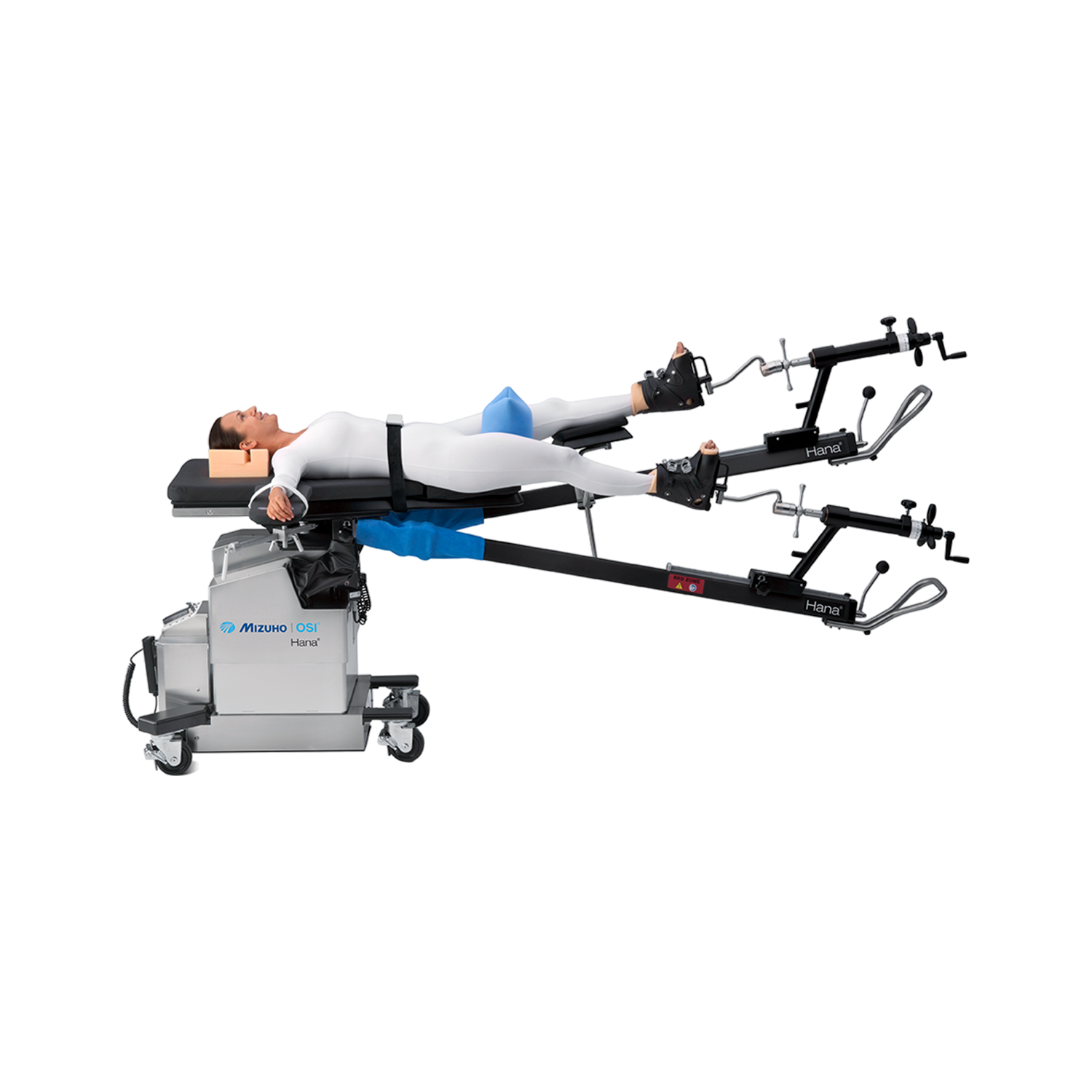

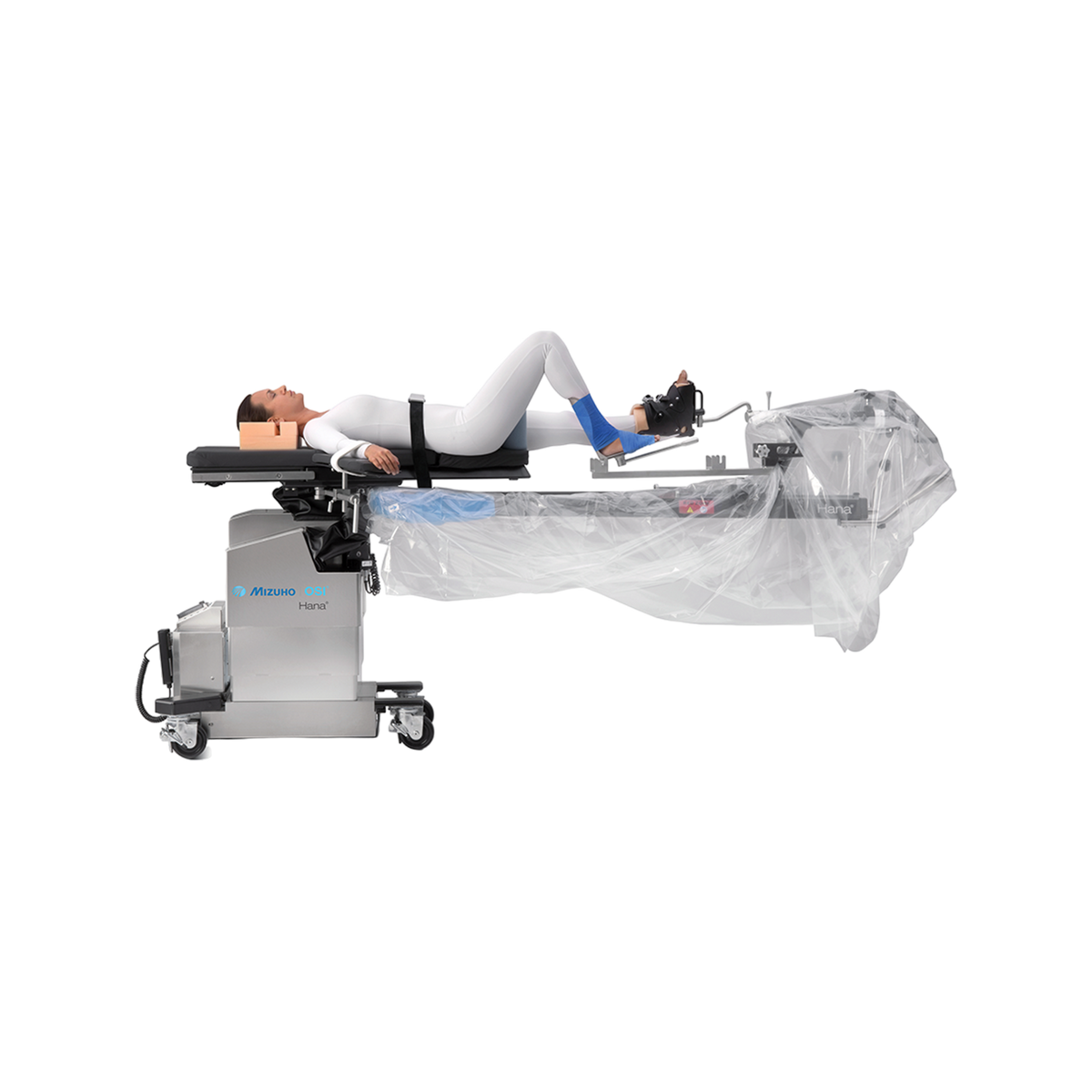

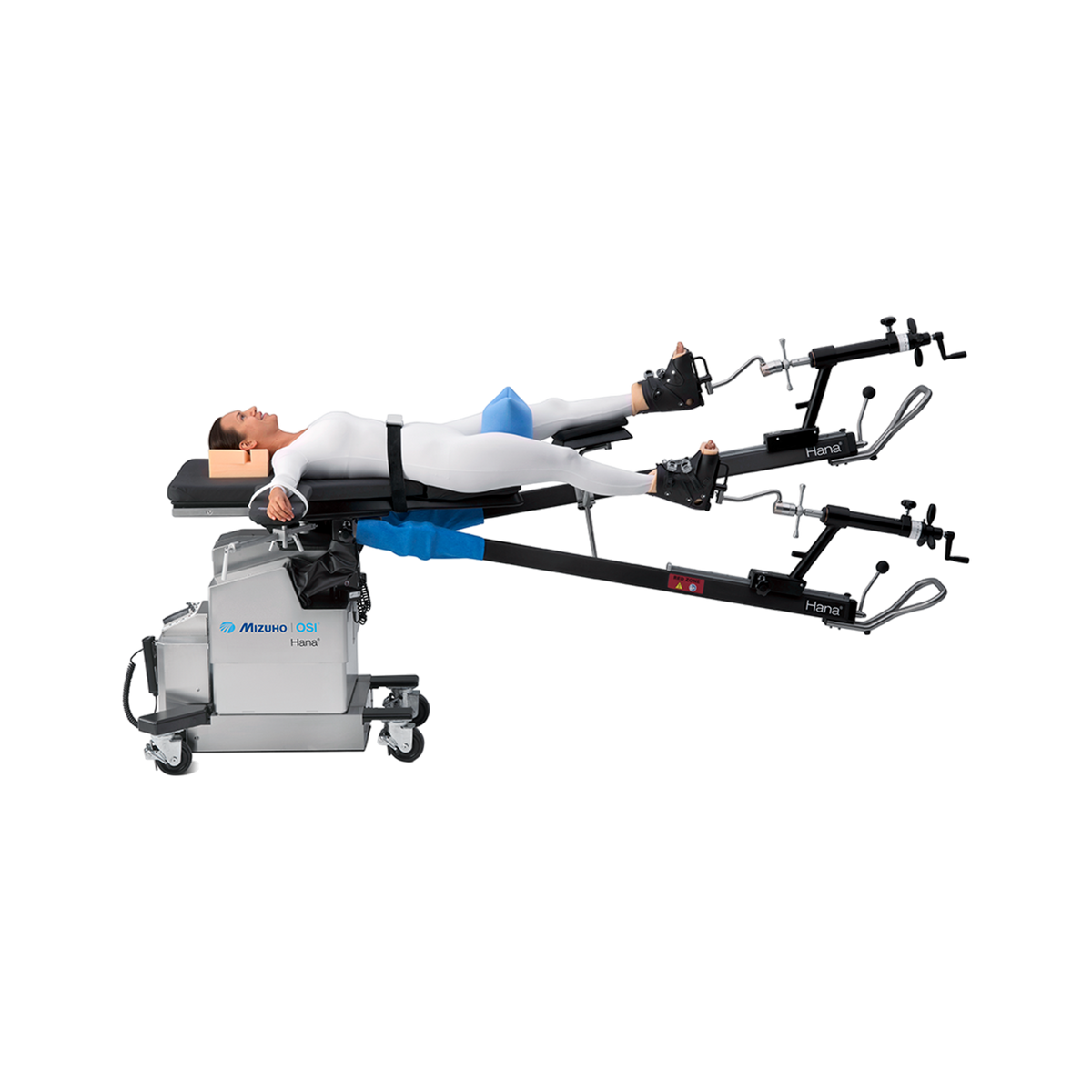

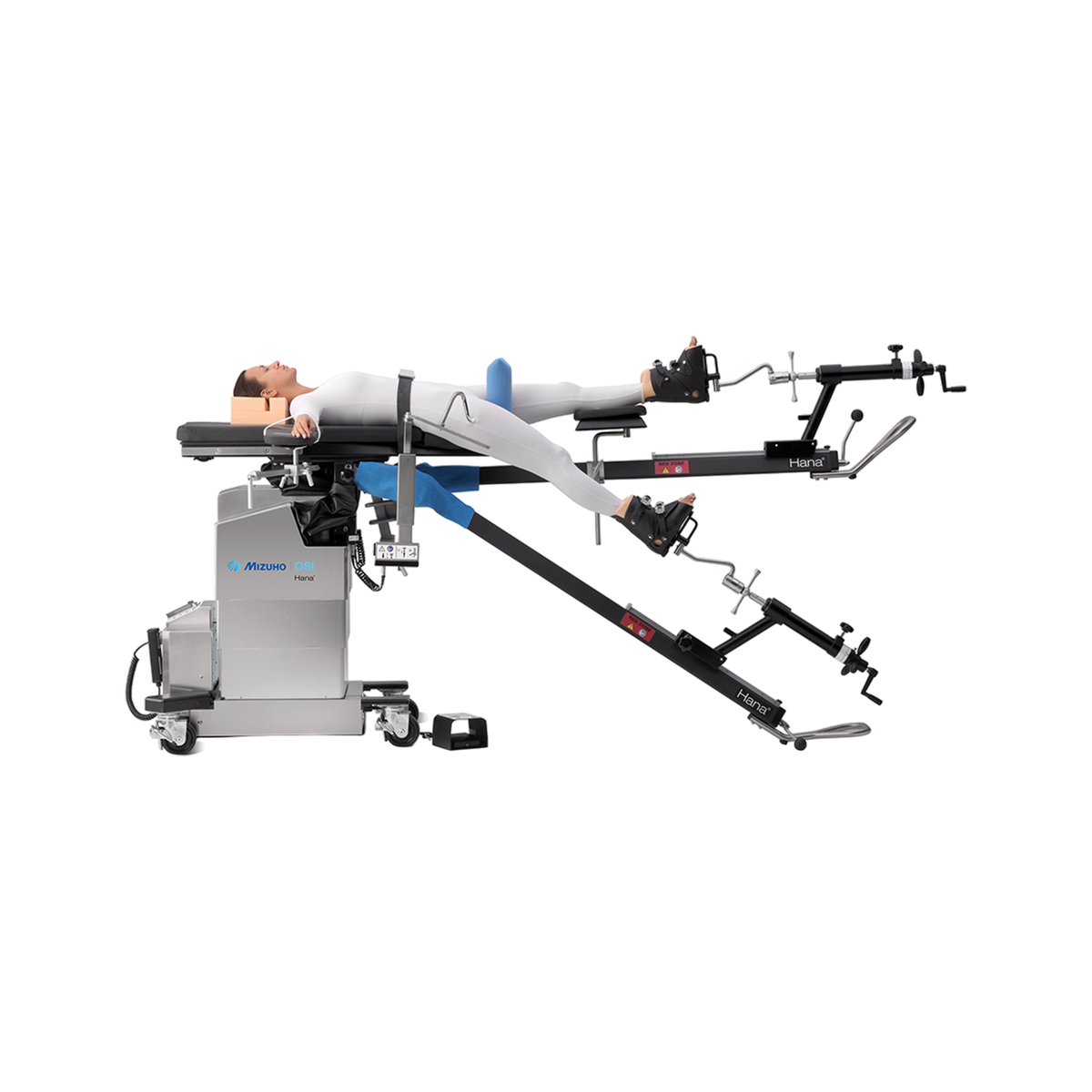

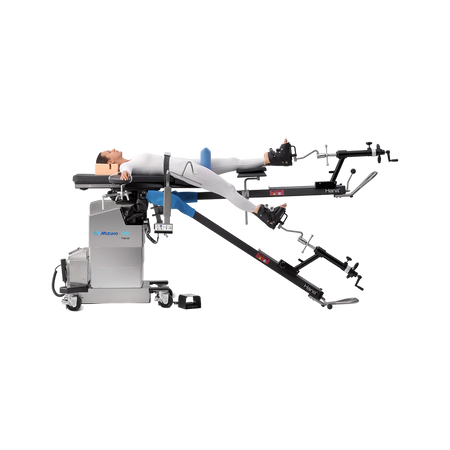

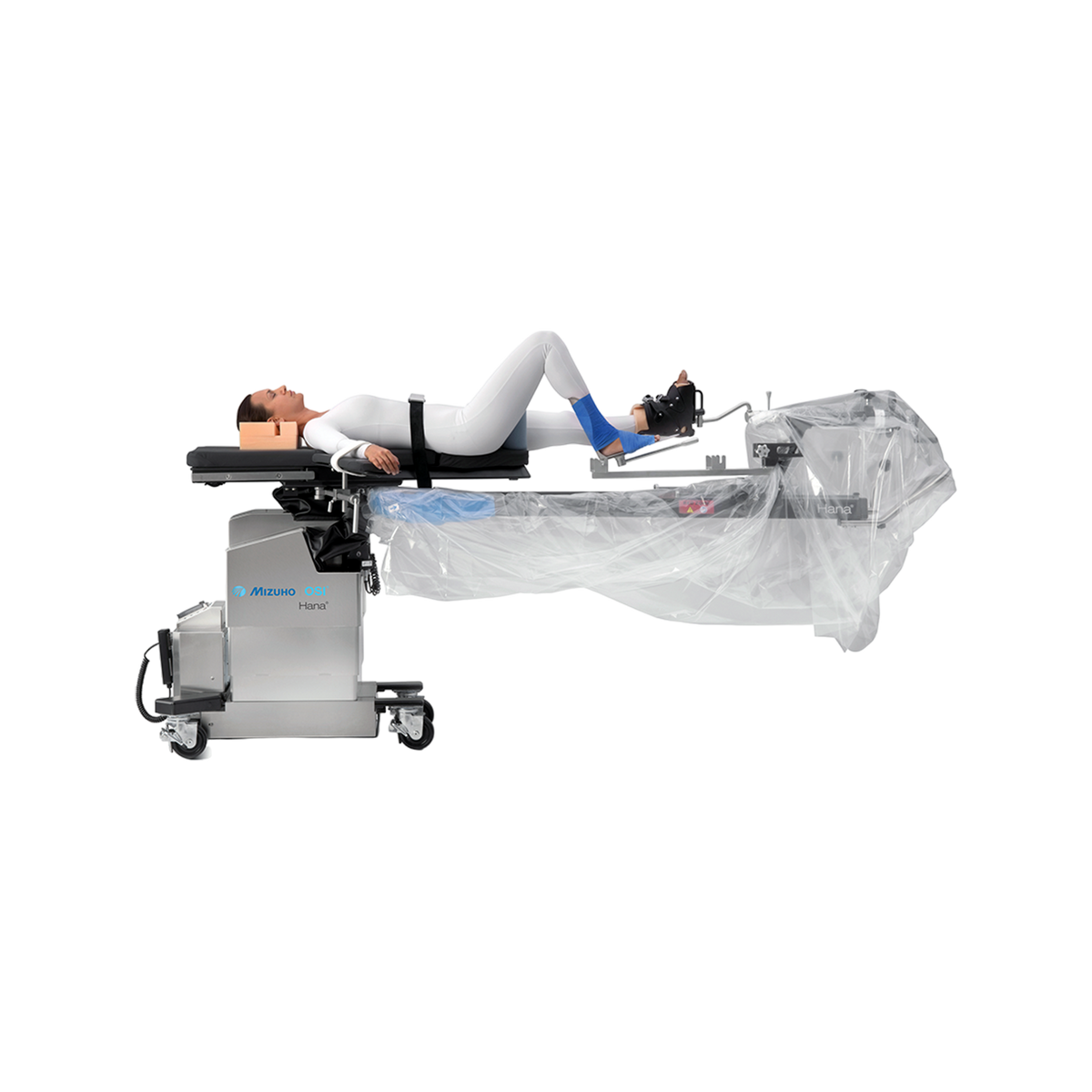

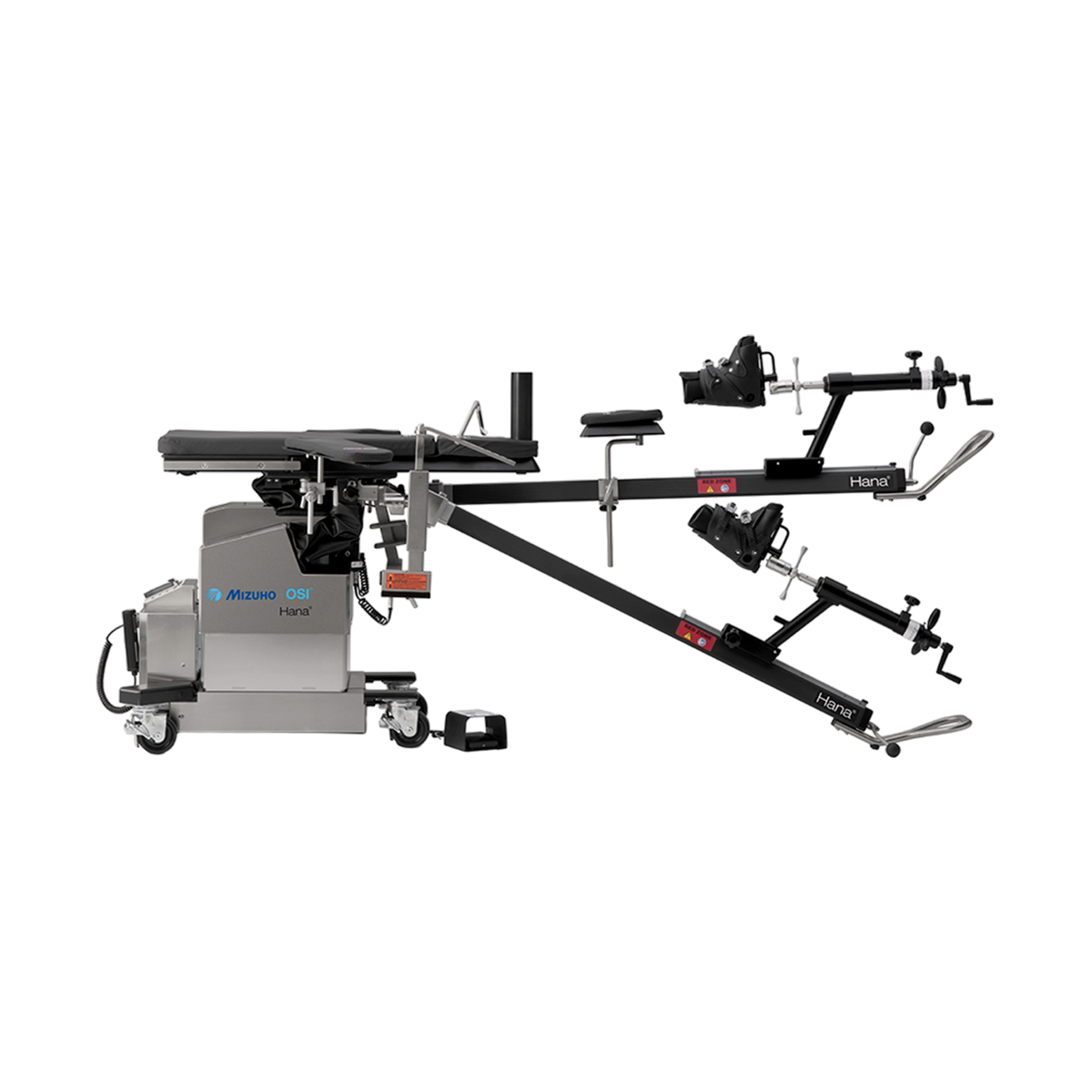

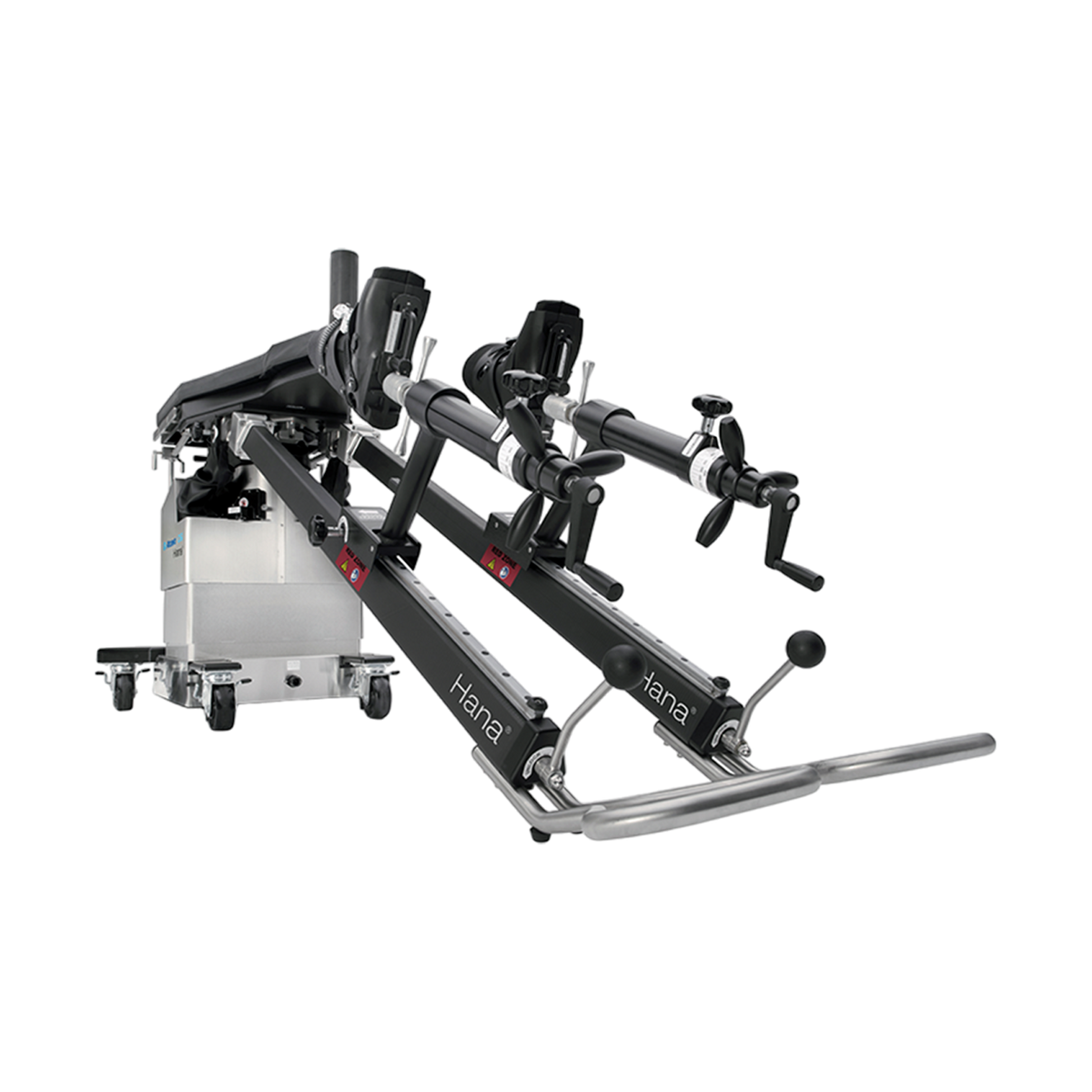

Mizuho OSI Hana Orthopedic Surgery Table

Out of stock
SKU: EN-MIZUHO-HANA
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

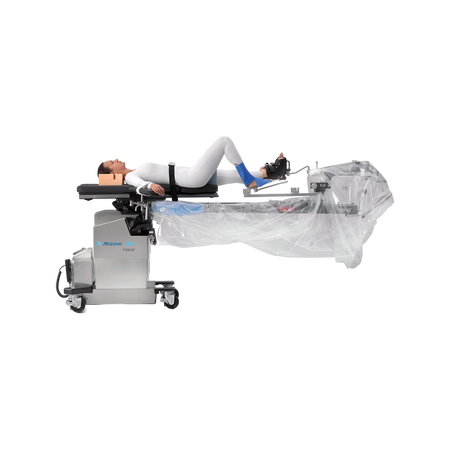

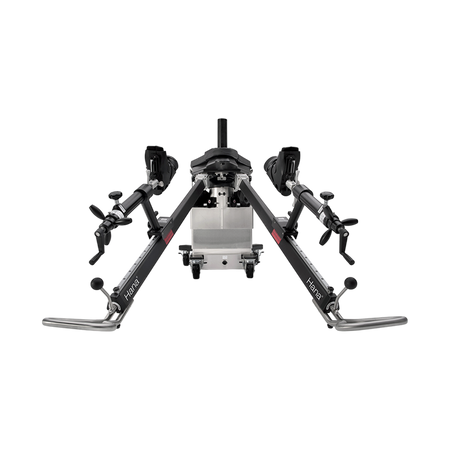

Setting the benchmark for patient positioning in fracture and hip procedures, the Hana table is driving innovation in orthopedic surgeries.

Perfect for anterior hip surgery and lower limb fractures
The Hana table stands out as a pioneering solution for orthopedic procedures, offering unparalleled versatility. It goes beyond being just a table; it serves as a patient positioning device that facilitates a wide range of orthopedic surgeries.

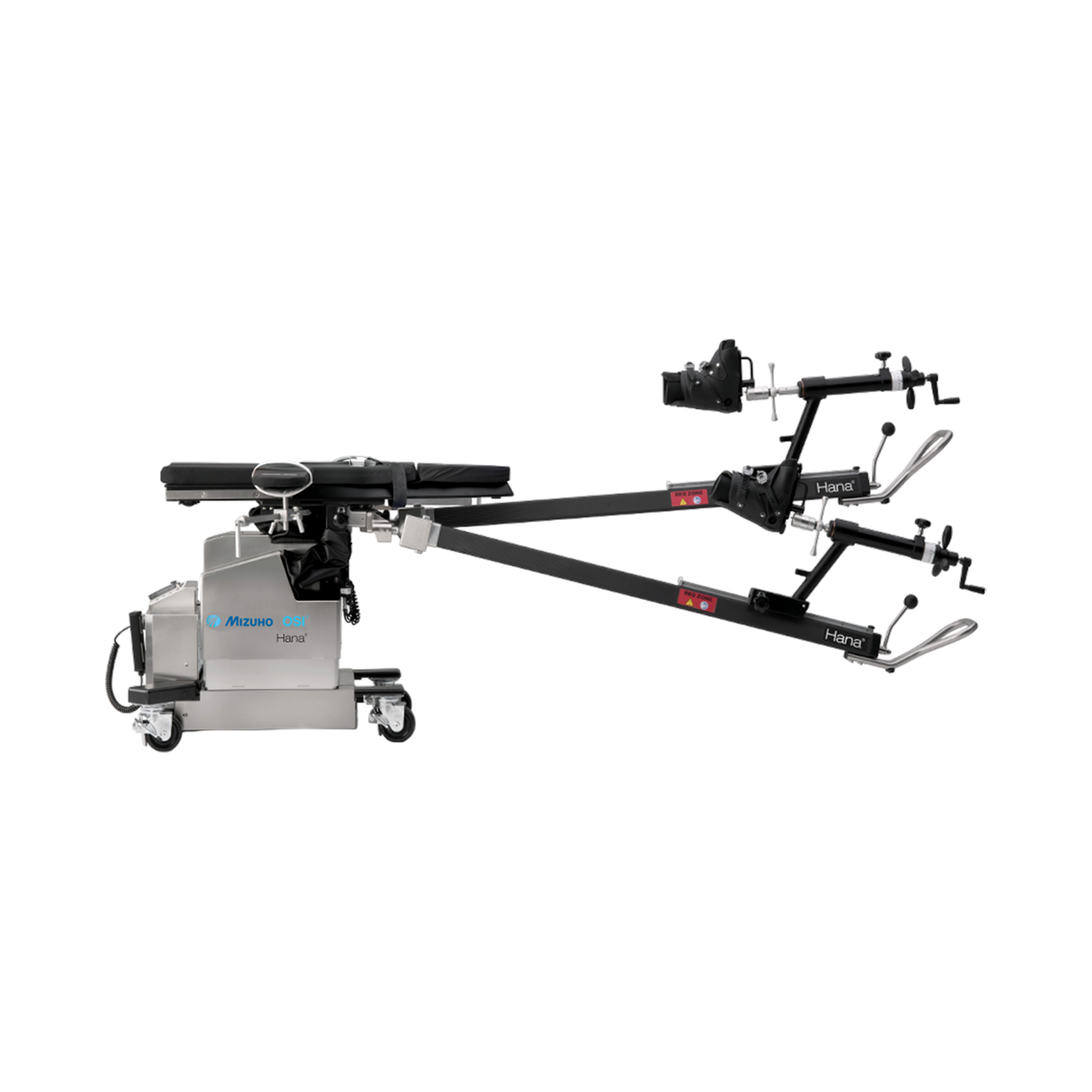

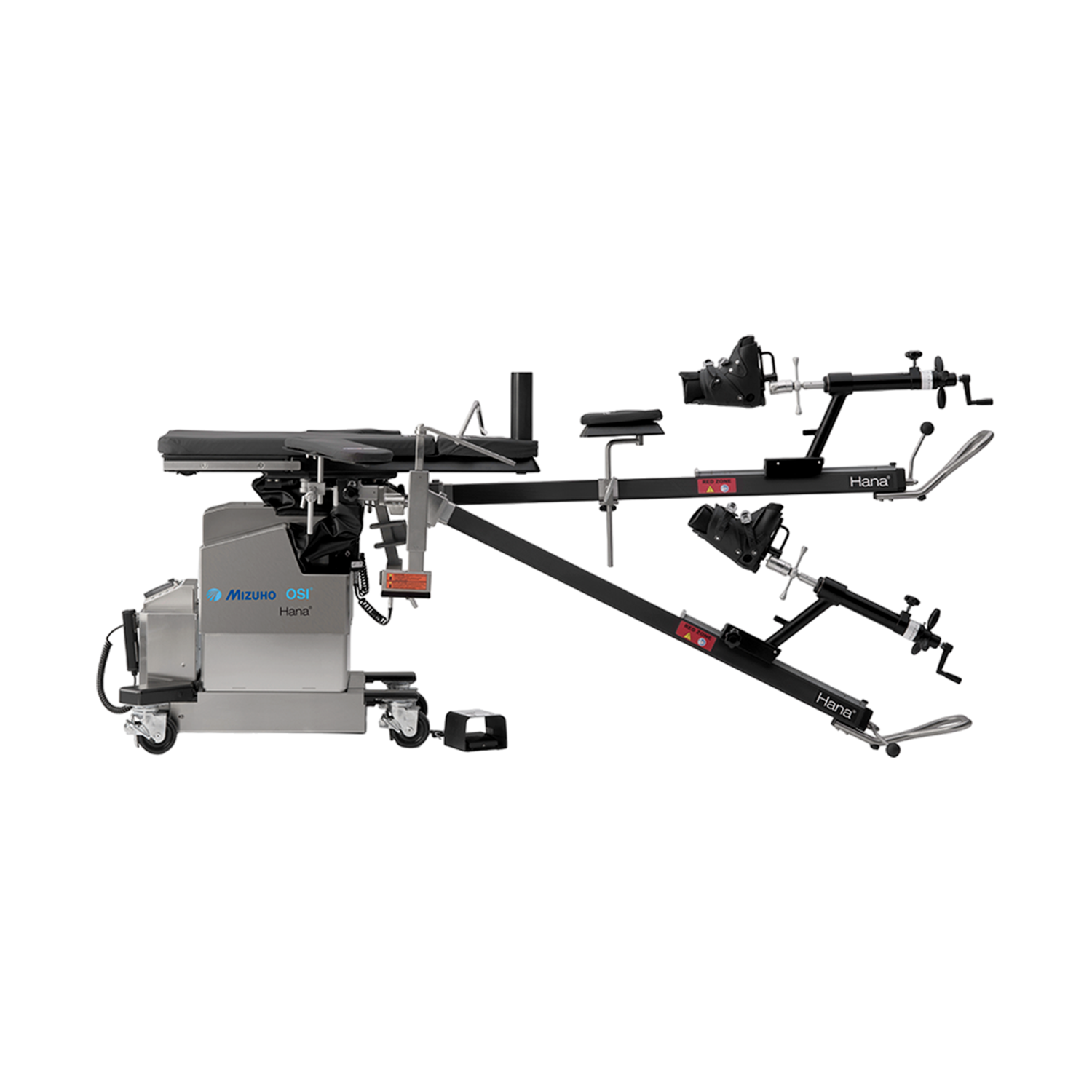

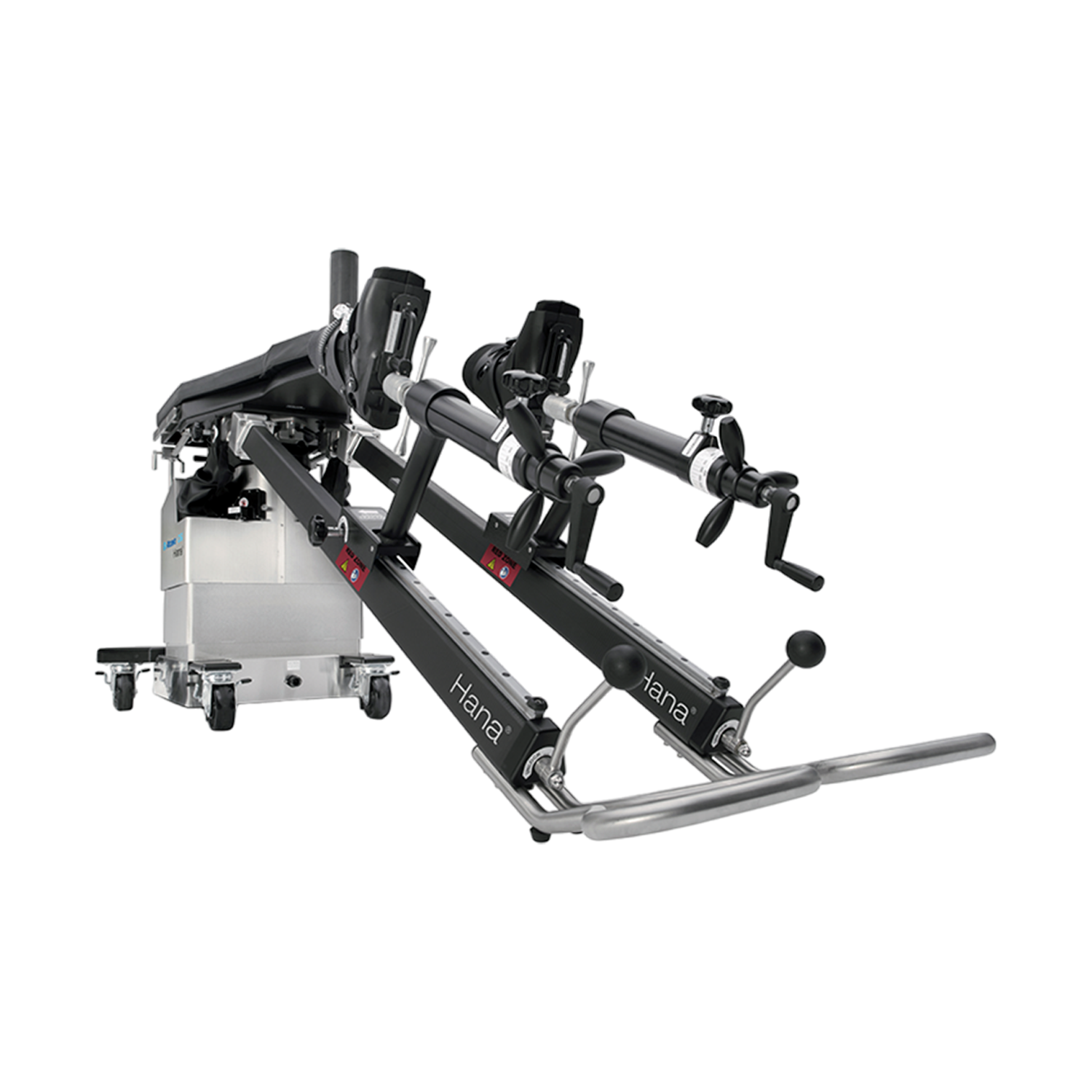

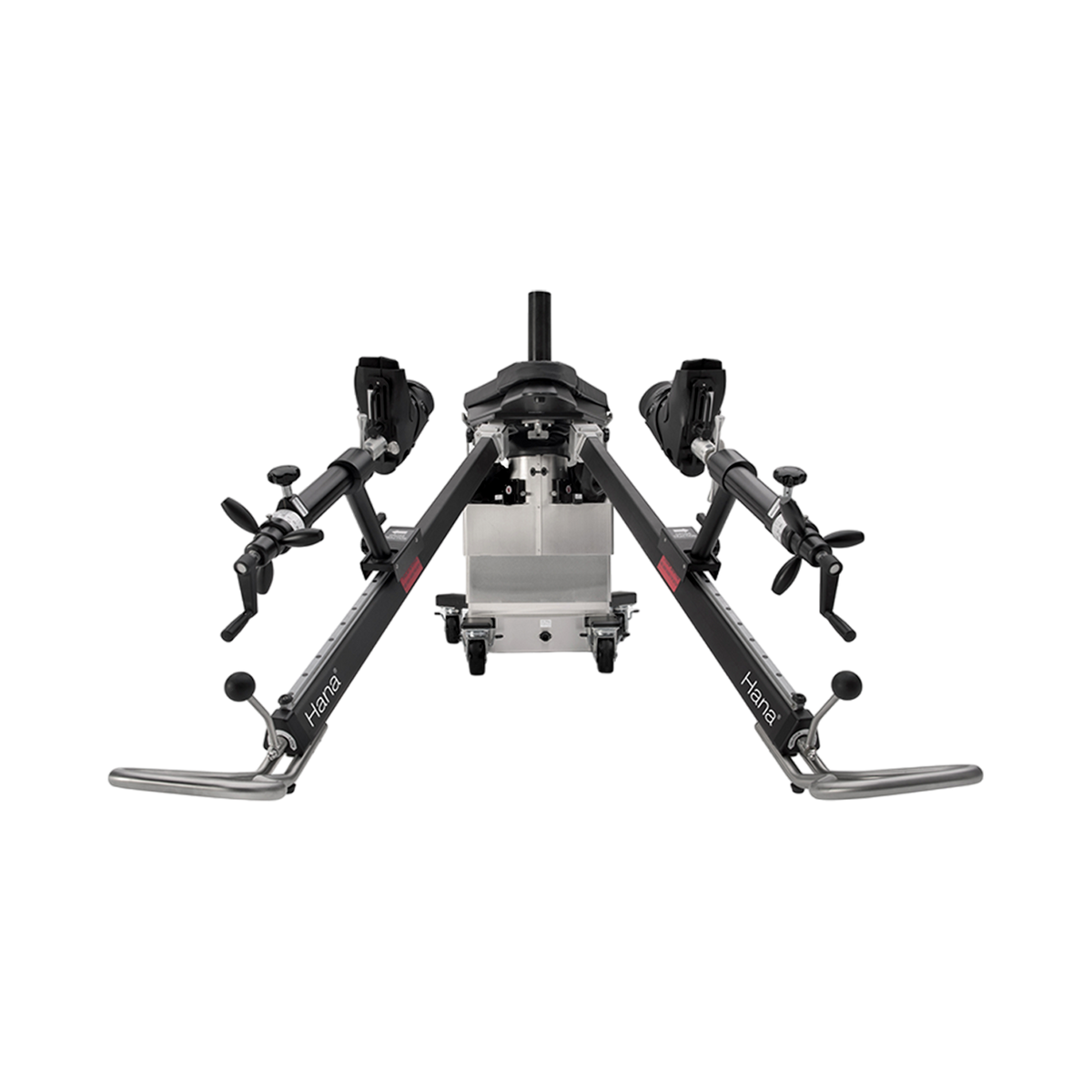

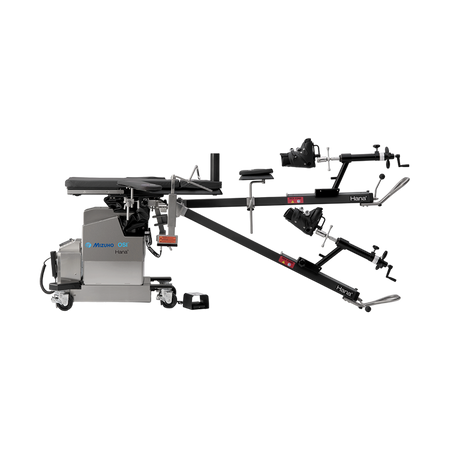

With its unique ability to independently position the patient's legs and provide traction, the Hana table is well-suited for hospitals and ambulatory surgery centers (ASCs). It accommodates various procedures, including the anterior approach to total hip replacements (AATHA), hip arthroscopy, hip fractures, and lower limb fractures in both supine and lateral positions. The leg spars enable hyperextension, abduction, adduction, and external rotation of the legs. Constructed from fully radiolucent carbon fiber, the table ensures unobstructed intraoperative imaging.

FEATURES:

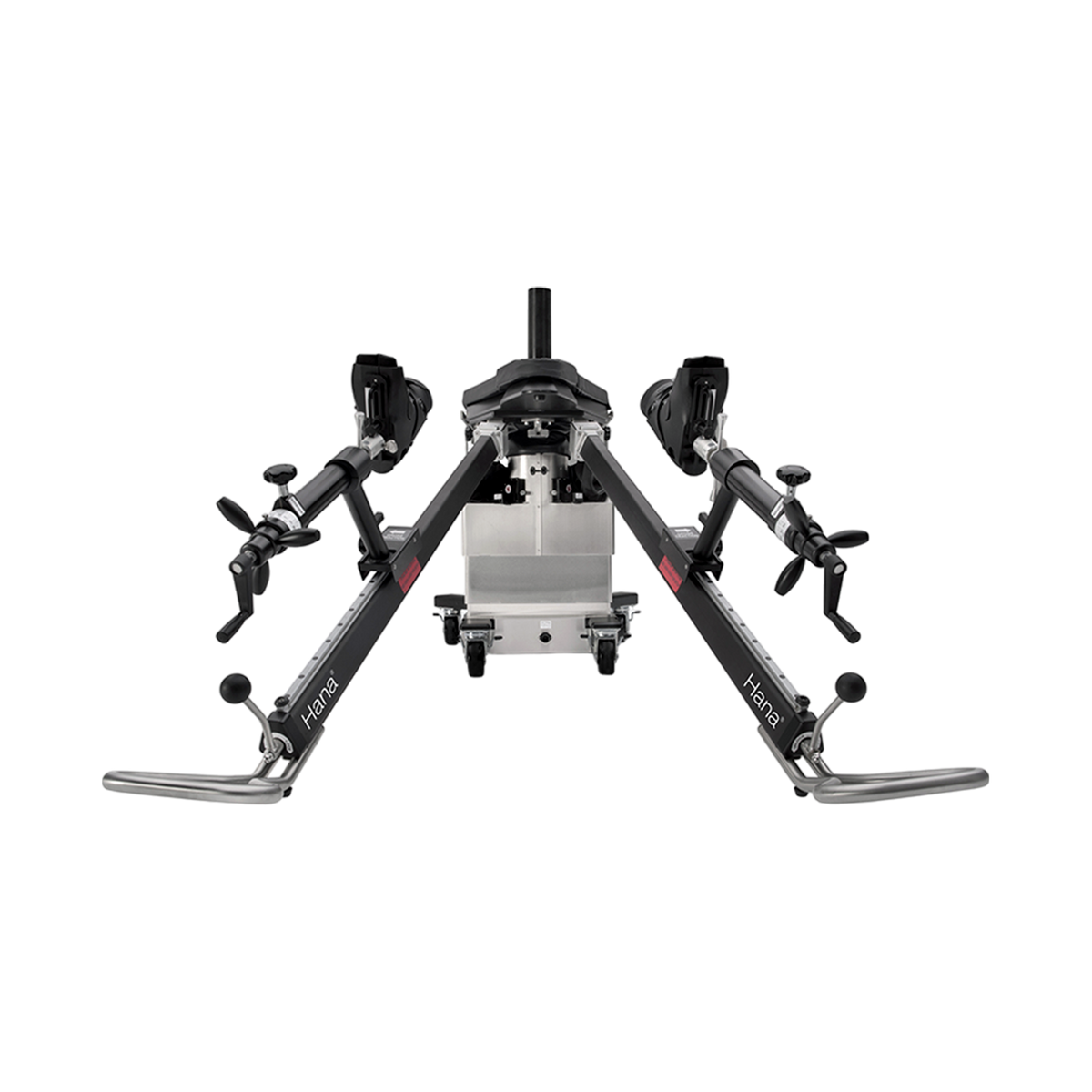

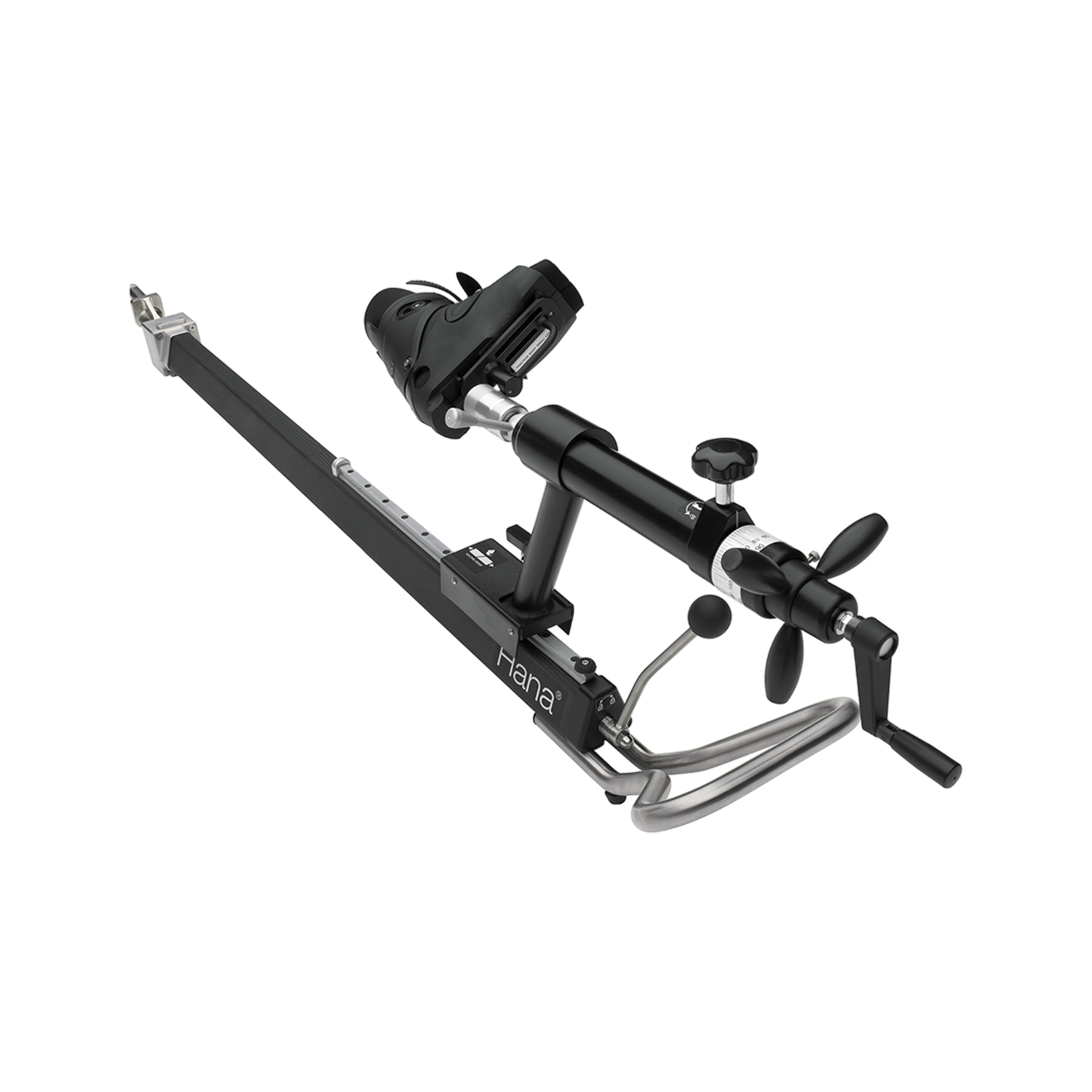

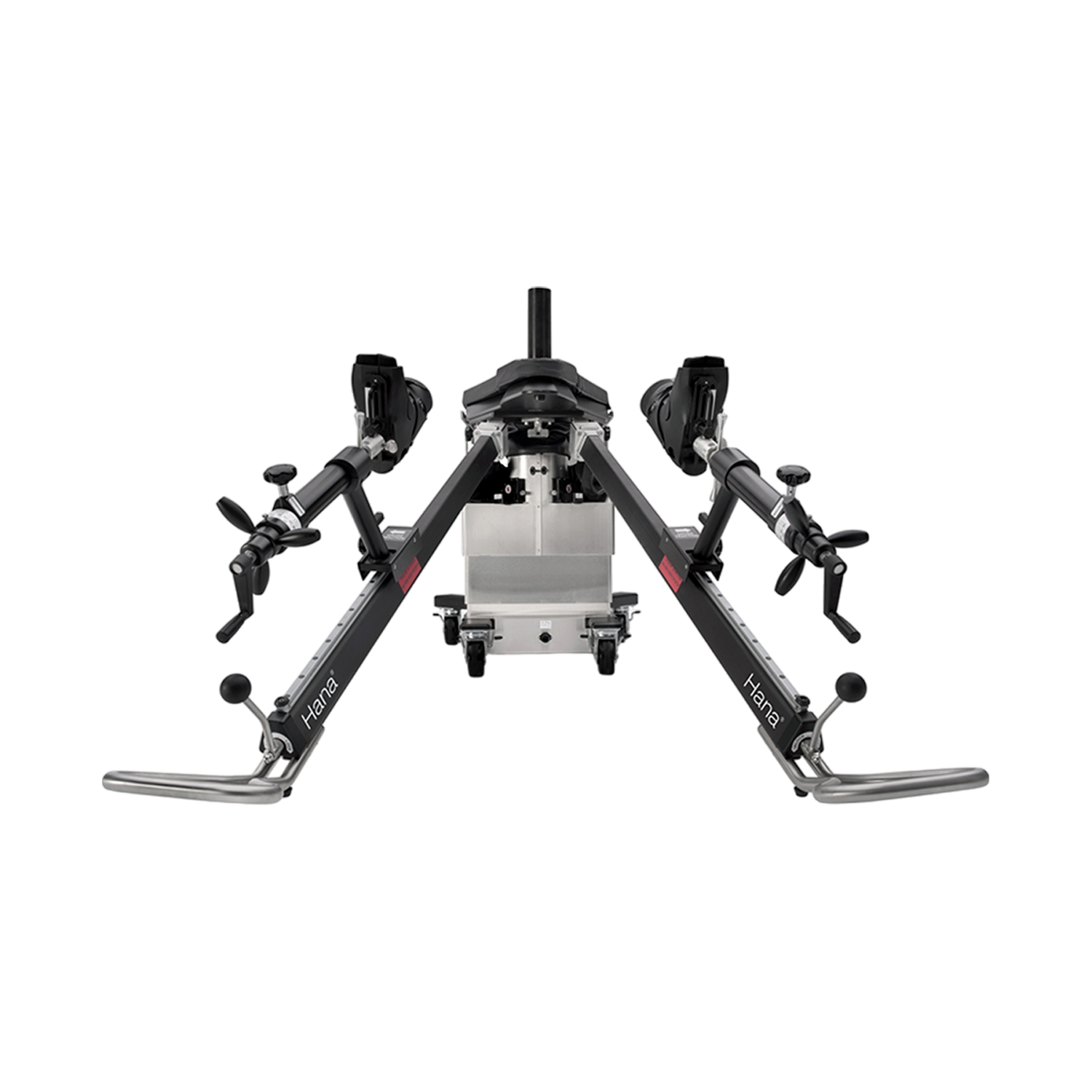

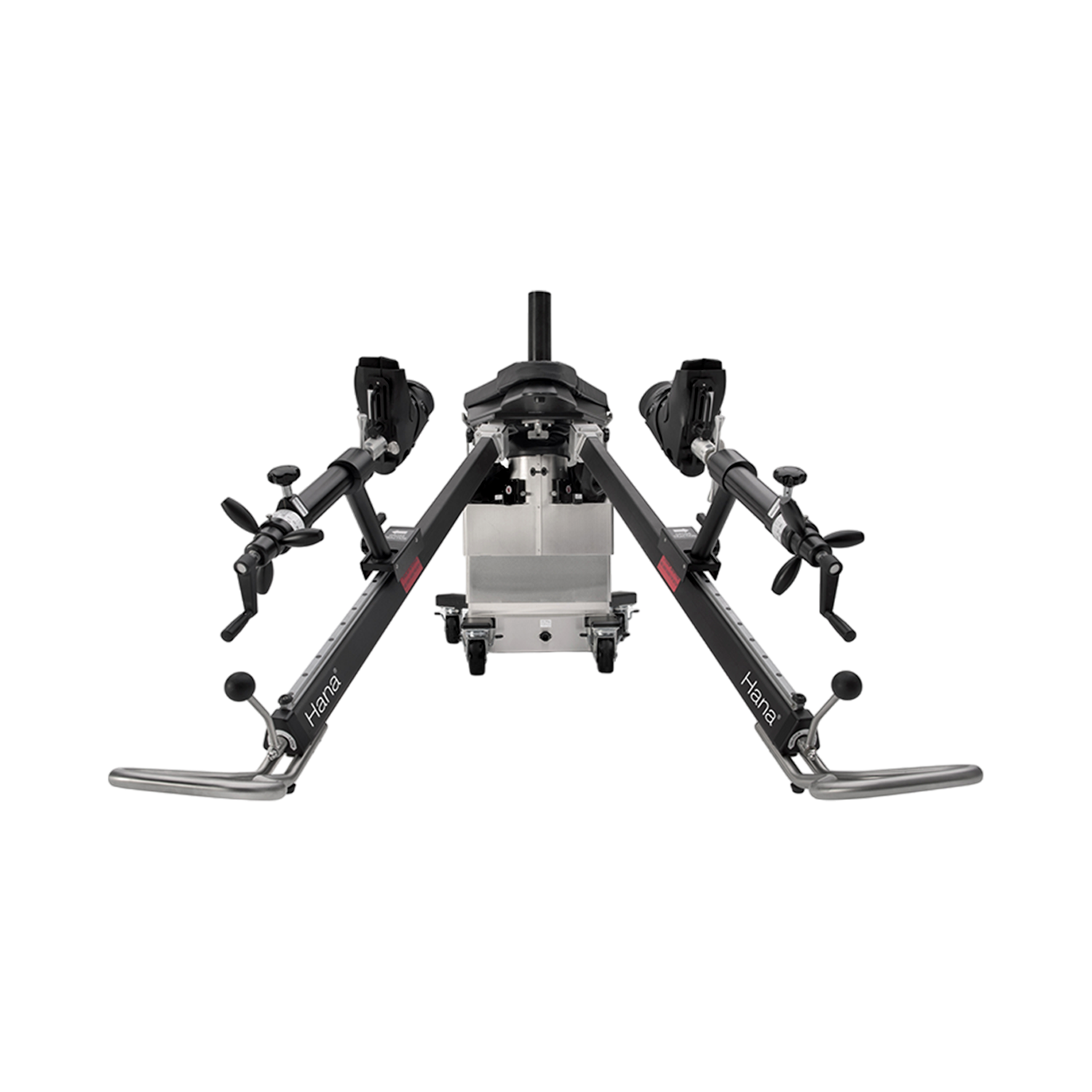

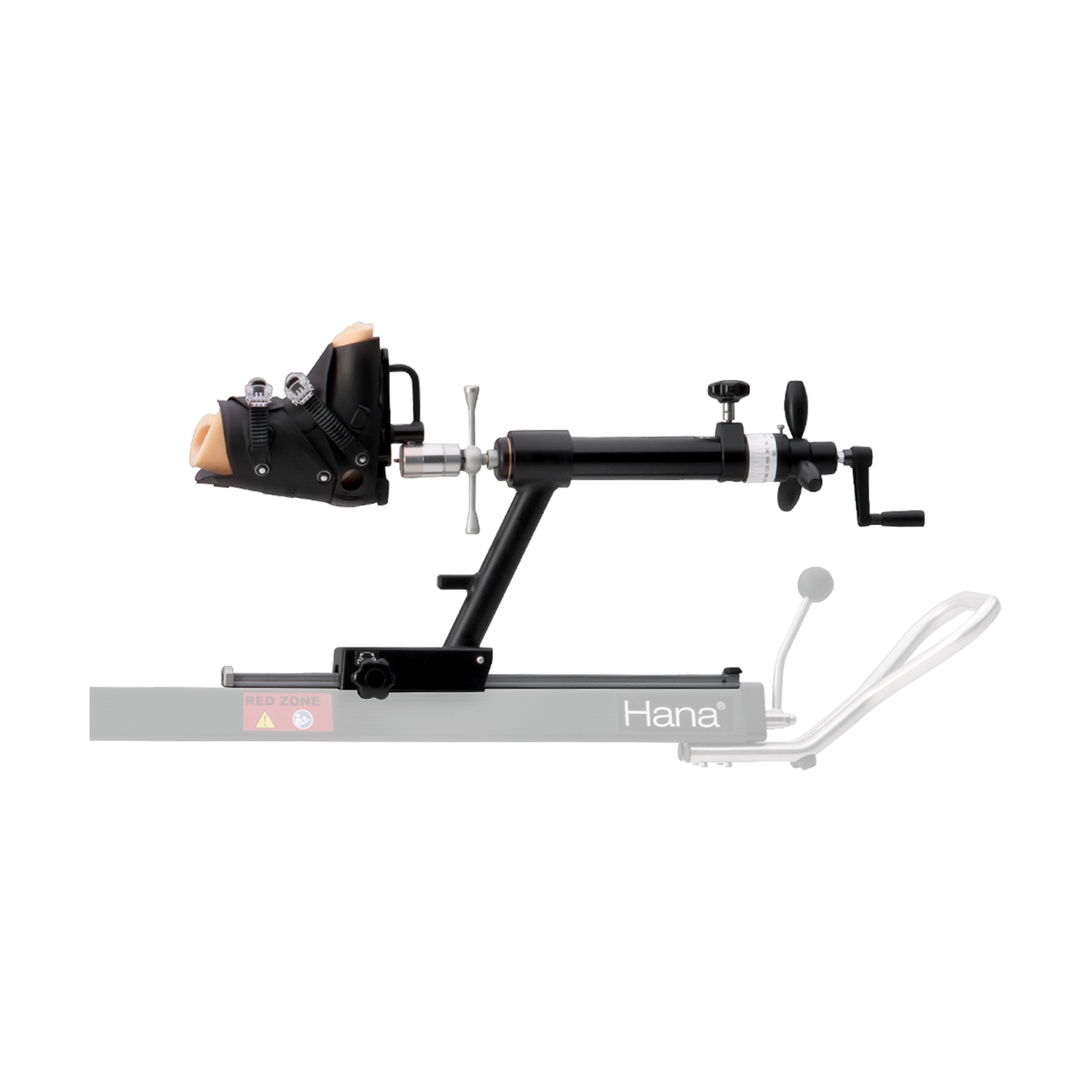

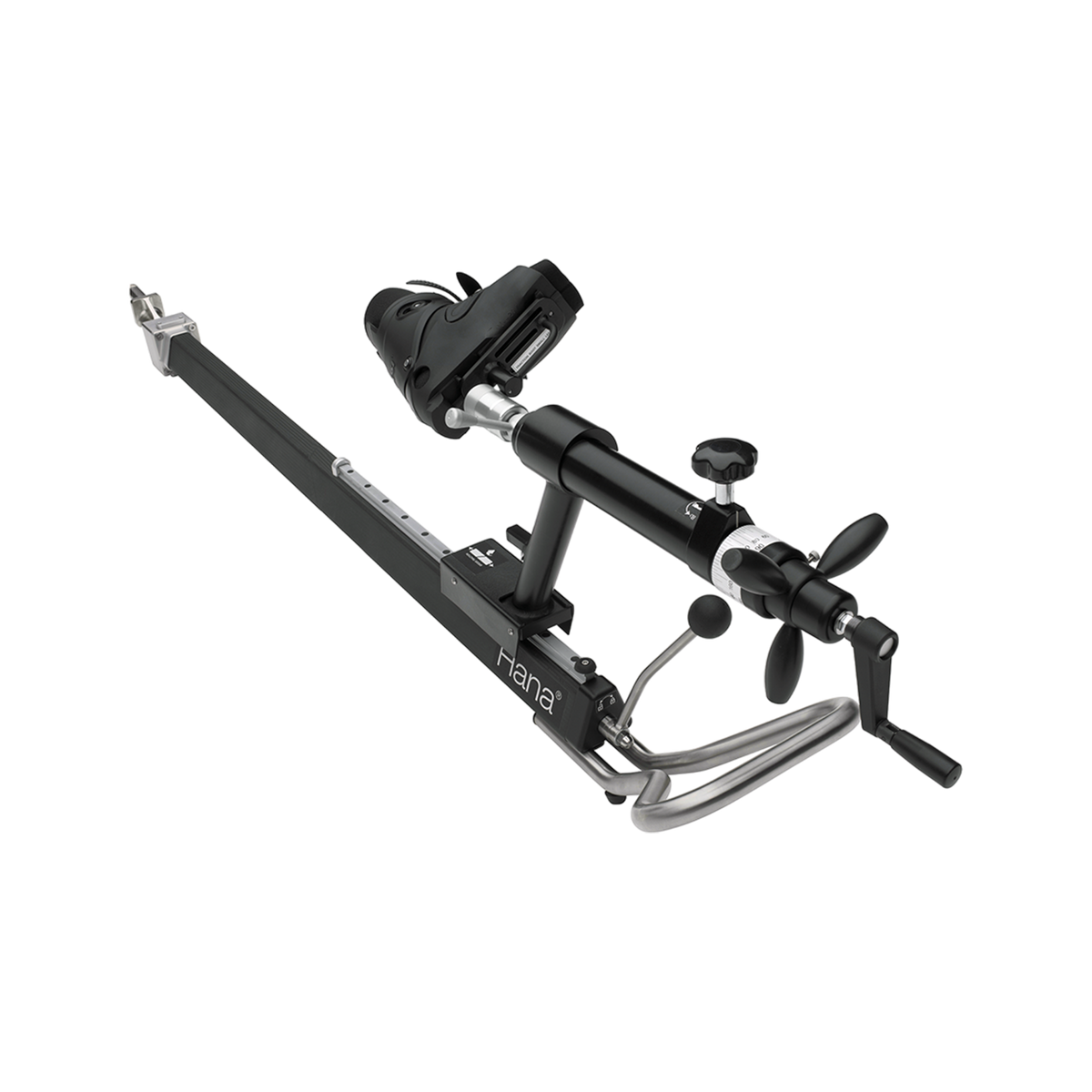

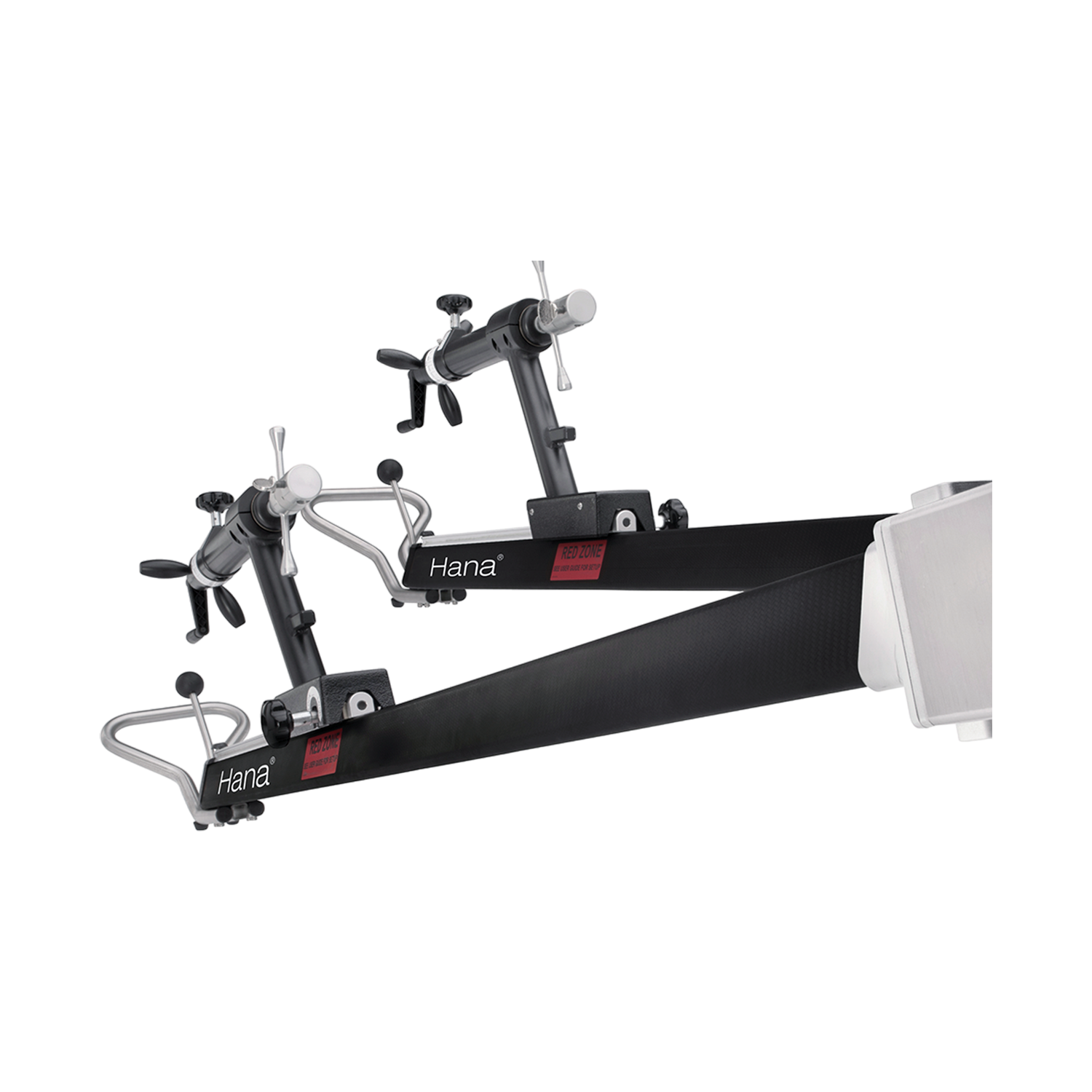

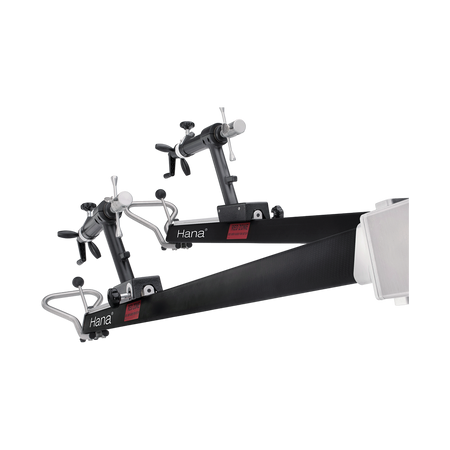

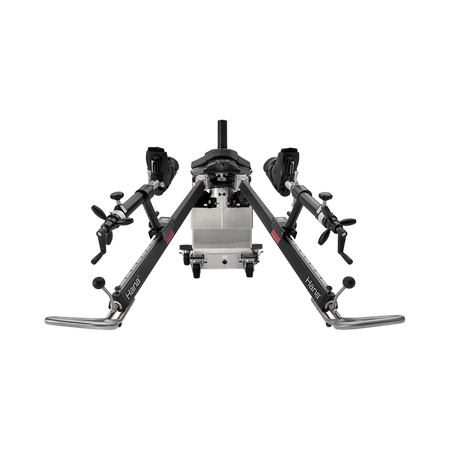

  • Radiolucent Lift-Assist Leg Spars:
    • Carbon fiber construction allows unrestricted C-Arm access for intraoperative anterior/posterior, lateral and oblique fluoroscopic views
    • Lighten the load on OR staff
    • Independently position and articulate the patient’s legs

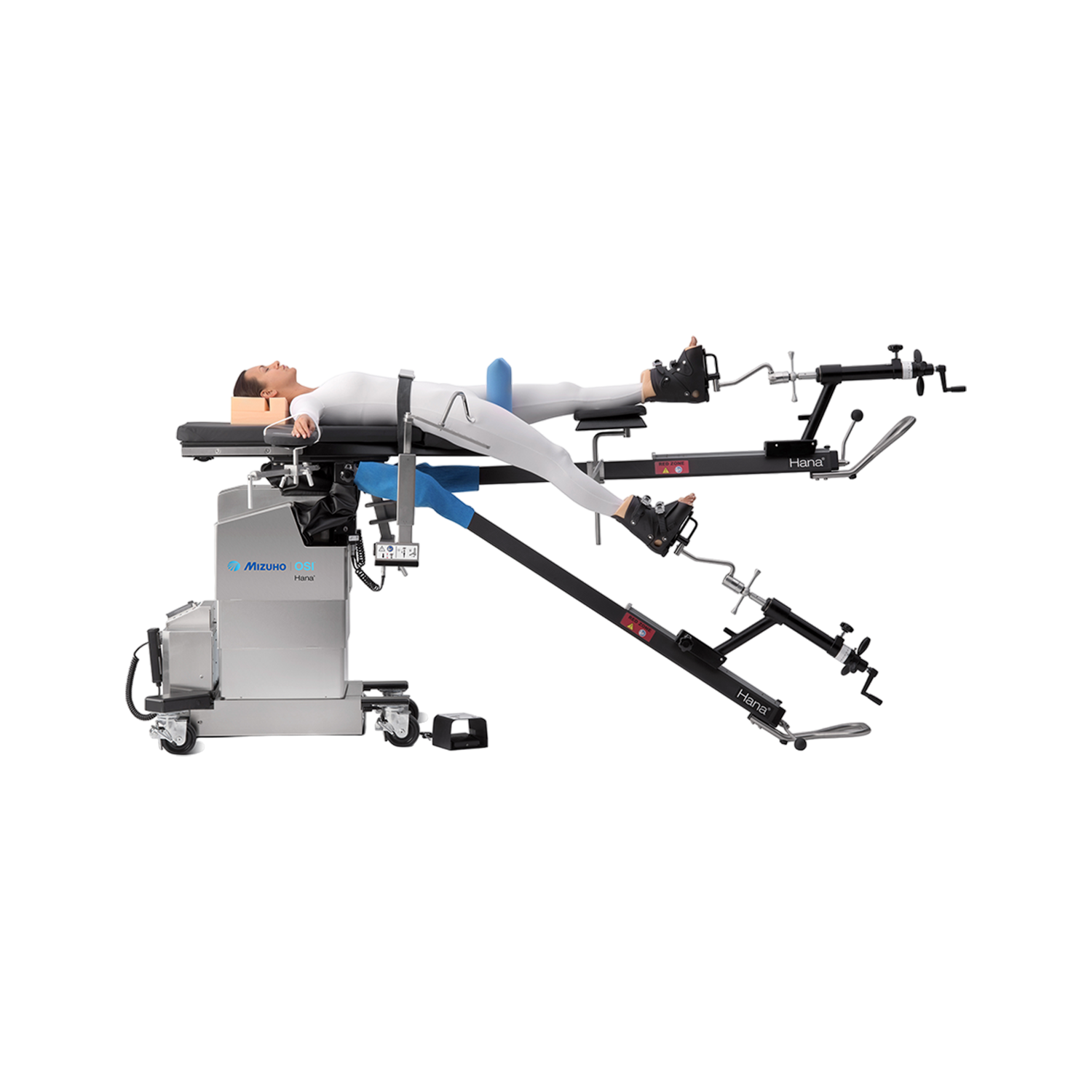

    • Enables abduction, adduction, hyperextension, and flexion of the lower extremities
    • Fine and gross traction adjustments

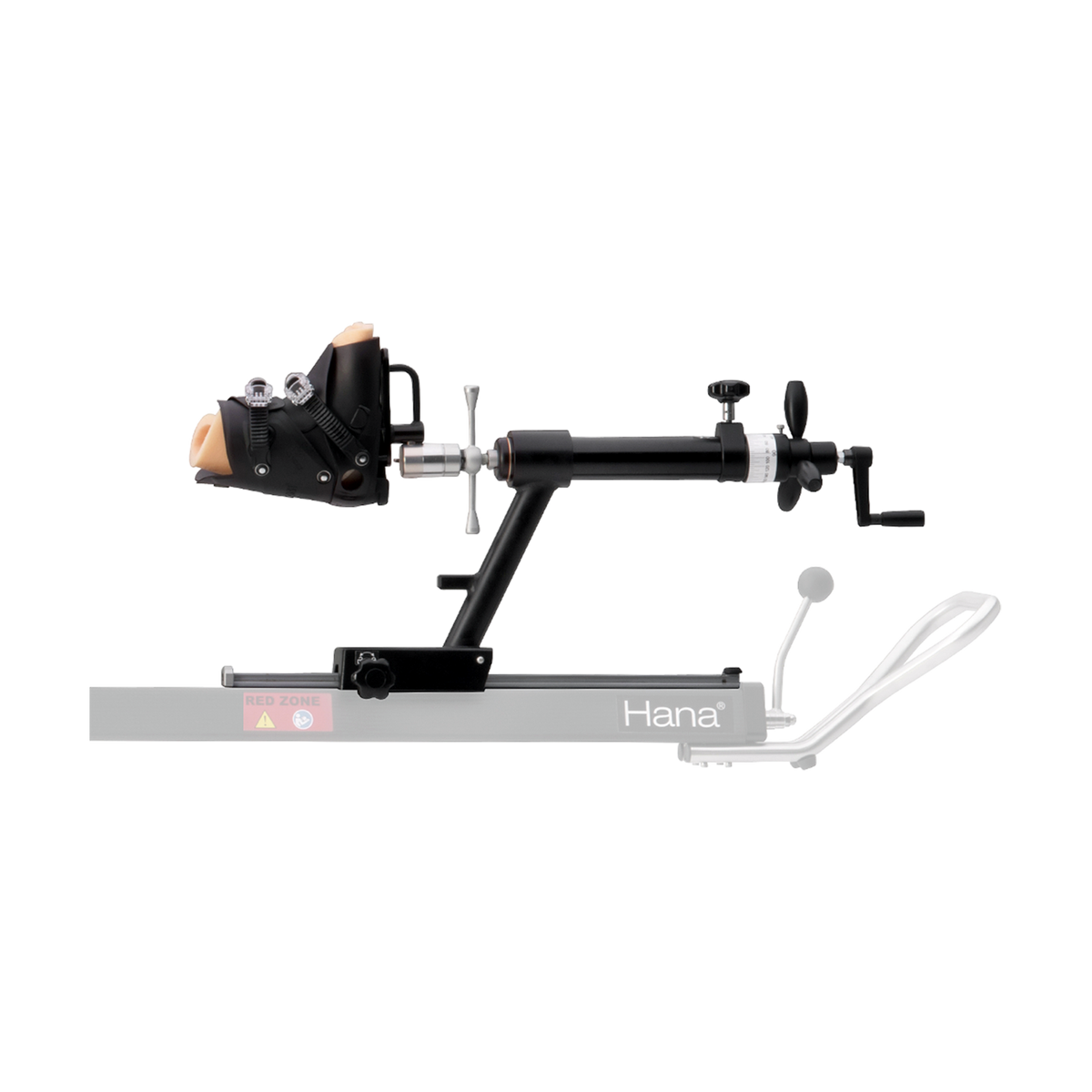

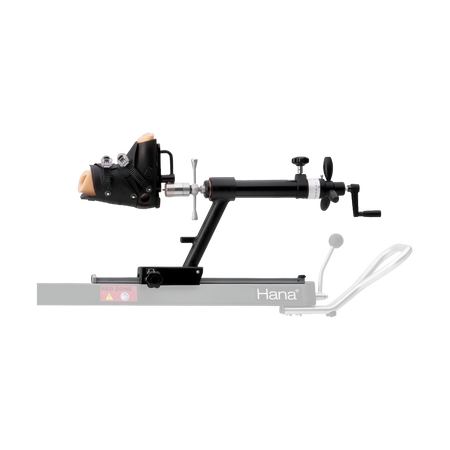

  • Fine and Gross Traction Adjustments:
    • Fine-tune traction needs from full joint distraction to fracture reduction
    • Traction boots secure the patient’s feet to the spars, with pin and wire holder options for skeletal traction

  • Femur Hook with Power Lift:
    • Patented femur hook design enhances exposure during anterior approach hip replacement surgery.
    • Foot-pedal activated power lift, controlled by surgeon, for raising and lowering the femoral hook

  • Pressure Equalization Pads with Tempur-Pedic®:
    • Padding equalizes pressure load on patient during surgery for safety and comfort
    • Contours to patient anatomy with support

  • Multiple arm board options for enhanced patient positioning

  • Hana Patient Care Kits:
    • Specifically designed for use on the Hana
    • Fluid barrier protects the Hana and aids infection control
    • Soft pads provide support and optimize patient position

POSITIONING CAPABILITIES:

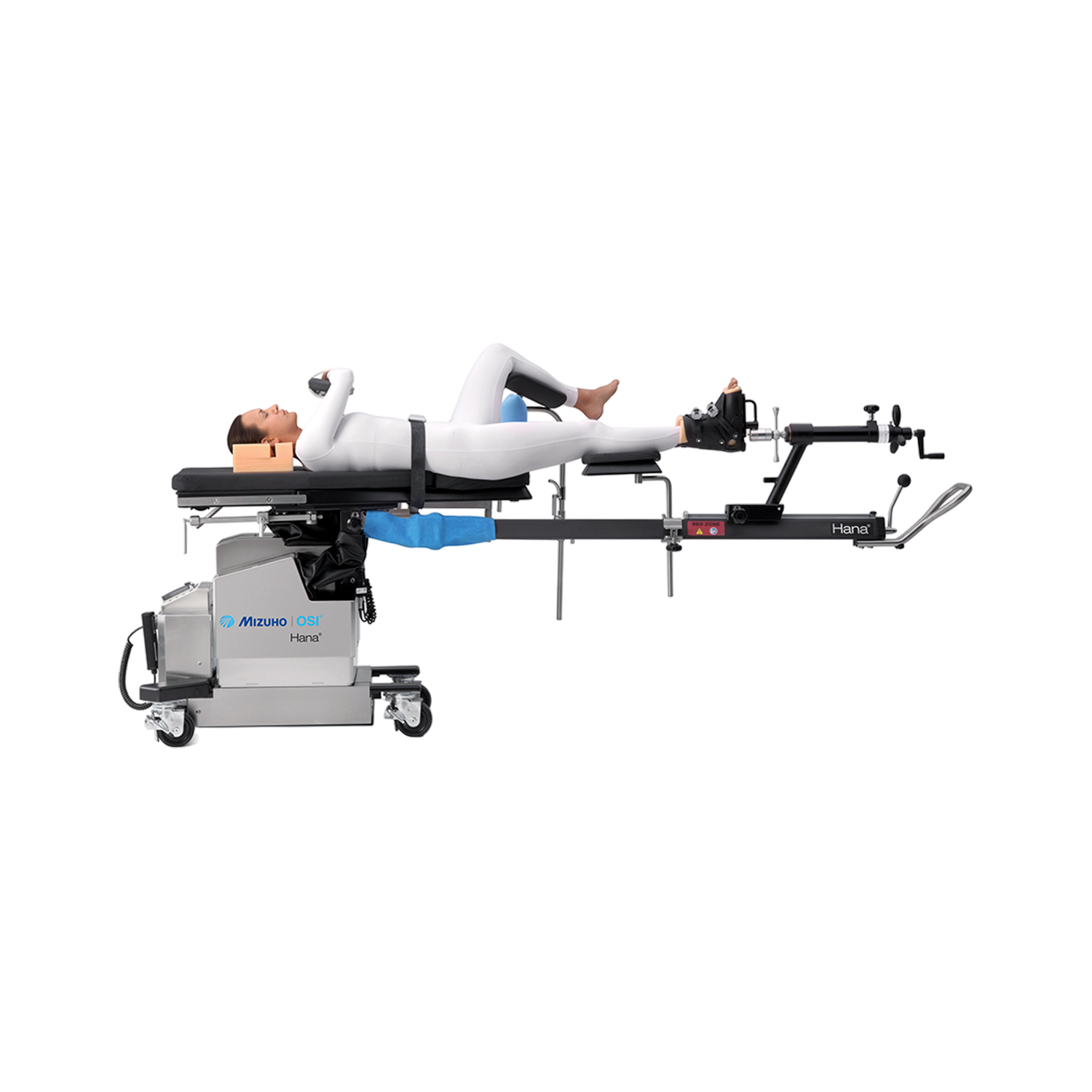

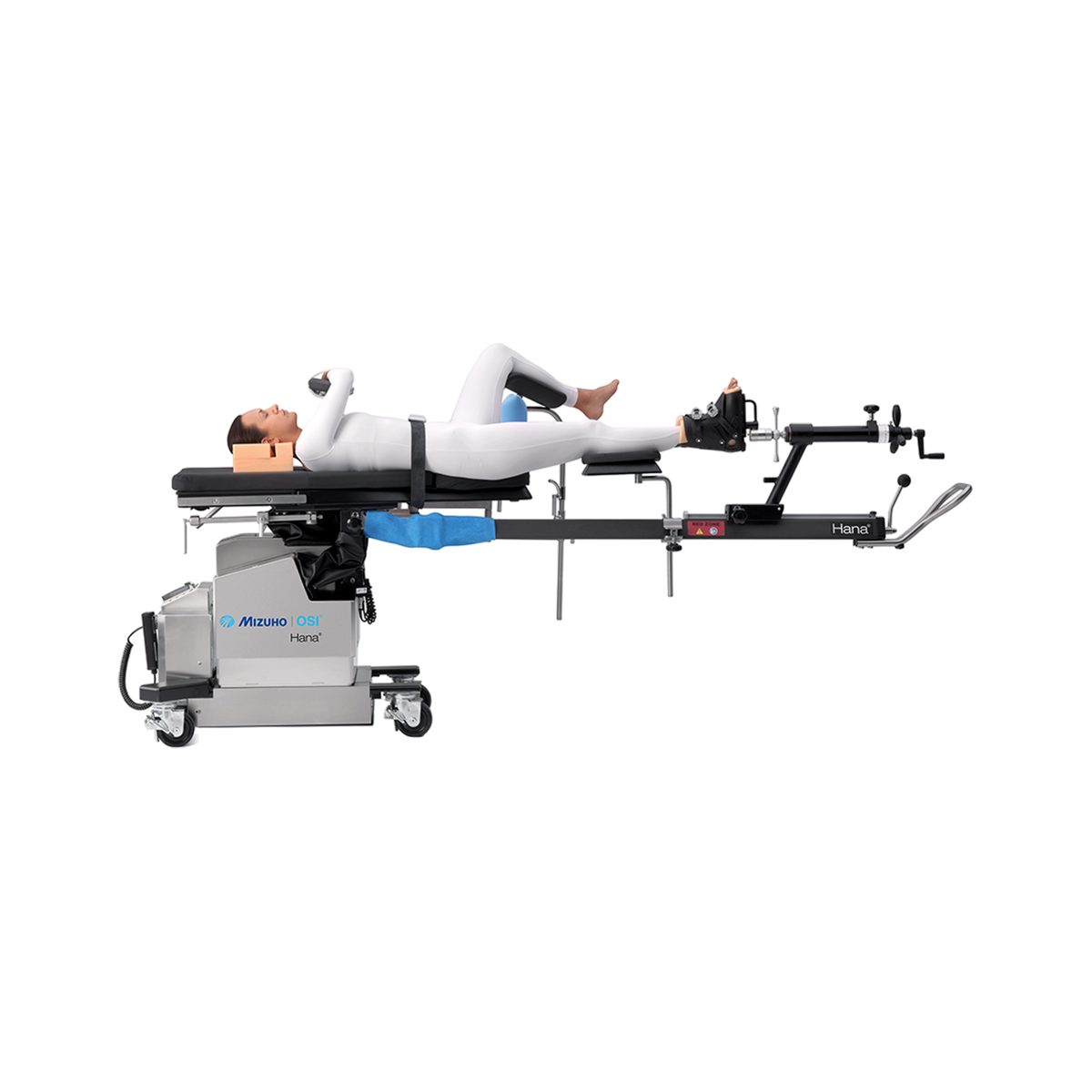

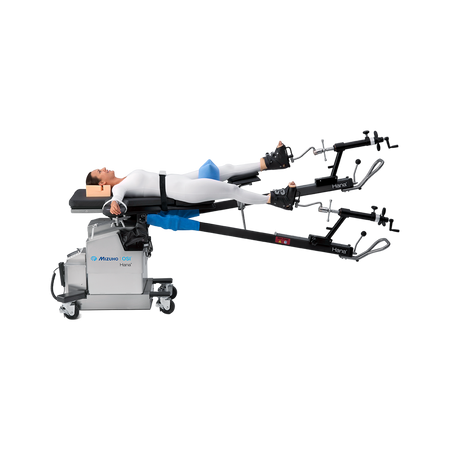

  • Supine
  • Lateral
    • w/ Optional Accessories

COMMON PROCEDURES:

  • Anterior approach total hip arthroplasty (AATHA)
  • Hip arthroscopy
  • Hip pinning
  • AA hemiarthroplasty
  • Intramedullary (IM) femoral nailing
  • Retrograde IM femoral nailing
  • Femur plating
  • IM tibial nailing
  • Lateral decubitus IM femoral nailing
  • Total knee arthroplasty (TKA)

SPECIFICATIONS:

  • Manufacturer: Mizuho OSI
  • Part Number: (OEM): HANA
  • Category: Tables Surgical - Orthopedic/Trauma
  • Accessories: None
  • Condition: New/Refurbished
  • Weight:
  • Warranty: 3 Months

  • Table Top Length:
    • 48.5” (123cm)

  • Table Length w/ Spars:
    • 124” (315cm)

  • Table Base Width:
    • 36” (91cm)

  • Tabletop Width:
    • 21.5” (55cm) at head-end
    • 10” (25cm) toward foot-end
    • 5” at perineal post

  • Tabletop Height Range:
    • 30–50” (76–127cm)

  • Trendelenburg/Reverse Trendelenburg:
    • 12°

  • Lateral Tilt:
    • 12°

  • Leg Spar Articulation:
    • 28° up (10° with lift assist support)
    • 35° down
    • 20° adduction
    • 45° abduction

  • Patient Weight Capacity:
    • 450lbs (205kg)

  • Voltage Requirements:
    • 100V 50/60Hz; 120V 60Hz; 220-230V 50/60Hz

STANDARD COMPONENTS:

  • Hana Table Base
  • Hana Lift-assisted Radiolucent Leg Spars, left/right
  • Hana Hand Pendant
  • Femoral Hook Support (2)
  • Femur Lift Extension (2)
  • Classic Femoral Hooks, left/right
  • Femoral Hooks, left/right
  • Femur Lift Assembly, left/right
  • Hana Femur Lift Foot Pedal
  • Adult Perineal Post
  • Large Traction Boot, pair
  • Small Traction Boot, pair
  • Traction Hook Extender (2)
  • Well Leg Support Adaptor
  • Articulating Bracket
  • Well Leg Support Assembly
  • Hana Arm Board (2)
  • Femur Lift Emergency Crank Handle
  • Hana Table Cover
  • Hana Patient Care Kit (3/case)
  • Patient Safety Strap, 90″ (229 cm)

DISPOSABLE COMPONENTS:

  • Hana Patient Care Kit - (Part #6851)
    • (6/case)

  • Patient Isolation Drape - (Part #5858)
    • (12/case)

  • Disposable Boot Liners - (Part #5937DZ)
    • (12/case)

  • Adult Perineal Post Cover - (Part #6855-13)
    • (12/case)

  • 6″ Diameter (15.2 cm) Perineal Post Cover - (Part #5929DZ)
    • (12/case)
