Maquet Flow-i Anesthesia Machine

Out of stock
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

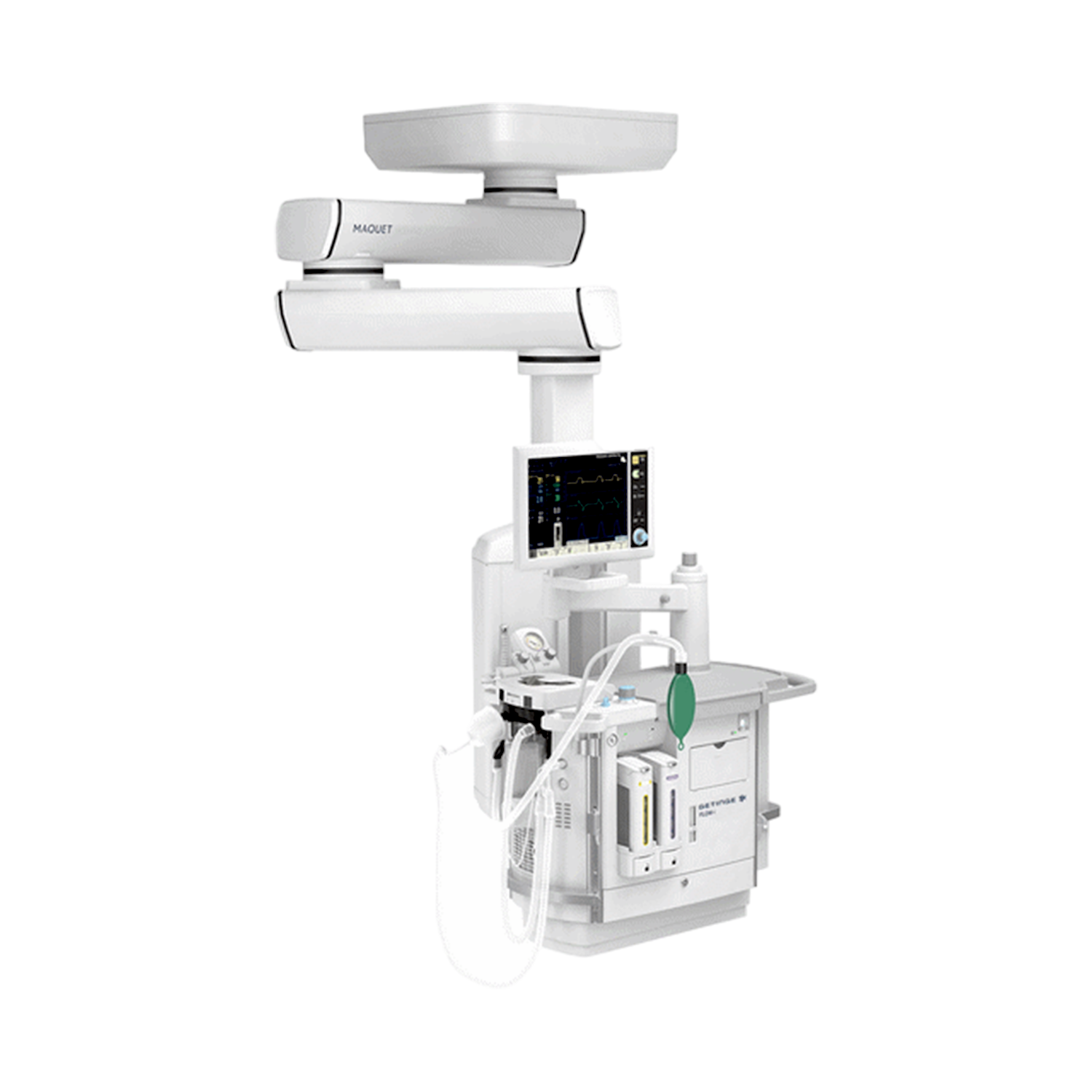

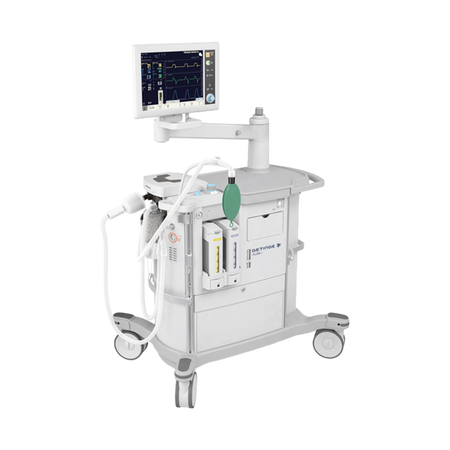

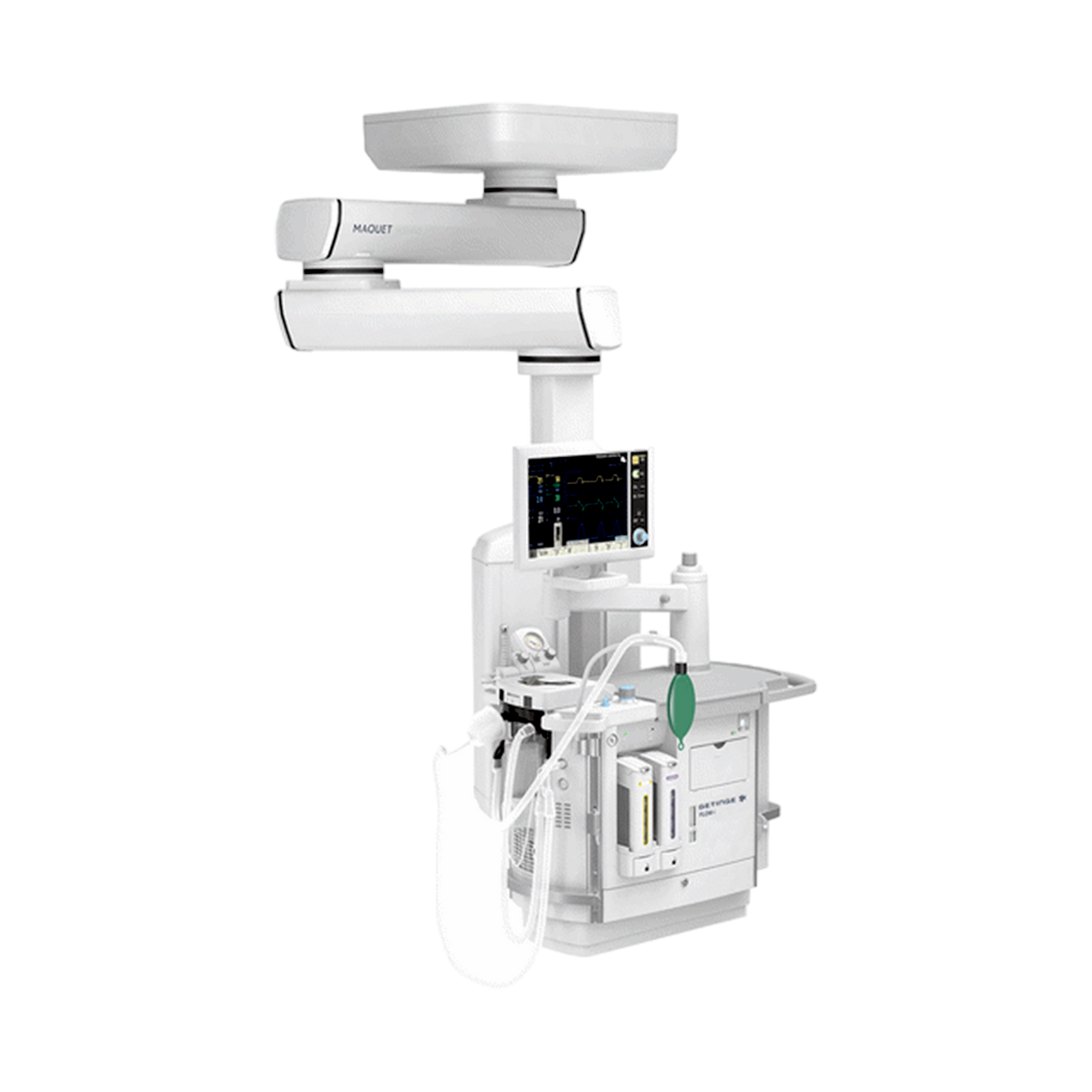

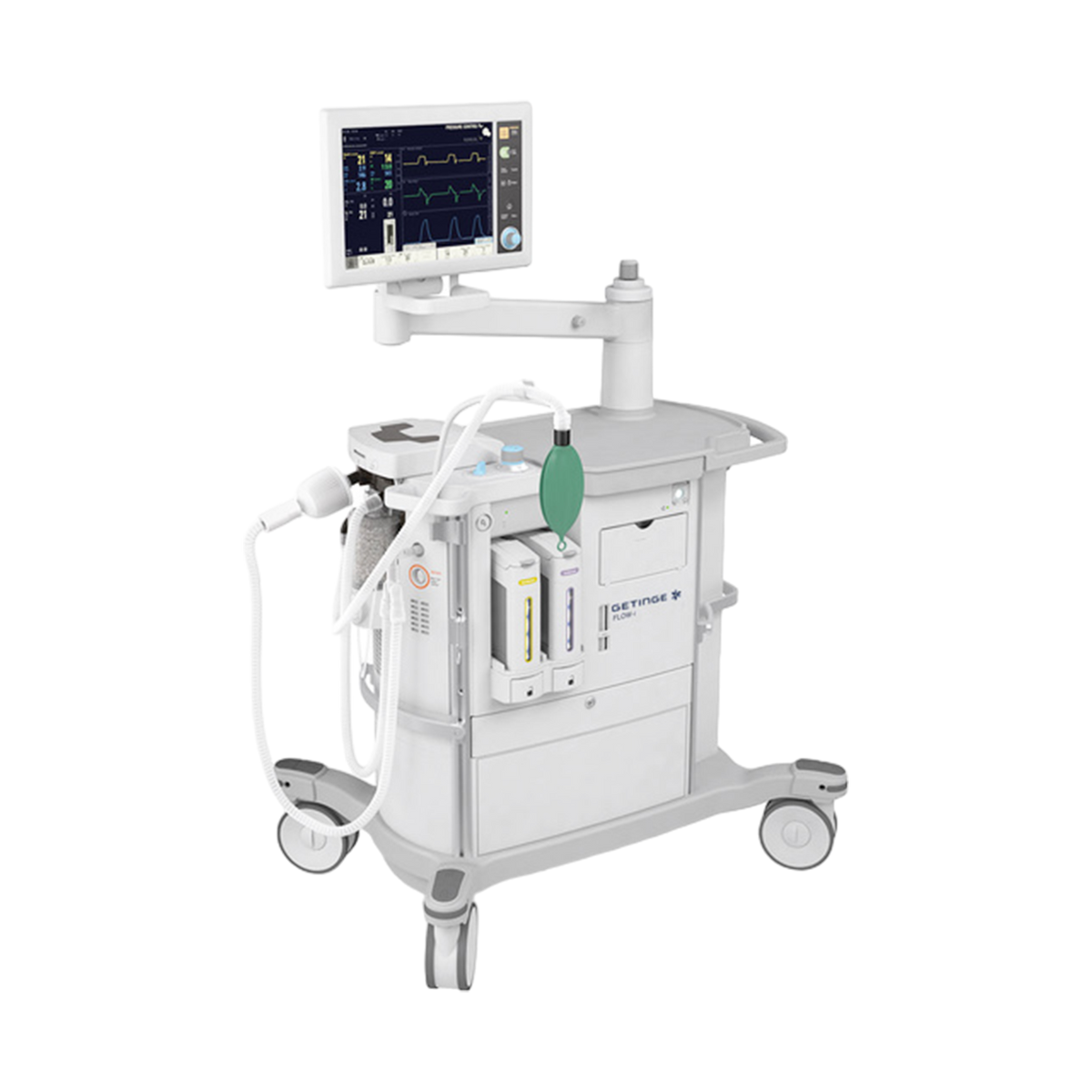

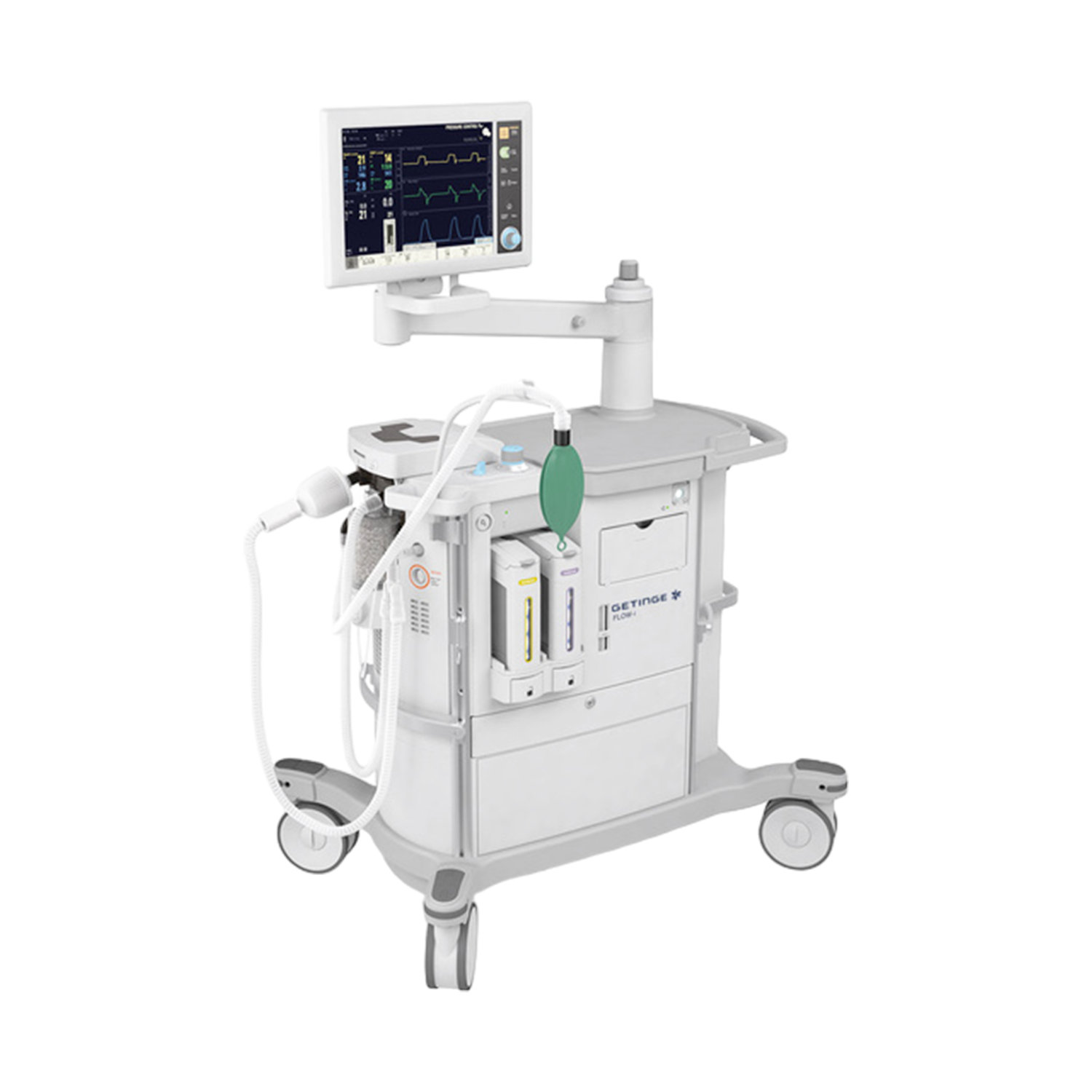

The Maquet Flow-i is an advanced anesthesia machine that incorporates ventilation technology based on Maquet's SERVO platform.

The Maquet Flow-i is designed to provide accurate ventilation across a wide range of patient groups, including those with acute respiratory demands and pediatric patients.

FEATURES:

  • Flexible  Configuration:
    • Available in three models (C20, C30, C40) with varying heights and drawer configurations to suit different needs.
  • Advanced Display:
    • 15-inch LCD touch screen display with 1024x768 pixel resolution, capable of showing up to 6 user-configurable waveforms.
  • MAQUET VOLUME REFLECTOR:
    • A unique re-breathing device that replaces traditional breathing circuits, providing enhanced patient security.
  • Versatile Ventilation Capabilities:
    • Accurate tidal volume delivery even with high abdominal and thoracic pressure.
    • Fast rise time and high flow rates to adapt to varying inspiratory demands.
    • Sensitive triggering for improved synchrony, especially beneficial for pediatric patients.
    • Controlled pressure drop during expiration to decrease resistance and work of breathing.
  • Anesthesia Gas Control (AGC):
    • Integrated system for precise control of anesthetic agent delivery.
  • Multiple Anesthetic Agent Support:
    • Compatible with isoflurane, sevoflurane, and desflurane.
  • Ergonomic Design:
    • Rotatable arm for flexible screen positioning
    • Tiltable screens for maximum visibility
    • Adjustable LED reading lamp integrated into the display arm
  • Mobility and Stability:
    • Four wheels (150 mm diameter) with separate brakes for easy maneuverability and stability.
  • Storage Options:
    • Various drawer configurations, including lockable drawers.
  • Environmental Adaptability:
    • Operates in a wide range of temperatures and humidity levels.
  • Safety Features:
    • Maintains consistent and accurate PEEP levels.

SPECIFICATIONS:

  • Manufacturer: Maquet
  • Part Number (OEM): Flow-i
  • Category: Anesthesia Machine
  • Accessories: None
  • Functional Condition: Refurbished
  • Cosmetic Condition: Good
    • Paint Wear
    • Scratches
  • Warranty: 30 Days
  • General:
    • Base System Weight:
      • Approximately 155 kg, depending on configuration.
    • Dimensions of Base Plate:
      • 692 x 985 mm.
    • Height:
      • C20: 860 mm (2 drawers), 1030 mm (3 drawers)
      • C30: 835 – 1025 mm (adjustable, 1 drawer)
    • Drawers:
      • 1-3, with at least one lockable drawer.
    • Vertical Shafts for Optional Horizontal Rails:
      • 4.
    • Wheels:
      • Four wheels with a diameter of 150 mm, each with separate brakes.
    • Working Surface/Writing Table:
      • Approximately 420 x 600 mm.
    • Additional Writing Table:
      • 397 mm x 250 mm.
    • Reading Lamp:
      • Adjustable LED light integrated into the display arm.
  • Display Specifications:
    • Type:
      • LCD touch screen with 11 membrane switches and one rotary knob.
    • Size:
      • 432 mm x 295 mm.
    • Viewing Area:
      • 15 inches, 1024×768 pixels with a palette of 512 colors.
    • Waveforms:
      • Up to 6 user-configurable waveforms.
    • Trends:
      • Graphic display with 1 to 24-hour resolution; numeric display with 1 to 60-minute resolution.
  • Environmental Specifications:
    • Operating Conditions:
      • Ambient Temperature: +15°C to +35°C (+60°F to +95°F)
      • Ambient Temperature for Desflurane: +15°C to +30°C (+60°F to +85°F)
      • Relative Humidity (non-condensing): 15% to 95%
      • Atmospheric Pressure: 700 hPa – 1060 hPa
    • Non-operating Conditions:
      • Ambient Temperature: -25°C to +60°C (-15°F to +140°F)
      • Battery: +5°C to 40°C (40°F to 104°F)
      • Relative Humidity (non-condensing): < 95%
      • Atmospheric Pressure: 470 hPa – 1060 hPa
  • Ventilation and Gas Delivery:
    • Ventilation Technology:
      • Based on Maquet's SERVO platform.
    • Re-breathing Device:
      • MAQUET VOLUME REFLECTOR, replacing traditional breathing circuits.
    • Anesthesia Gas Control (AGC):
      • Integrated system for precise control of anesthetic agent delivery.
      • Supported Anesthetic Agents:
      • Isoflurane, Sevoflurane, Desflurane.
  • Safety and Performance Features:
    • Accurate Tidal Volume Delivery:
      • Maintains set tidal volume despite high abdominal and thoracic pressure.
    • Fast Rise Time and High Flow Rates:
      • Adapts to varying inspiratory demands.
    • Sensitive Triggering:
      • Improves synchrony, especially beneficial for pediatric patients.
    • Controlled Pressure Drop During Expiration:
      • Reduces expiratory resistance and work of breathing, minimizing auto-PEEP at higher respiratory rates.
    • Consistent and Accurate PEEP Levels:
      • Ensures stable respiratory support.

In addition please acknowledge the following disclaimer:

* IMPORTANT - PLEASE READ BEFORE PURCHASING! * All pictures of items being sold are used for reference purposes and are described as accurately as possible. If there is an error in a listing, we will try and resolve any issues to the best of our abilities that may arise before or after a sale. Complete units all come with a power cord and DO NOT come with any cables, sensors, manuals, accessories etc. unless otherwise noted in the description.

Purchaser agrees that seller is not liable for any injuries or damages of any kind associated in any way with this equipment. Purchaser agrees to indemnify and hold harmless seller and seller's officers, directors, employees, agents, and shareholders against any and all claims, liabilities, obligations, demands, cost and expenses of every kind and nature, including but not limited to attorney's fees and litigation expenses, from or related to the equipment and any use thereof.

* NOTE - FDA Regulation and Certification: "The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."

This unit or item will ship anywhere in the continental United States via Palletized Freight - Calculated. Please read our Shipping and Return policies for more details.
