Hologic Fluoroscan InSight FD Mini C-Arm System

SKU: EN-HOLO-INSIGHT-FD
(0)
Condition
Category
LEAD TIME: Estimated Ship Time: 10-14 Days
PACKAGING: 1
WARRANTY: 90 Days
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

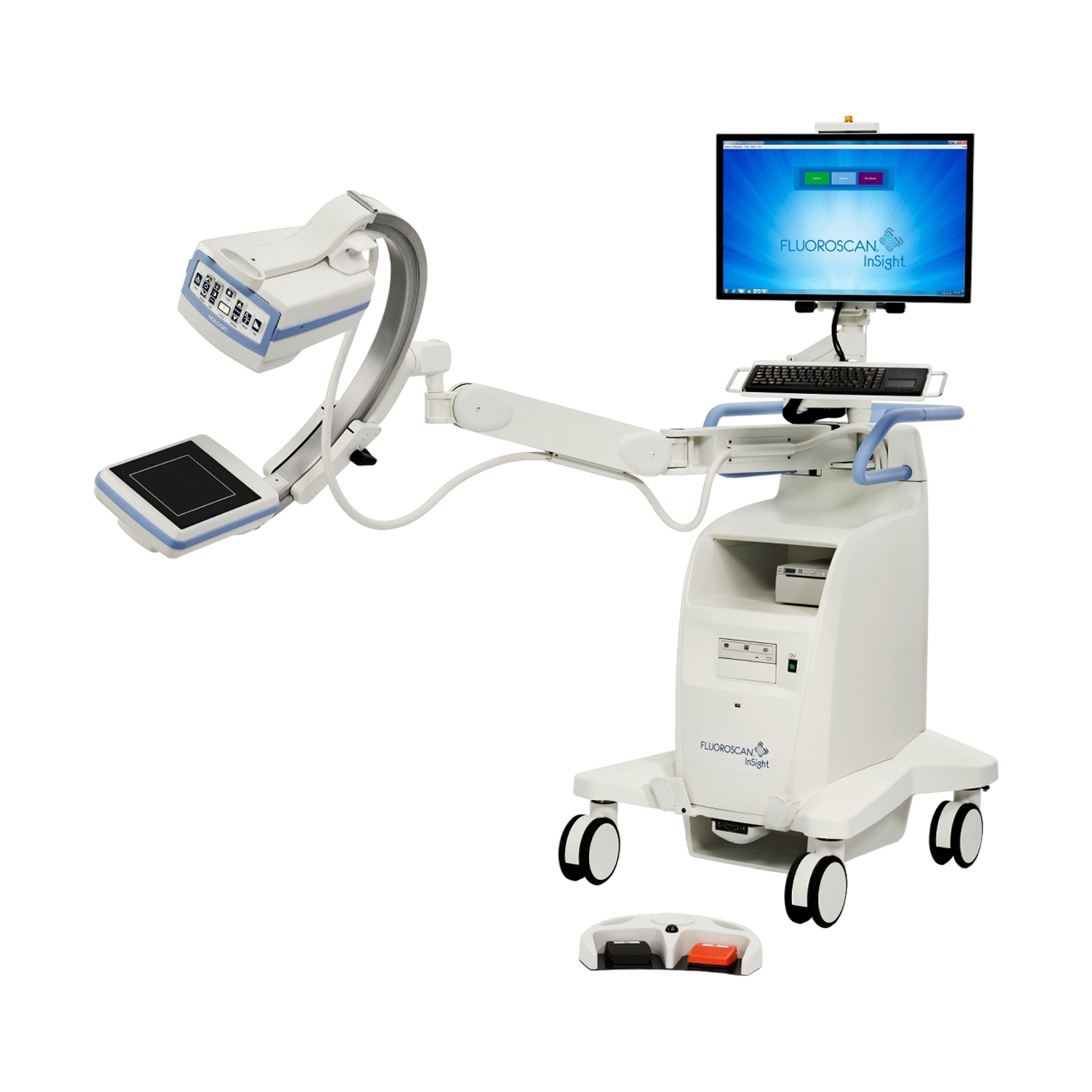

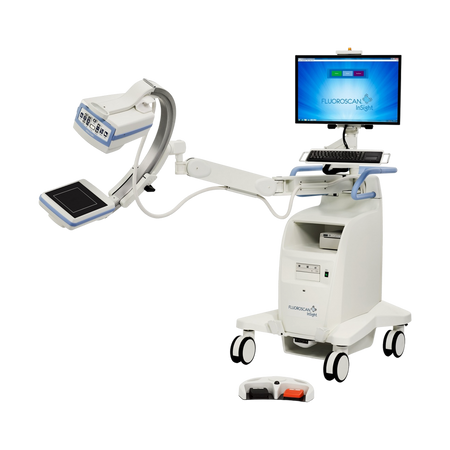

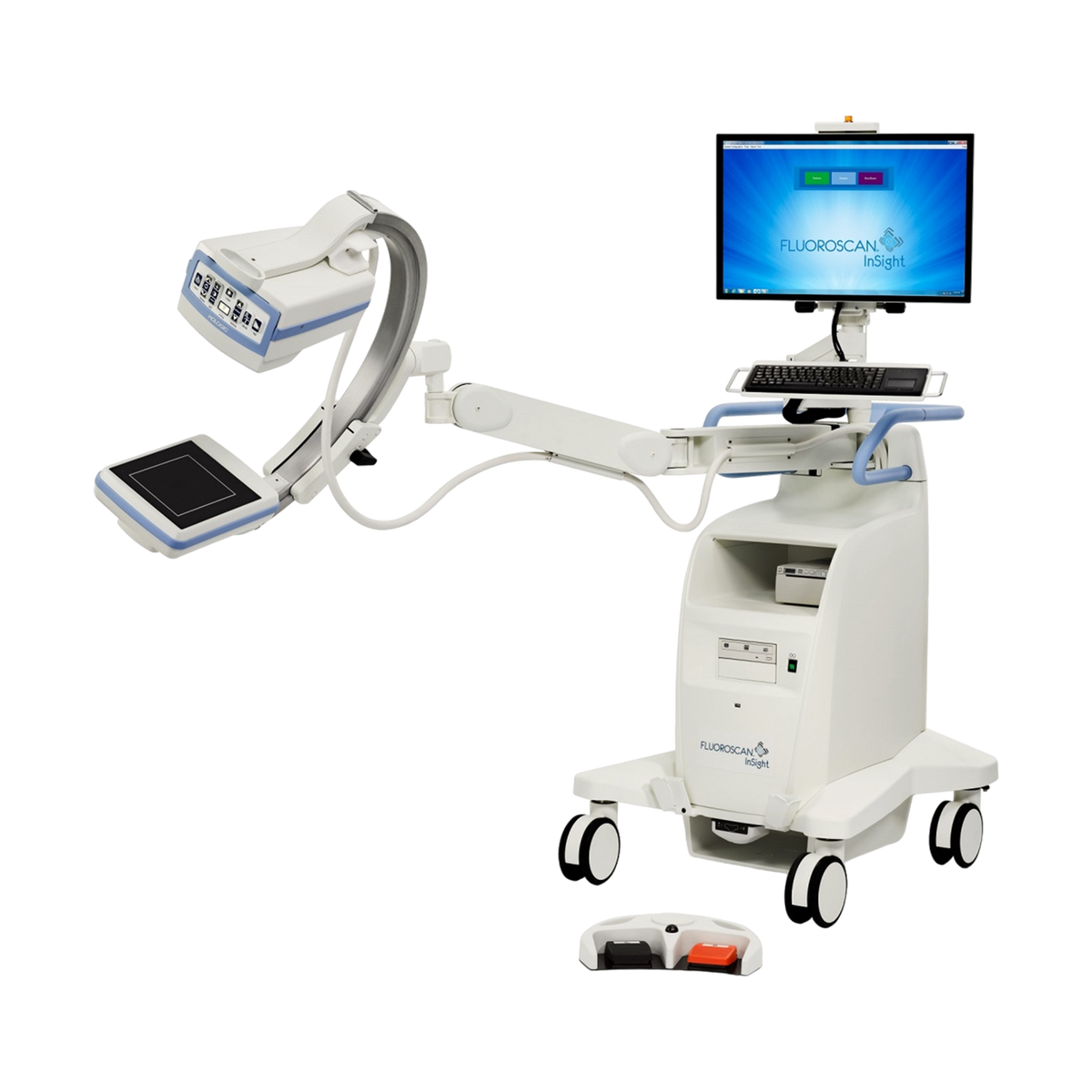

The Hologic Fluoroscan InSight FD Mini C-Arm is a state-of-the-art extremities imaging system designed for orthopedic and other extremity surgeons. It offers a variety of advanced features, including a rotating detector for improved imaging, a 24” HD touchscreen interface, and a flat detector for premium image quality.

The system provides diversified imaging options and an enhanced interface, making it suitable for a wide range of extremity procedures. Additionally, it offers thin profile and improved workspace access, as well as ease of use. The Fluoroscan InSight FD Mini C-Arm is known for its high-resolution imaging capabilities, versatility, and ergonomic design, making it an ideal device for today’s busy surgeons.

FEATURES:

  • Flat detector technology
  • C-Arm design for improved ergonomics
  • Ergonomic design
  • User friendly interface
  • Versatility to perform your extremity procedures
  • User-friendly controls right where you need them
  • Convenient mobility and flexibility
  • Image quality to rival standard X-ray
  • Better workflow and improved productivity
  • Peripherals and options to support each customer
  • Hologic offers expertise, stability and long-term investment support

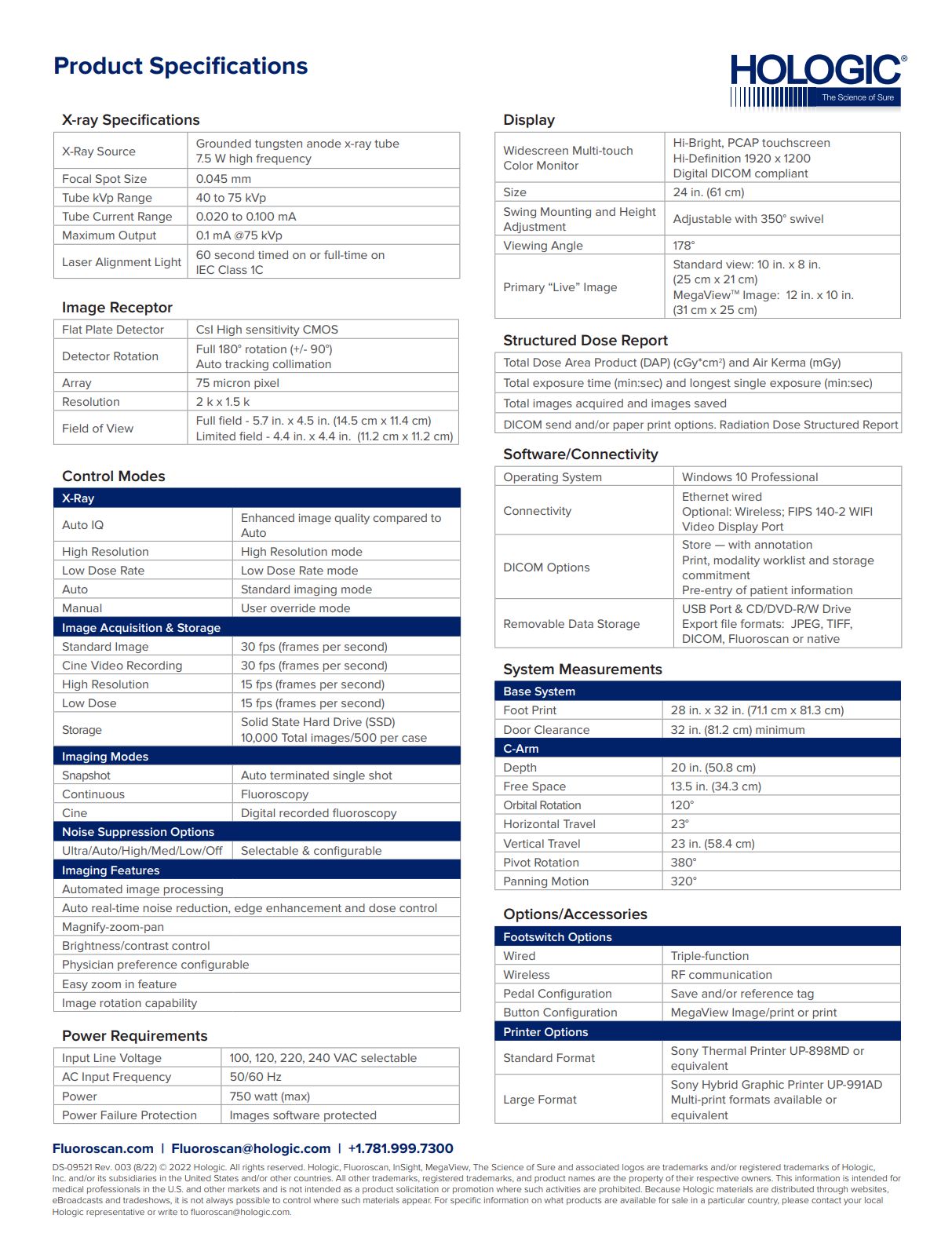

SPECIFICATIONS:
  • Manufacturer: Hologic
  • Part Number (OEM): Fluoroscan InSight FD
  • Category: Imaging
  • Accessories:
    • None
  • Functional Condition: Refurbished
  • Cosmetic Condition: Good
    • Will be REPAINTED before shipping
    • Minor Scratches
  • Warranty: 90 Days

  • Image Detector Device:
    • CMOS Flat Detector
    • Rotating Detector (180°)
    • Automatic Collimation Rotation
    • Full Field: 5.7” x 4.5” (14.5 x 11.5 cm)
      • Small Field (mag.): 4.4” sq. (11 x 11 cm)

  • Display:
    • Widescreen Multi-touch color monitor:
      • Hi-Bright, PCAP touchscreen
      • Hi-Definition 1920 x 1200
      • Digital DICOM compliant
    • Size: 24 in (61 cm)
    • Swing Mounting and height adjustment: Adjustable with 350° swivel
    • Viewing angle: 178°
    • Primary image:
      • Standard view: 10 in. x 8 in. (25 cm x 21 cm)
      • MegaView Image: 12 in. x 10 in. (31 cm x 25 cm)

  • C-Arm:
    • FD C-Arm Depth: 20” (50.6 cm)
    • Free Space (SSD): 14” (36 cm)
    • Orbital Rotation: 120°
    • Horizontal Travel: 23°
    • Vertical Travel: 23” (58 cm)
    • Pivot Rotation: 380°

  • X-Ray:
    • X-Ray Source: Grounded tungsten anode x-ray tube 7.5 W high frequency
    • Focal Spot size: 0.045 mm
    • Tube kVp Range: 40 to 75 kVp
    • Tube Current Range: 0.020 to 0.100 mA
    • Maximum Output: 0.1 mA @75 kVp
    • Laser alignment Light: 600 seconds timed on or full-time on IEC class 1C

  • Power Requirements:
    • Input Line Voltage: 100, 120, 220, 240 VAC selectable
    • AC Input Frequency: 50/60 Hz
    • Power: 750 watts (max)
    • Power Failure Protection: Image Software Protected

In addition, please acknowledge the following disclaimer:

* IMPORTANT - PLEASE READ BEFORE PURCHASING! * All pictures of items being sold are used for reference purposes and are described as accurately as possible. If there is an error in a listing, we will try and resolve any issues to the best of our abilities that may arise before or after a sale. Complete units all come with a power cord and DO NOT come with any cables, sensors, manuals, accessories etc. unless otherwise noted in the description.

Purchaser agrees that seller is not liable for any injuries or damages of any kind associated in any way with this equipment. Purchaser agrees to indemnify and hold harmless seller and seller's officers, directors, employees, agents, and shareholders against any and all claims, liabilities, obligations, demands, cost and expenses of every kind and nature, including but not limited to attorney's fees and litigation expenses, from or related to the equipment and any use thereof.

* NOTE - FDA Regulation and Certification: "The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping of the item."
