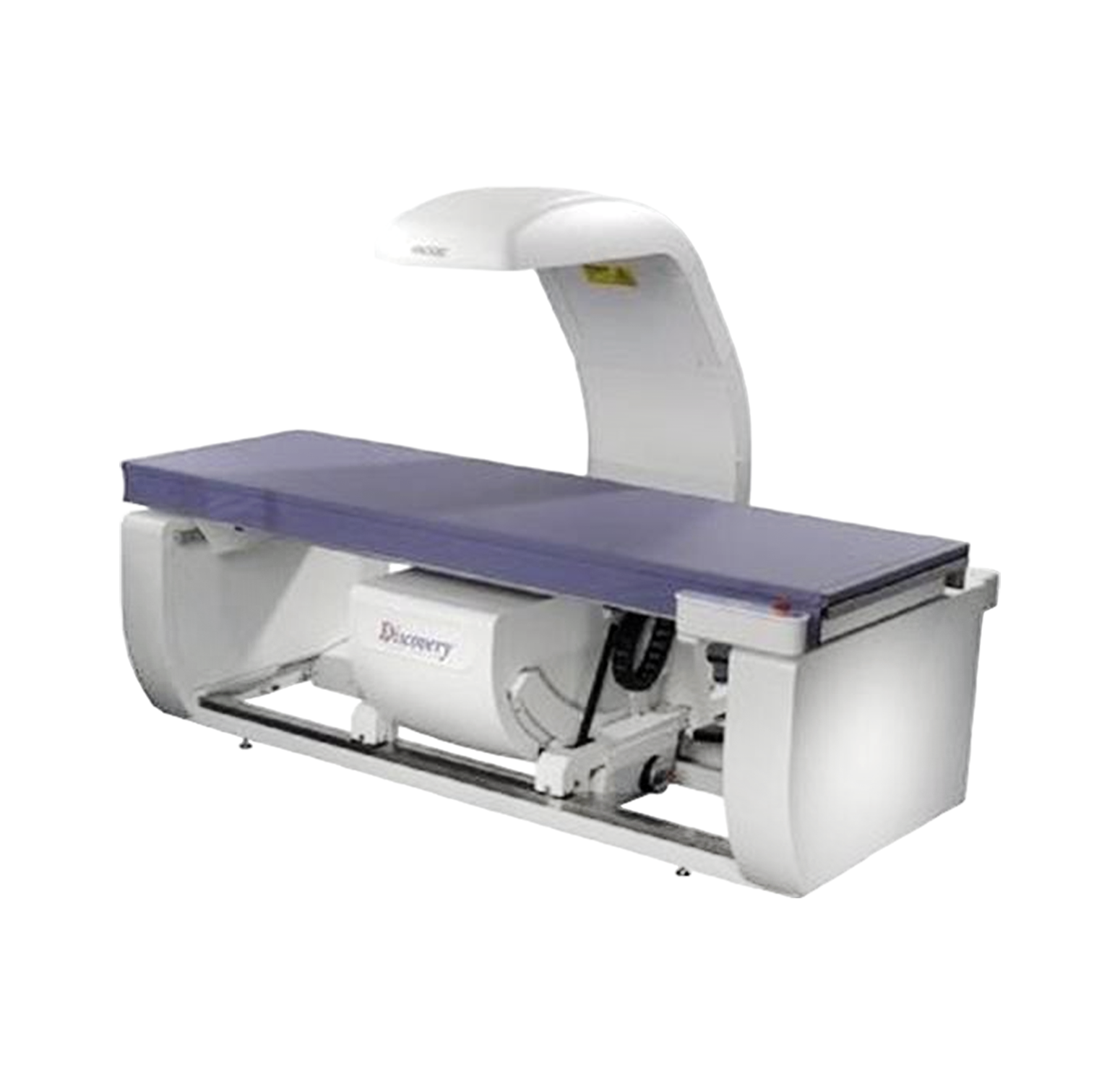

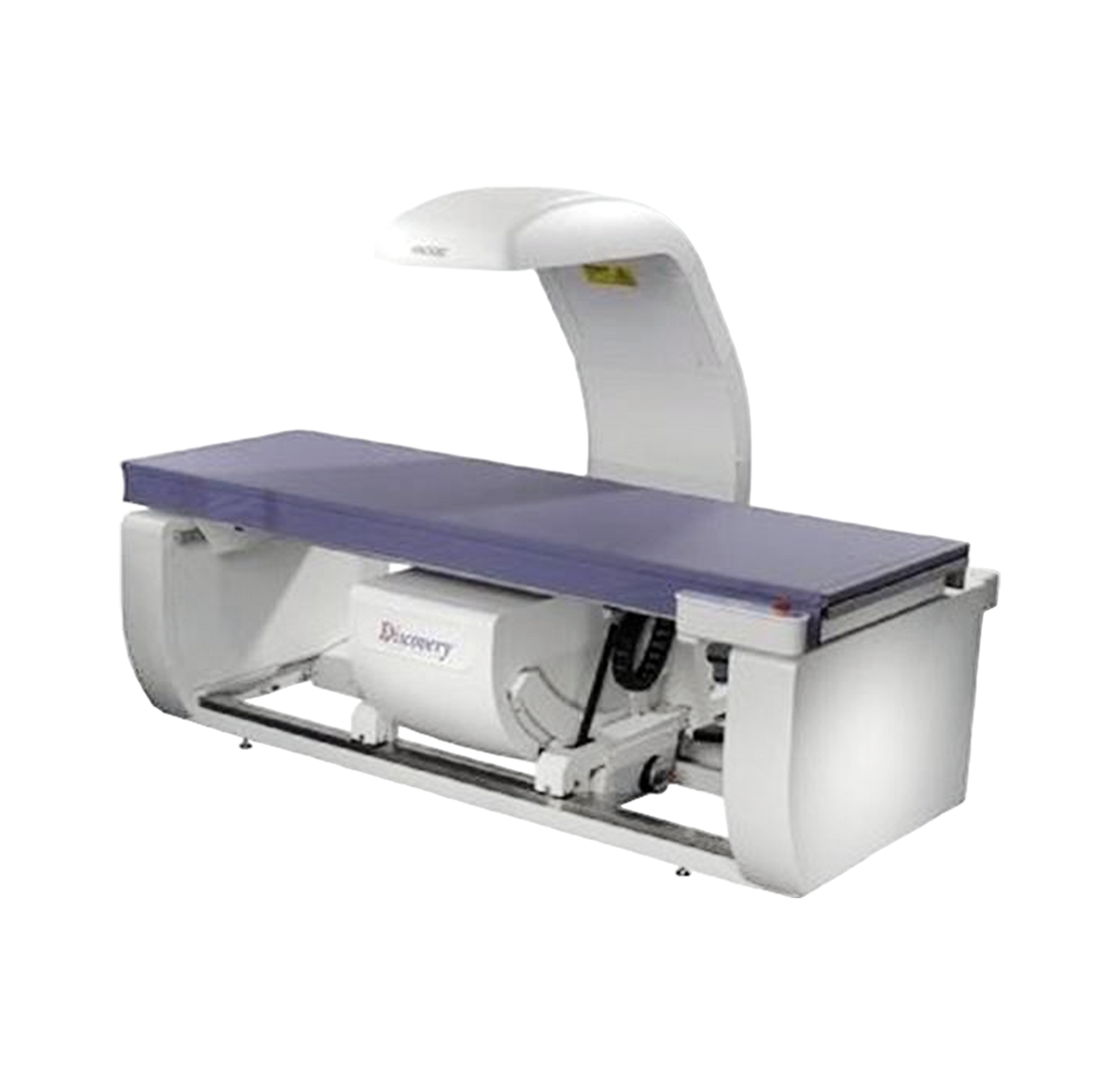

Hologic Discovery QDR Series Bone Densitometer

Out of stock
LEAD TIME: Estimated Ship Time: 7-10 Days

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

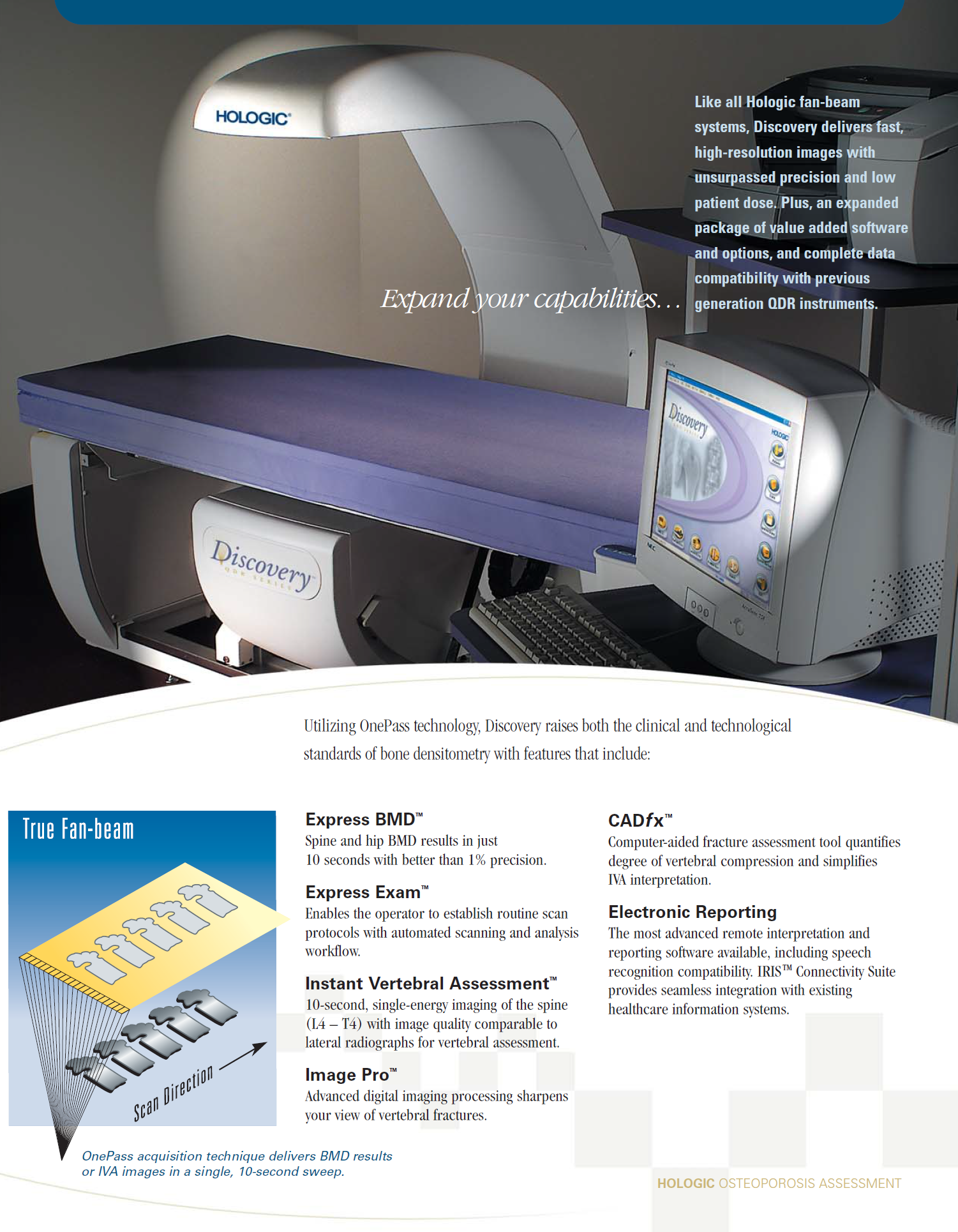

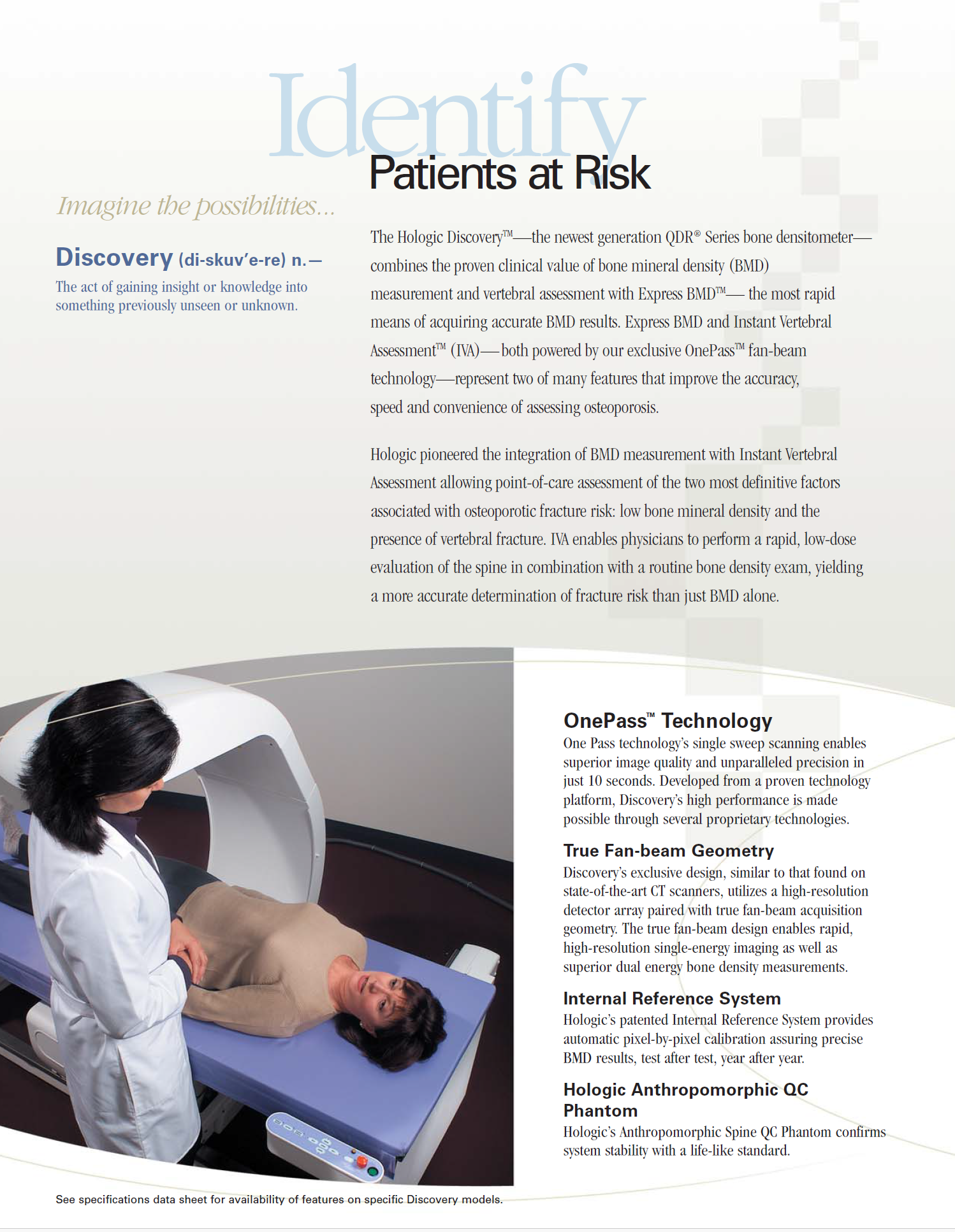

Hologic has been at the forefront of dual x-ray (DXA) bone densitometry technology, which has now become the gold standard for assessing bone health and determining osteoporosis risk. The Discovery™ system, developed by Hologic, is a pioneering solution that equips clinicians to identify fractures that might not be apparent through physical examination alone. It provides valuable data on basic bone mineral density and the patient's T-score.

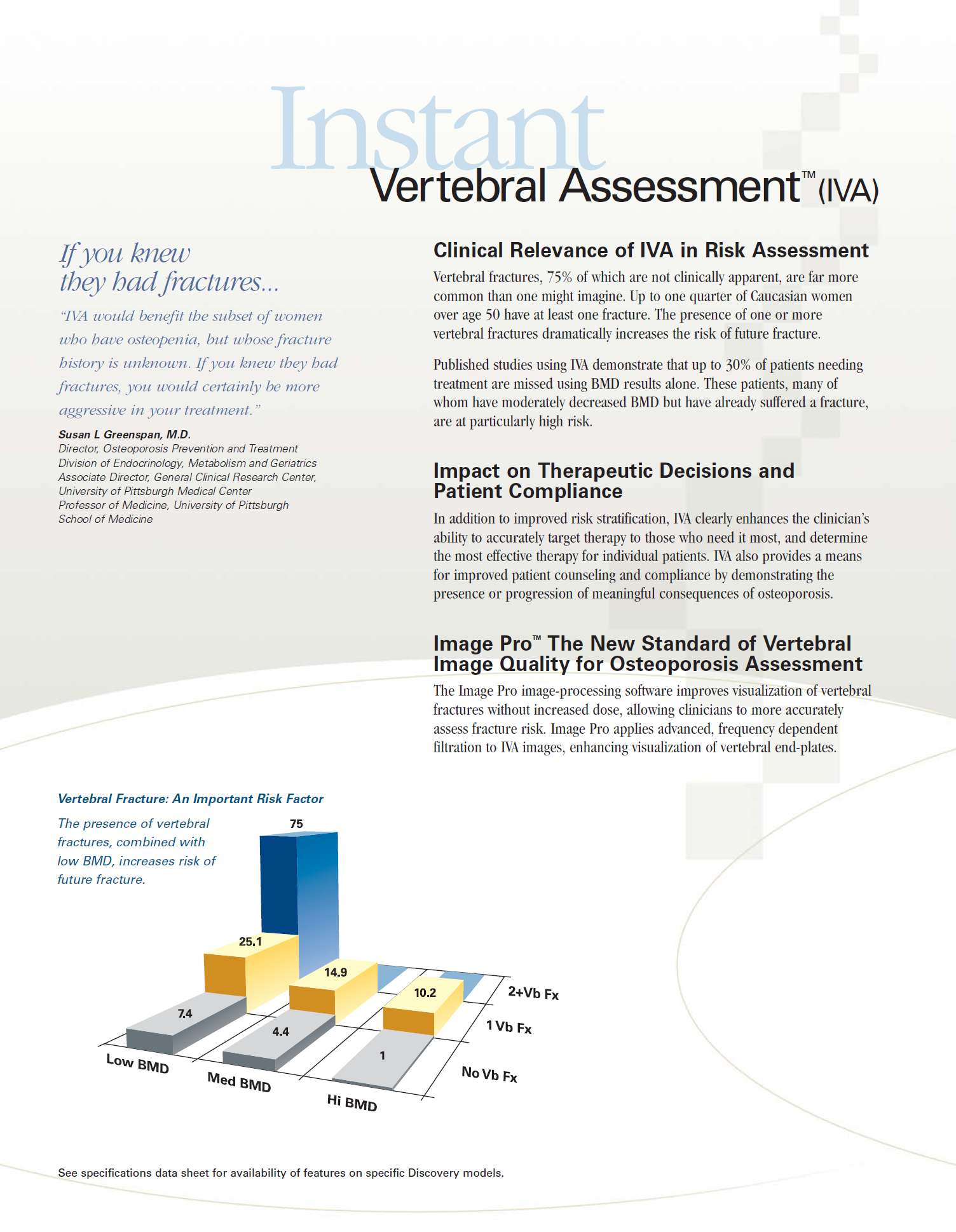

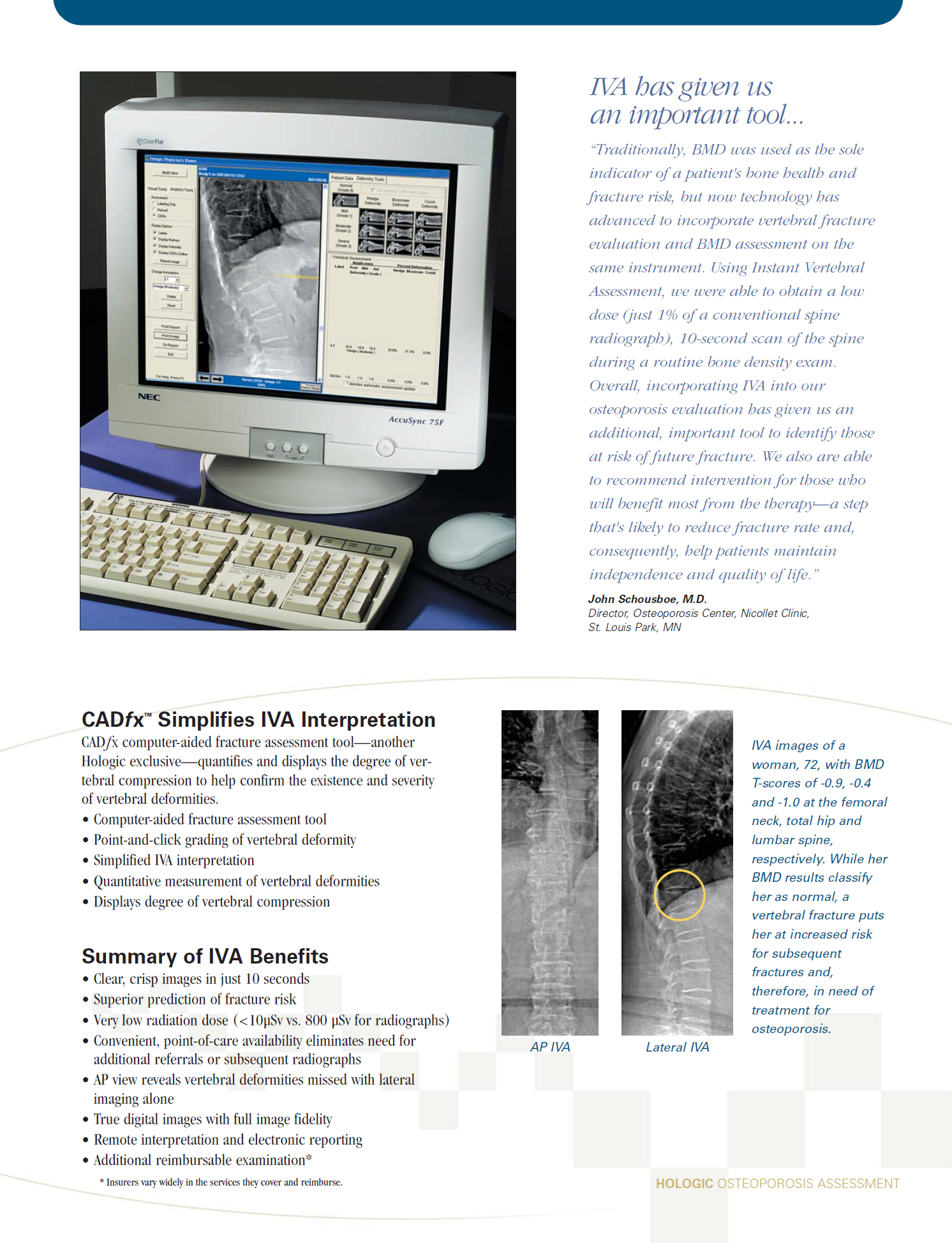

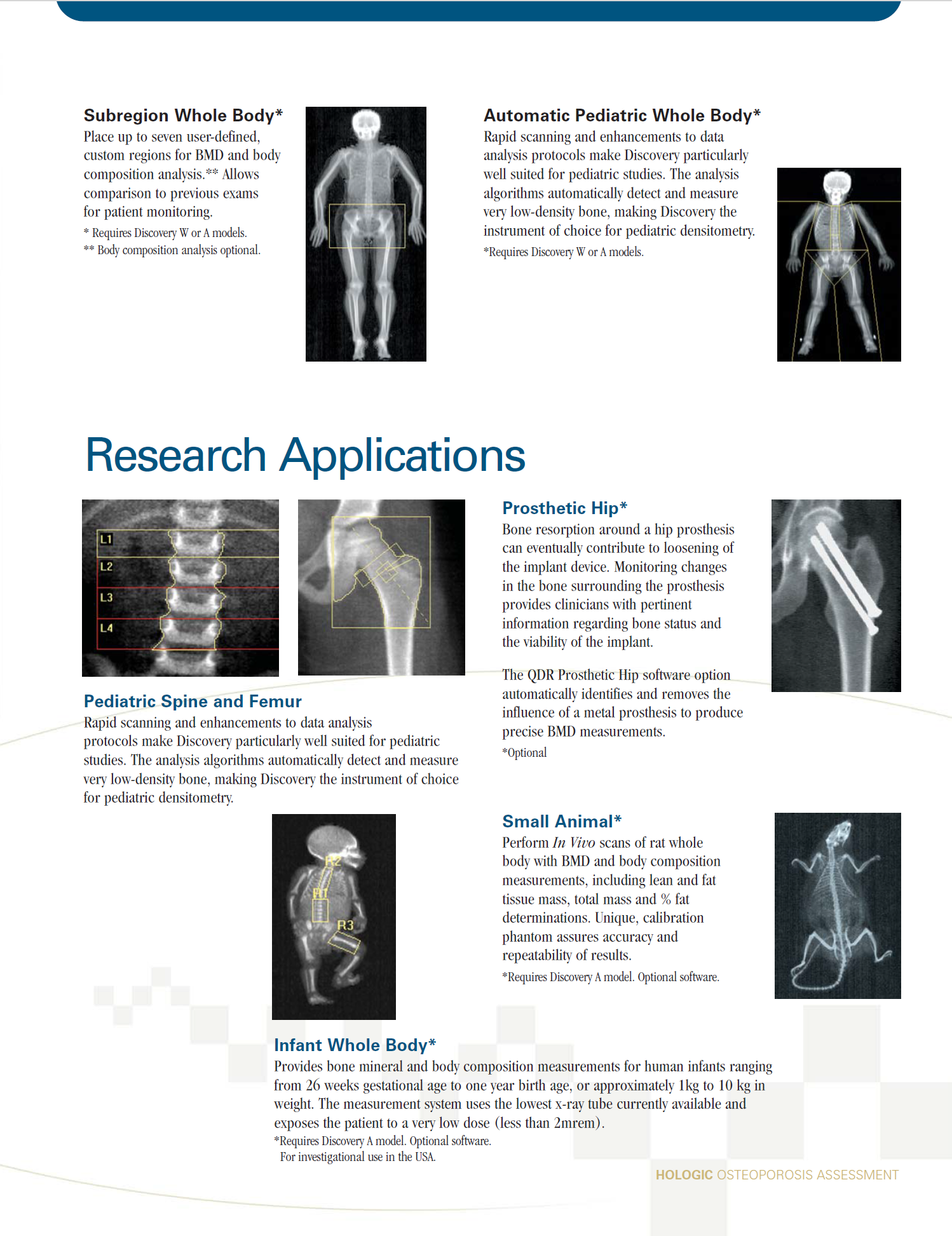

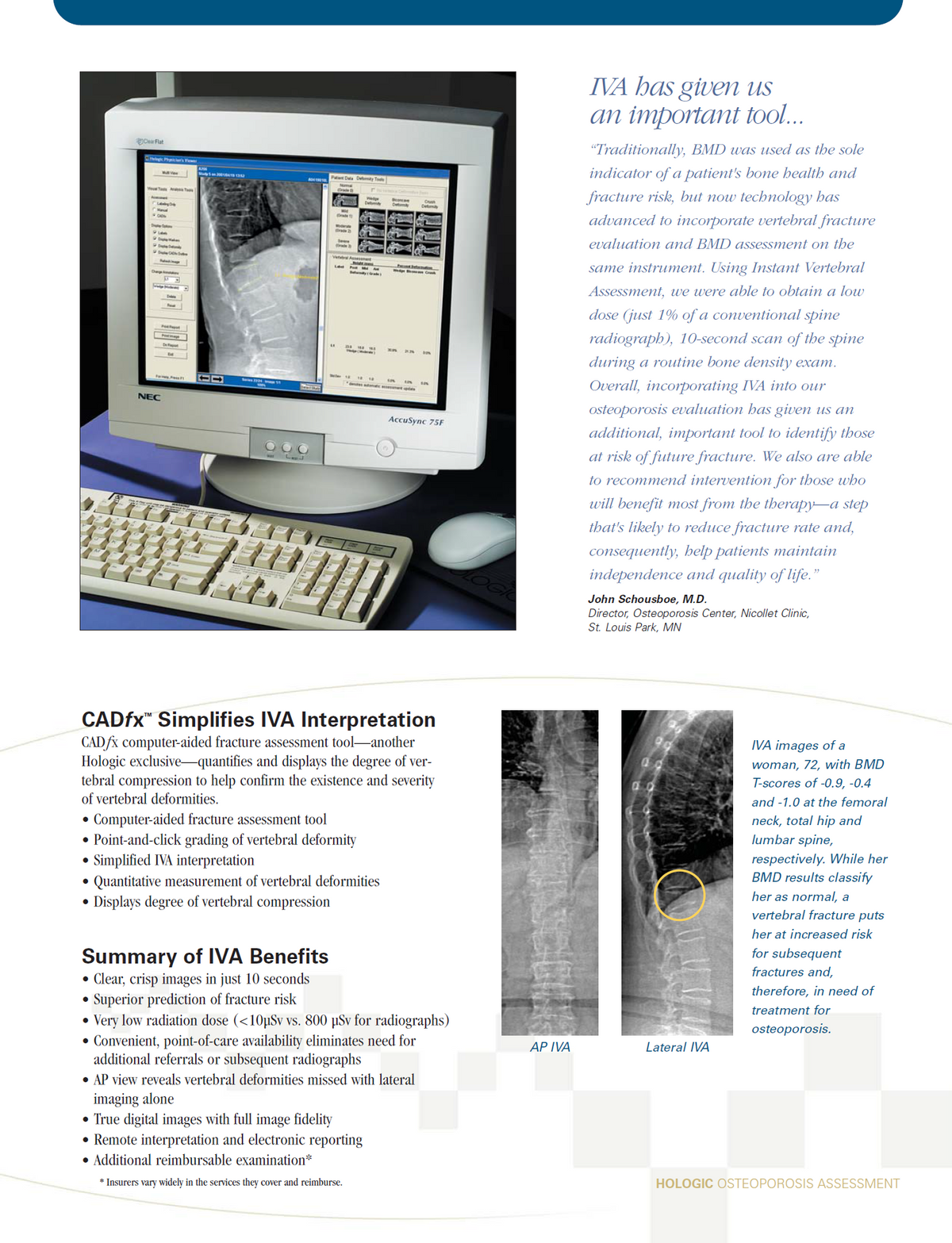

Furthermore, the Discovery™ system offers a range of advanced applications. High Definition Instant Vertebral Assessment™ (IVA™-HD) delivers high-resolution images for evaluating vertebral fractures and visualizes the abdominal aorta to assess calcifications (AAC). It also includes FRAX® fracture risk assessment and Advanced Body Composition™ assessment, featuring InnerCore™ visceral fat evaluation. These capabilities offer clinical practitioners a comprehensive overview of factors like fat mass, lean mass, and visceral fat, which can serve as vital indicators for assessing cardiovascular risk and other metabolic conditions.

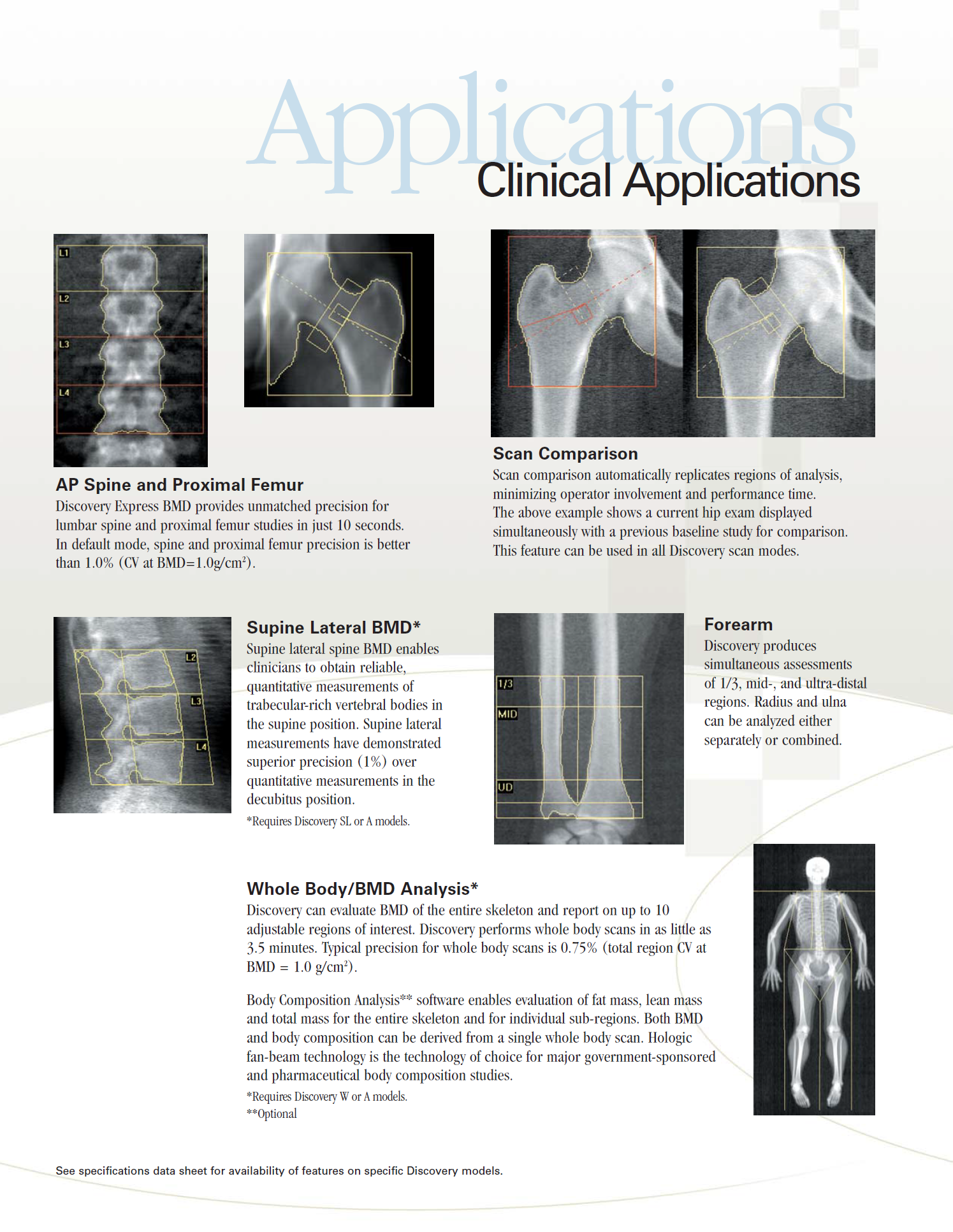

  • Forearm
  • Dual Hip
  • Proximal Femur
  • Lumbar Spine
  • High Definition Instant Vertebral Assessment (IVA


  • Manufacturer: Hologic
  • Part Number: (OEM): Discovery QDR
  • Category: Bone Densitometers
  • Accessories: None
  • Condition: Refurbished
  • Weight:
  • Warranty: 30 Days

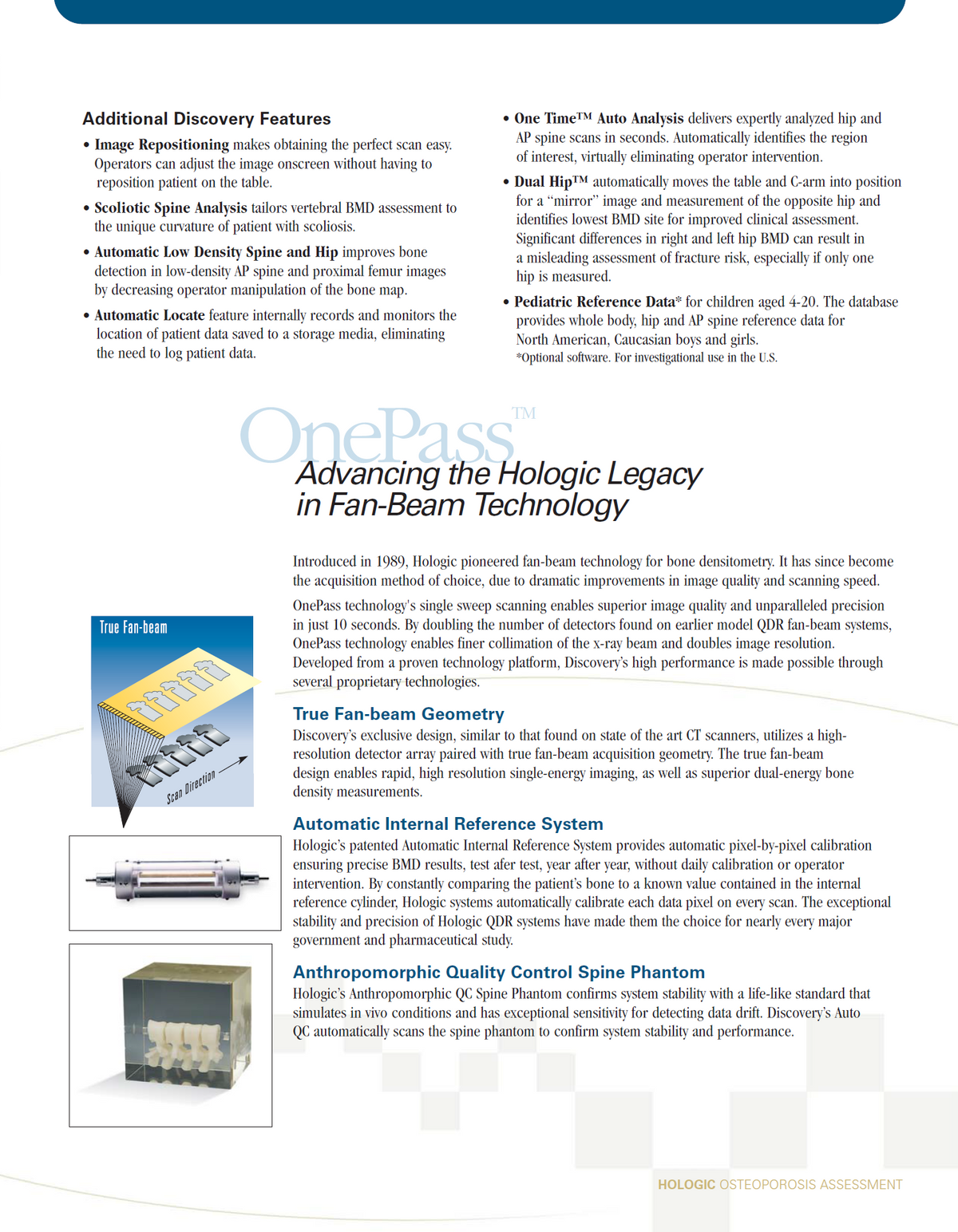

  • Scanning Method     Linear X-ray fan-beam, utilizing motorized table and C-arm
  • X-ray System     Switched-pulse dual-energy (100 kVp/140 kVp)
  • Detector System     Multi-element detector array
  • External Shielding     None required*
  • BMD Precision     <1.0%

  • Calibration

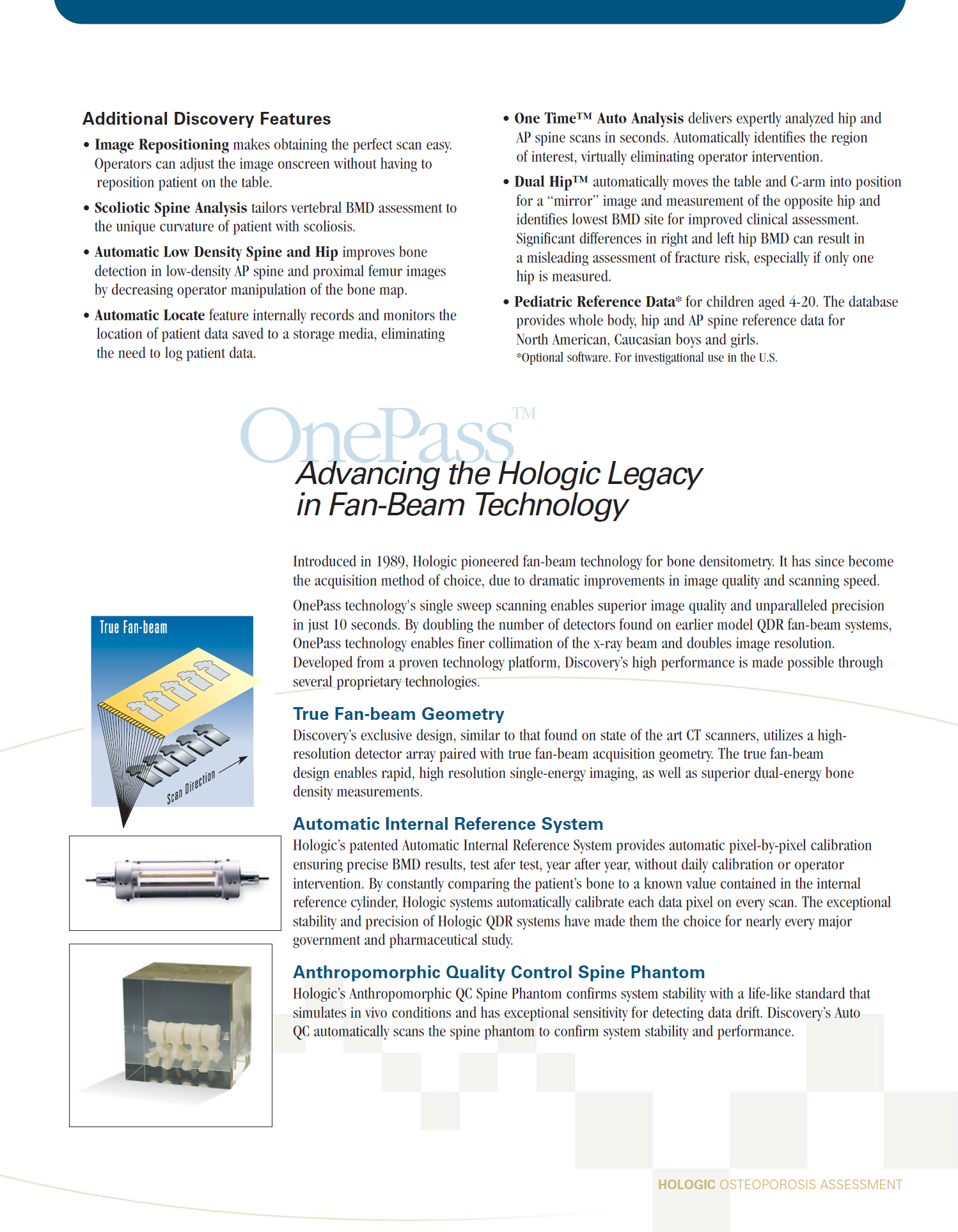

    • Automatic, continuous calibration using Hologic’s patented Automatic Internal Reference System
    • Automatic quality control program
    • Operator calibration not required

  • Operating Requirements
    • Temperature: 60° – 90°F (15°-32°C)
    • Power: 100VAC (16A)/120VAC (14A)/230VAC (8A)
    • Humidity: 20% – 80% relative humidity, noncondensing
    • Average heat load: 3,400 BTU/hr
  • Table Height     71cm (28″)

  • Patient Weight Limit  204 kg (450 lbs.)

  • Standard Hardware Configuration
    • Computer worktable with Intel® Pentium® PC
    • 40GB (min) hard drive
    • 512MB (min) RAM
    • 64MB (min) video board
    • 17″ monitor
    • HP Color InkJet® printer
    • CD R/W drive

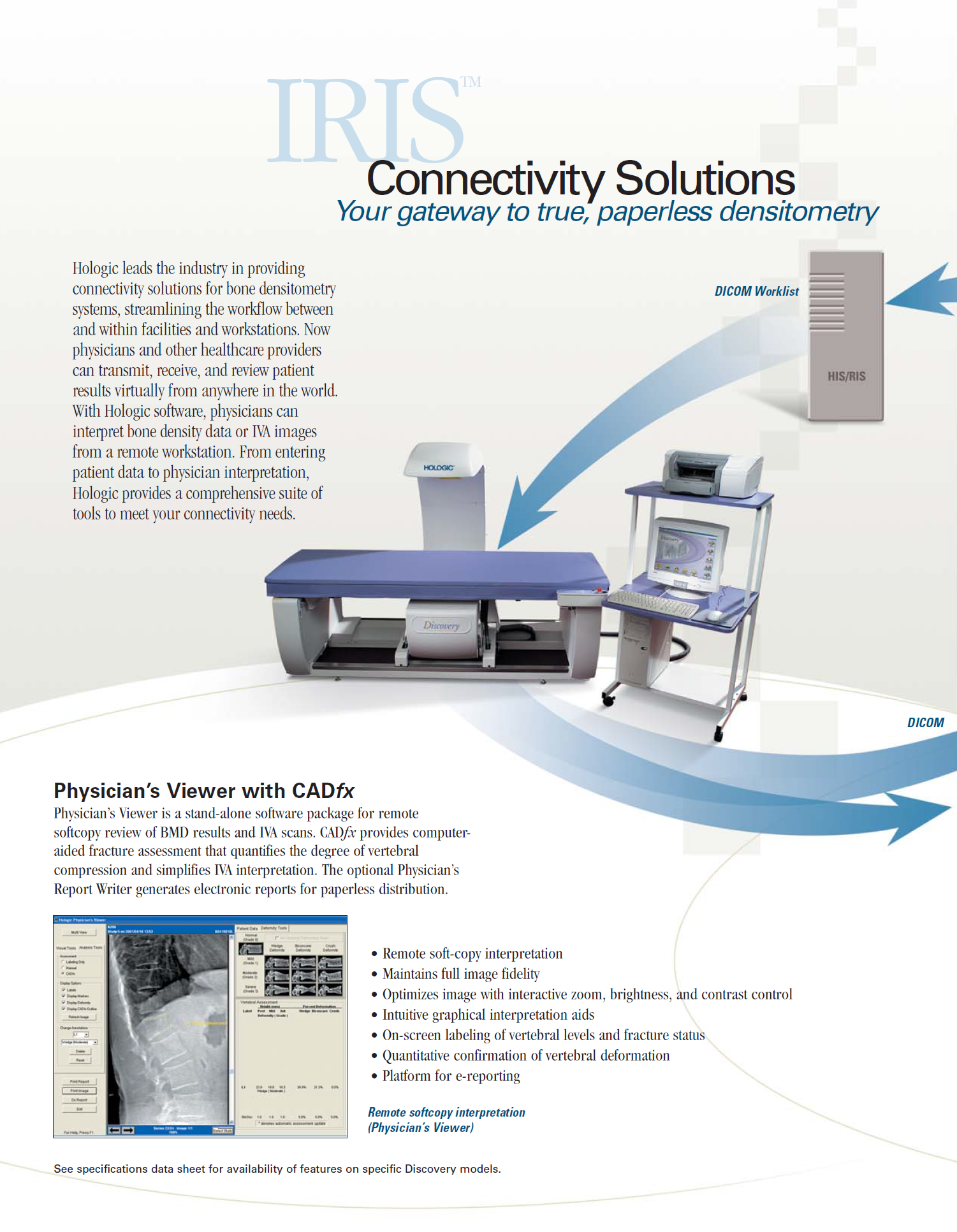

    • Network ready
