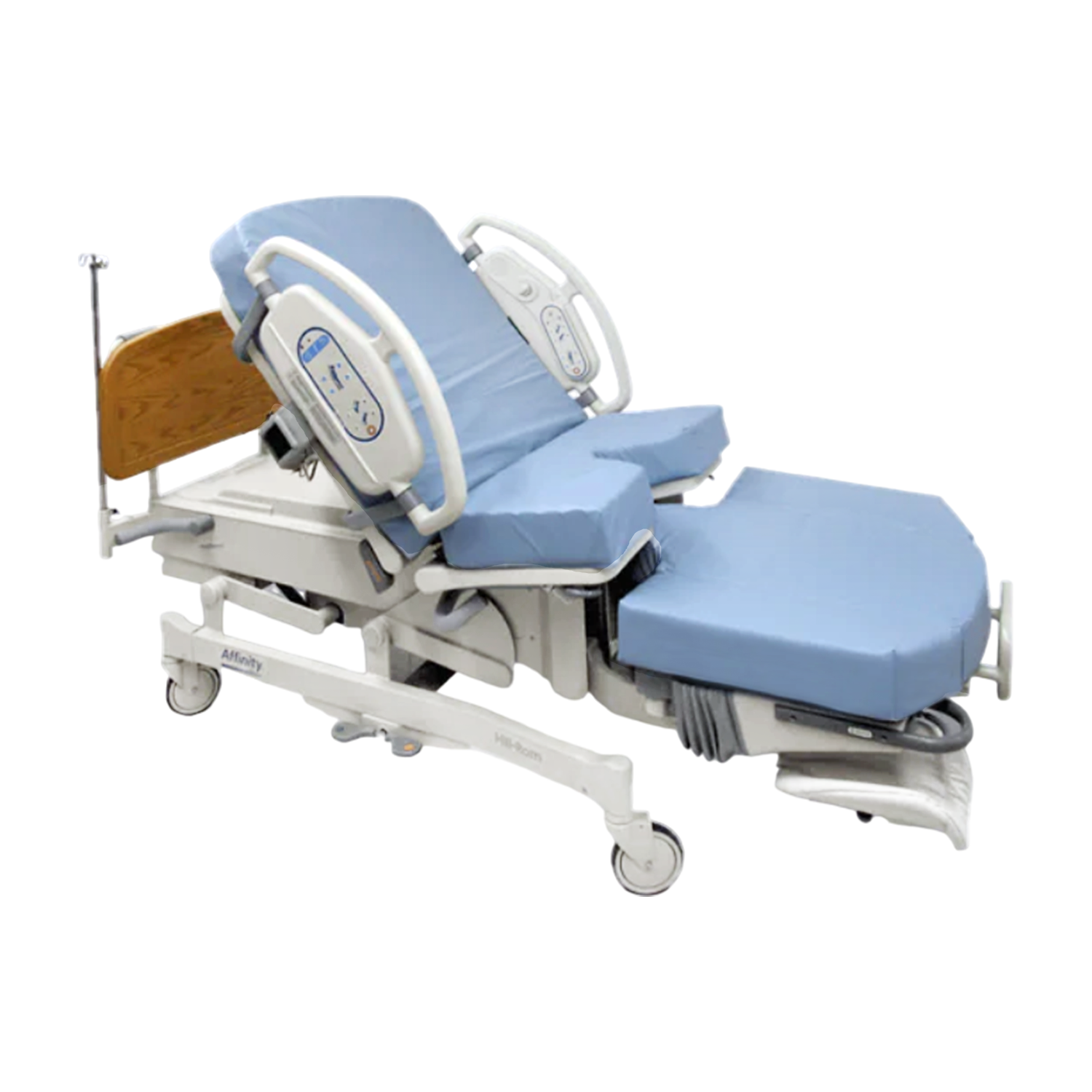

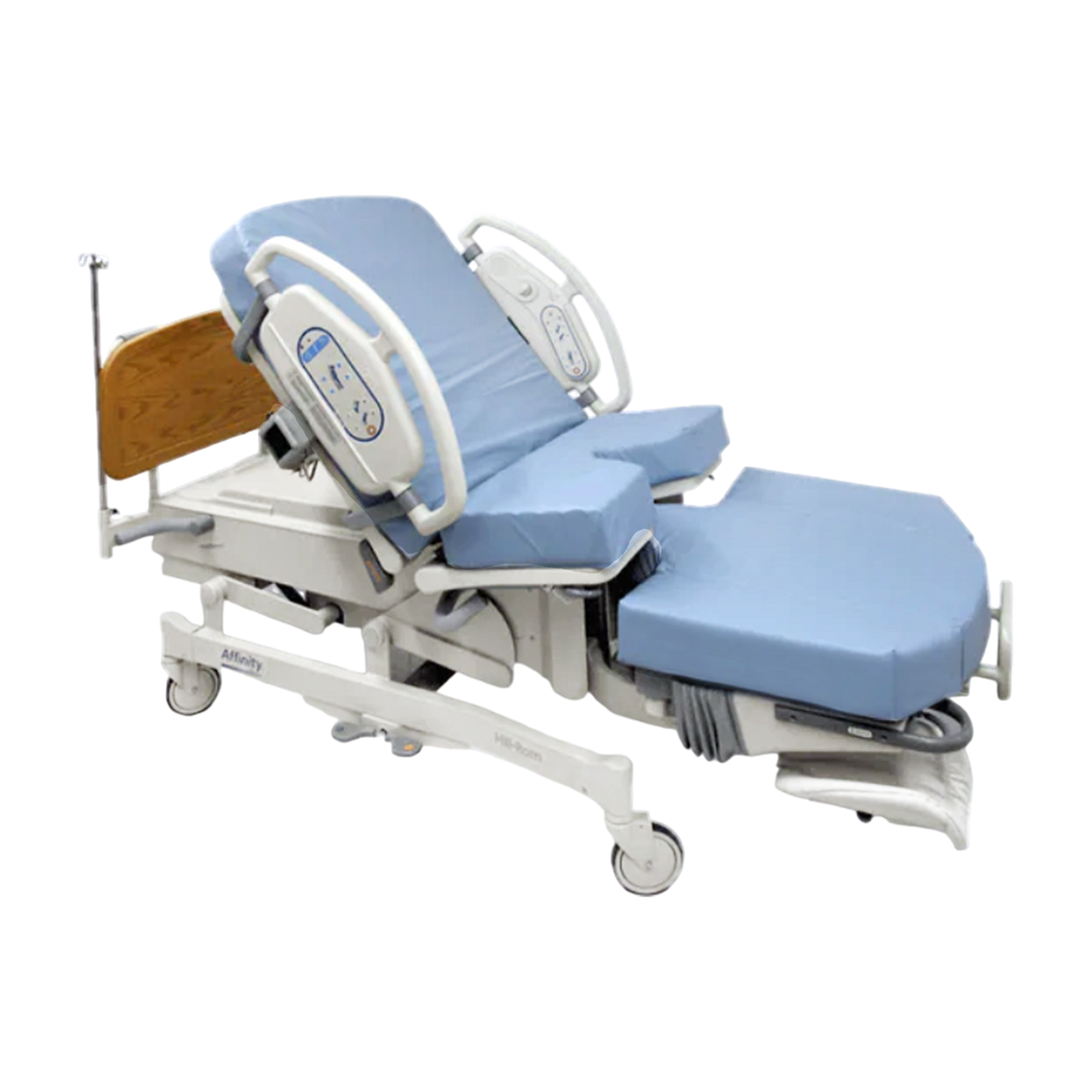

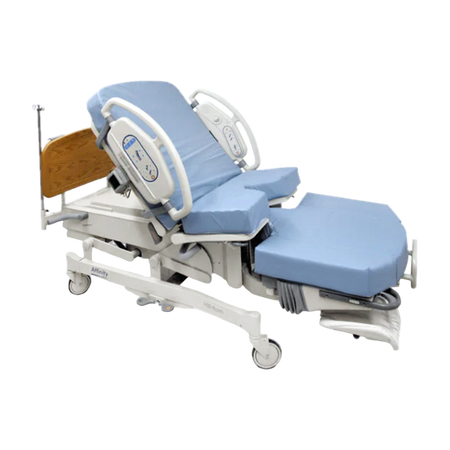

Hillrom P3700A Affinity III Birthing Bed

Out of stock
SKU: EN-HR-AFFINITY3
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The Hillrom Affinity III (Model P3700A) is a versatile and easy-to-use birthing bed designed for use in acute care Labor and Delivery Units.

The Hillrom Affinity III is designed to adapt and deliver for various patient positioning needs during labor and birth. It is intended for use as a birthing bed for women of childbearing age in an LDR (Labor, Delivery, Recovery) setting. The bed can be easily transported with the Central Brake and Steer system, and it features a battery backup for temporary adjustments when the bed is not near a power outlet.

FEATURES:

  • Multiple articulation features for various patient positioning needs.
  • Ergonomic hand grips for easy maneuvering.
  • Motorized bed positioning with caregiver and patient Point-of-Care® controls on side rails for bed hi/lo, backrest up/down, and leg up/down positioning.
  • Manually adjustable foot stirrups and calf supports.
  • Lightweight lift-off foot section for caregiver access.
  • Fluid basin for patient comfort.
  • Two-piece head and foot section mattress or optional adjustable air mattress system.
  • Trendelenburg operation manually operated through gas-assist dual ergonomic hand grips.
  • Optional SideComm® communications package, which includes nurse call,
  • TV/radio, speaker, and adjustable volume controls.
  • Central Brake and Steer system with 4-wheel braking, 1 locking steer caster, and integrated headboard handles for steering control.
  • Battery backup for temporary adjustments when the bed is not near a power

ADDITIONAL FEATURES:

  • Battery Backup
  • Automatic Night Light
  • Lift-off or Stow and Go
  • Foot Section
  • Automatic Seat Tilt
  • V-cut or Straight Edge Surface
  • 4 Locking Castors
  • Fluid Basin
  • Central Brake and Steer
  • Instant CPR Release
  • Lockout Control and Indicator
  • Labour Grips
  • OneStep Siderail Release
  • Trendelenburg Positioning
  • Foot Supports
    SPECIFICATIONS:
    • Manufacturer: Hillrom
    • Part Number (OEM): P3700A
    • Category: Birthing Beds
    • Accessories: None
    • Functional Condition: Refurbished
    • Cosmetic Condition: Good
      • Paint Wear
      • Scratches
    • Warranty: 30 Days

    • Bed Length:
      • Full: 92" (234 cm)

    • Bed Width:
      • Side rails up: 39" (99 cm)
      • Side rails down: 36" (91 cm)

    • Bed Height:
      • Low (with mattress): 23" (58 cm)
      • High (with mattress) 39" (99 cm)
      • Maximum height of seat section in Trend like position: 40" (102 cm)

    • Mattress:
      • Length: 78" (98 cm)
      • Width: 35" (89 cm)
      • Thickness (head section): 5" (12.7 cm)
      • Thickness (foot section): 3.5" (8.9 cm)

    • Critical Angles:
      • Maximum head elevation: 63°
      • Maximum seat elevation: 15°
      • Maximum Trend-like positioning: 8°

    • Maximum Lift Capacity:
      • Bed: 500lbs (227 kg)
      • Foot section 400lbs (181 kg)

    • Caster Size:
      • 6" (15 cm)

    • Bed Weight:
      • 480lbs (218 kg)

    ACCESSORIES:

    • Anaesthesia Screen
    • ISS System
    • Labour Bar
    • Calf Supports – Attached
    • Oxygen Tank Holder
    • Calf Supports – Telescoping
    • Pendant Control
    • Disposable Drapes
    • Permanent IV Pole
    • Foley Hook Kit
    • Sheets
    • Full Leg Supports – Attached
    • Slip Cover – Foot Section
    • Full Leg Supports – Telescoping
    • Slip Cover – Head Section

    OPTIONS:

    • Air Support System
    • Variety of Wooden Headboards
    • Sidecom™ Communication Controls
    • Pressure redistribution foam mattress
    • Ergonomic push handles with integrated IV pole cradle
    • Integrated line managers
    • Integrated permanent IV poles
