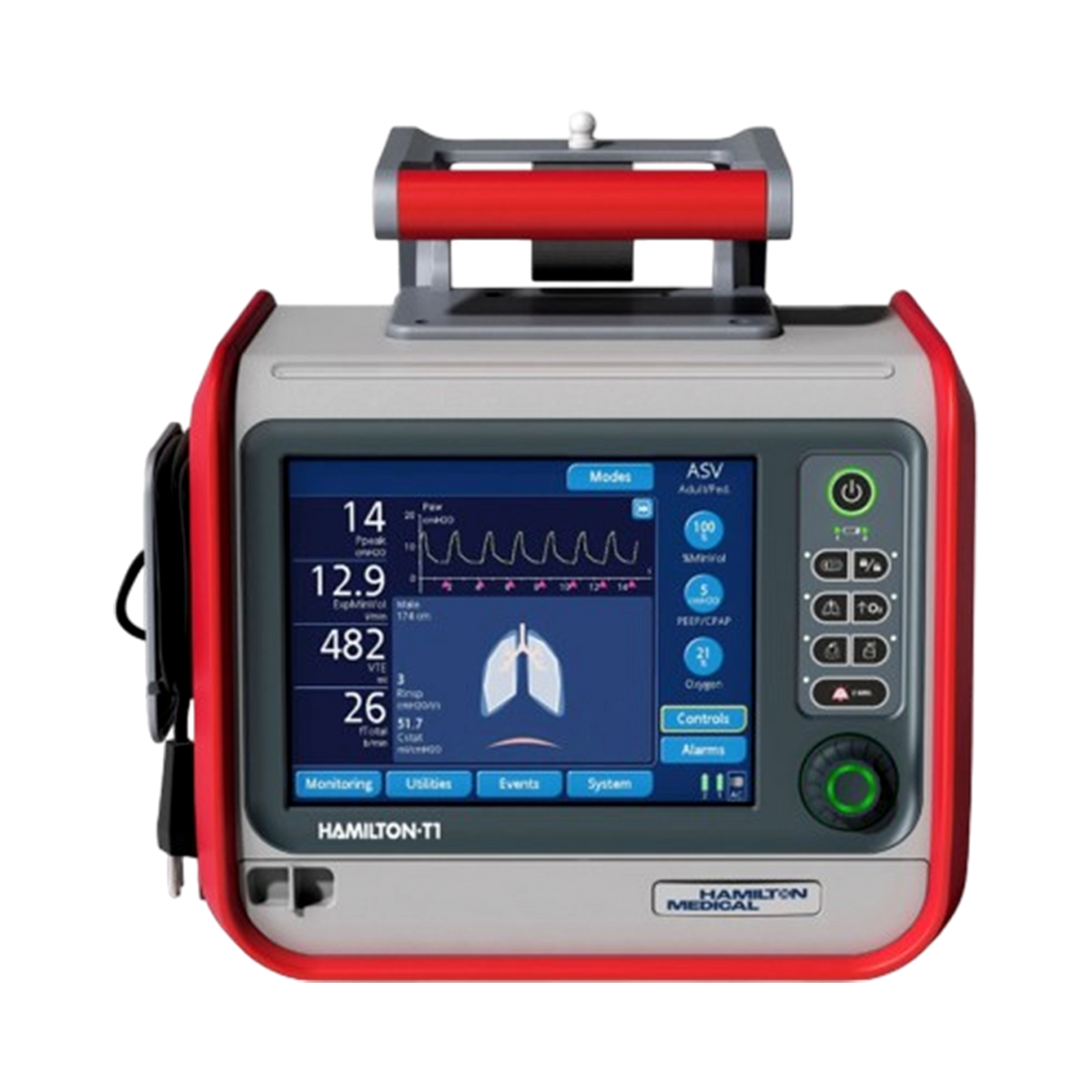

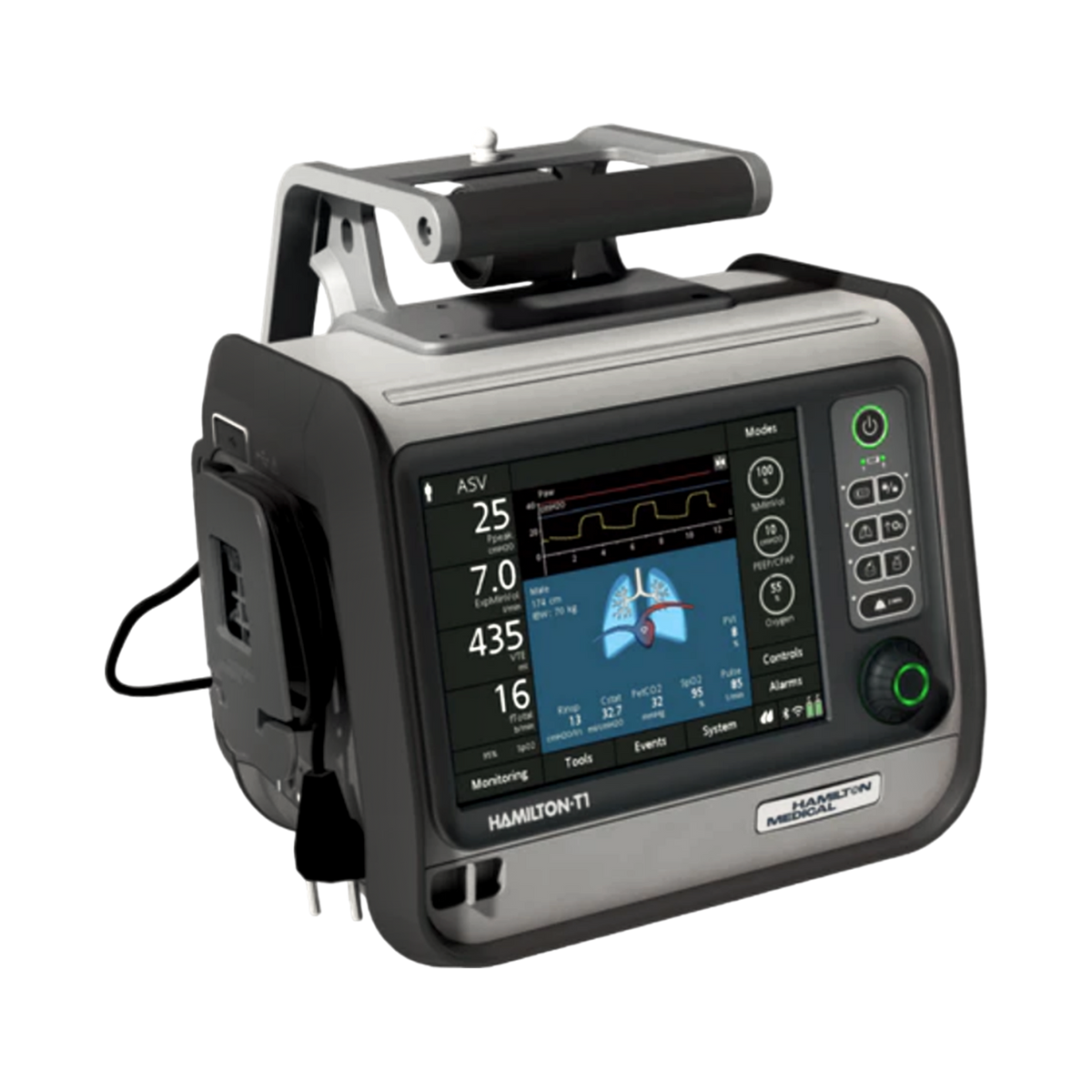

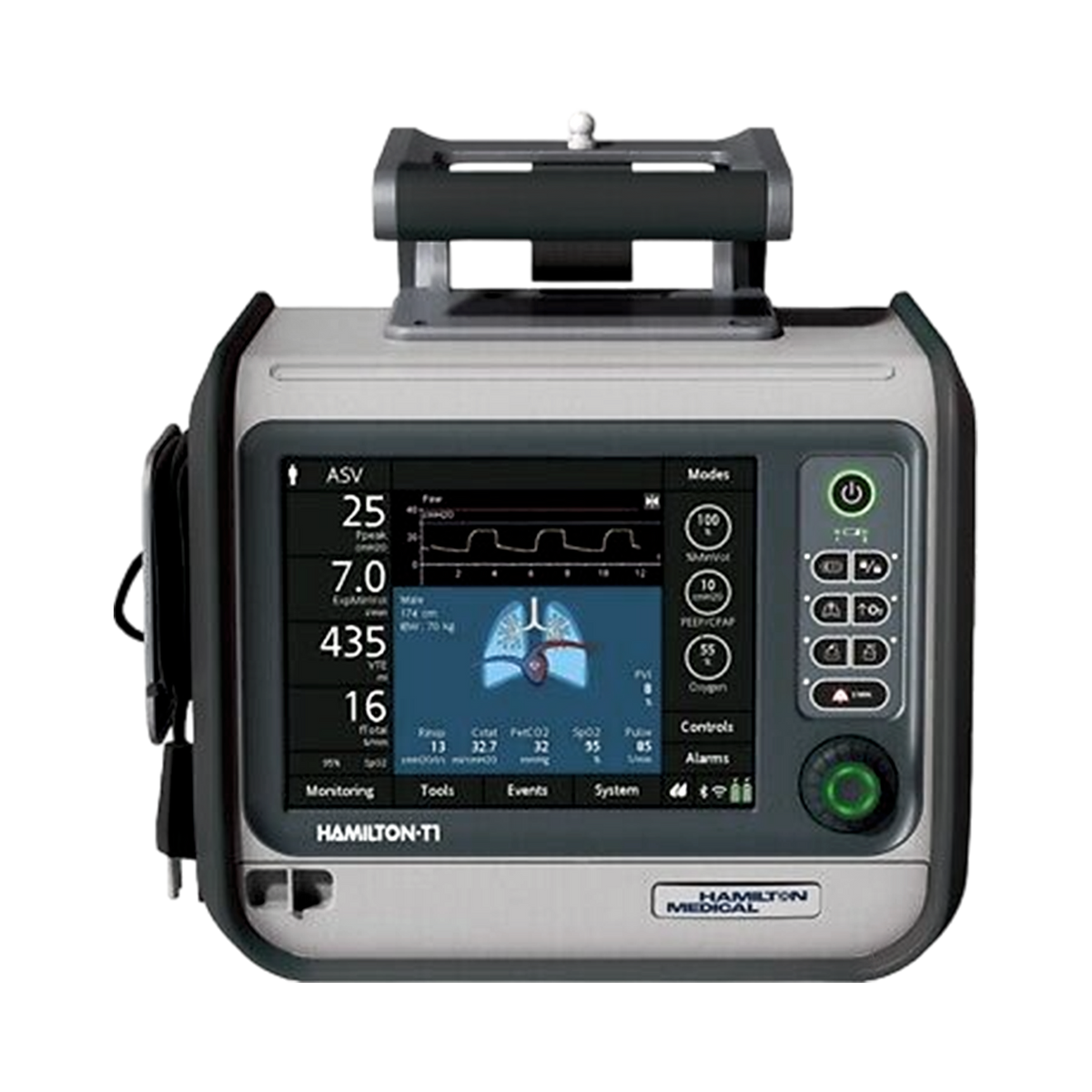

Hamilton T1 Intelligent Transport Ventilator

SKU: EN-HAM-T1
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The Hamilton T1 Transport Ventilator is a versatile device that combines the functionality of a full-featured ICU ventilator with the compactness and ruggedness necessary for transport in various environments. It is designed to be used in ambulances, helicopters, airplanes, and other challenging conditions. The ventilator offers adaptability with different handle types and mounting options to suit specific situations and environments.

FEATURES:

  • Approvals and certificates for use in ambulances, helicopters and airplanes
  • Adult, pediatric, and neonatal ventilation (w/neomode option)
  • Independence from gas cylinders or compressors
  • More than 9 hours of battery operating time
  • Noninvasive ventilation and integrated high flow oxygen therapy
  • Advanced ventilation modes, including ASV® – Adaptive Support Ventilation

ACCESSORIES:

  • Hamilton Medical T-1 Ventilator Mounting System
    • Bracket Pro Serie 60 for Hamilton Medical T1 Ventilator, 700-00-HMBH Techmount
    • Bracket respects access to medical device components and features
    • Flexible for use in different applications (surface, cot/stretcher and floor systems) as well as other EMS and military environments
    • Dual locking system with red quick release mechanisms to easily install and remove the device from the bracket
    • No interference with medical device components, connectors and wires
    • Standard bottom disc compatible with Technimount’s Standard Surface
    • Base, Safety Arm System and Floor Mount
    • Access to the medical device from all angles (360º rotation on
    • Technimount’s Standard Surface Base)
    • Easily install and remove the medical device from the mounting system
    • No screws or attachments into the housing of the medical device
    • Made from high-density aluminum with silver-anodized finish
    • Resistant to biological fluids and Quaternary-type disinfectants for easy cleaning
    • Tested in compliance with SAE J3043
    • Reduces risk of damage to the equipment and ensures the safety of patients and crew during EMS and Critical Care Transport

SPECIFICATIONS:

  • Manufacturer: Hamilton
  • Part Number: (OEM): T1
  • Category: Respiratory Ventilators
  • Accessories: None
  • Condition: New/Refurbished
  • Weight: 14.3lbs.
  • Warranty: 3 Months

  • Patient groups
    • Adult/Ped, Neonatal
  • Dimensions
    • (W x D x H) 320 x 220 x 270 mm (ventilation unit)
    • 630 x 630 x 1380 mm (without handle)
    • 630 x 630 x 1433 mm (with handle)
  • Weight
    • 6.5 kg (14.3 lb)
    • 18.5 kg (40.8 lb) with trolley
  • Monitor size and resolution
    • 8.4 in (214 mm) diagonal
    • 640 x 480 pixels
  • Battery operating time
    • 4 h with one battery
    • 8 h with two batteries
  • Air supply
    • Integrated turbine
  • O2 connector
    • DISS (CGA 1240) or NIST
  • Connectivity
    • CO2/Nurse Call/COM1, CO2/SpO2/COM1,CO2/SpO2/Humidifier & COM1, USB port, RJ‑45 Ethernet port
  • Loudness
    • 43 dB in normal operation
