GE OEC Elite C-Arm

Out of stock
SKU: EN-OECELITE
Condition
Category
LEAD TIME: Estimated Ship Time: 10-14 Days
PACKAGING: 1
WARRANTY: 30 Days

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

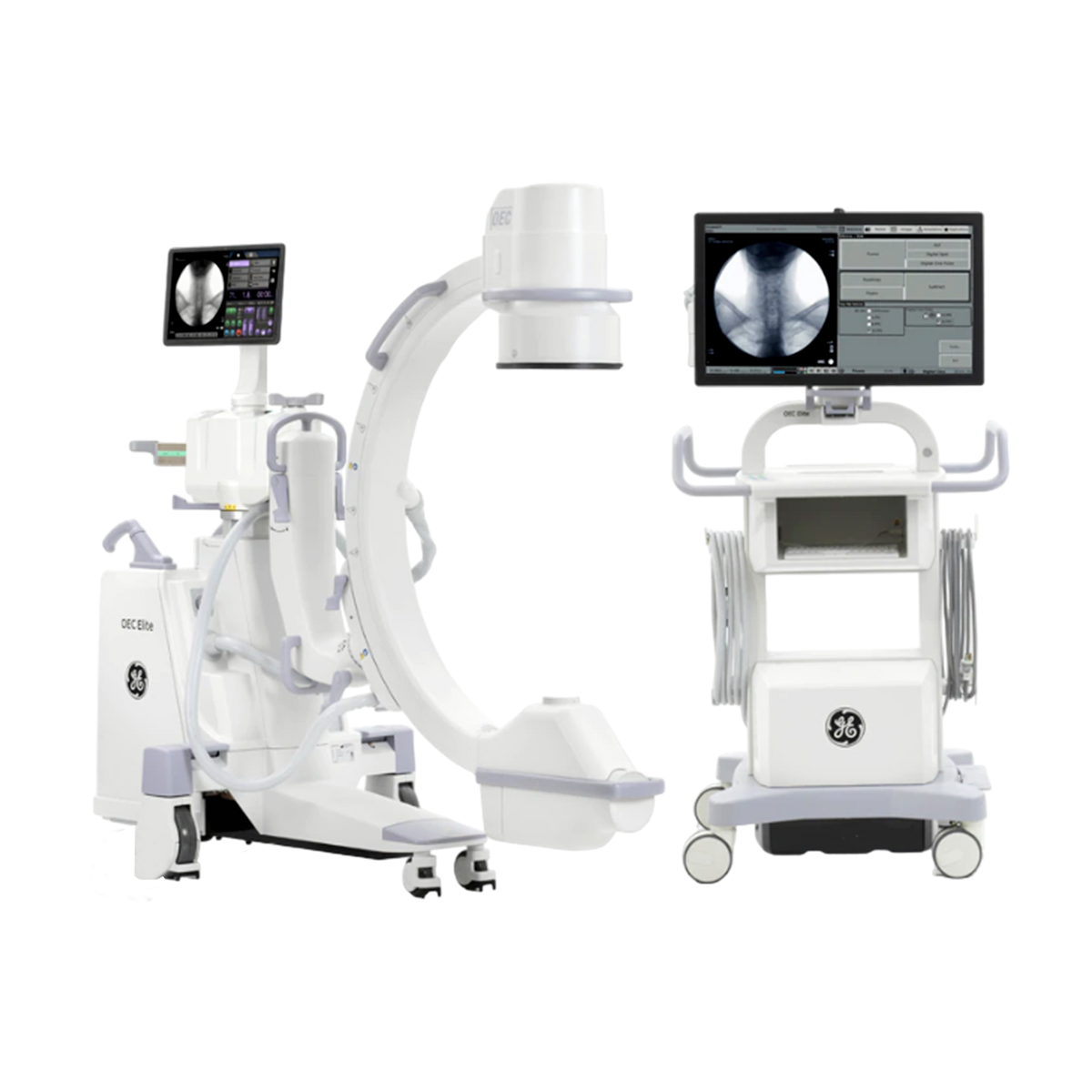

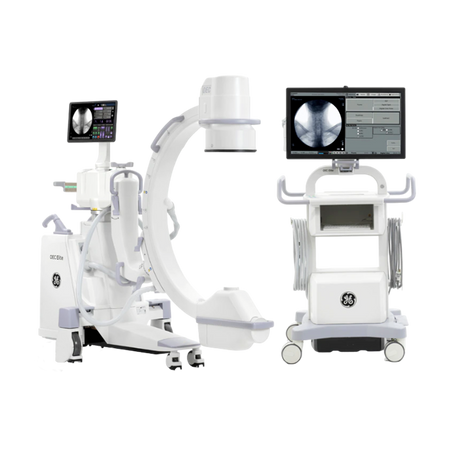

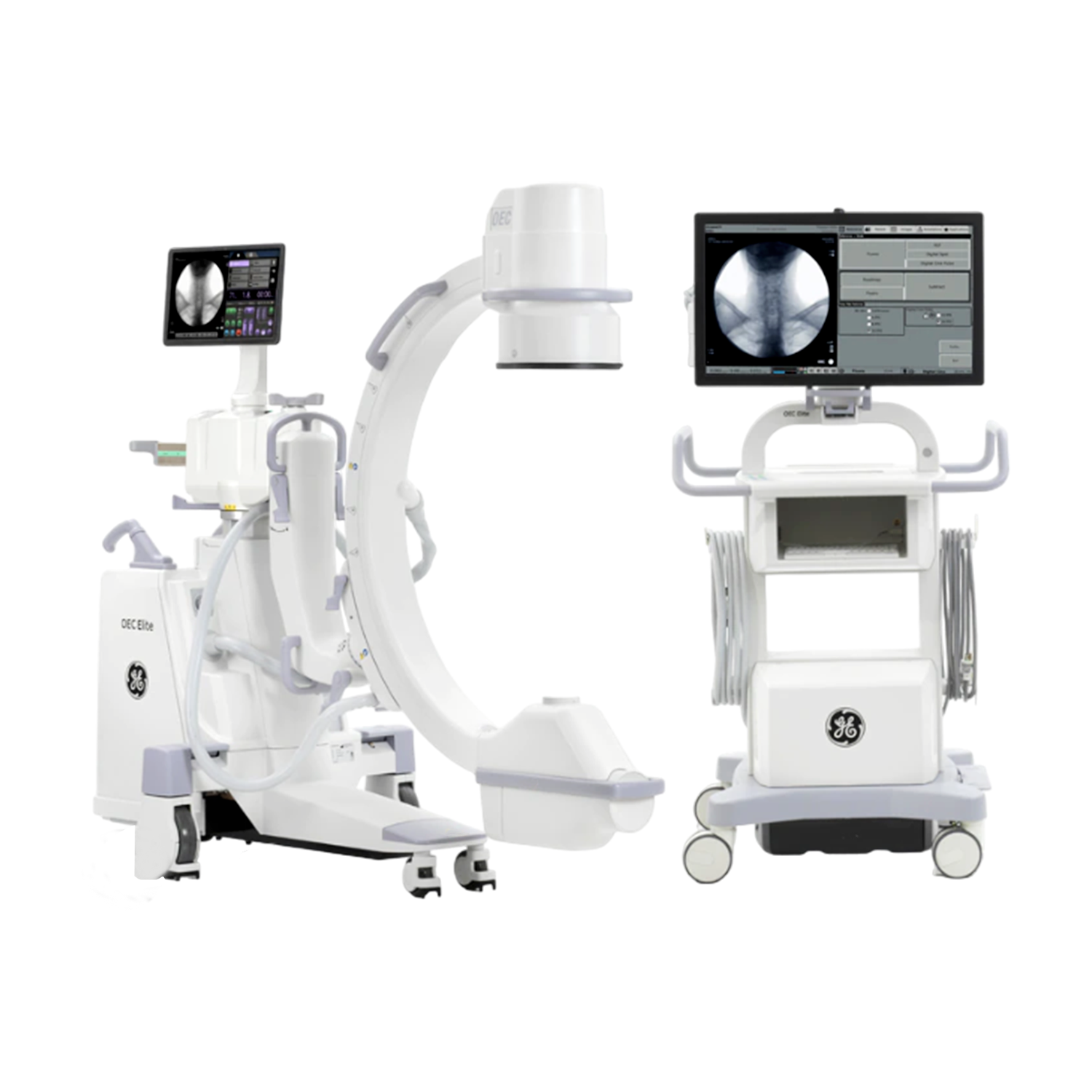

The GE OEC Elite is a mobile C-arm system designed to enhance surgical efficiency and deliver high-quality images. It is available with both 9" and 12" image intensifiers, allowing surgeons to manage dosages with automatic imaging profiles and dose control modes. The system is suitable for a wide range of surgical needs, including orthopedics, gastrointestinal, endoscopic, urologic, neurologic, critical care, and emergency procedures. It features innovative technologies such as clear image processing, optional laser aiming, removable anti-scatter grid, advanced cooling, and a high-bright touchscreen display.

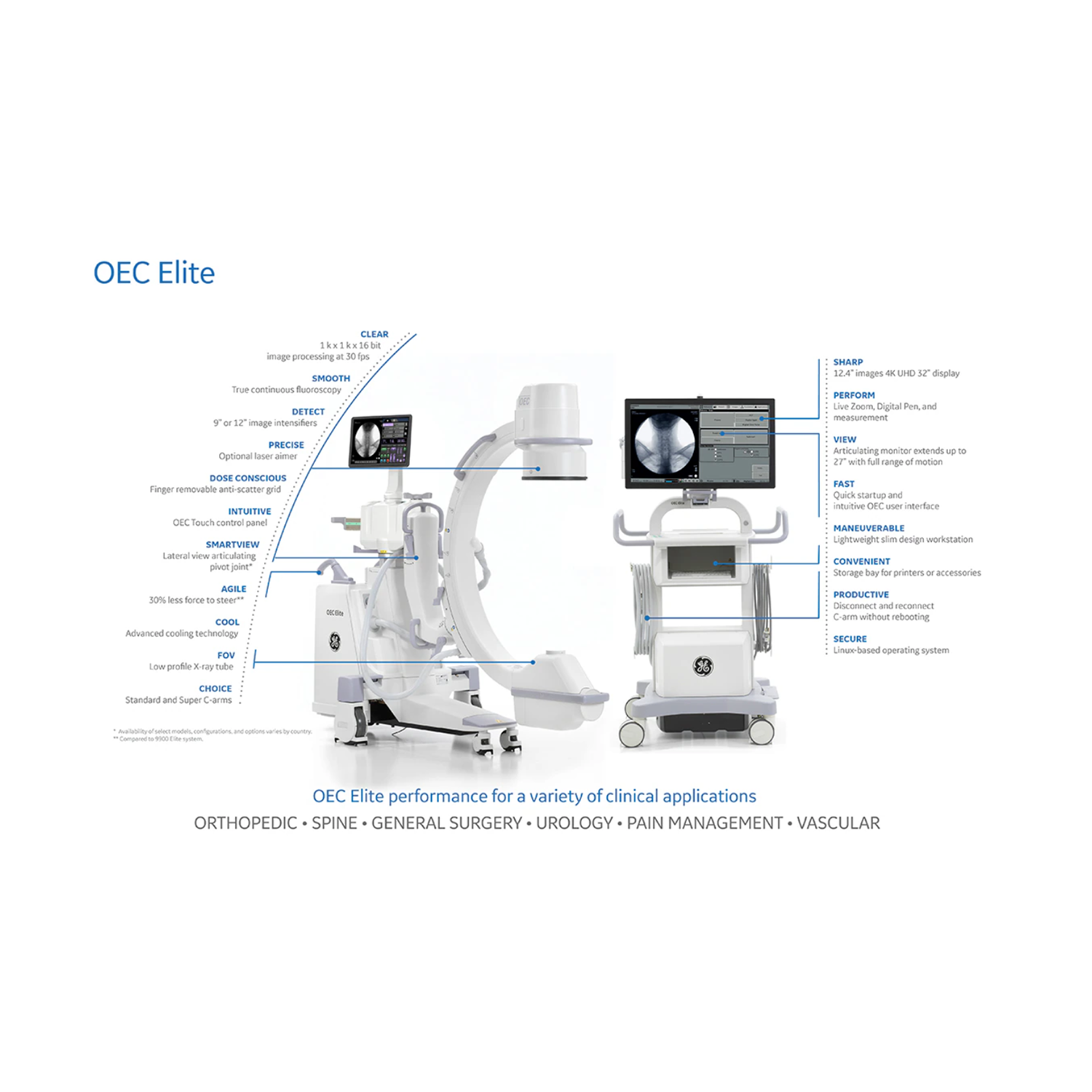

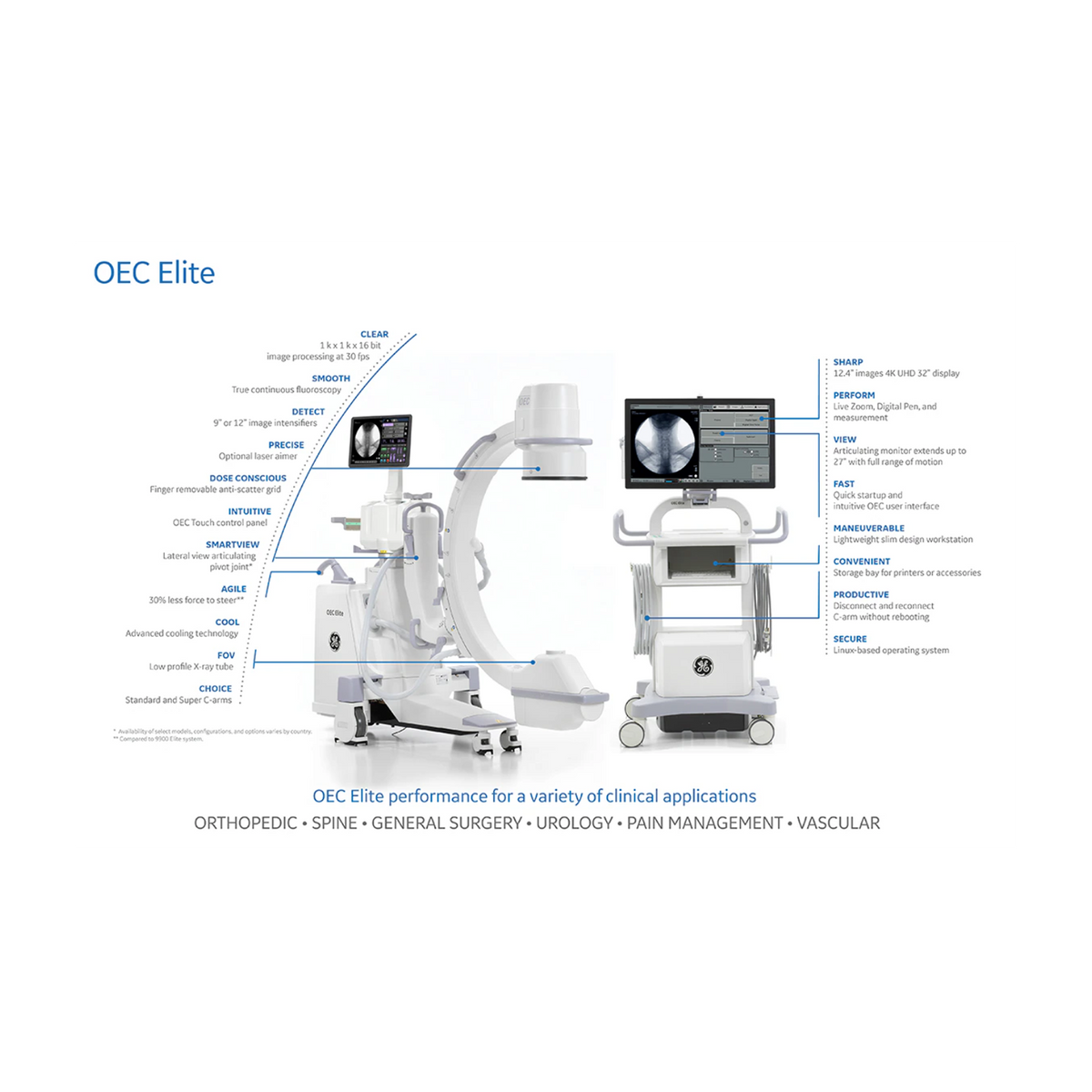

    FEATURES:

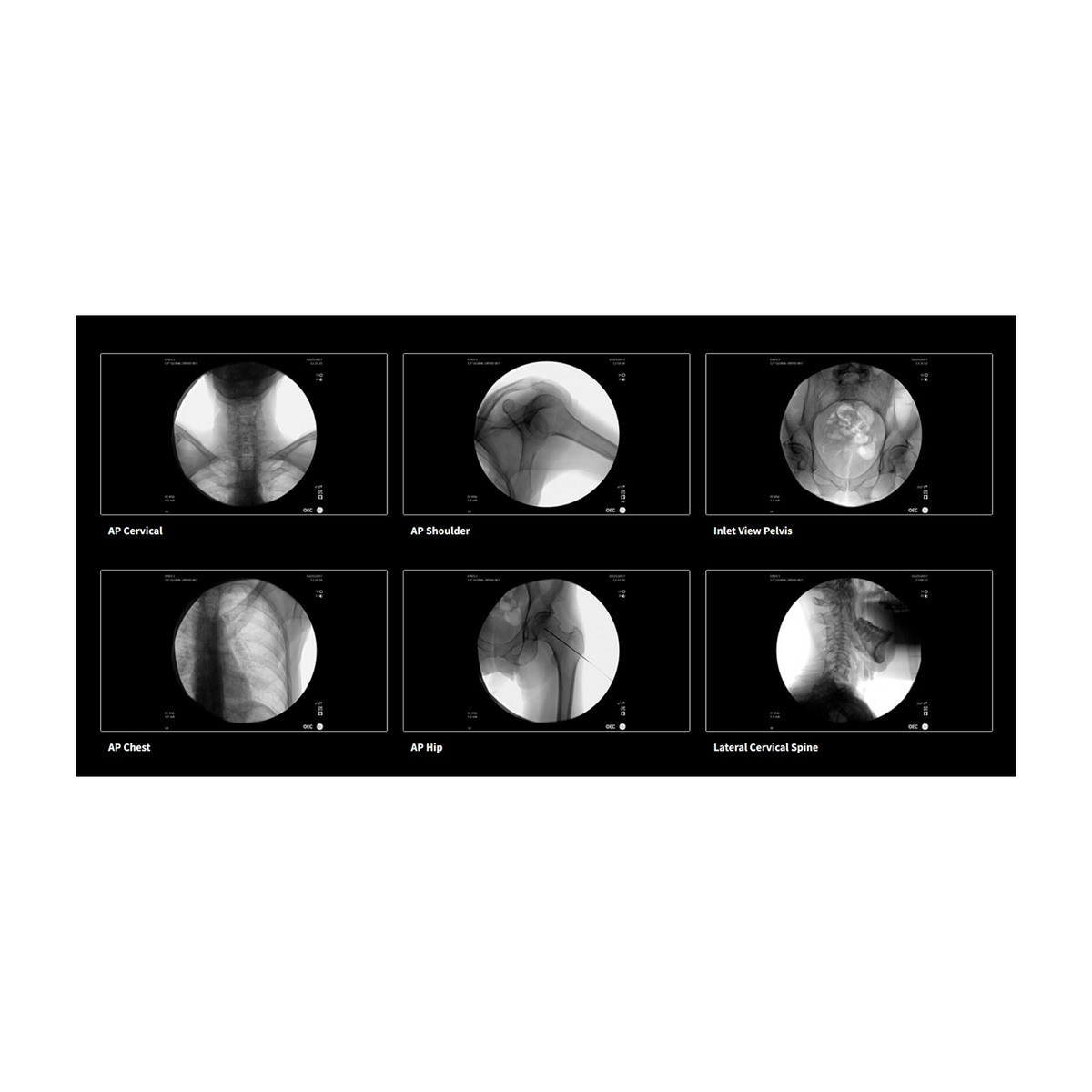

    • Clear 1k x1k x 16-bit image processing at 30 fps.
    • 12-Inch image intensifier detector.
    • Optional laser aimer to position the detector over the anatomy of interest.
    • Removable anti-scatter grid
    • 30% less force is needed to maneuver and position than in previous models.
    • Advanced cooling technology.
    • Low-profile X-ray tube.
    • Crisp high-bright anti-glare 27” touchscreen display.

          SPECIFICATIONS:

          • Manufacturer: GE
          • Part Number (OEM): OEC ELITE
          • Category: Imaging
          • Accessories: None
          • Functional Condition: Refurbished
          • Cosmetic Condition: Good
          • Warranty: 30 Days
          • Mainframe:
            • System Height: 73.8” (187.5 cm)
            • System Width: 33.5” (85.1 cm)
            • System Length: 81” (205.7 cm)
            • Weight: 660 lbs. (277 kg)

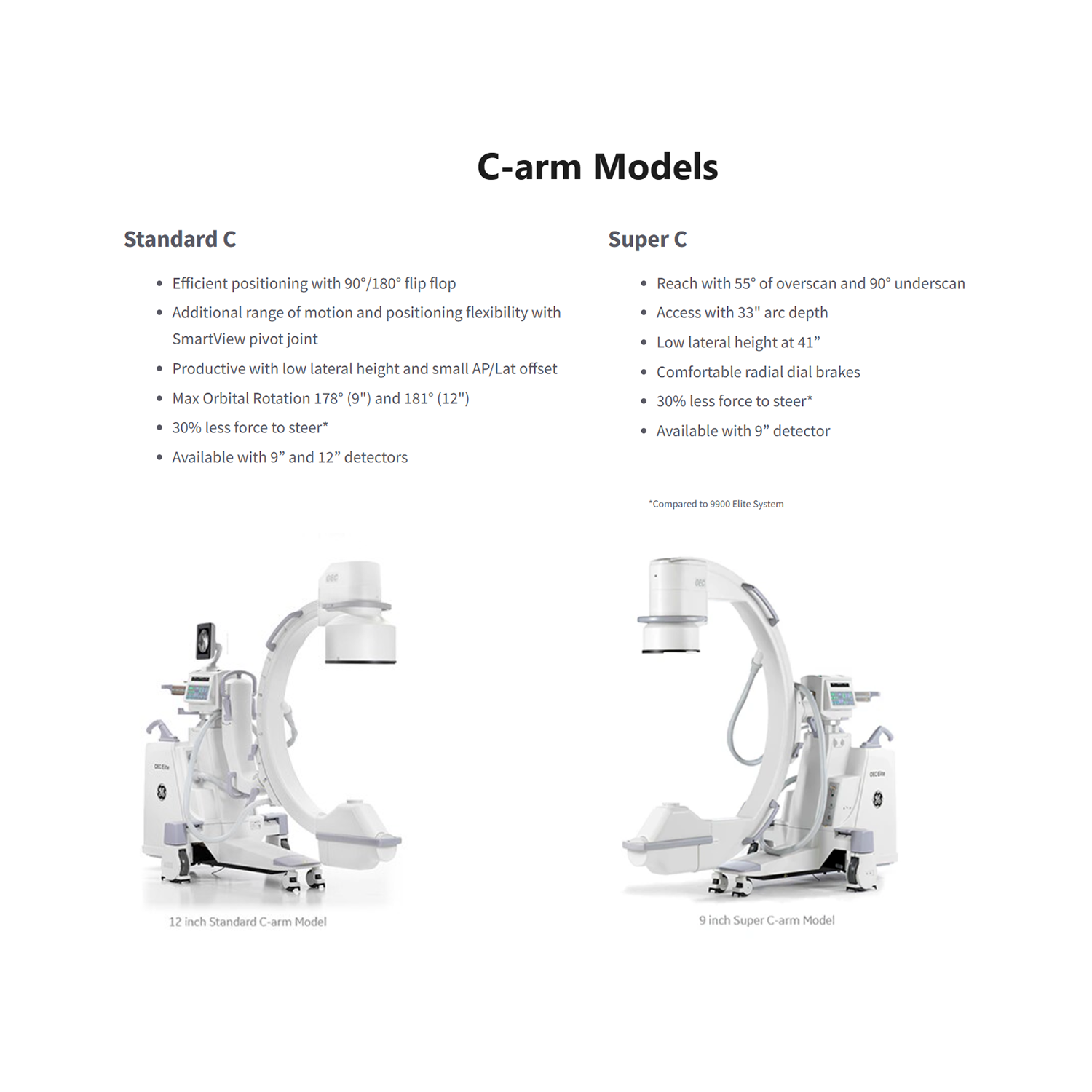

          • C-Arm:
            • SID: 39.4” (100.1 cm)
            • Free space in an arc: 31” (78.7 cm)
            • Depth in arc: 28” (77.1 cm)
            • Orbital Rotation: 115 ° (90° Underscan / 25° Overscan)
            • Lateral Rotation: 360° (+180° / -180°)
            • Wig/wag: 20°
            • Horizontal travel: 8” (20.3 cm)
            • Vertical Travel: 18” (45.7 cm)

          • Workstation:
            • Height: 67.5” (171.5 cm)
            • Width: 34.1” (86.7 cm)
            • Depth: 25.8” (65.5 cm)
            • Weight: 428lbs (194 kg)

          • Image Acquisition:
            • 12" Image Intensifier
              • Tri-mode 12”/9”/6” image intensifier
              • Minimum central resolution (at monitor):
                • 12”: 1.6 lp/mm
                • 9”: 2.2 lp/mm
                • 6”: 2.6 lp/mm
              • DQE: 65% (typical)
              • Removable grid

          • Image Processing:
            • 1 k x 1 k x 16 bit: image intensifier

          • Generator:
            • 60 kHz high frequency
            • 15 kW power
            • Up to 120 kVp
            • Continuous high-level fluoroscopy (HLF) up to 20 mA
            • Pulsed HLF up to 40 mA
            • Digital spot up to 75 mA
            • Full power from a standard wall outlet
            • Patented battery-buffered design

          • X-Ray Tube:
            • Rotating anode X-ray tube
            • 0.3 mm and 0.6 mm nominal focal spots
            • Anode heat capacity: 300,000 HU
            • Anode cooling rate: 85,000 HU/min
            • Housing heat capacity: 1,600,000 HU/min
            • Housing cooling rate:
              • 21 cm CFD – 22,500 HU/min
              • 31 cm CFD – 31,000 HU/min
              • 9” I.I. – 22,500 HU/min
              • 12” I.I. – 22,500 HU/min

          • Digital Image Orientation:
            • Digitally adjusts image display for live and last image hold
            • Automatic image update preserves image orientation settings applied during live and last image hold for subsequent images
              • Image rotation
              • Live and last image hold rotated in real-time
              • On-screen display of rotation degrees
              • Image reversal (left-to-right)
              • Image invert (top-to-bottom)
            • On-screen orientation indicator (real-time feedback without fluoroscopy)

          • Preview Collimator:
            • On-screen collimator position indication
            • Preview iris collimator
            • Preview Tungsten rotatable double-leaf collimator
            • Adjust collimators without X-ray exposure

          • Fluoroscopy Mode:
            • kVp range: 40 – 120
            • mA range: 0.2 – 10 normal mode 0.2 – 20 HLF
            • Auto and manual fluoroscopy modes

          • Pulsed Fluoroscopy Mode:
            • kVp range: 40 – 120
            • mA range: 0.2 – 10 normal mode 0.2 – 40 HLF
            • Pulse rate: 8 pps
            • Pulse width: 25 ms
            • Auto and manual pulsed fluoroscopy modes
            • Reduces X-ray dose to patient and operator

          • Digital Spot Mode:
            • kVp range: 40 – 120
            • mA range: Up to 75
            • Automatic exposure termination and automatic image save

          • TechView Monitor:
            • *Optional on image Intensifier modes
            • 10.4” (26.4cm) display, LCD flat panel monitor mounted on mainframe
              • 270° side/side rotation
              • 30° up/ 5° down tilt
              • Horizontal viewing angle 80°, Vertical viewing angle 70°
              • 800 x 600 resolution monitor

          • Image Processing:
            • AutoTrak
              • Automatically seeks the subject anatomy anywhere within the imaging field
              • Selects the optimum imaging technique by varying mA, kVp, and gain
              • Automatically adjusts to anatomical size and location
              • Provides uniform image quality throughout the entire image

          • Image I.Q.
            • Smart Window – Dynamically senses the collimator position and automatically adjusts image brightness and contrast
            • Smart Metal – Adjusts brightness and contrast automatically and allows the user to adjust sensitivity levels for optimum image quality even when metal is introduced into the field
            • Tungsten Collimator – Denser collimator limits X-ray exposure area, reduces scatter radiation, and improves image detail

          • Workstation:
            • Connectivity
              • Wired Ethernet
              • USB data transfer
              • DVI-I output
              • Integrated film/paper printer (optional)*
              • Thermal printers

          • Video Monitor:
            • 27 in (69 cm) LCD TFT color display
            • Anti-glare
            • 450 cd/m2 maximum brightness
            • Touch screen system control
            • 2560 x 1440 high-resolution display
            • Integrated PIP window to display color
            • DVI-D input

          • User Interface:
            • Touchscreen control simplifies the operation
            • Automated system operation requires minimum operator interface
            • Multi-functional controls with a footswitch or hand-held control
            • Physical keyboard with integrated touchpad with a sealed silicone design for dust-free, contaminant-free, and water-resistant use
            • Physical image control keypad
            • On-screen virtual keyboard and image control keypad
            • Multi-purpose image directory to retrieve and review images, copy the image(s), or manually delete the image(s)
              Integrated DICOM interface
            • Radiation dose structured report (RDSR)
            • X-ray dose summary
            • Room-in-use indicator interface
            • SmartConnect allows the workstation to operate independently of the C-arm and connect/ disconnect the C-arm when needed
