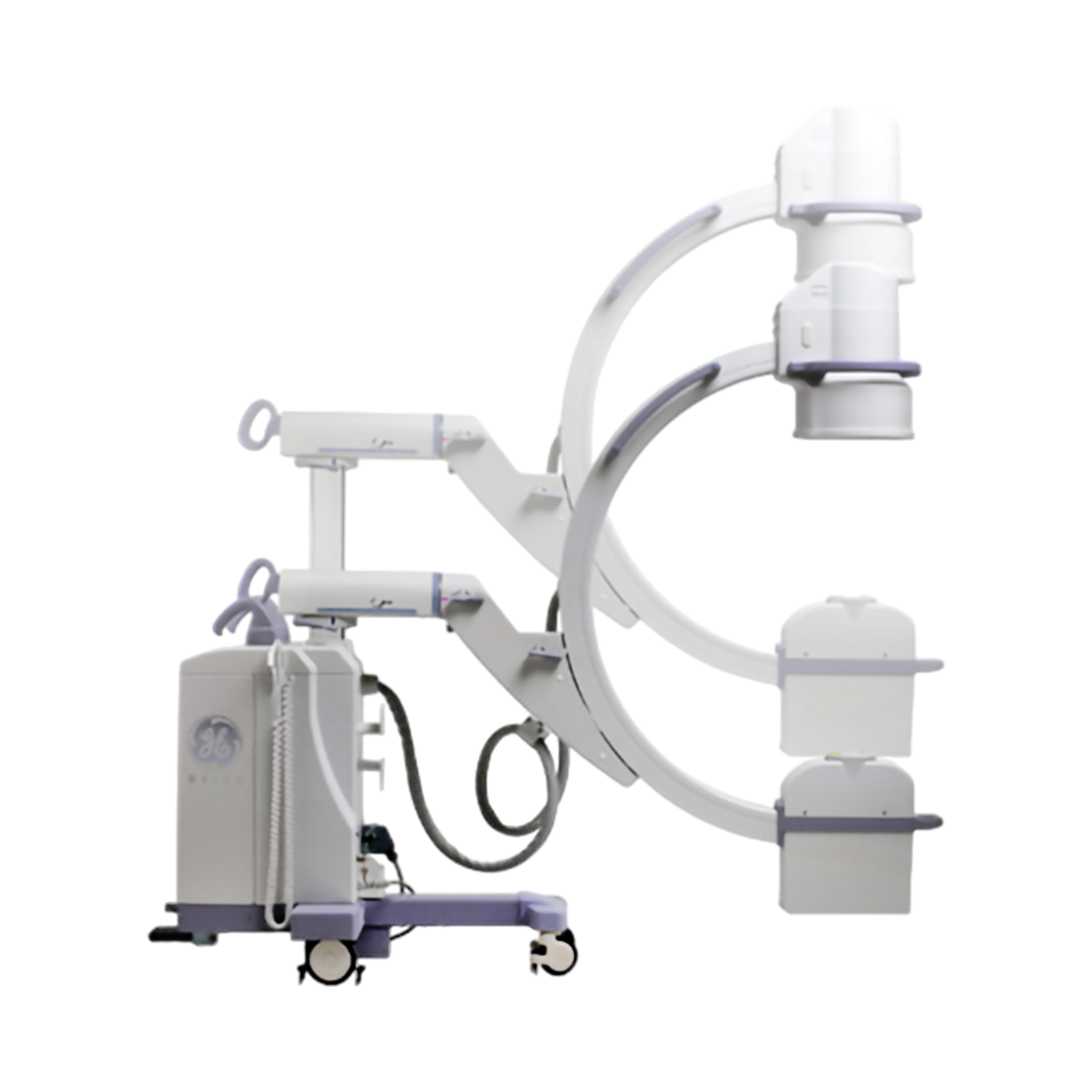

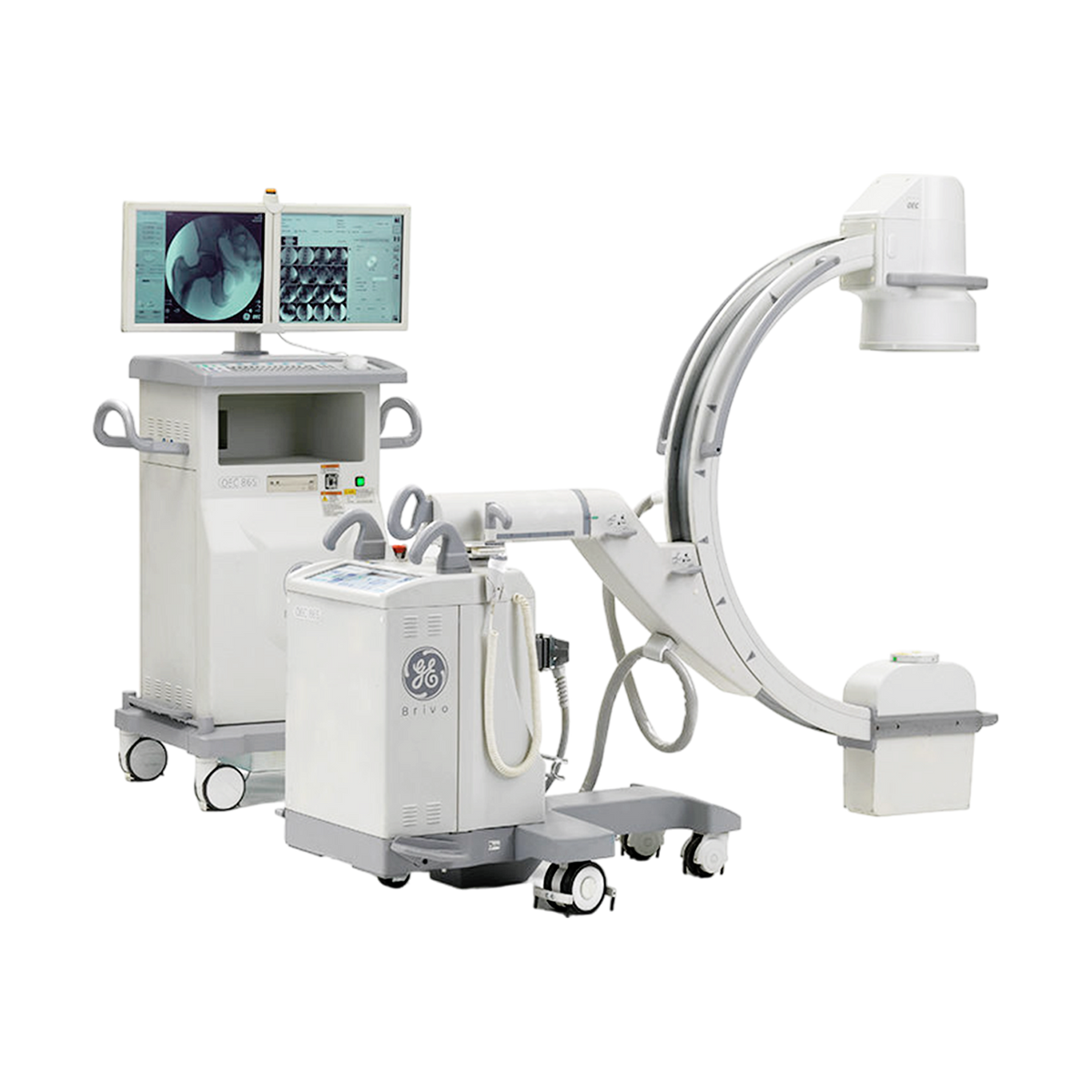

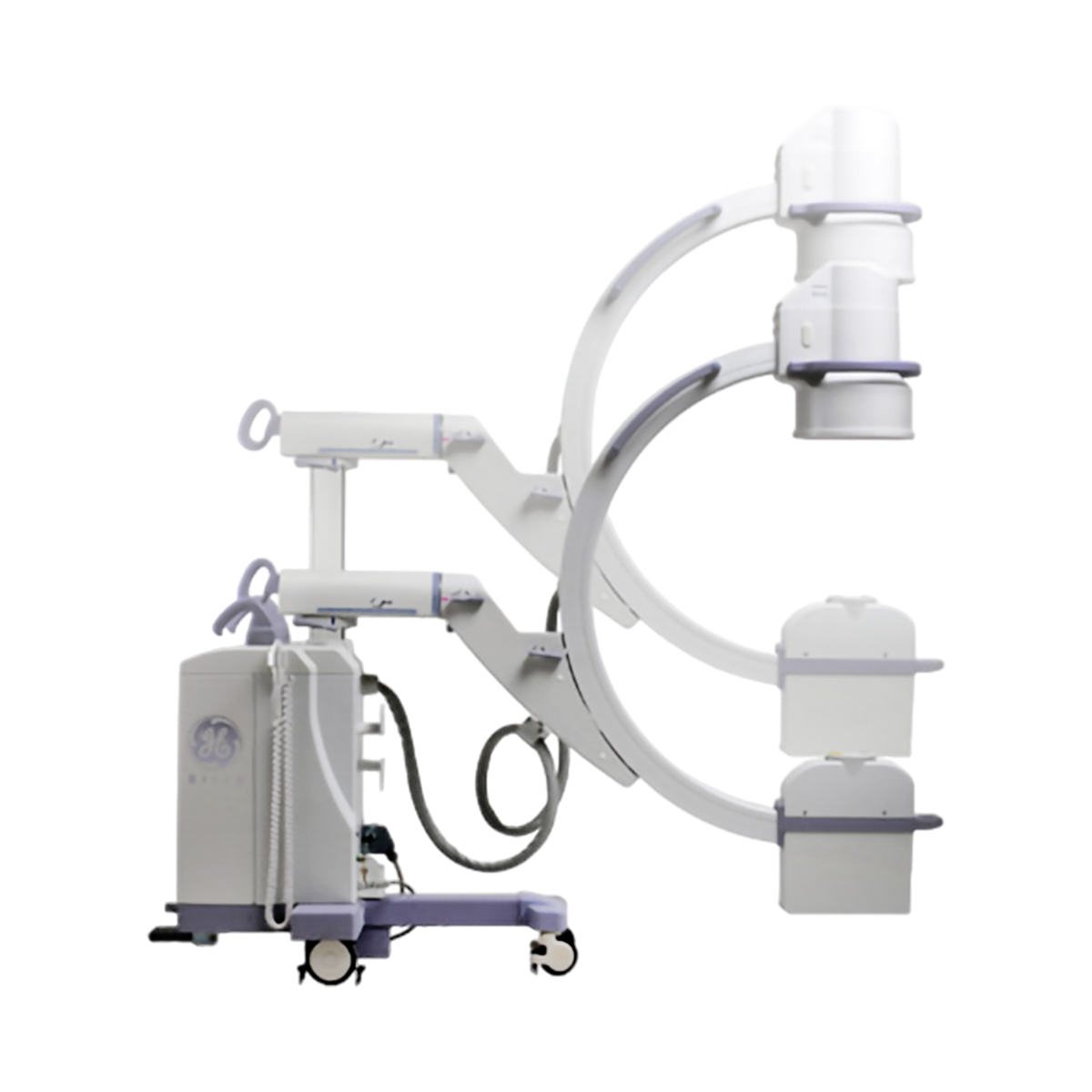

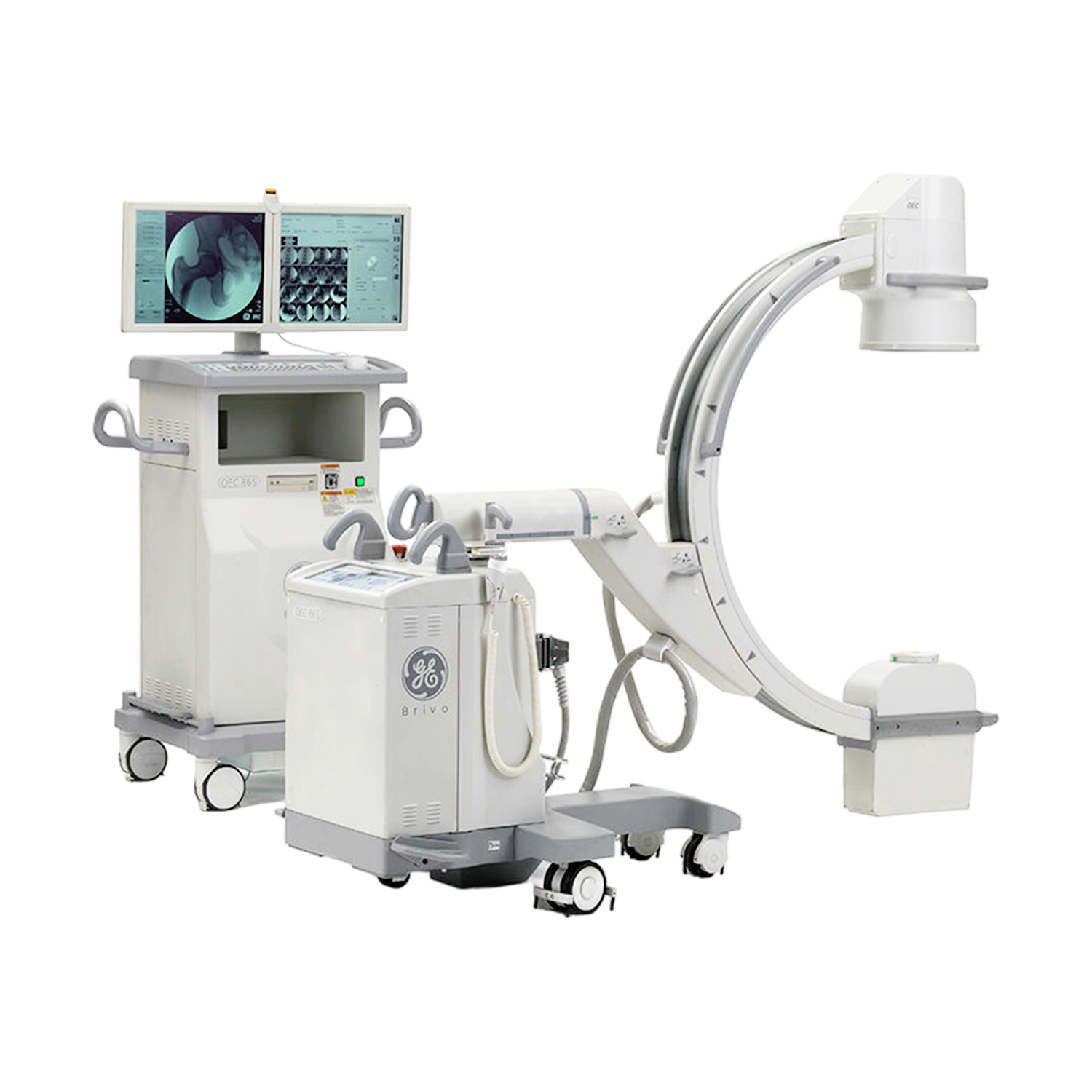

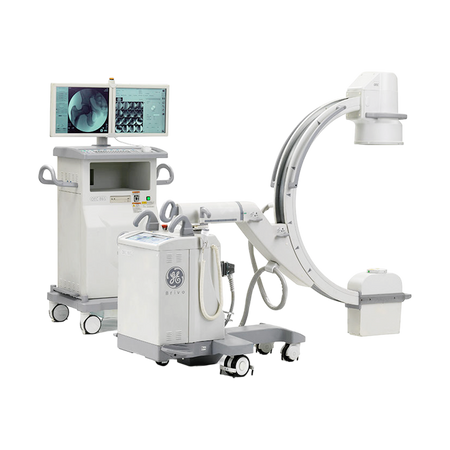

GE OEC Brivo Plus C-Arm

Out of stock
SKU: EN-OECBRIVO-PLUS
Condition
Category
LEAD TIME: Estimated Ship Time: 10-14 Days
PACKAGING: 1
WARRANTY: 30 Days

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The GE OEC Brivo Plus is a C-arm system that incorporates automated features to enhance productivity and reduce uncertainty throughout the surgical process. It is designed to deliver reliable and easy-to-use results, from setup to completion. The system's intelligent point-and-shoot technology enables it to bring images into sharp focus at the lowest reasonably achievable dose, reducing the learning curve, the need for retakes, and patient repositioning.

The Brivo Plus is equipped with a fully digital camera, a high-performance image intensifier, 16-bit image processing, and a premium dual leaf collimator to minimize scatter and reduce dose. It also features a touchscreen interface, a 100,000 image storage capacity, a membrane-covered keyboard, and a thumbnail image directory. The system's physical specifications include a system height of 67.1" (170.5 cm), a system width of 30.7" (78 cm), a system length of 70.3" (179 cm), and a weight of 573 lbs (260 kg). Additionally, it offers various imaging modes, such as low dose pulsed fluoroscopy, high-level pulsed fluoroscopy, digital spot mode, and radiographic mode, making it suitable for a wide range of surgical applications.

    FEATURES:

    • 1k x 1k high resolution imaging technology from a fully digital image processing system
    • 9” Image Intensifier provides high spatial resolution
    • Carbon fiber grid reduces scatter radiation effect while improving image detail
    • Available Pediatric package for clear images with lower dose when imaging children
    • Intuitive user interface with touch screen can reduce procedure time and improve efficiency
    • Advanced connectivity including wireless DICOM, MPPS and DVI options
    • Data protection and compliance including a UPS to protect patient data

          SPECIFICATIONS:

          • Manufacturer: GE
          • Part Number (OEM): OEC BRIVO PLUS
          • Category: Imaging
          • Accessories: None
          • Functional Condition: Refurbished
          • Cosmetic Condition: Good
          • Warranty: 30 Days

          • Physical Specifications:
            • Mainframe:
              • System Height: 67.1″ (170.5 cm)
              • System Width: 30.7″ (78 cm)
              • System Length: 70.3″ (179 cm)
              • Weight: 573lbs (260 kg)

          • C-Arm:
            • SID: 39.4″ (100 cm)
            • Free Space in Arc: 30.7″ 78 cm)
            • Depth in Arc: 26″ (66 cm)

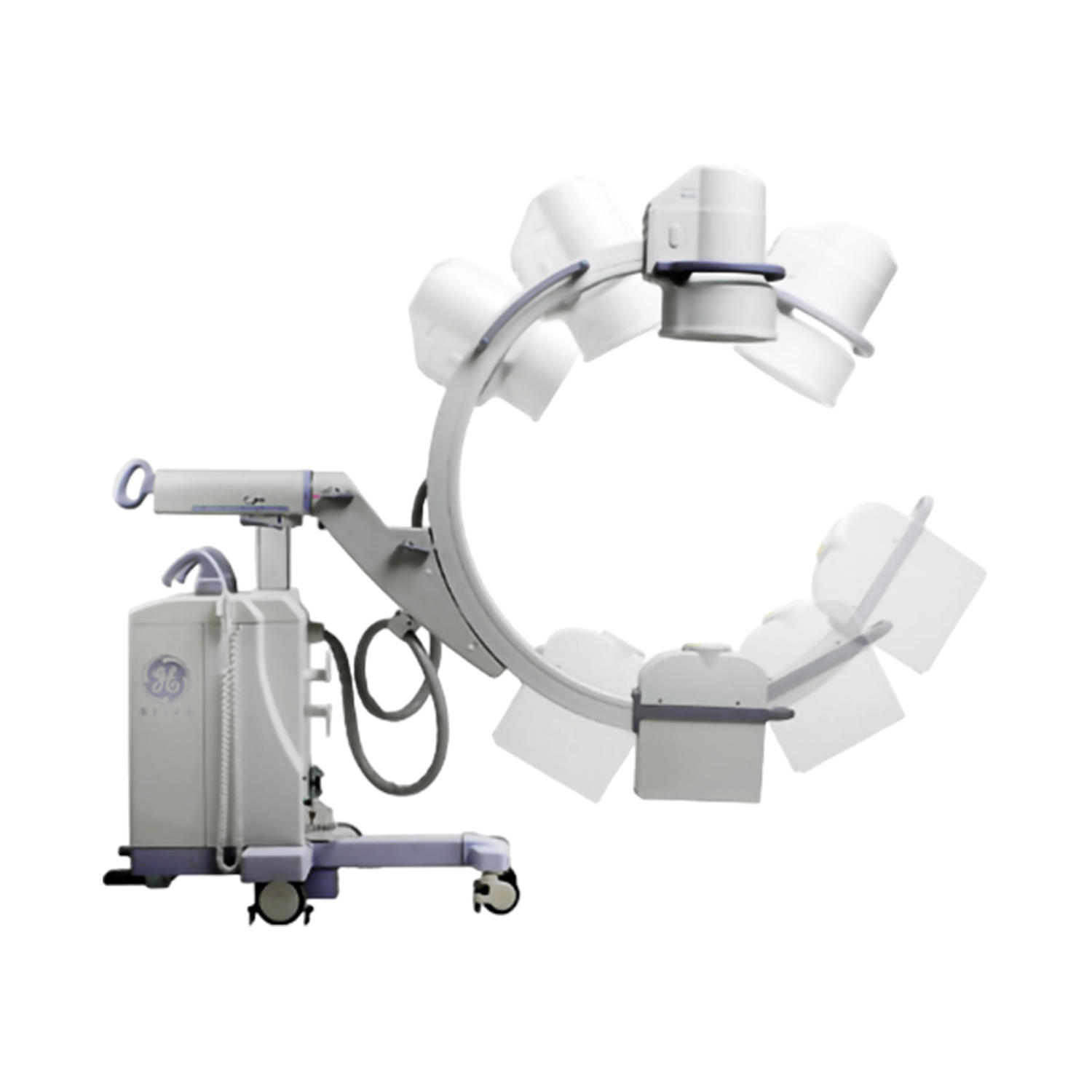

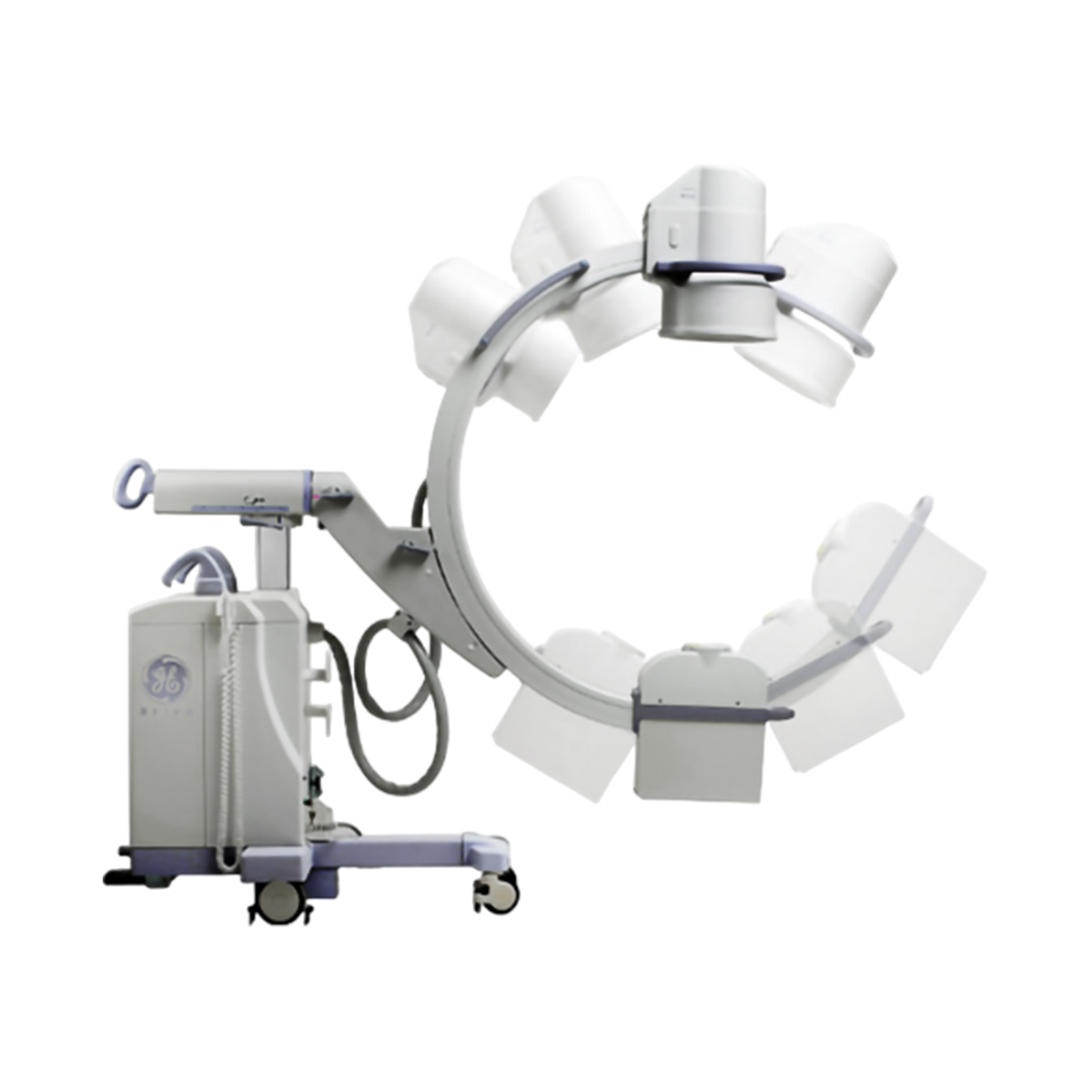

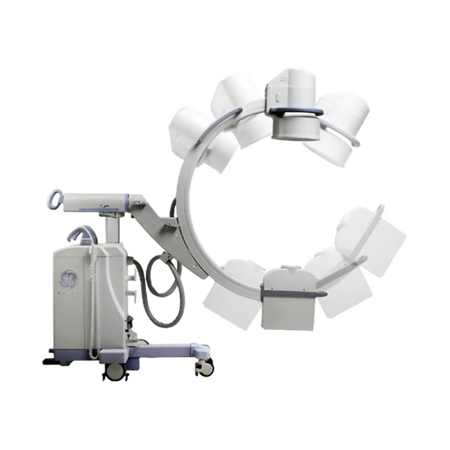

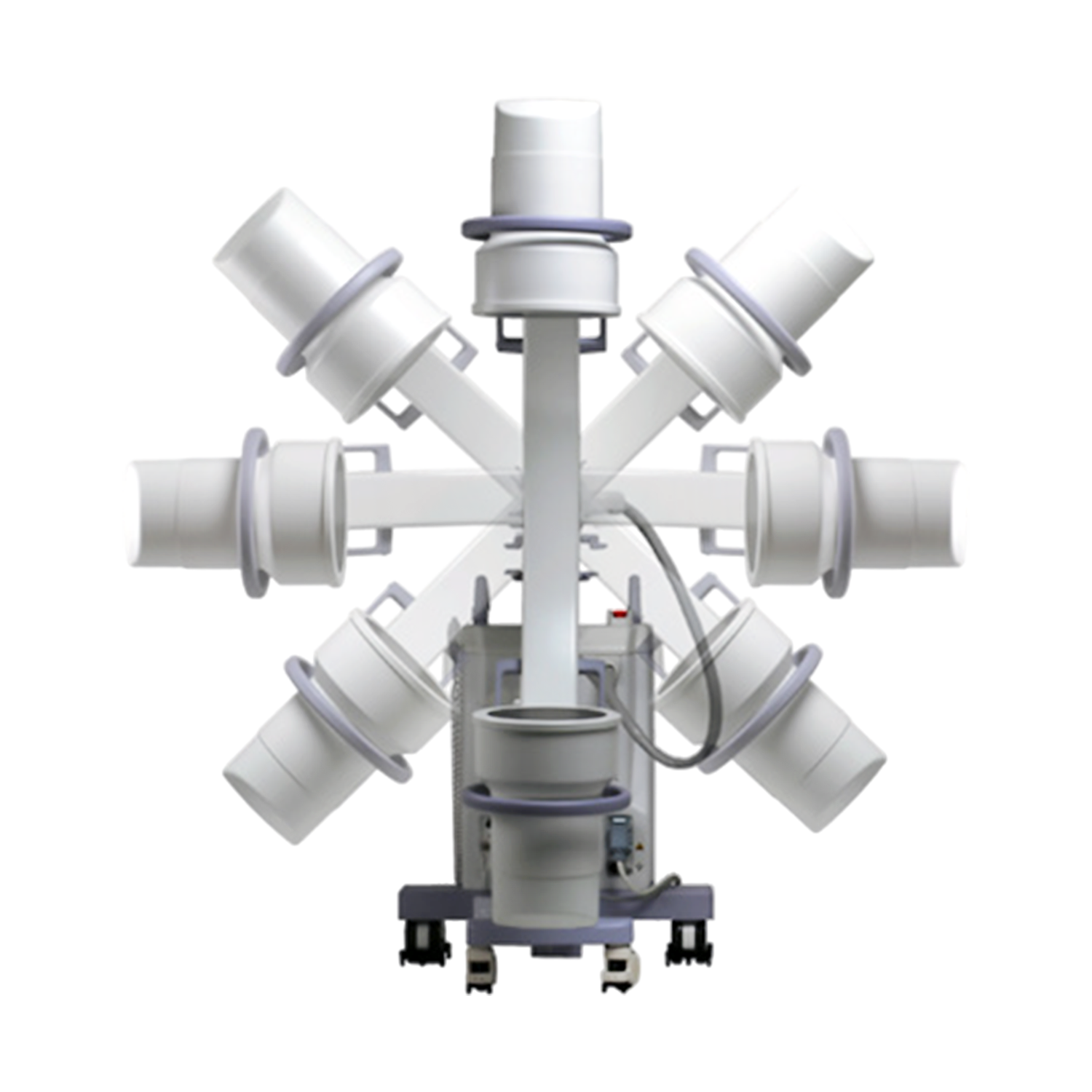

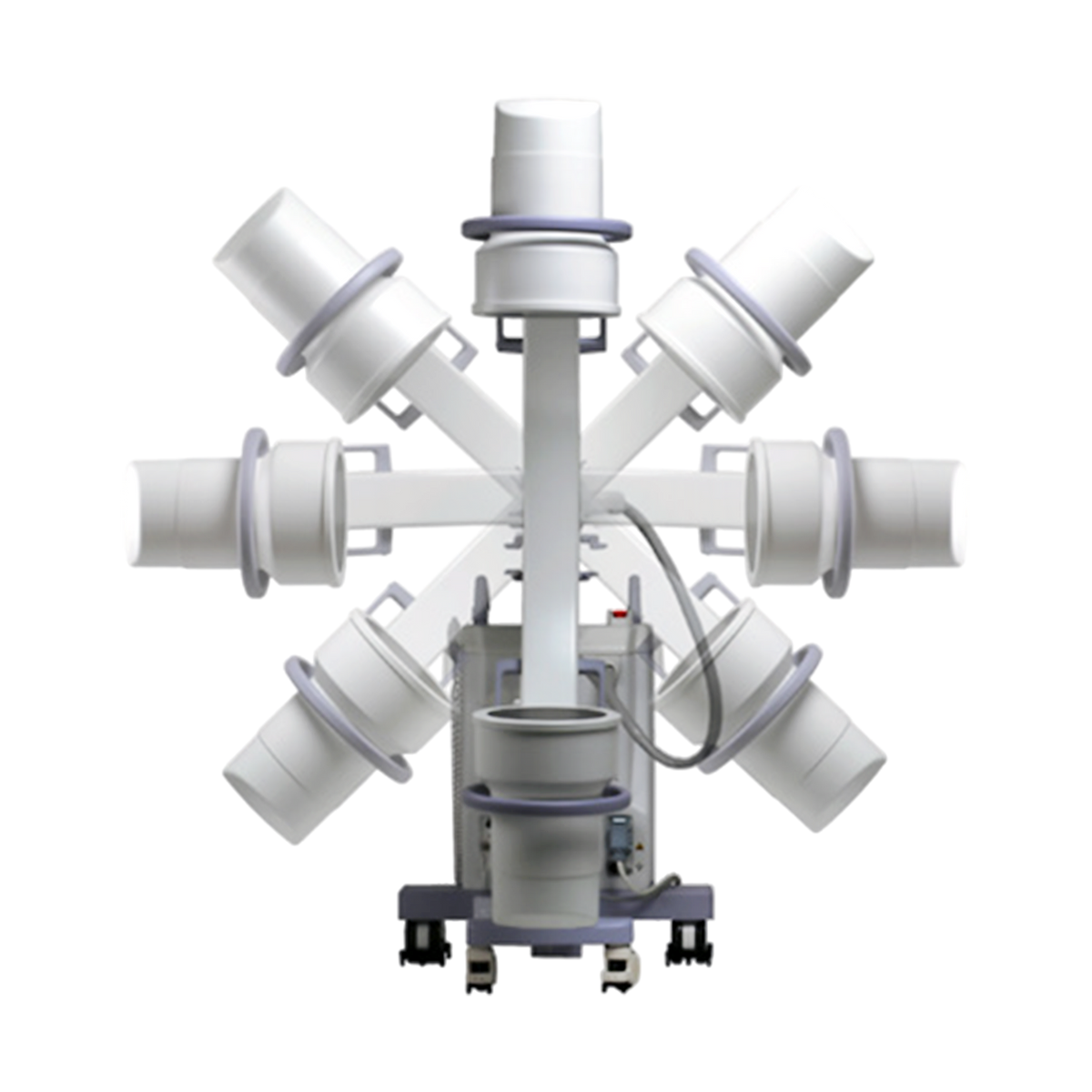

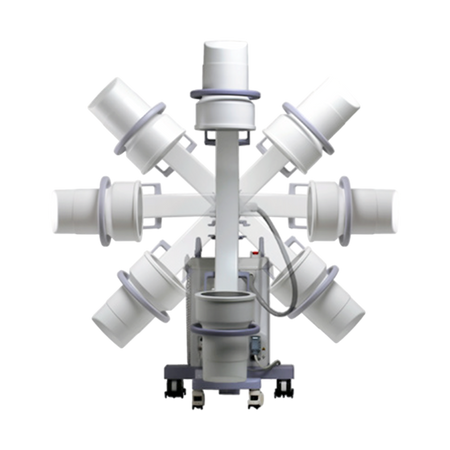

            • Orbital Rotation: 120° (90° underscan / 30° overscan)
            • Lateral Rotation: 410° (+205° / -12.5°)
            • Lateral Height: 40.2″ (102 cm)
            • Wig / Wag: 20° (+12.5° / – 12.5°)
            • Horizontal Travel: 8″ (20 cm)
            • Vertical Travel: 17.5″ (44.5 cm)

          • Workstation:
            • Height: 65.7″ (167 cm)
            • Width: 35.4″ (90 cm)
            • Depth: 25″ (64 cm)
            • Weight: 375lbs (170 kg)
            • Monitor Swivel ±90°
            • Monitor Tilt Motion: +7° / -10°

          • X-Ray System:
            • Generator:
            • 40kHz high frequency
            • 2.2kW monoblock
            • Housing heat capacity: 900,000HU
            • Housing Cooling Rate: 12,500HU/min
            • Up to 110kVp
            • Up to 20mA for radiographic film exposure
            • Continuous high-level fluoro (HLF) up to 12mA
            • Digital spot up to 16mA

          • X-Ray Tube:
            • Stationary anode X-ray tube
            • Dual focal spot:
              • Small Focal Spot: 0.6mm x 1.4mm
              • Large Focal Spot: 1.4mm x 1.4mm
            • Tube assembly total filtration 3.35mm Al
            • Anode Heat Capacity: 76,000HU
            • Maximum anode cooling rate: 37,000HU/min
            • On-screen tube heat capacity indicator

          • Preview Collimator:
            • On-screen collimator position indication
            • Preview iris collimator
            • Preview tungsten rotatable double-leaf collimator
            • Adjusts collimators without X-ray exposure

          • Normal Fluoro Mode:
            • kVp range: 40 -110
            • mA range: 0.1 – 4
            • Auto and manual fluoro modes

          • Low Dose Fluoro Mode:
            • kVp range: 40 -110
            • mA range: 0.1 – 2
            • Auto and manual fluoro modes

          • High-Level Fluoro Mode:
            • kVp range: 40 -110
            • mA range: up to 12
            • Auto and manual fluoro modes

          • Pulsed Fluoro Mode:
            • kVp range: 40 -110
            • mA range: 0.1 – 4
            • Pulse rate: 1, 2, 4, 8 PPS
            • Auto and manual fluoro modes
            • Can reduce X-ray dose to patient and operator

          • Low Dose Pulsed Fluoro:
            • kVp range: 40 -110
            • mA range: 0.1 – 2
            • Pulse rate: 1, 2, 4, 8 PPS
            • Auto and manual fluoro modes

          • High-Level Pulsed Fluoro:
            • kVp range: 40 -110
            • mA range: up to 12
            • Pulse rate: 1, 2, 4, 8 PPS
            • Auto and manual fluoro modes

          • Digital Spot Mode:
            • kVp range: 40 – 110
            • Up to 10mA for 100-120V system
            • Automatic exposure termination and automatic image save

          • Radiographic Mode:
            • mA range: 20 (10 for 100-120V system)
            • mAs range: up to 80 (40 for 100-120V system)
            • Computer-controlled exposure time
            • Film cassette holder: 10” x 12” (25.4cm x 30.5cm)

          • Video Imaging System:
            • Precise-Imaging Features:
              • AutoTrak:
                • Automatically seeks the subject anatomy anywhere within the imaging field and selects the optimum imaging technique
                • Automatically adjusts to anatomical size and location
                • Provides uniform image quality throughout the entire image
                • Simplifies operation

          • Smart Window:
            • Dynamically senses the collimator position and automatically adjusts brightness and contrast to produce high image quality

          • Smart Metal:
            • Automatically detects the metal in the field and optimizes image quality
            • Allows the user to adjust automatic brightness and contrast sensitivity levels to metal
            • Provides optimum image quality even when metal is introduced to the field

          • 9” Image Intensifier:
            • Tri-mode 9”/6”/4.5” (23cm/15cm/11cm) image intensifier, The central resolution (typical value at image intensifier):
              • 9” (23cm): 52 lp/cm
              • 6” (15cm): 58 lp/cm
              • 4.5” (11cm): 68 lp/cm

          • Minimum central resolution (at monitor):
            • 9” (23cm): 2.2 lp/mm
            • 6” (15cm): 3.0 lp/mm
            • 4.5” (11cm): 3.5 lp/mm
            • DQE: 65% (typical)

          • Tungsten Collimator:
            • Denser collimator limits X-ray exposure area
            • Reduces scatter radiation
            • Improves image detail

          • Carbon Fiber Grid:
            • 60L/cm 10:1 anti-scatter grid
            • Reduces scatter radiation effect
            • Improves image detail

          • Video Camera:
            • High-resolution 1k x 1k CCD camera
            • Full digital interface
            • Variable gain control

          • Video Display:
            • Dual medical 19” (48cm) monochrome LCD with anti-glare panel
              • Tilt motion: 7 degrees up / 10 degrees down
              • Swivel motion: 180 degree
              • Viewing angle: 170 degrees horizontal and vertical
            • Maximum brightness: 1000 Cd/m2
            • Maximum contrast: 900:1
            • 1280 x 1024 high resolution
            • Digital Visual Input (DVI) interface for external monitors

          • Image Processing:
            • 1k x 1k x 16-bit image processing
            • Dynamic recursive filter with adaptation to motion
            • Allows the user to adjust noise filter levels to produce high-image quality
            • Provides optimum image quality even when motion is introduced to the field
            • Automatic digital brightness and contrast control
            • Manual digital brightness and contrast control
            • Auto-adaptive non-uniformity correction
            • Image edge enhancement
            • Image negate mode
            • Image save and auto-save
            • Image swap and auto-swap
            • Last image hold (LIH)
            • Image zoom and roam
            • Left-right image reversal
            • Top-bottom image invert
            • Digital Image Rotation
              • 360-degree real-time rotation for live and static images
              • Image positioning without additional exposure
            • HIPAA SecureView
              • Password protection
              • Blank screen function
              • Delete all
            • Measurement Software
              • Distance measurement
              • Angle measurement
              • Multi-unit support (French, mm, Inch)
              • User calibration
            • Image Annotation
              • Arrows and markers
              • Comments
              • Cropping
            • 100,000 images storage

          • Exam Management:
            • Patient information
              • Examination list
              • Customized patient information
            • X-Ray DAP/Dose display & summary
            • X-Ray DAP/Dose summary export & print out
            • Full DICOM interface
              • Storage & Commitment
              • Print
              • Work-list
              • Radiation Dose Structured Report (RDSR)
              • Query & Retrieve
              • MPPS
              • Wireless DICOM

          • Brilliant-Dose Management Platform:
            • Superb imaging unit with high dose efficiency
              • High DQE (65%) image intensifier
              • 60L/cm 10:1 carbon fiber grid
              • Unique hardware & software design to get the balance of dose and image quality
              • Dynamic camera gain control for low-dose imaging
              • Full digital image processing
            • Doseless positioning
              • Laser aimer on tube and image intensifier
              • Preview collimator
              • Real-time rotation for static images
            • Provide real-time dose information
              • Dose rate, accumulative dose, DAP
              • Multi-unit support, (Gy, Rad)
            • Lower dose imaging mode for pediatrics
              • Removable grid (Optional)
              • Additional filter (Optional)
              • Low dose mode
              • Pulsed imaging mode
            • Dose summary data output & archive
            • Dose summary export & print out
            • Dose information transfer via DICOM (RDSR)

          • Additional Features:
            • Other Image Storage Options:
              • CD/DVD writer (Optional)
              • USB memory stick port
              • Integrated DICOM storage

          • Hardcopy Options:
            • Integrated film/paper printer (Optional)
              • No film development required
            • DICOM printer support
              • Multi-format, 1, 2, 4 on 1
              • Multi-copy capability
            • Radiographic film cassette holder (Optional)

          • Pediatric Application Kit:
            • Removable grid (Optional)
            • Additional filter (Optional)

          • Integrated Uninterruptible Power:
            • Patient Image data protection

            • Orderly shutdown
          • Electrical:
            • Input power (60 Hz or 50 Hz)
              • 100V/110V/120V @ 20A
              • 200V @ 12A
              • 220V/230V/240V @ 10A

          • Operating Range:
            • Temperature: 10° to 40°C
            • Humidity: 20%-80% non-condensing
