GE OEC 9600 C-Arm

SKU: EN-GE-OEC9600
Condition
Category
LEAD TIME: Estimated Ship Time: 10-14 Days
PACKAGING: 1
WARRANTY: 30 Days
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

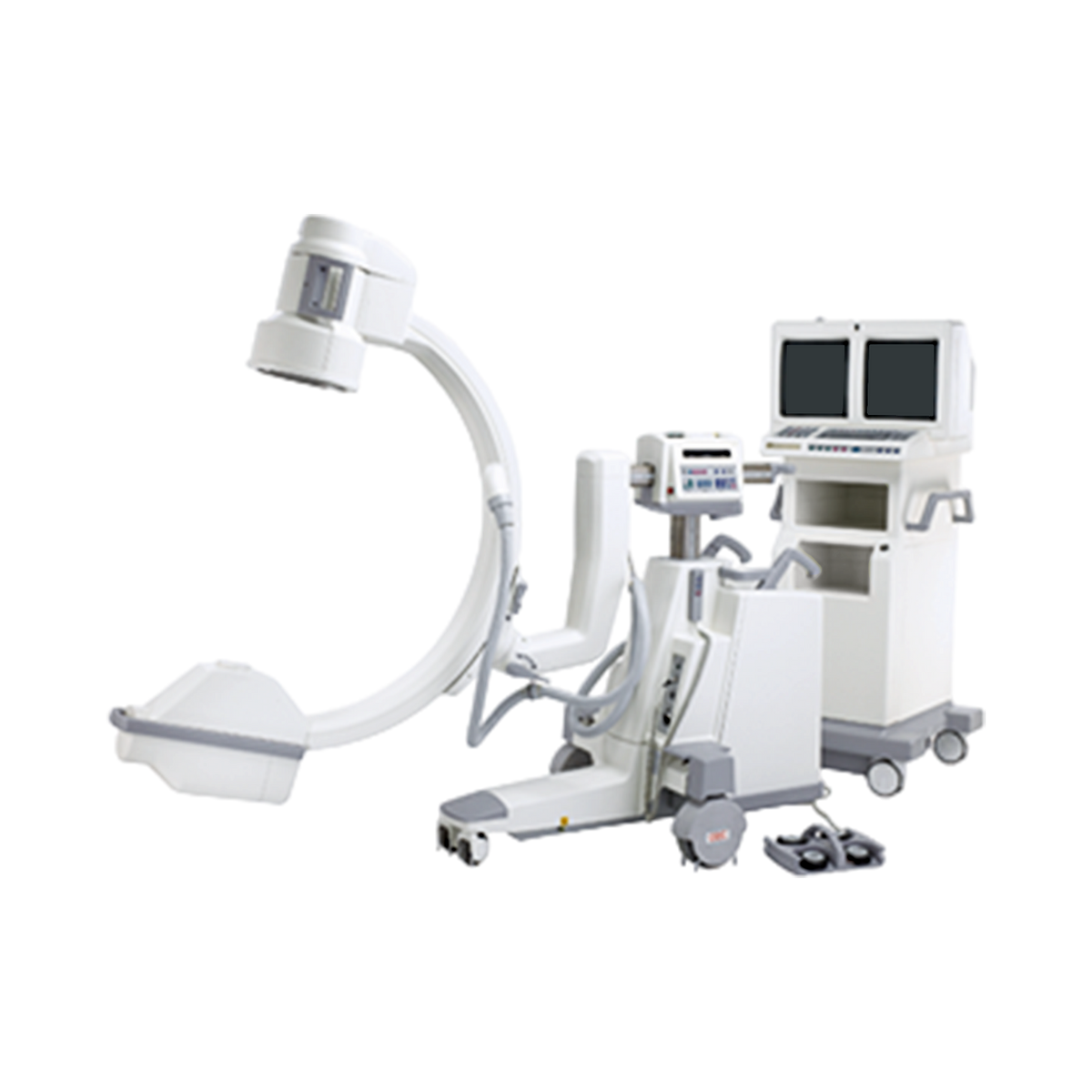

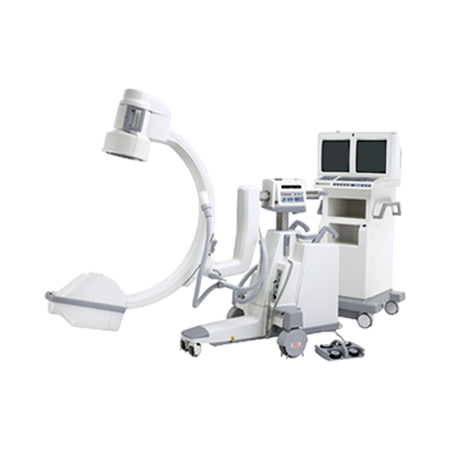

The GE OEC 9600 C-Arm is a mobile X-Ray system that integrates advanced fluoroscopic imaging with the capability to capture film radiographs. This versatile system is suitable for a wide range of diagnostic and surgical applications. Its flexible motions include orbiting through an arc of 115 degrees, pivoting on its cradle axis up to 180 degrees, and rotating the L-arm up to 180 degrees, allowing for up to 360-degree rotation. Additionally, it features a vertical lift of up to 18 inches and can be extended up to 8 inches. The entire C-Arm and L-arm assembly can also swing or wig-wag from side to side up to 11 degrees in both directions, providing exceptional versatility in positioning the X-ray tube and image intensifier.

The GE OEC 9600 C-Arm is equipped with a 4.0kW X-Ray capacity, analog spot-film imaging, and fluoroscopic image guidance, making it suitable for various procedures, including general surgery, minor vascular procedures, and musculoskeletal (MSK) procedures. Despite being an older machine, its imaging capabilities and cost-effectiveness make it a practical choice for C-Arm applications.

SPECIALTY PACKAGES AVAILABLE:

  • GSP
  • ESP
  • Vascular
  • Vascular: 4/8/15 fps
  • Neurovascular: 30 fps
  • Cardiac: 30 fps
  • Super C

FEATURES:

  • Generator:
    • High frequency
    • 4.0 kW full-wave
    • Up to 120 kVp
    • Up to 75 mA for radiographic film exposures
    • Continuous fluoro boost mode up to 12 mA (optional)
    • Pulsed fluoro mode
    • Pulsed fluorography mode up to 40 mA
    • Full power from outlet:
    • 50 Hz or 60 Hz
    • 100V-15A to 240V-8A
    • Patented energy buffer design

  • X-Ray Tube:
    • Rotating anode X-ray tube
    • Focal spots: 0.3 mm and 0.6 mm
    • Anode heat capacity: 300,000 HU
    • Anode cooling rate: 60,000 HU/min
    • Housing heat capacity: 1,600,000 HU
    • Anode diameter: 3.1 in
    • Anode angle:
    • 8.5 in (9-inch Image Intensifier)
    • 10 in (12-inch Image Intensifier)
    • X-Ray tube cooling fan (Vascular, Neurovascular & Cardiac units)

  • Collimator:
    • Iris collimation with dual opposing semi-transparent shutters allows elliptical, round, and rectangular collimation
    • Iris and shutters are continuously variable
    • All functions are remotely controlled from the C-Arm control panel

  • Fluoroscopy Mode:
    • Focal spot: 0.3 mm
    • kVp range: 40 – 120 kVp
    • mA range: 0.2 – 5.0 mA normal mode
    • mA range: 1.0 – 12 mA continuous fluoro boost mode
    • Auto and manual modes
    • Continuous, one-shot, or pulsed operation
    • ABS varies mA, kVp, and camera gain
    • User-specific ABS tables

  • Pulsed Fluoroscopy Mode:
    • Focal spot: 0.3 mm
    • kVp range: 40 – 120 kVp
    • mA range: 0.2 – 5.0 mA
    • Pulse rate: 1, 2, 4, or 8 pulses per second
    • Pulse width: 30 or 50 milliseconds
    • Computer-controlled ABS, mA, kVp, and camera gain

  • Pulsed Fluorography Mode (Optional):
    • Focal spot: 0.3 mm
    • kVp range: 40 – 120 kVp
    • mA range: 0.2 – 40.0 mA
    • Pulse rate: 1, 2, 4, or 8 pulses per second
    • Pulse width: 30 or 50 milliseconds
    • Computer-controlled ABS, mA, kVp, and camera gain
    • Digital Spot Mode (Optional)
    • Standard with the Expanded Surgical Platform (ESP)
    • Enhanced digital fluorographic one-shot with 12 mA boost
    • Automatically terminates exposure and stores enhanced image to storage archival disk

  • Radiographic Mode:
    • Focal spot: 0.3 mm or 0.6 mm
    • The focal spot is automatically selected
    • 0.3 mm – mAs range: 1 – 100 mAs
    • 0.6 mm – mAs range: 110 – 300 mAs
    • kVp range: 50 – 120 kVp

  • Video Imaging System:
    • Image Intensifier
    • 9" Image Intensifier
    • Tri-mode 9"x6"x4.5" in image intensifier
    • Minimum central resolution (at the monitor):
    • 9": 1.4 lp/mm
    • 6": 2.0 lp/mm
    • 4.5": 2.4 lp/mm
    • DQE: 65% (typical)

  • (Optional):
    • Tri-mode 12"x9"x6" image intensifier
    • Minimum central resolution (at the monitor):
    • 12": 1.0 lp/mm
    • 9": 1.3 lp/mm
    • 6": 1.6 lp/mm
    • DQE: 65% (typical)

  • Video Camera:
    • High-resolution CCD camera
    • Full frame capture
    • 360° motorized rotation
    • On-screen orientation indicator (real-time feedback without fluoro)
    • Left-right image reversal
    • Top-bottom image reversal
    • Negative mode
    • Video signal: Standard RS 170A 60 Hz, 525 lines
    • Aspect ratio: 4:3
    • Computer-controlled features:
    • Gain
    • Blanking
    • Camera iris

  • Video Monitors:
    • Dual 16 in square, black etched, anti-glare, anti-static
    • 525 lines/frame – 512 pixels
    • Ambient room light sensor
    • Multi-LED X-ray “ON” indicator
    • Remote window/level controls

  • Hardcopy Options:
    • Thermal printer
    • External DICOM box
    • Image Capture Device
    • Laser aiming device (optional)
SPECIFICATIONS:
  • Manufacturer: GE
  • Part Number (OEM): OEC 9600
  • Category: X-Ray
  • Accessories: None
  • Functional Condition: Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

  • C-Arm Dimensions::
    • Height: 68 / 86 in (1734 / 2191 mm)
    • Width: 33 in (838 mm)
    • Length: 78 in (1994 mm)
    • Weight: 720 lbs

  • Workstation Dimensions
    • Height: 64 in (1632 mm)
    • Width: 27 in (692 mm)
    • Depth: 27 in (692 mm)
    • Weight: 430 lbs
