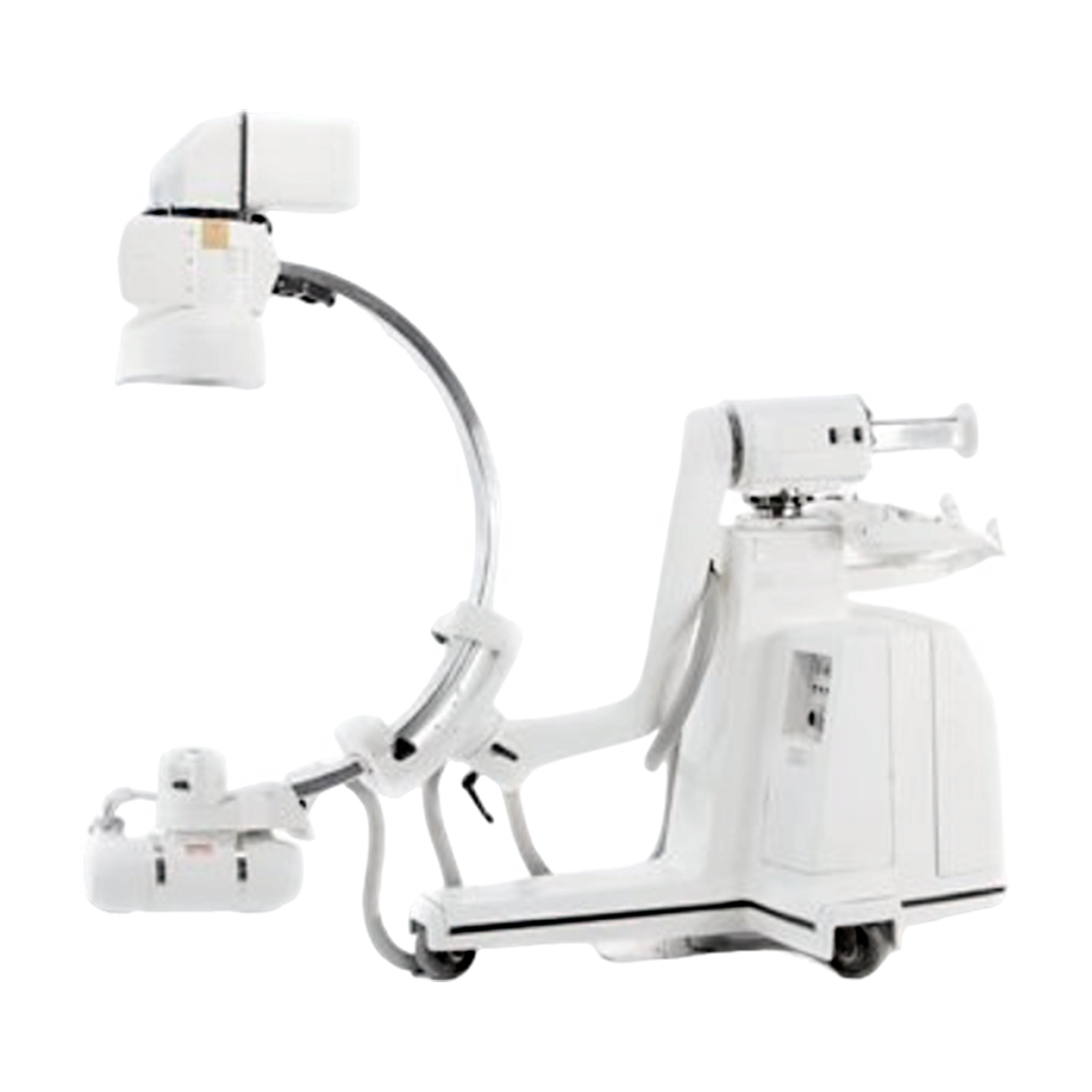

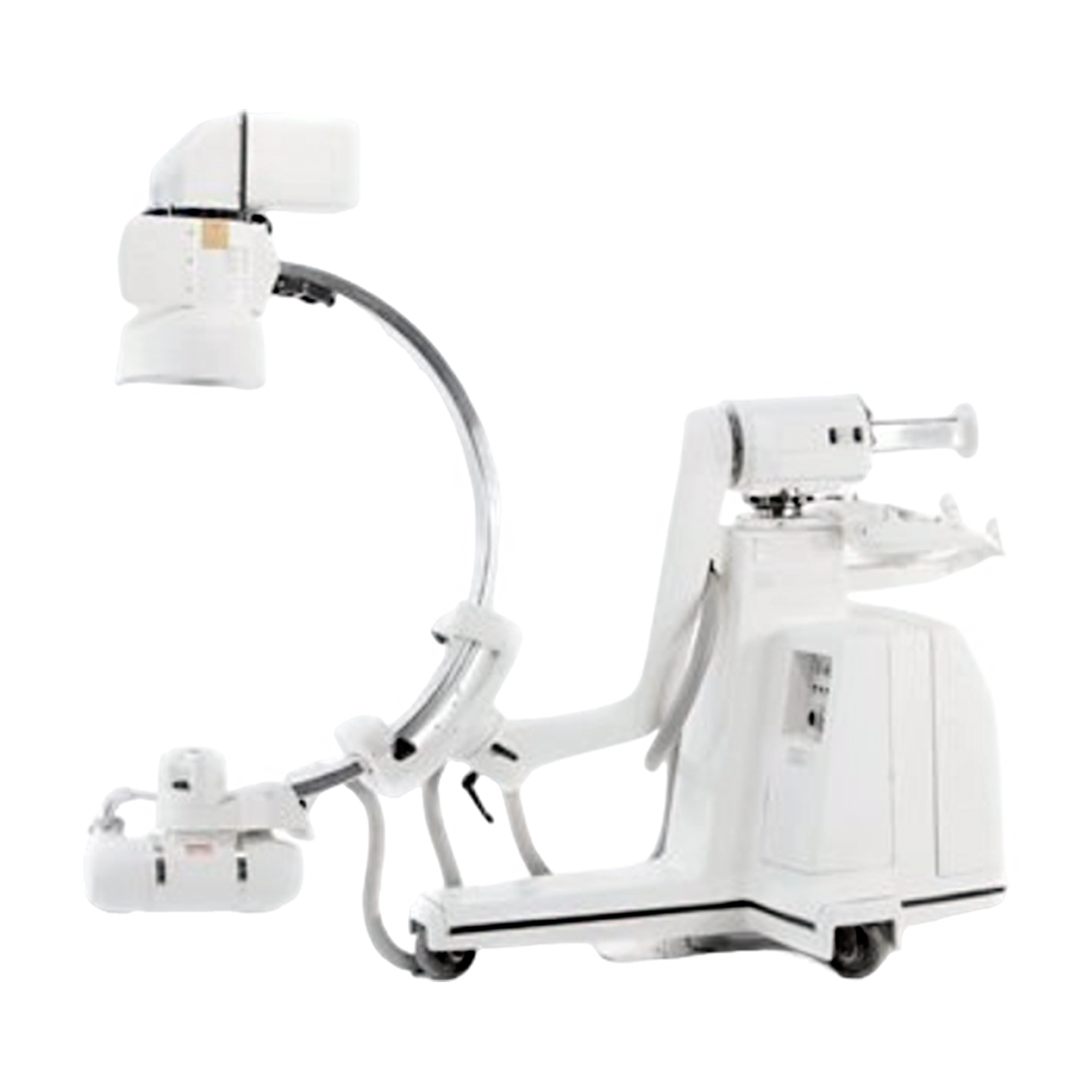

GE OEC 9400 C-Arm

Out of stock
SKU: EN-OEC9400
Condition
Category
LEAD TIME: Estimated Ship Time: 10-14 Days
PACKAGING: 1
WARRANTY: 30 Days

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The GE OEC 9400 C-Arm is a multi-application mobile X-ray imaging system that provides solutions for various medical needs, including pain management, general, orthopedic, and vascular surgeries. Some of its features include a 2.5 kHz high-frequency generator, a 6.0 kW full-wave generator, up to 120 kVp, up to 100 mA for radiographic film exposures, and a rotating anode X-ray tube. It also offers a 512 x 512 pixel image resolution, a 9"/6"/4.5" dual-mode image intensifier, and various imaging modes such as fluoroscopy and radiography. The system is designed to offer clear images, enhanced penetration power, and resolution, making it suitable for a range of medical procedures.

    FEATURES:

    • 6/9” Tri Mode Image Intensifier
    • Dual Hi-Resolution Monitors
    • Set To Factory OEC Specs
    • New Paint
    • Sony Paper Printer
    • Patient Annotation Keyboard
    • Rotating Anode X-Ray Tube
    • 512 px x 512 px Image Resolution
    • Analog Camera
    • Fully refurbished to meet or exceed original manufacturer's specifications.

      SPECIFICATIONS:

      • Manufacturer: GE
      • Part Number (OEM): OEC 9400
      • Category: Imaging
      • Accessories: None
      • Functional Condition: Refurbished
      • Cosmetic Condition: Good
      • Warranty: 30 Days
      • C-Arm Dimensions:
        • Height: 66 in. / 83 in. (1681 / 2120 mm)
        • Width: 34 in. (864 mm)
        • Length: 74.5 in. (1892 mm)
        • Weight: 740lbs

      • Workstation Dimensions:
        • Height: 65 in. (1651 mm)
        • Width: 32 in. (813 mm)
        • Depth: 28 in (710 mm)
        • Weight: 360 lbs.

        • Generator:
          • 2.5 kHz High frequency
          • 6.0 kW Full-wave
          • Up to 120 kVp
          • Up to 100 mA for radiographic film exposures
          • Fluoro boost mode up to 20 mA (optional)
          • Pulsed fluoro mode
          • Pulsed fluorography mode up to 60 mA (optional)
          • Full power from outlet:
            • 50 Hz or 60 Hz
            • 100V-15A to 240V-12A

      • X-Ray Tube:
        • Rotating anode X-Ray tube
        • Focal spots: 0.3 mm and 0.1 mm
        • Anode heat capacity: 300,000 HU
        • Anode cooling rate: 70,000 HU/min
        • Housing heat capacity: 1,250,000 HU Collimator

      • Collimator:
        • Dual leaf collimation
        • Minimum beam size < 5 X 5 cm2
        • Leaves are continuously variable
        • Remotely controlled from the C-Arm control panel Fluoroscopy Mode

      • Fluoroscopy Mode:
        • Focal spot: 0.3 mm
        • kVp range: 40 – 120 kVp
        • mA range: 0.2 – 5.0 mA normal mode
        • mA range: Up to 20 mA boost mode (optional)
        • Auto, manual and pulsed modes
        • Continuous or One-Shot operation
        • ABS varies mA, kVp and camera gain
        • User specific ABS tables

      • Pulsed Fluoroscopy Mode (optional):
        • Focal spot: 0.3 mm
        • kVp range: 40 – 120 kVp
        • mA range: 0.2 – 5.0 mA
        • Pulse rate: 1, 2, 4, or 8 pulses per second
        • Pulse width: 30 or 50 milliseconds
        • Computer controlled ABS, mA, kVp and camera gain
        • Pulsed Fluorography Mode (optional):
        • Focal spot: 0.3 mm
        • kVp range: 40 – 120 kVp
        • mA range: Up to 60 mA
        • Pulse rate: 1, 2, 4, or 8 pulses per second
        • Pulse width: 35 or 50 milliseconds Radiographic Mode

      • Radiographic Mode:
        • Focal spot: 0.3 mm or 1.0 mm
        • Focal spot automatically selected
        • 0.3 mm – mAs range: 1 – 100 mAs
        • 1.0 mm – mAs range: 100 – 3

      • Video Imaging System:
        • 6 in Image Intensifier:
        • Single-mode 6 in image intensifier
          • 6 in.: 1.4 lp/mm
        • DQE: 65% (typical) 9 in Image Intensifier (optional)

      • 9 in Image Intensifier (optional):
        • Tri-mode 9 in / 6 in / 4.5 in image intensifier
          • 9 in.: 2.3 lp/mm
          • 6 in.: 3.2 lp/mm
          • 4.5 in.: 3.8 lp/mm
        • DQE: 65% (typical)

      • Video Camera:
        • Vidicon Image Tube
        • 525 lines/frame
        • 360˚ motorized rotation
        • On-screen orientation indicator (realtime feedback without fluoro)
        • Left-right image reversal
        • Top-bottom image reversal
        • 256 shades of gray

      • Video Monitors:
        • Dual 17 in. Ultrabrite anti-glare monitors
        • Ambient room light sensor
        • Remote brightness/contrast controls

      • Additional Features:
        • Hardcopy Options:
          • Thermal printer
          • External DICOM box
          • Image Capture Device
