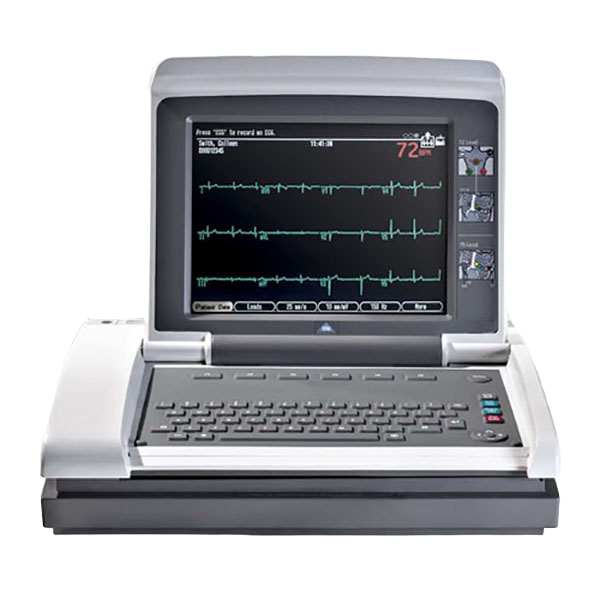

GE MAC 5500 HD ECG/EKG Resting System

Out of stock
SKU: EN-MAC5500-HD
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The GE MAC 5500 HD is a premier EKG/ECG system designed to provide advanced and accurate electrocardiography readings for both adult and pediatric patients. Key features of the GE MAC 5500 HD include:

The GE MAC 5500 HD is designed to deliver advanced disease management capabilities and streamline workflow, supporting improved quality of care and reduced costs for hospitals[4]. It leverages the Marquette 12SL ECG Analysis Program and analyzes both short and long-term changes in ECG waveforms. The system also offers seamless integration with the Hospital Information System (HIS) for consistent charge capture, rapid and efficient transfer of ECG and demographic information, and elimination of patient data re-entry.

FEATURES:

  • Advanced algorithms in ECG analysis and interpretation.
  • Internal storage for up to 200 ECGs[1].
  • Operating temperature range of 50° to 104° F (10° to 40° C).
  • Universal AC power supply (100 to 240 VAC at 50/60 Hz) with an internal rechargeable battery.
  • Compatibility with the GE Healthcare MUSE v8 cardiology management system for streamlined workflow and greater functionality.
  • Enhanced barcode workflow with orders and ADT download capability to help improve patient data management and reduce errors.
  • Accurate pacemaker detection and digital CAM-HD acquisition module.
  • Large field-of-view display and analog ECG output.
  • Display and final-report formatting and customization.

SPECIFICATIONS:

  • Manufacturer: GE
  • Part Number (OEM): MAC 5500HD
  • Category: Fetal Monitors
  • Accessories: None
  • Functional Condition: Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

  • Dimensions: (Console)
    • Height: 3.7 in (9.4 cm) (With display closed)
    • Width: 15 in (38.1 cm)
    • Depth: 13.8 in (35.1 cm)
    • Weight: 15lbs (6.8 kg)

  • Dimensions (Cart) - Optional
    • Height: 37 in (94 cm)
    • Width: 19 in (47 cm)
    • Depth: 27 in (69 cm)
    • Weight: 66lbs (30 kg)

  • Display:
    • 10.4 in (26.4 cm) diagonal graphics backlit color AM LCD
    • Display Resolution: 640 x 480 pixels with waveform enhancement
    • Display Data: Heart rate, patient name, ID, clock, waveforms, lead labels, speed, gain and filter settings, warning messages, prompts, and help messages

  • Keyboard:
    • Sealed elastomer with soft function keys, alphanumeric keys, writer controls, and TrimPad cursor controls

  • Power:
    • Power Supply: AC or battery operation
    • Voltage: 100 to 240 VAC
    • Current: 0.5A @ 115 VAC, 0.3A @ 240 VAC, typical, 0.85A max
    • Frequency: 50 to 60 Hz
    • Battery Type: User replaceable, 18V @ 3.5 AH ±10% rechargeable NiMH
    • Battery Capacity: 100 single-page reports, (typical) or six hours of continuous display (without printing)
    • Battery Charge Time: Approximately 4.5 hours from total discharge (with the display off)

  • Environmental Operating Conditions:
    • Temperature Range: 50°to 104° F (10° to 40° C)
    • Relative Humidity: 20% to 95% RH non-condensing
    • Atmospheric Pressure: 5700 to 1060 hPa

  • Environmental Storage Conditions:
    • Temperature Range: –40°to 158° F (–40° to 70° C)
    • Relative Humidity: 15% to 95% RH non-condensing
    • Atmospheric Pressure: 500 to 1060 hP

  • Magnetic Card Reader:
    • Character Set: ANSI/ISO ALPHA alphanumeric characters and ANSI/ISO BCD (a subset of ASCII [ISO 646 IRV:1991])

  • Bar Code Scanner:
    • Processing:
      • ECG Interpretation: Marquette* 12SL* ECG Analysis Program for Adults and Pediatrics
      • Computerized Measurements: 15-lead analysis includes measurements of user-selectable additional 3 leads
      • Optional: Hi-Res Late Potential Analysis and P-Wave Signal–Averaged ECG
      • Additional ECG Function: Vectorcardiography
      • ECG Analysis Frequency: 500 samples/second (SPS)
      • ECG Storage: 200 ECGs in the internal memory
      • External Archiving: Secure Digital card
      • Digital Sampling Rate: 16,000 samples/second/channel
      • Pre-Acquisition: Provides 10 seconds of instantaneous ECG acquisition
      • Dynamic Range: AC Differential ± 5mV, DC offset ±300 mV
      • Resolution: 4.88 µV/LSB @ 250 sps, 4.88 µV/LSB @ 500 sps
      • Frequency Response: –3 dB @ 0.01 to 150 Hz
      • Common Mode Rejection: >140 dB (123 dB with AC filter disabled)
      • Input Impedance: >10MO @ 10 Hz, defibrillator protected
      • Patient Leakage: <10 µA
      • Pace Detection: Meets or exceeds ANSI/AAMI EC11-1991 standards
      • Pace Digital Sampling Rate: 75,000 samples / second / channel
      • Pace Pulse Width: as low as 0.2 ms in duration
      • Pace Pulse Amplitude: as low as 0.5 mV in amplitude
      • Special Acquisition Functions: Disconnected lead detection, electrode impedance, excessive AC noise, baseline wander, and muscle tremor messages
      • Heart Rate Meter: 30 to 300 BPM ±10% or 5 BPM, whichever is greater. Heart rates outside this range will not be displayed

    • Writer:
      • Writer Technology: Thermal dot array
      • Writer Speeds: 5, 12.5, 25, and 50 mm/s
      • Number of Traces: 3, 6, 12, or 15 user selectable
      • Writer Sensitivity/Gain: 2.5, 5, 10, 20, 10/5 (split calibration) mm/mV
      • Writer Resolution: Horizontal 1000 dpi @ 25 mm/s, 200 dpi vertical
      • Paper Type: Thermal, Z-fold, perforated, fan fold, 300 sheets/pack
      • Paper Size: A Size: 8.5 in x 11 in, (21.46 cm x 28 cm)
      • A4 Size: 8.27 in x 11.7 in (21 cm x 29.75 cm)
