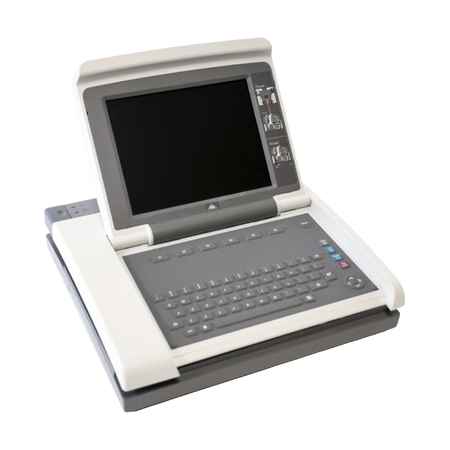

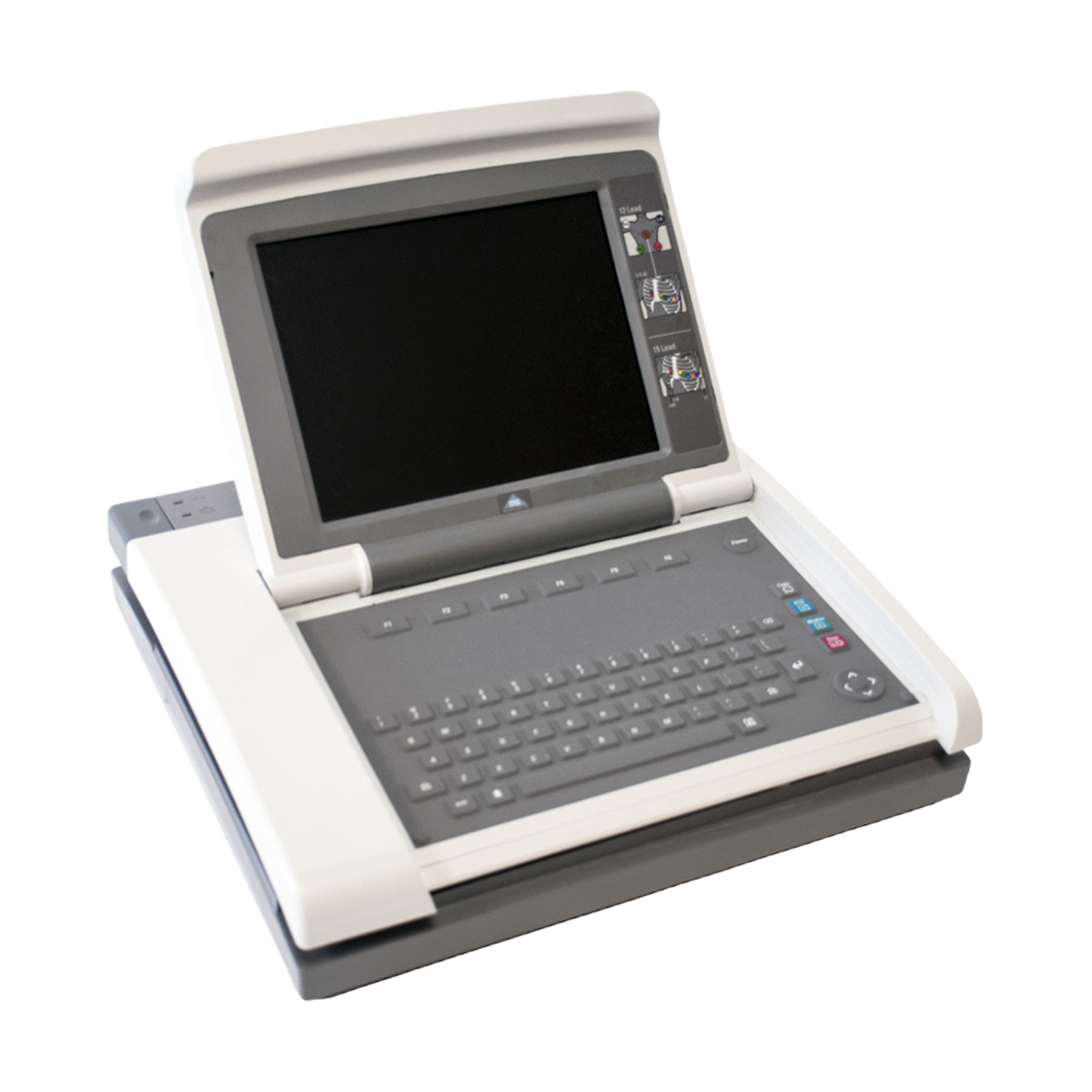

GE MAC 5500 ECG/EKG Resting System

Out of stock
SKU: EN-MAC5500
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The GE MAC 5500 is an advanced EKG/ECG system designed to provide accurate and reliable electrocardiography readings for both adult and pediatric patients. Key features of the GE MAC 5500 include:

The GE MAC 5500 is designed to deliver advanced disease management capabilities and streamline workflow, supporting improved quality of care and reduced costs for hospitals[4]. It leverages the Marquette 12SL ECG Analysis Program and analyzes both short and long-term changes in ECG waveforms[1]. The system also offers enhanced barcode workflow with orders and ADT download capability to help improve patient data management and reduce errors.

FEATURES:

  • Acquisition, analysis, display, and recording of ECG readings for adult and pediatric patients.
  • Offering 3, 6, 12, and 15 lead analysis.
  • 10.4-inch color LCD and an alphanumeric keyboard for easy operation.
  • Internal storage for up to 200 ECG readings.
  • Ethernet or wireless connectivity to the GE Muse cardiology information system for seamless integration and management of patient ECG readings.

SPECIFICATIONS:

  • Manufacturer: GE
  • Part Number (OEM): MAC 5500
  • Category: Fetal Monitors
  • Accessories: None
  • Functional Condition: Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

  • Dimensions:
    • Height: 3.7 in (9.4 cm) with the display closed
    • Width: 15 in (38.1 cm)
    • Depth: 13.8 in (35.1 cm)
    • Weight: 15lbs (6.8kg)

  • Processing:
    • Instrument type: 15 lead (14 channel) microprocessor-augmented, automatic electrocardiograph.
    • ECG analysis frequency: 500 samples/second. (SPS)
    • ECG storage: 200 (maximum) on internal, non-volatile memory. Facility to archive ECG records on a removable media card. (SD card)
    • Digital sampling rate: 4000 samples/second/channel.
    • Analysis: Pediatric and Vectorcardiography. Optional: 12SL analysis, Hi-Res, and PHI-Res late potential analysis.
    • Pre-acquisition: Provides 10 seconds of instantaneous ECG acquisition.
    • Dynamic range: AC differential: ±10 mV DC offset: ±320 mV.
    • Resolution: 4.88 µV/LSB @ 250 sps, 1.22µV/LSB @ 500 sps.
    • Frequency response: –3 dB @ 0.01 to 150 Hz.
    • Common mode rejection: >140 dB. (123 dB with AC filter disabled.)
    • Input impedance: >10MO@ 10 Hz, defibrillator protected Patient leakage: <10 µA.
    • Pace detect: Orthogonal LA, LL and V6; 750 µV @ 50 µs.
    • Special acquisition functions: Disconnected lead detection, electrode impedance, excessive AC noise, baseline wander, and muscle tremor messages.
    • Communication: MAC and MUSE system compatible RS-232. Optional:
    • Modem, LAN,
    • FAX, wireless transmission, remote retrieval. (remote query.)

  • Display Type:
    • 264 mm (10.4 in) diagonal graphics backlit AM LCD.
    • Display resolution: 640 x 480 pixels with waveform enhancement.
    • Display data: Heart rate, patient name, ID, clock, waveforms, lead labels, speed, gain, and filter settings, warning messages, prompts, and help messages.

  • Writer:
    • Writer technology: Thermal dot array.
    • Writer speeds: 5, 12.5, 25 & 50 mm/s. (same as display.)
    • Number of traces: 3, 6, 12, or 15, user selectable. (same as display.)
    • Writer sensitivity/gain: 2.5, 5, 10, 20, 10/5 (split calibration) mm/mV. (same as display.)
    • Writer speed accuracy: ±2%.
    • Writer amplitude accuracy: ±5%.
    • Writer resolution: Horizontal 1000 dpi @ 25 mm/s, 200 dpi vertical.
    • Paper type: Thermal, Z-fold, perforated, fan fold, 300 sheets/pack.
    • Paper size: 215.9 mm x 27604 mm (8.5 in x 11 in) fanfold.

  • Keyboard:
    • Type: Sealed elastomer with soft function keys, alphanumeric keys, the writer controls, and TrimPad cursor controls.

  • Electrical:
    • Power supply: AC or battery operation.
    • Voltage: 100 to 240 VAC +10, -15%.
    • Current: 0.5A @ 115 VAC, 0.3 A @ 240 VAC, typical.
    • Frequency: 50 to 60 Hz ±10%.
    • Battery type: User-replaceable, 18V @ 3.5 AH ± 15%, rechargeable NiMH.
    • Battery capacity: 100 single-page reports (typical) or 6 hours of continuous display. (Without printing.)
    • Battery charge time: Approximately 4.5 hours from total discharge. (w/ the display off.)

  • Vectorcardiography:
    • Report formats: vector loops of component vectors. (P, QRS, ST-T)
    • Sensitivity: 20, 40, 80, 160 mm/mV.
    • Time resolution: 2 ms.
