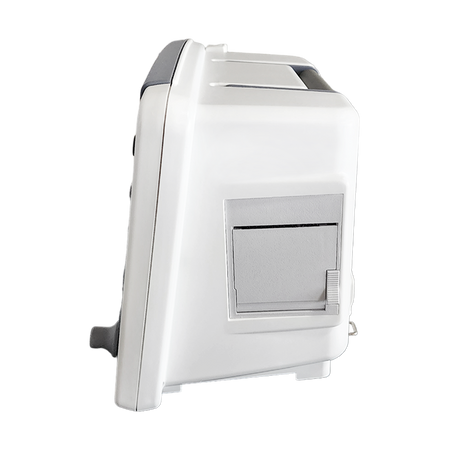

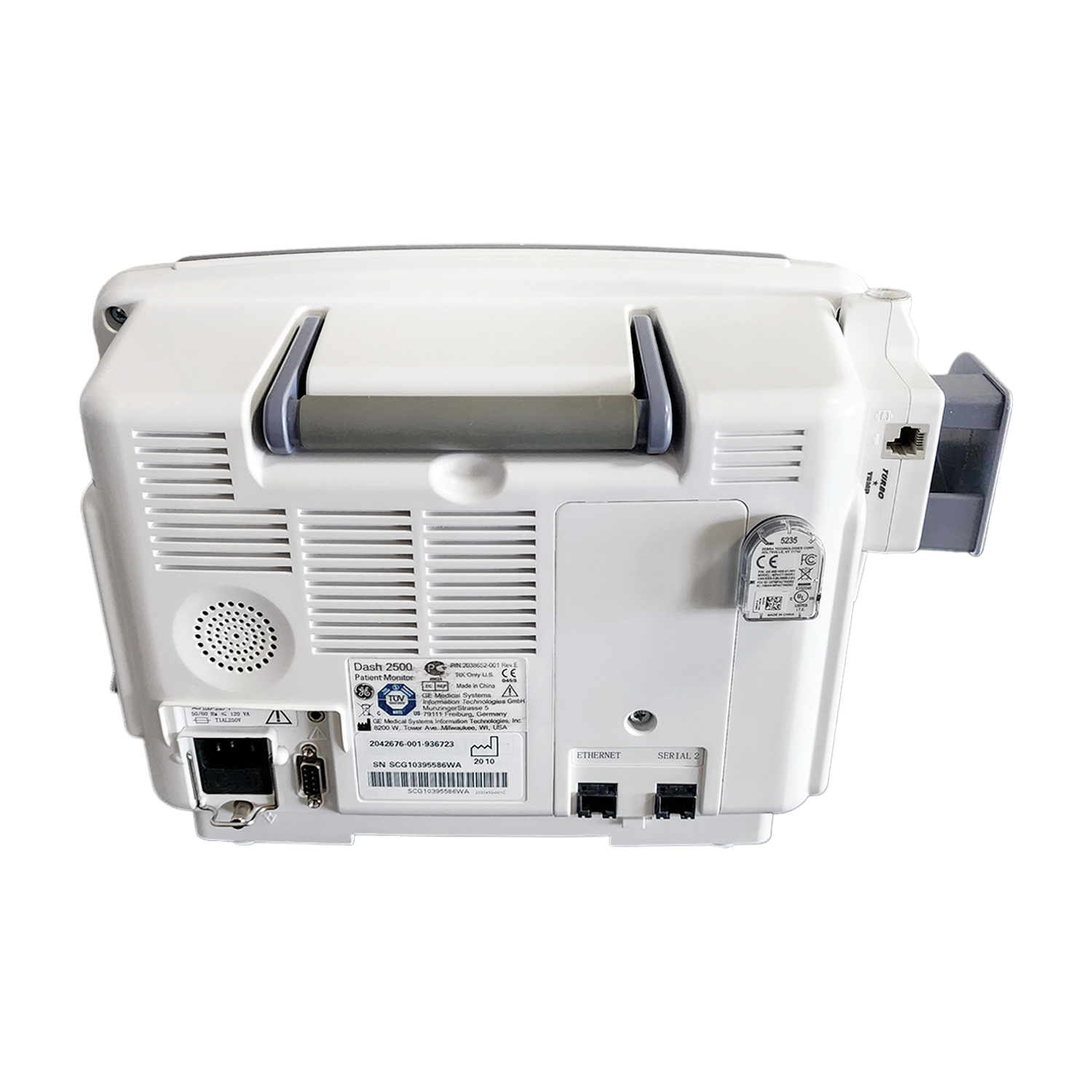

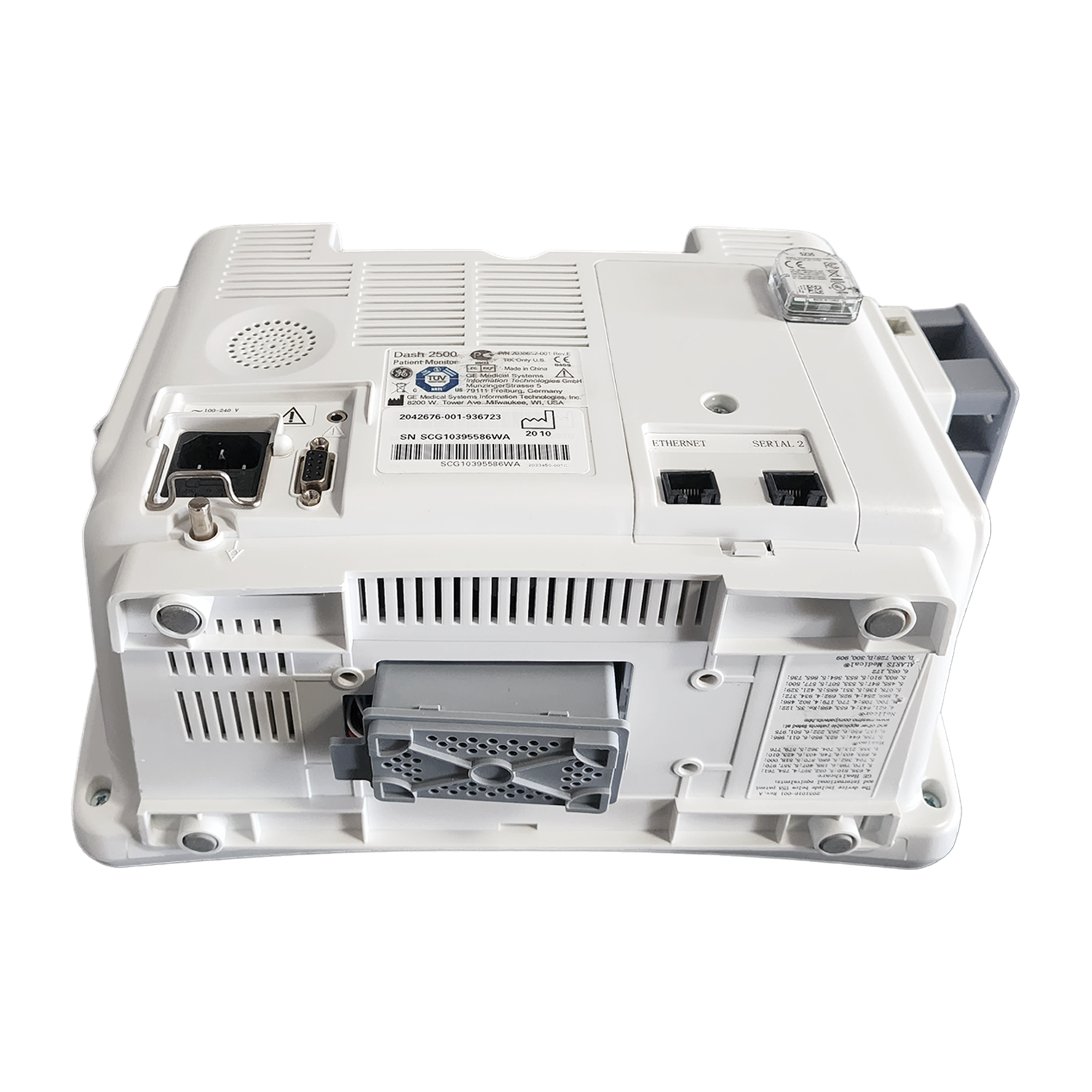

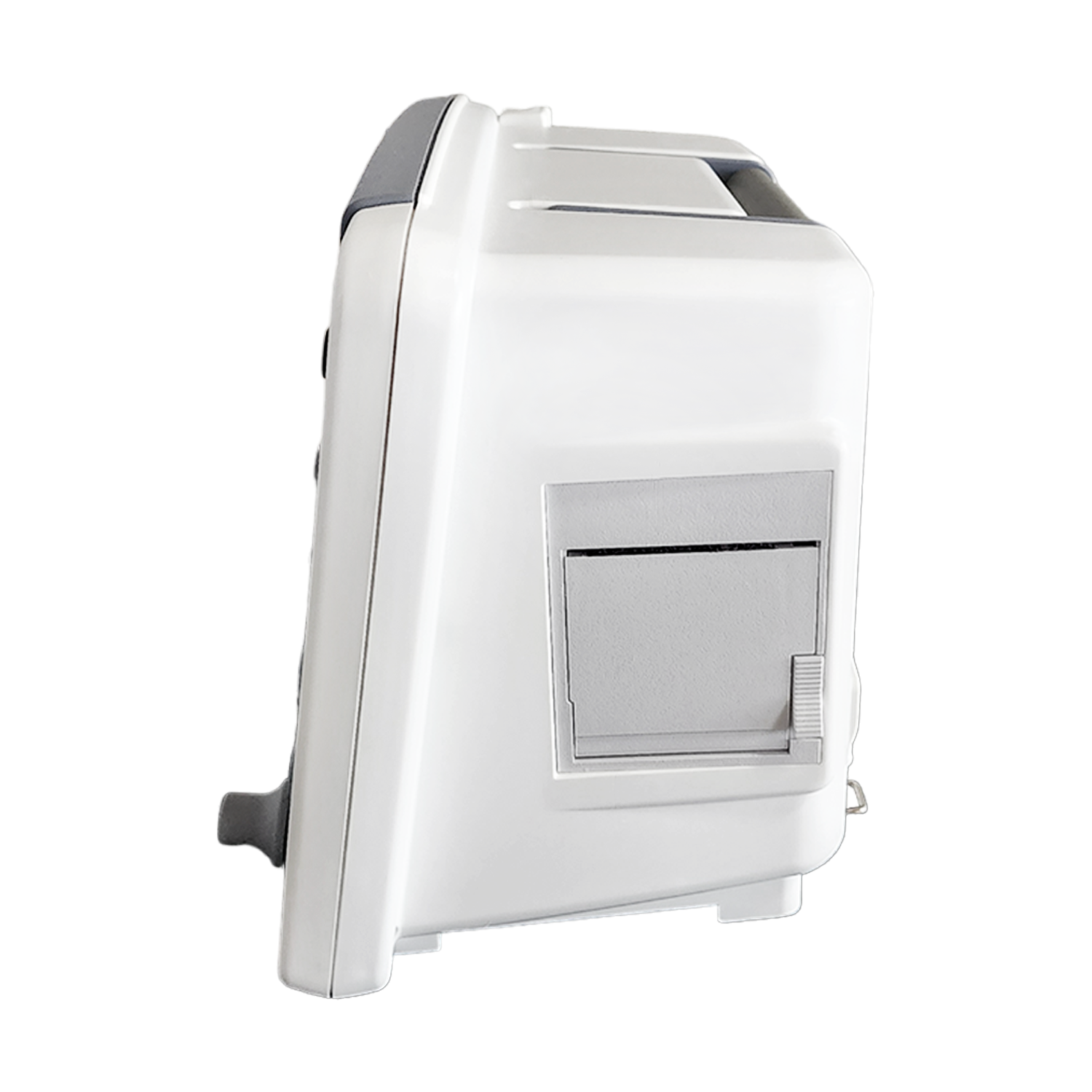

GE Dash 2500 Patient Monitor

Out of stock
SKU: EN-DASH-2500
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 12 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

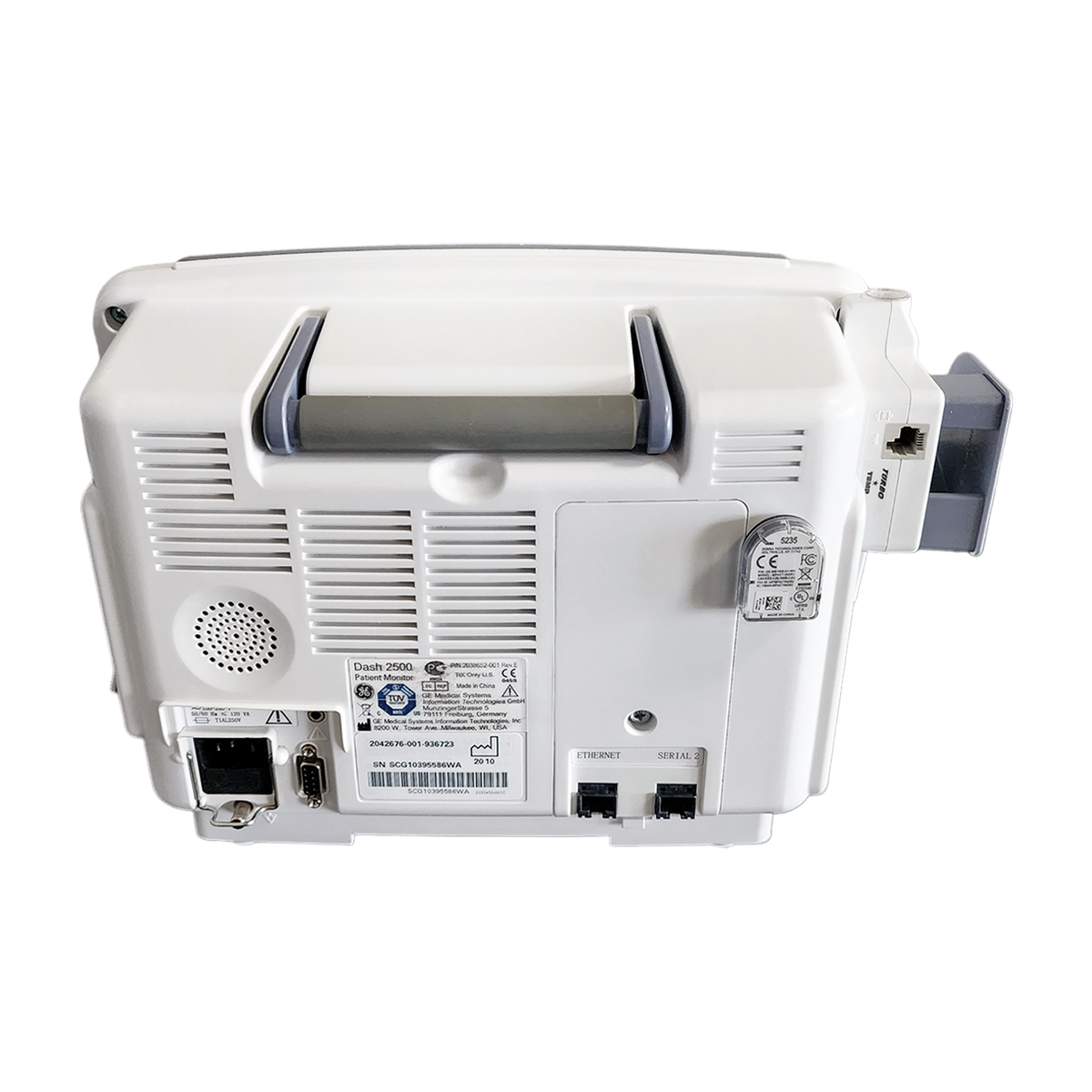

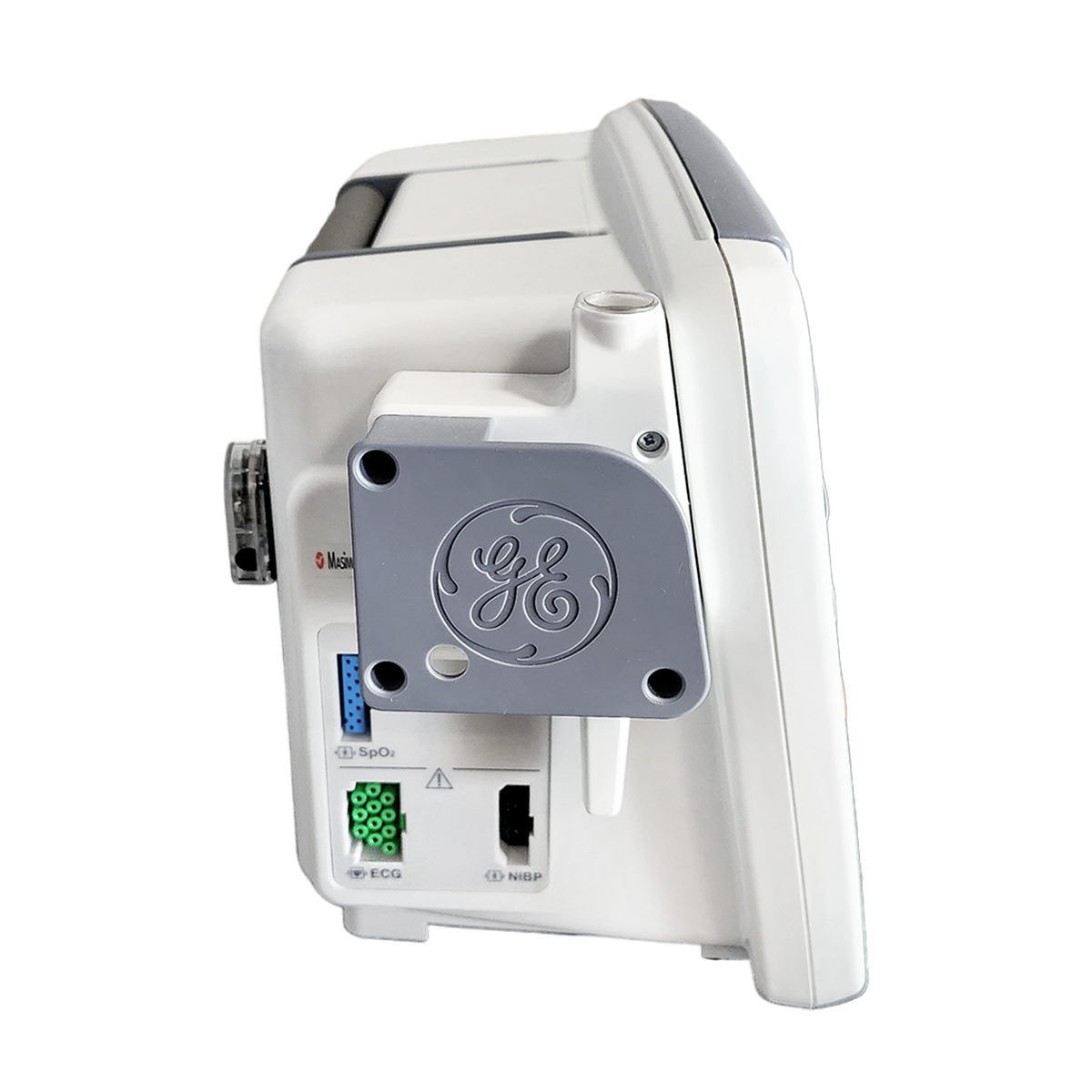

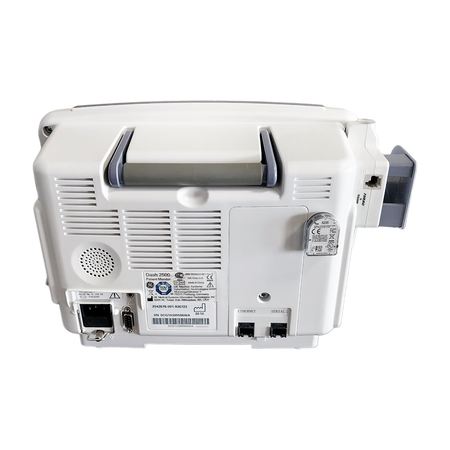

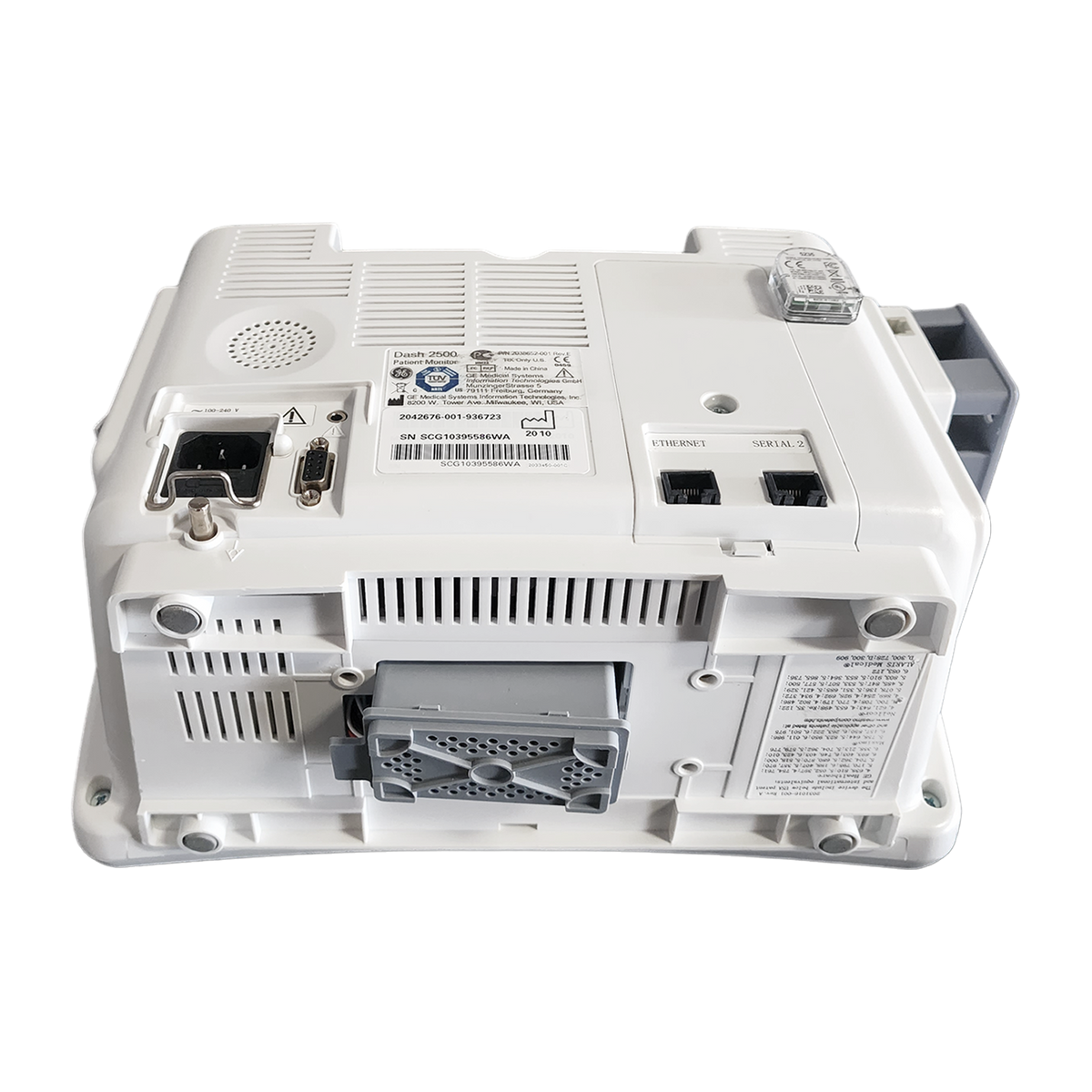

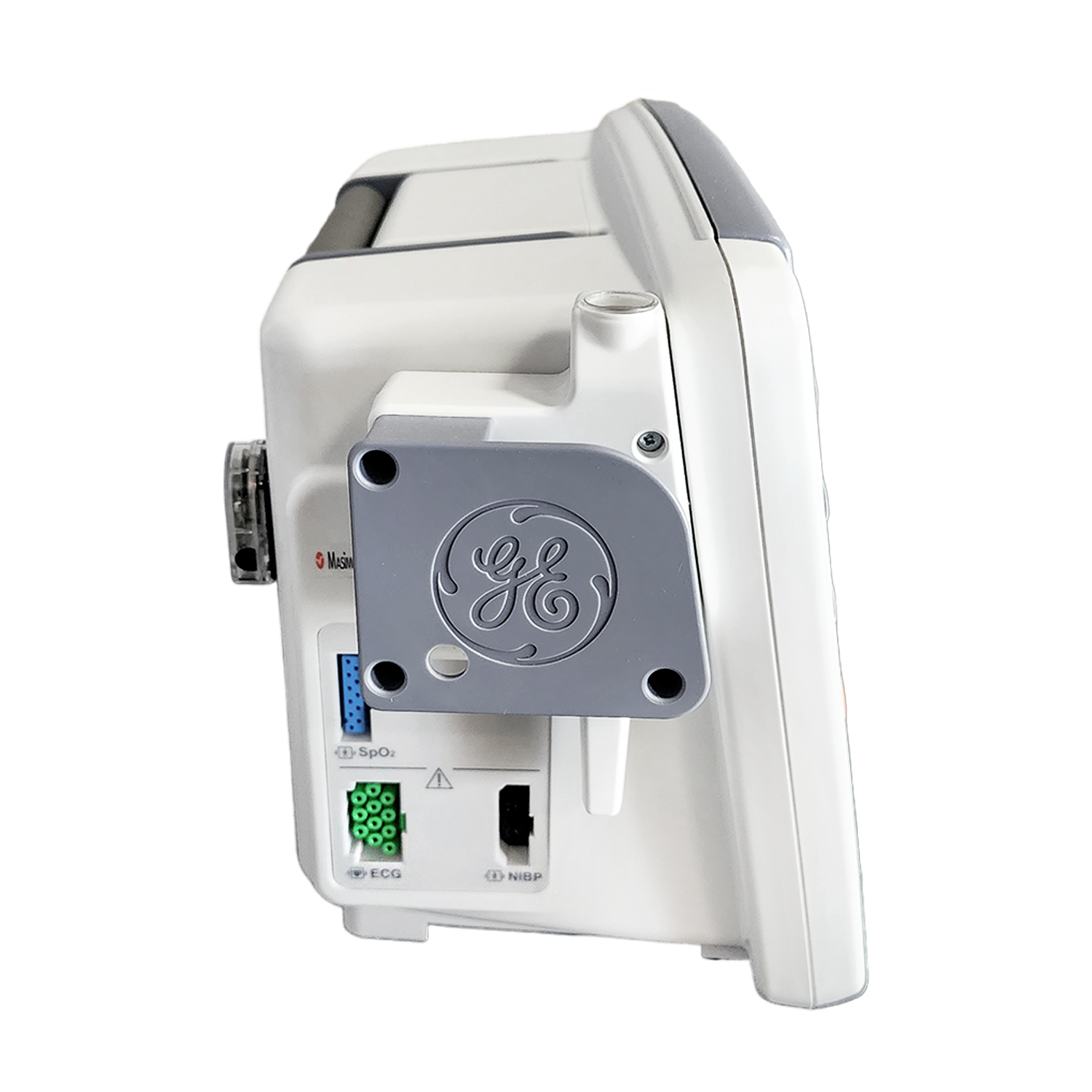

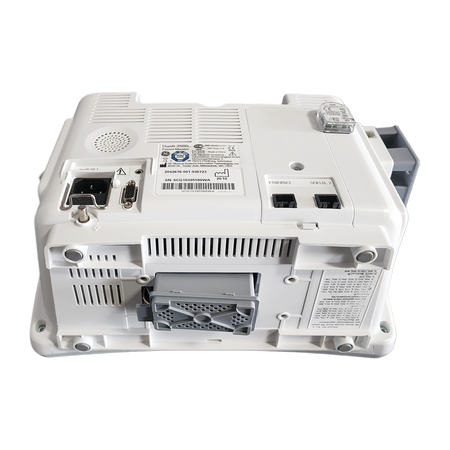

The GE Dash 2500 is a portable patient monitor designed for use within hospitals and medical facilities. This versatile device is capable of monitoring the vital signs of adult, pediatric, and neonatal patients in a range of subacute care settings. The Dash 2500 offers comprehensive measurements including non-invasive blood pressure, heart/pulse rate, respiration rate, ECG, temperature, and SpO2 levels. What sets this GE patient monitor apart is its flexibility, as it can operate on battery power or AC power, and can be mounted in various configurations to suit the unique needs of your facility.

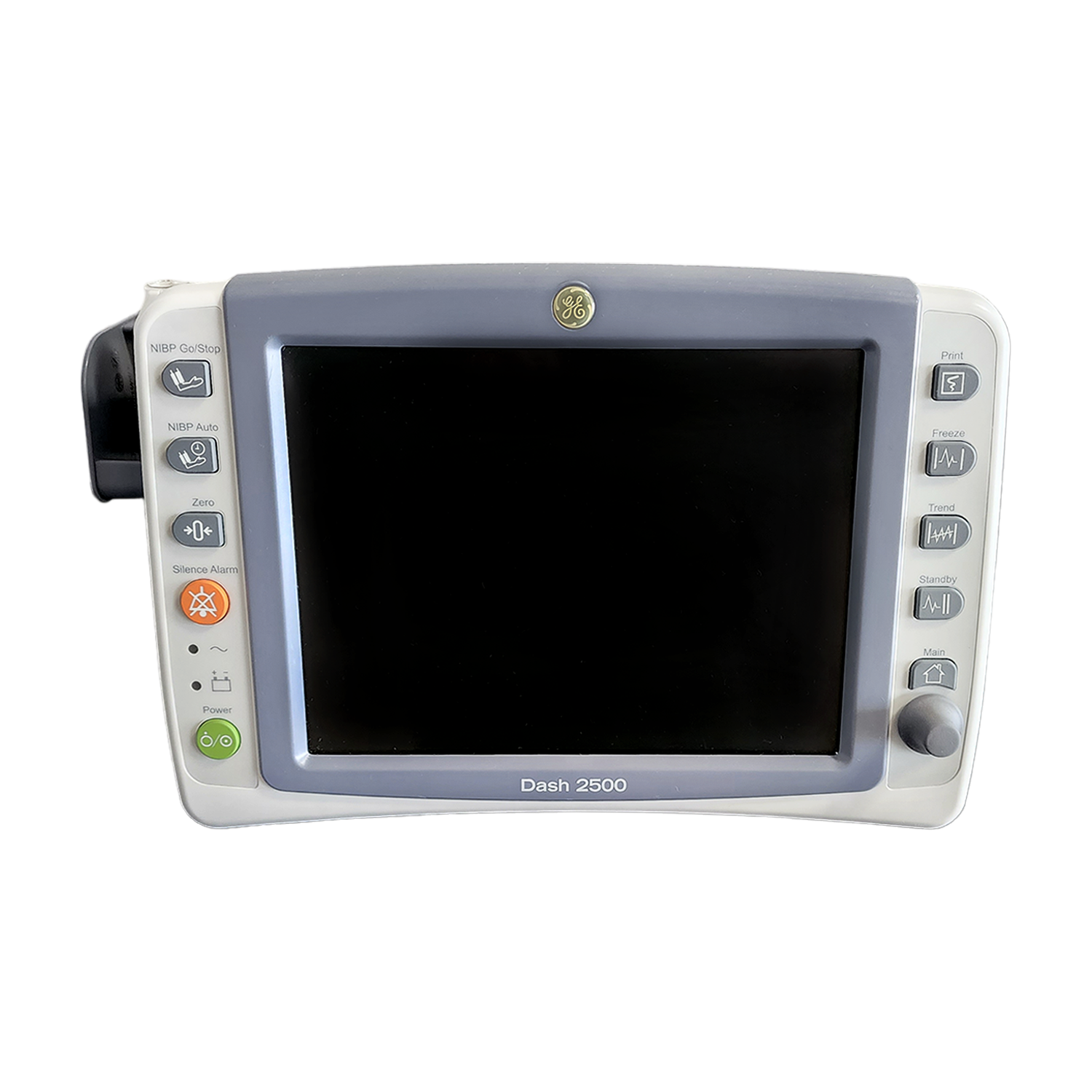

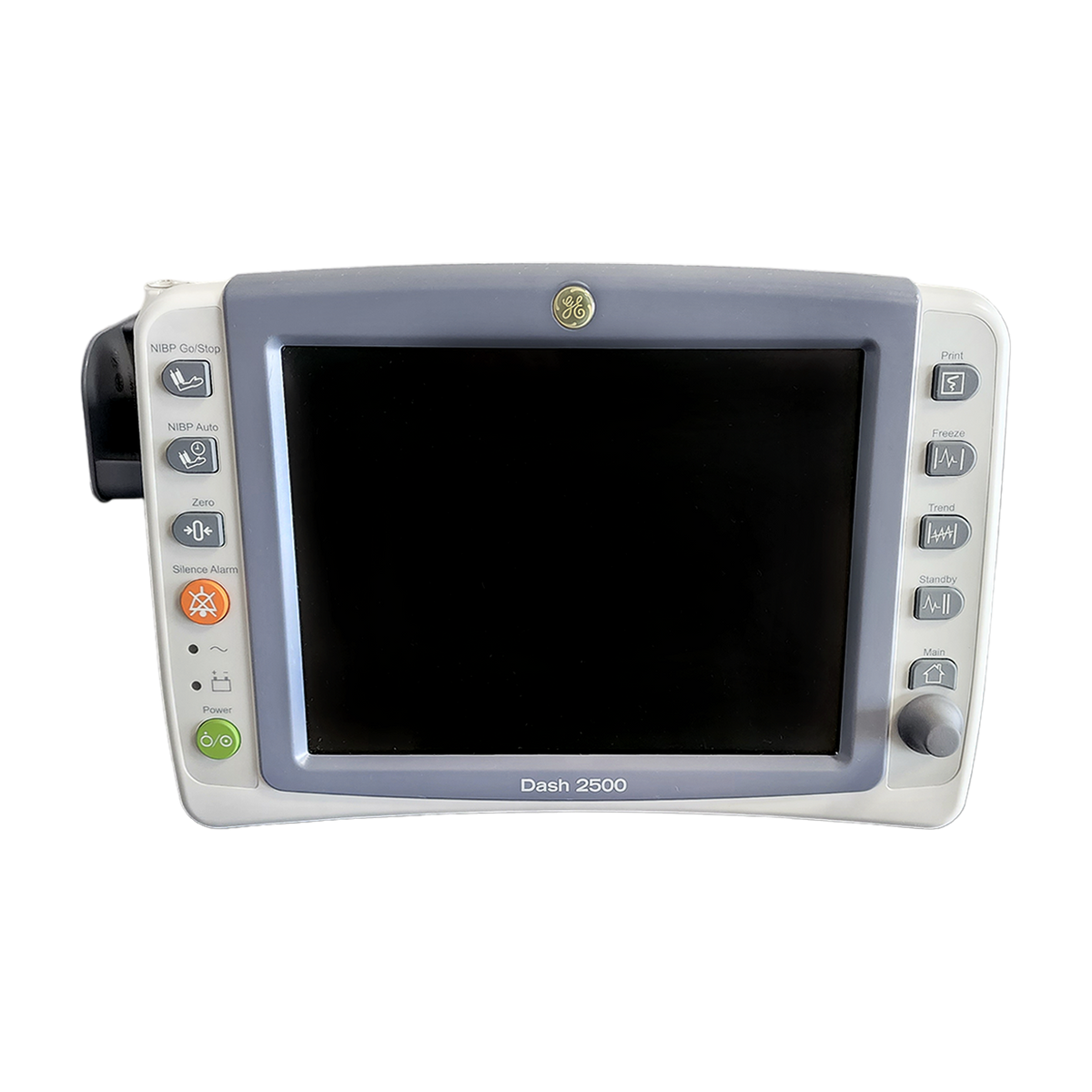

Featuring a vibrant 10.4-inch color display, the Dash 2500 provides a visually engaging interface that is both intuitive and highly customizable. Users have the ability to configure the display to their specific preferences. The screen can simultaneously showcase up to 5 waveforms, ensuring that healthcare professionals have a comprehensive view of the patient's condition.

In addition to the Dash 2500, another notable patient monitor offered by GE is the Dash 3000.The CARESCAPE Monitor B850, an advanced medical device, assists healthcare providers in catering to the needs of patients with high acuity levels. Developed by clinicians for clinicians, this monitor offers complete modularity and configurability to adapt to the ever-changing clinical requirements, ensuring reliable outcomes throughout the entire patient care process. It incorporates a wide range of parameters, including innovative gas and respiratory monitoring, to provide exceptional clinical insights. Additionally, the GE EK-Pro algorithm and seamless communication with the MUSE ECG management system enable superior cardiac diagnostics, including ECG serial comparison capability. All of these features are presented in a user-friendly interface powered by the Linux operating system.

FEATURES:

  • Battery run time of more than 180 minutes.
  • Weighs in at 12 lbs.
  • Rugged and ergonomic design.
  • Compatible with CARESCAPE CIC Pro

SPECIFICATIONS:

  • Manufacturer: GE
  • Part Number: (OEM): DASH 2500
  • Category: Patient Monitor
  • Condition: Refurbished
  • Weight: 12.0lbs.
  • Warranty: 3 Months

  • Dimensions:
    • Height: 8.7 in ( 22 cm)
    • Depth: 6.7in (17 cm)
    • width: 14.1 in ( 35.8 cm)
    • Weight: 12.0lbs ( 5.5 kg)

  • Environmental:
    • Operating Temperature: 5°C to 40°C (41°F to 104°F)
    • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
    • Operating Humidity: 5 to 95% noncondensing
    • Storage Humidity: 5 to 95% noncondensing
    • Operating Atmospheric Pressure: 700 to 1060 hPa (525 to 795 mmHg)
    • Storage Atmospheric Pressure: 500 to 1060 hPa (375 to 795 mmHg)

  • Electrical:
    • AC input voltage: 100 to 240 V
    • AC input frequency: 50/60 HZ
    • AC input power: 120 VA
    • Internal battery: 8.4 V nickel-metal-hydride (NiMH)
    • Power supply: The Dash 2500 Patient Monitor can be powered from the internal battery or AC power

  • Battery:
    • Capacity: 8.4 V; 7.0 Amp-hr
    • Battery life: Greater than 180 minutes using the fully charged internal battery (NIBP: five min auto cycle with adult cuff. ECG, RESP, SpO2: Active. TEMP: predictive mode. Printer: printing two waveforms for one min every 20 min at 25 mm/sec)
    • Charge time:
      • 4 hours maximum with the Monitor switched OFF
      • 8 hours maximum with the Monitor switched ON

  • Heart Rate/Pulse:
    • Electrocardiography:
      • Heart rate accuracy: 30 to 300 bpm, ± 3 bpm or 3% of reading, whichever is greater

  • Nellcor SpO2:
    • Range: 20 to 250 bpm
    • Accuracy and tolerance: 20 to 250 bpm ±3 digits
    • Low perfusion: 20 to 250 bpm ±3 digits

  • Masimo SpO2:
    • Range: 25 to 240 bpm
    • Accuracy and motion tolerance
      • Without motion: 25 to 240 bpm ±3 digits
      • With motion: normal physiologic range, 25 to 240 bpm ±5 digits

  • Noninvasive Blood Pressure (NiBP):
    • Adult/pediatric range: 30 to 200 bpm
    • Neonate range: 30 to 220 bpm
    • Accuracy: ± 3.5%

  • ECG:
    • Leads available
      • 3-electrode configuration: I, II, III
      • 5-electrode configuration: I, II, III, aVR, aVL, aVF, and VA
    • Heart rate accuracy: 30 to 300 bpm, ± 3 bpm or 3% of reading, whichever is greater
    • Heart rate resolution: 1 bpm
    • Bandwidth:
      • 0.5 to 40 Hz +1/-6 dB
      • 0.05 to 40 Hz +1/-6 dB
      • 0.05 to 100 Hz +1/-6 dB
    • Standardizing voltage: 1 mV marker
    • Common mode rejection: 1 mV RTI or 10 mm p-p max displayed noise allowed with 20 Vrms, 50-60 Hz input
    • Input impedance
      • Common mode: > 2.5 MΩ at 10 Hz
      • Differential: > 2.5 MΩ from DC to 60 Hz
        • 60 Hz tolerance: up to 10 mV
    • Pacemaker detection/rejection
      • Input voltage range: ± 2 to ± 700 mV
    • Lead off sensing current: < 0.1 µA DC signal leads, < 1 µA DC driven lead
