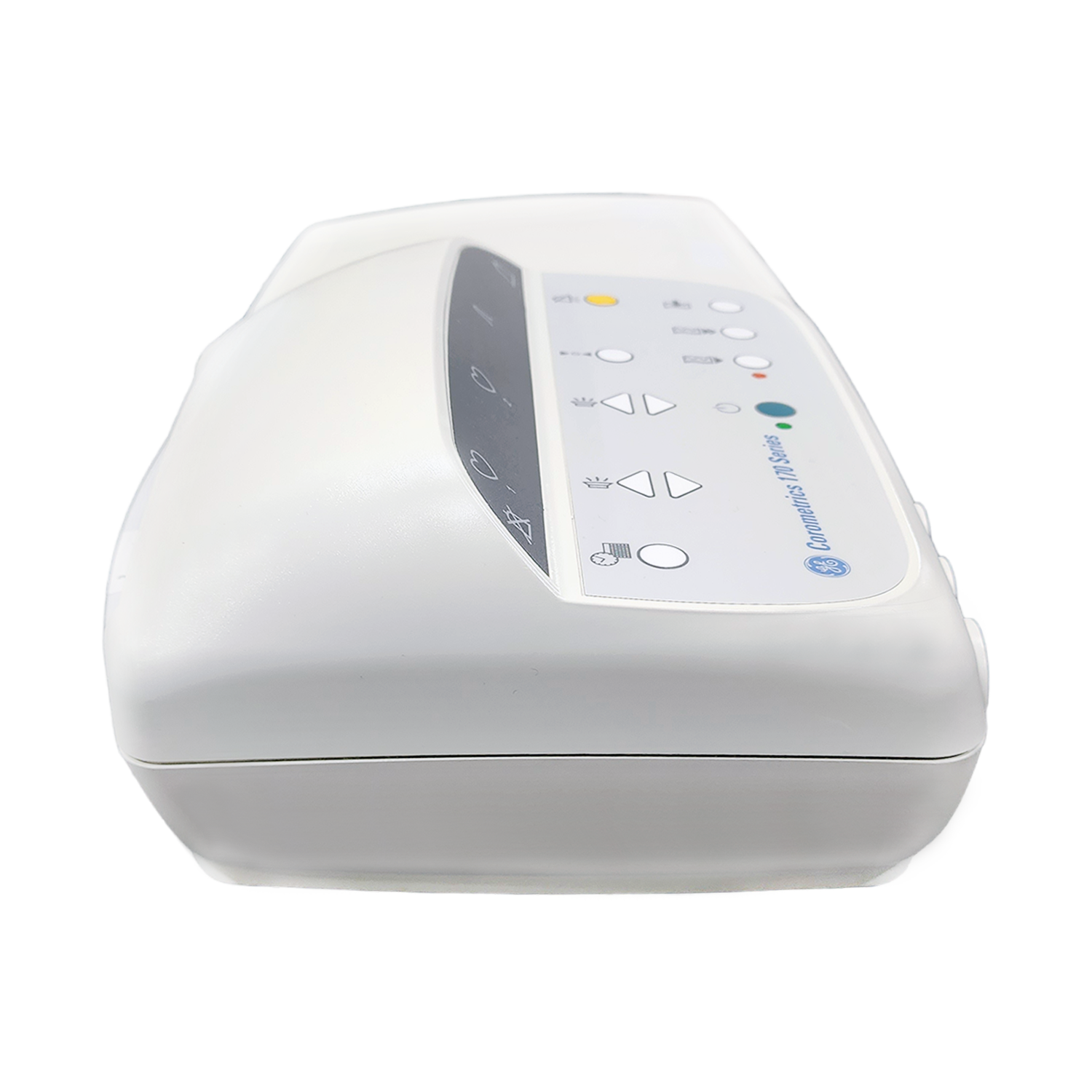

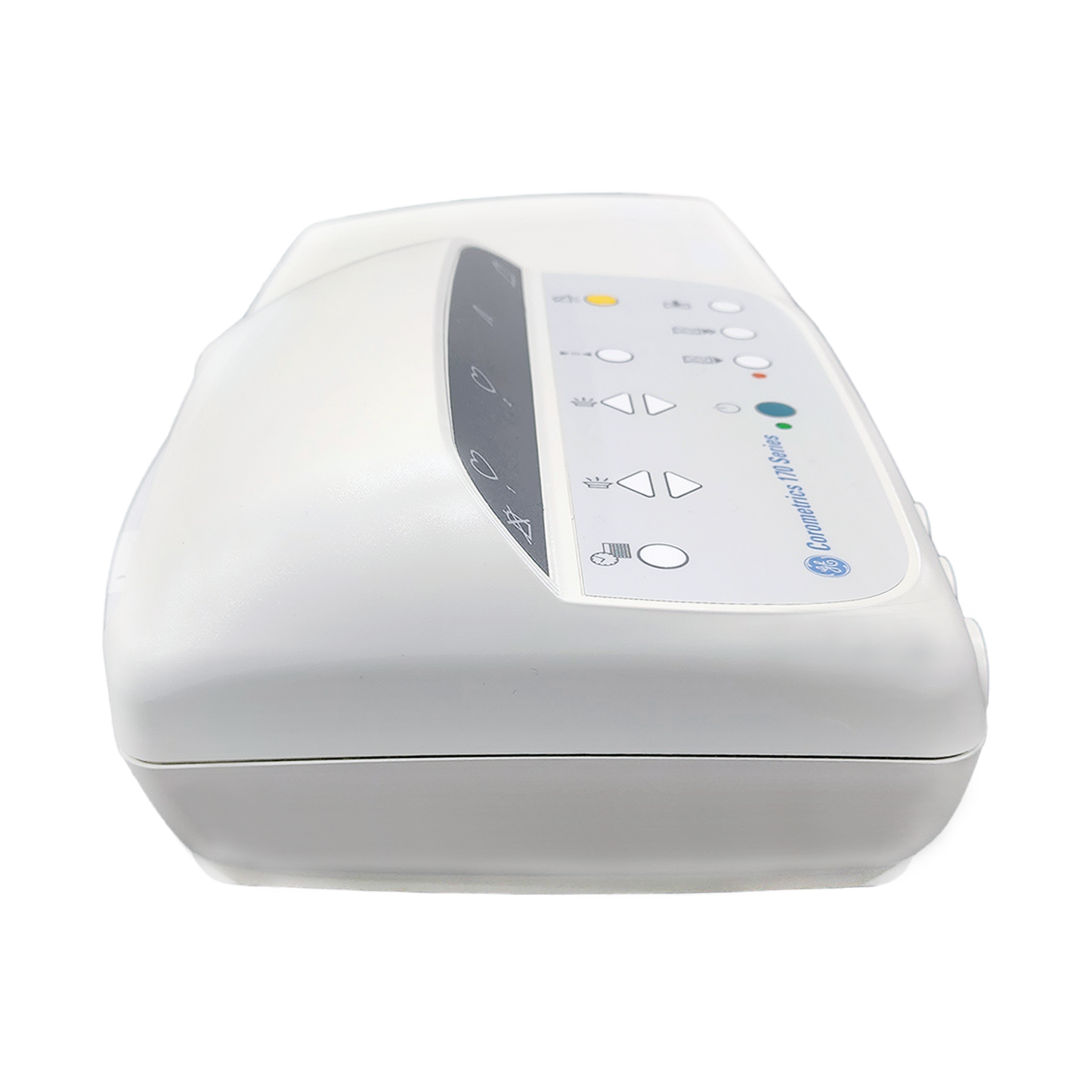

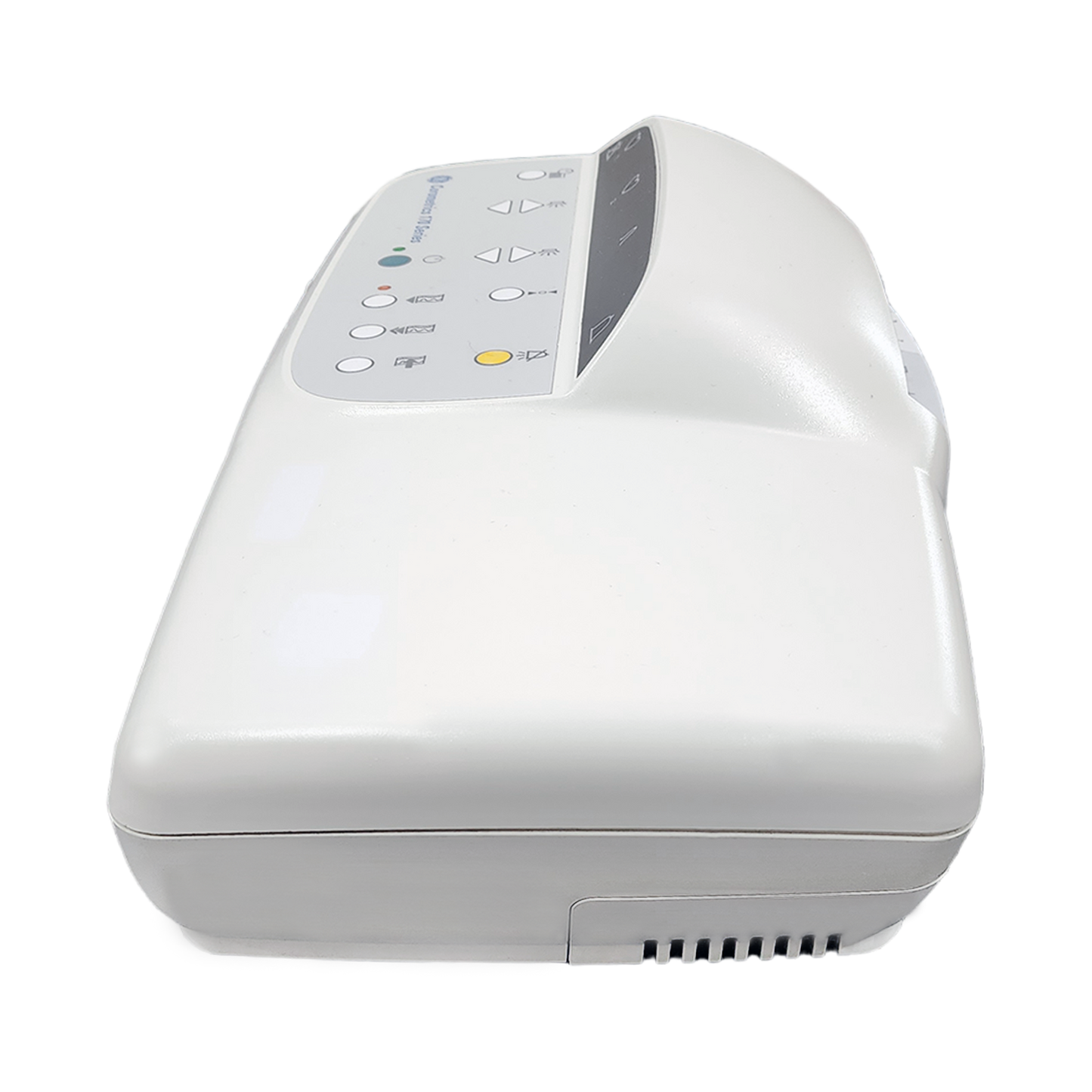

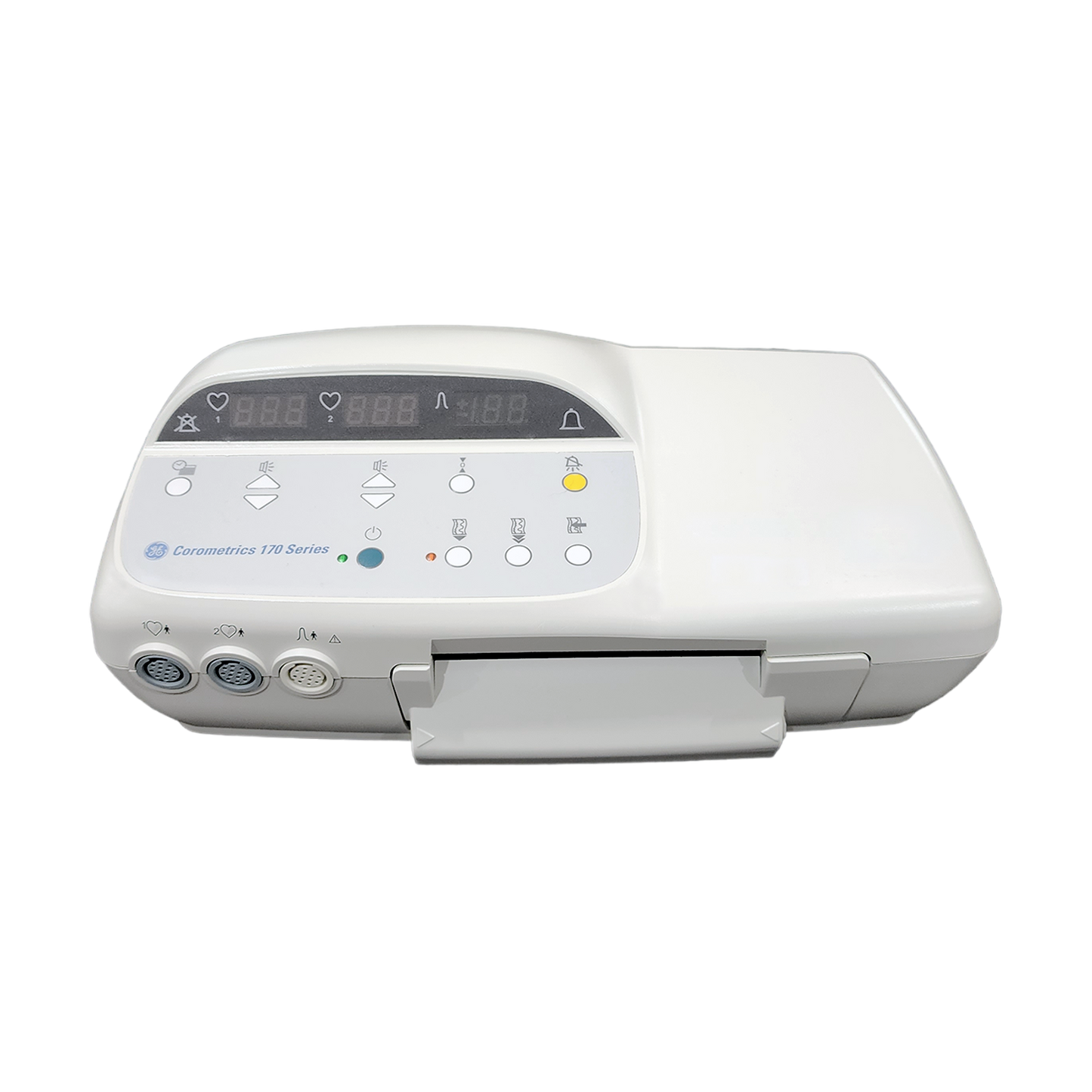

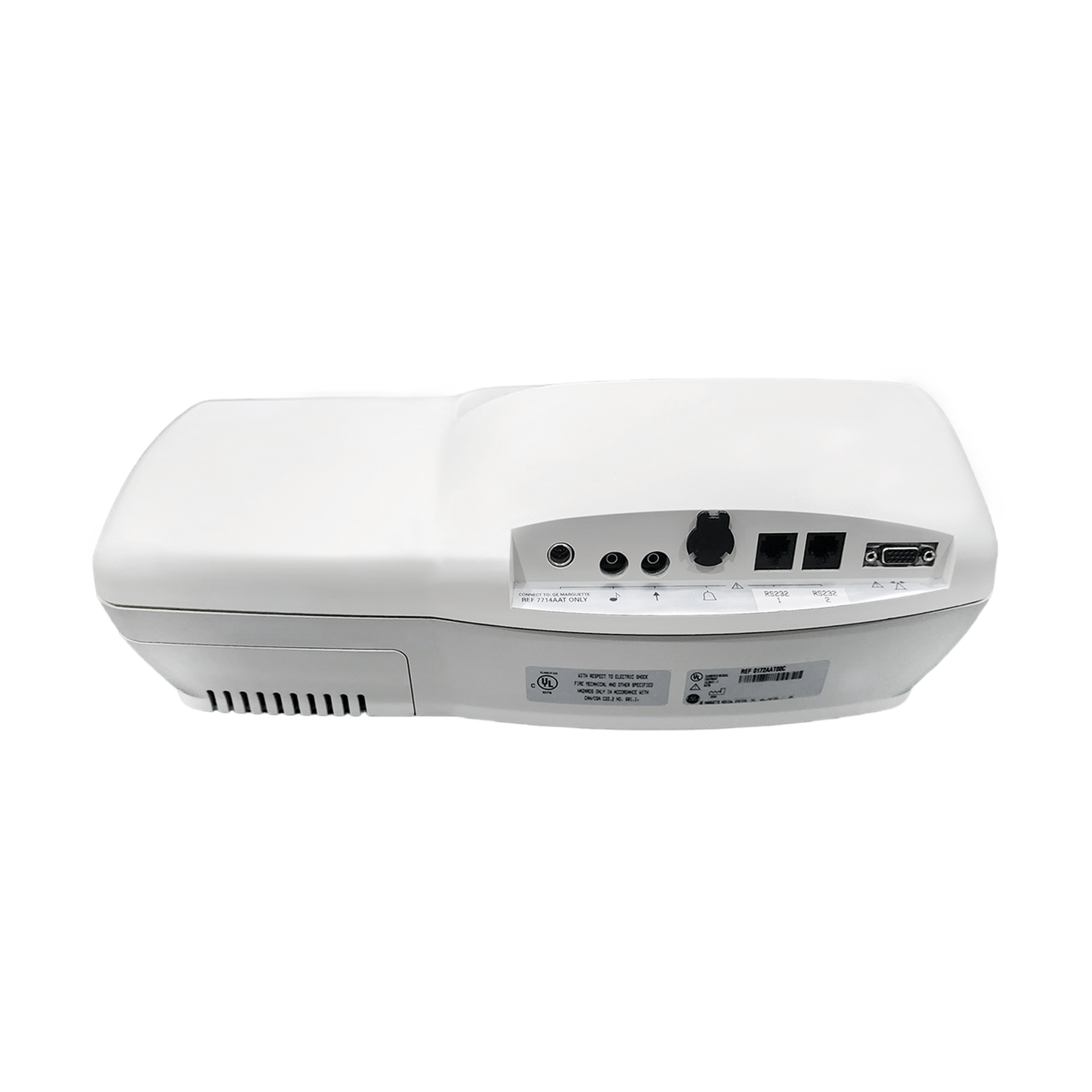

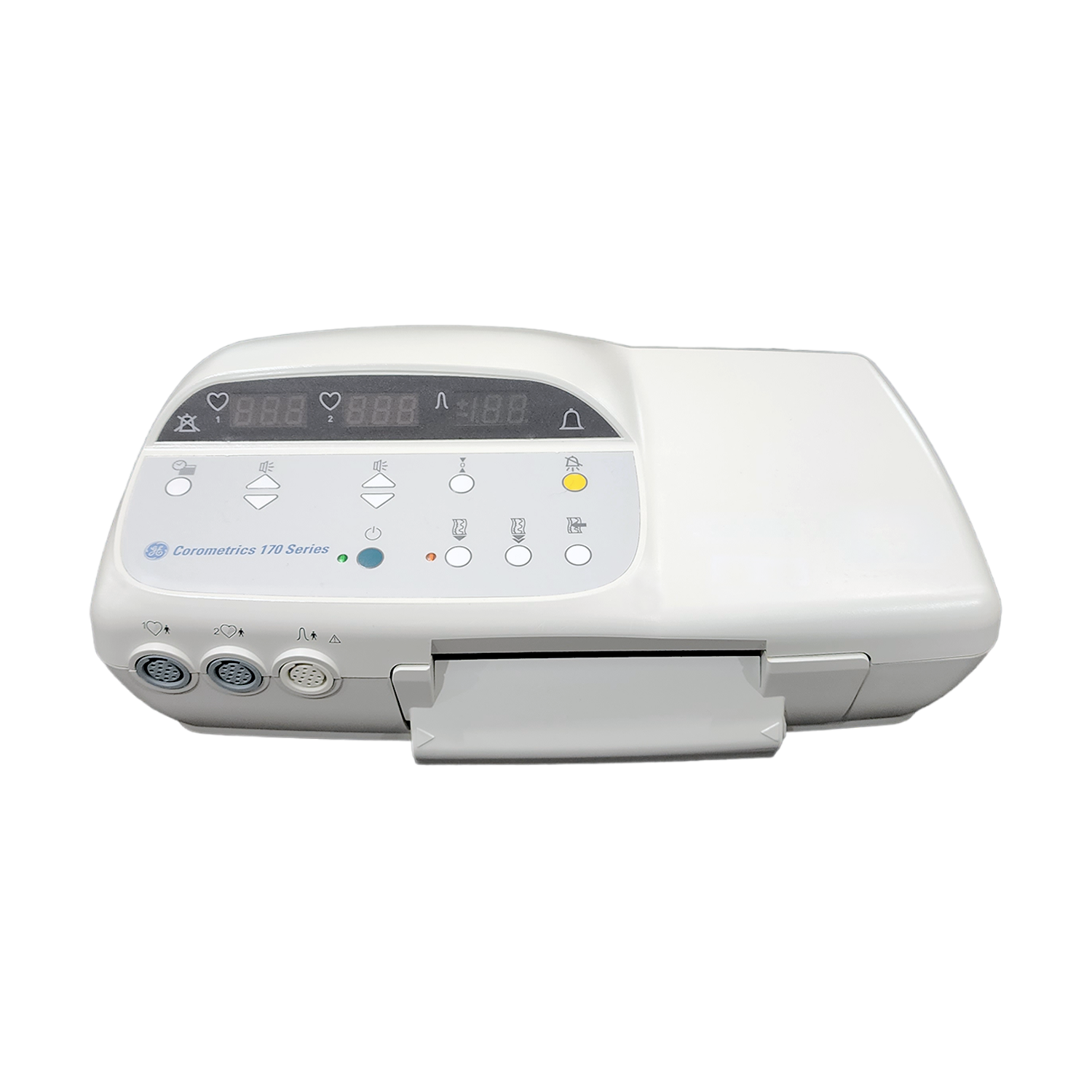

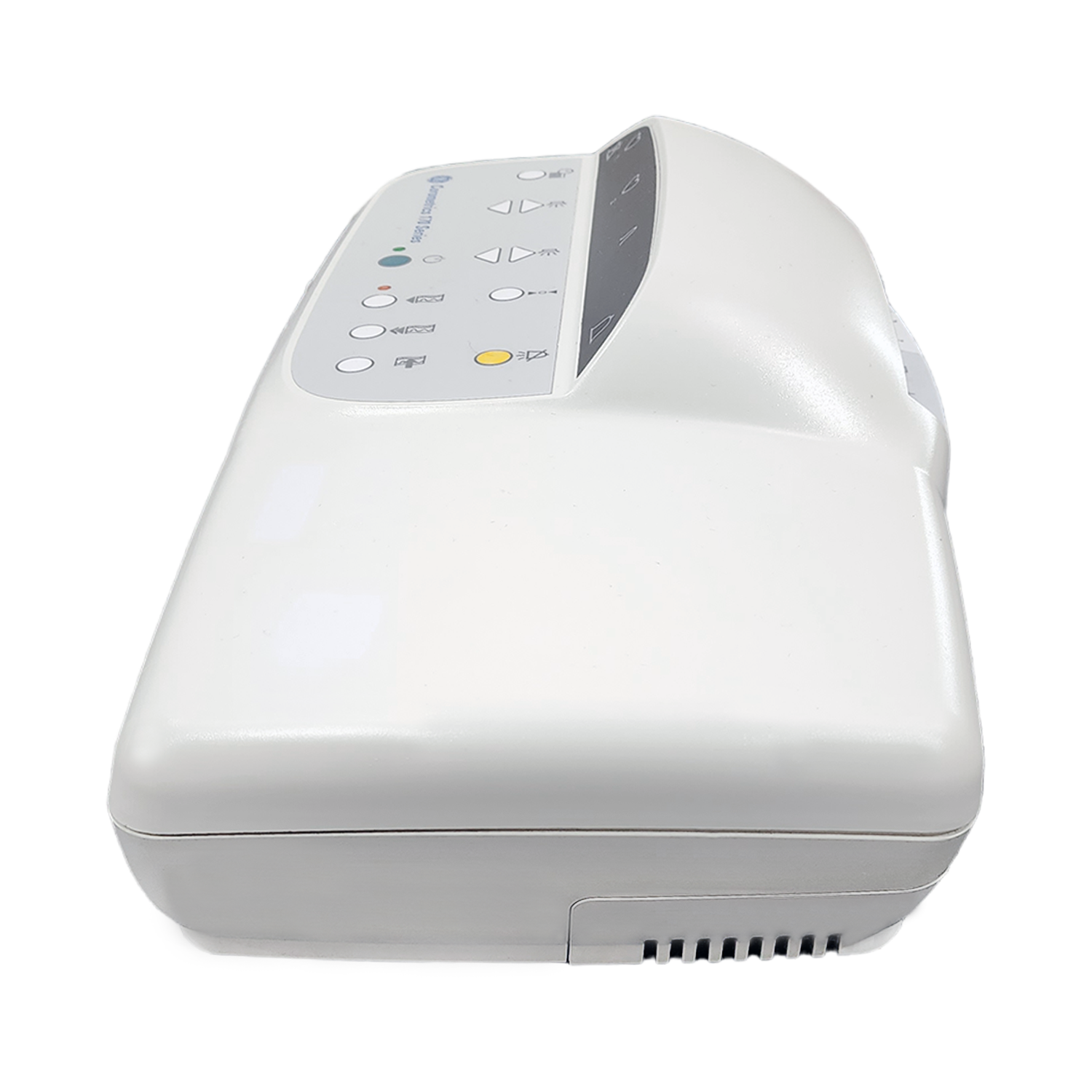

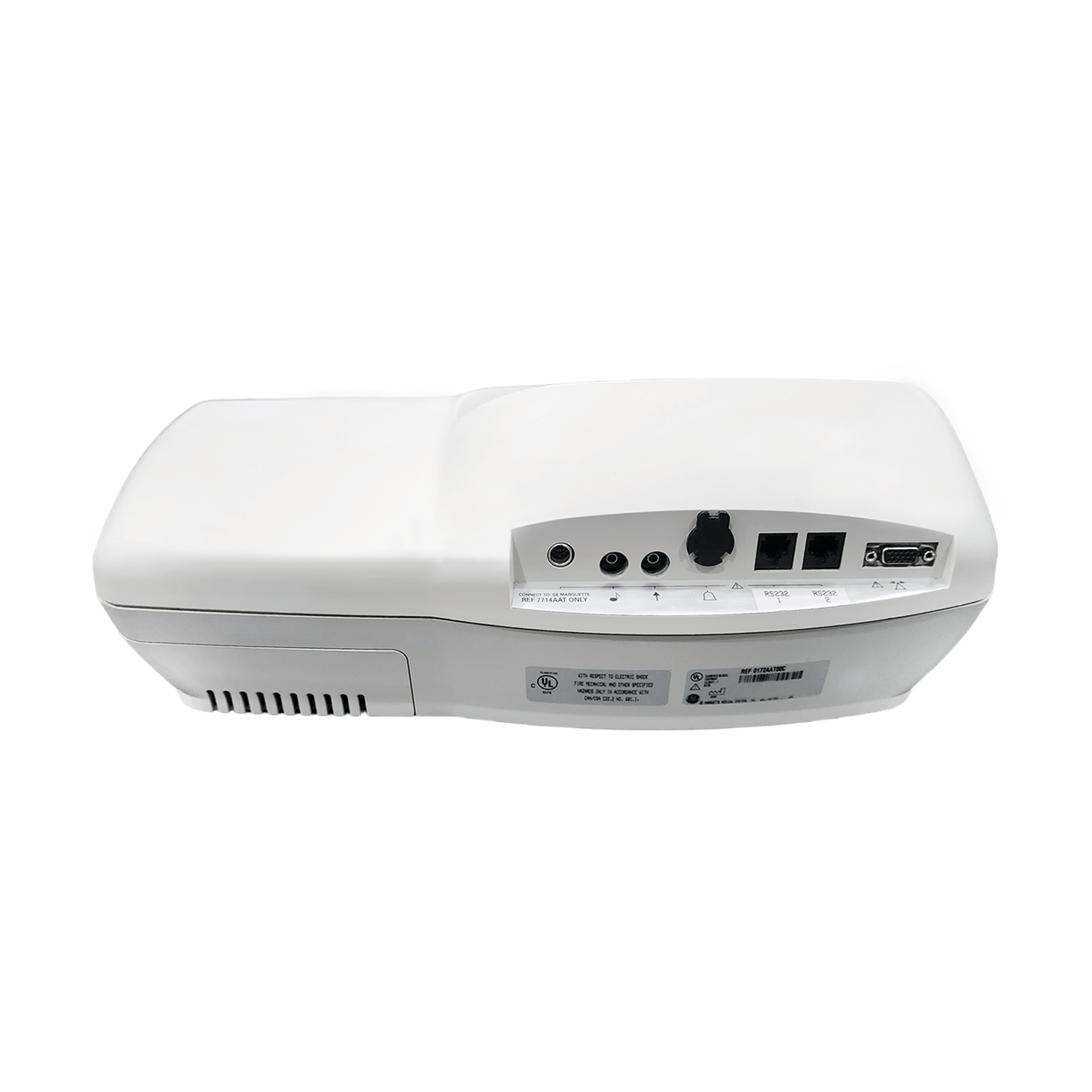

GE Corometrics 170 Maternal/Fetal Monitor

Out of stock
SKU: EN-COROR170
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 3 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The GE Corometrics 170 Series functions as a fetal monitor suitable for medical offices and hospitals alike. This monitor, known as the 170 Series Fetal Monitor, is designed to be lightweight while providing effective and accurate monitoring of both the mother and baby simultaneously. It offers a non-invasive method for tracking the baby's heart rate, utilizing a 9-crystal Pulsed Doppler Ultrasound technology with a wide beam to detect the fetal heart rate. Additionally, it includes high and low heart rate alarms for monitoring TOCO and fetal movement.

While the Corometrics 170 is specifically designed for monitoring a single baby, the Corometrics 172 is intended for use with twins. Notably, the GE Corometrics 170 features a larger LED Display screen, enhancing readability even from a distance.

MODELS OF THE 170 SERIES:

  • Model 171
    • The Model 171 Antepartum Fetal Monitor provides singleton ultrasound and external uterine activity monitoring.
  • Model 172
    • The Model 172 Antepartum Fetal Monitor provides dual ultrasound and external uterine activity monitoring.
  • Model 173
    • The Model 173 Intrapartum Monitor provides dual heart rate monitoring using FECG and ultrasound. The monitor also provides external uterine activity monitoring using a toco transducer or internal monitoring using an intrauterine pressure catheter (IUPC).
  • Model 174
    • The Model 174 Intrapartum Monitor provides dual heart rate monitoring using FECG/ultrasound or dual ultrasound. The monitor also provides external uterine activity monitoring using a toco transducer or internal monitoring using an IUPC.

FEATURES:

  • Alerts you to fetal heart rate concerns - The fetal heart rate alarm provides both audible and visual alerts if the heart rate is higher or lower than the range you set as normal
  • Helps you place the transducer - Independent volume controls make it easier to
  • locate the transducer for the most effective monitoring
  • Can monitor multiple heart rates - There is an option to monitor twins
  • Displays important information prominently - The large, easy-to-read LCD clearly
  • presents information about fetal heart rate and uterine activity
  • Offers portability - An optional mobile roll stand cart lets you transport the monitor and all of its necessary accessories

SPECIFICATIONS:

  • Manufacturer: GE
  • Part Number (OEM):
  • Category: Fetal Monitors
  • SpO2 Technology:
  • Accessories:
  • Functional Condition: Refurbished
  • Cosmetic Condition: Good
  • Warranty: 90 Days

  • Dimensions:
    • Height: 5.75 in (14.6 cm)
    • Width: 16.75 in (42.5 cm)
    • Depth: 10 in (25.4 cm)
    • Weight: 8lb (3.6kg)

  • Environmental Operating Conditions
    • Ambient Temperature: 50°F to 104°F (10°C to 40°C)
    • Relative Humidity: 10% to 75%, non-condensing

  • Environmental Storage Conditions:
    • Ambient Temperature: 14°F to 131°F (–10°C to 55°C)
    • Relative Humidity: 10% to 90%, non-condensing

  • Power Requirements:
    • Nominal line voltage: 100-230 VAC
    • Line frequency: 50/60 Hz (operates over 47-63 Hz)
    • Power consumption: ≤30 VA
    • Monitor DC input: 12 Vdc at 2.5A

  • Operating Specifications:
    • Technique Pulsed Doppler with autocorrelation processing
    • Transducer Type 9-crystal
    • Pulse Repetition 2 kHz (all modes)
    • Frequency Pulse Duration 92 μs
    • Transmitter Frequency 1.151 MHz
    • Spatial-Average Temporal Isata <5 mW/cm2
    • Average Intensity
    • Focal 20 dB Beam Area 16.6 cm2, at a range = 7 cm
    • Peak Instantaneous 1.8 mW/cm2
    • Intensity
    • Heart Rate Counting Range 50-210 BPM
    • Leakage Current Complies with IEC 60 1.1 and/or IEC 601.1.1 harmonized national standard; Complies with EN 60601-1-2:2002

  • FECG Mode:
    • Technique: Peak detecting, beat-to-beat cardiotachometer
    • Heart range counting range: 30-240 BPM
    • Heart rate resolution: 1 BPM
    • Artifact elimination: service selectable, ±25 BPM artifact rejection
    • Countable input signal range: 15µV to 2mV peak-to-peak
    • Offset voltage tolerance (differential): ±300 mVdc maximum
    • Maximum common mode voltage: 20V peak-to-peak
    • Common mode rejection: Balanced: >120 dB at mains frequency, with patient cable, Unbalanced 5kΩRA or LA: >110 dB at mains frequency
    • Input impedance: Differential: >10MΩ; Common mode: >20MΩ
    • Mains frequency rejection: >40 dB
    • Leakage current: complies with IEC 601.1 and/or IEC 601.1.1 harmonized national standard
    • Isolation, mains-to-patient: >5656 Vdc

  • Ultrasound Mode;
    • Technique: pulsed Doppler with autocorrelation processing
    • Transfer transducer type: 9-crystal
    • Pulse repetition frequency: 2 kHz (all modes)
    • Pulse duration: 92 µs
    • Transmitter frequency: 1.151 MHz
    • Spatial-Average temporal average intensity: Isata<5 mW/ cm²
    • Focal 20 dB beam area: 16.6 cm², at a range = 7 cm
    • Peak instantaneous intensity: 1.8 mW/cm²
    • Heart rate counting range: 50-210 BPM
    • Leakage current: complies with IEC 601.1 and/or IEC 601.1.1 harmonized national standard.
