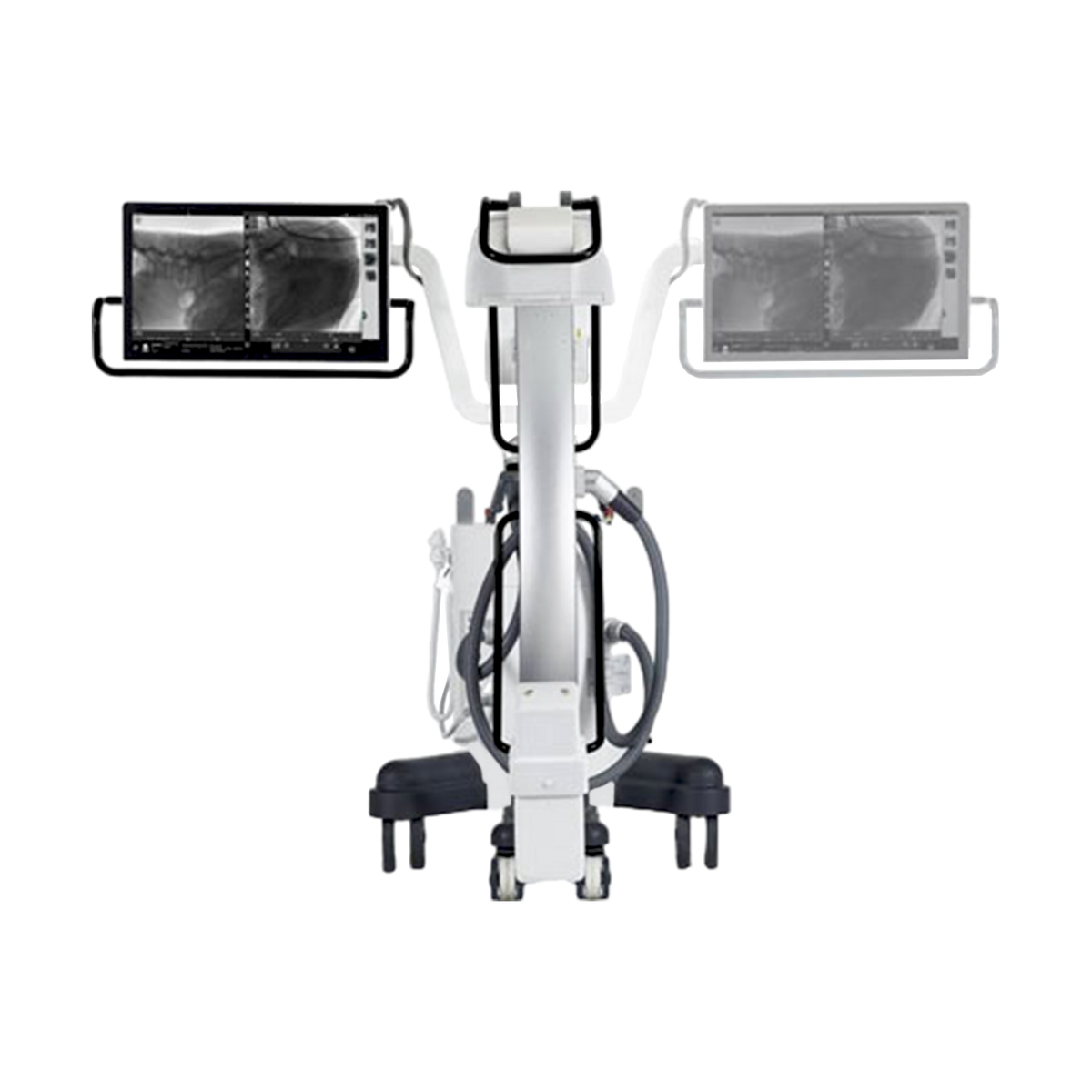

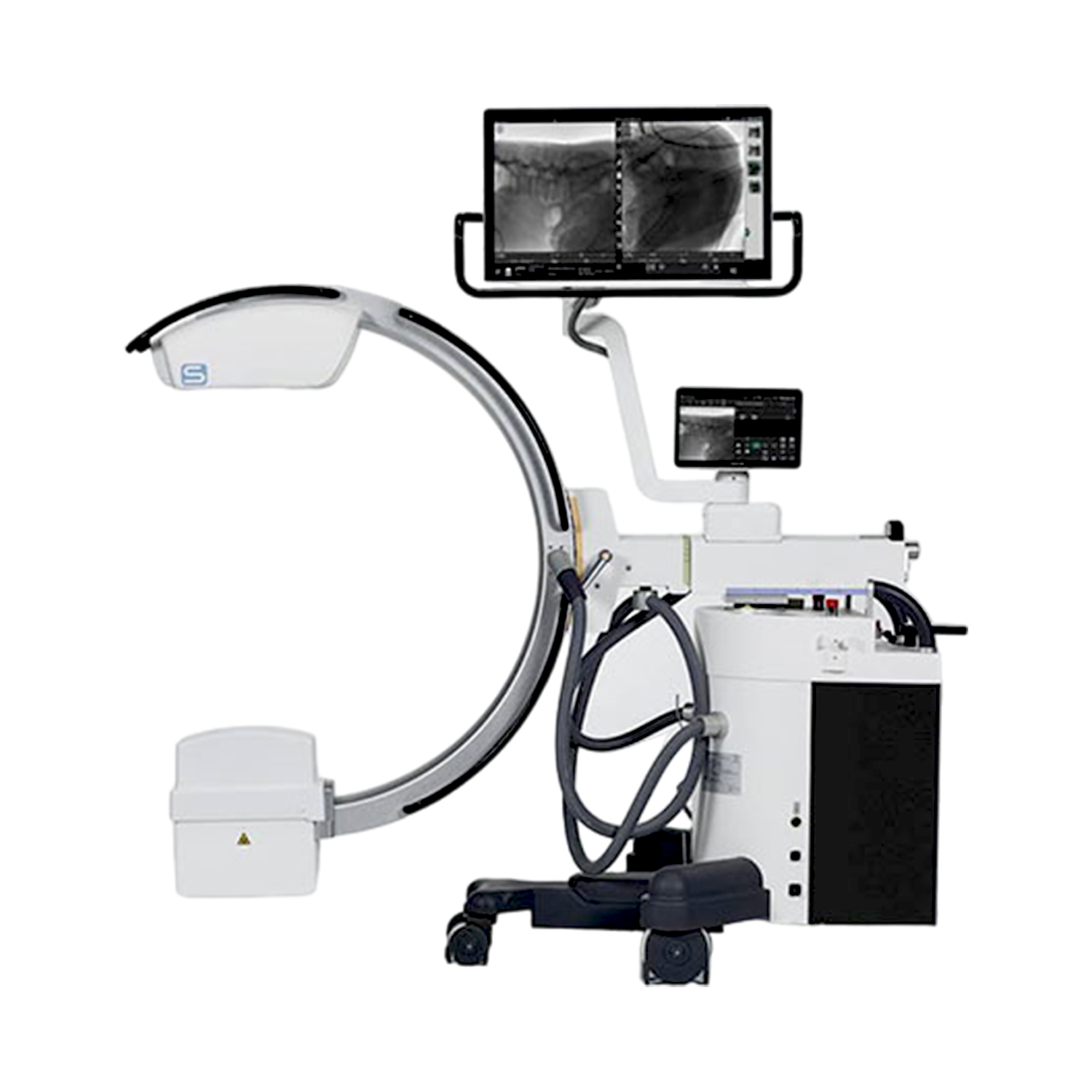

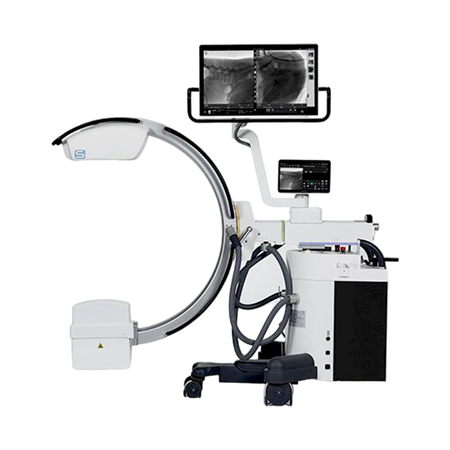

Fuji Persona CS Mobile Fluoroscopy System

Out of stock
SKU: EN-FUJI-PERSONA-CS
Condition
Category
LEAD TIME: Estimated Ship Time: 10-14 Days
PACKAGING: 1
WARRANTY: 90 Days

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

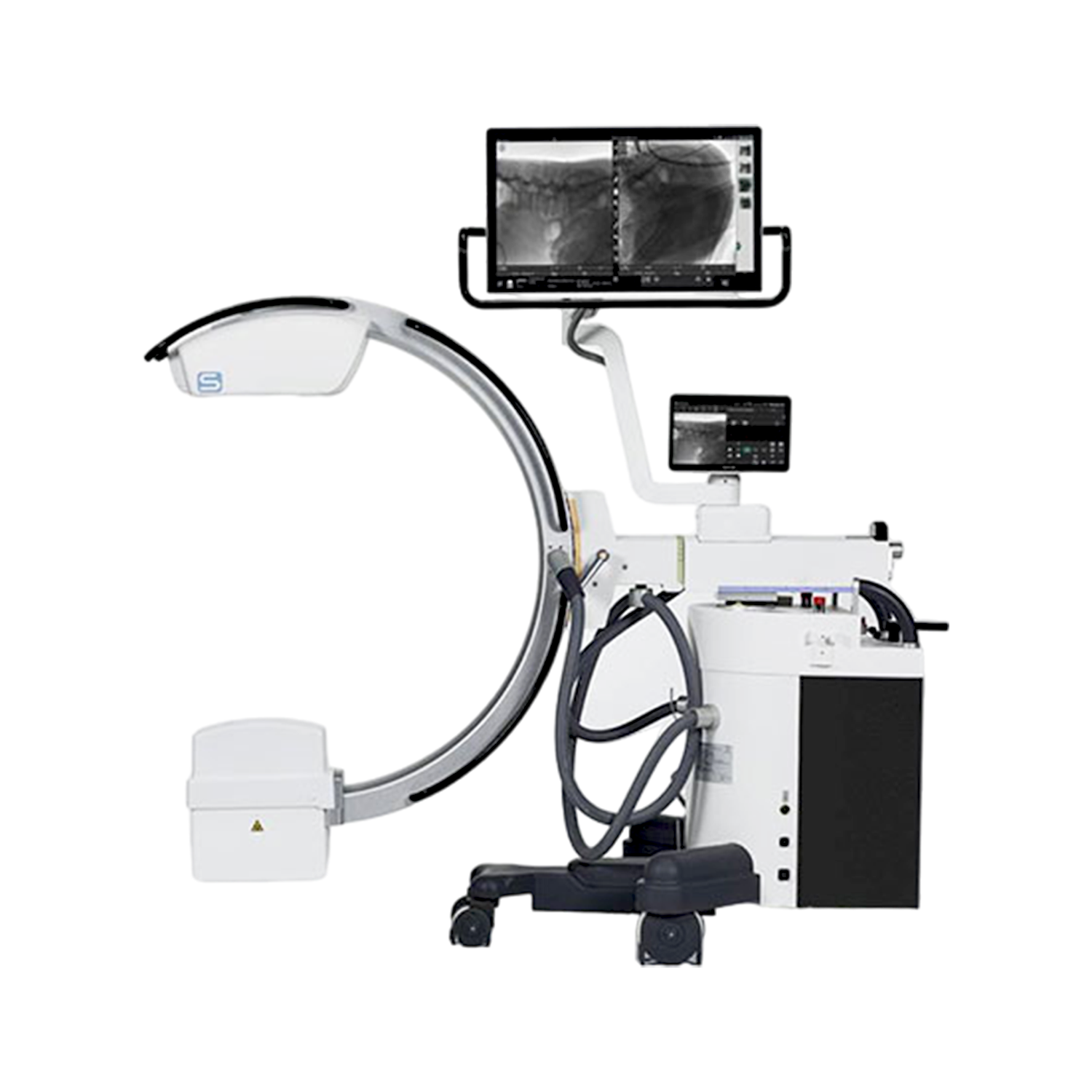

Experience unmatched precision and exceptional image quality with the Fuji Persona CS Compact Surgical C-Arm, a revolutionary advancement in medical imaging technology. Designed with a 21cm cesium iodide (CsI) flat panel detector, this sophisticated Fuji C-Arm solution is versatile, catering to an extensive range of surgical interventions.

Distinguished by its combination of ultra-low dose fluoroscopy and superior image quality, the Fuji Persona CS C-Arm sets a new standard in the field. It offers a variety of exposure modes, providing customizable imaging options to meet your precise requirements. For those looking to enhance their imaging capabilities, an optional vascular package is available for purchase separately.

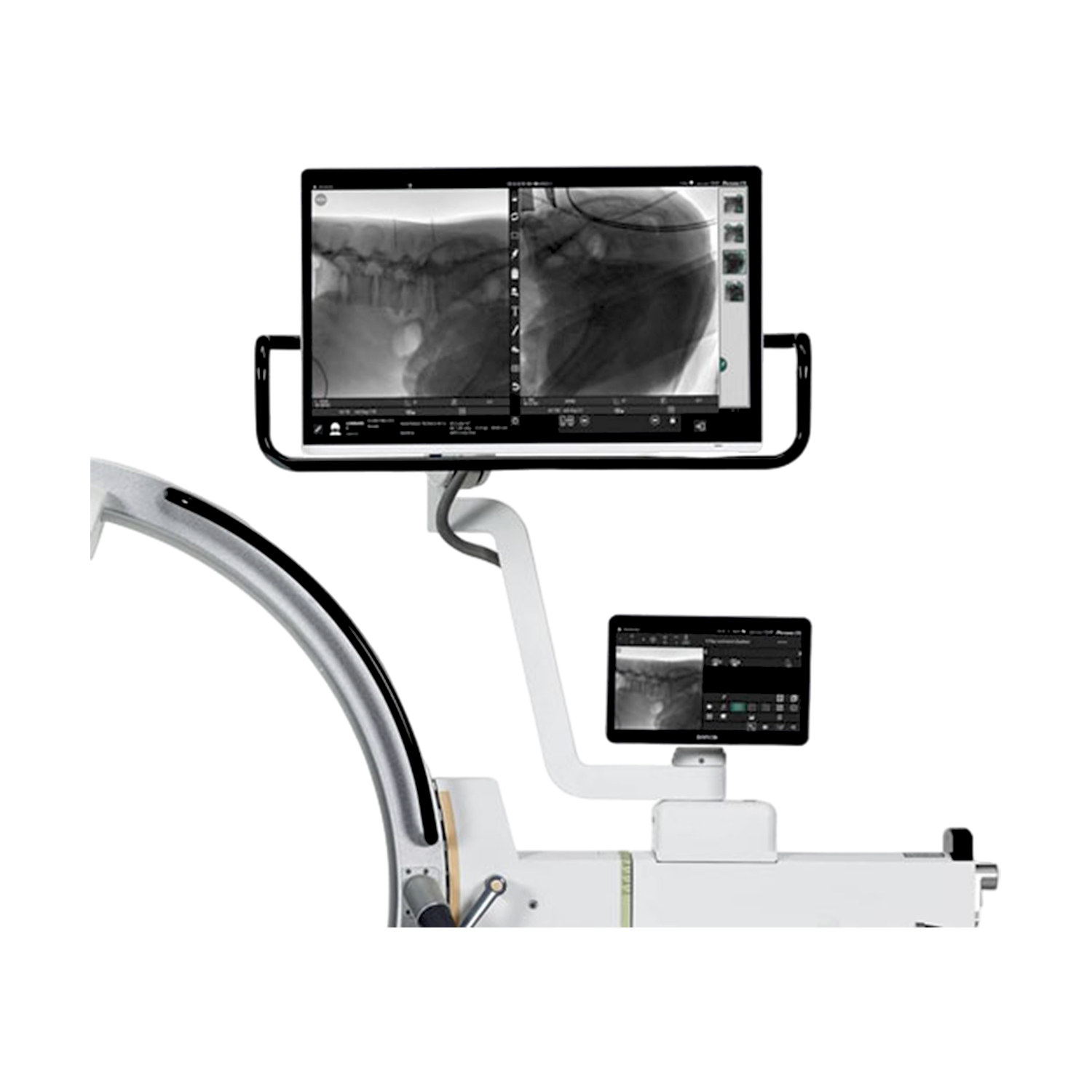

The Persona CS C-Arm is not just functional; it excels in providing unparalleled visualization. Equipped with a 21cm cesium iodide (CsI) flat panel detector and an advanced 27″ 4MP onboard monitor, it delivers crisp, detailed visuals. The system also features a removable grid and a dedicated 'radiography mode' for access to high-quality still images easily.

For effortless navigation, accurate positioning, and superior imaging, the Fuji Persona CS C-Arm is your go-to solution. Step into the future of surgical imaging now.

FEATURES:

  • Absolute Operability
  • Orbital & Angular Rotation
  • Compact Design
  • Agile flexibility
  • Additional Display Unit
  • Flat Panel Detector
  • Modulated Power
  • Function control via wireless footswitch for less cables on the floor
  • Instant login via the NFC device
  • Removable grid for low dose pediatric surgery and gridless procedures
  • X-ray emission controlled by either a foot switch or a multi-function hand switch
  • Easy lift front wheels for overcoming obstacles
  • Top quality display, certified for medical use and in conformity with the relevant standards for diagnostic imaging
  • Zero dose centering with laser localizers on X-ray tubes and on the flat panel detector side.

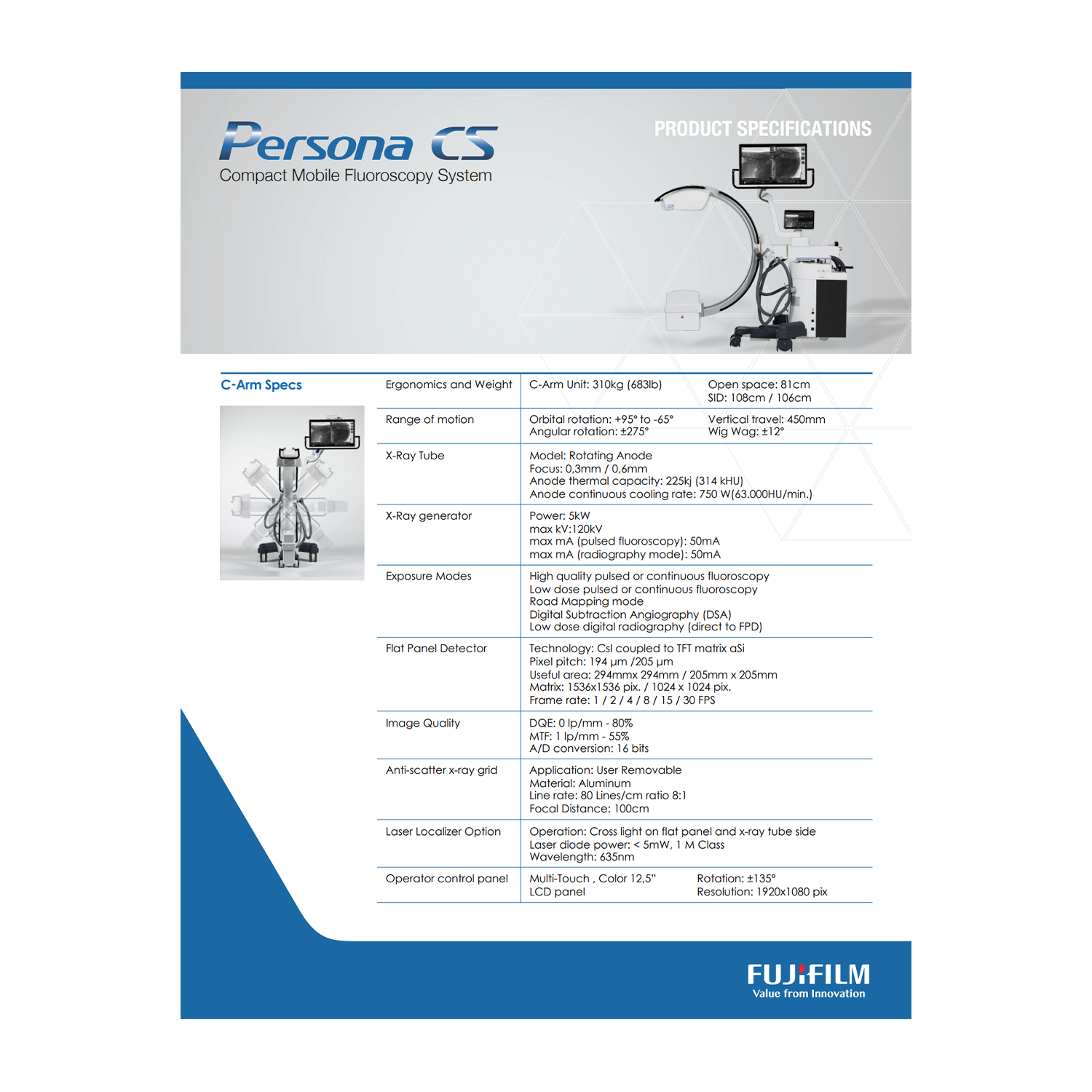

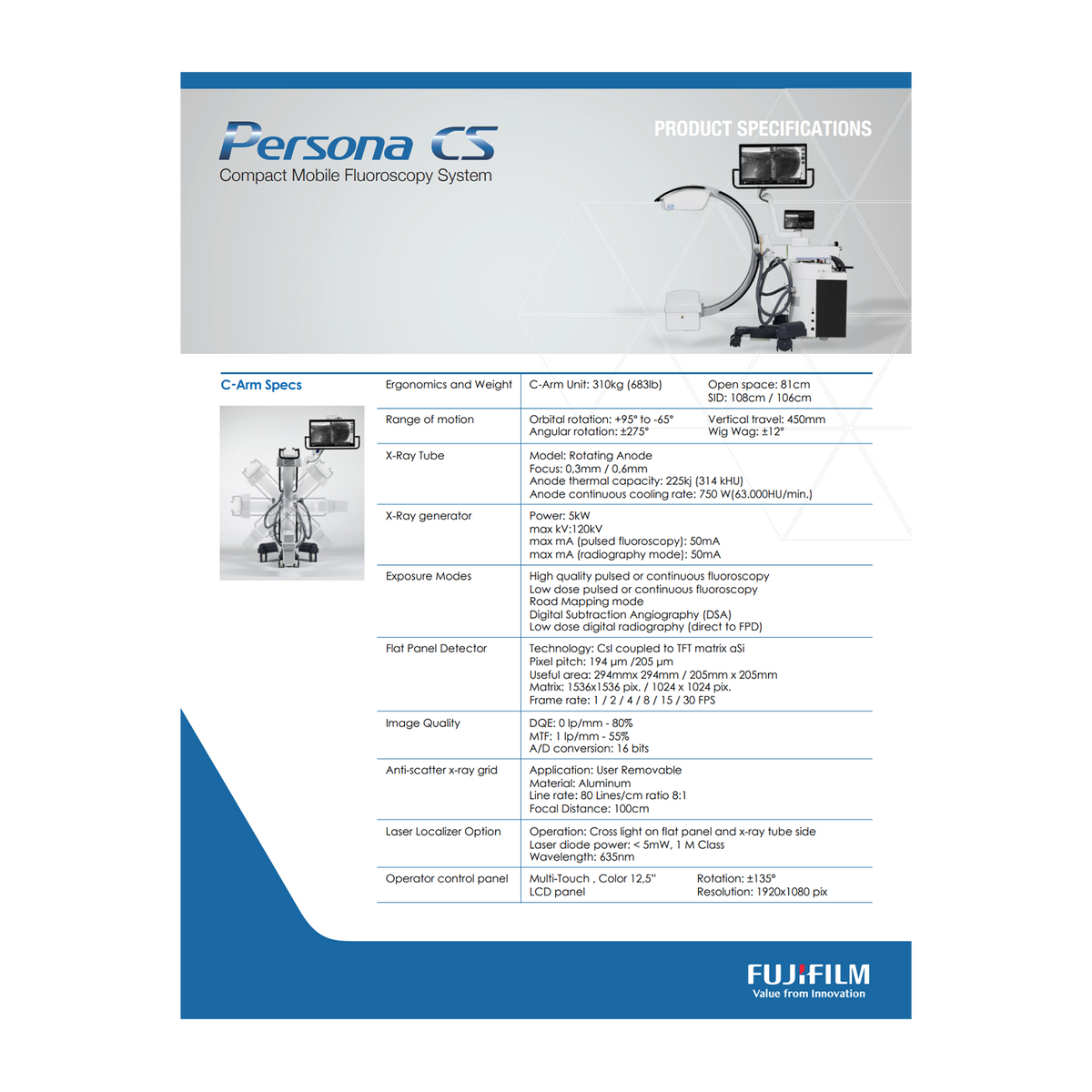

SPECIFICATIONS:
  • Manufacturer: FUJI
  • Part Number (OEM): Persona CS
  • Category: Imaging
  • Accessories: None
  • Functional Condition: New/Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

  • Ergonomics & Weight:
    • C-Arm Unit: 310kg (683lb)
    • Open space: 81cm
    • SID: 108cm / 106cm

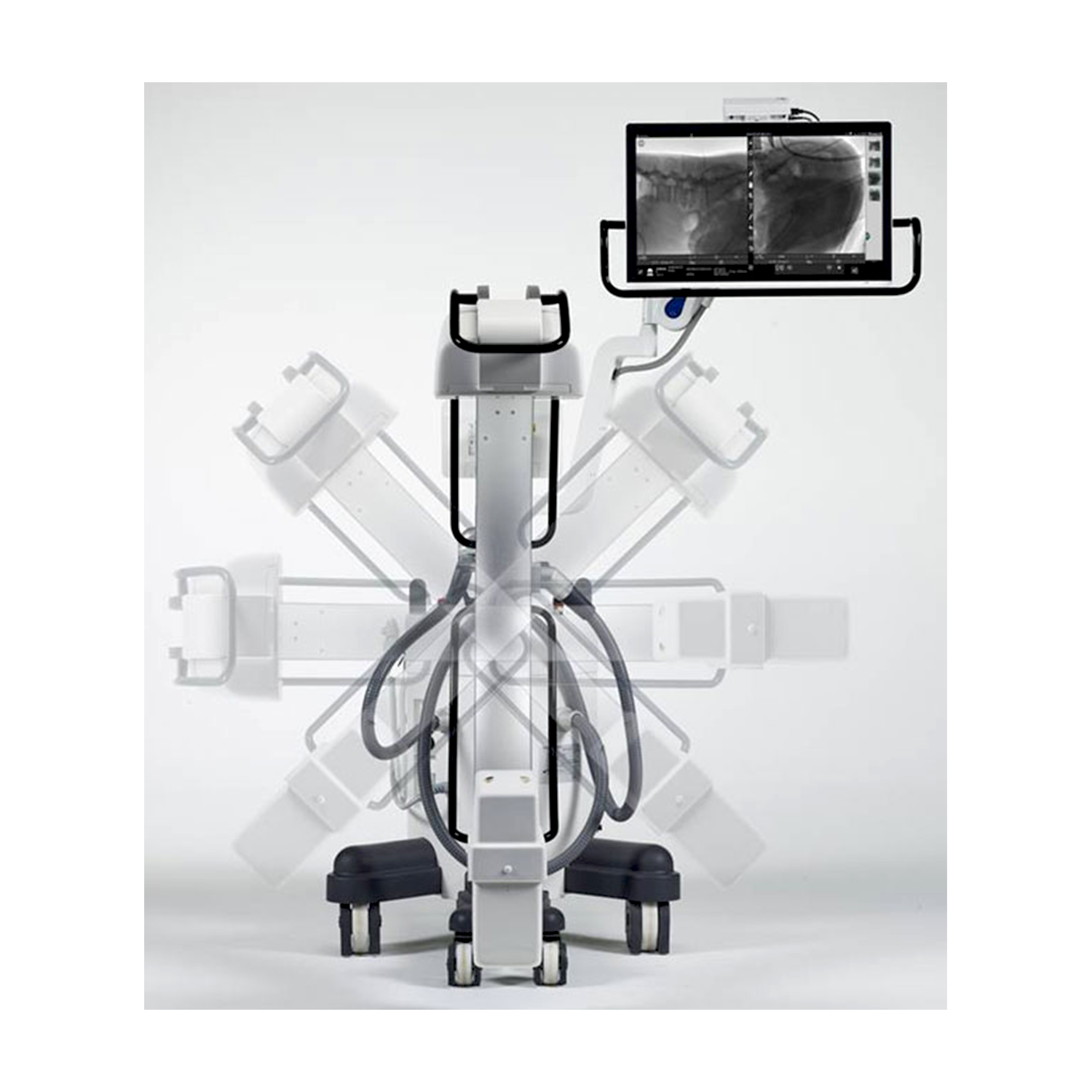

  • Range of Motion:
    • Orbital rotation: +95° to -65°

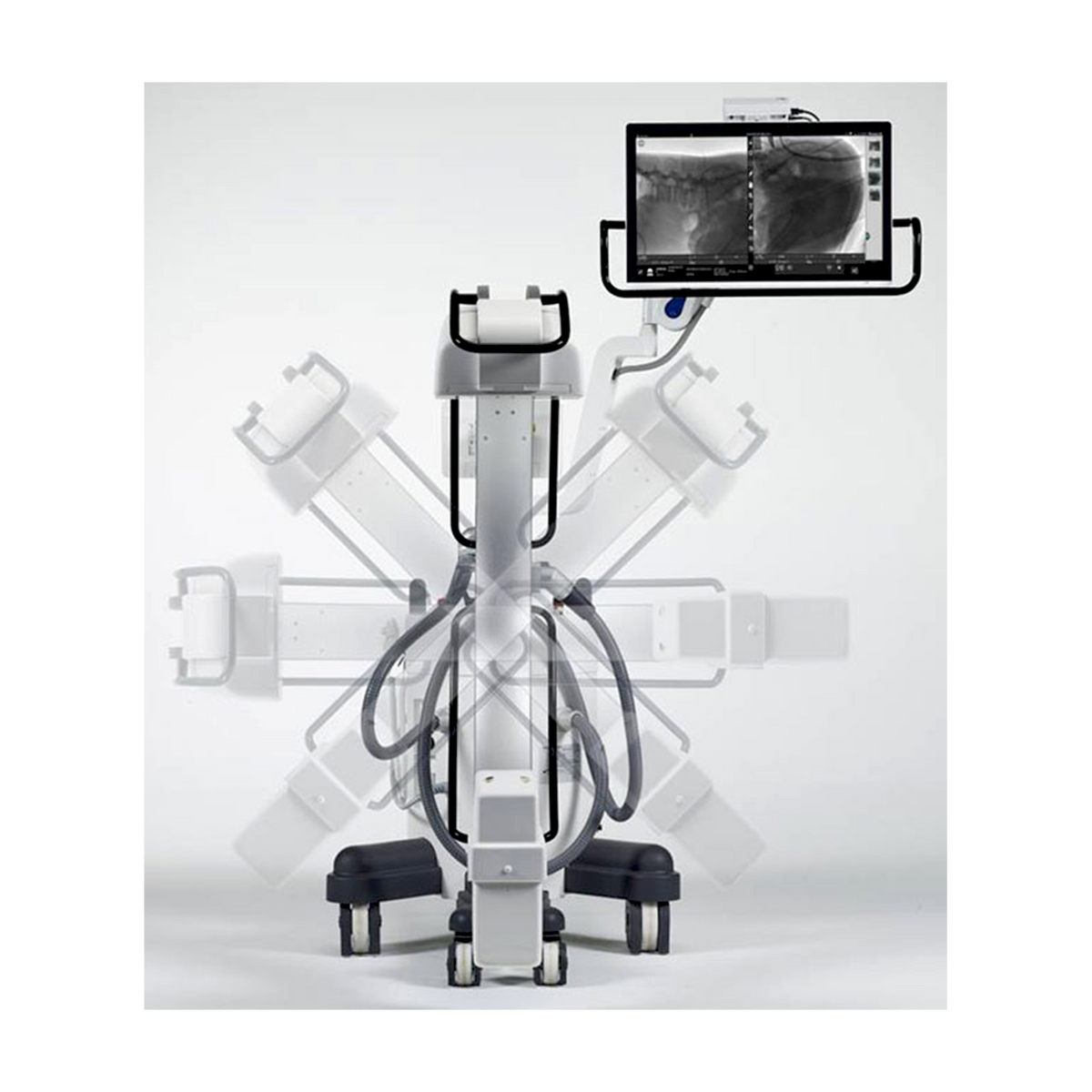

    • Angular rotation: ±275°
    • Vertical travel: 450mm
    • Wig Wag: ±12°

  • X-Ray Tube:
    • Model: Rotating Anode
    • Focus: 0,3mm / 0,6mm
    • Anode thermal capacity: 225kj (314 kHU)
    • Anode continuous cooling rate: 750 W(63.000HU/min.)

  • X-Ray Generator:
    • Power: 5kW
    • max kV:120kV
    • max mA (pulsed fluoroscopy): 50mA
    • max mA (radiography mode): 50mA

  • Exposure Modes:
    • High quality pulsed fluoroscopy
    • Low dose pulsed fluoroscopy
    • Road Mapping mode
    • Pulsed Digital Subtraction Angiography (DSA)
    • Low dose digital radiography (direct to FPD)

  • Flat Panel Detector:
    • Technology: CsI coupled to TFT matrix aSi
    • Pixel pitch: 194 μm / 205 μm
    • Useful area: 294mmx 294mm / 205mm x 205mm
    • Matrix: 1536x1536 pix. / 1024 x 1024 pixels
    • Frame rate: 1 / 2 / 4 / 8 / 15 / 30 FPS

  • Image Quality:
    • DQE: 0 lp/mm - 80%
    • MTF: 1 lp/mm- 55%
    • A/D conversion: 16 bits

  • Anti-Scatter X-Ray Grid:
    • Application: User Removable
    • Material: Aluminum
    • Line rate: 80 Lines/cm ratio 8:1
    • Focal Distance: 100cm

  • Laser Localizer:
    • Operation: Cross light on flat panel and x-ray tube side
    • Laser diode power: < 5mW, 1 M Class
    • Wavelength: 635nm

  • Operator Control Panel:
    • Multi-Touch , Color 12,5”
    • LCD panel
    • Rotation: ±135°
    • Resolution: 1920x1080 pixels

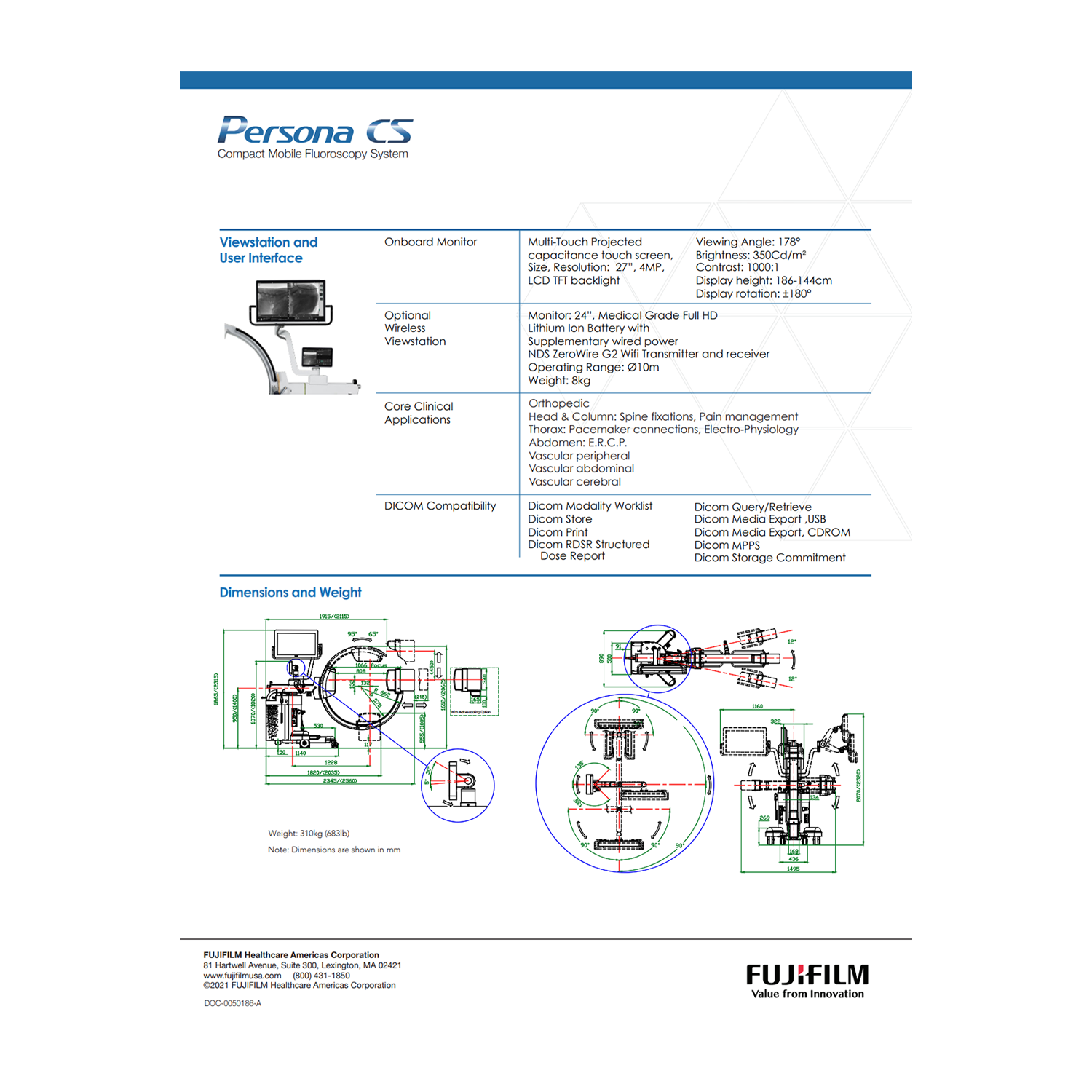

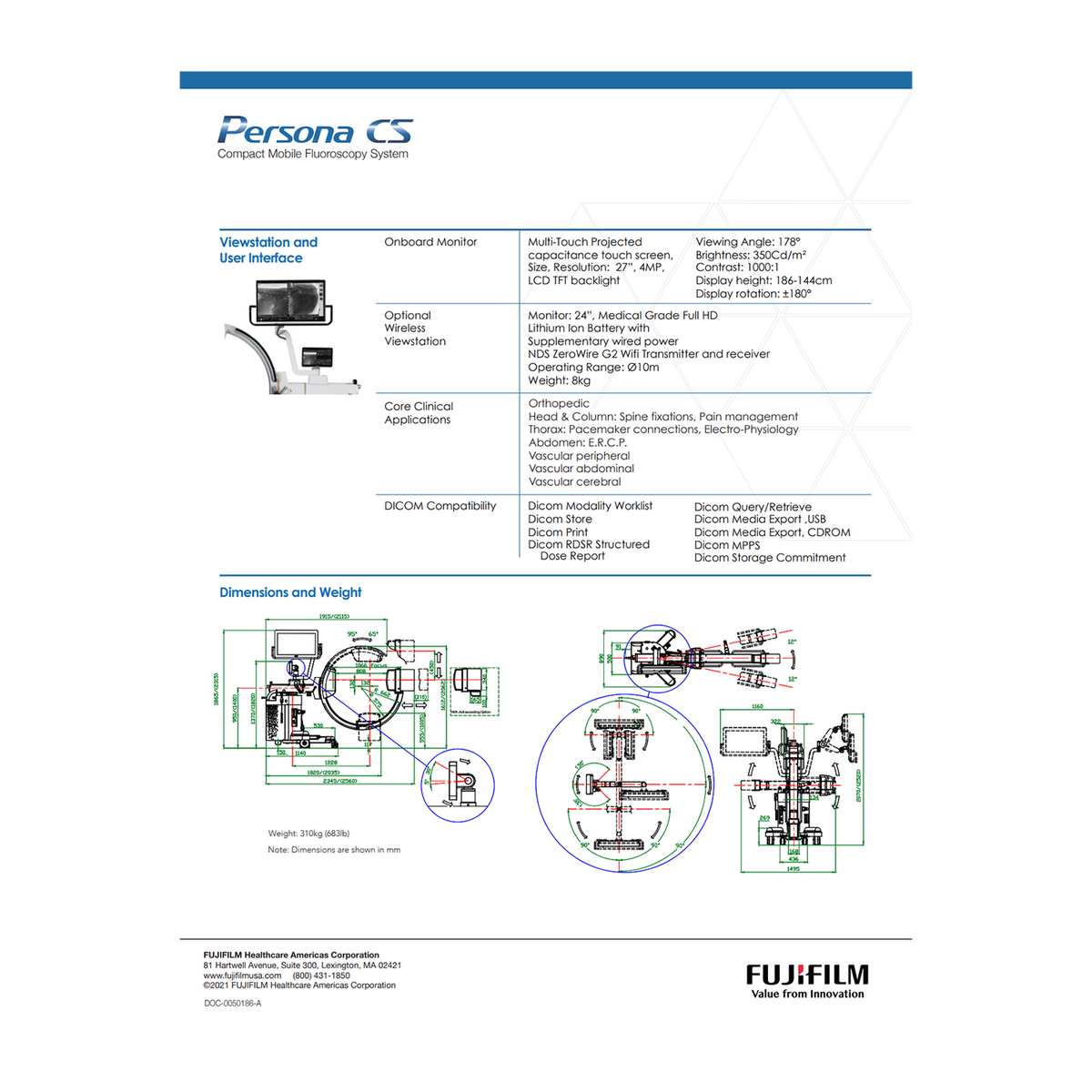

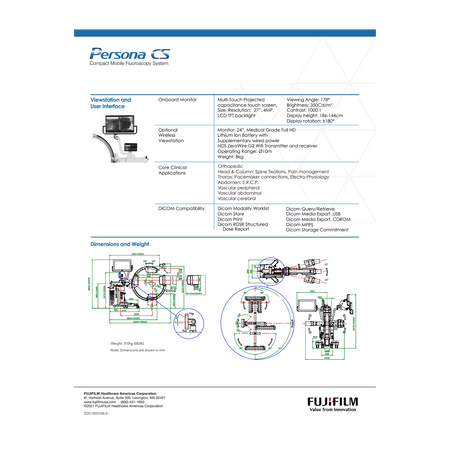

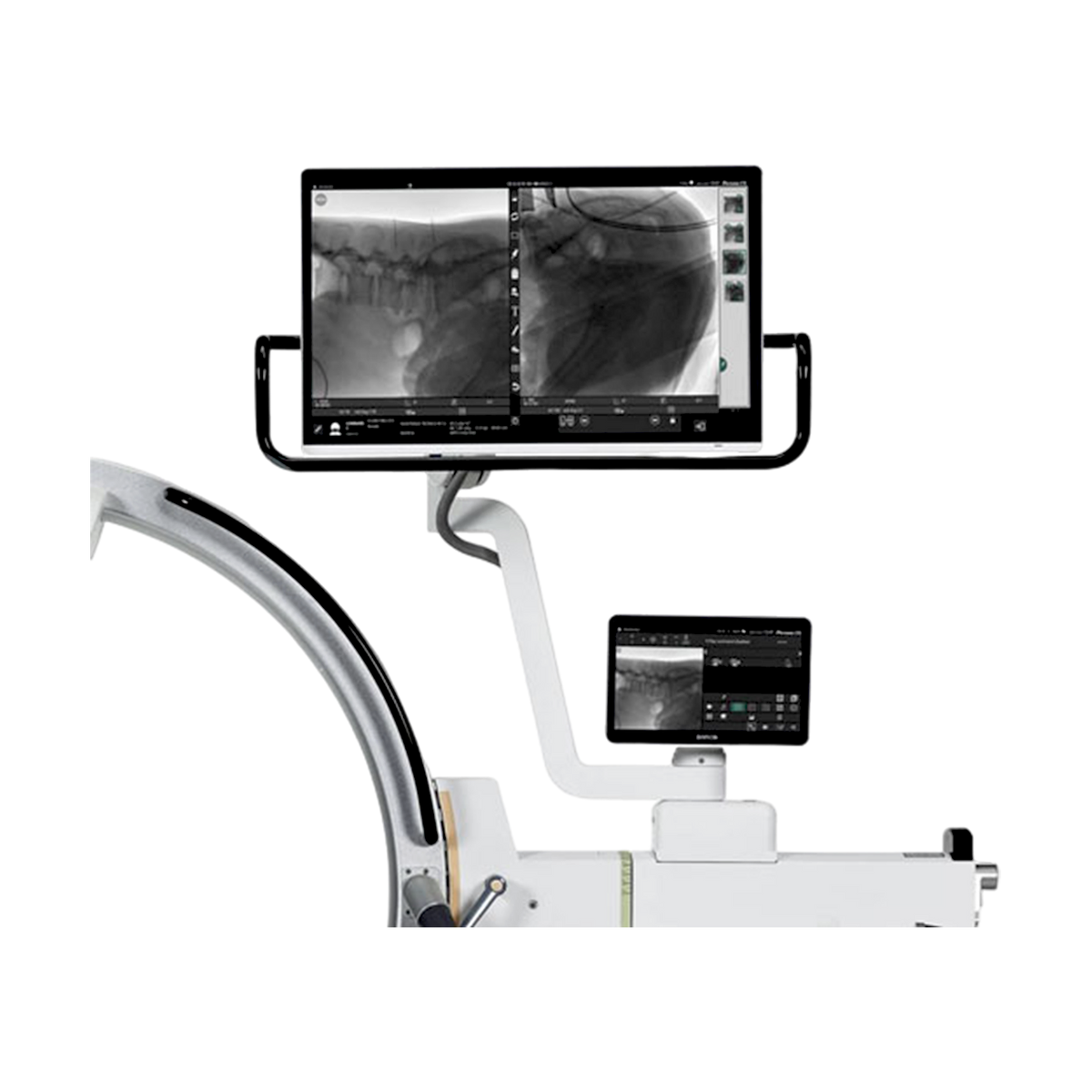

  • Onboard Monitor:
    • Multi-Touch Projected
    • Capacitance touch screen,
    • Size, Resolution: 27”, 4MP,
    • LCD TFT backlight
    • Viewing Angle: 178°
    • Brightness: 350Cd/m
    • Contrast: 1000:1
    • Display height: 186-144cm

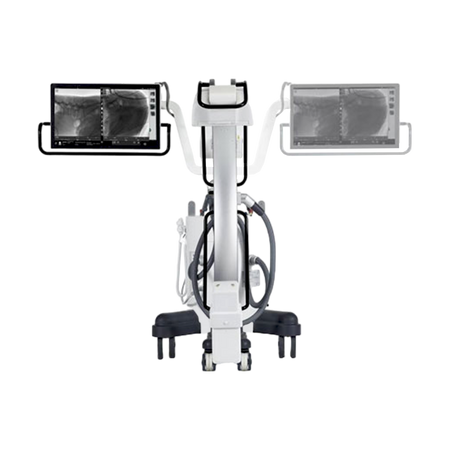

    • Display rotation: ±180°

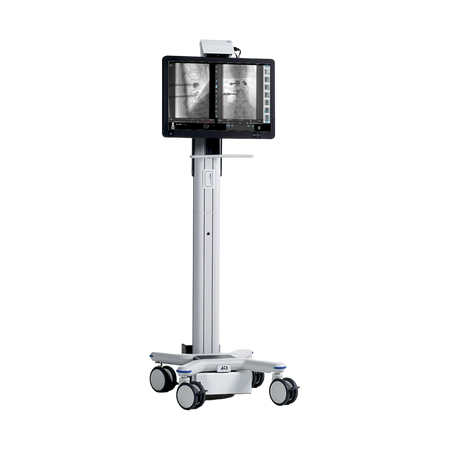

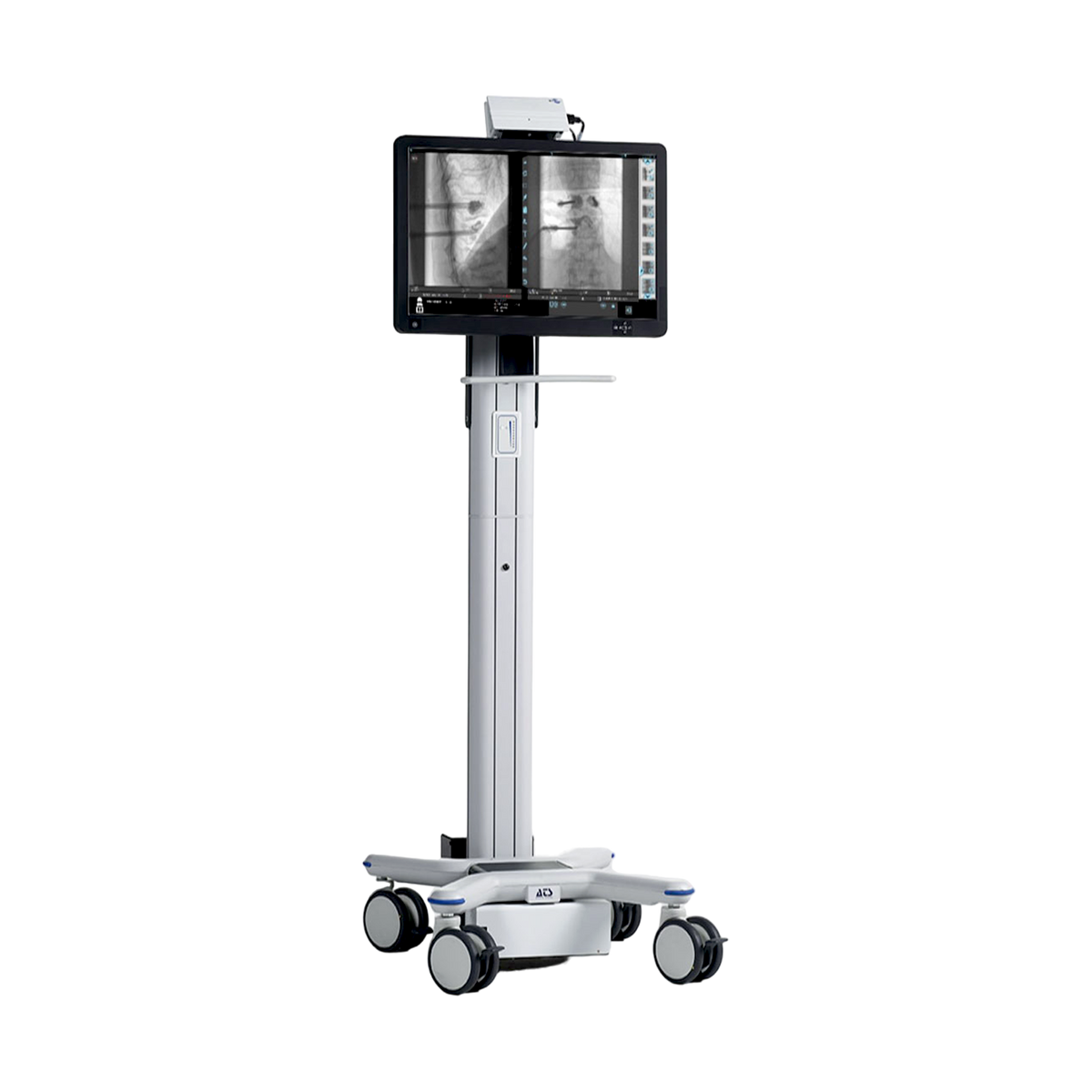

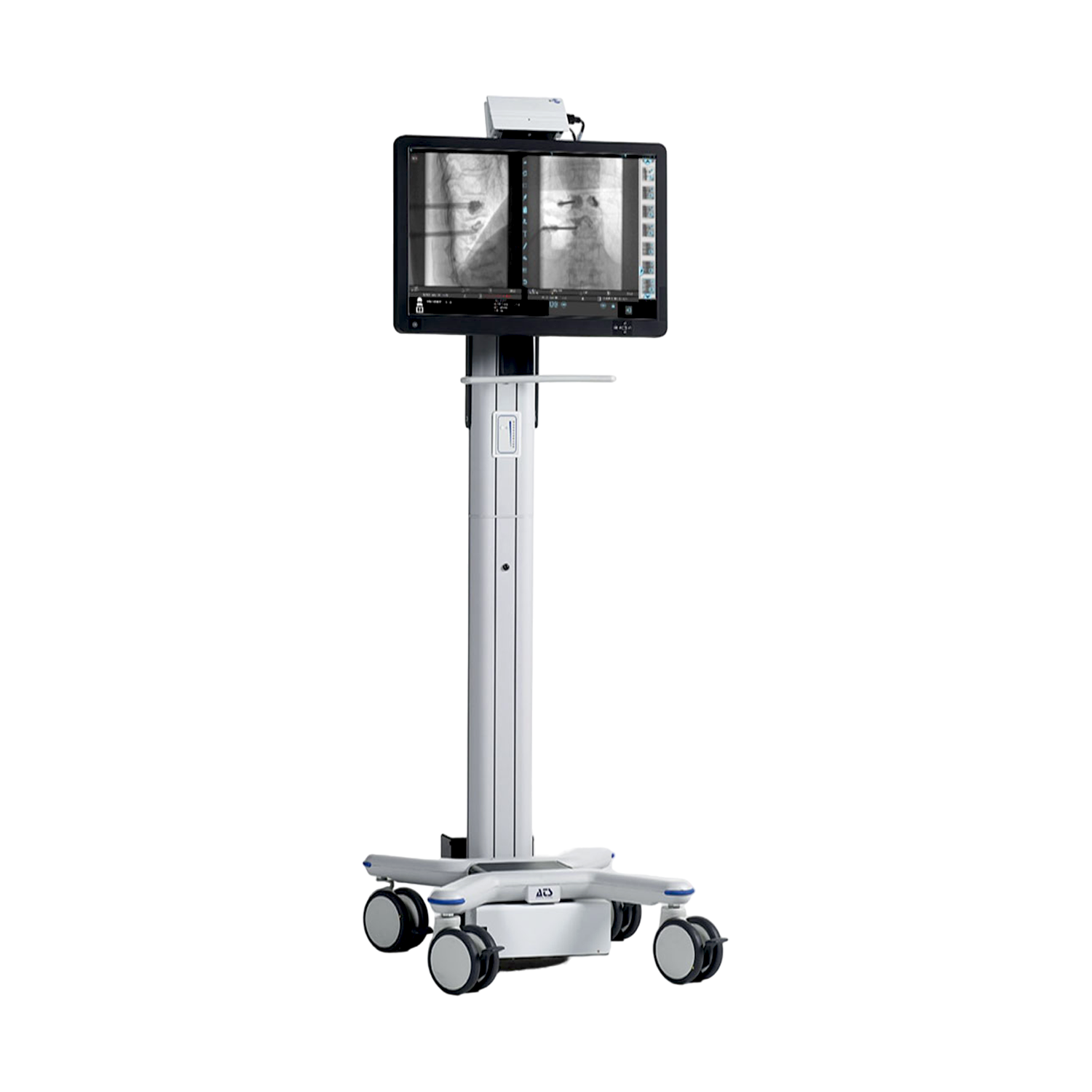

  • Optional Wireless Viewstation:
    • Monitor: 24”, Medical Grade Full HD
    • Lithium Ion Battery with
    • Supplementary wired power
    • NDS ZeroWire G2 Wifi Transmitter and receiver
    • Operating Range: Ø10m
    • Weight: 8kg

  • Core Clinical Applications:
    • Orthopedic
    • Head & Column: Spine fixations, Pain management
    • Thorax: Pacemaker connections, Electro-Physiology
    • Abdomen: E.R.C.P.
    • Vascular Peripheral
    • Vascular Abdominal
    • Vascular Cerebral

  • DICOM Compatibility:
    • Dicom Modality Worklist
    • Dicom Store
    • Dicom Print
    • Dicom RDSR Structured
    • Dose Report
    • Dicom Query/Retrieve
    • Dicom Media Export ,USB
    • Dicom Media Export, CDROM
    • Dicom MPPS
    • Dicom Storage Commitment
