Fuji Persona C Mobile Fluoroscopy System

Condition
Category
LEAD TIME: Estimated Ship Time: 10-14 Days
PACKAGING: 1
WARRANTY: 90 Days
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

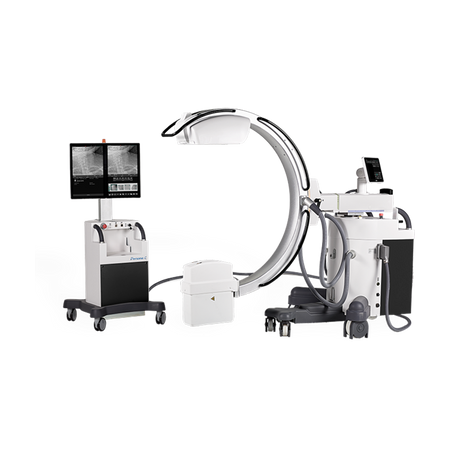

The Persona C Mobile Fluoroscopy System is an advanced c-arm solution designed for fast, precise positioning and advanced image quality. It is available with 21x21cm or 30x30cm amorphous Silicon (aSi) flat panel detector options for ultra-low dose fluoroscopy and vascular imaging. The system features a removable grid and dedicated 'radiography mode' for high-quality still imaging, making it suitable for a broad range of diagnostic imaging and minimally invasive surgical procedures.

The Persona CS Mobile Fluoroscopy System is another compact mobile C-arm imaging solution designed for rapid and seamless positioning in operating room environments. It offers a powerful 5kW onboard generator, large diameter, lightweight design, and a choice of 21 or 30cm Cesium Iodide (CsI) flat panel detector for advanced imaging clarity. The system is suitable for orthopedic, surgical, pain management, and emergency procedures.

FEATURES:

  • Absolute Operability

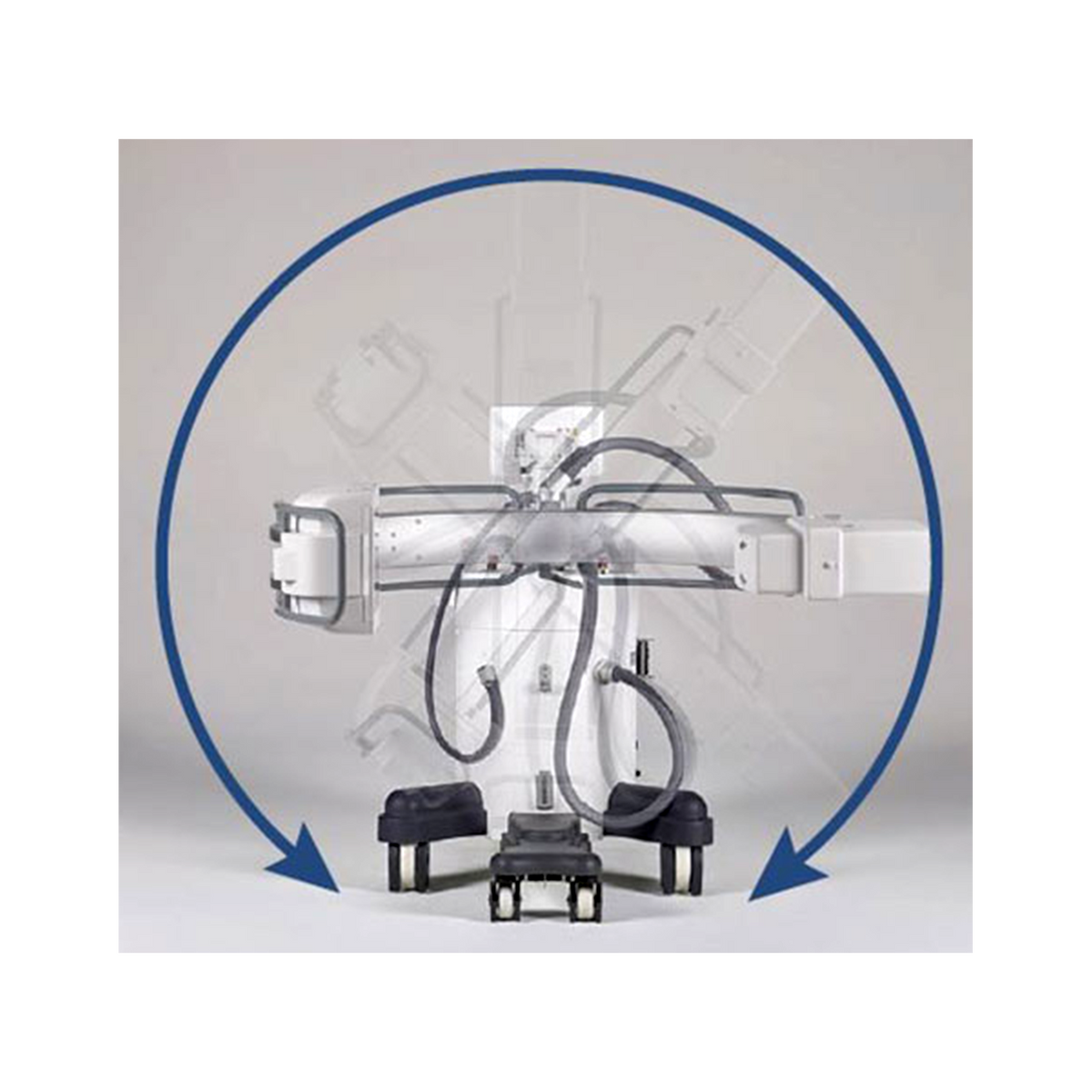

  • Orbital & Angular Rotation
  • Compact Design
  • Agile flexibility
  • Display Unit
  • Flat Panel Detector
  • Modulated Power
  • Function control via wireless footswitch for less cables on the floor
  • Instant login via the NFC device
  • Removable grid for low dose pediatric surgery and gridless procedures
  • X-ray emission controlled by either a foot switch or a multi-function hand switch
  • Easy lift front wheels for overcoming obstacles
  • Top quality display, certified for medical use and in conformity with the relevant standards for diagnostic imaging
  • Zero dose centering with laser localizers on X-ray tubes and on the flat panel detector side.

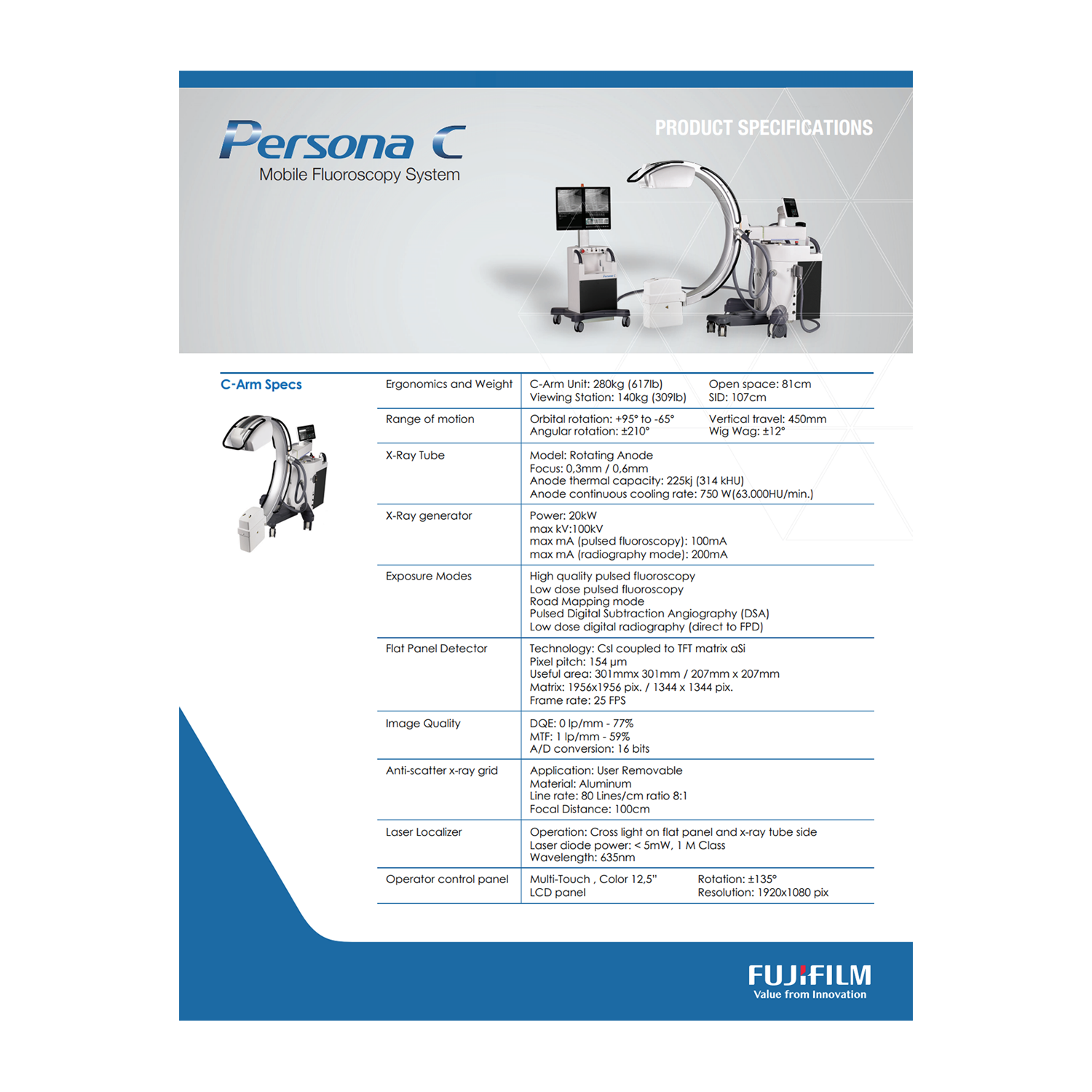

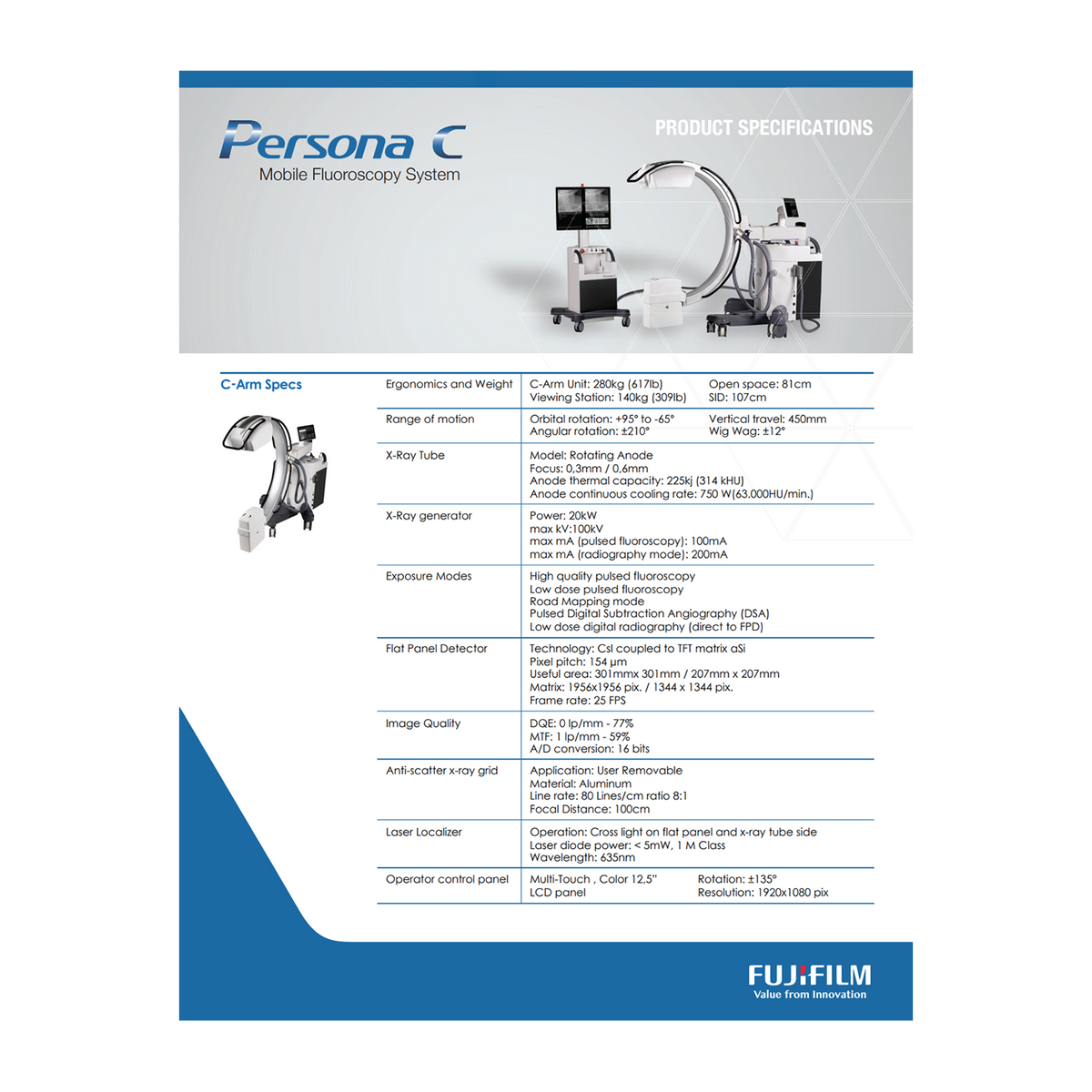

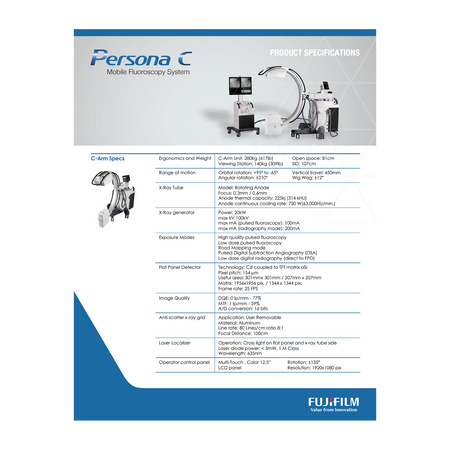

SPECIFICATIONS:
  • Manufacturer: FUJI
  • Part Number (OEM): Persona C
  • Category: Imaging
  • Accessories: None
  • Functional Condition: New/Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

  • Ergonomics & Weight:
    • C-Arm Unit: 280kg (617lb)
    • Viewing Station: 140kg (309lb)
    • Open space: 81cm
    • SID: 107cm

  • Range of Motion:

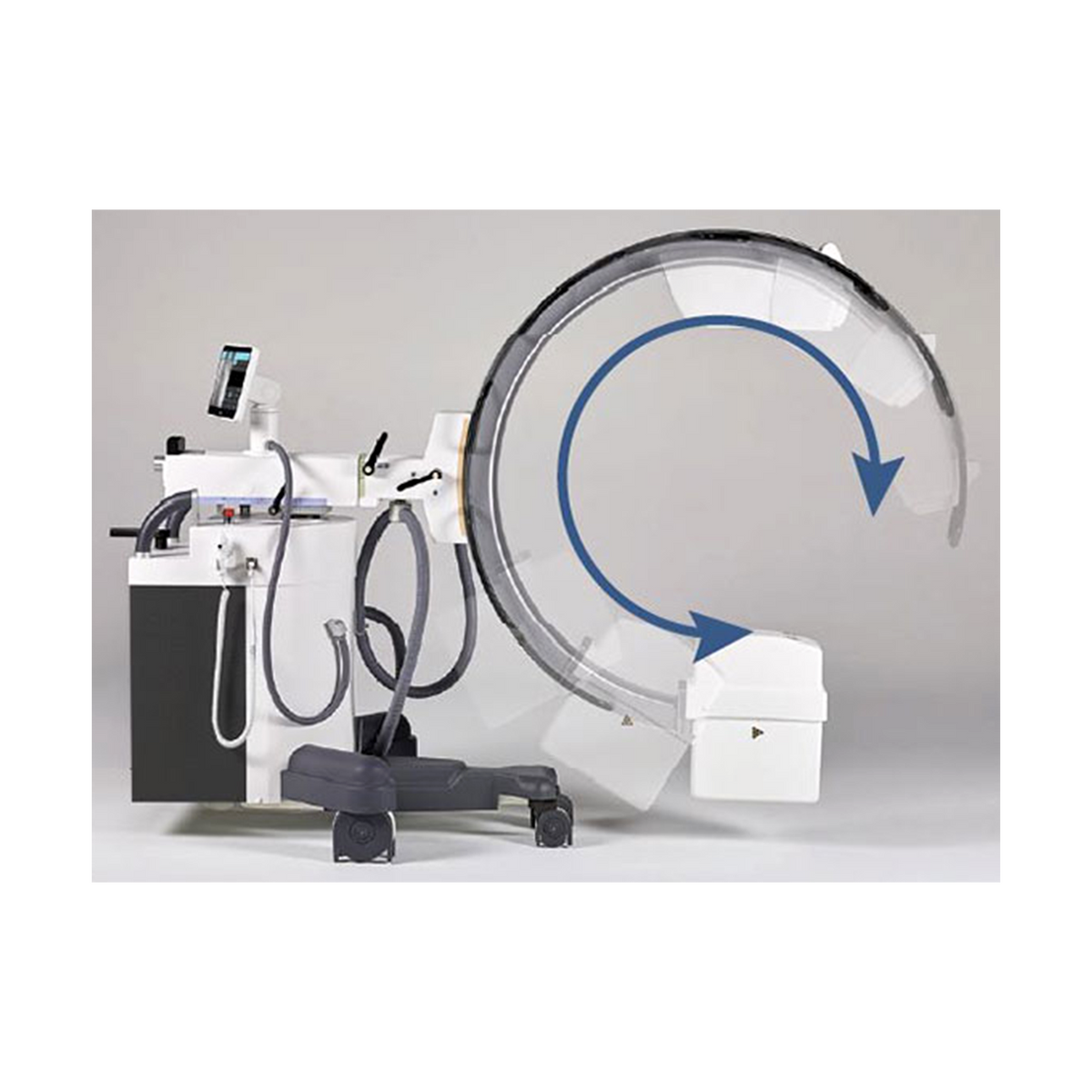

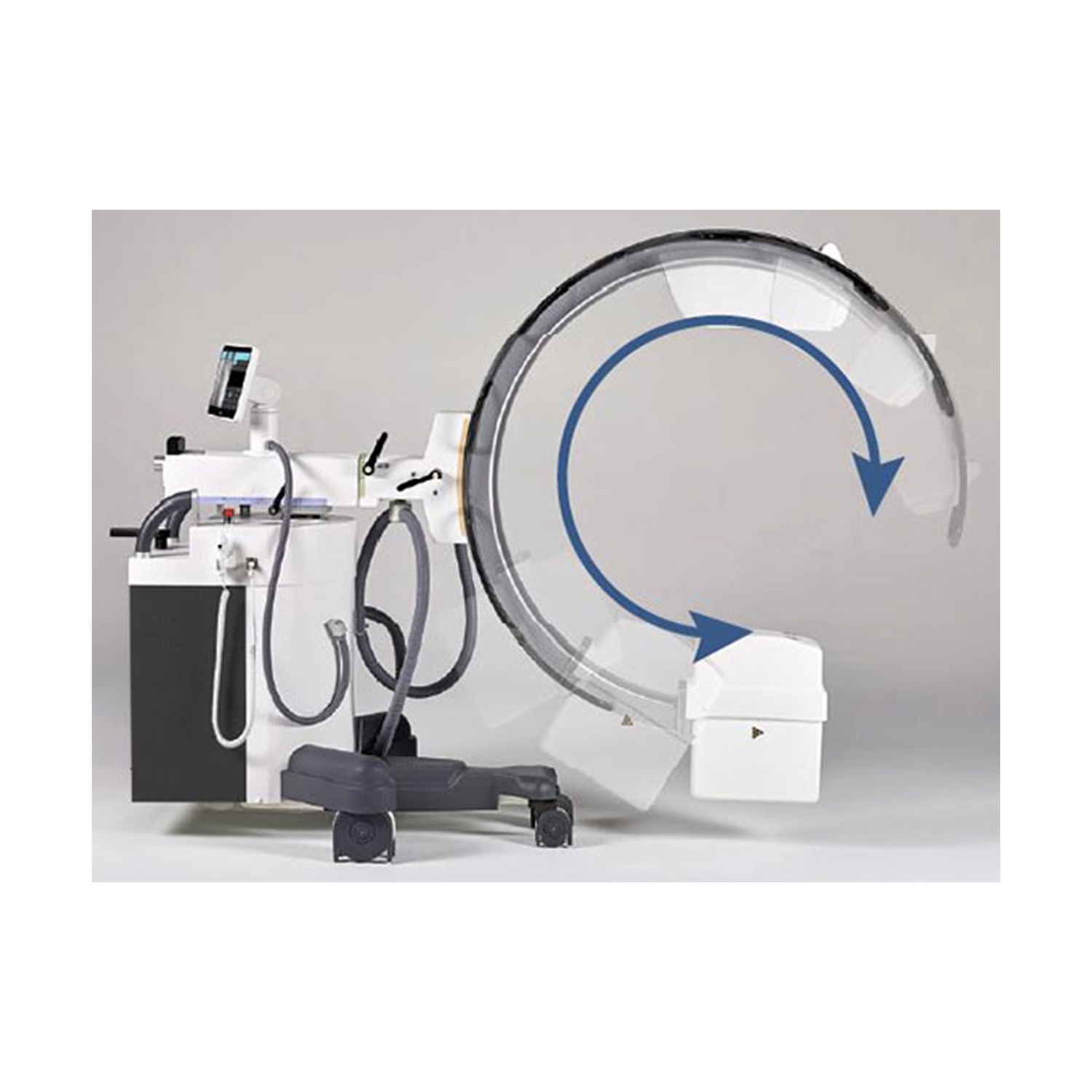

    • Orbital rotation: +95° to -65°

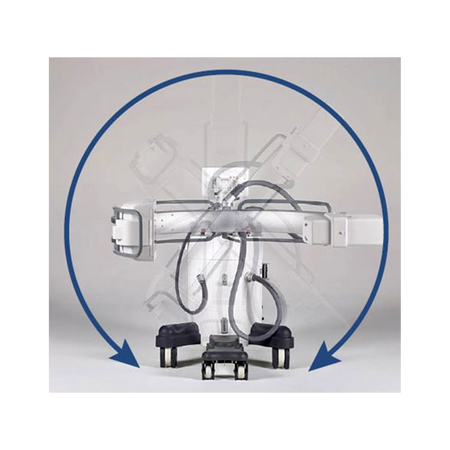

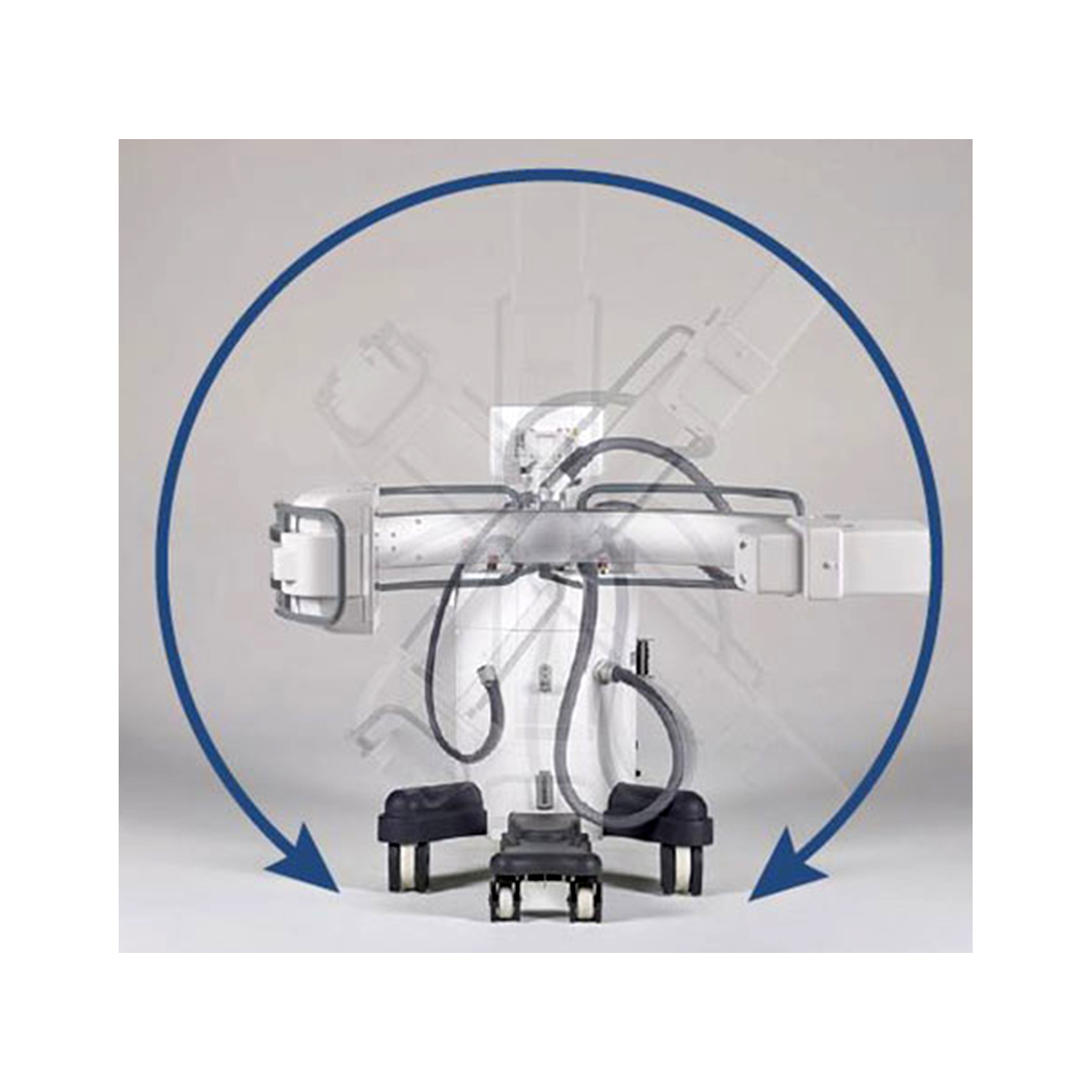

    • Angular rotation: ±210°

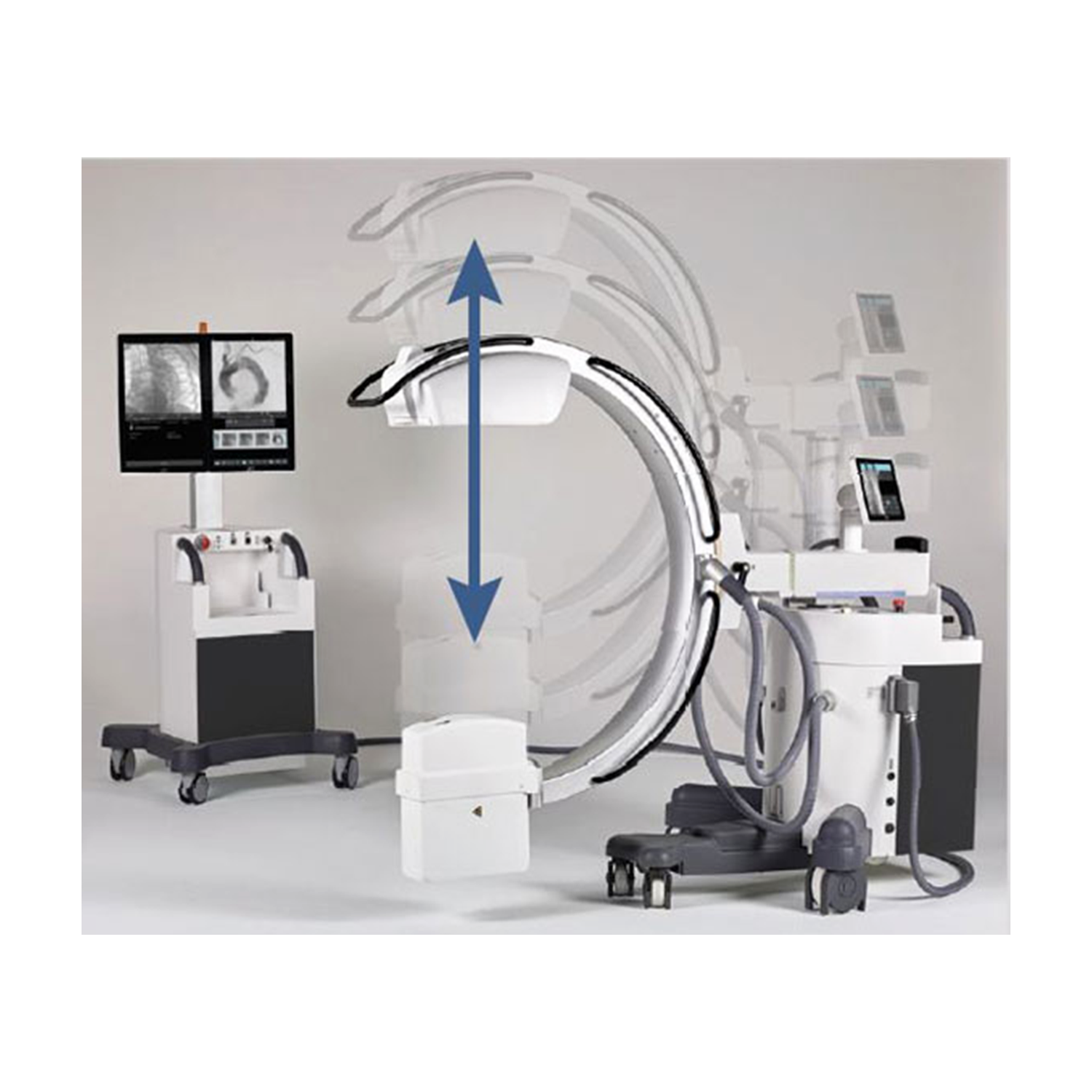

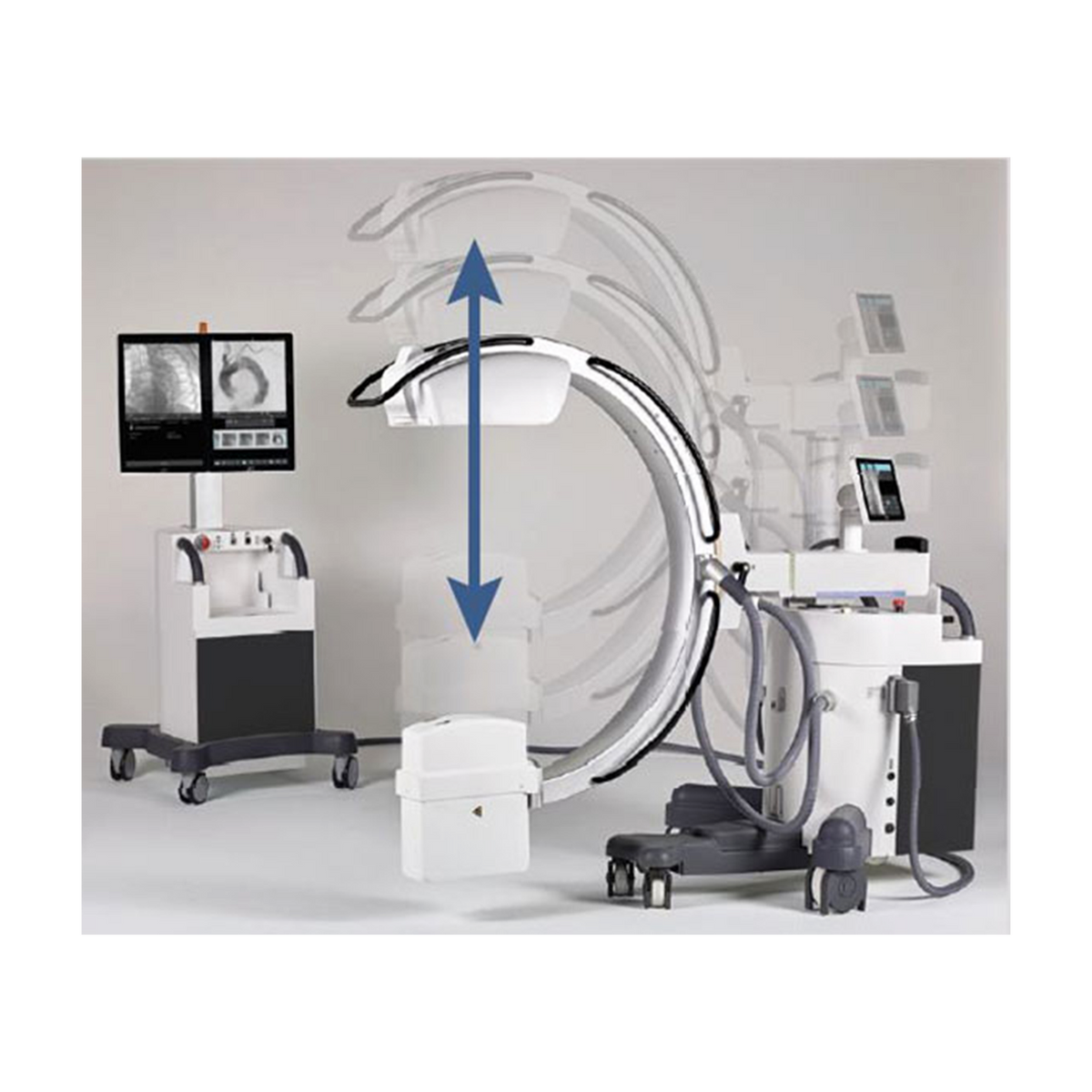

    • Vertical travel: 450mm
    • Wig Wag: ±12°

  • X-Ray Tube:
    • Model: Rotating Anode
    • Focus: 0,3mm / 0,6mm
    • Anode thermal capacity: 225kj (314 kHU)
    • Anode continuous cooling rate: 750 W(63.000HU/min.)

  • X-Ray Generator:
    • Power: 20kW
    • max kV:100kV
    • max mA (pulsed fluoroscopy): 100mA
    • max mA (radiography mode): 200mA

  • Exposure Modes:
    • High quality pulsed fluoroscopy
    • Low dose pulsed fluoroscopy
    • Road Mapping mode
    • Pulsed Digital Subtraction Angiography (DSA)
    • Low dose digital radiography (direct to FPD)

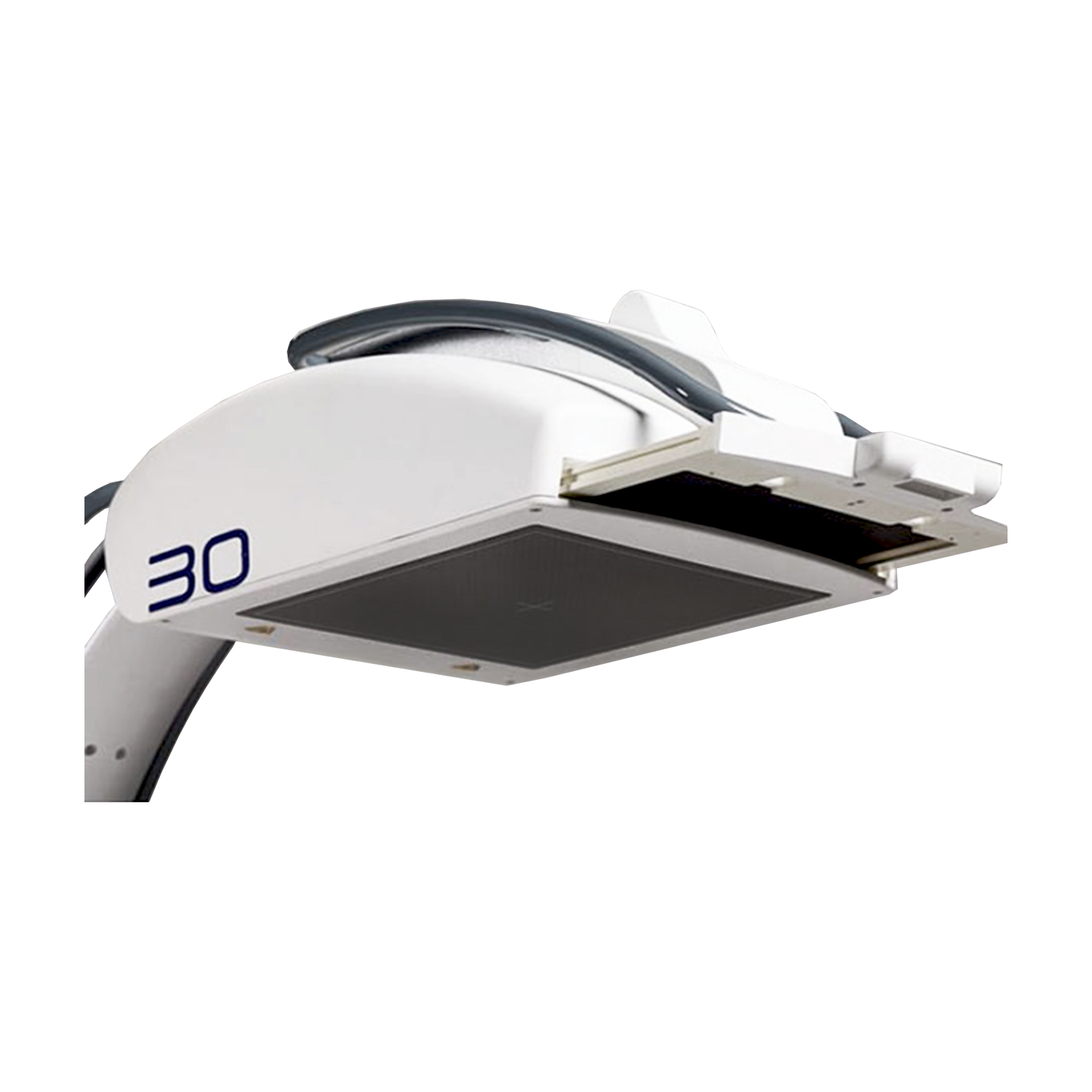

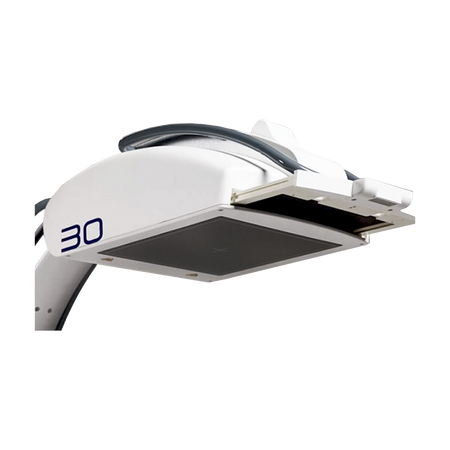

  • Flat Panel Detector:
    • Technology: CsI coupled to TFT matrix aSi
    • Pixel pitch: 154 μm
    • Useful area: 301mmx 301mm / 207mm x 207mm
    • Matrix: 1956x1956 pix. / 1344 x 1344 pixels
    • Frame rate: 25 FPS

  • Image Quality:
    • DQE: 0 lp/mm - 77%
    • MTF: 1 lp/mm- 59%
    • A/D conversion: 16 bits

  • Anti-Scatter X-Ray Grid:
    • Application: User Removable
    • Material: Aluminum
    • Line rate: 80 Lines/cm ratio 8:1
    • Focal Distance: 100cm

  • Laser Localizer:
    • Operation: Cross light on flat panel and x-ray tube side
    • Laser diode power: < 5mW, 1 M Class
    • Wavelength: 635nm

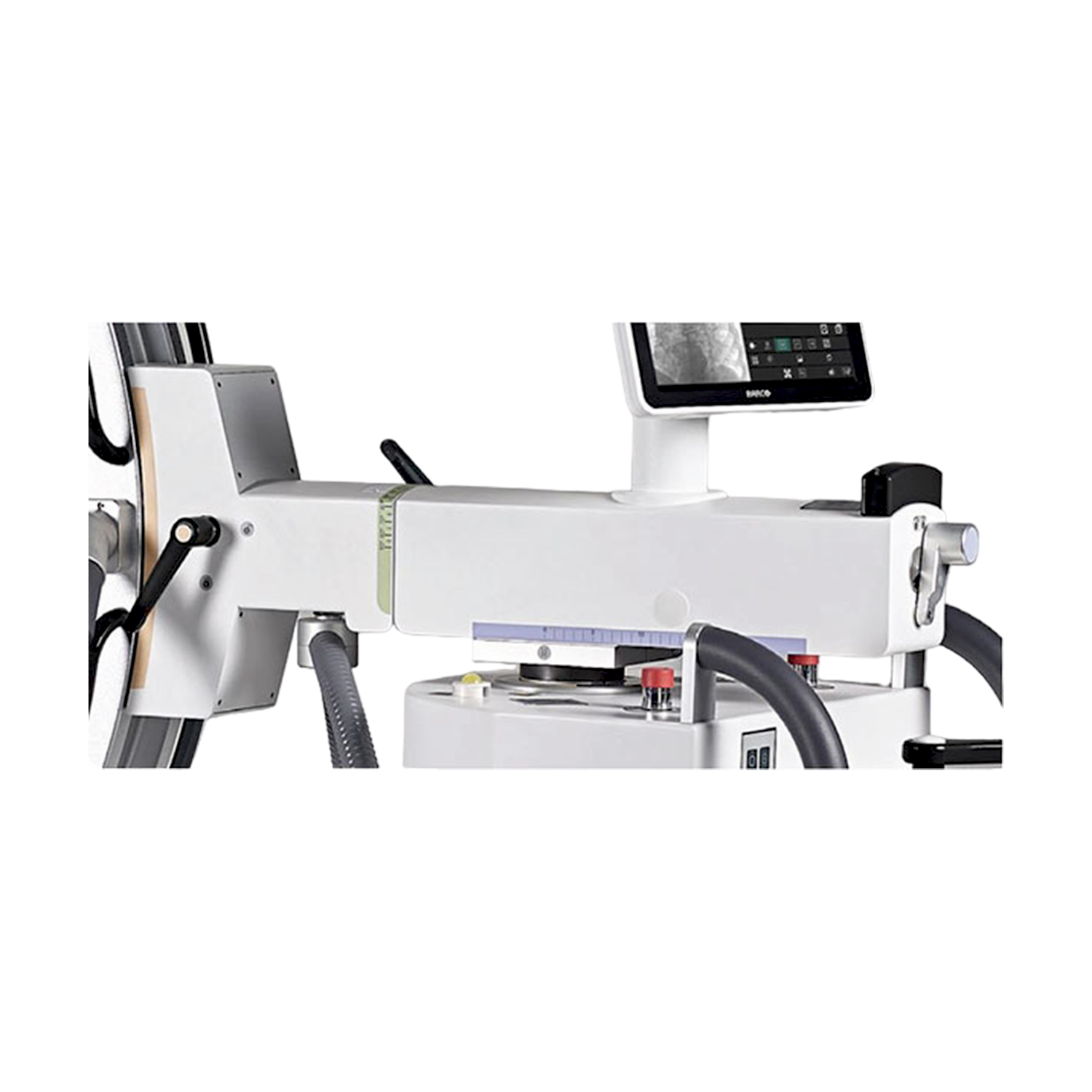

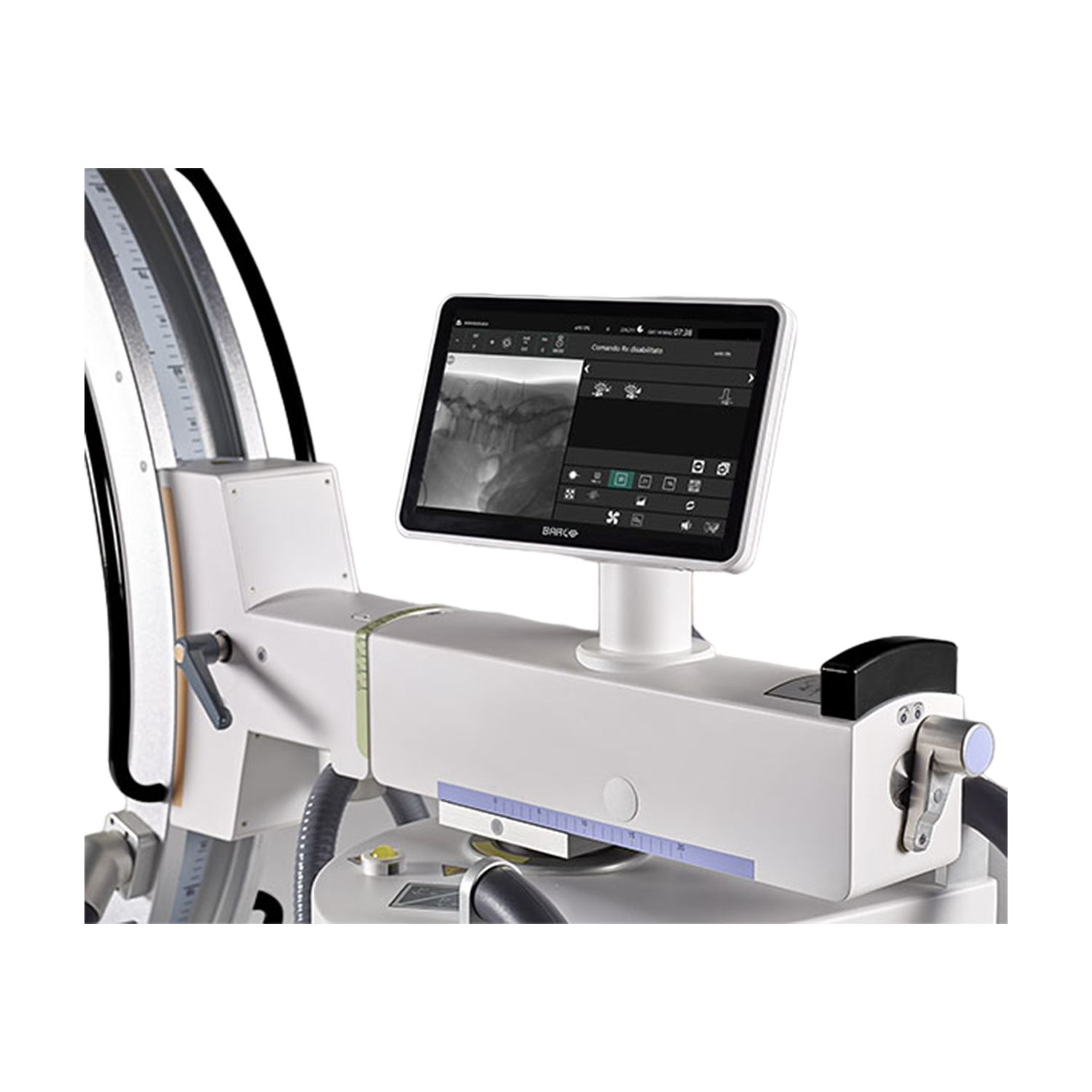

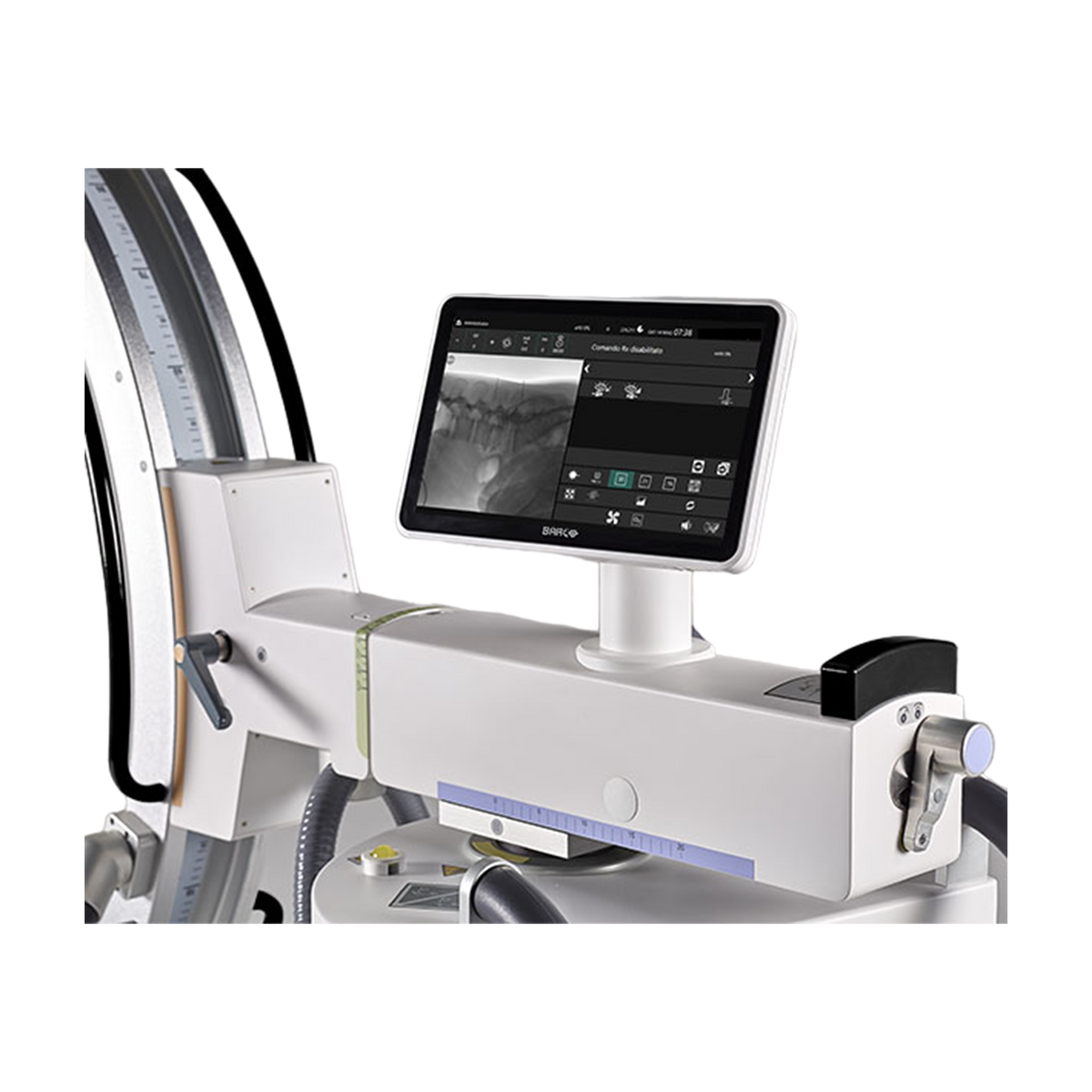

  • Operator Control Panel:
    • Multi-Touch , Color 12,5”
    • LCD panel
    • Rotation: ±135°
    • Resolution: 1920x1080 pixels

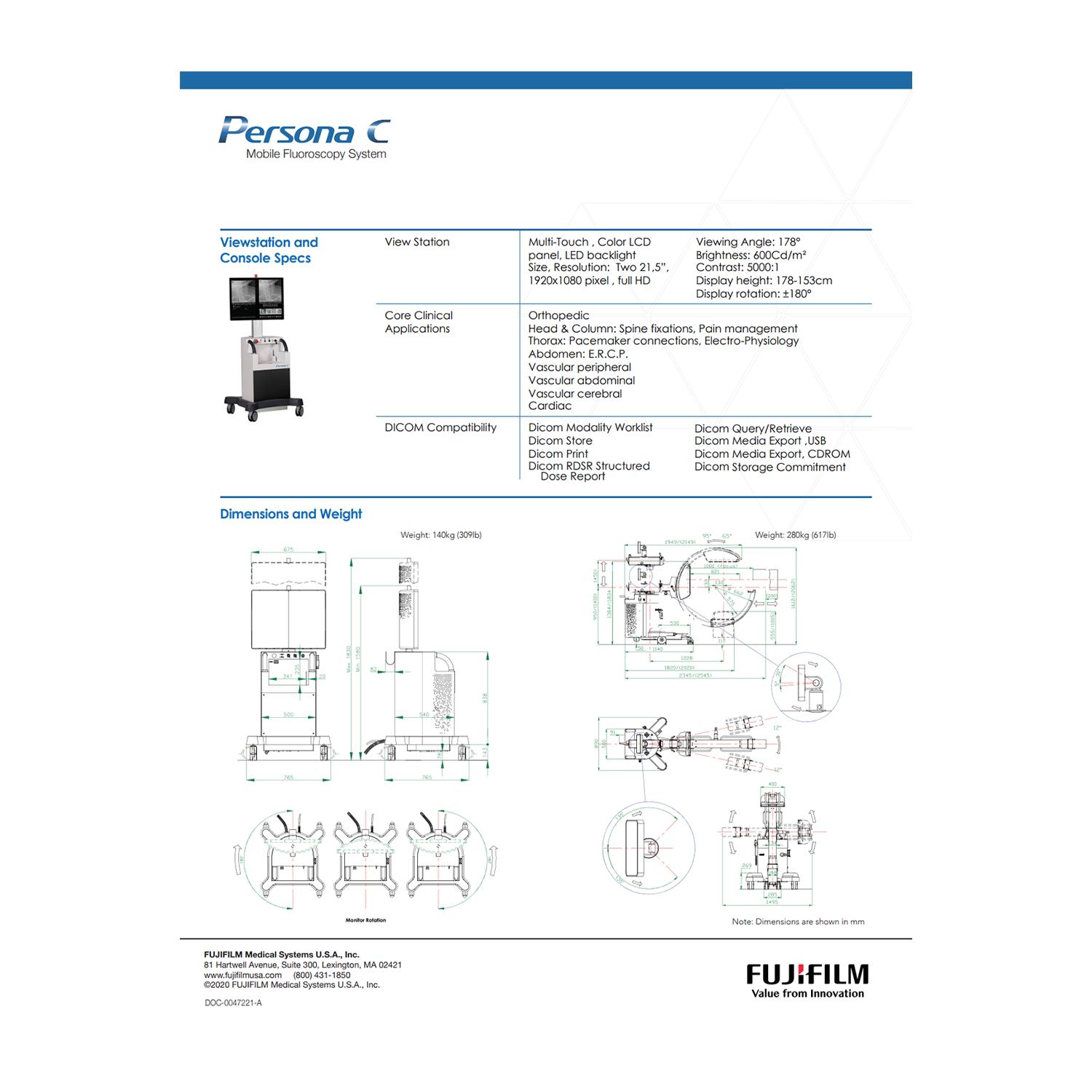

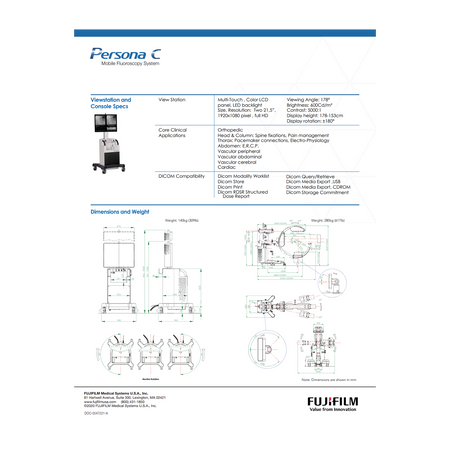

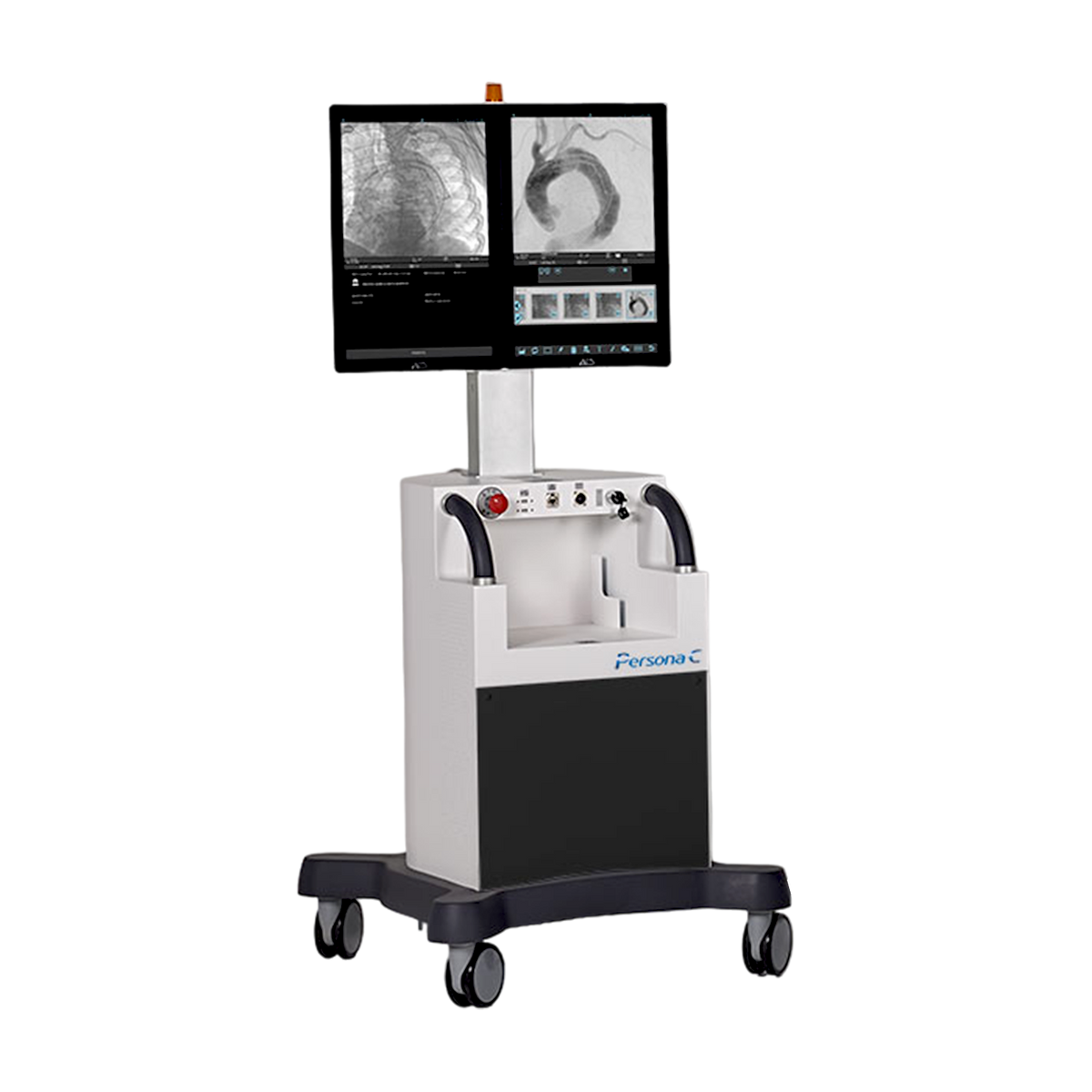

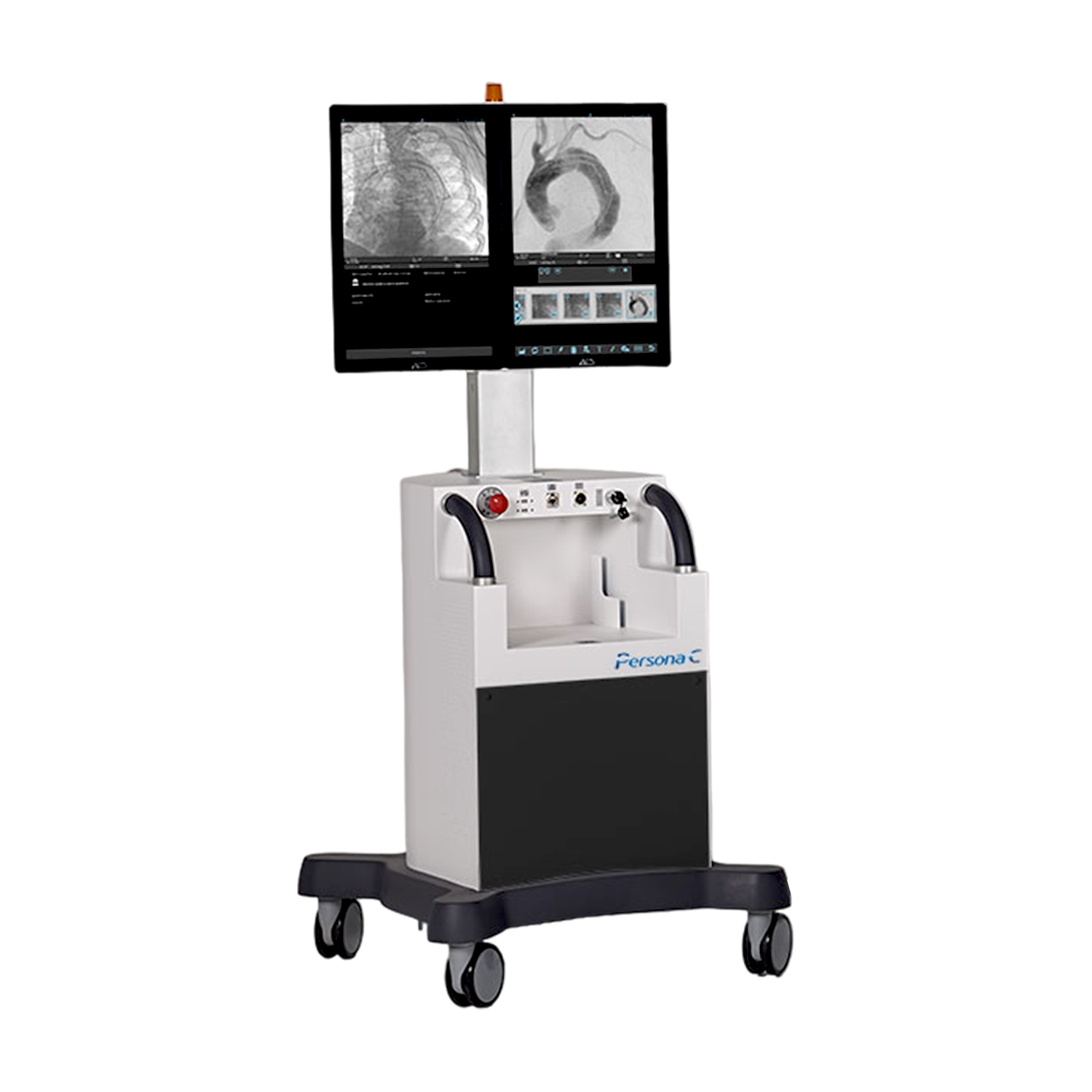

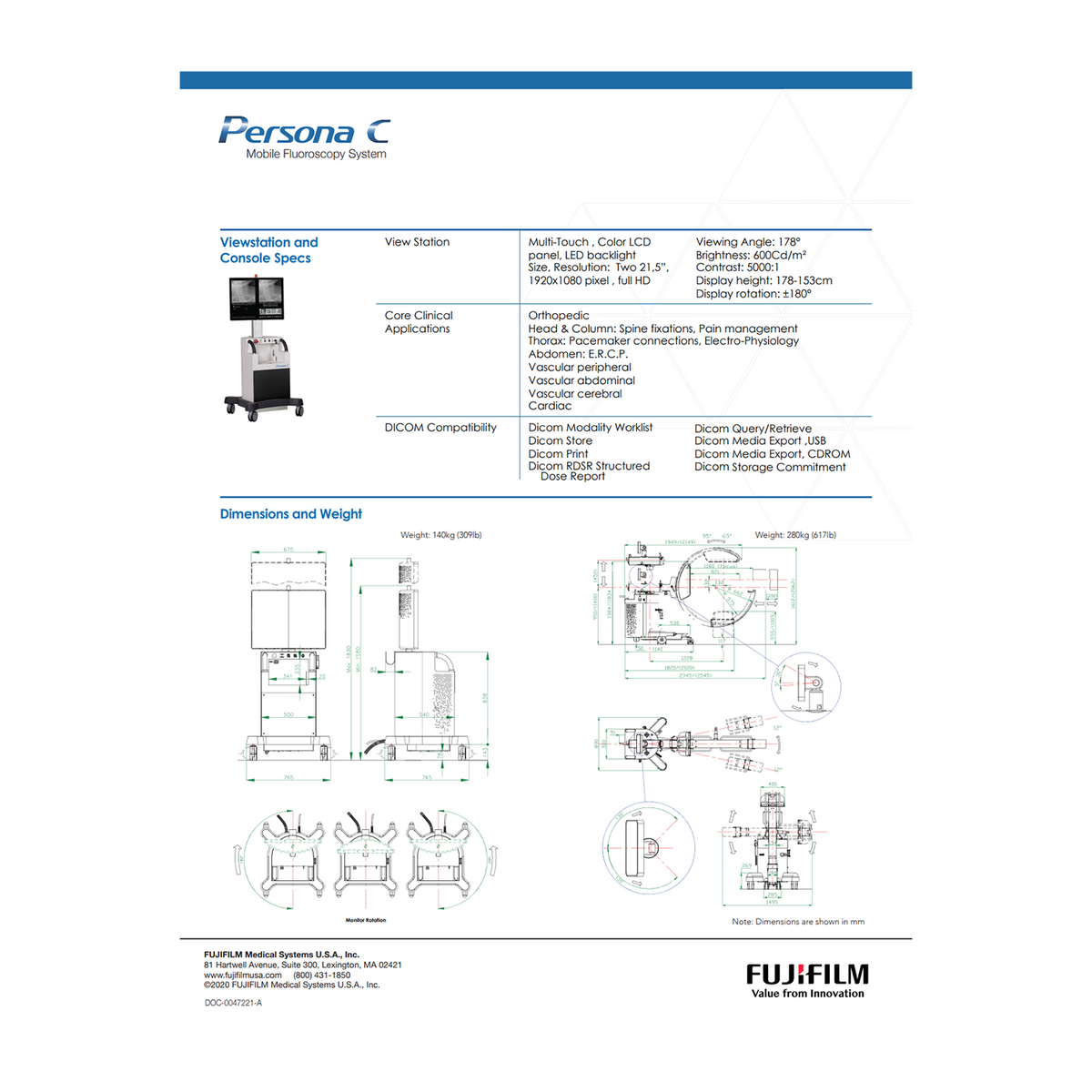

  • View Station:
    • Multi-Touch , Color LCD
    • Panel, LED backlight
    • Size, Resolution: Two 21,5”,
    • 1920x1080 pixel , full HD
    • Viewing Angle: 178°
    • Brightness: 600Cd/m
    • Contrast: 5000:1
    • Display height: 178-153cm
    • Display rotation: ±180°

  • Core Clinical Applications:
    • Orthopedic
    • Head & Column: Spine fixations, Pain management
    • Thorax: Pacemaker connections, Electro-Physiology
    • Abdomen: E.R.C.P.
    • Vascular peripheral
    • Vascular abdominal
    • Vascular cerebral
    • Cardiac

  • DICOM Compatibility:
    • Dicom Modality Worklist
    • Dicom Store
    • Dicom Print
    • Dicom RDSR Structured
    • Dose Report
    • Dicom Query/Retrieve
    • Dicom Media Export ,USB
    • Dicom Media Export, CDROM
    • Dicom Storage Commitment
