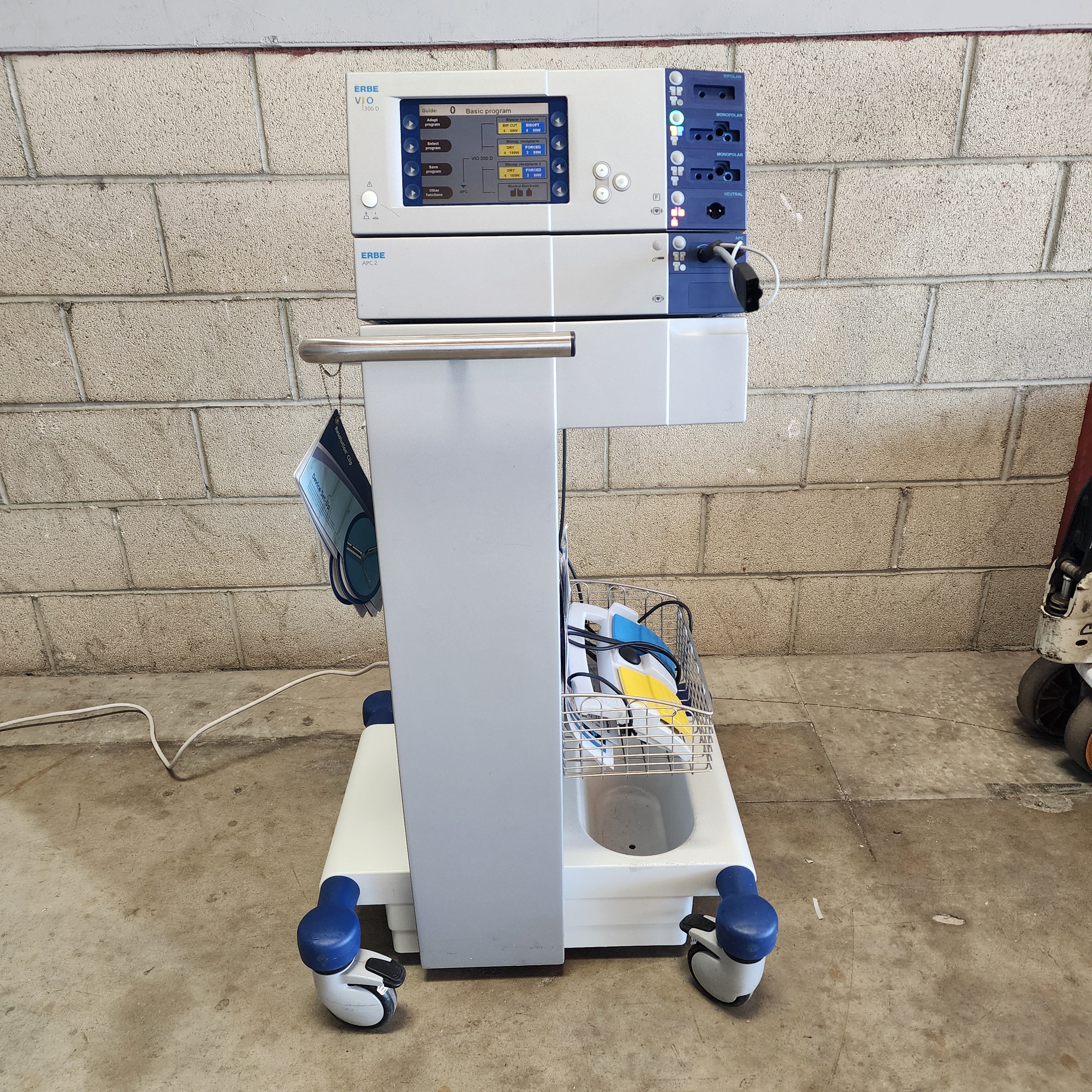

Erbe VIO 300D APC2 ESU System w/ Footswitch & Cart - ENDO Cut Q / ENDO Cut I - Version 2.7.7
Regular price
$9,900.00
LEAD TIME:
Estimated Ship Time: 1-2 Days
PACKAGING:
1
WARRANTY:
30 Days
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.
Couldn't load pickup availability
Listing Terms & Conditions
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
The ERBE VIO 300 D is a premier electrosurgical generator designed for interventional endoscopy and other surgical procedures.
The VIO 300 D delivers high-frequency electrical current for cutting and coagulating tissue.
It has a maximum cut output of 300 watts at 500 ohms and a maximum coagulation output of up to 200 watts.
The VIO 300 D is designed to optimize workflow efficiency while providing precise control for optimal patient outcomes across various endoscopic and surgical applications.
FEATURES:
- Cutting and Coagulation Modes:
- The system provides specialized modes for precise tissue effects:
- Cutting Modes:
- DRY CUT
- AUTO CUT
- ENDO CUT I
- ENDO CUT Q
- Coagulation Modes:
- SWIFT COAG
- SOFT COAG
- FORCED COAG
- BIPOLAR SOFT COAG
- Cutting Modes:
- Proprietary Voltage and Spark Control:
- Constant Voltage Regulation:
- Automatically delivers the lowest effective power output in all modes.
- Power Peak System:
- Provides optimal support during the initial cutting stage, especially in low contact impedance situations.
- Spark Recognition:
- Automatically detects micro-electric arcs for controlled and reproducible cuts.
- Constant Voltage Regulation:
- User-Friendly Interface:

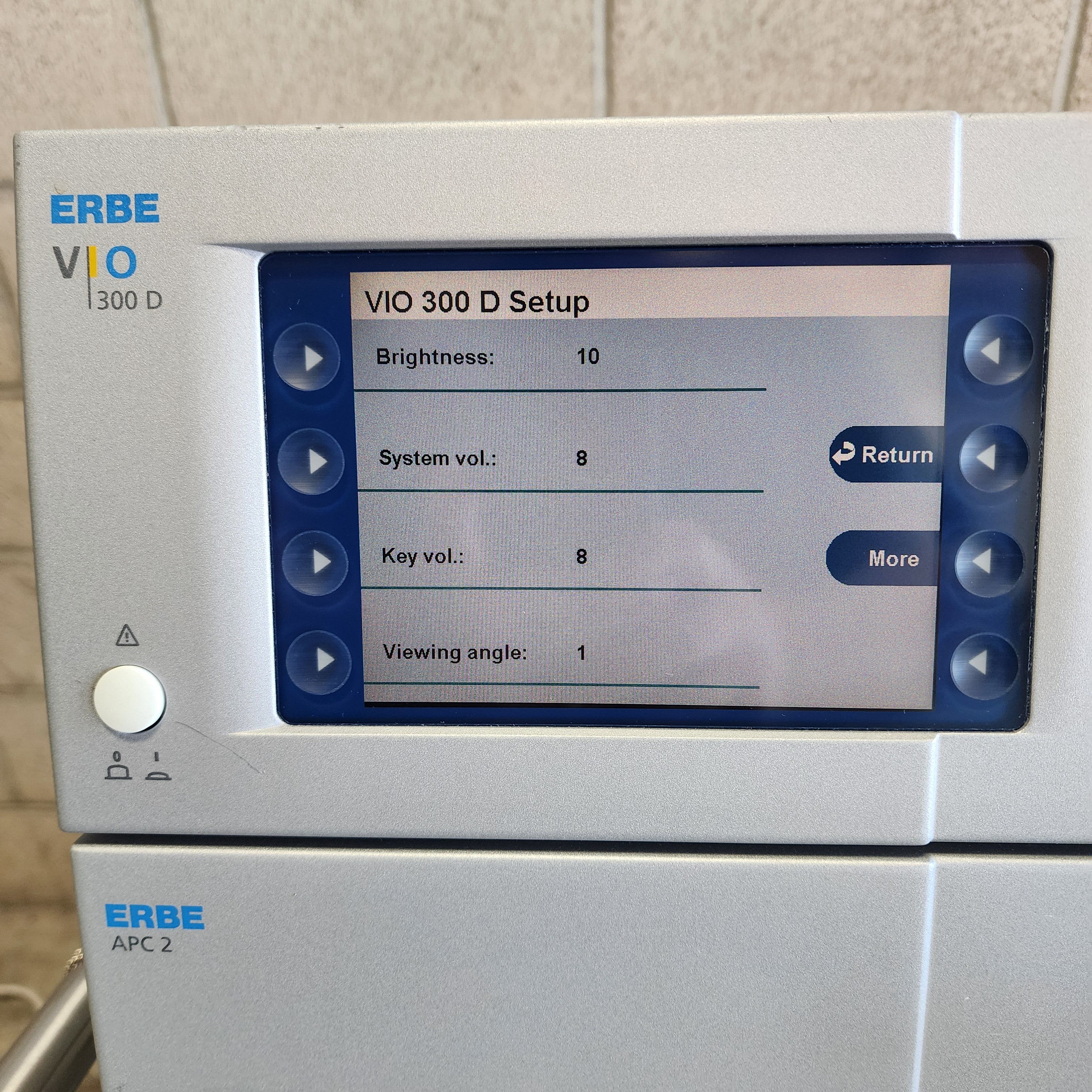

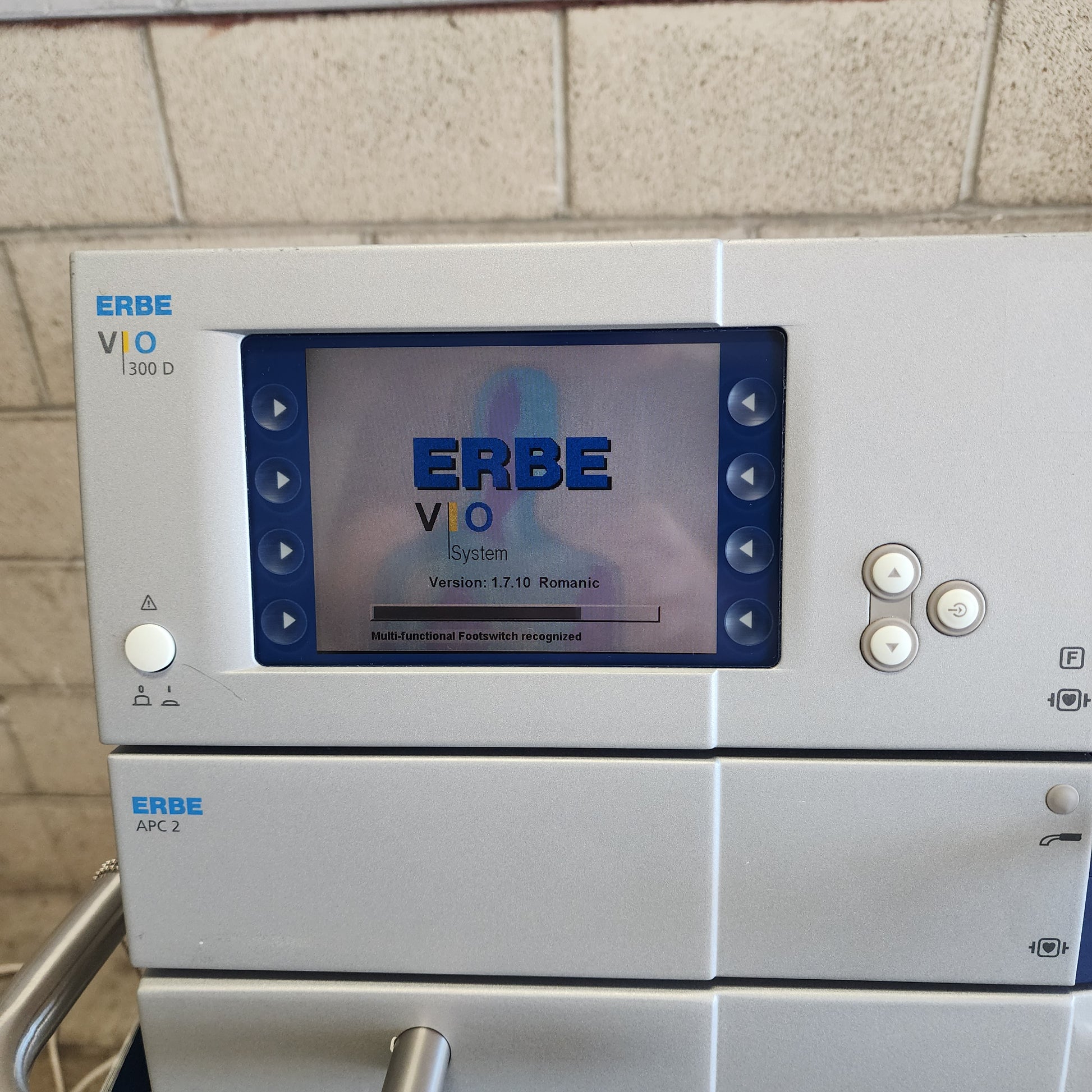

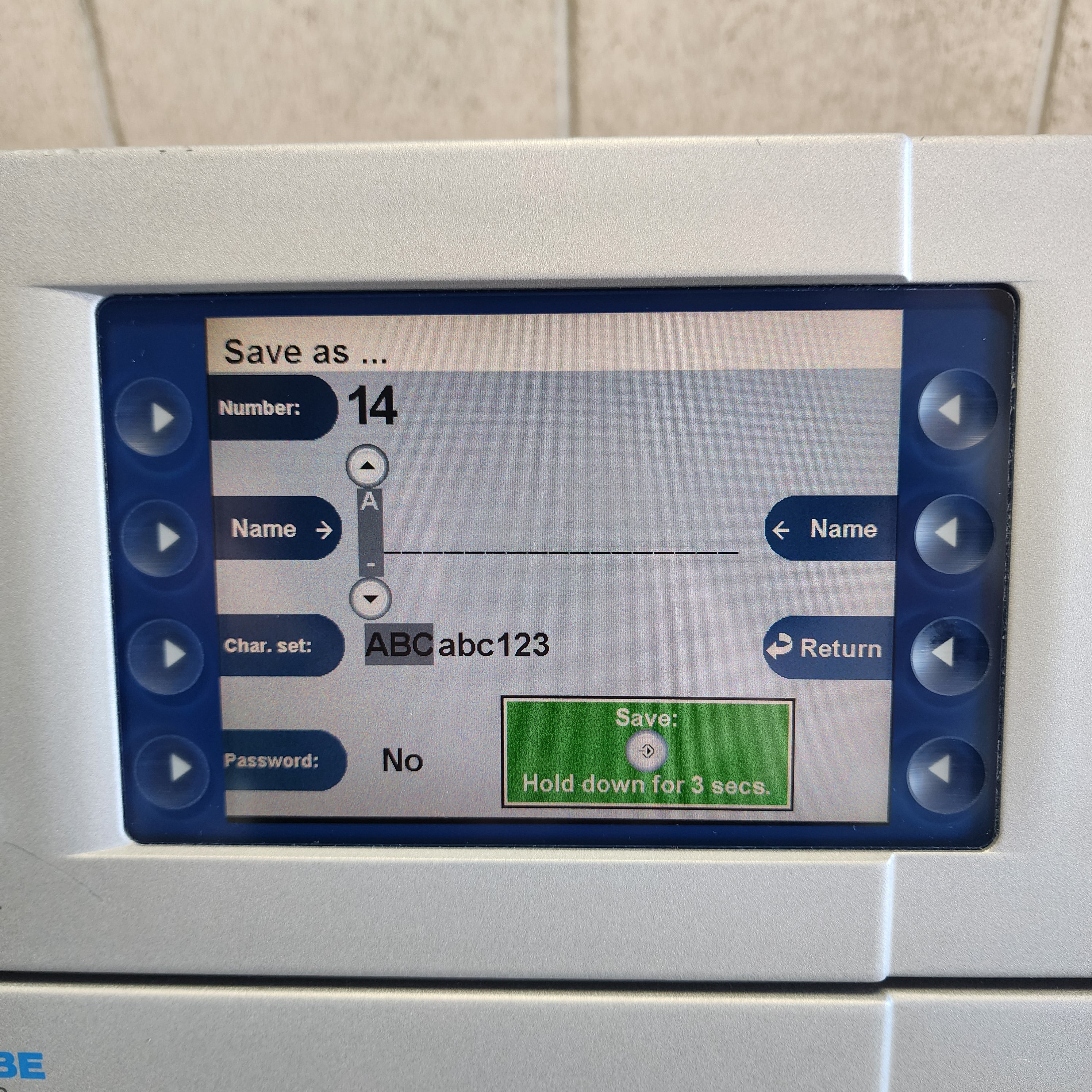

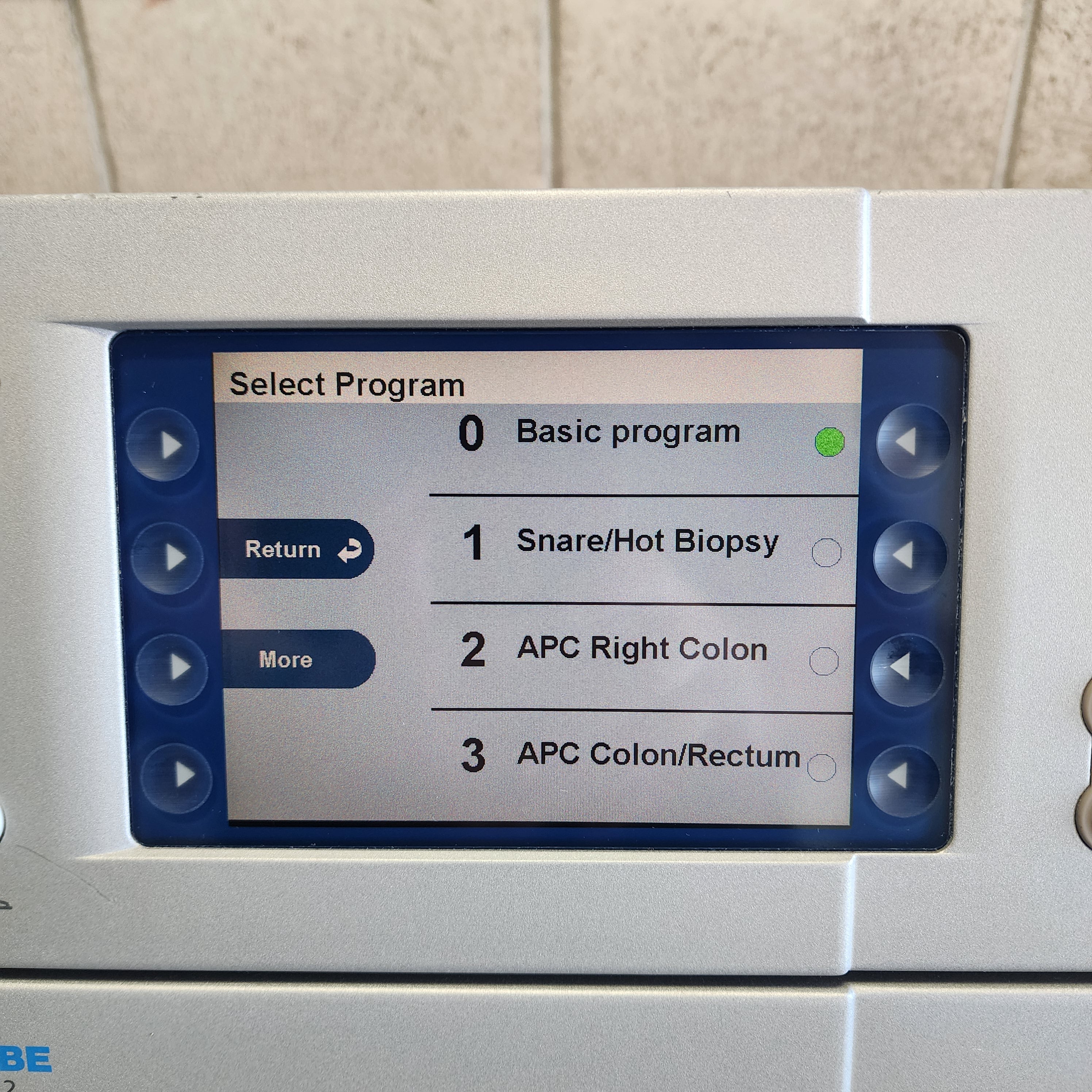

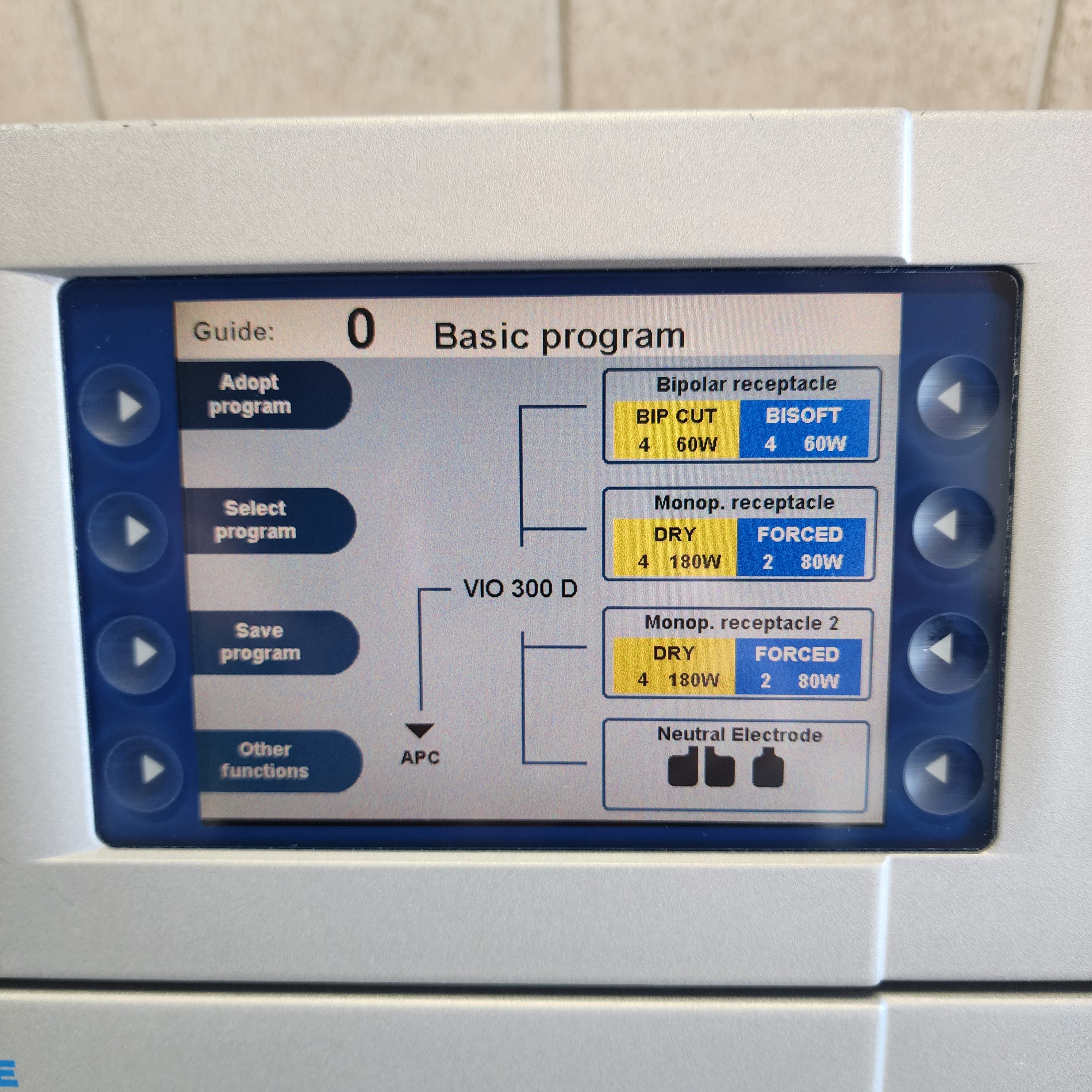

- Full-color Display:
- Features FocusView for simplified operation and PreView for real-time visualization of tissue effects.
- Plug and Play:
- Automatic instrument recognition configures settings based on the connected tool.
- ReMode:
- Allows switching between preset modes using the footswitch without staff intervention.
- Full-color Display:
- Advanced Power Management:
- Maximum CUT output of 300 watts at 500 ohms.
- Maximum COAG output of up to 200 watts.
- Operates at a frequency of 350 kHz.
- Modularity and Expansion:
- The VIO 300 D can function as a standalone generator or serve as the foundation for a modular system supporting a wide range of interventional procedures.
- The system provides specialized modes for precise tissue effects:
SPECIFICATIONS:
- Manufacturer: Erbe
- Part Number: (OEM):

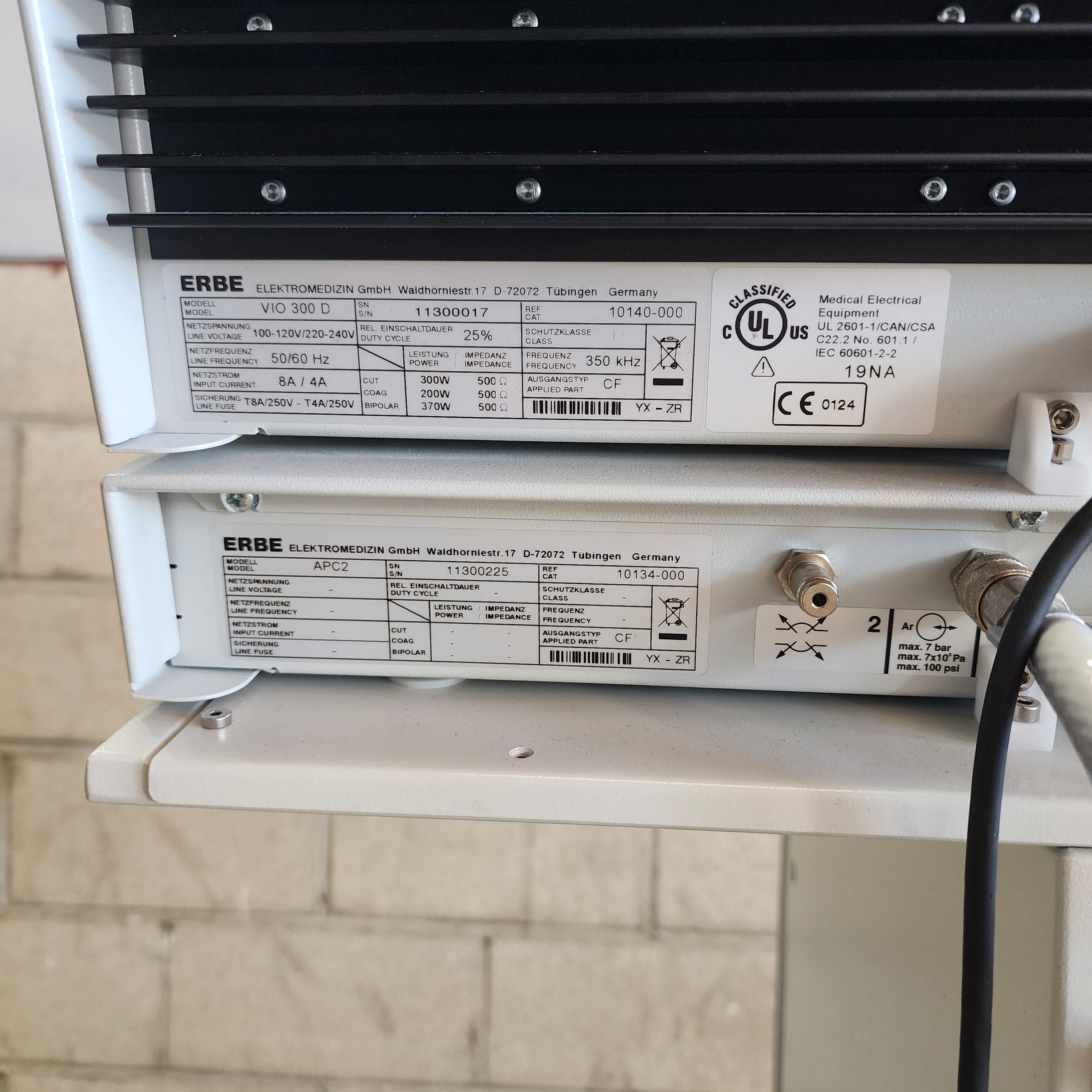

- VIO 300 D: 10140-000
- APC2 - 10134-000

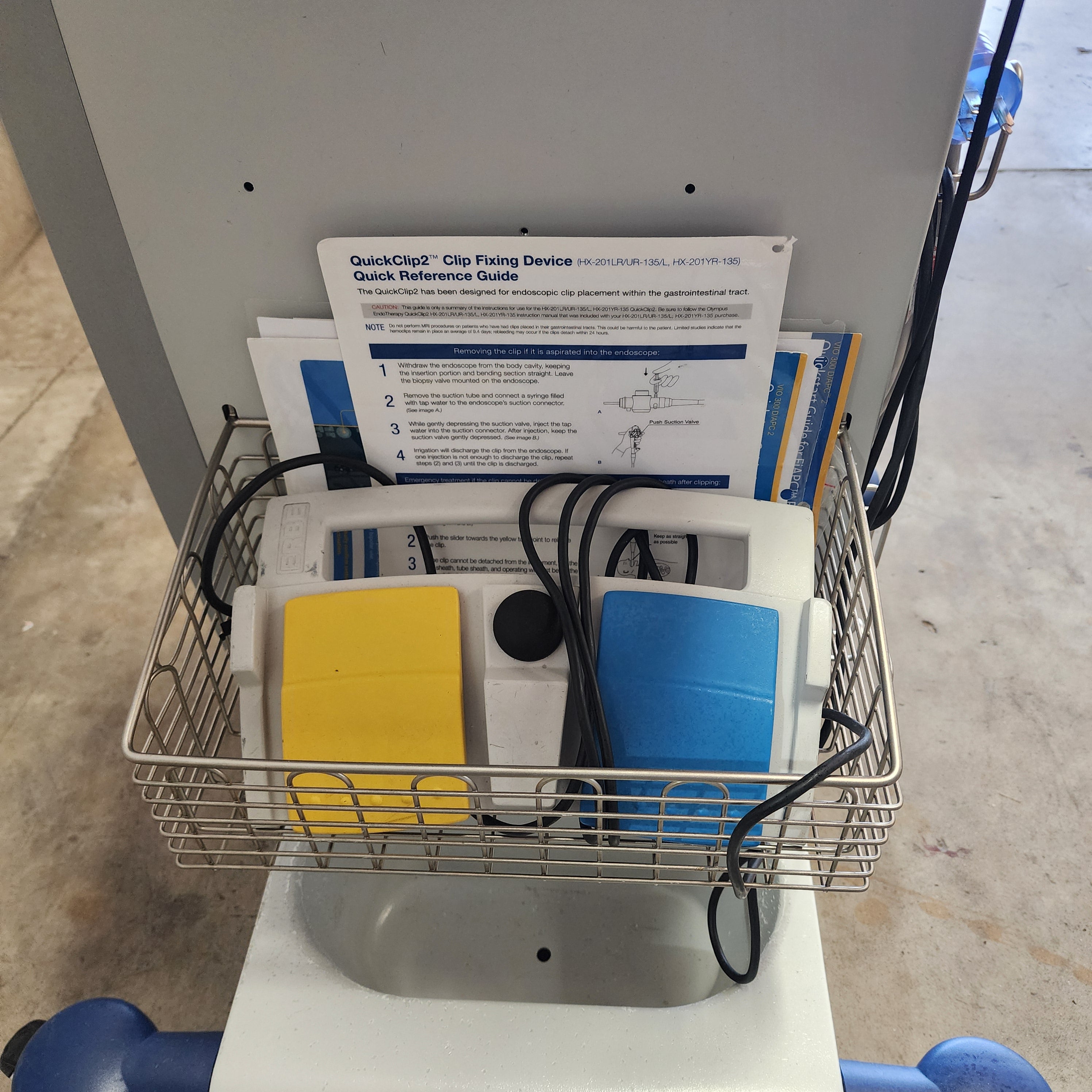

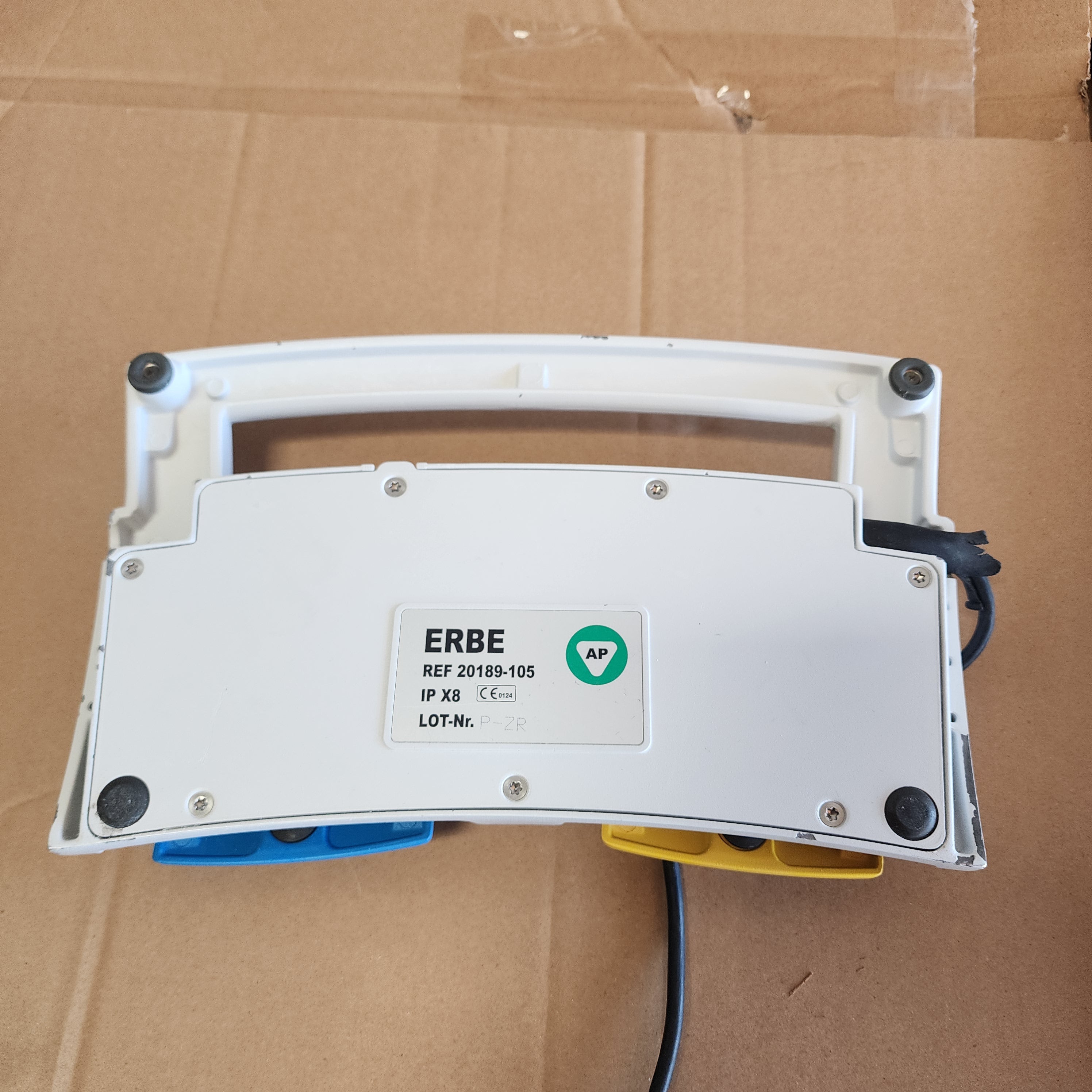

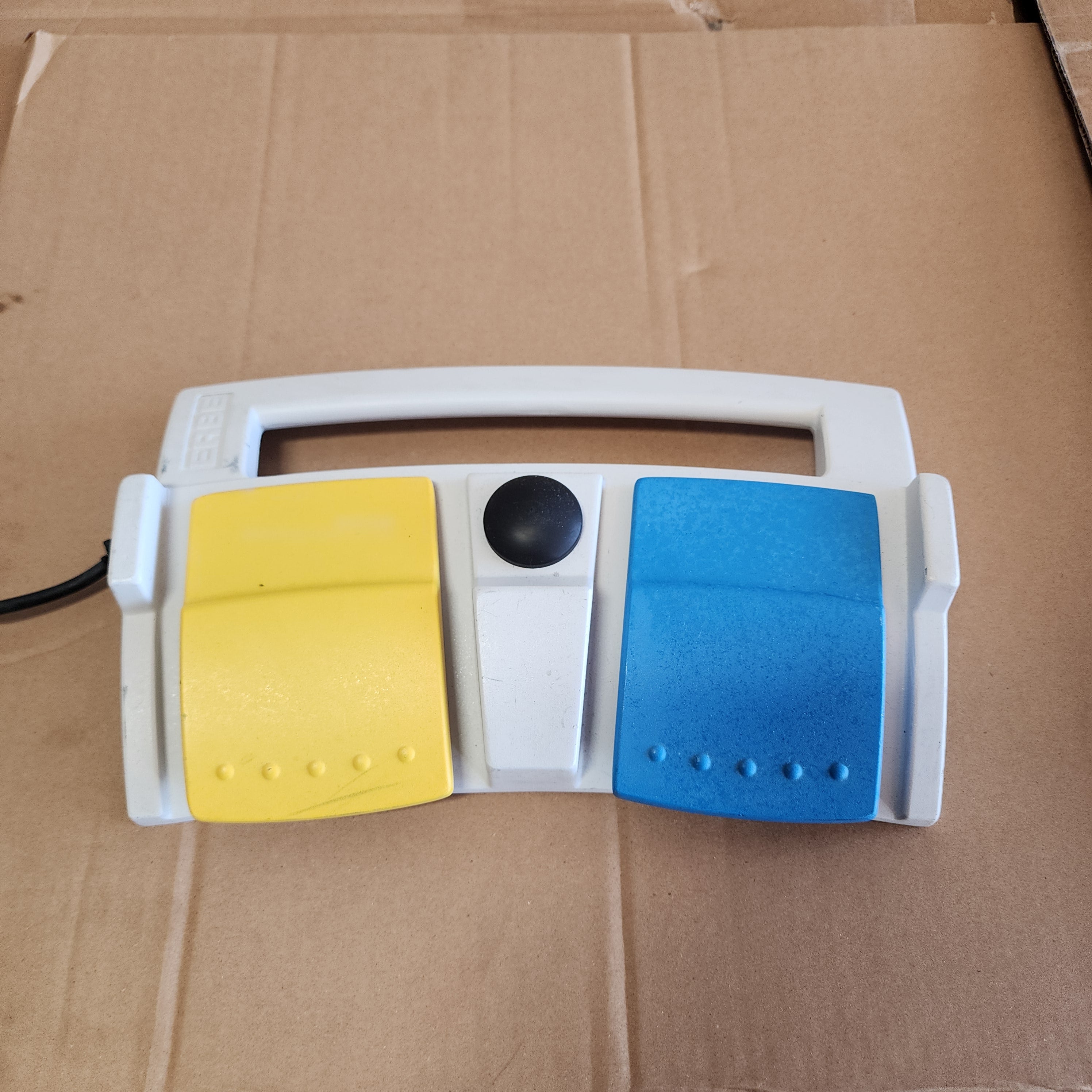

- VIO Footswitch - 20189-105

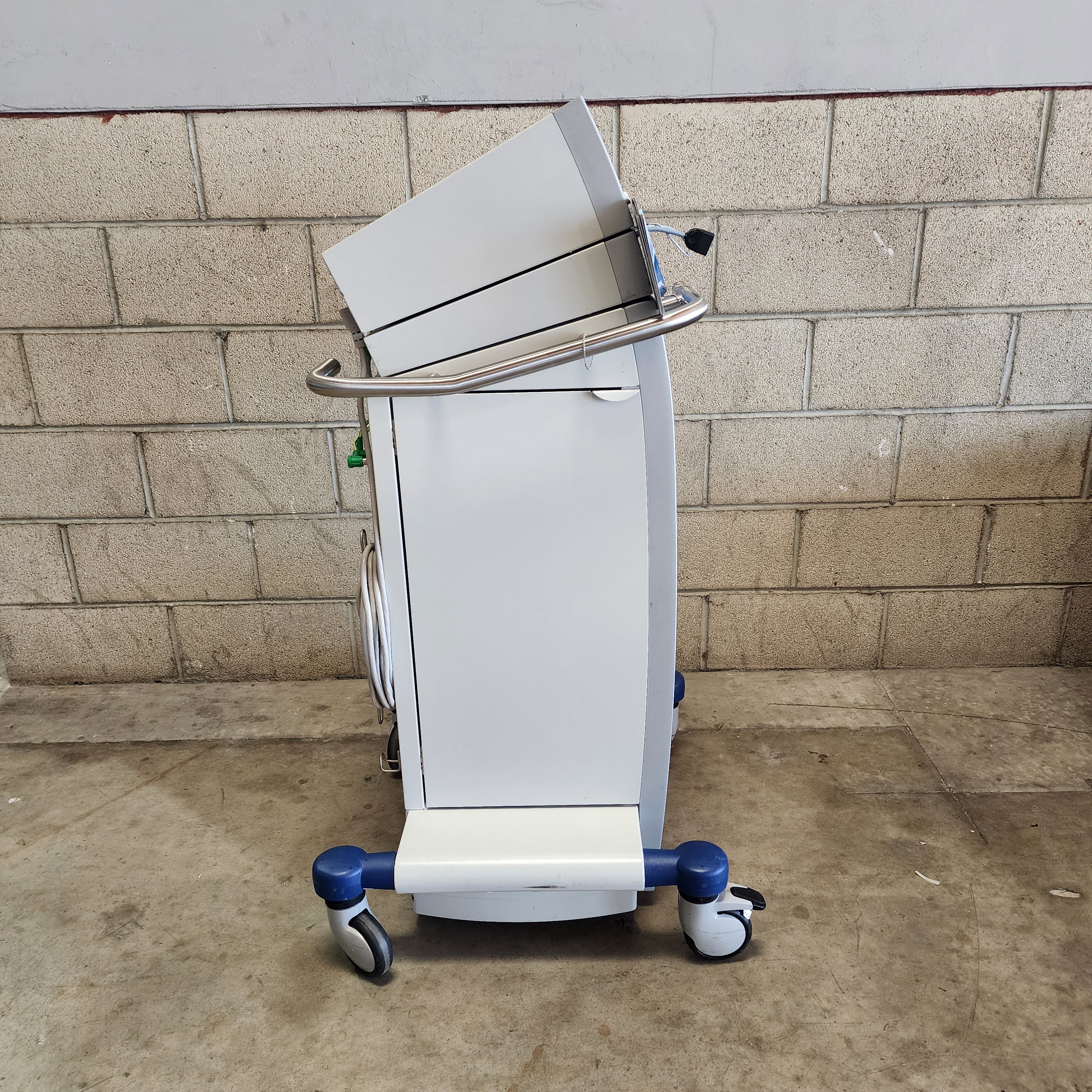

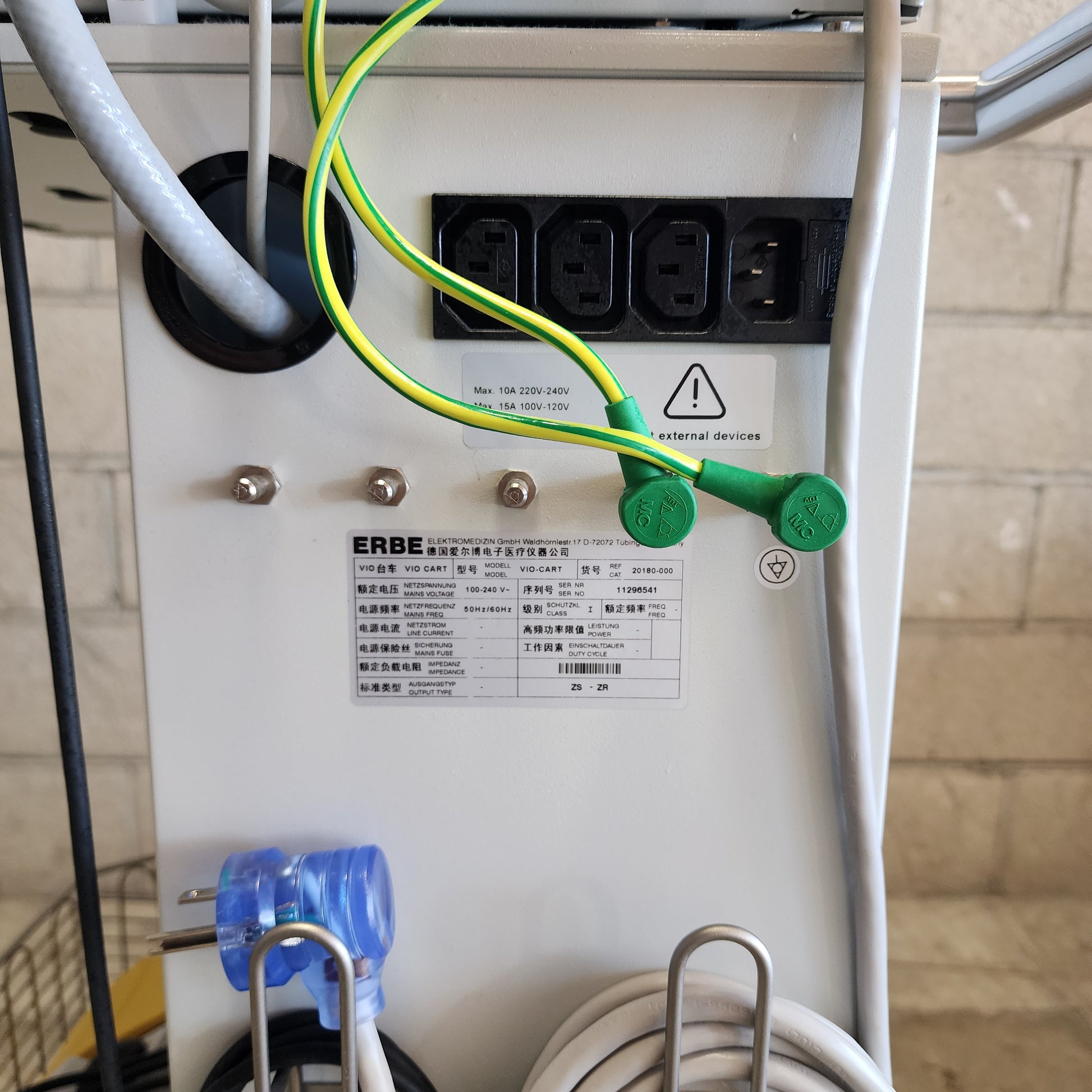

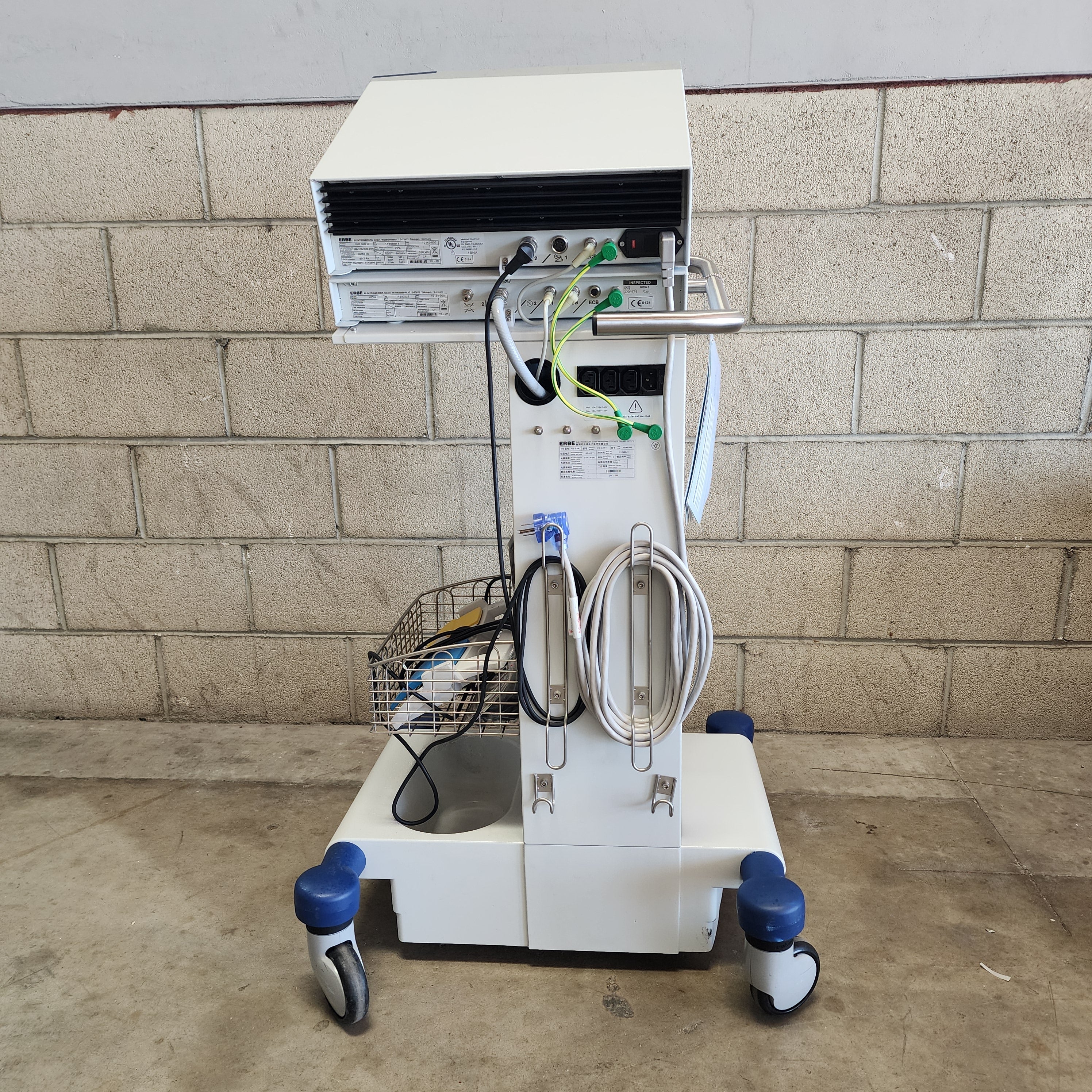

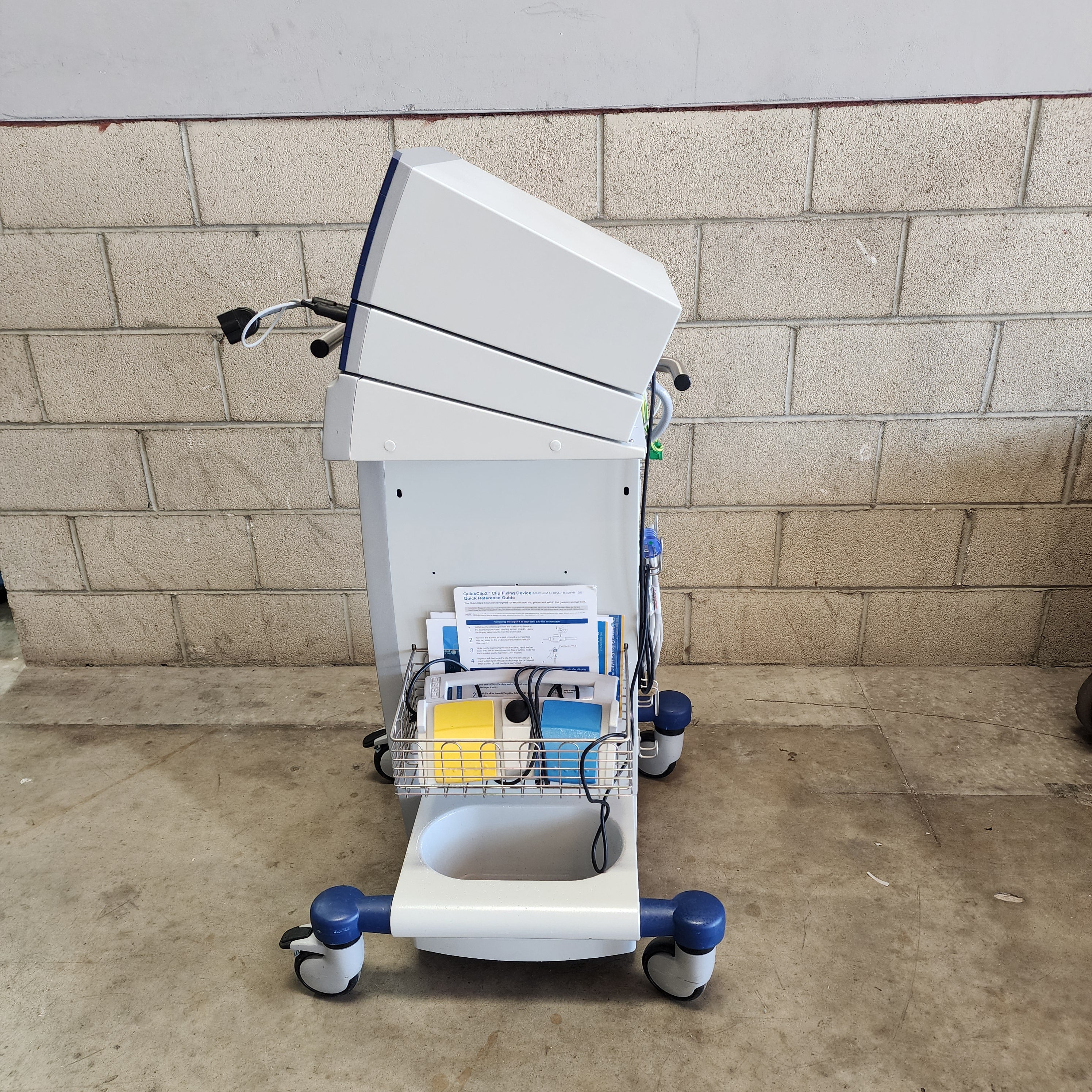

- VIO Cart: 20180-000
- Category: Surgical
- Condition: Refurbished
- Weight: 120 lbs.
- Warranty: 30 Days
FEATURES:
- Cutting and Coagulation Modes:
- The system provides specialized modes for precise tissue effects:
- Cutting Modes:
- DRY CUT
- AUTO CUT
- ENDO CUT I
- ENDO CUT Q
- Coagulation Modes:
- SWIFT COAG
- SOFT COAG
- FORCED COAG
- BIPOLAR SOFT COAG
- Cutting Modes:
- The system provides specialized modes for precise tissue effects:
- Proprietary Voltage and Spark Control:
- Constant Voltage Regulation:
- Automatically delivers the lowest effective power output in all modes.
- Power Peak System:
- Provides optimal support during the initial cutting stage, especially in low contact impedance situations.
- Spark Recognition:
- Automatically detects micro-electric arcs for controlled and reproducible cuts.
- Constant Voltage Regulation:
- User-Friendly Interface:
- Full-color Display:
- Features FocusView for simplified operation and PreView for real-time visualization of tissue effects.
- Plug and Play:
- Automatic instrument recognition configures settings based on the connected tool.
- ReMode:
- Allows switching between preset modes using the footswitch without staff intervention.
- Full-color Display:
- Advanced Power Management:
- Maximum CUT output of 300 watts at 500 ohms.
- Maximum COAG output of up to 200 watts.
- Operates at a frequency of 350 kHz.
- Modularity and Expansion:
- The VIO 300 D can function as a standalone generator or serve as the foundation for a modular system supporting a wide range of interventional procedures.
SPECIFICATIONS:
- Power Output:
- Maximum CUT output: 300 watts at 500 ohms
- Maximum COAG output: Up to 200 watts
- Operating frequency: 350 kHz
- Physical Specifications:
- Dimensions:
- 24.80"x 47.0" x 25.59" (W x H x D)
- Weight:
- 120lbs
- Dimensions:
- Electrical Specifications:
- Power input:
- 100-120V / 220-240V ± 10%, 50/60 Hz
- Maximum line current:
- 8 A / 4 A
- Power consumption in standby:
- 40 watts
- Power consumption at max RF output:
- 500 watts / 920 VA
- Power input:
- Operating Conditions:
- Operating temperature:
- +10°C to +40°C (+50°F to +104°F)
- Relative humidity:
- 15% - 80%, non-condensing
- Operating temperature:
- Safety Features:
- NESSY safety system
- Protection class:
- I (according to EN 60 601-1)
- Type:
- CF (according to EN 60 601-1)
ACCESSORIES:
- Equipment Carts:
- Universal Cart for ICC/APC/VIO:
- 20185-204
- VIO Cart System Carrier:
- 20180-000
- Wire Basket for VIO Cart:
- 20180-010
- Universal Cart for ICC/APC/VIO:
- Foot Switches:
- One Pedal Footswitch (VIO 3 ReMode):
- 20188-350
- Two Pedal Footswitch with ReMode and Bracket:
- 20189-305
- Two Pedal Footswitch with ReMode, Bracket, and Middle Piece:
- 20189-353
- One Pedal Footswitch (VIO 3 ReMode):
- Cables:
- Monopolar Cable MO 3 Pin (4.5m):
- 20192-133, 20192-134, 20192-135
- Monopolar Connecting Cable Bovie Jack (4m):
- 20192-130, 20192-125
- Bipolar Connecting Cable for Olympus Resectoscope (4.5m):
- 21196-115
- Bipolar Connecting Cable for Storz Resectoscope (4.5m):
- 21196-118
- Bipolar Connecting Cable for Wolf Resectoscope (4.5m):
- 21196-119
- Monopolar Cable MO 3 Pin (4.5m):
- Adapters and Electrosurgical Pencils:
- Monopolar Module Cover, 3-PIN:
- 20140-626
- Disposable Push Button Pencil with 1" Blade and Holster:
- 20190-107U
- Adapter for BICAP and/or GOLDPROBE:
- 20183-053
- Monopolar Adapter, Bovie Jack:
- 20183-068
- Adapter Bipolar Resection:
- 20183-110
- Monopolar Module Cover, 3-PIN:
COMPATIBILITY:
-
- Modular Expansion:
- The system can function as a standalone generator or serve as the foundation for a modular system. It is specifically noted to be compatible with:
- APC 2 (Argon Plasma Coagulation) module for advanced endoscopic procedures
- The system can function as a standalone generator or serve as the foundation for a modular system. It is specifically noted to be compatible with:
- Accessory Compatibility:
- The VIO 300 D is compatible with various Erbe accessories, including:
- Universal carts and equipment carriers
- Single and dual-pedal footswitches
- Monopolar and bipolar cables for different instruments
- Adapters for various electrosurgical tools (e.g. BICAP, GOLDPROBE)
- The VIO 300 D is compatible with various Erbe accessories, including:
- Resectoscope Compatibility:
- Specific bipolar connecting cables are available for use with resectoscopes from major manufacturers:
- Olympus
- Storz
- Wolf
- Specific bipolar connecting cables are available for use with resectoscopes from major manufacturers:
- Voltage Compatibility:
- The system is designed to work with a range of input voltages:
- 100-120V / 220-240V ± 10%, 50/60 Hz
- The system is designed to work with a range of input voltages:
- Modular Expansion:
