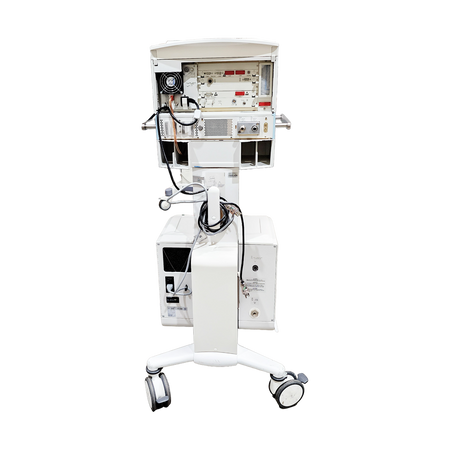

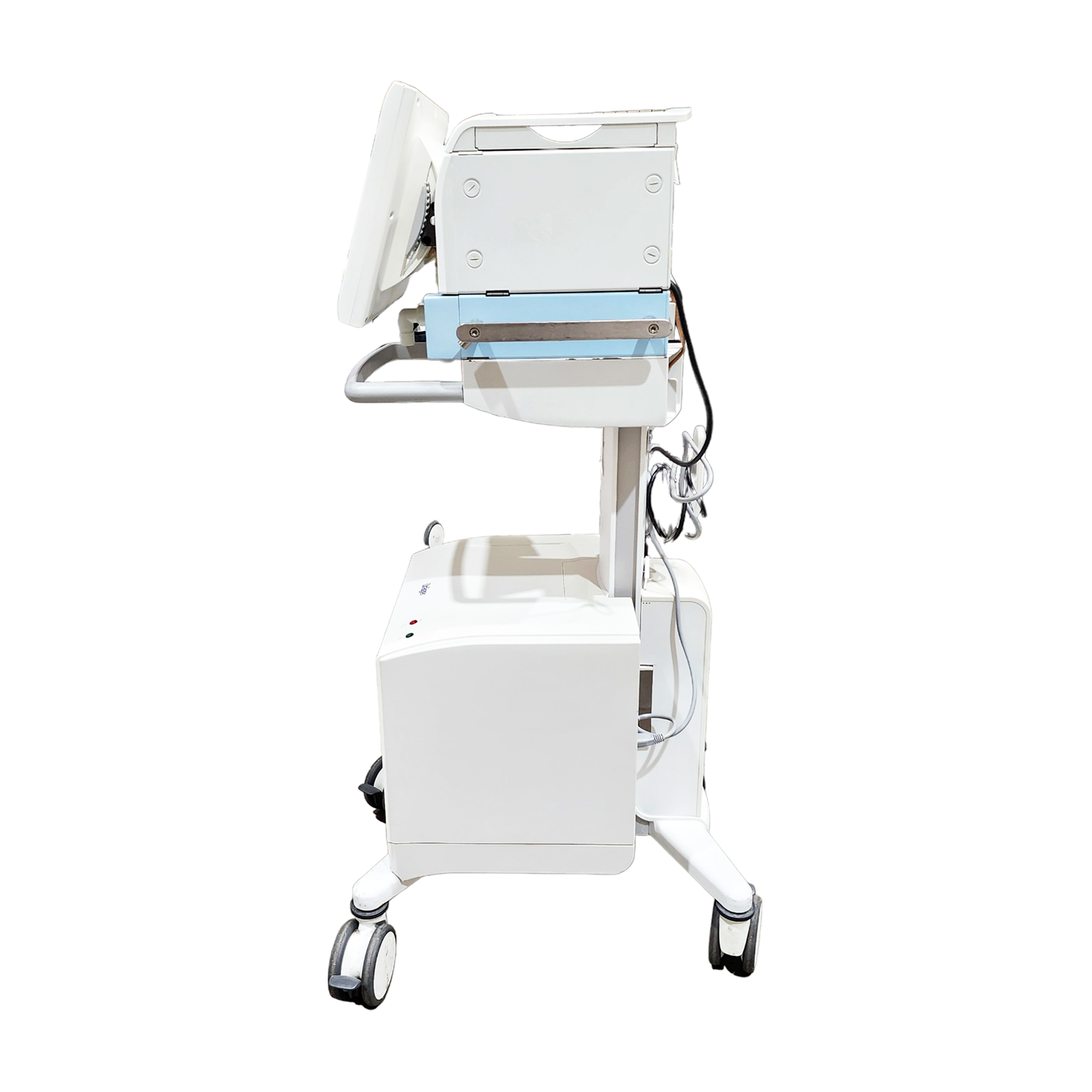

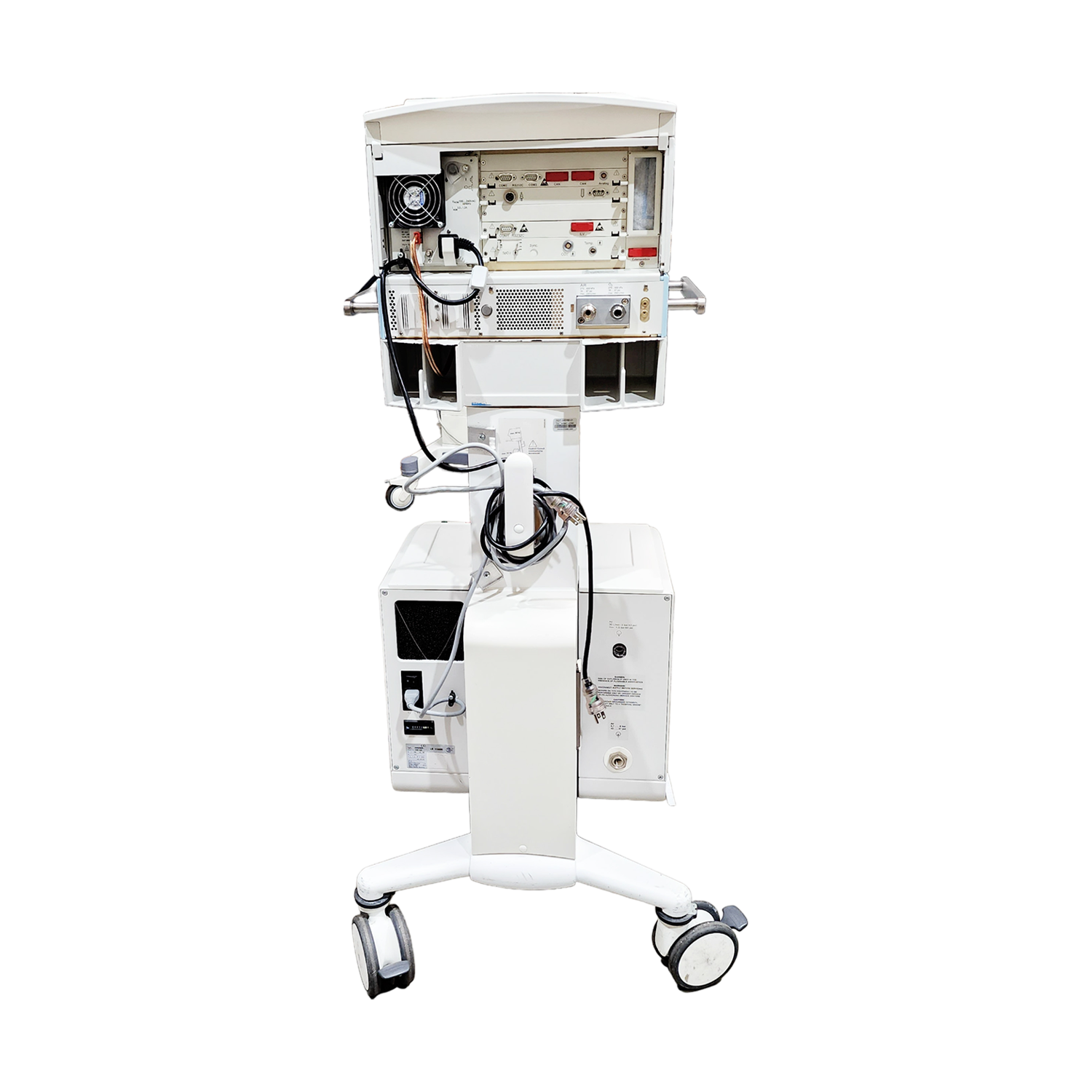

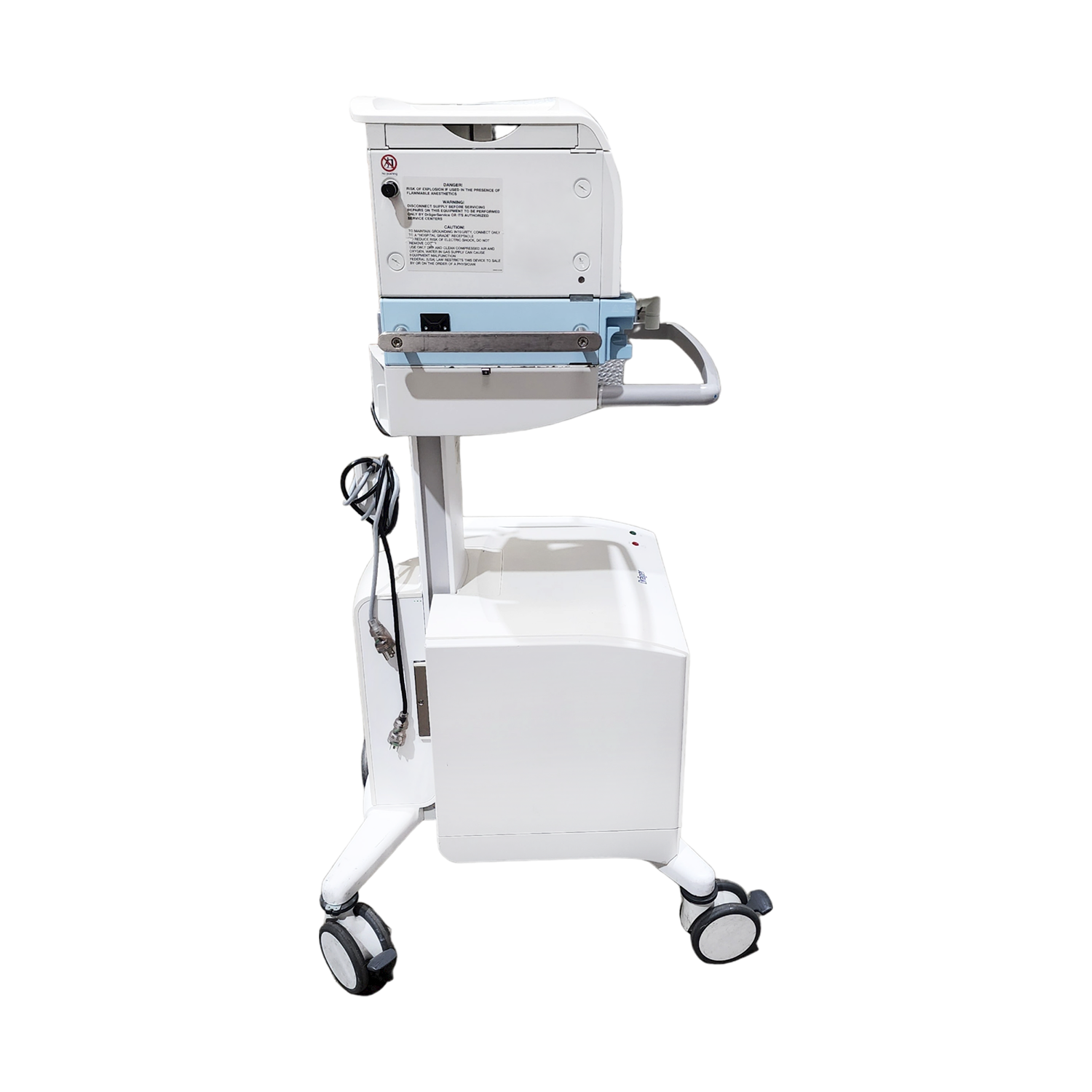

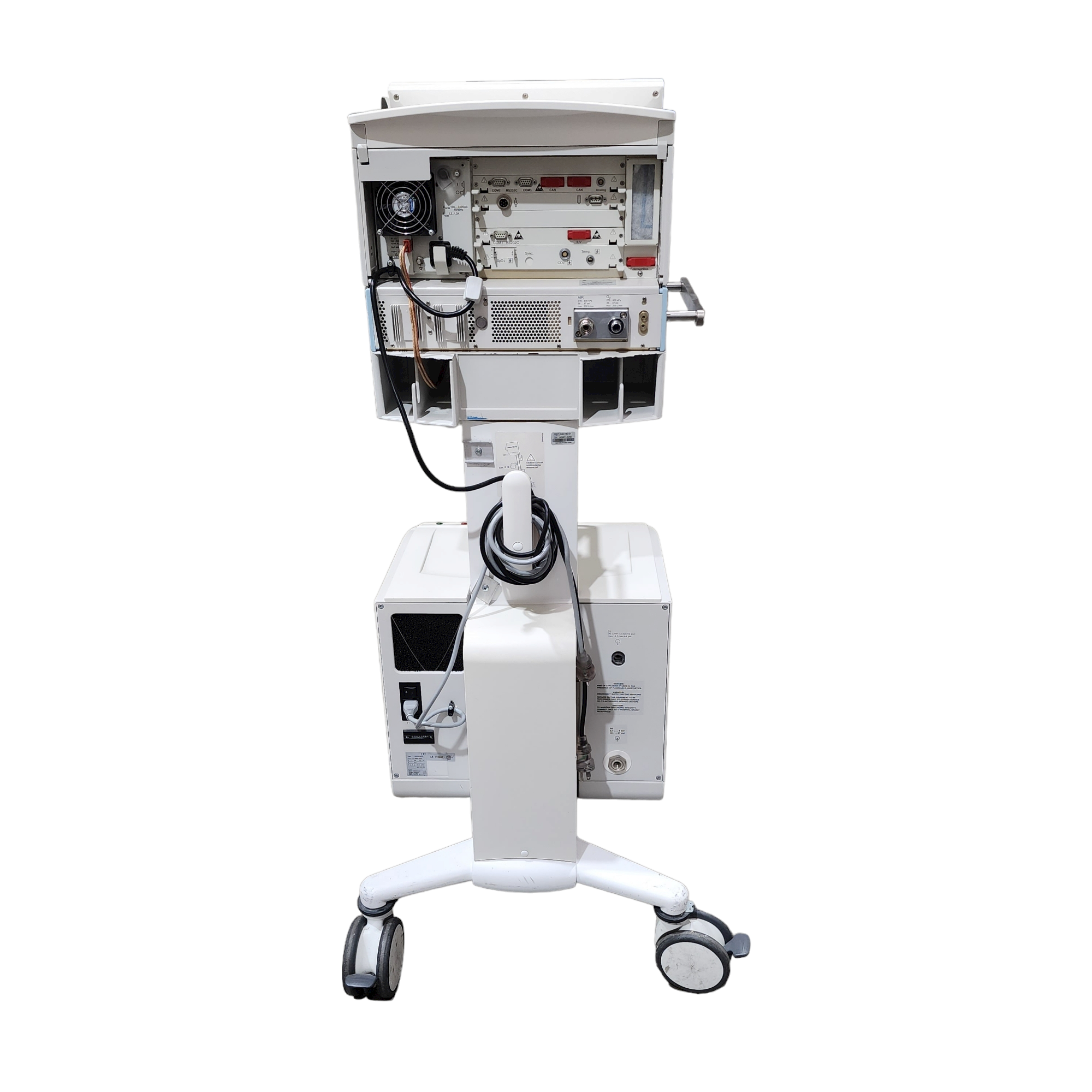

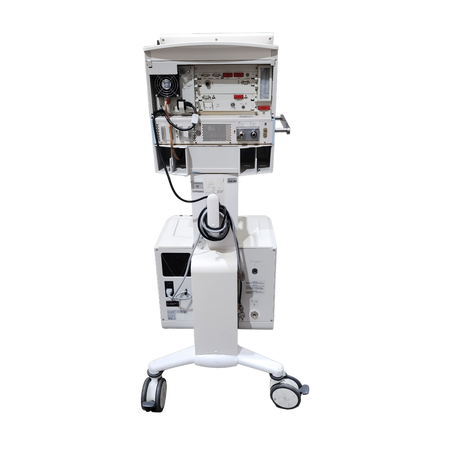

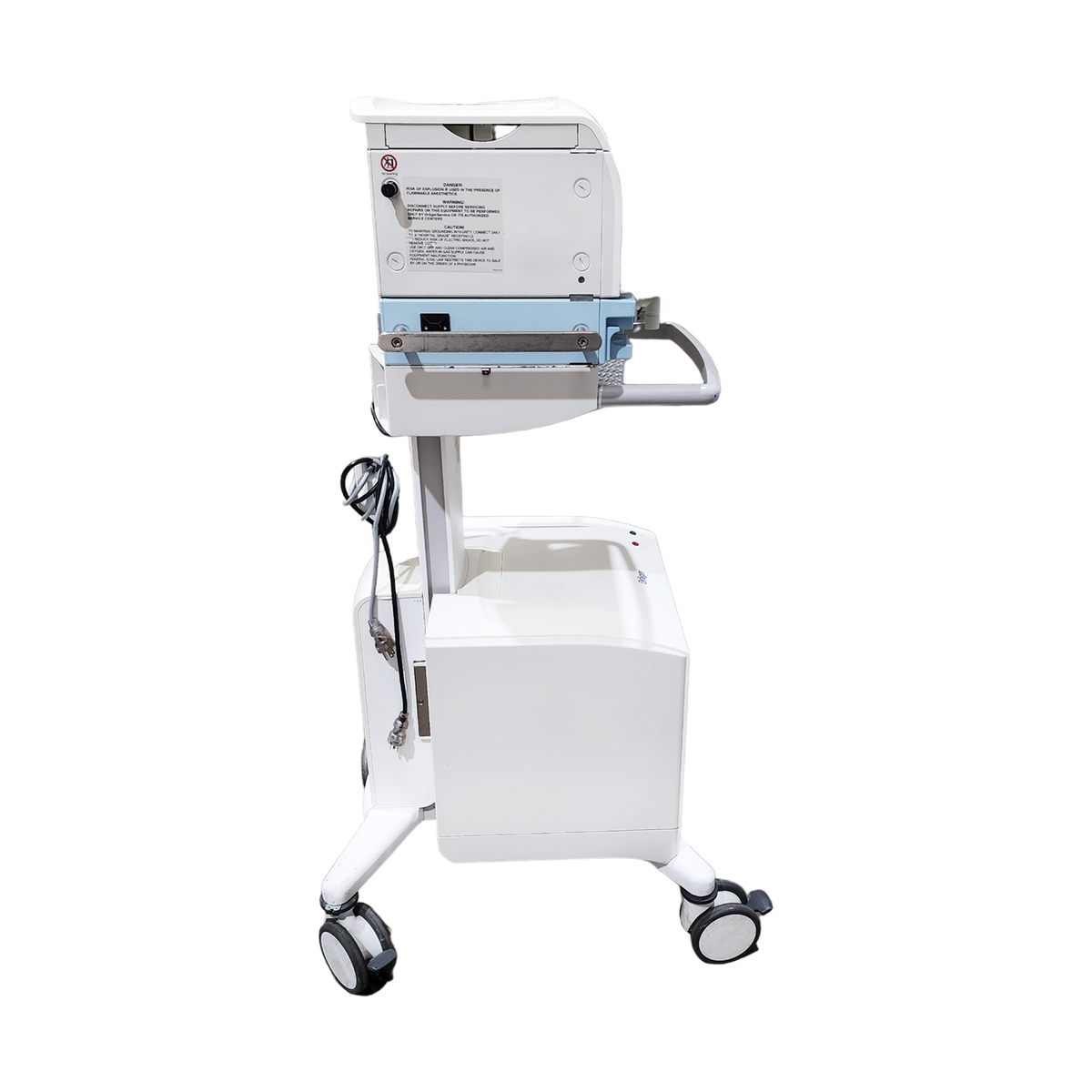

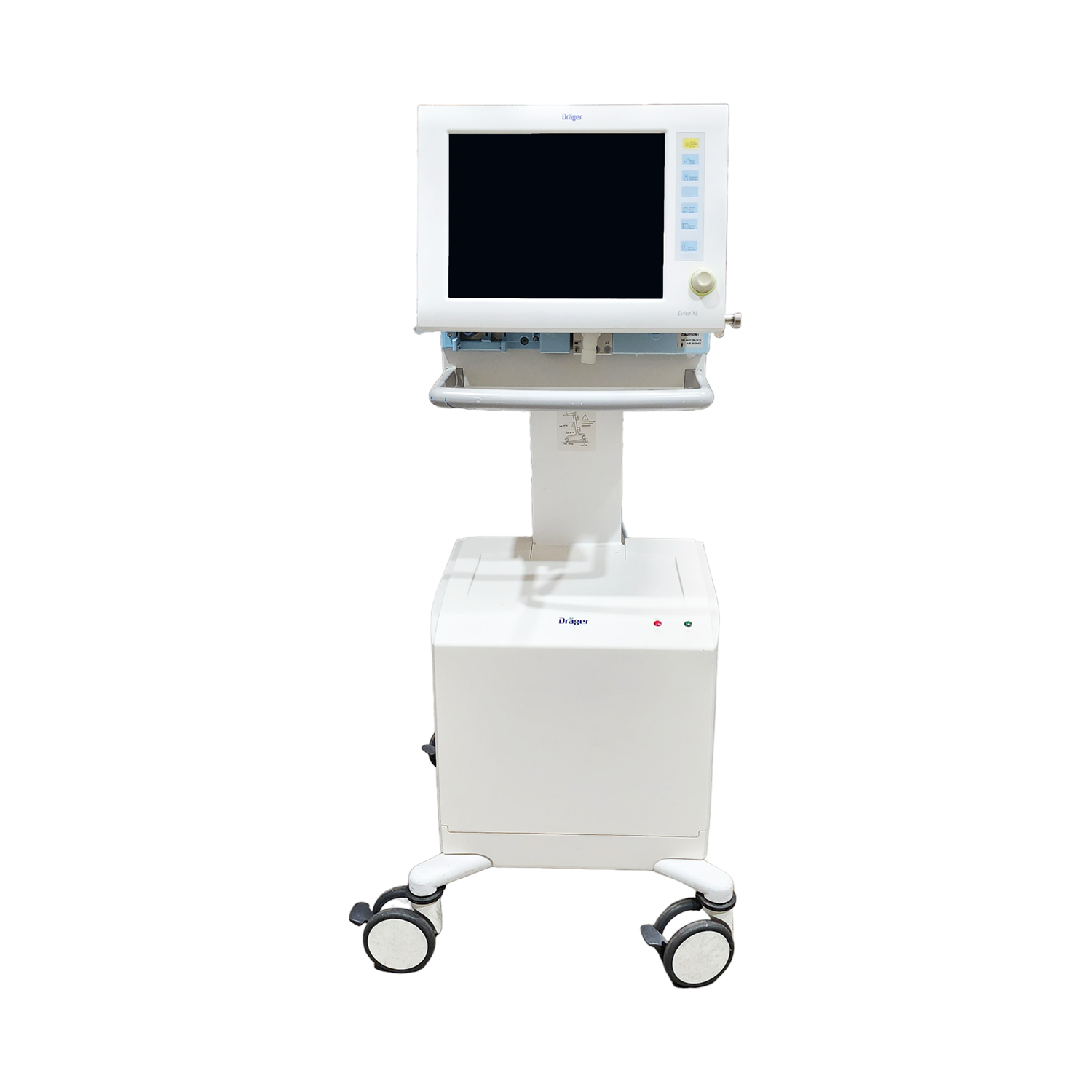

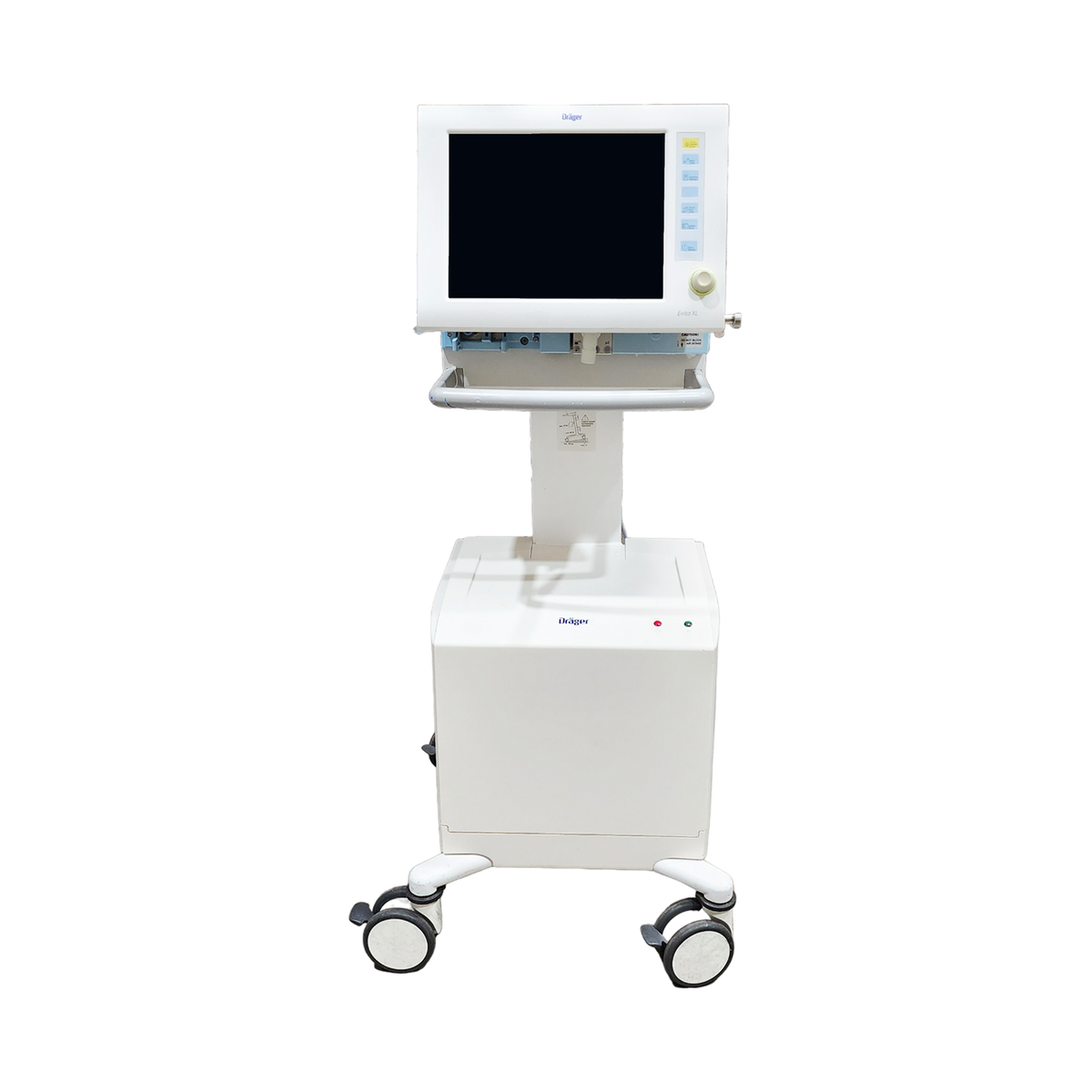

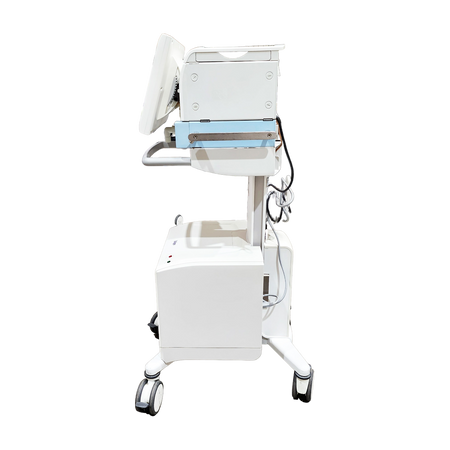

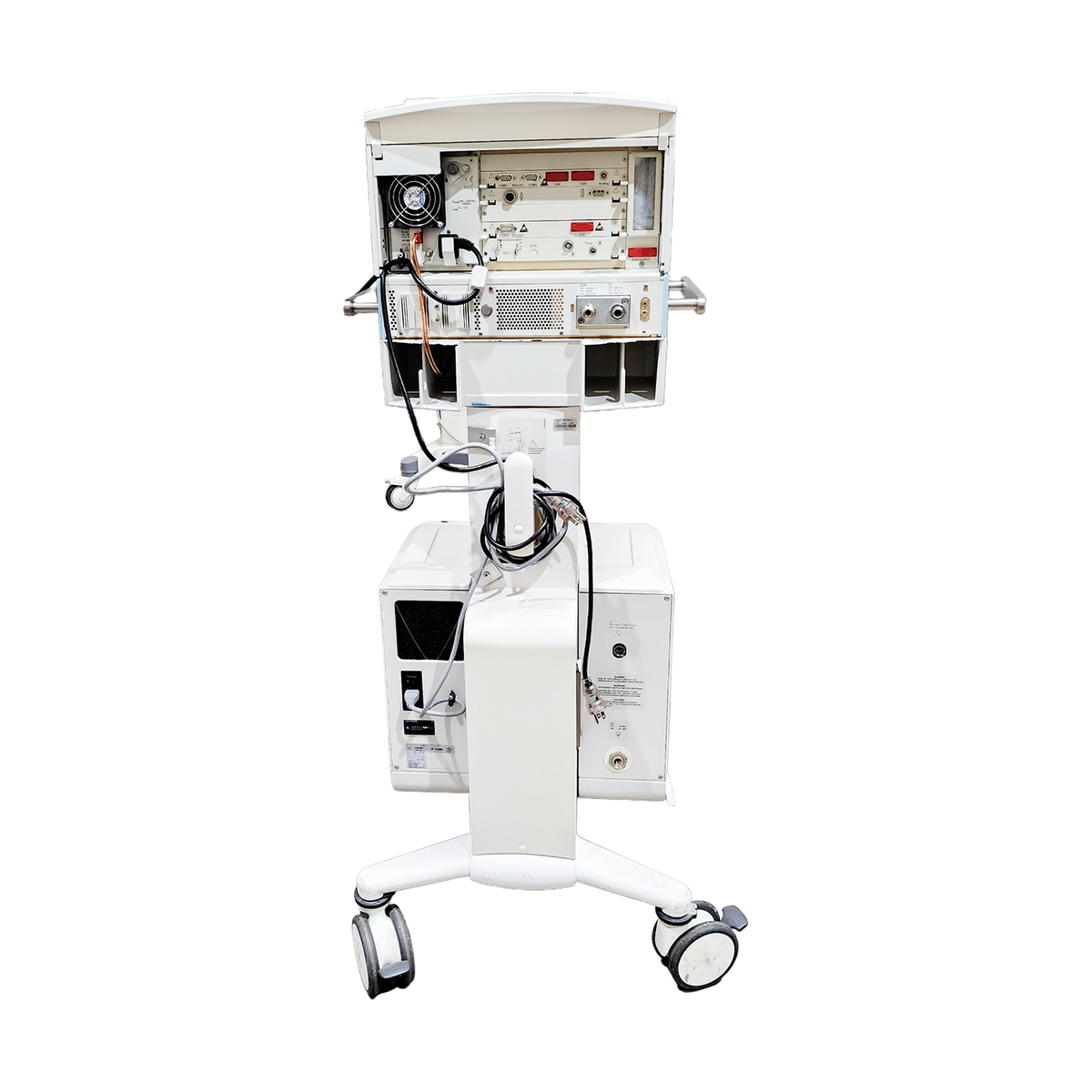

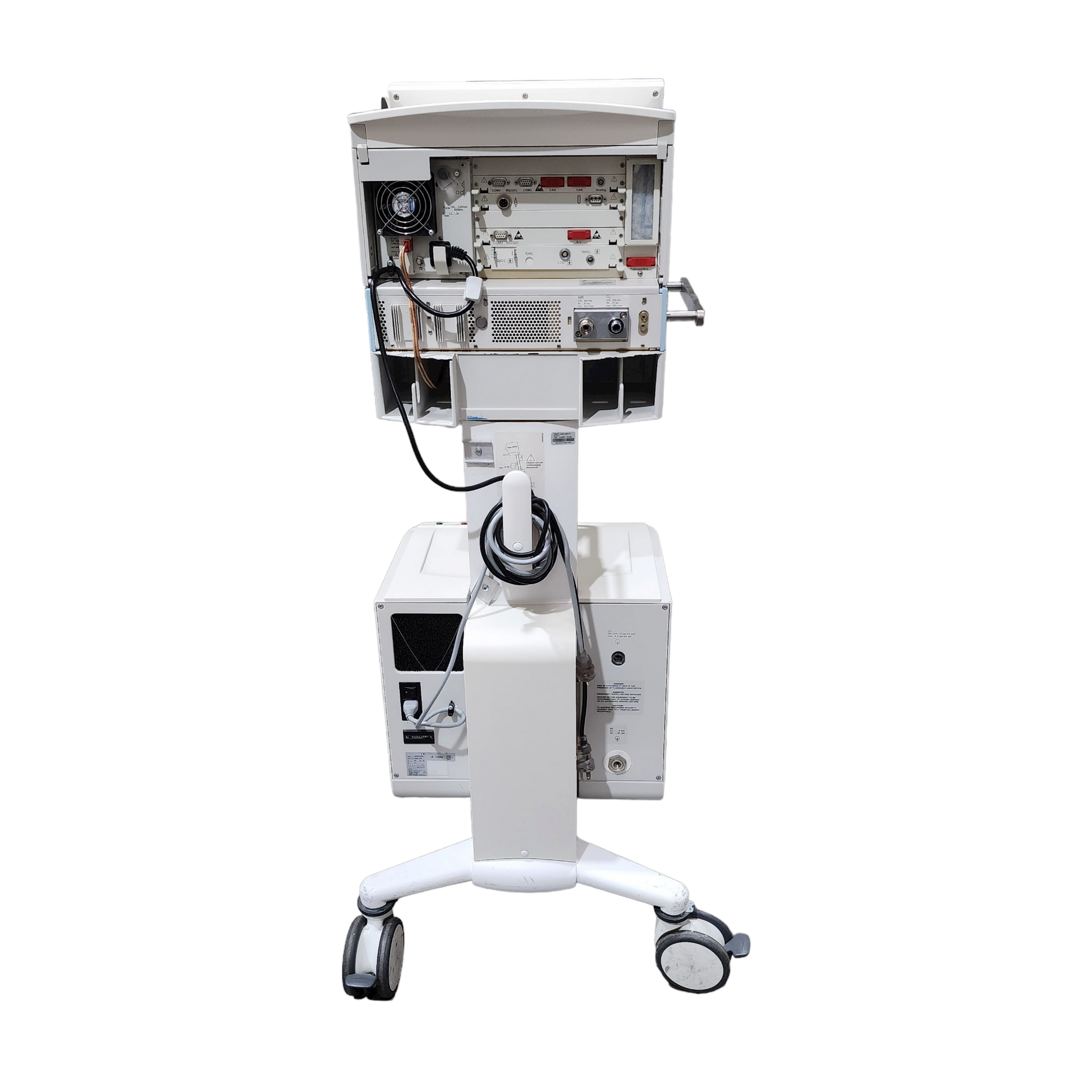

Draeger Evita XL Respiratory Ventilator

Out of stock
SKU: ER-DRAEGER-EVITA-XL
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 30 Days

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The Draeger Evita XL is an advanced intensive care ventilator designed to provide comprehensive respiratory support for critically ill patients.

The Draeger Evita XL is designed to provide high-quality ventilation therapy while offering ease of use for healthcare providers across the entire ventilation process.

FEATURES:

  • Versatile Ventilation Modes:
    • It offers a comprehensive array of controlled and assisted ventilation modes to accommodate various patient needs.
  • Advanced Leak Compensation:
    • The NIV plus feature provides dynamic leak compensation, ensuring reliable tidal volume delivery and adaptive responsiveness, particularly useful for non-invasive ventilation.
  • AutoFlow Technology:
    • This automatically adapts the inspiratory flow in volume-controlled modes, enhancing patient comfort and synchrony.
  • Lung Protection Package (LPP):
    • This functionality helps clinicians identify optimal PEEP and pressure settings for protective ventilation, including a low-flow pressure-volume maneuver.
  • Integrated Monitoring:
    • The device includes built-in monitoring for key parameters, with optional CO2 monitoring to verify correct intubation and metabolic stability.
  • User-friendly Interface:

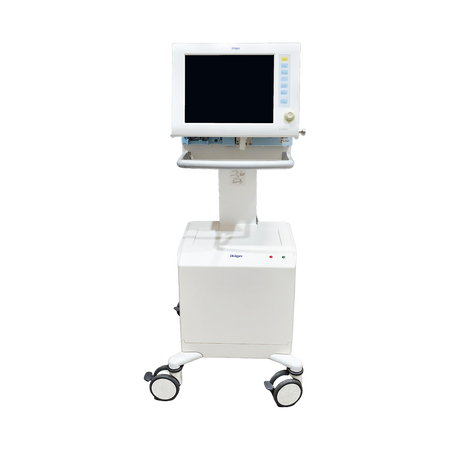

    • The Evita XL features a 15-inch TFT color touch-screen for easy access to ventilator settings and patient data.
  • Weaning Support:
    • The ventilator includes features like SmartCare/PS automated weaning system and Mandatory Minute Ventilation (MMV) to assist in the weaning process.
  • Open Breathing System:
    • Standard AutoFlow and BIPAP/PCV+ modes allow for spontaneous breathing in any ventilation mode, facilitating easier transitions for stable patients.
  • Neonatal Capabilities:
    • The NeoFlow feature offers flow measurement at the Y-piece for fast response to patient triggering, leakage adaptation, and precise volume delivery for neonates.

SPECIFICATIONS:

  • Manufacturer: Draeger
  • Model: Evita XL
  • Category: Ventilator
  • Weight:
  • Condition: Refurbished
  • Warranty: 30 Days
  • Dimensions:
    • 30 x 315 x 450 mm (20.9 x 12.4 x 17.7 inches) w/o trolley
  • Weight:
    • Approximately 50 kg (64lbs) for the basic unit
  • Display:
    • 15-inch (381 mm) TFT color touch-screen
  • Power:
    • Mains power connection: 100 to 240 V, 50/60 Hz, 10 to 30 V DC
    • Power consumption: Approximately 125 W
  • Gas Supply:
    • Operating pressure for O2 and air: 2.7 to 6 bar / 30 to 87 PSI
  • Performance:
    • Valve response time (T0 to 90): ≤ 5 ms
    • Control principle: Time cycled, volume constant, pressure controlled
    • Safety relief valve: 100 mbar / cmH2O
    • Leakage and hose system compensation compliance: Automatic
    • Maximum flow for pressure support and spontaneous breathing: 180 L/min
