Draeger Carina Respiratory Ventilator

Out of stock
SKU: ER-DRAEGER-CARINA
Condition
Category
LEAD TIME: Estimated Ship Time: 7-10 Days
PACKAGING: 1
WARRANTY: 30 Days

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

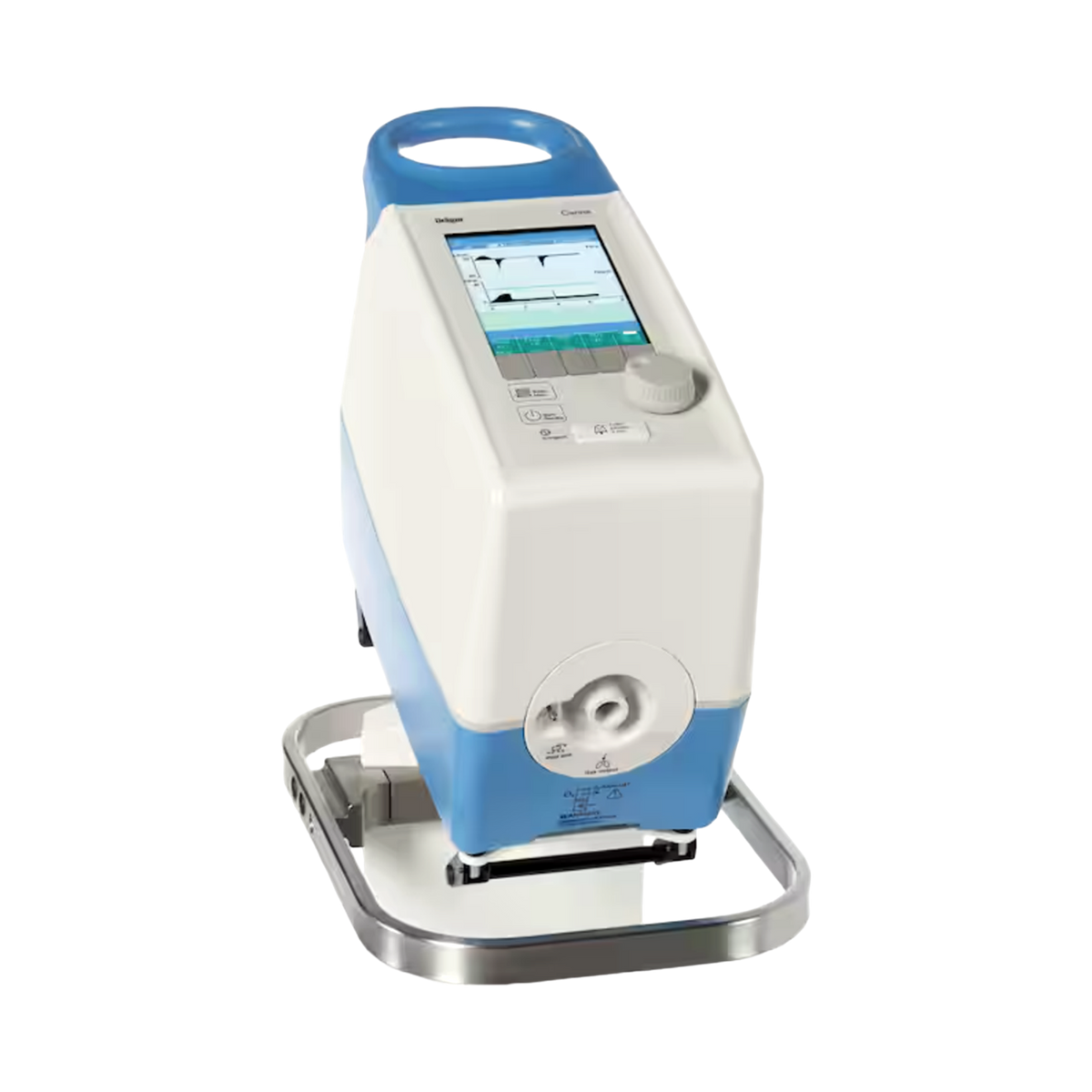

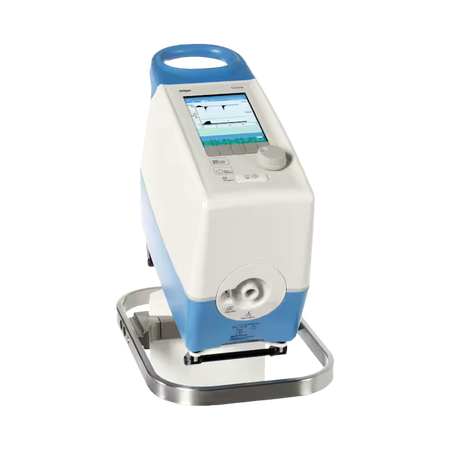

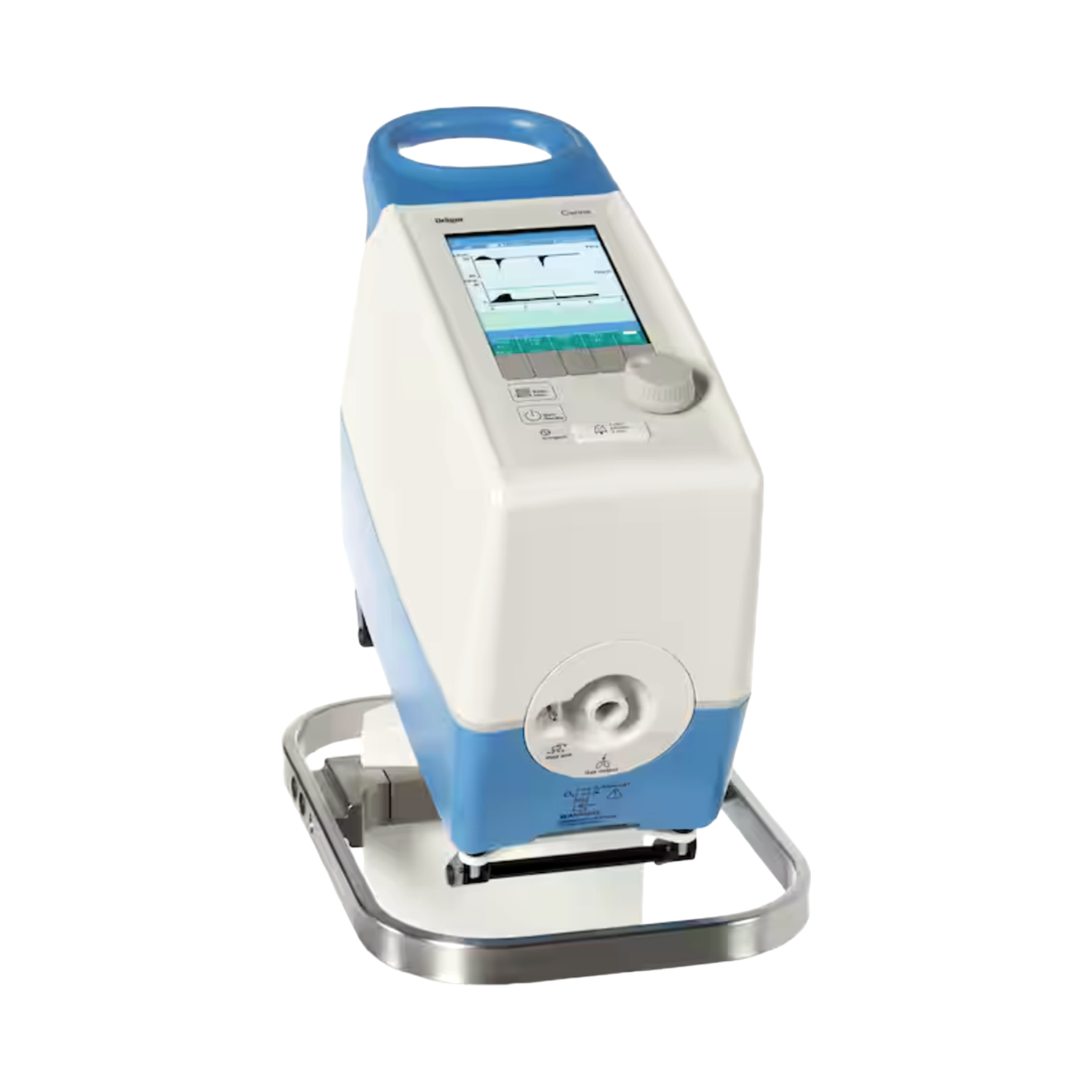

The Draeger Carina is a high-performance non-invasive ventilator (NIV) designed for both spontaneous and mandatory ventilation.

FEATURES:

  • Compact and lightweight design (5.5 kg) for easy mobility and transport within the hospital
  • Quiet operation with a maximum noise level of 40 dBA, creating a more comfortable environment for patients
  • Integrated blender that can supply oxygen concentrations from 21-100%, allowing for customized oxygen delivery
  • Range of ventilation modes for both spontaneous and mandatory ventilation to meet patient needs
  • SyncPlus technology that provides consistent flow delivery for improved patient comfort and therapeutic benefit
  • AutoRamp feature that simulates a natural breathing pattern to optimize inflation flow
  • Internal battery that can power the device for up to 1 hour during patient transfers or power failures
  • Additional Features:
    • Integrated blender for oxygen concentrations from 21 to 100%
    • SyncPlus technology for consistent flow delivery
    • AutoRamp feature for simulating natural breathing patterns
    • Internal battery for up to 1 hour of off-line operation during patient transfers or power failures

SPECIFICATIONS:

  • Manufacturer: Draeger
  • Model: Carina
  • Category: Ventilator
  • Weight:
  • Condition: Refurbished
  • Warranty: 30 Days
  • Dimensions:
    • Width: 6.9 in (175 mm)
    • Height: 10.8 in (275 mm)
    • Depth: 15.2 in (385 mm)
  • Weight:
    • 5.5 kg
  • Operating Conditions:
    • Temperature: 5 to 35°C (41 to 95°F) during operation, –20 to 60°C (–4 to 140°F) for short-term storage, and –20 to 55°C (–4 to 131°F) for longer-term storage
    • Ambient Pressure: 900 to 1100 hPa (13.1 to 16 psi) during operation, and 500 to 1100 hPa (7.3 to 16 psi) during storage and transport
    • Relative Humidity: 5 to 95%, non-condensing
    • Altitude: Up to 3000 m (9842 ft)
  • Ventilation Parameters:
    • Breathing Rate: 5 to 50/min, with a resolution of 1/min
    • Tidal Volume: 100 to 2000 mL (BTPS), with a resolution of 10 mL
    • Inspiratory O2 Concentration (in HPO mode): 21 to 100%, with a resolution of 1%
    • Positive End-Expiratory Pressure with AutoAdapt: 3 to 20 mbar (or hPa or cm H2O), with a resolution of 1 mbar (or hPa or cm H2O)
    • Pressure Support with AutoAdapt: 0 to 37 mbar (or hPa or cm H2O), with a resolution of 1 mbar (or hPa or cm H2O)
    • Time in AutoAdapt: 5 to 120 min, with a resolution of 1 min
  • Performance Characteristics:
    • Control Principle: Time-controlled, flow-controlled, pressure-controlled, or volume-controlled
    • Supply System for Patient Flow: Turbine
    • Maximum Continuous Inspiratory Flow: 180 L/min (BTPS), with up to 120 L/min at 100% O2
    • Device Resistance during Device Failure: Specified for the breathing circuit, including the emergency breathing valve, expiratory valve, and patient connection, with resistances ranging from <3.5 to <4.5 mbar (or hPa or cm H2O) depending on the breathing circuit used
