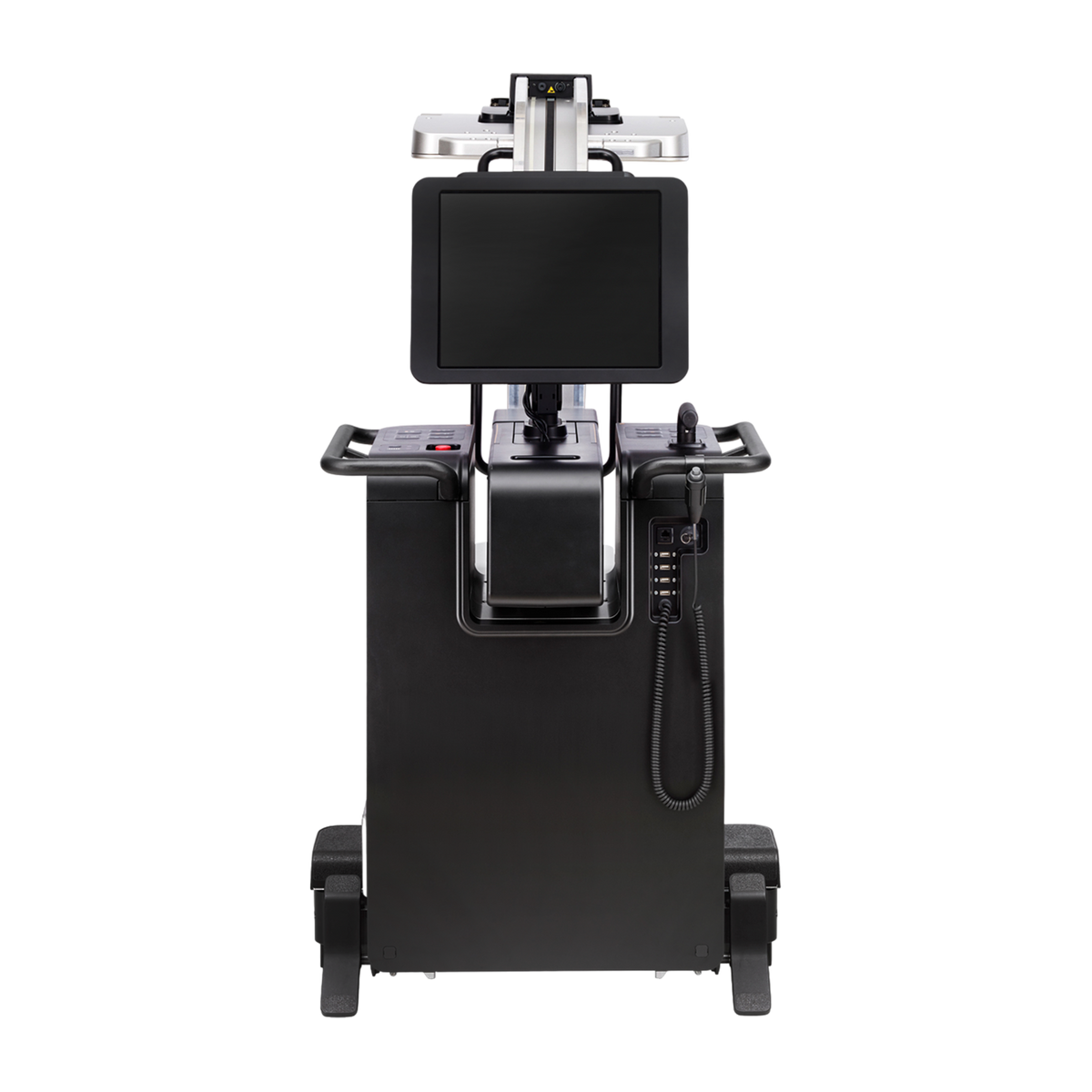

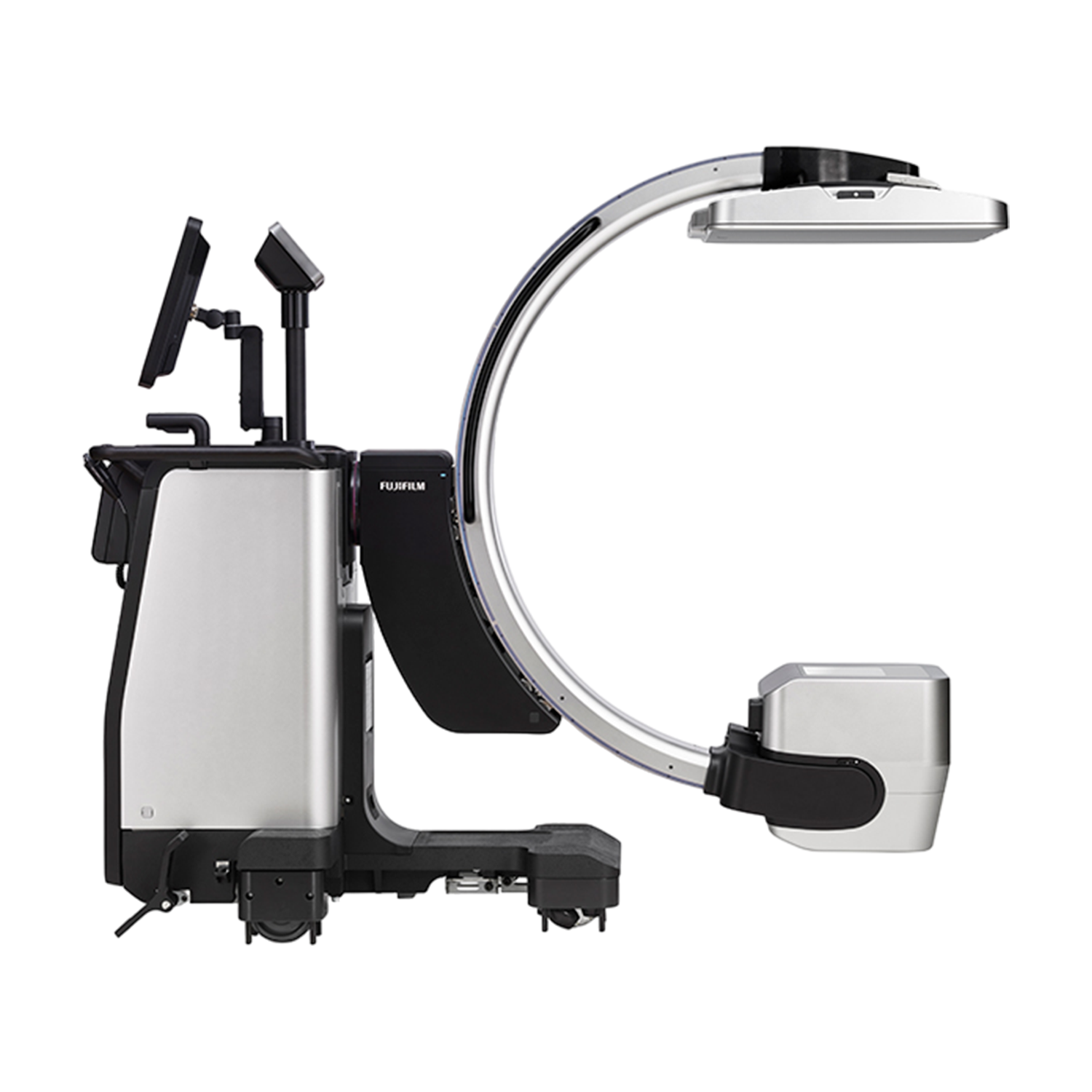

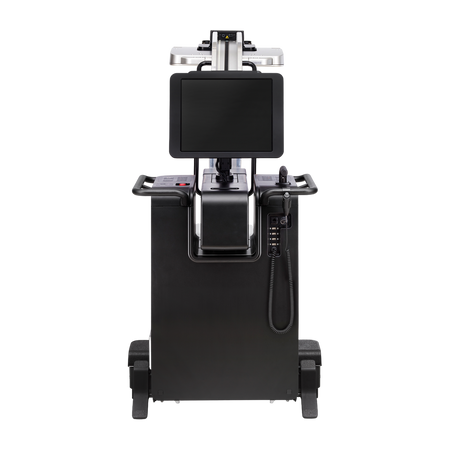

Fuji Cross Over C-Arm System (+) Portable X-Ray System

Out of stock
SKU: EN-FUJI-FDR-CROSS
Condition
Category
LEAD TIME: Estimated Ship Time: 10-14 Days
PACKAGING: 1
WARRANTY: 90 Days

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Explore the forefront of medical imaging technology with Fujifilm's groundbreaking "Fuji FDR Cross," a novel innovation that merges the functionalities of hybrid c-arm systems with portable x-ray devices. Crafted for versatility and precision, this system plays a crucial role in intensive care units, emergency departments, and during surgical procedures.

The Fuji FDR Cross marries the ease of use found in conventional portable x-ray machines with the sophisticated features of a c-arm system. Its innovative design facilitates both fluoroscopic and radiographic imaging, providing medical professionals with a comprehensive, integrated imaging solution.

Featuring a design that supports flexible positioning, the Fuji FDR Cross excels in generating detailed radiographic images, matching and often surpassing the capabilities of standard portable x-ray units. Ideal for use in emergency settings, intensive care, or during operations, the Fuji FDR Cross represents the pinnacle of c-arm technology.

Step into the next generation of medical imaging with the Fuji FDR Cross, where advanced c-arm technology converges with the convenience and adaptability of portable x-ray systems.

FEATURES:

  • Lightweight, compact, space-saving design
  • Light, easy travel and precise maneuverability
  • Easy-to-use controls
  • Battery powered, cord-free workflow
  • Integrated cables
  • Wireless operation for greater safety and convenience
  • Primary surfaces coated with antibacterial protection
  • Open and easy positioning
  • Fast, reliable and secure connectivity
  • Integrated articulating touchscreen console provides easy workflow and viewing from any angle
  • FDR D-EVO III detectors — Innovative glass-free, film-based TFT with Patented ISS technology promotes higher sensitivity
  • Combining ISS and glass-free film-based capture
  • Choice of panel sizes to meet your ideal workflow and budgetary needs

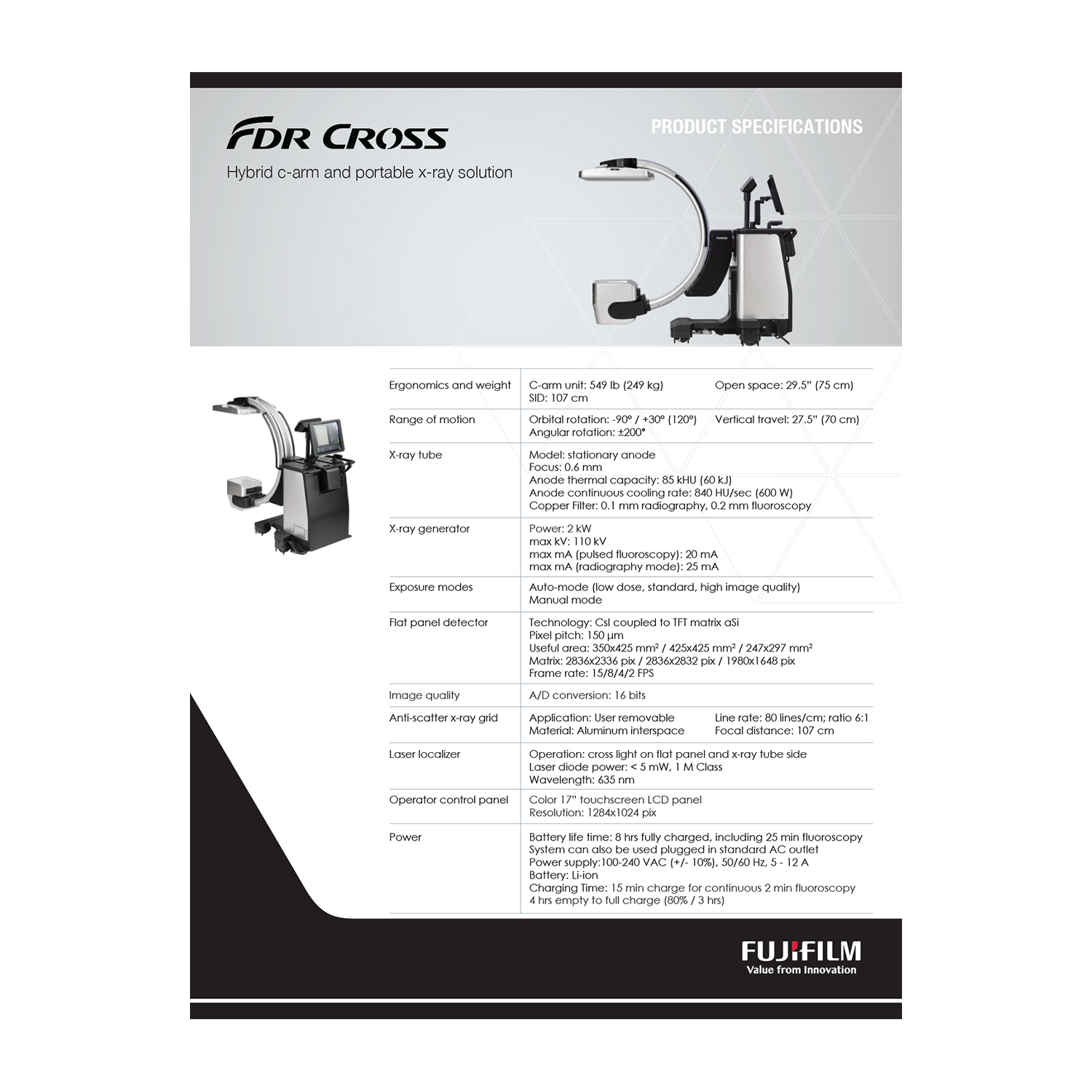

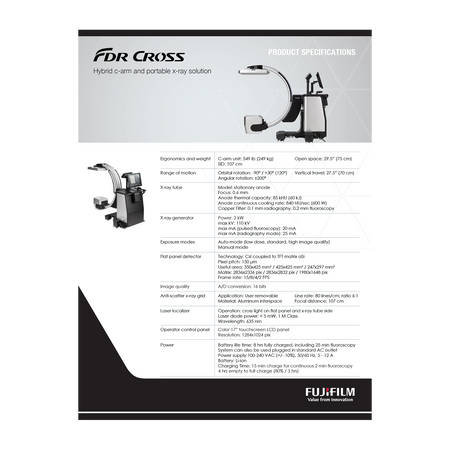

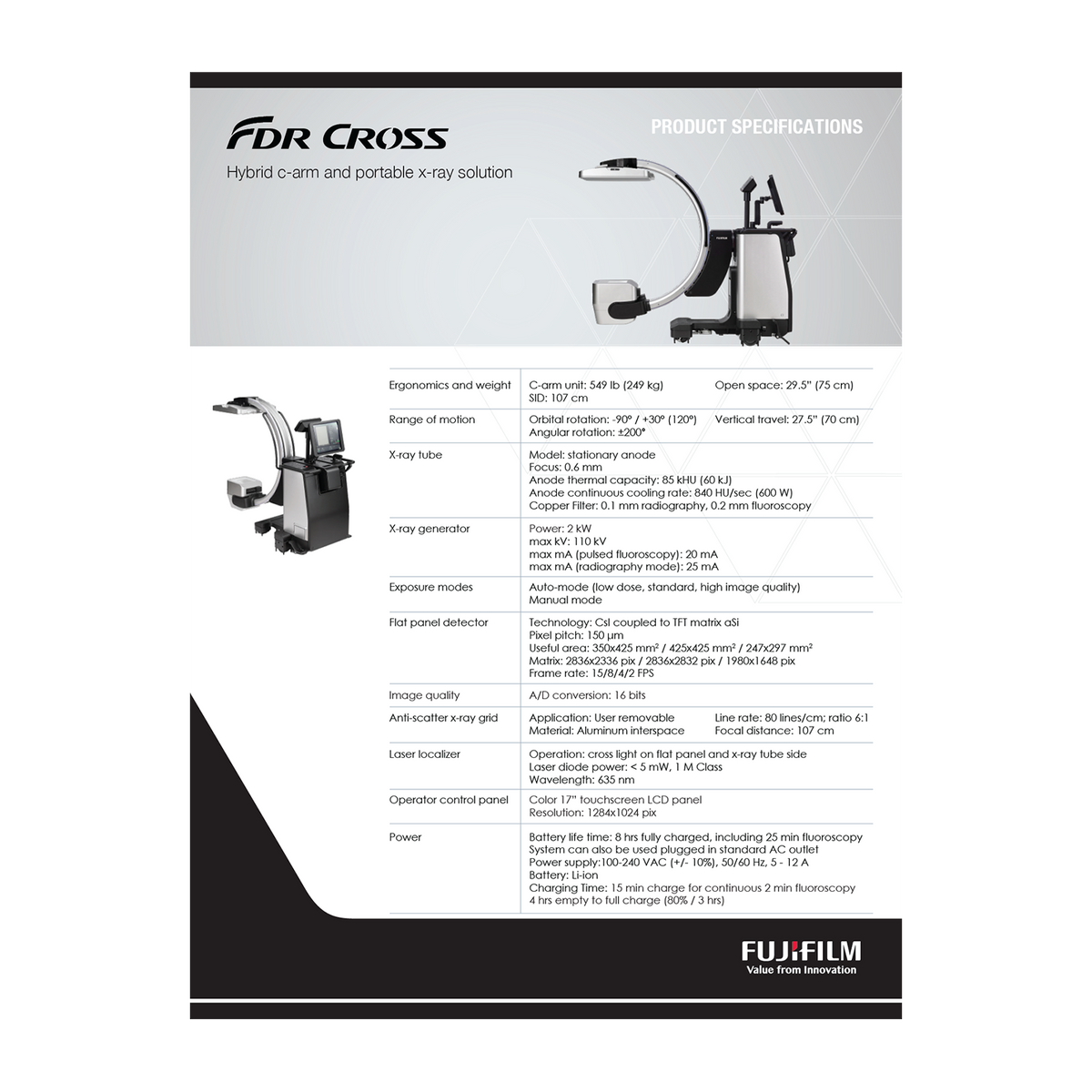

SPECIFICATIONS:
  • Manufacturer: FUJI
  • Part Number (OEM): FDR CROSS
  • Category: Imaging
  • Accessories: None
  • Functional Condition: New/Refurbished
  • Cosmetic Condition: Good
  • Warranty: 30 Days

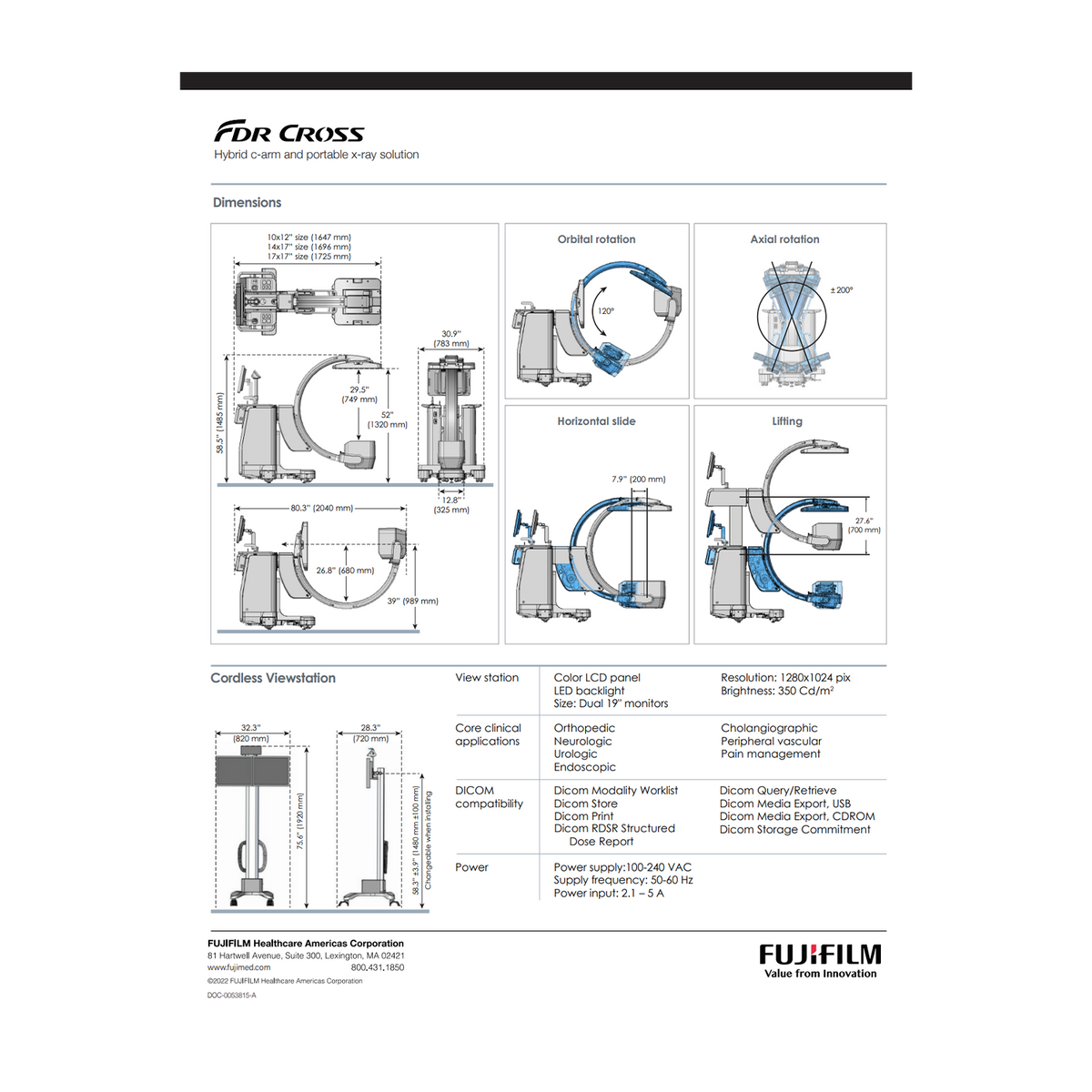

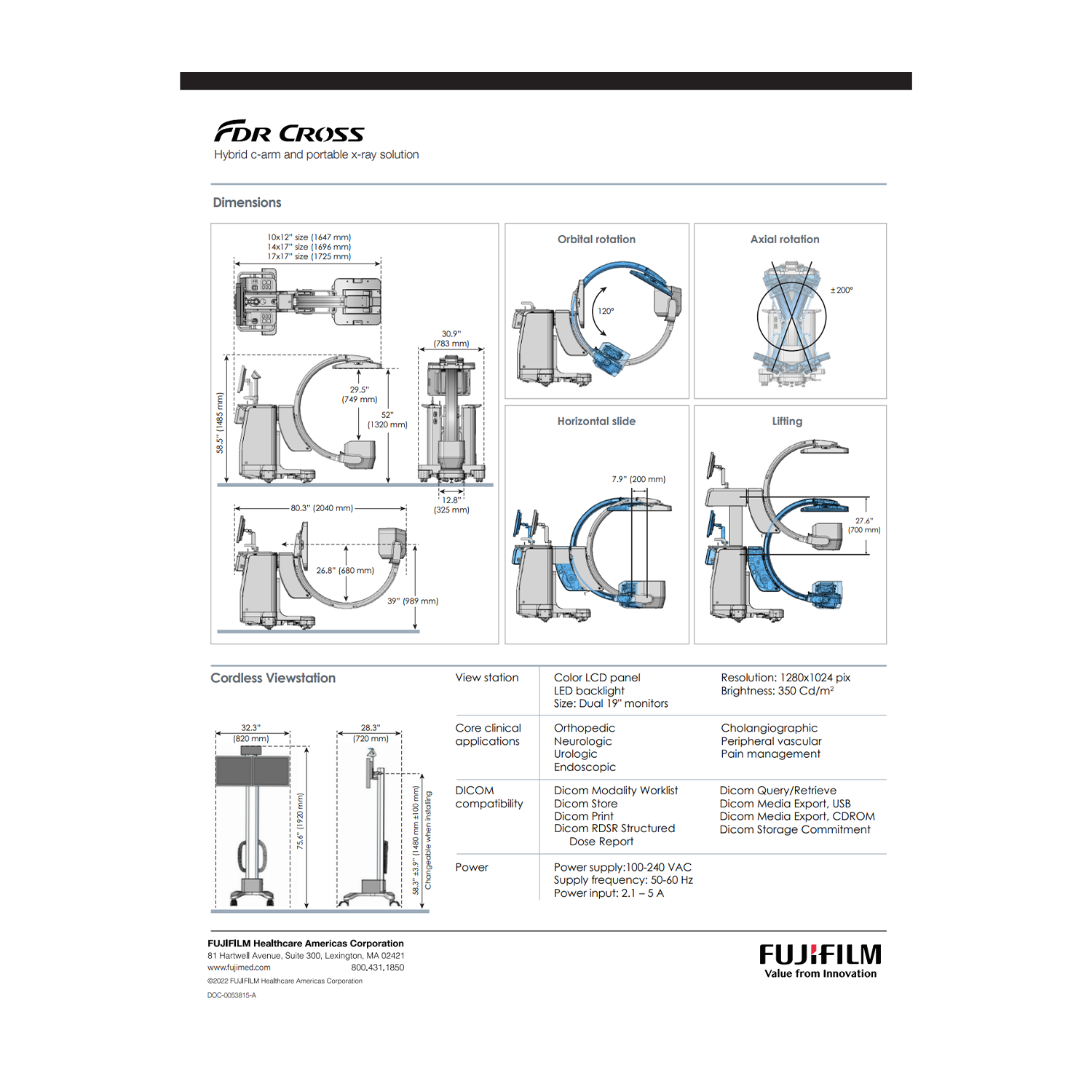

  • Ergonomics & Weight:
    • C-Arm unit: 549 lbs (249 kg)
    • SID: 107 cm
    • Open space: 29.5” (75 cm)

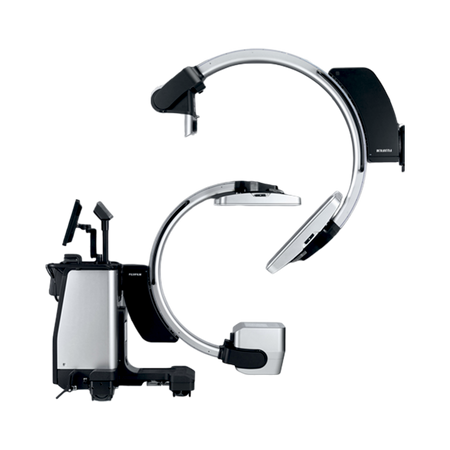

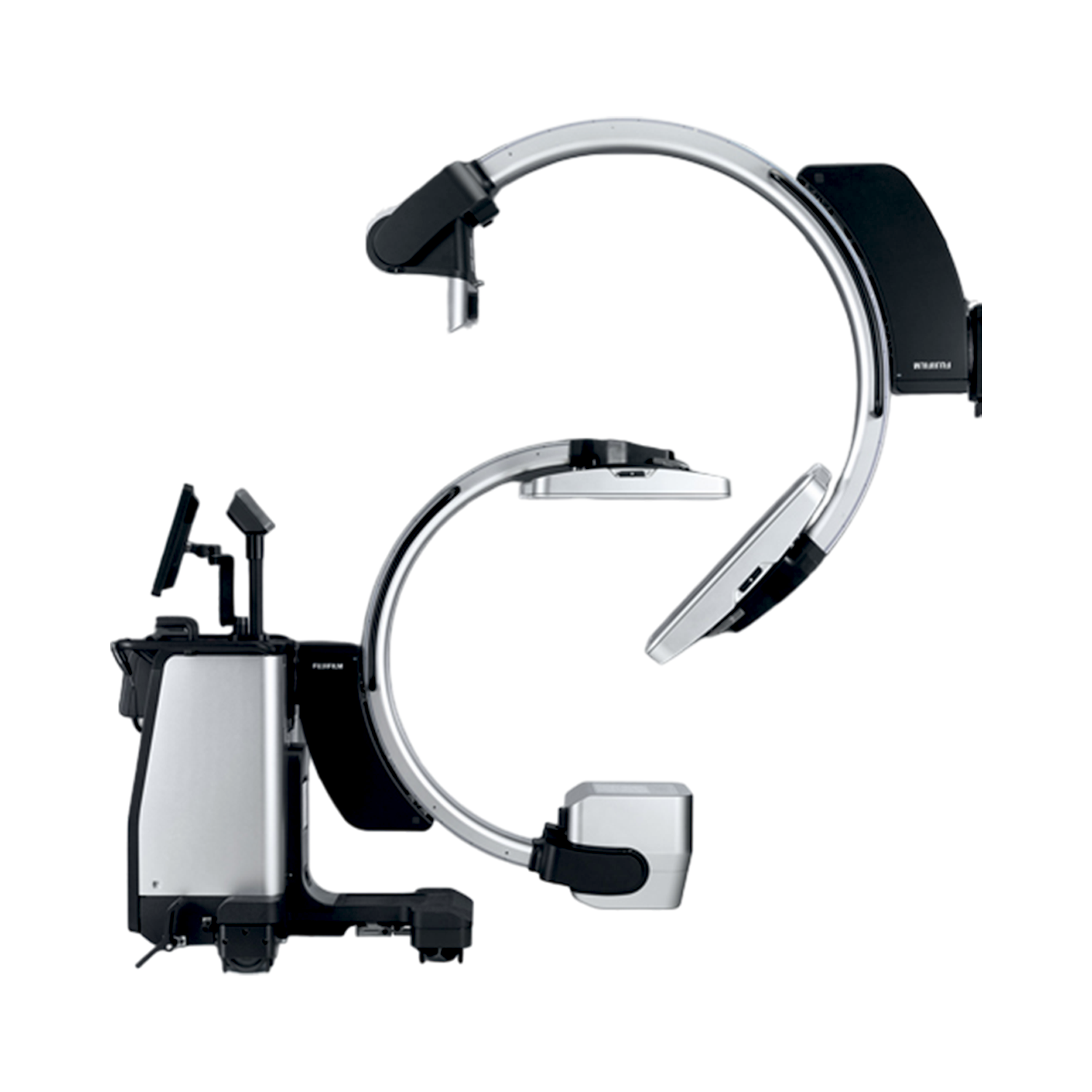

  • Range of Motion:
    • Orbital rotation: -90° / +30° (120°)
    • Angular rotation: ±200°
    • Vertical travel: 27.5” (70 cm)

  • X-Ray Tube:
    • Model: stationary anode
    • Focus: 0.6 mm
    • Anode thermal capacity: 85 kHU (60 kJ)
    • Anode continuous cooling rate: 840 HU/sec (600 W)
    • Copper Filter: 0.1 mm radiography, 0.2 mm fluoroscopy

  • X-Ray Generator:
    • Power: 2 kW
    • max kV: 110 kV
    • max mA (pulsed fluoroscopy): 20 mA
    • max mA (radiography mode): 25 mA

  • Exposure Modes:
    • Auto-mode (low dose, standard, high image quality)
    • Manual mode

  • Flat Panel Detector:
    • Technology: CsI coupled to TFT matrix aSi
    • Pixel pitch: 150 μm
    • Useful area: 350x425 mm2 / 425x425 mm2 / 247x297 mm2
    • Matrix: 2836x2336 pix / 2836x2832 pix / 1980x1648 pix
    • Frame rate: 15/8/4/2 FPS

  • Image Quality:
    • A/D conversion: 16 bits

  • Anti-Scatter X-Ray Grid:
    • Application: User removable
    • Material: Aluminum interspace
    • Line rate: 80 lines/cm; ratio 6:1
    • Focal distance: 107 cm

  • Laser Localizer:
    • Operation: cross light on flat panel and x-ray tube side
    • Laser diode power: < 5 mW, 1 M Class
    • Wavelength: 635 nm

  • Operator Control Panel:
    • Color 17” touchscreen LCD panel
    • Resolution: 1284x1024 pixels

  • Power:
    • Power supply:100-240 VAC
    • Supply frequency: 50-60 Hz
    • Power input: 2.1 – 5 A
    • Battery life time: 8 hrs fully charged, including 25 min fluoroscopy
    • System can also be used plugged in standard AC outlet
    • Power supply:100-240 VAC (+/- 10%), 50/60 Hz, 5 - 12 A
    • Battery: Li-ion
    • Charging Time: 15 min charge for continuous 2 min fluoroscopy
    • 4 hrs empty to full charge (80% / 3 hrs)

  • View Station:
    • Color LCD panel
    • LED backlight
    • Size: Dual 19" monitors
    • Resolution: 1280x1024 pix
    • Brightness: 350 Cd/m2

  • Core Clinical Applications:
    • Orthopedic
    • Neurologic
    • Urologic
    • Endoscopic
    • Cholangiographic
    • Peripheral Vascular
    • Pain Management

  • DICOM Compatibility:
    • Dicom Modality Worklist
    • Dicom Store
    • Dicom Print
    • Dicom RDSR Structured
    • Dose Report
    • Dicom Query/Retrieve
    • Dicom Media Export, USB
    • Dicom Media Export, CDROM
    • Dicom Storage Commitment
