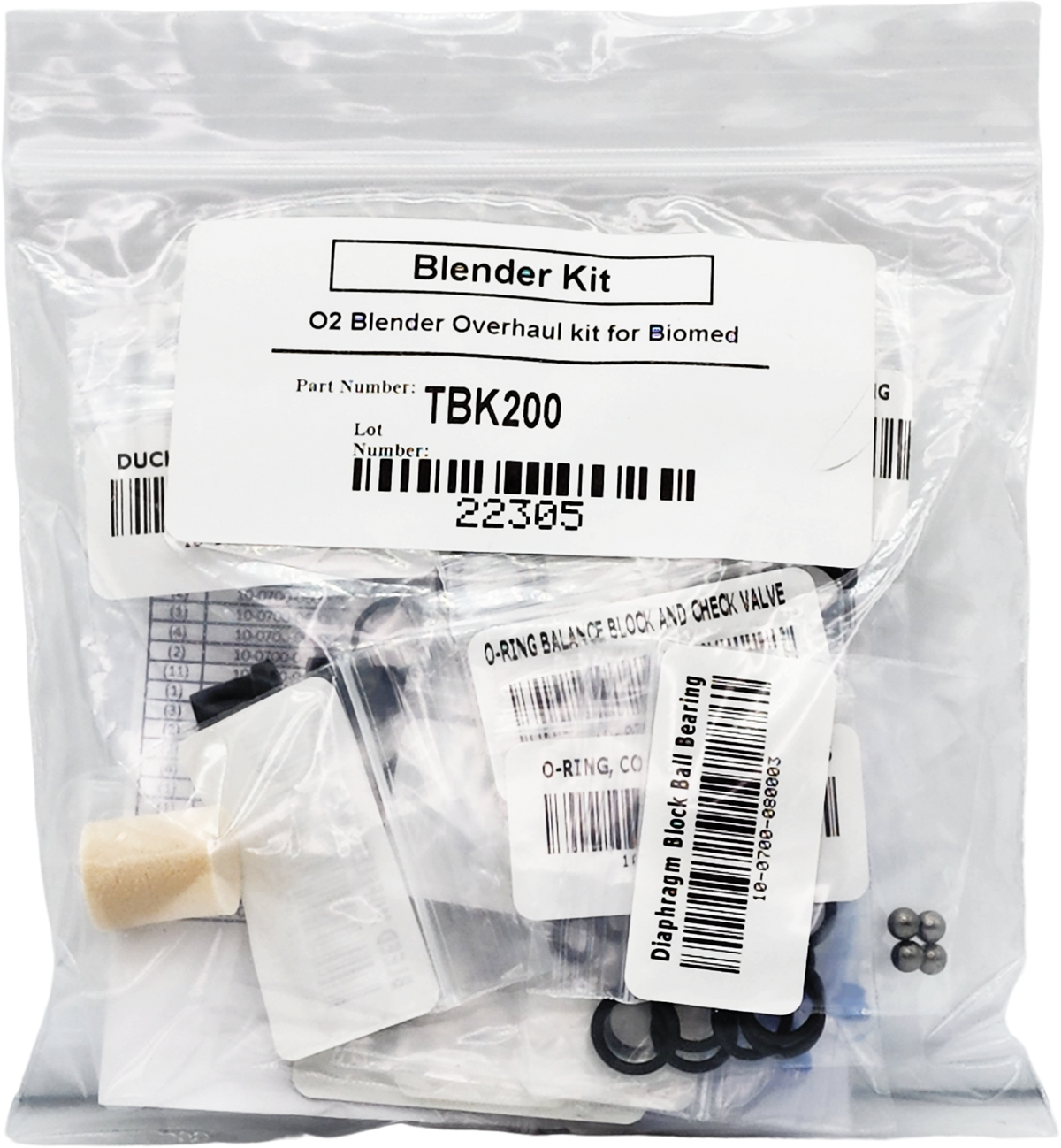

Bio-Med Devices Blender Overhaul Kit

SKU: TBK200
(0)
$125.00
Condition
Category
LEAD TIME: Estimated Ship Time: 2-5 Days
PACKAGING: 1
WARRANTY: 3 Months
SHIPPING/RETURNS:
This product can be shipped to any location within the continental United States using FedEx Ground, UPS Ground, or Freight services. Shipping rates will be determined based on the destination zip code. For further information, please refer to our Shipping and Return policies.

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

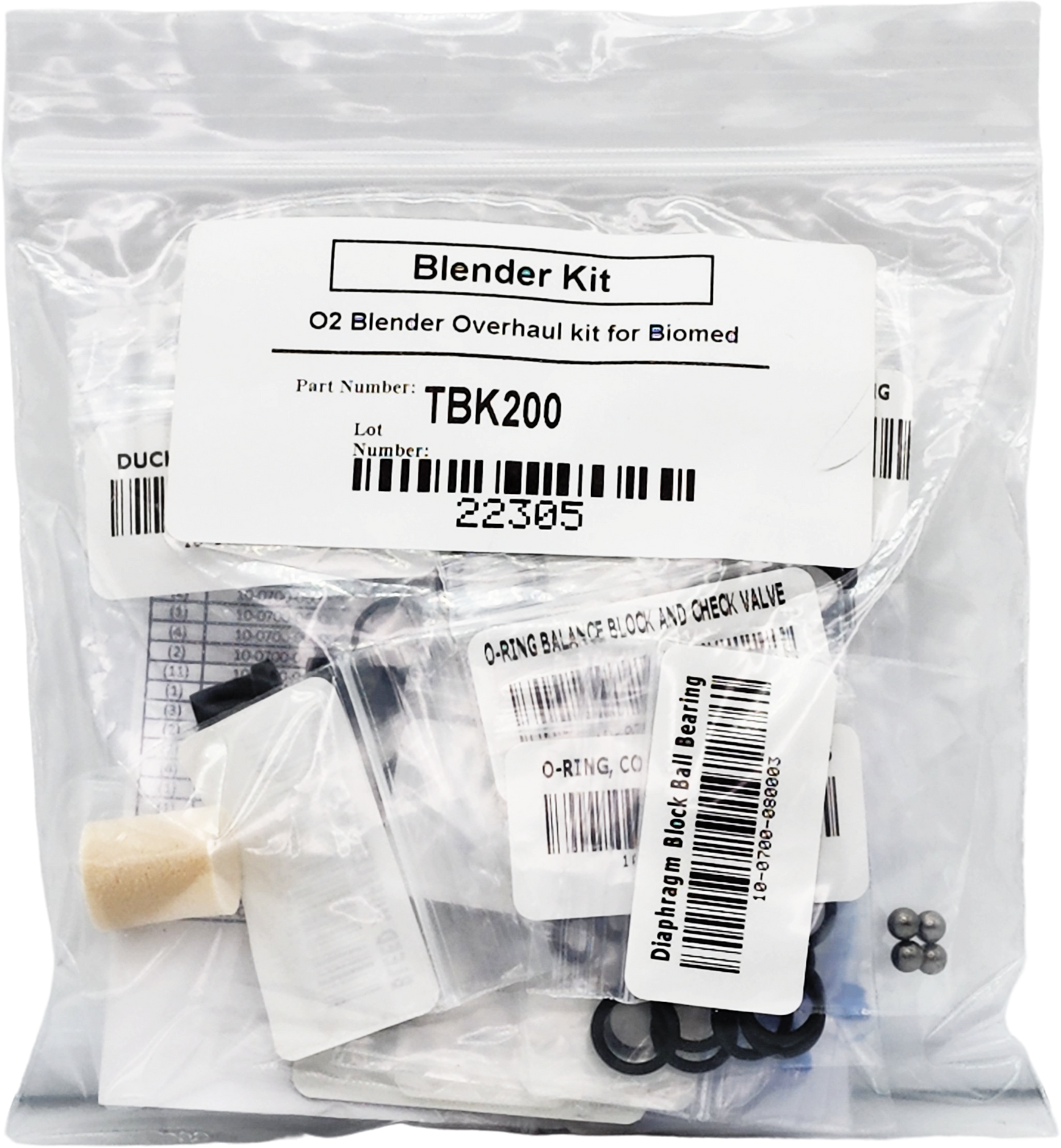

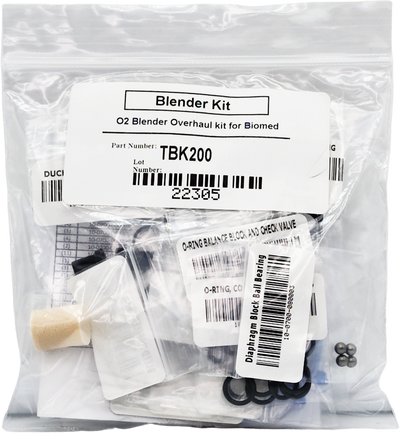

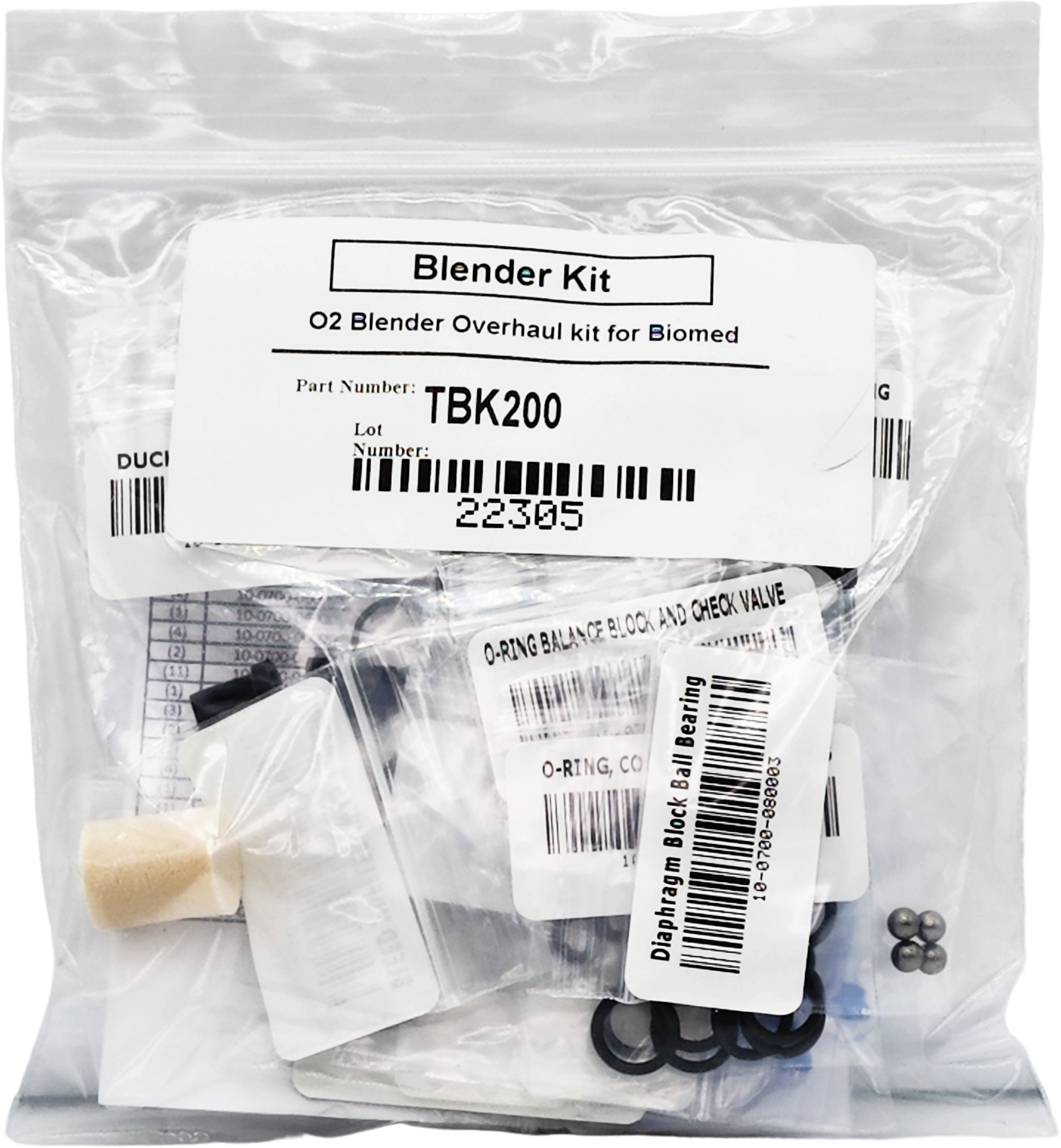

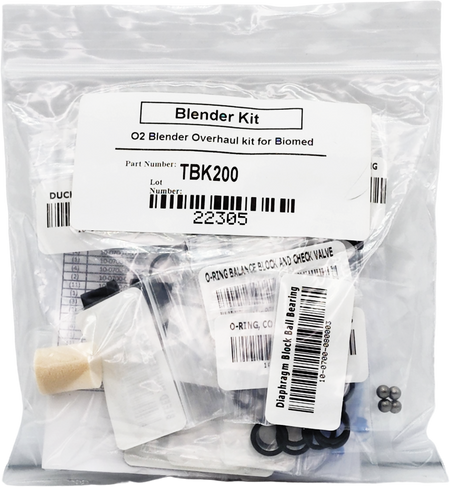

Bird / Vyaire Blender Overhaul Kit For Bio-Med Devices Blenders

DESCRIPTION:

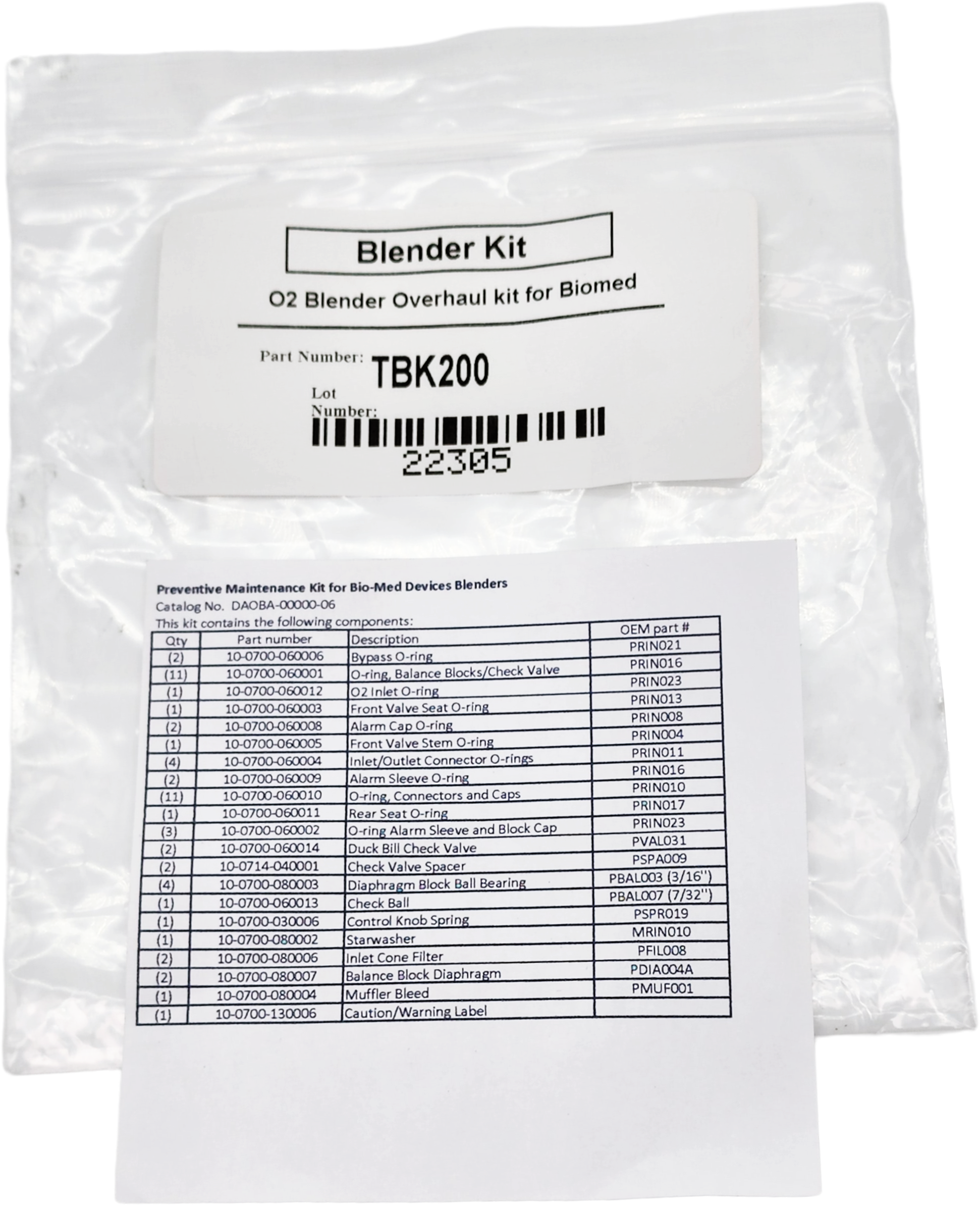

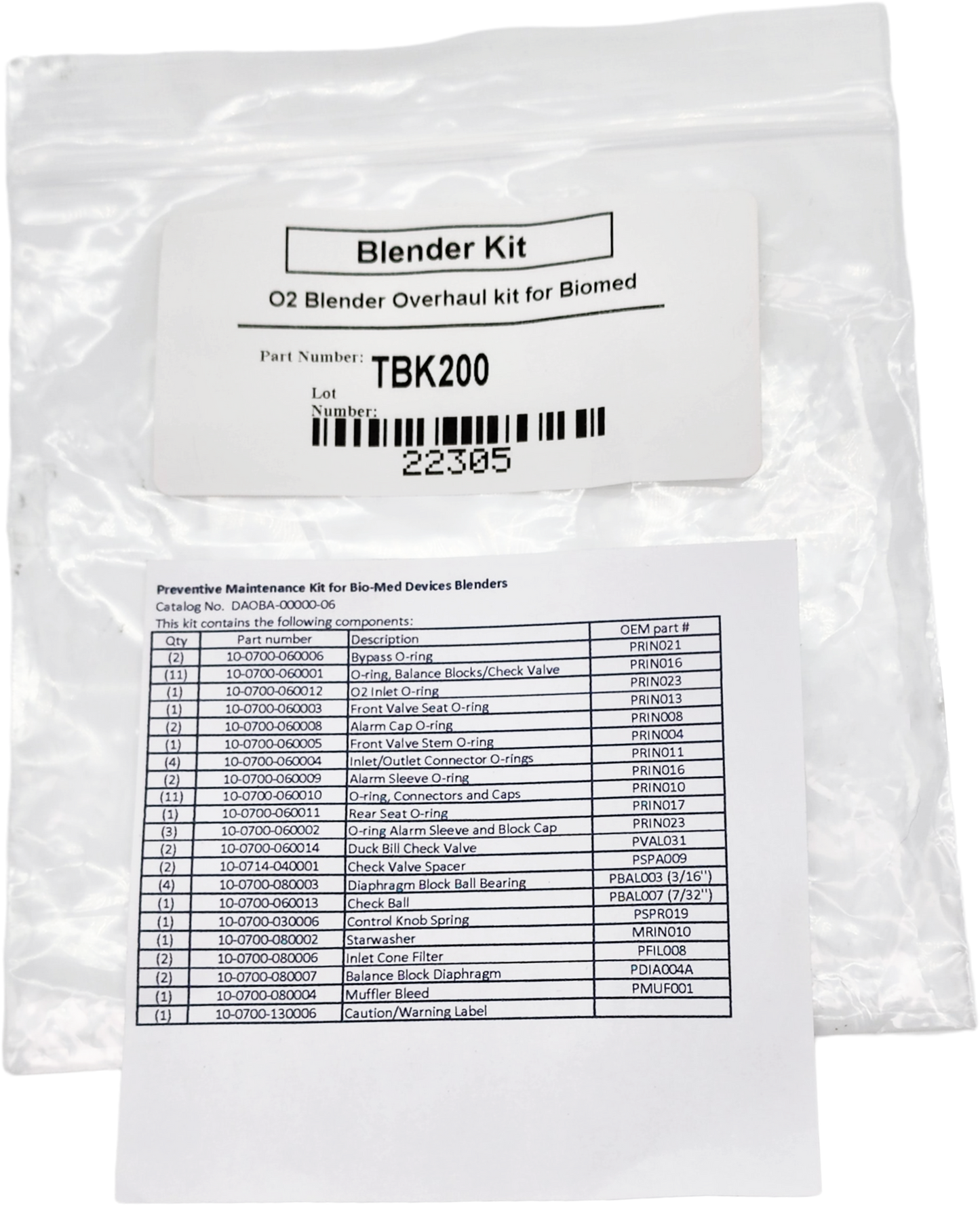

Preventive Maintenance Kit for Bio-Med Devices Blenders Catalog No. DAOBA-00000-06

  • Manufacturer:
  • Part Number (OEM): DAOBA-00000-06
  • SKU: TBK200
  • Category: O2 Blender Parts
  • Condition: New - Compatible
  • Weight: 2.0 lb.
  • Warranty: 12 Months

INCLUDED:

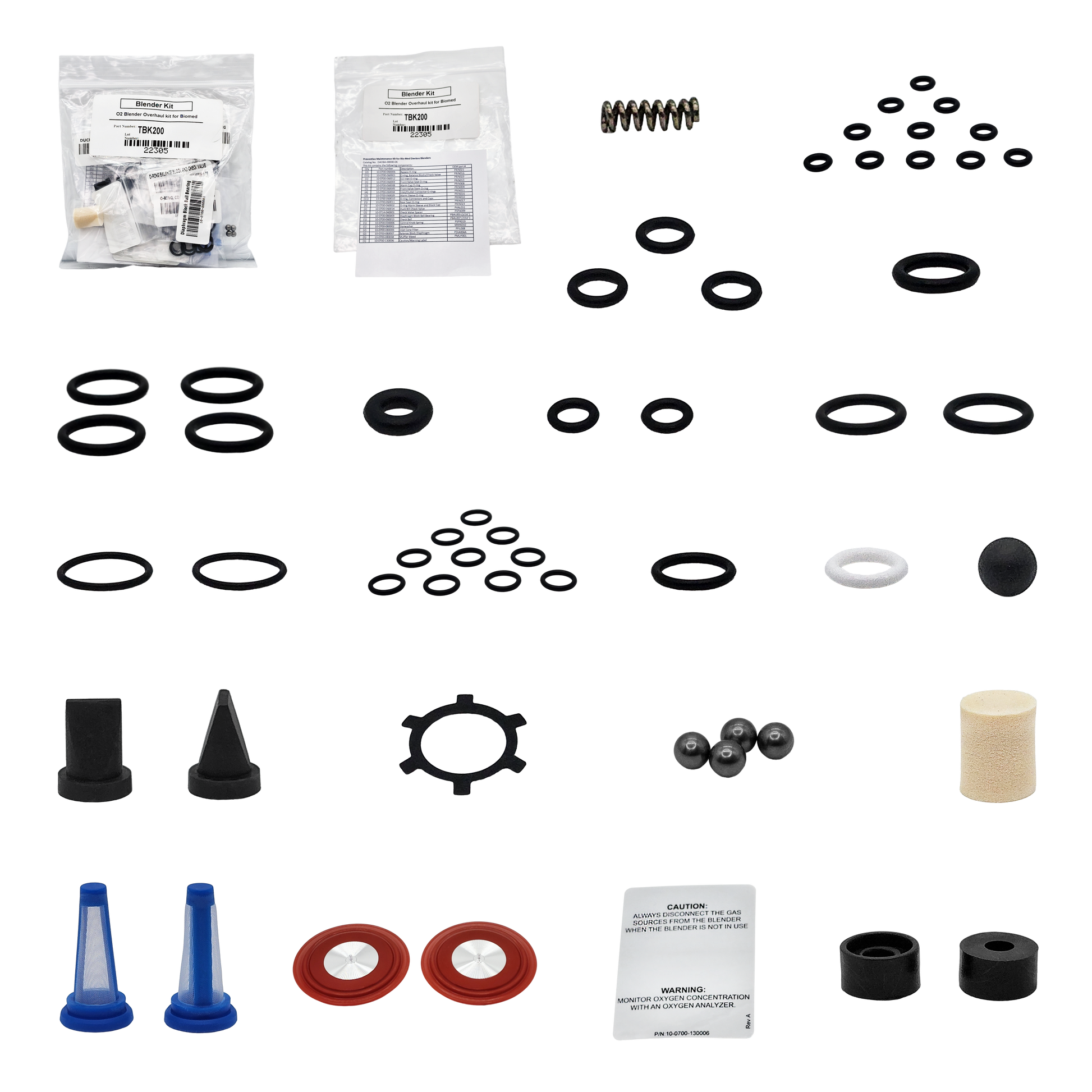

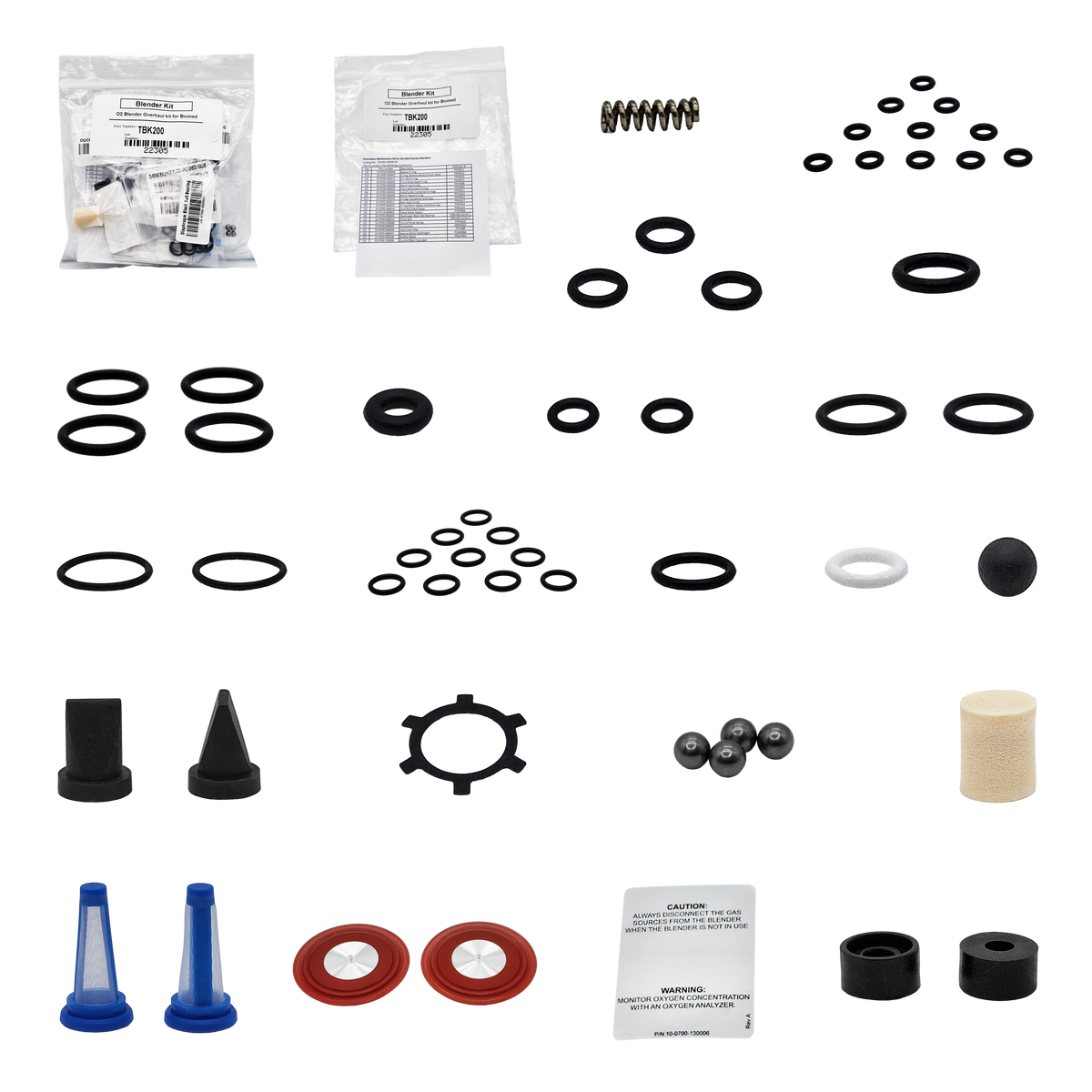

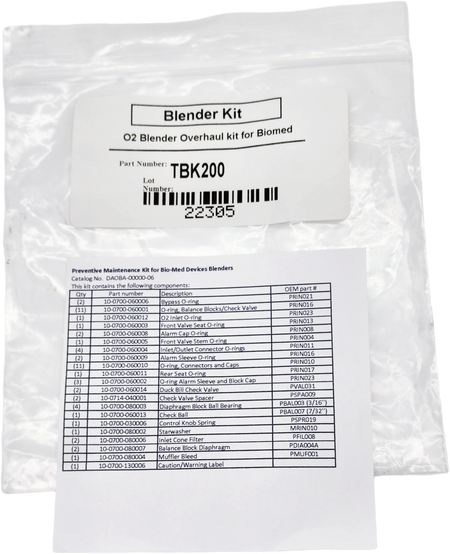

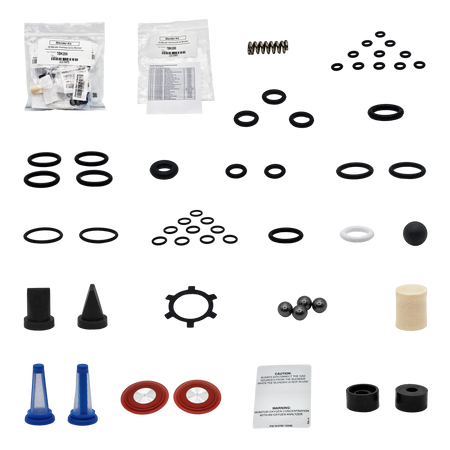

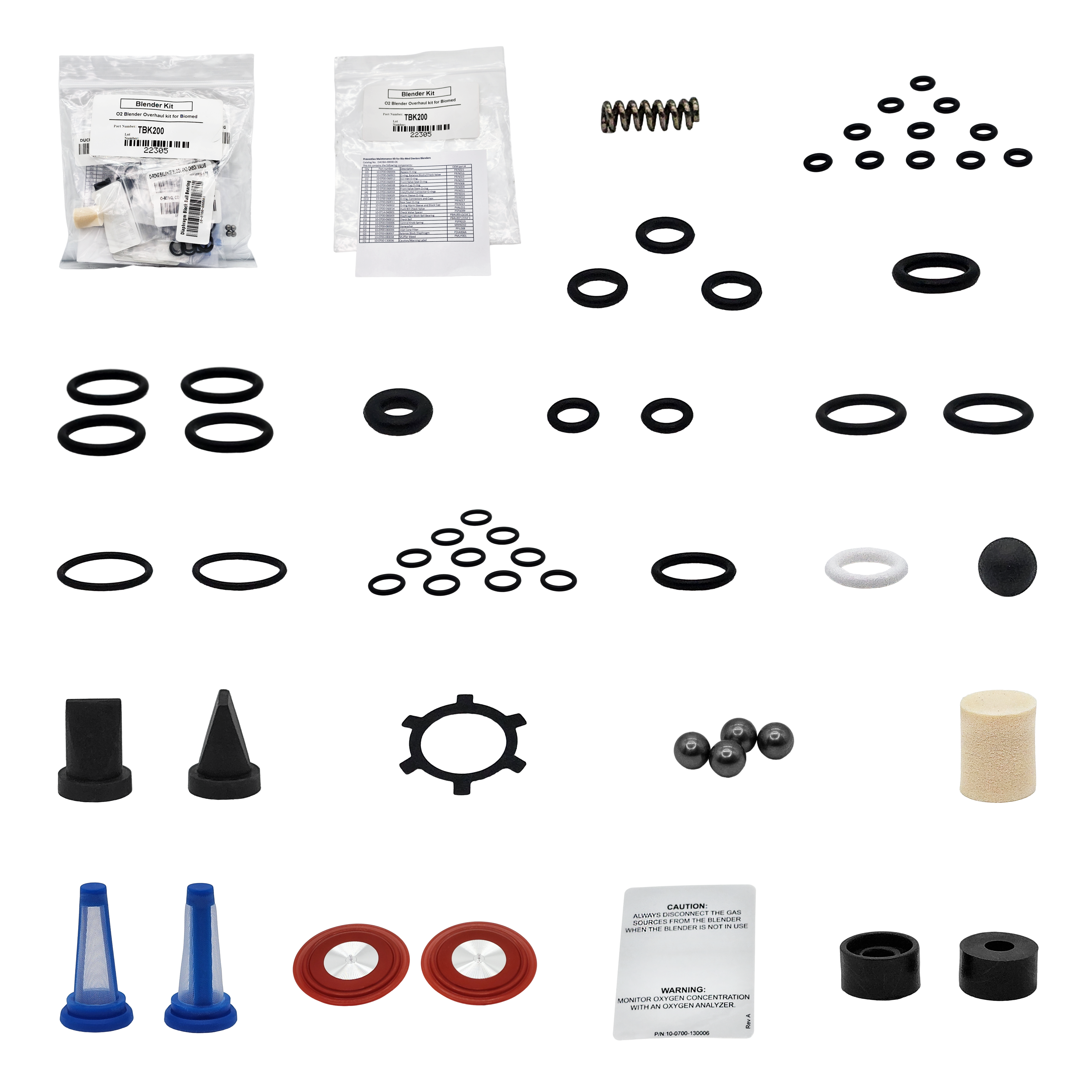

This preventative kit contains the following components:

 QUANTITY P/N DESCRIPTION OEM P/N
2 10-0700-060006  Bypass O-Ring PRIN021
11 10-0700-060001  O-Ring, Balance Blocks/Check Valve  RIN016
1 10-0700-060012 O2 Inlet O-Ring PRIN023
1 10-0700-060003 Front Valve Seat O-Ring PRIN013
2 10-0700-060008 Alarm Cap O-Ring PRIN008
1 10-0700-060005 Front Valve Stem O-Ring PRIN004
4 10-0700-060004 Inlet/Outlet Connector O-Rings PRIN011
2 10-0700-060009 Alarm Sleeve O-Ring PRIN016
11 10-0700-060010  O-Ring, Connectors & Caps PRIN010
1 10-0700-060011 Rear Seat O-Ring  PRIN017
3 10-0700-060002  O-Ring Alarm Sleeve & Block Cap PRIN023
2 10-0700-060014 Duck Bill Check Valve PVAL031
2 10-0714-040001 Check Valve Spacer PSPA009
4 10-0700-080003 Diaphragm Block Ball Bearing (3/16") PBAL003
1 10-0700-060013 Check Ball  (7/32") PBAL007
1 10-0700-030006  Control Knob Spring PSPR019
1 10-0700-080002  Star Washer MRIN010
2 10-0700-080006  Inlet Cone Filter PFIL008
2 10-0700-080007 Balance Block Diaphragm PDIA004A
1 10-0700-080004 Muffler Bleed PMUF001
1 10-0700-130006  Caution/Warning Label


*  Refer to the blender service manual for the correct procedure for replacing the above components.

**  Assembled in USA
