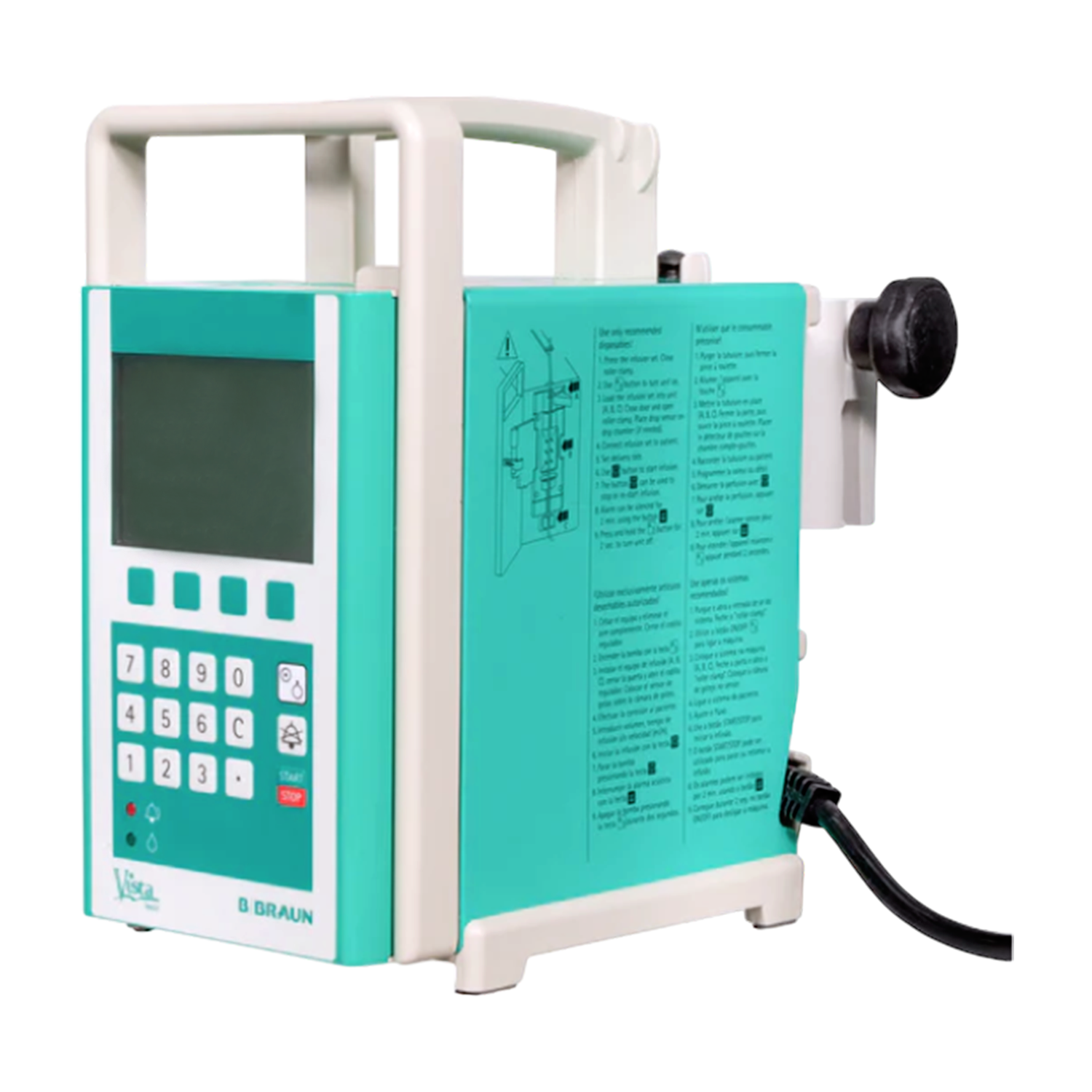

The B. Braun Vista Basic serves as a volumetric infusion pump designed to ensure a precise and uninterrupted flow of both parenteral and enteral fluids. It is equipped with a membrane keypad for operation and features a liquid crystal display that provides users with information about the delivery rate and operational guidance. With the intrafix system, the standard delivery rate ranges from 0.1 to 999.9 ml/h, while the Vista Pump Set allows for a range of 0.1 to 800 ml/h. Widely utilized in outpatient settings, this pump boasts a robust and dependable design. It offers various essential therapies like continuous, piggyback, and program mode, along with a selection of cost-effective, straight line gravity sets.
- Robust design of mechanical components ensures maximum durability.
- Linear peristaltic pump.
- Can be operated as a stand-alone unit or integrated into an intensive care unit.
- Battery provides at least 3 hours of operation at the highest delivery rate.
- Easy to use, teach, and learn.
- Using a drop sensor eliminates the need for pre-setting a VTBD in continuous mode and senses upstream occlusions and empty solution containers.
- Manufacturer: B. Braun
- Part Number: (OEM): Vista Basic
- Category: Infusion Pumps
- Accessories: None
- Condition: Refurbished
- Weight: 6.8lbs.
- Warranty: 6 Months
- Height: 9.4 in (24 cm)
- Width: 5.5 in (14 cm)
- Depth: 7.8 in (20 cm)
- Weight: 6.8lbs (3.1 kg)
- Linear peristaltic volumetric infusion pump
- VAC: 100-120 VAC
- Hz: 50-60 Hz
- Watts: 13 Watts
- Leakage Current: Max 30μA
- Type: Nickel–cadmium (rechargeable)
- Amp Hours: 1.2Ah
- Volts: 7.2V
- Operating Time: ≈3.5 hours at 125 mL/hr
- Charge Time: Approx. 16 hours
- Infusion Rates:
- Intrafix Tubing: 0.1 to 999.9 mL/h
- Vista Tubing: 0.1 to 800.0 mL/h
- KVO Rate: 1 mL/h or selected rate, whichever is lower
- Flow Rate Accuracy: ±5% measurement time 8h5, temp. 71.6°F
- Air-in-Line, Low Battery, Plug In Now, Bag Empty, Downstream Occlusion, Door Open, Pump Stopped, KVO, Unit Malfunction
- Air-in-Line Alarm:
- Air bubble size 0.3mL (Can be set from 0.01 to 0.3 mL in service) or 1.5mL/hr (Can be set from 0.5 to 3.5 mL/hr in service program)
- Continuous and Piggyback Modes, Program Mode for variable infusions, Ramp/Taper Mode for TPN infusions and Delay A Mode for postponing infusion start and finish
- User option to retain last Continuous and Piggyback Mode data upon power up. Permanent data retention in Program and Ramp/Taper Modes after pump is turned off
- Operating Temperatures:
- Operating: 64.4° F to 95° F, 10.15 PSI to 15.37PSI
- Non-Operating: -13° F to 131° F, 10.15 PSI to
- 15.37 PSI
