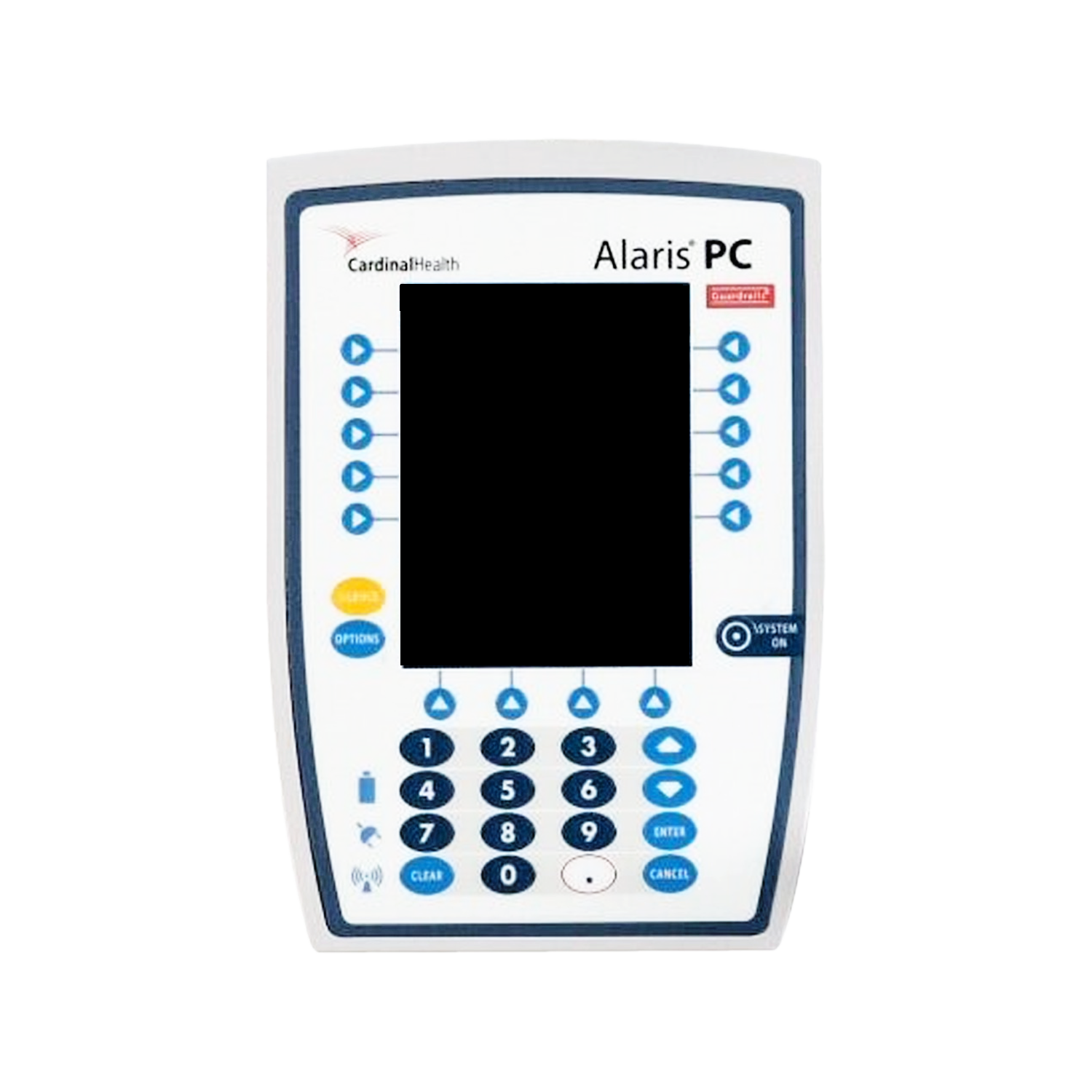

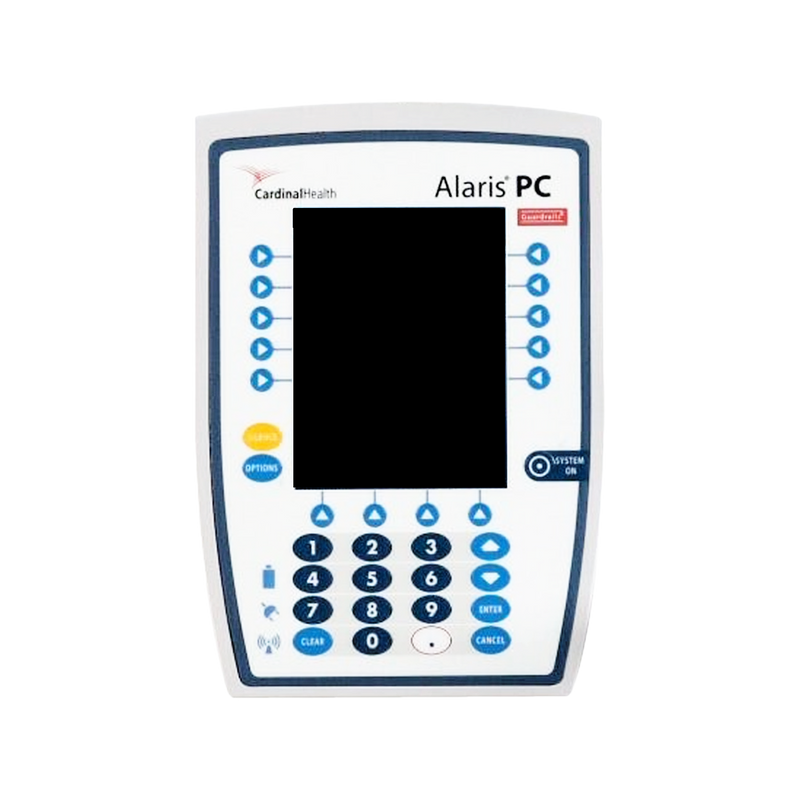

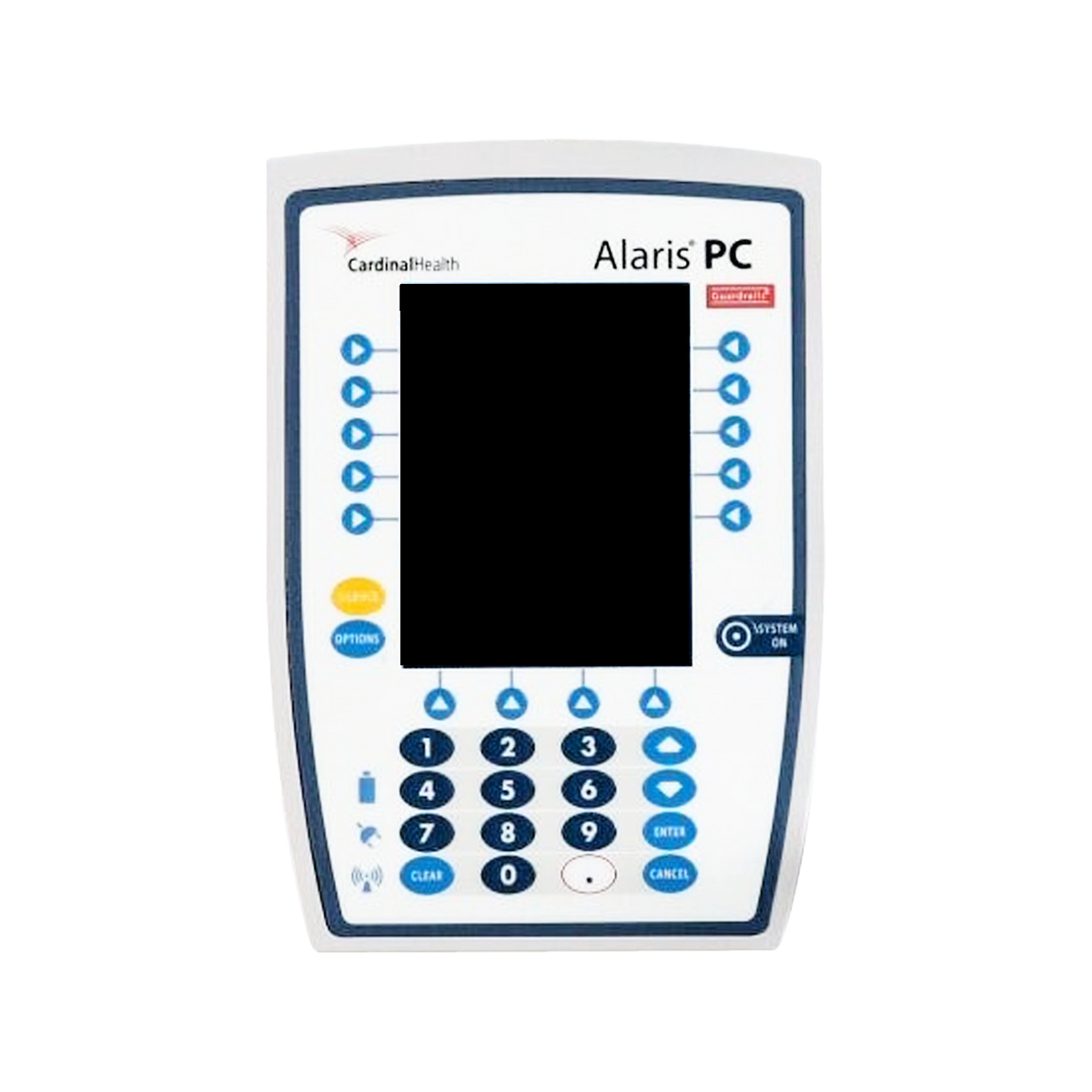

Alaris/CareFusion 8015 PCU 4.7" Screen

Out of stock
LEAD TIME: Estimated Ship Time: 7-10 Days
WARRANTY: 6 Months

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

The Alaris / BD CareFusion 8015 PC Unit serves as the fundamental control system, offering a user-friendly interface for programming infusions and monitoring activities. By streamlining processes at the point of care, it effectively reduces complexity. The display on the Alaris PC Unit employs color to clearly convey crucial information related to programming, infusion, monitoring, and hospital-specific policies. To enable seamless communication between the Alaris System and Alaris Systems Manager, the Alaris PC is equipped with a wireless network card. This wireless capability facilitates efficient data transfer and integration of the Alaris PCU System and Alaris Systems Manager into the existing network infrastructure of healthcare facilities.

The Alaris / BD CareFusion PC 8015 POC serves as the key component of the Alaris medley system, facilitating seamless connectivity with other modules. Acting as the system's central module, it employs the advanced Guardrails Suite MX alongside the Guardrails Point-Of-Care software and v9 Operating System software. With its vibrant color screen, wireless functionalities, and intuitive interface, the Alaris PC 8015 POC offers a user-friendly experience.


  • Wireless connectivity
  • Powerful analytics
  • Exceptional versatility
  • Increased protection for IV safety


  • Manufacturer: Alaris/BD Carefusion
  • Part Number: (OEM): 8015LS
  • Category: Infusion Pumps
  • Accessories: None
  • Condition: Refurbished
  • Weight: 7.2lbs.
  • Warranty: 6 Months
  • Dimensions:
    • Screen: 4.7"
    • Height: 8.8 In (22.4 cm)
    • Width: 6.9 In (17.5 cm)
    • Depth: 9 In (22.9 cm)
    • Weight: 7.2lbS (3.2 kg)
  • Exceptional Versatility:
    • A common user interface simplifies IV administration by standardizing pump, syringe and PCA on one platform
    • Monitoring can be added with the Alaris SpO2 and EtCO2 modules, allowing the clinician to automatically pause PCA infusions if patients fall below target respiratory level
    • The Alaris Auto-ID module offers a unique IV barcoding solution that attaches directly onto the Alaris System

  • Increased Protection for IV Safety:
    • Guardrails Suite MX software is the most comprehensive safety software available
    • The wirelessly enabled software is available on every device
    • Provides the right protection for every infusion by double-checking dose and duration, as well as delivery rate, protecting critical infusions like chemotherapy

  • Powerful Analytics:
    • Guardrails software allows you to convert data into meaningful information, so you can quickly identify opportunities for clinical and operational improvement
    • With Guardrails CQI Reporter, you have the tools to spot subtle trends, measure the effectiveness of your IV formularies and best practices, and continuously optimize patient care

  •  Battery:
    • Battery run time is a function of the number of modules attached and module activity. With a new, fully charged battery, the system operates as follows before a “BATTERY DISCHARGED” message occurs:
    • 6 Hours: with one Pump module infusing at 25 mL/h
    • 6 Hours: with one Pump module infusing at 25 mL/h and one Auto-ID module
    • 3 Hours: with four Pump modules infusing at 25 mL/h
    • 3 Hours: with four Pump modules infusing at 25 mL/h and one Auto-ID module
    • 4.5 Hours: with one active SpO2 module
    • 6 Hours: with one Syringe module or PCA module infusing at 5 mL/h
    • 3 Hours: with four Syringe modules, or one PCA module and three Syringe modules, infusing at 5 mL/h
    • 4 Hours: with one active EtCO2 module

  • Communication Data Port:
    • RS-232 with an RJ45 connector

  • Memory:
    • The System configuration/data set is stored in compact flash memory along with operating software.
    • The events and error logs are stored in the onboard flash memory in the Alaris PC unit and modules. This is a nonvolatile memory and can be held indefinitely or until replaced with new data and not lost when power is turned off or the battery is in a weak/discharged state.
    • Module-specific parameters are stored for 8 hours when the system is turned off. After 8 hours of continuous off-time, or if a module is detached, module-specific trend data (if applicable) and module-specific operating parameters are automatically purged. If a PCA, SpO2 or EtCO2 module is detached and replaced with another PCA, SpO2, or EtCO2 module, its module-specific trend data is purged.
    • Memory will not be lost due to a weak/discharged battery as data is stored on flash memory as noted.
    • Compact flash memory: Stores application software, audio wave files, DataSet, and hex files data for operating system software, all needed to operate the Alaris PC Unit System.
    • On-board flash memory: Contains software needed to initially turn on the Alaris 8105 System. Stores boot software applications, and events, errors and battery logs.
