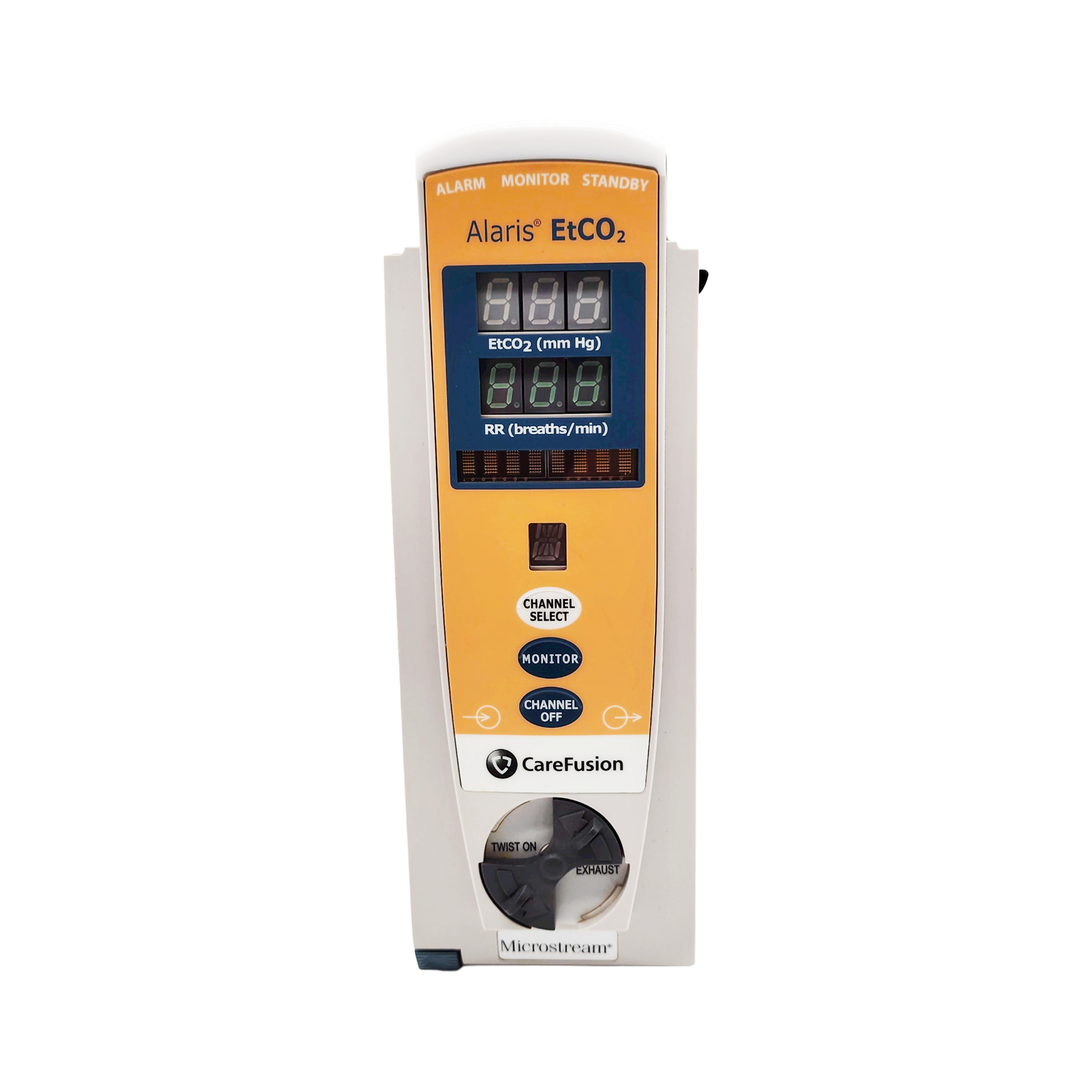

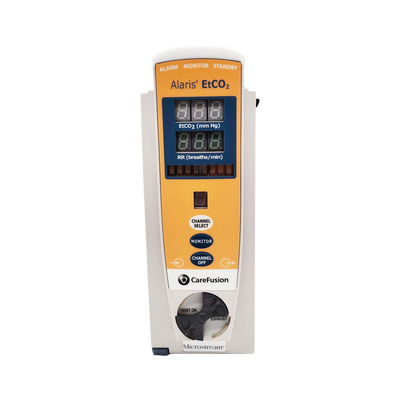

DESCRIPTION:

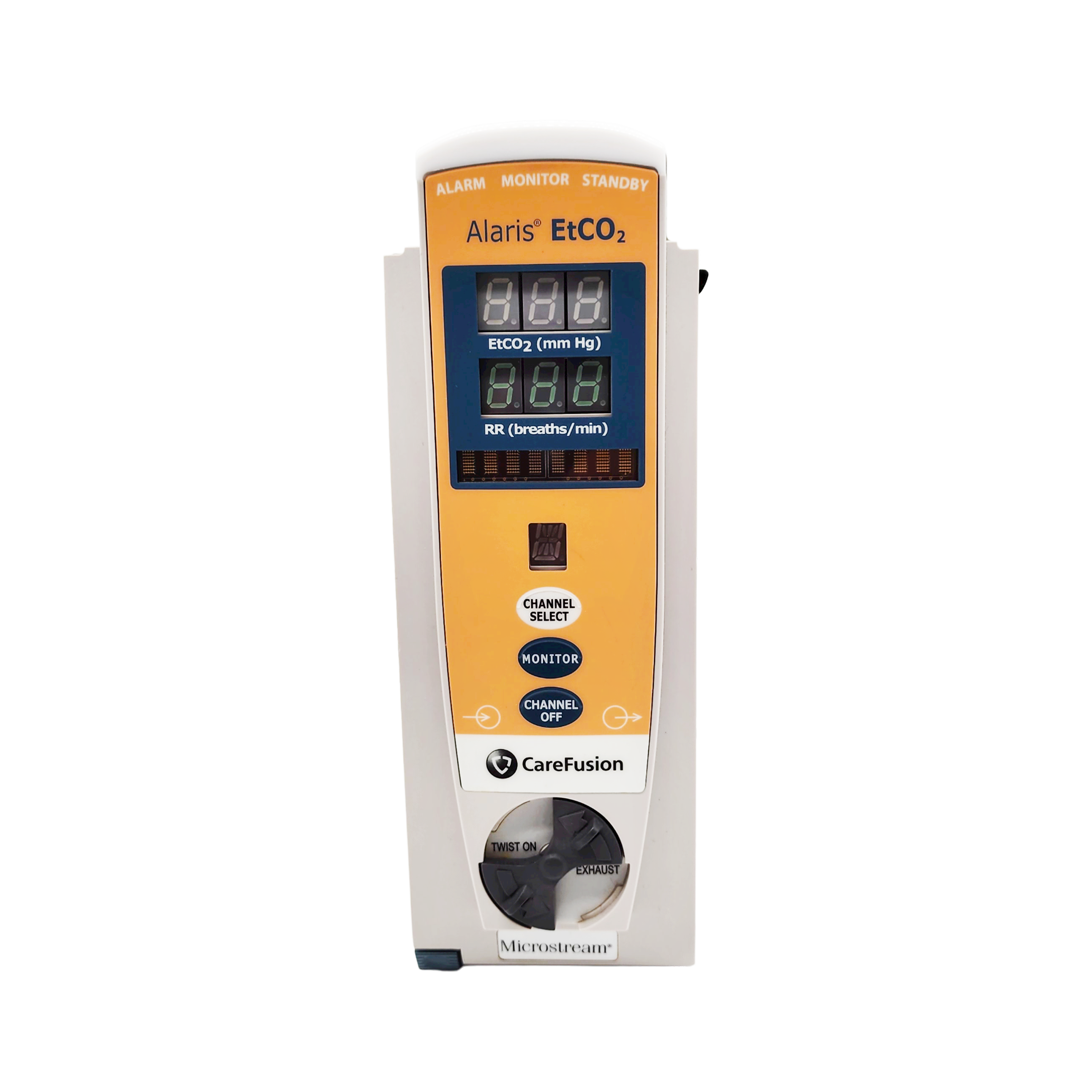

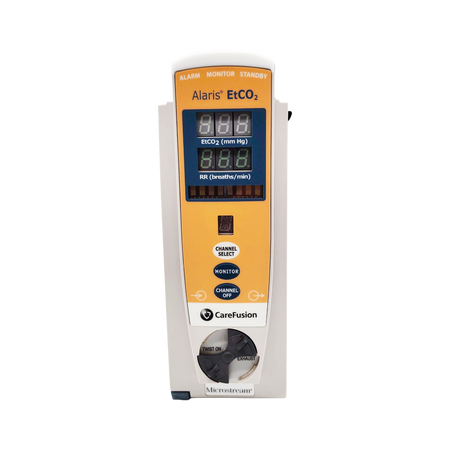

The Alaris/BD CareFusion 8300 EtCo2 Module offers continuous monitoring of the respiratory system. This module includes an Infusion Pump which tracks various parameters such as CO2 levels, exhaled CO2 (EtCO2), inhaled CO2 (FiCO2), and respiratory rate.

The EtCO2 Module from Carefusion utilizes a side-stream capnography technique. To measure CO2, the Disposables collect a small portion of the inhaled and exhaled gases either from the ventilator disposable or directly from the patient, and deliver it to the monitor. This process also removes any moisture or patient secretions from the collected sample using a micro stream inline filter, while preserving the shape of the CO2 waveform. The Alaris CareFusion 8300 EtCO2 Module releases a gas sample through a micro-sample cell of 15 Microliters.

FEATURES:

• Reduce risks of opioid infusions.
• Customizable profiles add flexibility across all patientcare areas.
• Utilizes sampling lines that cuts the need for moving parts, external sensors or routine calibration.
• Provides patient EtCO2 sampling products to meet abroad spectrum of sampling needs available with or without oxygen delivery.

SPECIFICATIONS:

• Manufacturer: Alaris
• Part Number: (OEM): 8300

• Category: EtCO2 Module
• Accessories:
• Condition: Refurbished
• Weight: 7.2 lb.
• Warranty: 6 Months


• Dimensions
• Height: 8.8 in
• Width: 6.9 in
• Depth: 9 in
• Weight: 7.2 lbs


• Environmental Operating Conditions
• Atmospheric Pressure: 525 - 4560 mmHg (700 - 6080hPa)
• Relative Humidity: 20 - 90 % Noncondensing
• Temperature Range: 41 - 104°F (5 - 40 °C)


• Environmental Storage / Transportation Conditions
• Atmospheric Pressure: 375 - 760 mmHg (500- 1013 hPa)
• Relative Humidity: 5 - 85% Noncondensing
• Temperature Range: -4 - 140°F (-20 - 160°C)


• Flow Rate
• Nominally 50 mL/min -7.5 +15 mL/min


• Warm Up Time
• 30 seconds


• Power Requirements
• 100 - 240V ~, 50/60 Hz, 150 VA MAX\


• Internal Power Source
• Operating time: 5.5 hours


• Measurement Range
• EtCO2: 0-99 mmHg FiCO2: 0-99 mmHg Respiratory Rate: 0-150 bp
