Ohio, Amvex, Bird, Vyaire, Carefusion, Maxtec Small Block Blender Overhaul Kit
Regular Price
$125.00
Couldn't Load Pickup Availability
Listing Terms & Conditions
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Blender Overhaul Kit For Small Block Ohio, Amvex, Bird, Vyaire, Carefusion, Maxtec O2 Blenders
DESCRIPTION:
Preventive Maintenance Kit for Bio-Med Devices Blenders Catalog No. DAOBA-00000-05
- Manufacturer:
-
Part Number (OEM): DAOBA-00000-05
- SKU: TBK100
- Category: O2 Blender Parts
- Condition: New - Compatible
- Weight: 2.0 lb.
- Warranty: 12 Months

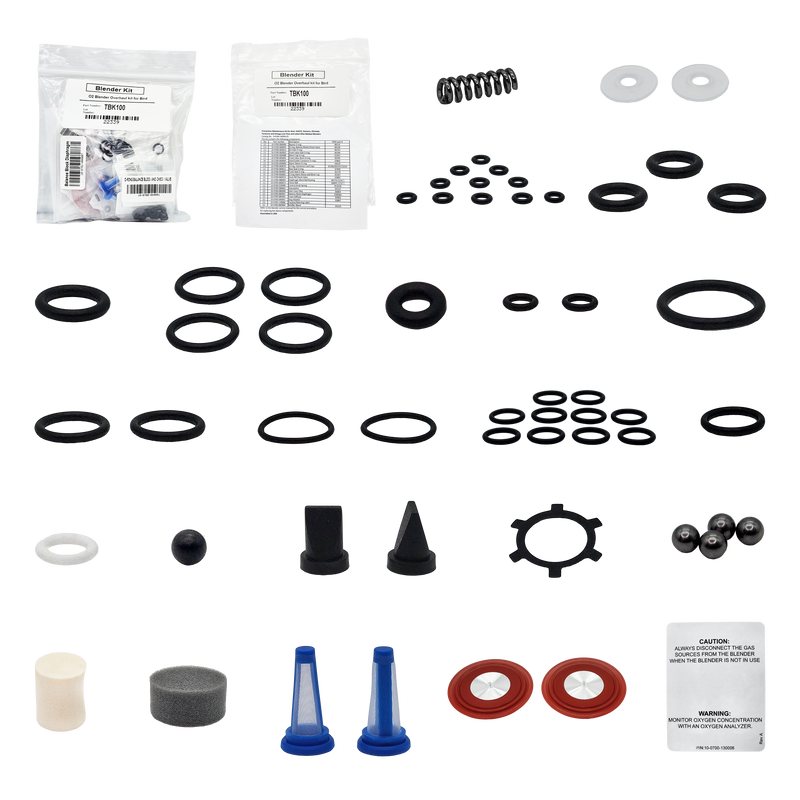

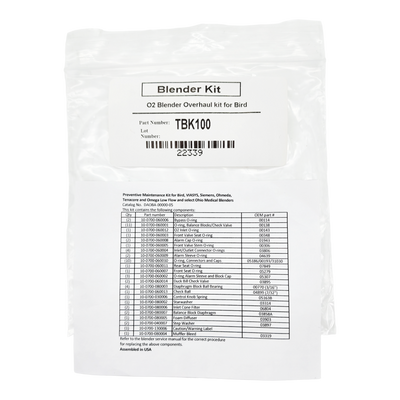

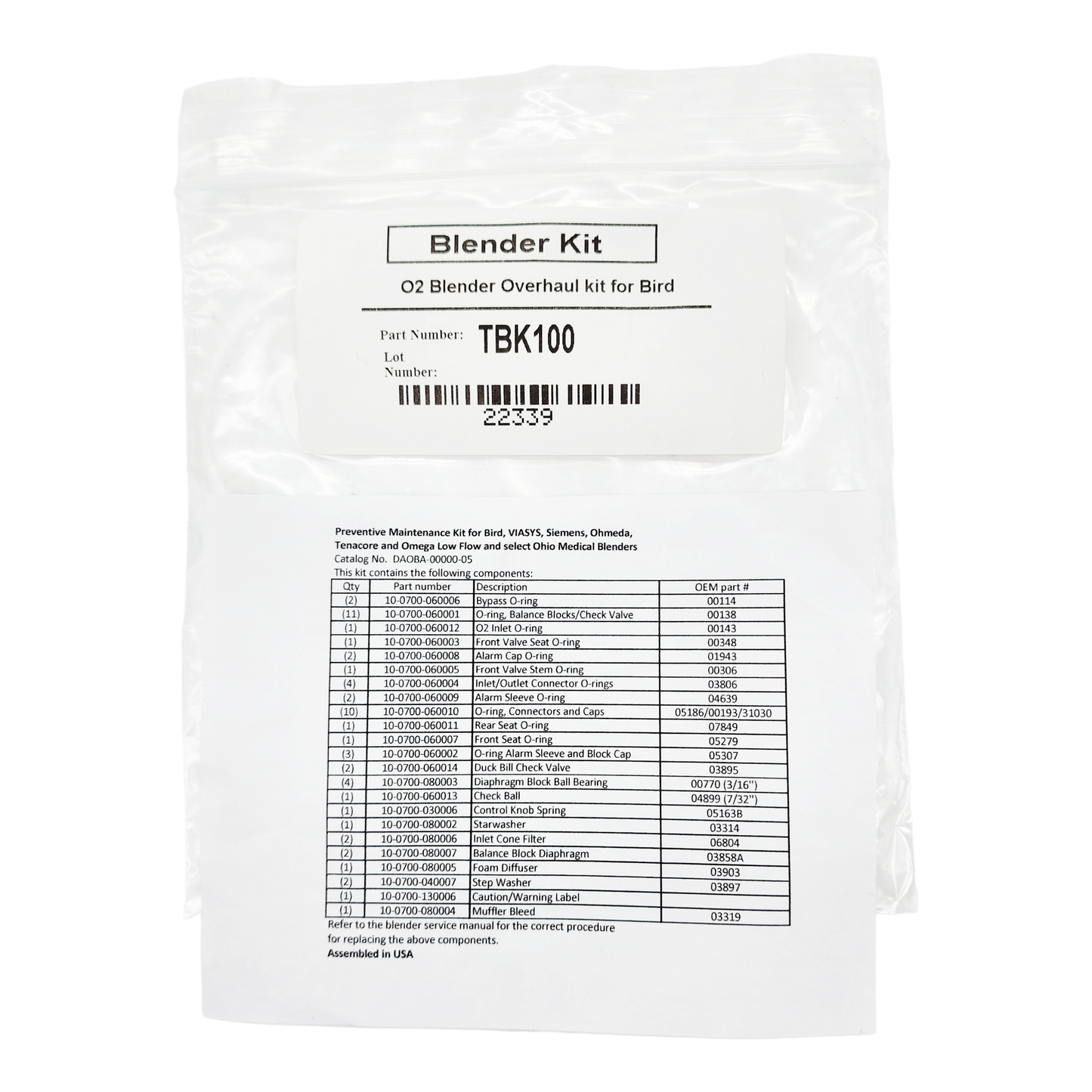

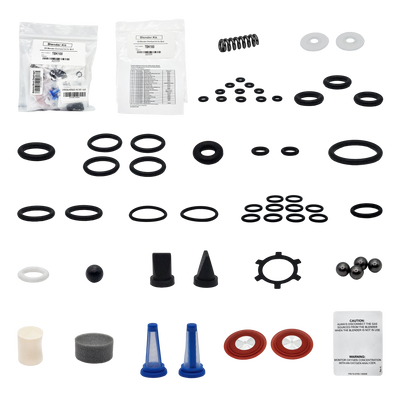

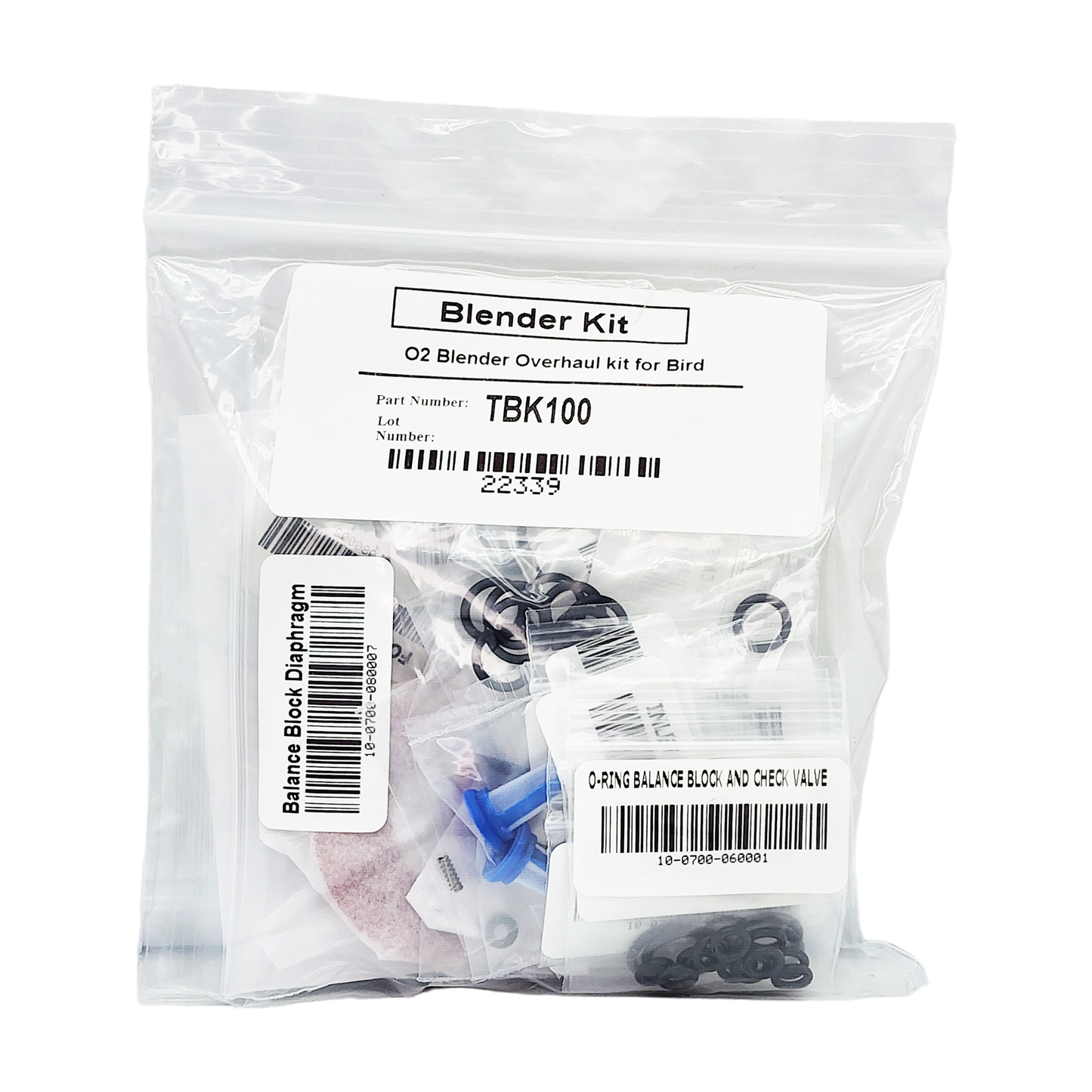

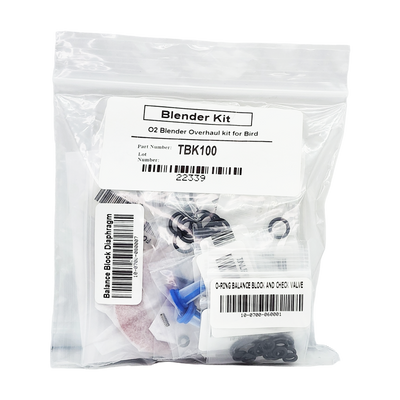

INCLUDED:
This preventative kit contains the following components:
| QUANTITY | P/N | DESCRIPTION | OEM P/N |
| 2 | 10-0700-060006 | Bypass O-Ring | 00114 |
| 11 | 10-0700-060001 | O-Ring, Balance Blocks/Check Valve | 00138 |
| 1 | 10-0700-060012 | O2 Inlet O-Ring | 00143 |
| 1 | 10-0700-060003 | Front Valve Seat O-Ring | 00348 |
| 2 | 10-0700-060008 | Alarm Cap O-Ring | 01943 |
| 1 | 10-0700-060005 | Front Valve Stem O-Ring | 00306 |
| 4 | 10-0700-060004 | Inlet/Outlet Connector O-Rings | 03806 |
| 2 | 10-0700-060009 | Alarm Sleeve O-Ring | 04639 |
| 10 | 10-0700-060010 | O-Ring, Connectors & Caps | 05186/00193/31030 |
| 1 | 10-0700-060011 | Rear Seat O-Ring | 07849 |
| 1 | 10-0700-060007 | Front Seat O-Ring | 05279 |
| 3 | 10-0700-060002 | O-ring Alarm Sleeve & Block Cap | 05307 |
| 2 | 10-0700-060014 | Duck Bill Check Valve | 03895 |
| 4 | 10-0700-080003 | Diaphragm Block Ball Bearing (3/16") | 00770 |
| 1 | 10-0700-060013 | Check Ball (7/32") | 04899 |
| 1 | 10-0700-030006 | Control Knob Spring | 05163B |
| 1 | 10-0700-080002 | Star Washer | 03314 |
| 2 | 10-0700-080006 | Inlet Cone Filter | 06804 |
| 2 | 10-0700-080007 | Balance Block Diaphragm | 03858A |
| 1 | 10-0700-080005 | Foam Diffuser | 03903 |
| 2 | 10-0700-040007 | Step Washer | 03897 |
| 1 | 10-0700-080004 | Muffler Bleed | 03319 |
| 1 | 10-0700-130006 | Caution/Warning Label |
* Refer to the blender service manual for the correct procedure for replacing the above components.
** Assembled in USA
